Model Whirlpool MDE10DAACL ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL
04 - DOOR
06 - TUMBLER

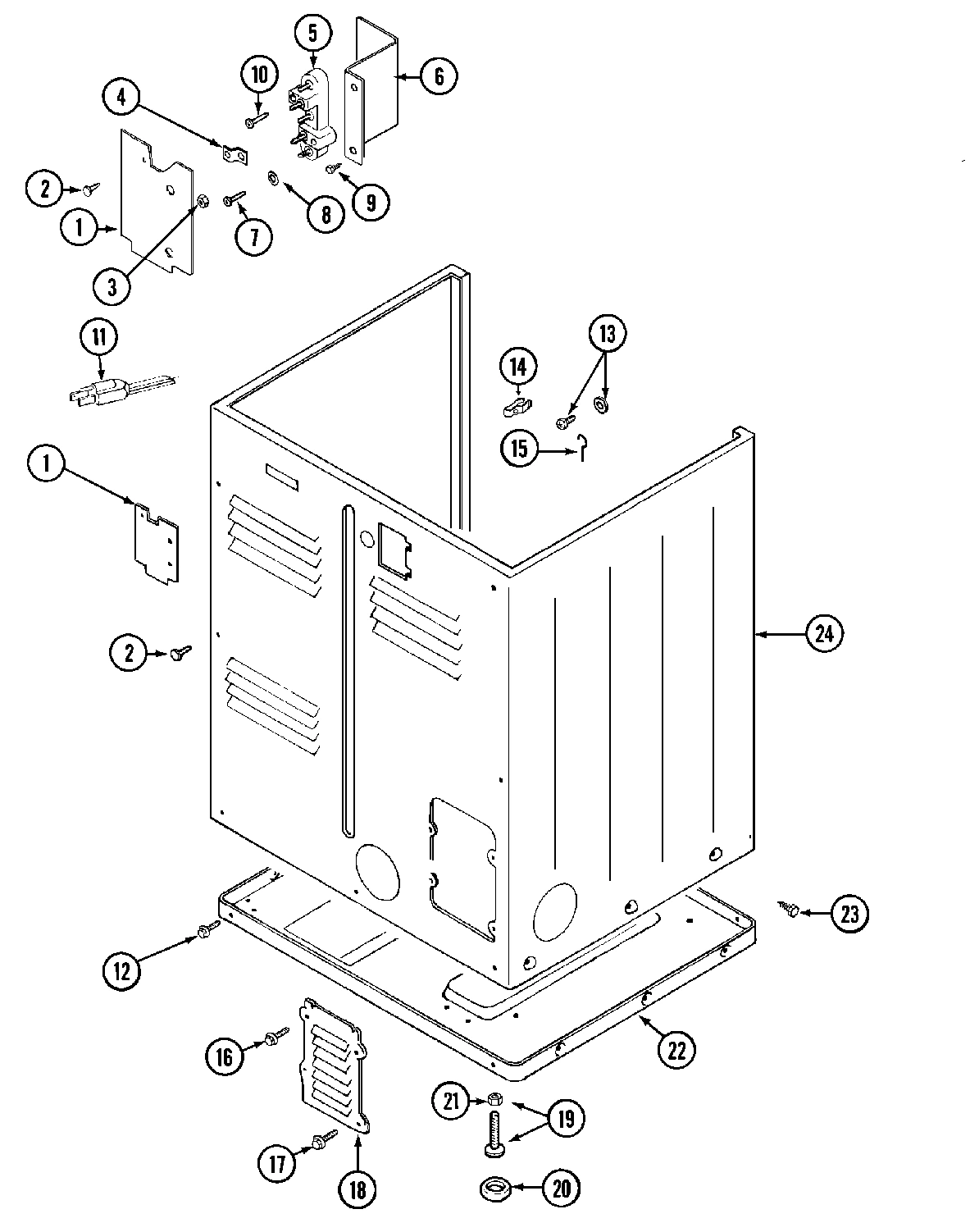

05 - CABINET (REAR)
07 - HEATER
08 - MOTOR DRIVE

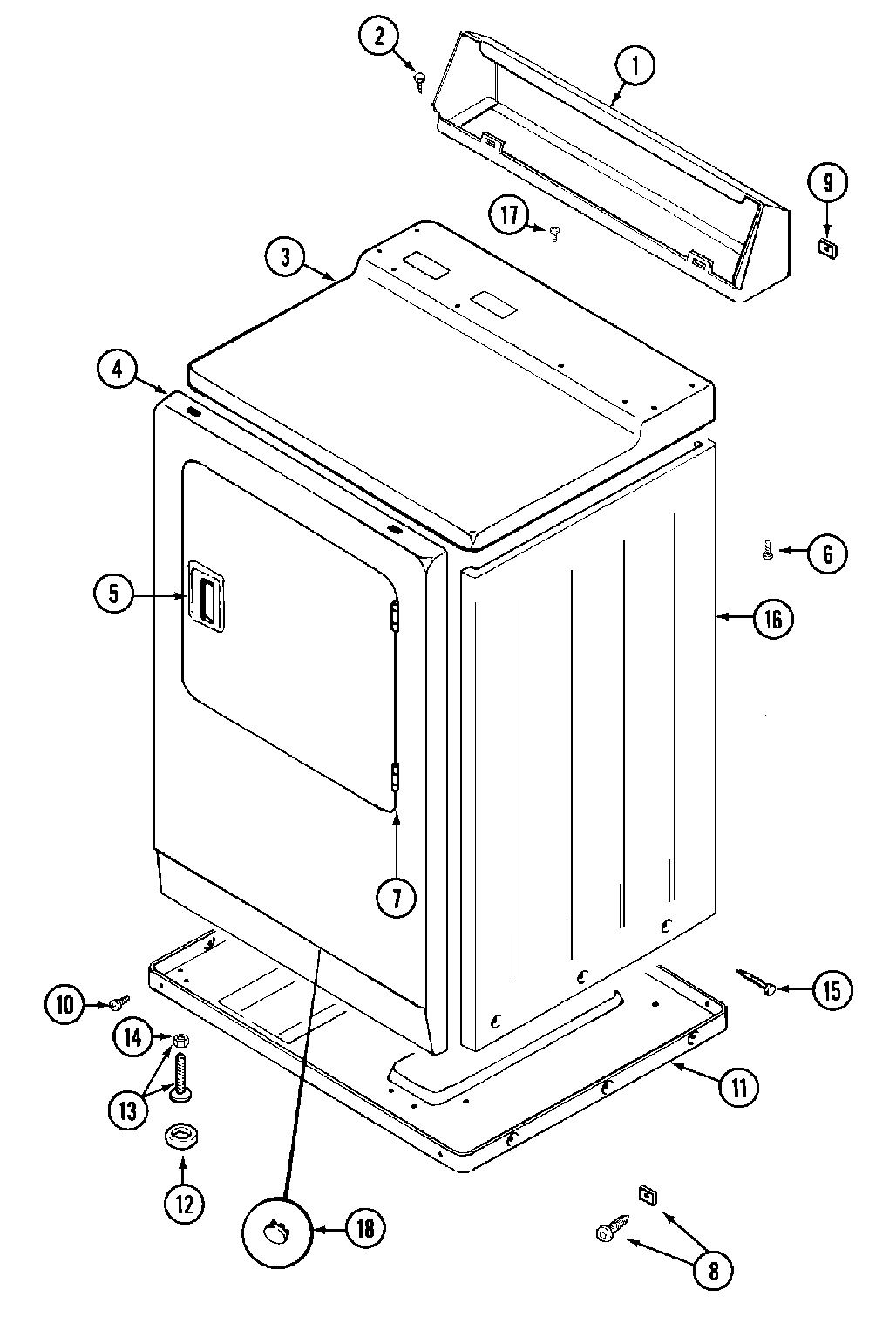

03 - CABINET (FRONT)

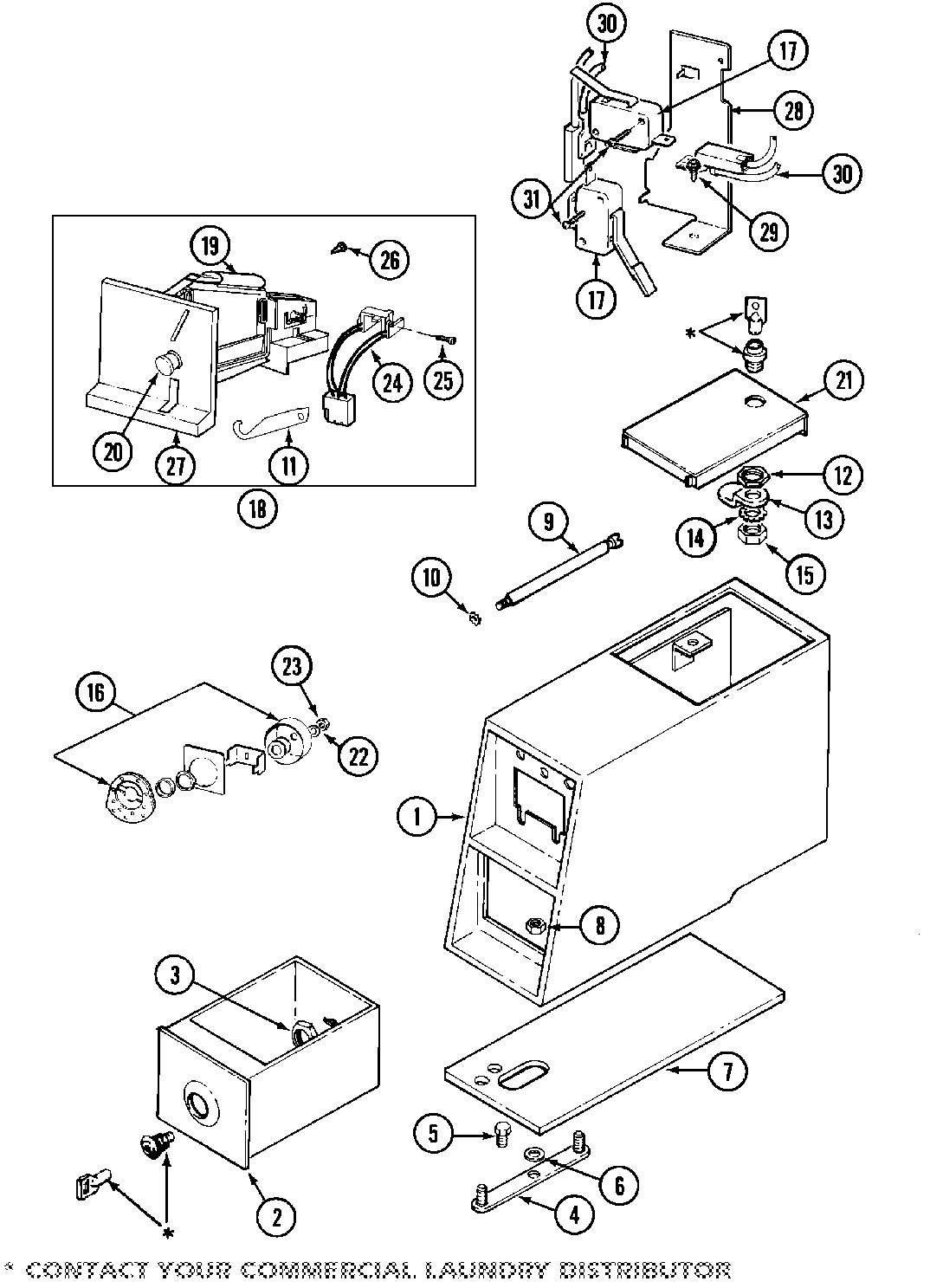

02 - CONTROL CENTER

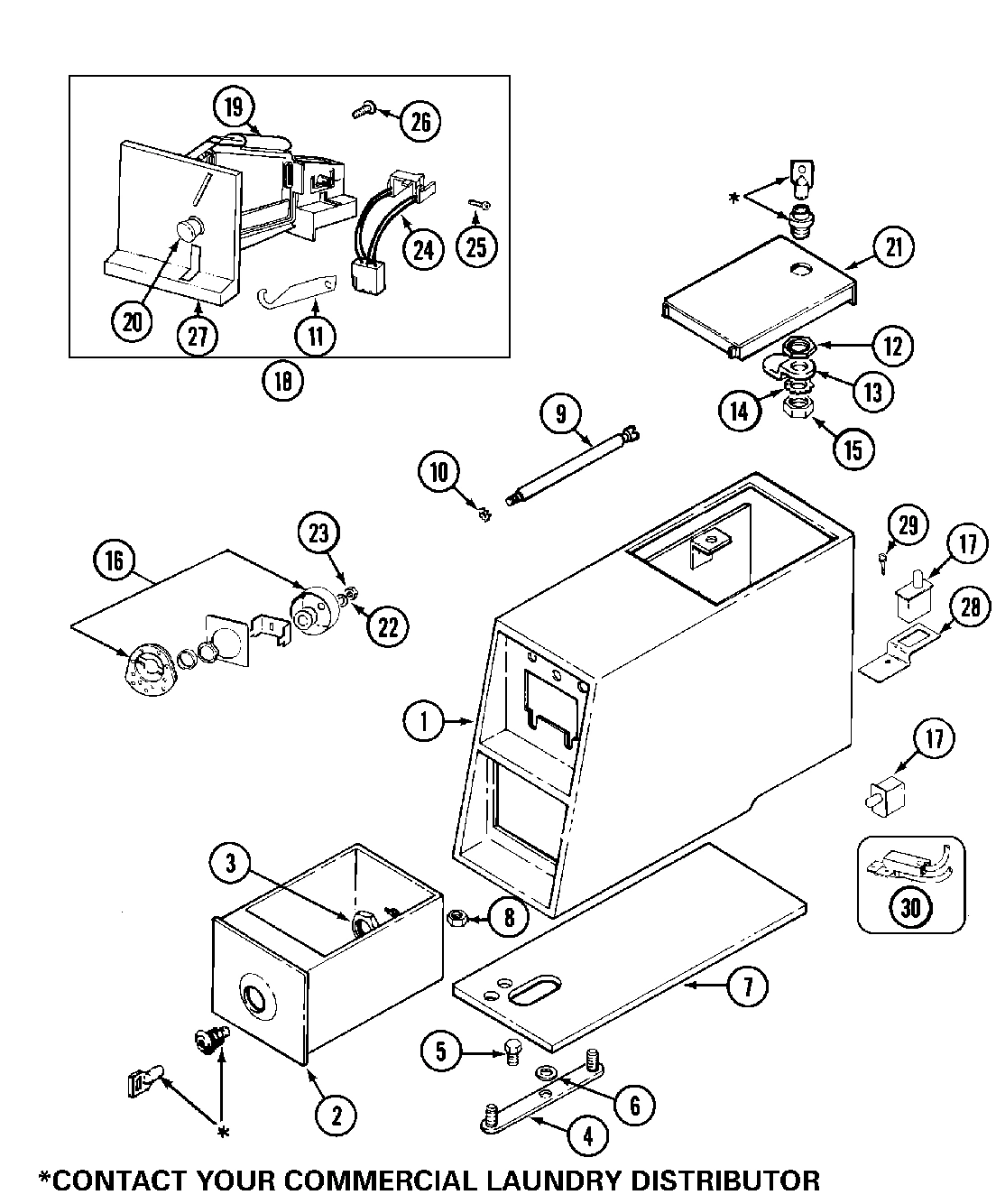

09 - CONTROL CNTR (SERIAL SUFFIX KB & AFTER)
Common parts from model Whirlpool MDE10DAACL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
001
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
001
(ALM) WPL 207940L Contact Us For Availability
001
COIN METER CASE (WHT) WPL 22001407 Contact Us For Availability
001
(ALM) WPL 22001408 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
002
COIN BOX (WHT) WPL 207912 Contact Us For Availability
002
(ALM) WPL 207912L Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001163 Contact Us For Availability
003
(ALM) WPL 33001164 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
(ALM) WPL 33001254 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
SCREW, TOP COVER TO CABNT. WPL 214354 Contact Us For Availability
006
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
008
SCREW & FASTENER ASSY. WPL 204439 Contact Us For Availability
008
THERMOSTAT, CYCLING (155) WPL 306967 Contact Us For Availability
008
THERMOSTAT, COOL DOWN WPL 308211 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
009
BOLT, LOCKING WPL 213035 Contact Us For Availability
010
SCREW, CABINET TO BASE WPL Y313561 Contact Us For Availability
010
SCREW, CABINET TO BASE WPL Y310632 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
011
BASE ASSY. WPL Y303361 Contact Us For Availability
011
THERMOSTAT,HI-LIMIT(CANADA) WPL 308217 Contact Us For Availability
011
SPRING, RETURN BUTTON WPL 216011 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
LEG & NUT WPL W10176519 No Longer Available
013
TUMBLER WPL 33001108 Contact Us For Availability
013
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
013
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
GROUND CLAMP & SCREW WPL 301548 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
015
WIRE, GROUND WPL 204807 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
018
COIN DROP ASSY (CANADA) WPL NLA Contact Us For Availability
018
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
018
PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
COVER, ACCESS WPL Y312951 Contact Us For Availability
018
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR START SWITCH, MOTOR START-PROD. WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR START SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
018
COIN DROP ASSY. WPL 207948 Contact Us For Availability
019
CONNECTOR, EDGEBOARD (4 PIN) WPL 314529 Contact Us For Availability
019
COIN DROP WPL 207947 Contact Us For Availability
019
COIN DROP (CANADA) WPL 207949 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
020
BUTTON, RETURN WPL 216200 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
DOOR, ACCESS (WHT) WPL 204216 Contact Us For Availability
021
(ALM) WPL 204216L Contact Us For Availability
023
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
023
IDLER ARM & SHAFT ASSY. WPL Y303945 Contact Us For Availability
023
NUT, LOCK CAM WPL 22001355 Contact Us For Availability
023
LOCKWASHER, DOUBLE ``D`` WPL 216203 Contact Us For Availability
024
OPTIC SWITCH ASSY. WPL 206799 Contact Us For Availability
025
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
026
KNOB, SELECTOR WPL 306938 Contact Us For Availability
026
SCREW, COIN DROP WPL 216068 Contact Us For Availability
027
PLATE, MOUNTING WPL 216010 Contact Us For Availability
028
BRACKET, SENSOR SWITCH WPL 22001404 Contact Us For Availability
030
HARNESS, WIRE (SENSOR SW) WPL 208045 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
031
SCREW, SENSOR SWITCH WPL 912012 Contact Us For Availability
033
BASE ASSY. WPL Y305084 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
× ![]()
