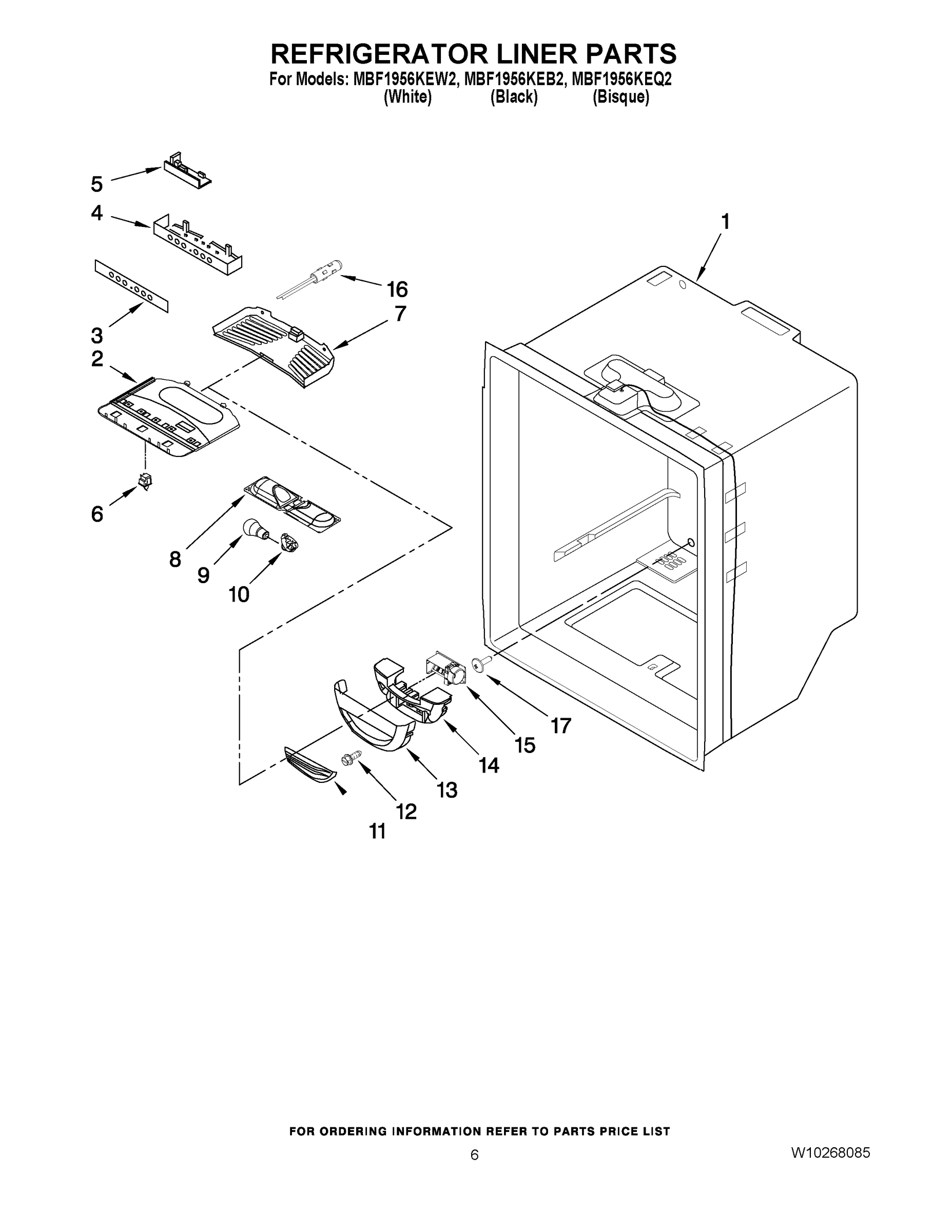

Model Whirlpool MBF1956KEQ2 REFRIGERATOR – Common Parts &amp; Diagrams

1

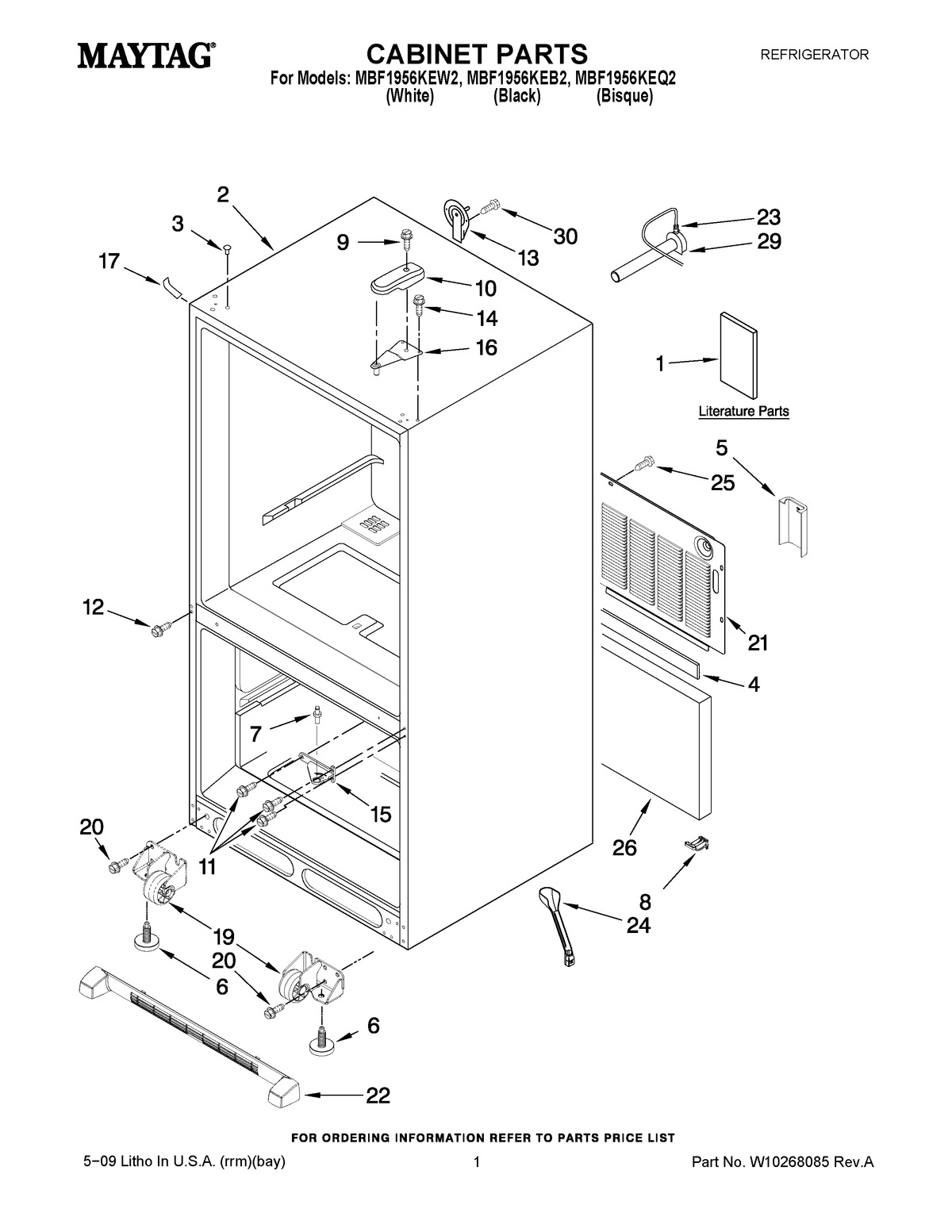

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

1

Use & Care Guide WPL W10175446 Contact Us For Availability

1

ENERGY GUIDE WPL W10183293 Contact Us For Availability

1

Tech Sheet WPL W10238840 Contact Us For Availability

1

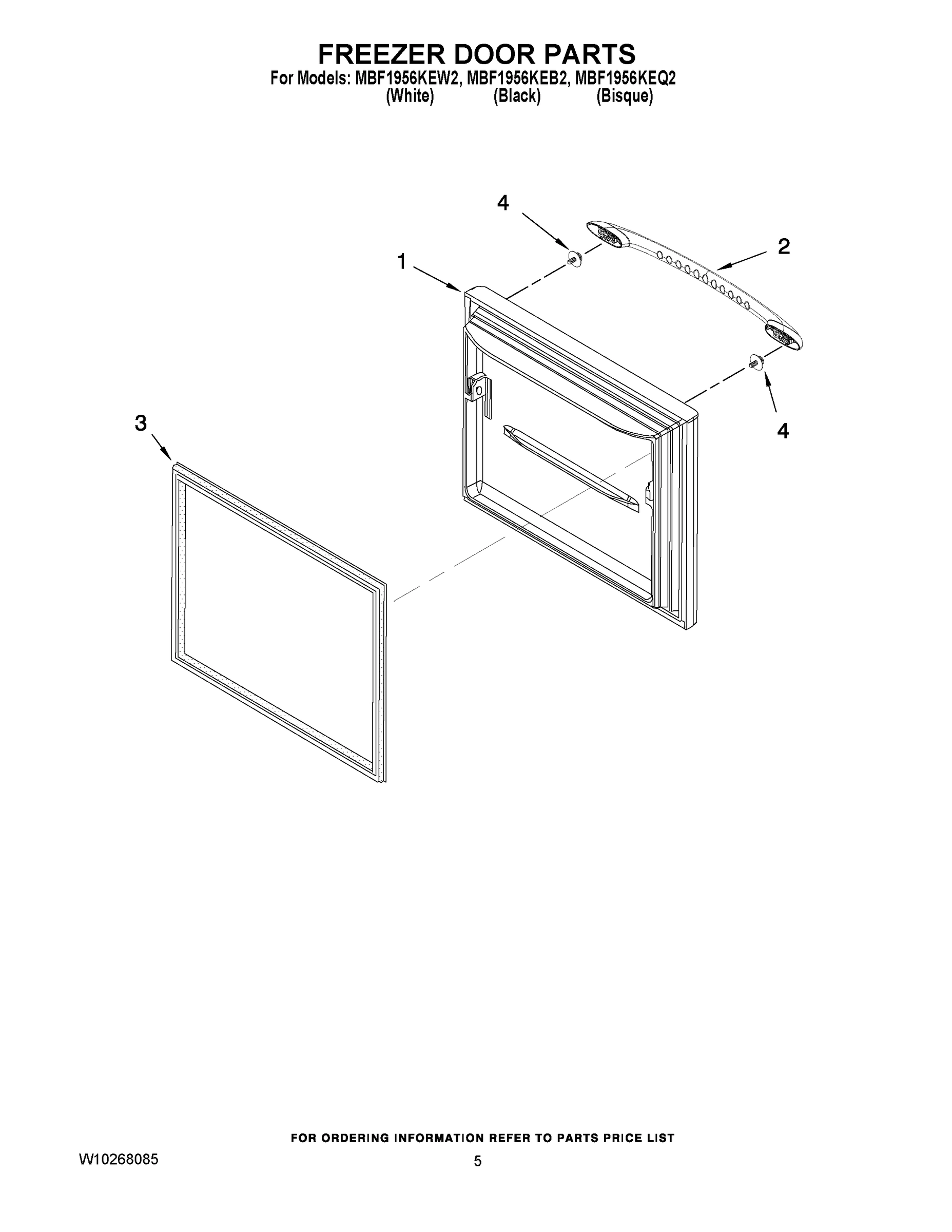

DOOR, FREEZER (BLACK) WPL 13092201BQ Contact Us For Availability

1

DOOR, FREEZER (BISQUE) WPL 13092201QQ Contact Us For Availability

1

DOOR, FREEZER (WHITE) WPL 13092201WQ Contact Us For Availability

2

W11120581 Whirlpool Refrigerator Water Tube In Stock WPL W11120581 $83.12

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $57.00

2

WPW10119651 Whirlpool Refrigerator Handle Backorder WPL WPW10119651 $138.85

2

Handle, Door (Black) WPL W10119653 Contact Us For Availability

2

TRIM, CRISPER WPL W10231339 Contact Us For Availability

2

Cabinet (Not a Servicable Part) WPL ARI4051A86 Contact Us For Availability

2

Handle, Door (Bisque) WPL W10119652 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $99.74

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $4.82

3

WPW10436247 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10436247 $224.68

3

WPW10443311 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10443311 $156.39

3

Clamp WPL 10526702 Contact Us For Availability

3

Plug, Button (3) (Black) WPL M0310731 Contact Us For Availability

3

Plug, Button (3) (Bisque) WPL M0310738 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

4

B5759655 Whirlpool Refrigerator Gasket Backorder WPL B5759655 $8.23

4

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.49

5

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $60.90

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $44.90

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $64.82

6

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.78

6

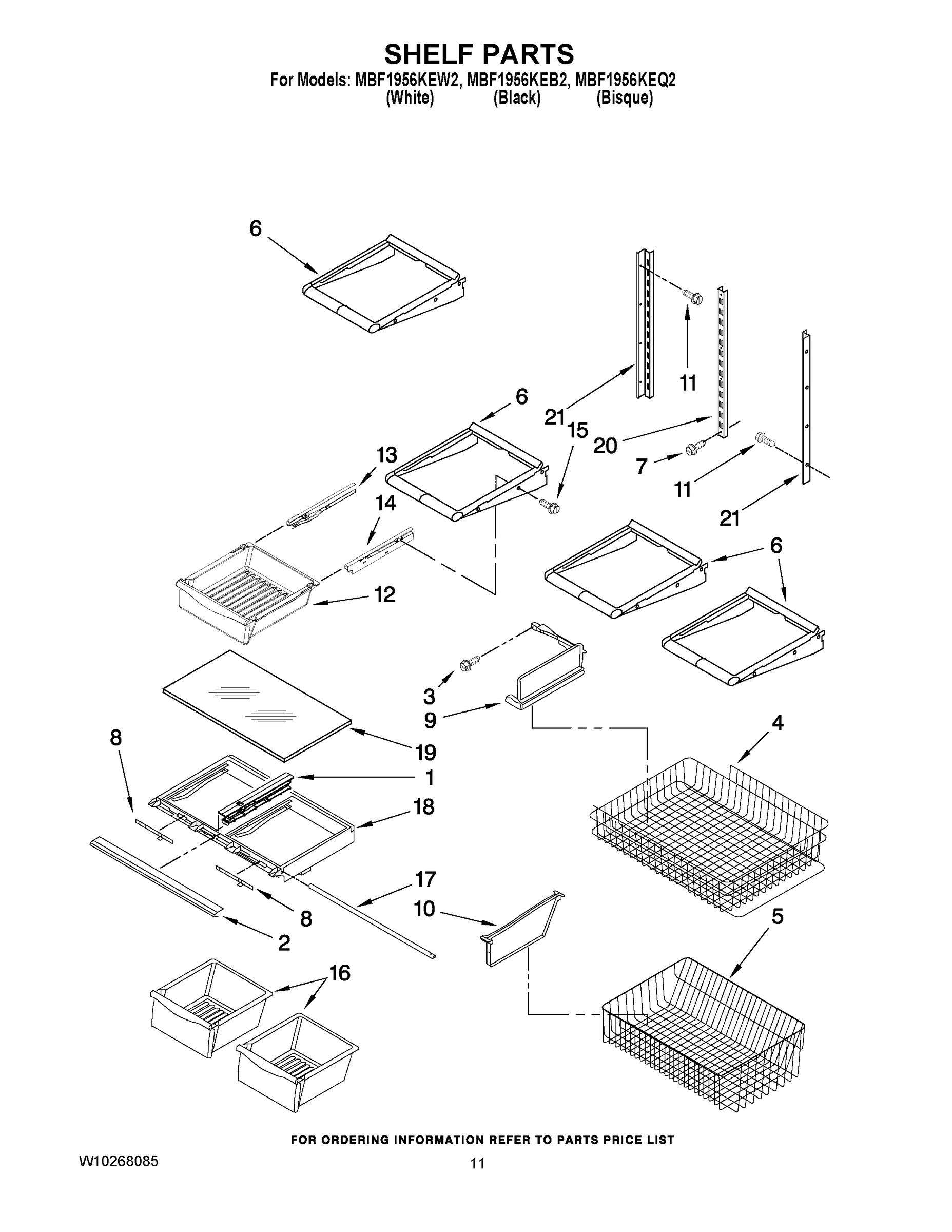

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $150.81

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.55

6

Tube, Discharge WPL W10217744 Contact Us For Availability

7

W10224241 Whirlpool Refrigerator Wire Harness Backorder WPL W10224241 $96.51

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $65.39

8

SWEEP, WATER VALVE WPL W10216614 Contact Us For Availability

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $7.98

9

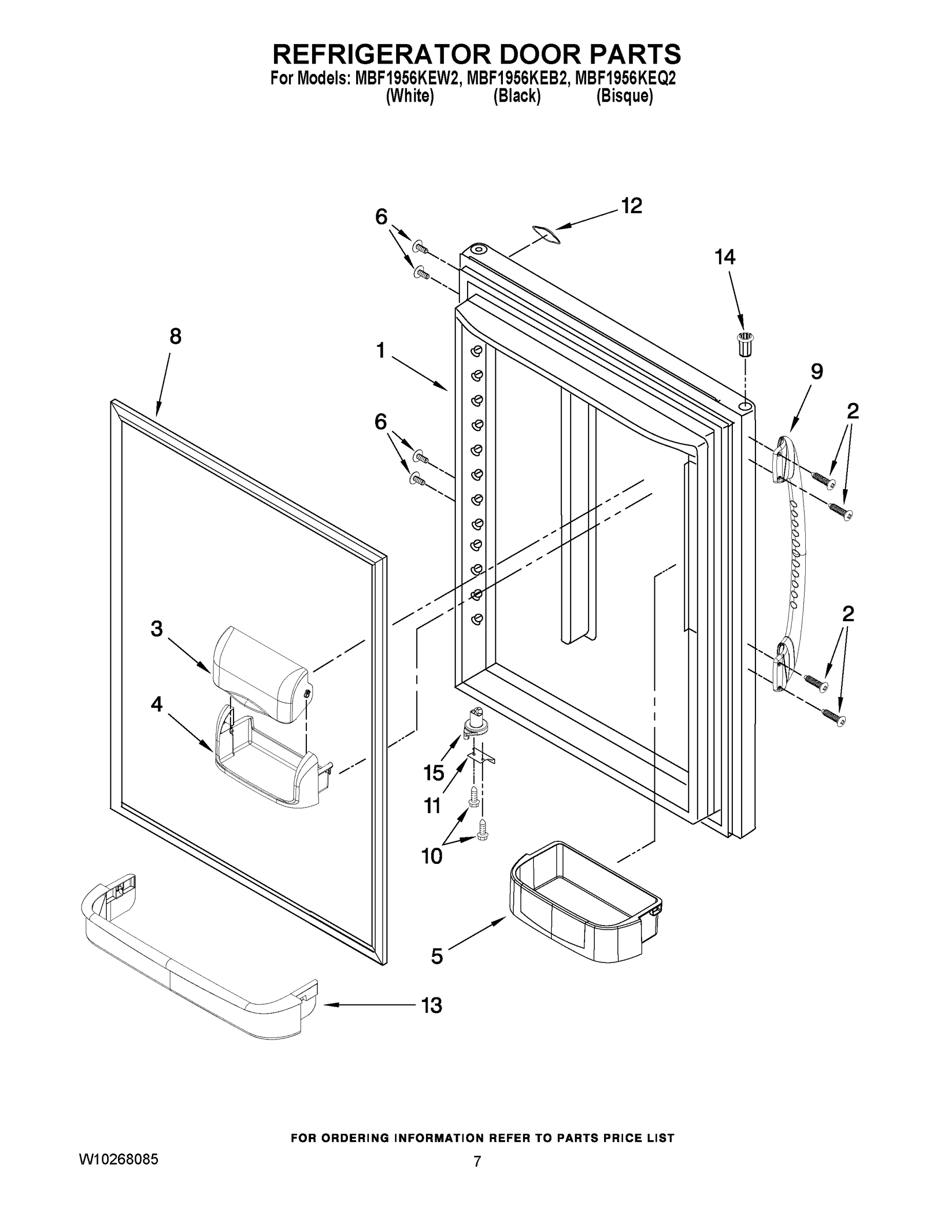

WP12781004W Whirlpool Refrigerator Handle Backorder WPL WP12781004W $148.47

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

9

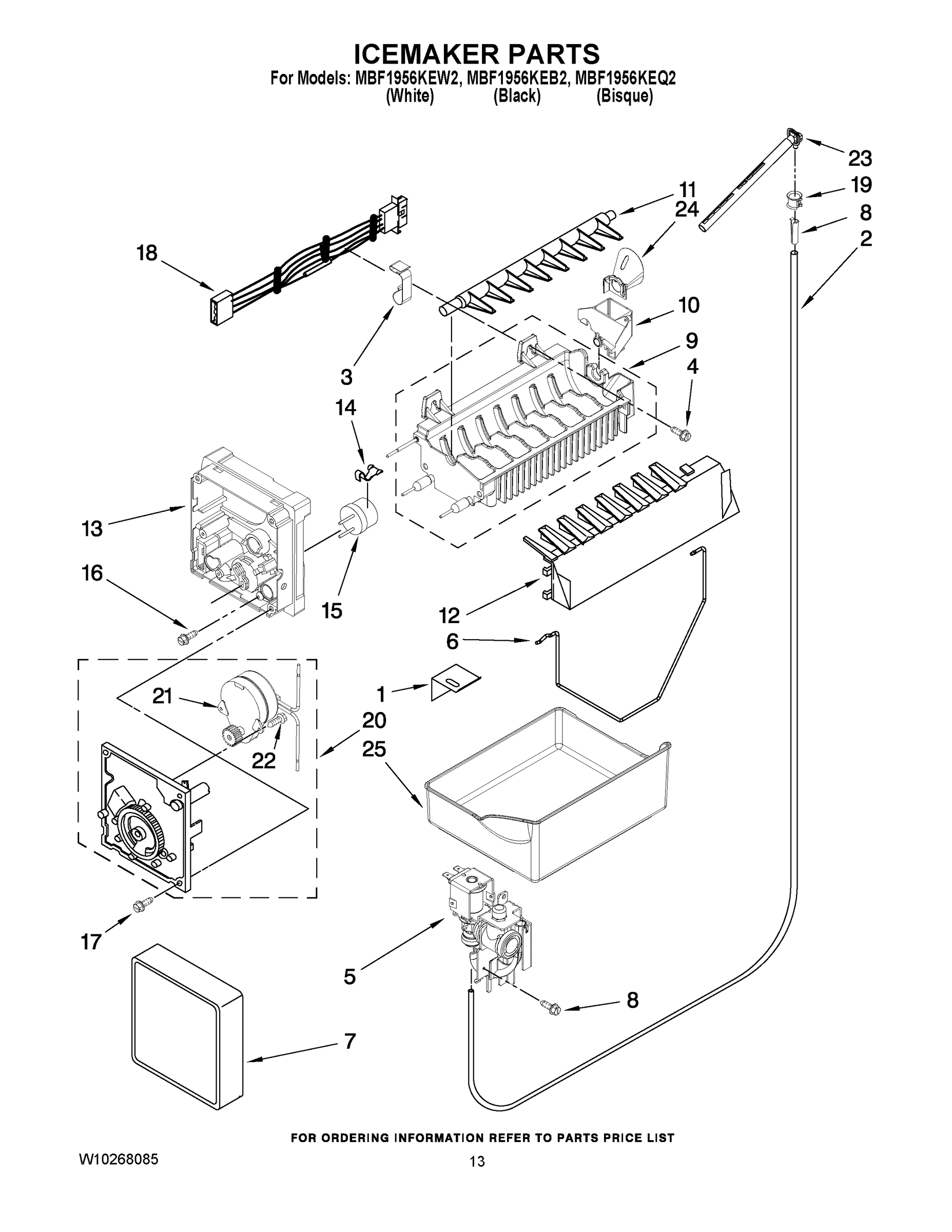

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $126.57

COVER, HINGE (BISQUE) WPL 12477601C Contact Us For Availability

11

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $7.27

11

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

11

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP2320150 Whirlpool Refrigerator Start Device In Stock WPL WP2320150 $76.03

WP67001308 Whirlpool Deli Drawer Backorder WPL WP67001308 $107.16

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $114.84

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $76.89

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

Retainer, Ref Door WPL 12690501 Contact Us For Availability

W11750607 Whirlpool Insulation Backorder WPL W11750607 $32.09

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.82

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $52.91

CLIP, EVAP. MOTOR WPL 13058002 No Longer Available

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $53.08

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $169.94

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

16

W10833528 Whirlpool Whirlpool Refrigerator Cr In Stock WPL W10833528 $102.10

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $70.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

Cover, Corner (Bisque) WPL 12587703C Contact Us For Availability

18

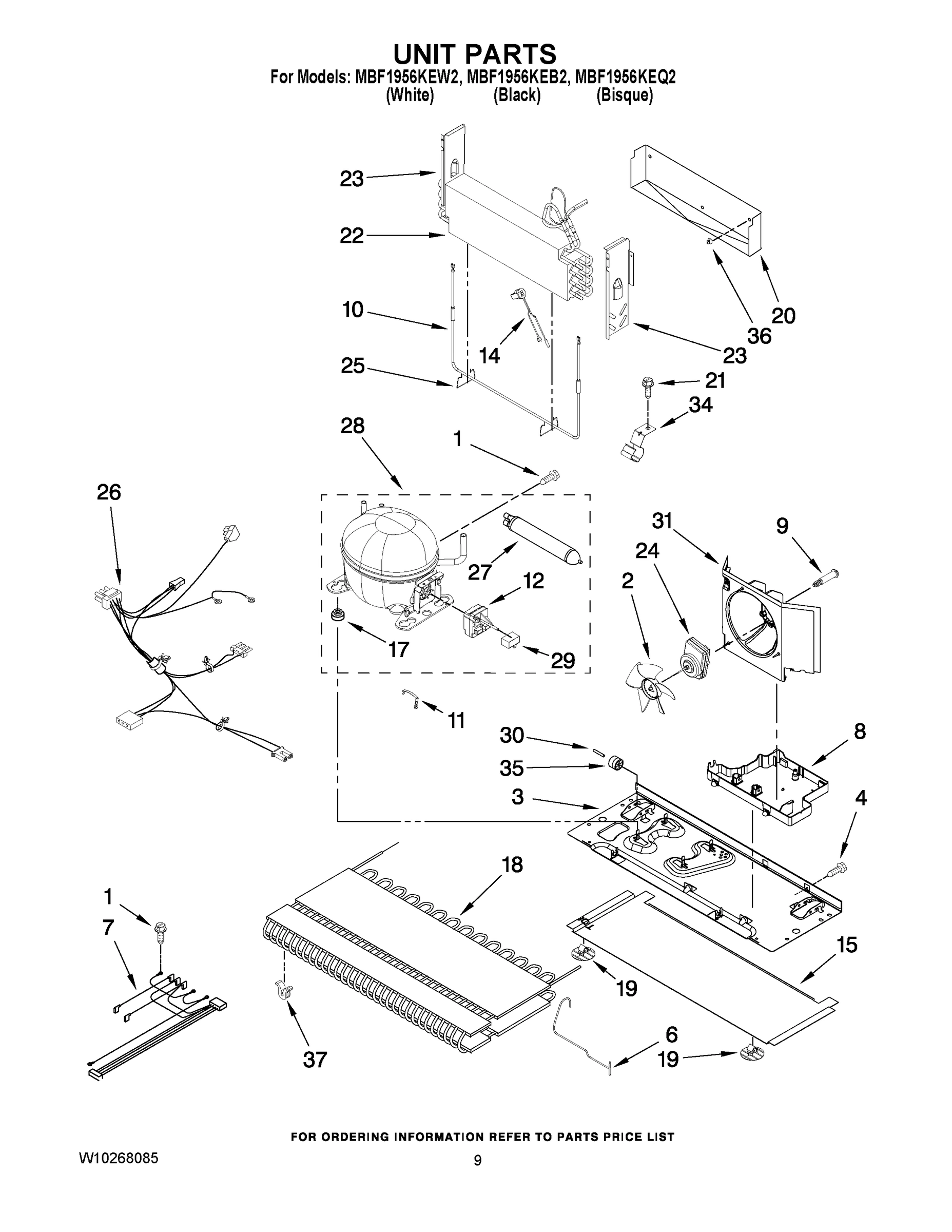

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $168.29

18

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $37.15

18

WPW10671240 Whirlpool Refrigerator Frame In Stock WPL WPW10671240 $99.91

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $94.87

WP67006877 Whirlpool Refrigerator Glass Shelf Backorder WPL WP67006877 $201.23

Roller Assembly WPL 12580304 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $5.02

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $102.30

Tray, Drip WPL 12225401WD Contact Us For Availability

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $134.45

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

Ladder, Side WPL 12710606 Contact Us For Availability

MOTOR (NOT AVAILABLE, ORDER No.20) WPL ARI4055A33 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WPW10534166 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534166 $76.18

WPW10534167 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534167 $74.57

GRILLE, TOE (BISQUE) WPL W10236651 Contact Us For Availability

Evaporator WPL 12726401 Contact Us For Availability

23

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

23

DAM (LEFT SIDE) WPL 12225602 Contact Us For Availability

23

Dam (Right Side) WPL 12225702 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $27.16

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $66.25

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $34.13

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

25

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

26

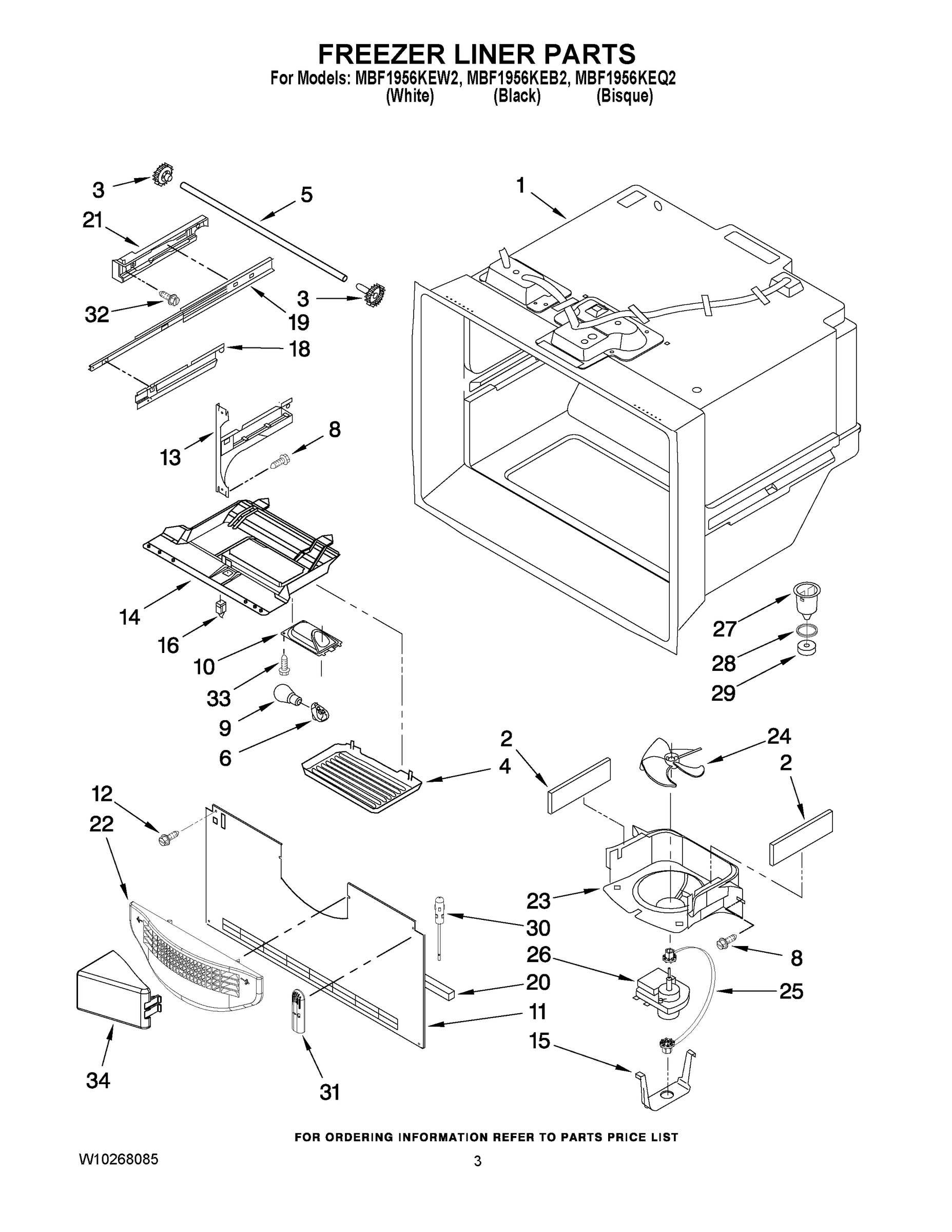

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $56.72

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $224.45

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 2 WPL W10130129 Contact Us For Availability

29

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $59.65

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $46.20

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.82

30

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $48.02

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

34

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $62.53

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $14.02

36

Clip, Evap (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, 10 OZ. STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability

Valve, Access (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.25 Ozs. (R-134A) WPL ARI4054A67 Contact Us For Availability
