Model Maytag M1BXXLZYW00 REFRIGERATOR – Common Parts & Diagrams

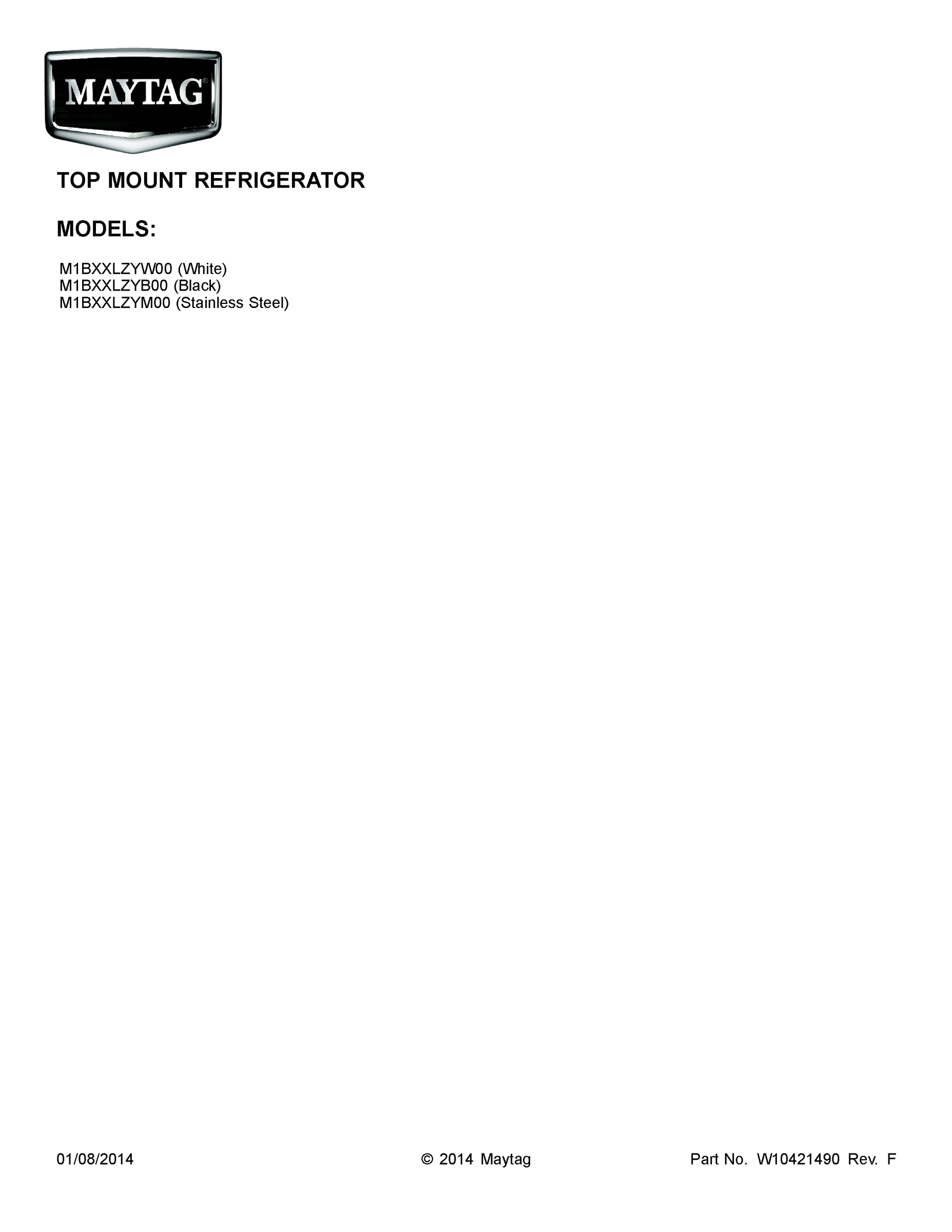

01 - COVER SHEET

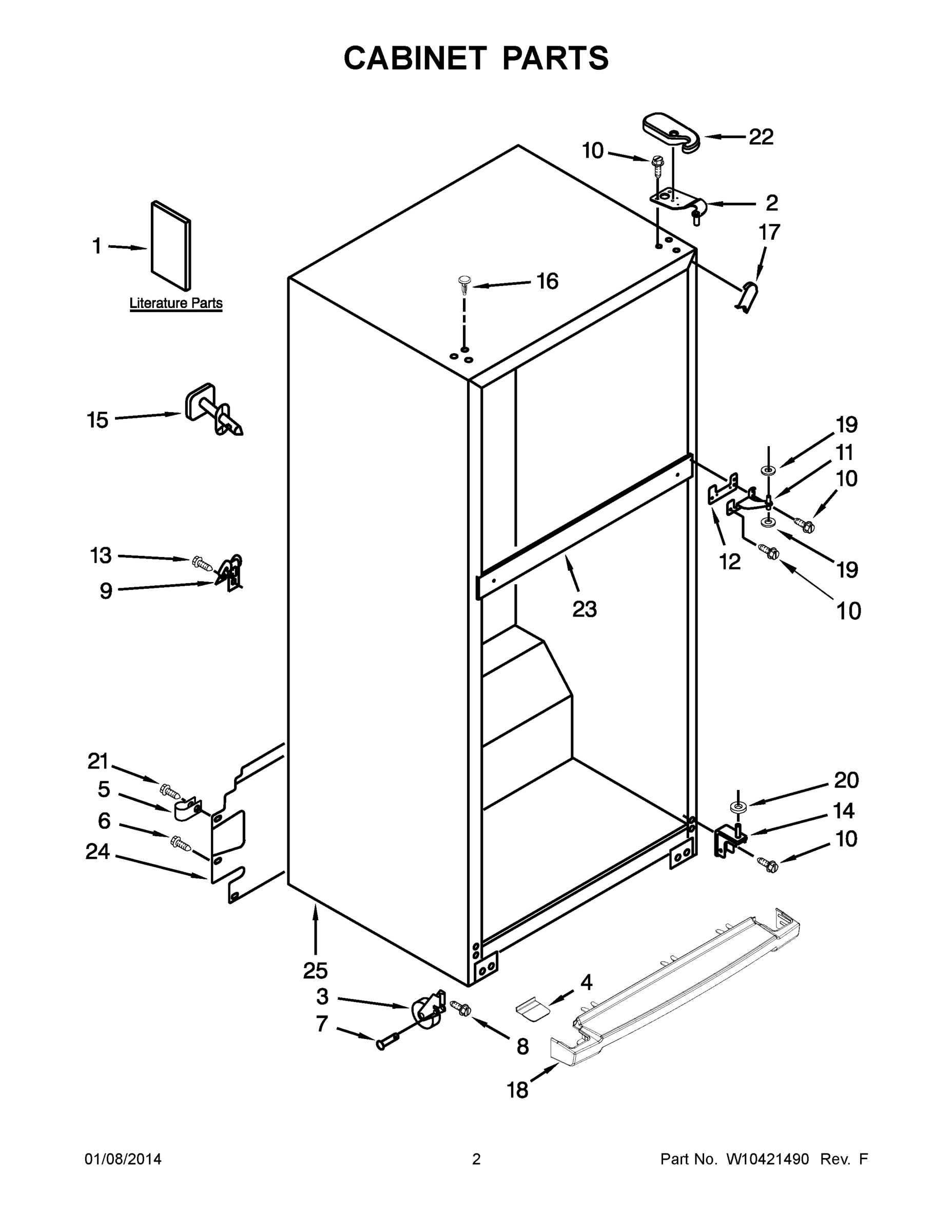

02 - CABINET PARTS
03 - LINER PARTS

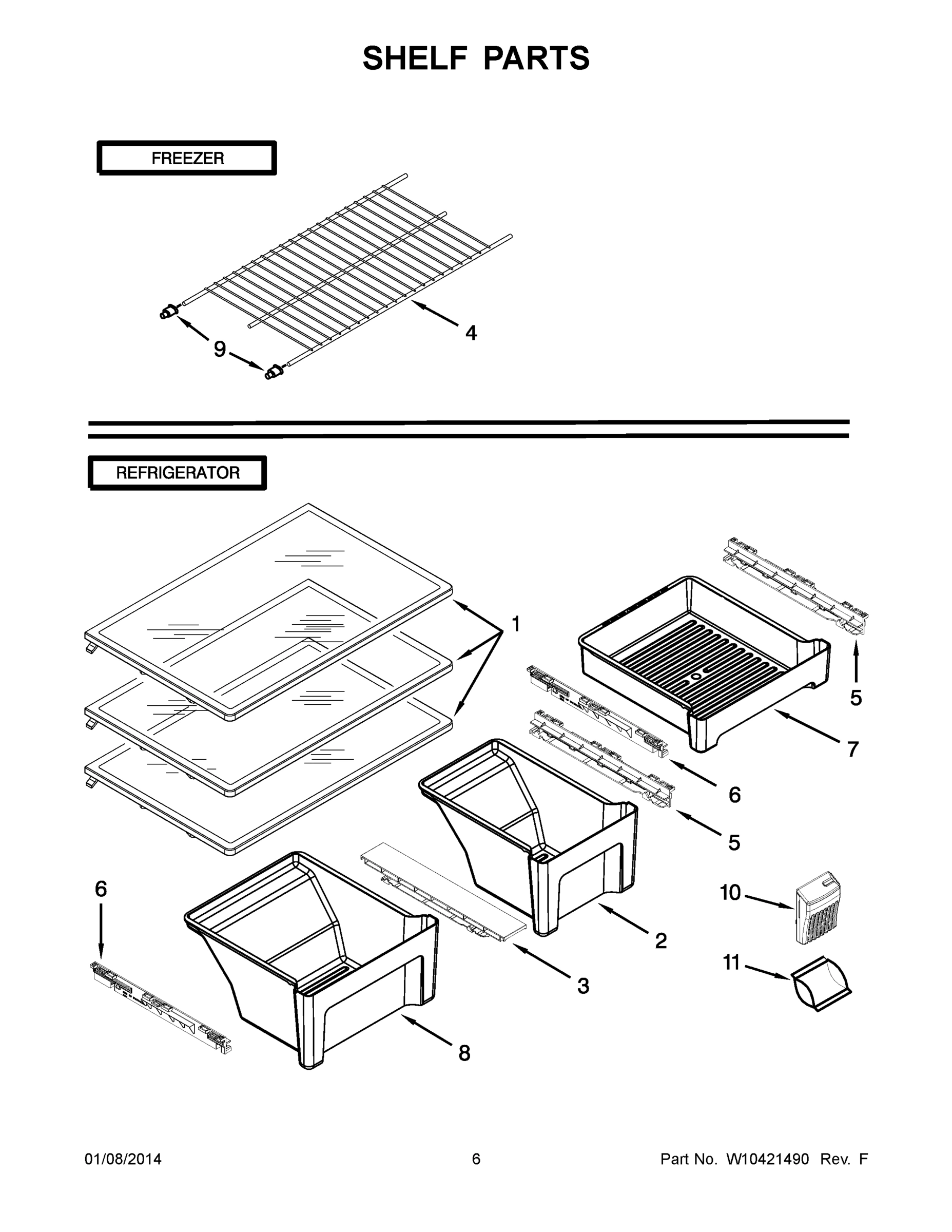

04 - SHELF PARTS

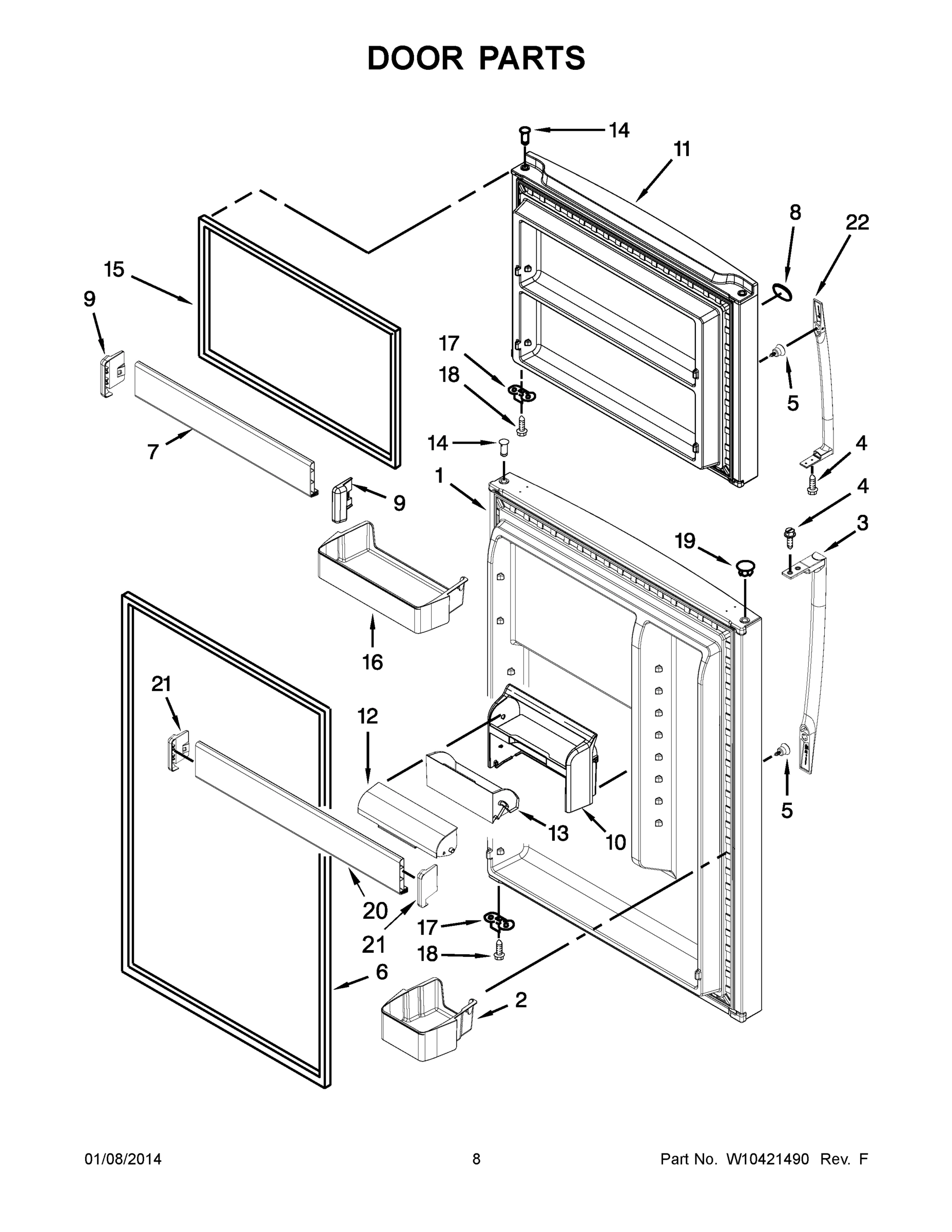

05 - DOOR PARTS

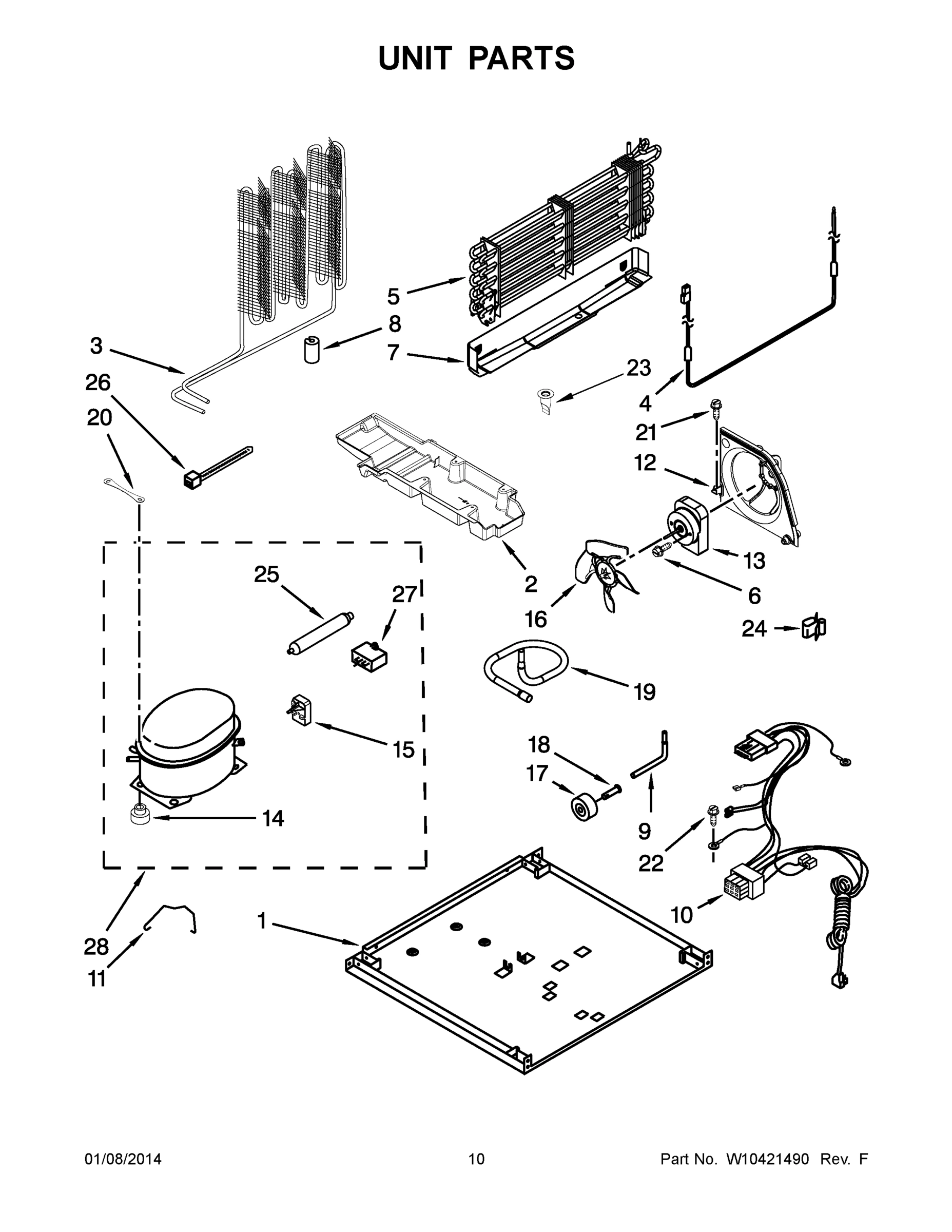

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M1BXXLZYW00 REFRIGERATOR
1
ICEMAKER SERVICE SHEET MAY 2225623 Contact Us For Availability
1
ENERGY GUIDE MAY W10361785 Contact Us For Availability
1
MAY W10536508 MAY W10536508 Contact Us For Availability
1
MAY W10551695 MAY W10551695 Contact Us For Availability
1
ASSEMBLY, SHELF MAY W10486289 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) MAY W10329586 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) MAY W10353884 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) MAY W10353895 Contact Us For Availability
1
MAY W10300118 MAY W10300118 Contact Us For Availability
2
MAY W10300069 MAY W10300069 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY W10373935 MAY W10373935 Contact Us For Availability
2
MAY W10331764 MAY W10331764 Contact Us For Availability
2
MAY W10466213 MAY W10466213 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10327136 Contact Us For Availability
3
MAY 2254360 MAY 2254360 Contact Us For Availability
3
RAIL, TRACK (CENTER) MAY W10468557 Contact Us For Availability
3
MAY W10414237 MAY W10414237 Contact Us For Availability
4
ENDCAP, GRILLE (WHITE) MAY W10339257 Contact Us For Availability
4
ENDCAP, GRILLE (BLACK) MAY W10353930 Contact Us For Availability
4
MAY W10353932 MAY W10353932 Contact Us For Availability
4
MAY W10392195 MAY W10392195 Contact Us For Availability
4
MAY W10477093 MAY W10477093 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
5
MAY M0108107 MAY M0108107 Contact Us For Availability
5
MAY W10341559 MAY W10341559 Contact Us For Availability
5
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
5
Screw MAY W10129563 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10314205 Contact Us For Availability
6
MAY 2210509 MAY 2210509 Contact Us For Availability
6
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
6
GASKET, DOOR (BEIGE) MAY 2202875 Contact Us For Availability
6
GASKET, DOOR (BLACK) MAY 2202882 Contact Us For Availability
6
GASKET, DOOR (GREY) MAY W10171475 Contact Us For Availability
7
AXLE, RIVET MAY 2179826 Contact Us For Availability
7
MAY W10557785 MAY W10557785 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
PAN, MEAT MAY W10308849 Contact Us For Availability
7
MAY W10469912 MAY W10469912 Contact Us For Availability
8
MAY W10142287 MAY W10142287 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY W10373951 MAY W10373951 Contact Us For Availability
8
MAY W10170766 MAY W10170766 Contact Us For Availability
8
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
9
Clamp, Power Cord MAY 549193 Contact Us For Availability
9
ASSEMBLY, TOWER CONNECTION MAY W10396926 Contact Us For Availability
9
Cup, Shelf MAY W10130299 Contact Us For Availability
9
MAY VS20001 MAY VS20001 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
MAY W10408748 MAY W10408748 Contact Us For Availability
10
HOUSING COMPARTMENT MAY W10308809 Contact Us For Availability
10
ASSEMBLY, UNIT WIRE MAY W10405935 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10346771 MAY W10346771 Contact Us For Availability
11
DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (WHI MAY W10329584 Contact Us For Availability
11
DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (BLA MAY W10353297 Contact Us For Availability
11
DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (STA MAY W10353317 Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
LID, UTILITY FLIP MAY W10308843 Contact Us For Availability
12
BAFFLE, AIR MAY 2315541 Contact Us For Availability
13
MAY 2262176 MAY 2262176 Contact Us For Availability
13
THERMISTOR, REFRIGERATOR COMPARTMENT MAY W10384183 Contact Us For Availability
13
MAY W10356444 MAY W10356444 Contact Us For Availability
13
MAY W10508362 MAY W10508362 Contact Us For Availability
14
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
14
LENS, FASCIA MAY W10339195 Contact Us For Availability
14
THIMBLE, TOP (LEFT HAND) MAY W10334042 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
MAY W10356943 MAY W10356943 Contact Us For Availability
15
GASKET, DOOR (BEIGE) MAY 2214967 Contact Us For Availability
15
GASKET, DOOR (BLACK) MAY 2214969 Contact Us For Availability
15
GASKET, DOOR (GREY) MAY W10171479 Contact Us For Availability
15
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
16
PLUG, HOLE (GREY) MAY 2254506 Contact Us For Availability
16
PLUG, HOLE (WHITE) MAY W10520304 Contact Us For Availability
16
MAY W10520305 MAY W10520305 Contact Us For Availability
16
MAY W10385132 MAY W10385132 Contact Us For Availability
16
MAY W10331763 MAY W10331763 Contact Us For Availability
16
MAY W10139483 MAY W10139483 Contact Us For Availability
17
FILLER, CORNER (WHITE) MAY W10283959 Contact Us For Availability
17
FILLER, CORNER (BLACK) MAY W10283960 Contact Us For Availability
17
FILLER, CORNER (GREY) MAY W10283961 Contact Us For Availability
17
MAY W10311528 MAY W10311528 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY W10326387 MAY W10326387 Contact Us For Availability
18
MAY W10353942 MAY W10353942 Contact Us For Availability
18
MAY W10353944 MAY W10353944 Contact Us For Availability
18
MAY W10383615 MAY W10383615 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
AXLE, RIVET MAY 2221797 Contact Us For Availability
19
WASHER, PLASTIC MAY 489341 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
PLUG, HOLE (WHITE) MAY 2212648 Contact Us For Availability
19
PLUG, HOLE (BLACK) MAY 2212651 Contact Us For Availability
19
PLUG, HOLE (GREY) MAY 2254517 Contact Us For Availability
19
MAY W10466682 MAY W10466682 Contact Us For Availability
20
Washer, Plastic MAY 487576 Contact Us For Availability
20
MAY W10341565 MAY W10341565 Contact Us For Availability
20
MAY W10469911 MAY W10469911 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
21
MAY 489427 MAY 489427 Contact Us For Availability
21
MAY W10305175 MAY W10305175 Contact Us For Availability
21
CAP, TRIM END (RIGHT HAND) MAY W10308871 Contact Us For Availability
21
CAP, TRIM END (LEFT HAND) MAY W10338485 Contact Us For Availability
21
MAY 8533961 MAY 8533961 Contact Us For Availability
22
COVER, HINGE (RIGHT HAND (WHITE)) MAY W10331560 Contact Us For Availability
22
COVER, HINGE (LEFT HAND (WHITE)) MAY W10331654 Contact Us For Availability
22
MAY W10353945 MAY W10353945 Contact Us For Availability
22
COVER, HINGE (RIGHT HAND (GREY)) MAY W10353947 Contact Us For Availability
22
MAY W10353948 MAY W10353948 Contact Us For Availability
22
COVER, HINGE (LEFT HAND (GREY)) MAY W10353950 Contact Us For Availability
22
MAY W10383443 MAY W10383443 Contact Us For Availability
22
HANDLE, FREEZER (WHITE) MAY W10366329 Contact Us For Availability
22
HANDLE, FREEZER (BLACK) MAY W10370622 Contact Us For Availability
22
HANDLE, FREEZER (TITANIUM SPARKLE) MAY W10370624 Contact Us For Availability
22
MAY 488500 MAY 488500 Contact Us For Availability
23
TOWER, AIR MAY W10305174 Contact Us For Availability
23
MAY W10519112 MAY W10519112 Contact Us For Availability
24
MAY W10384414 MAY W10384414 Contact Us For Availability
24
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
25
MAY W10348614 MAY W10348614 Contact Us For Availability
25
MAY W10190413 MAY W10190413 Contact Us For Availability
26
MAY 489442 MAY 489442 Contact Us For Availability
26
TIE, WIRE MAY 2263990 Contact Us For Availability
27
Screw MAY 488208 Contact Us For Availability
27
Capacitor MAY 2169373 Contact Us For Availability
28
MAY W10253005 MAY W10253005 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
30
MAY W10339203 MAY W10339203 Contact Us For Availability
31
MAY 489478 MAY 489478 Contact Us For Availability
32
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
33
MAY W10313918 MAY W10313918 Contact Us For Availability
34
MAY W10440814 MAY W10440814 Contact Us For Availability
35
MAY W10473925 MAY W10473925 Contact Us For Availability
36
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
37
TOWER, MULTIFLOW AIR MAY W10356895 Contact Us For Availability
38
FILTER, AIR MAY W10315189 Contact Us For Availability
39
MAY W10330850 MAY W10330850 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (White) MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL, ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL, WHITE PRIMER MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (WHITE) MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BLACK) MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICEMAKER ASSEMBL MAY W10365049 Contact Us For Availability
NI
MAY W10395148 MAY W10395148 Contact Us For Availability
× ![]()
