Model Whirlpool LIT3187484 Range – Common Parts & Diagrams
COVER

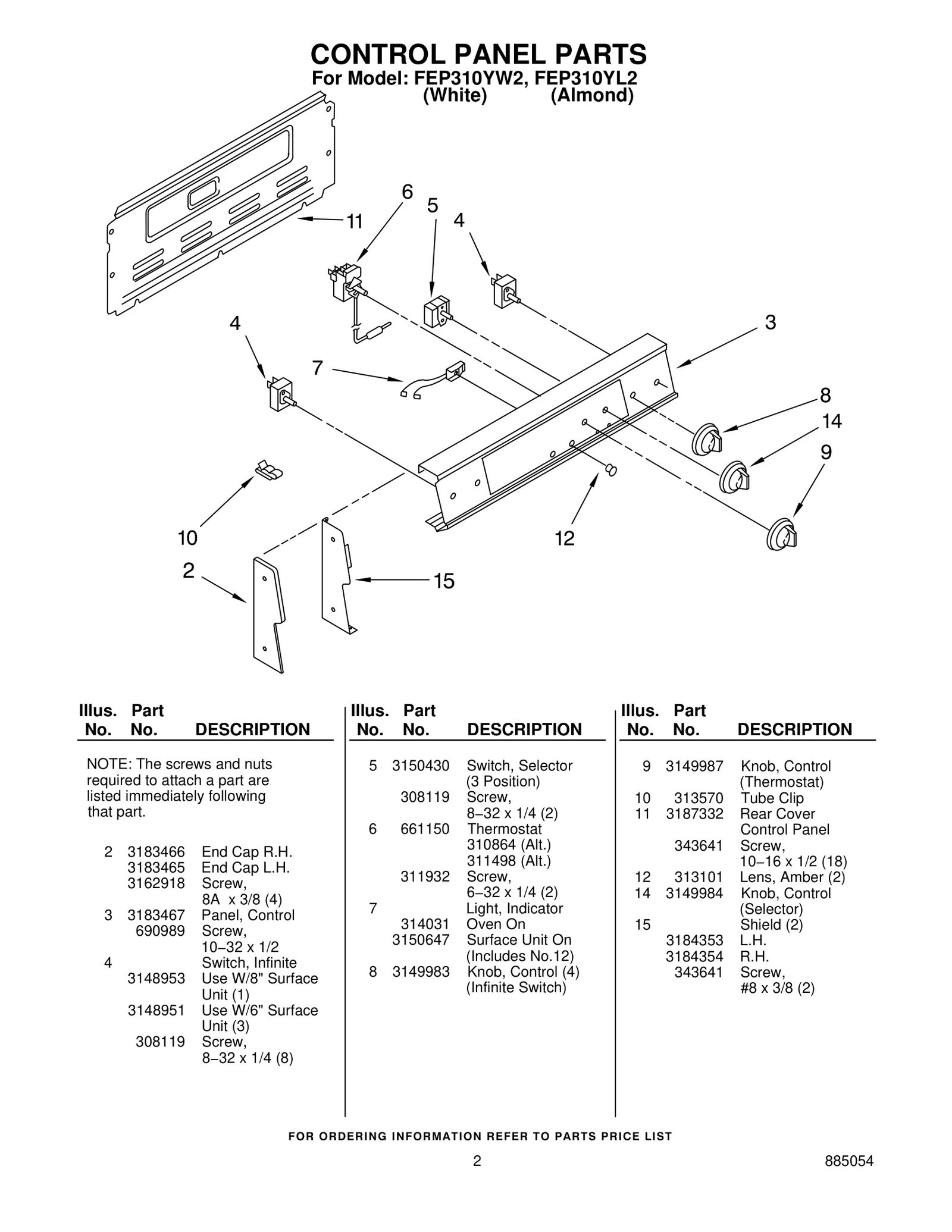

CONTROL PANEL PARTS

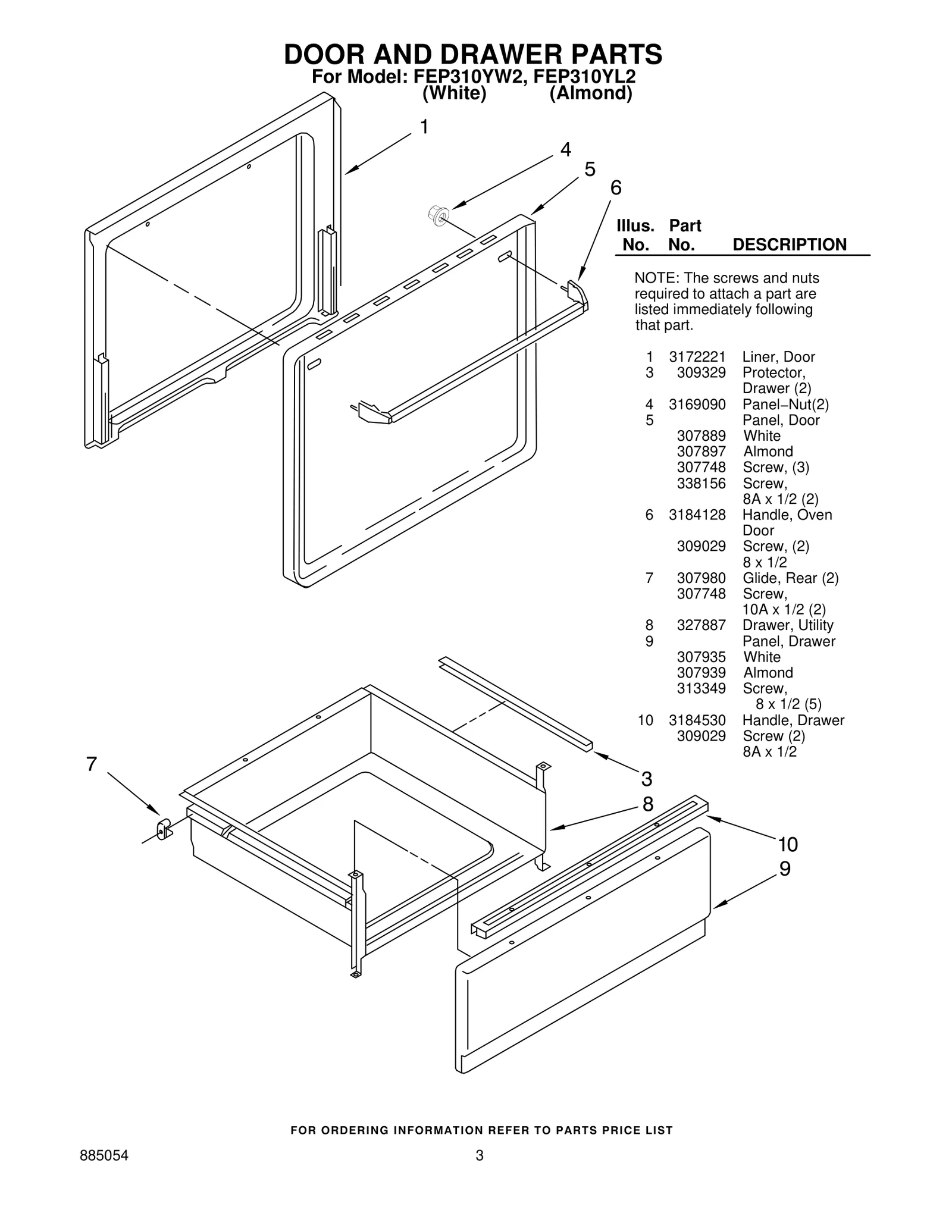

DOOR AND DRAWER PARTS

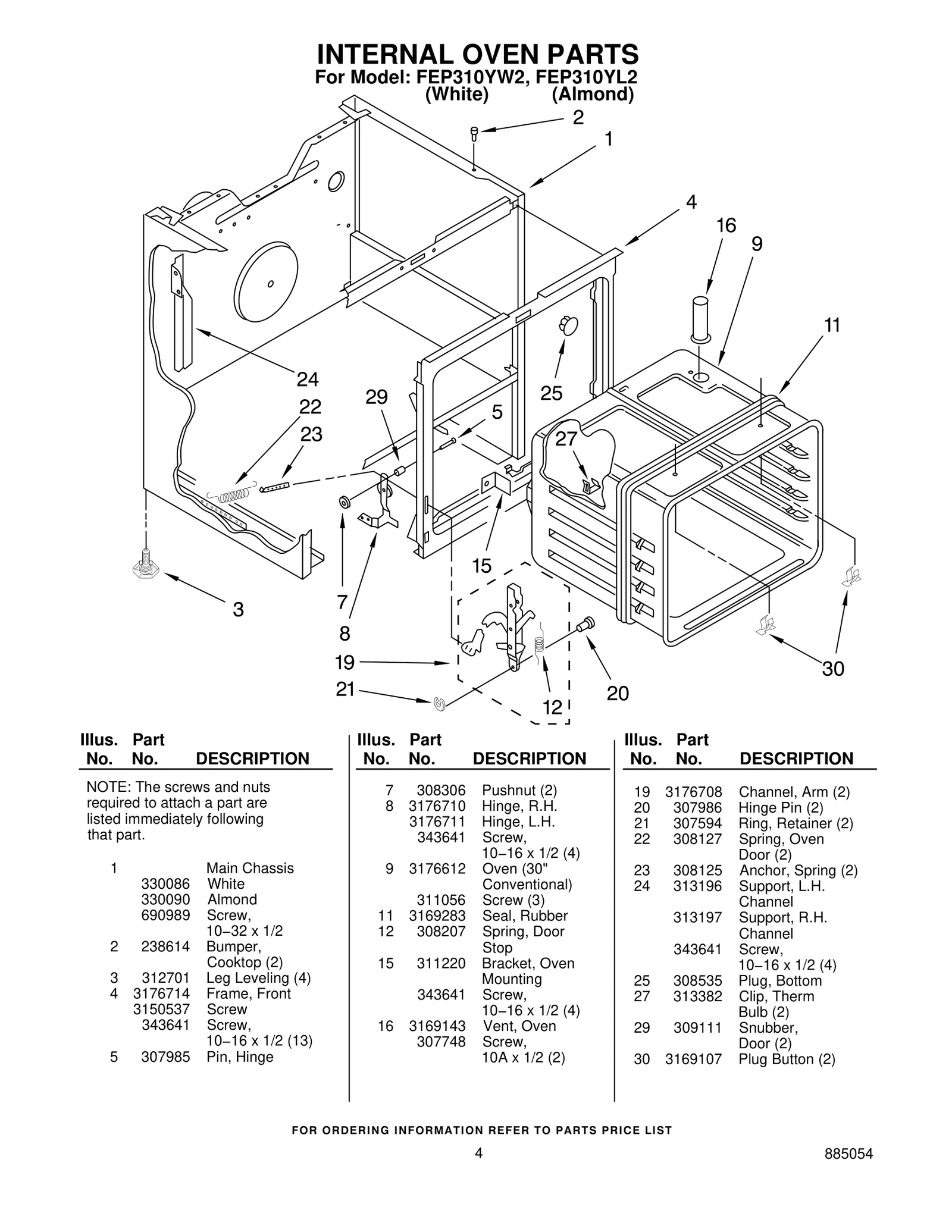

INTERNAL OVEN PARTS

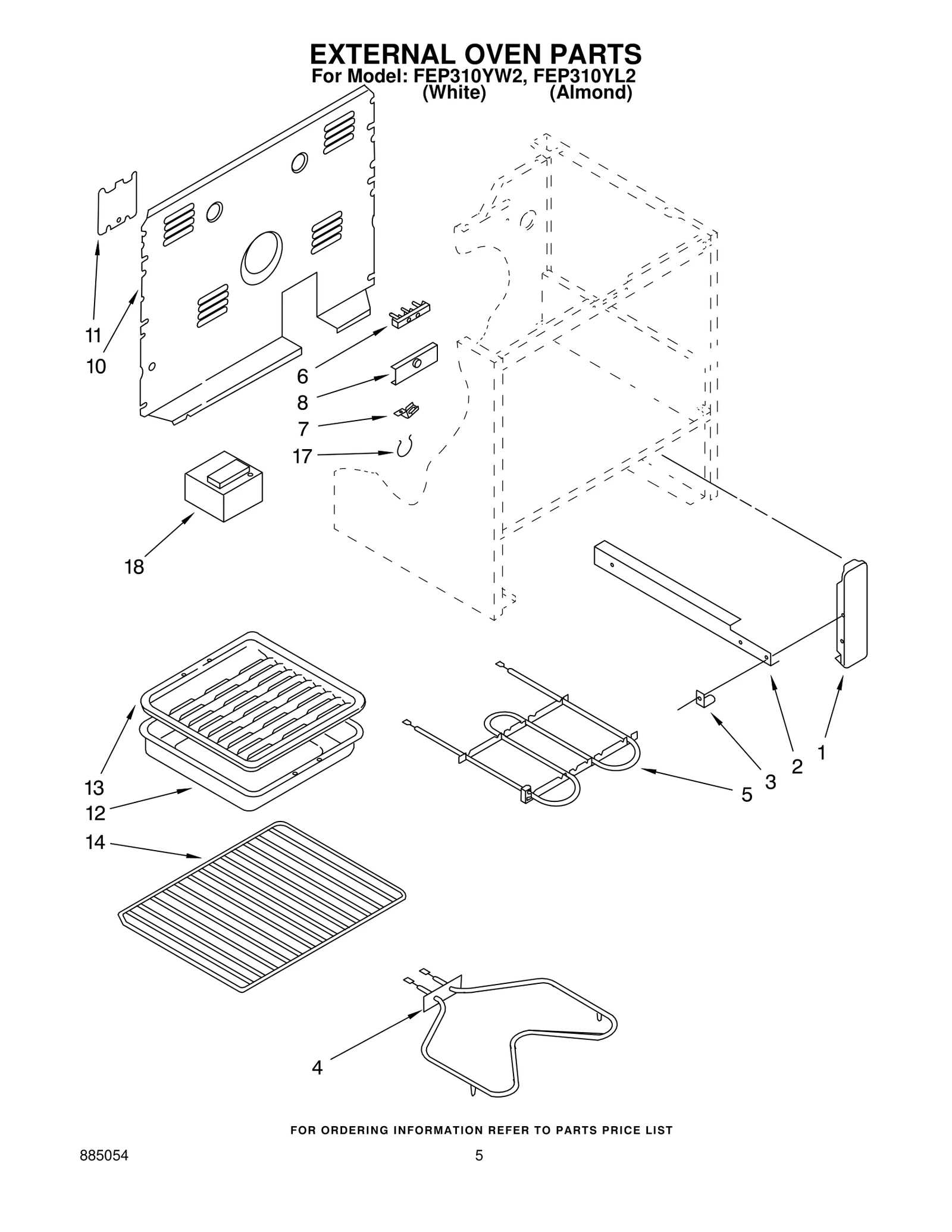

EXTERNAL OVEN PARTS

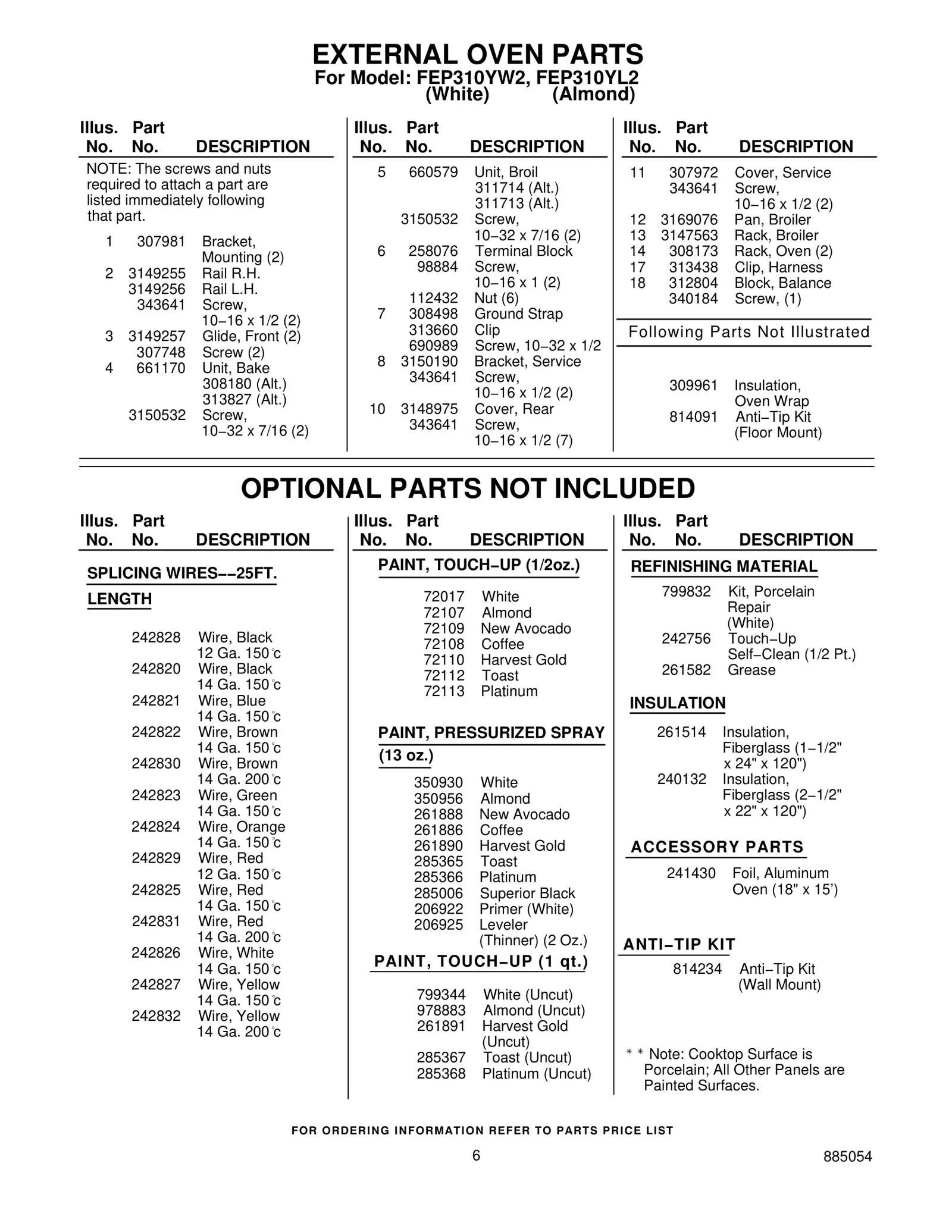

OPTIONAL PARTS NOT INCLUDED

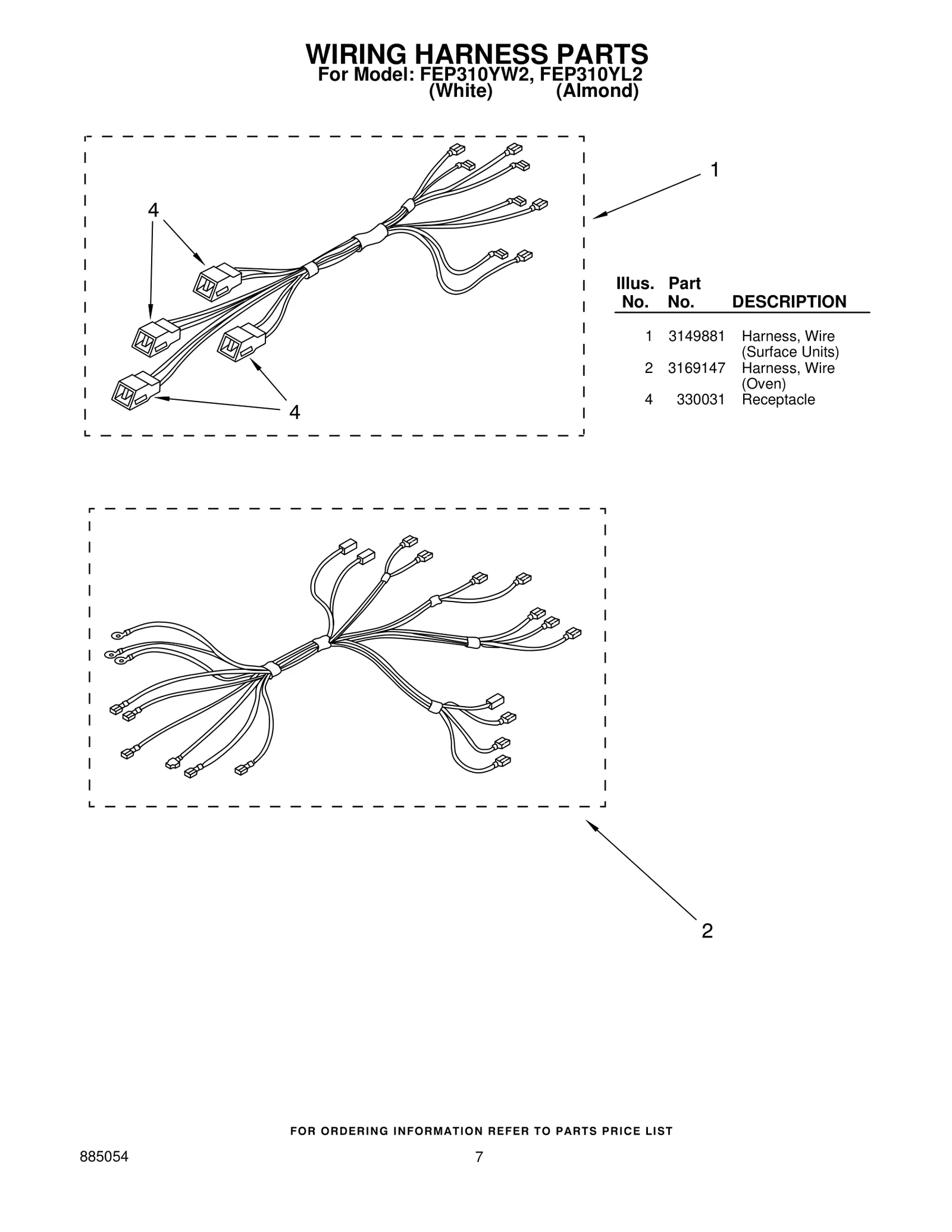

WIRING HARNESS PARTS
Common parts from model Whirlpool LIT3187484 Range
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Harness, Wire WPL 3149881 Contact Us For Availability
2
Harness, Wire WPL 3169147 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Screw WPL 3150537 Contact Us For Availability
5
Switch, Selector WPL 3150430 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
7
Light, Indicator — Oven On WPL 314031 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
(White) (Almond) WPL N/S Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Knob, Control WPL 3149987 Contact Us For Availability
9
Panel, Drawer — White WPL 307935 Contact Us For Availability
9
Panel, Drawer — Almond WPL 307939 Contact Us For Availability
9
Oven (30" Conventional) WPL 3176612 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
10
Screw (2) 8A x 1/2 WPL 309029 Contact Us For Availability
10
Handle, Drawer WPL 3184530 Contact Us For Availability
11
Seal, Rubber WPL 3169283 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
14
Knob, Control WPL 3149984 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Plug, Bottom WPL 308535 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Plug Button (2) WPL 3169107 Contact Us For Availability
OPT-1
(White) (Almond) WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Black WPL 242821 Contact Us For Availability
OPT-4
Wire, Blue WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Brown WPL 242823 Contact Us For Availability
OPT-7
Wire, Green WPL 242824 Contact Us For Availability
OPT-8
Wire, Orange WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, Red WPL 242826 Contact Us For Availability
OPT-12
Wire, White WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
New Avocado WPL 72108 Contact Us For Availability
OPT-19
Harvest Gold WPL 72112 Contact Us For Availability
OPT-23
Almond WPL 261888 Contact Us For Availability
OPT-24
New Avocado WPL 261886 Contact Us For Availability
OPT-25
Coffee WPL 261890 Contact Us For Availability
OPT-26
Harvest Gold WPL 285365 Contact Us For Availability
OPT-27
Toast WPL 285366 Contact Us For Availability
OPT-30
Primer (White) WPL 206925 Contact Us For Availability
OPT-31
(Thinner) (2 Oz.) WPL 799344 Contact Us For Availability
OPT-32
White (Uncut) WPL 978883 Contact Us For Availability
OPT-33
Almond (Uncut) WPL 261891 Contact Us For Availability
OPT-34
(Uncut) WPL 285367 Contact Us For Availability
OPT-35
Toast (Uncut) WPL 285368 Contact Us For Availability
OPT-36
Platinum (Uncut) WPL 799832 Contact Us For Availability
OPT-38
Self−Clean (1/2 Pt.) WPL 261582 Contact Us For Availability
OPT-41
x 22" x 120") WPL 241430 Contact Us For Availability
OPT-43
(Wall Mount) WPL 307981 Contact Us For Availability
OPT-44
Mounting (2) WPL 3149255 Contact Us For Availability
OPT-45
Rail R.H. WPL 3149256 Contact Us For Availability
OPT-47
Screw, WPL 3149257 Contact Us For Availability
OPT-48
Glide, Front (2) WPL 307748 Contact Us For Availability
OPT-56
Unit, Broil WPL 3150532 Contact Us For Availability
OPT-58
Terminal Block WPL 98884 Contact Us For Availability
OPT-60
Nut (6) WPL 308498 Contact Us For Availability
OPT-61
Ground Strap WPL 313660 Contact Us For Availability
OPT-63
Screw, 10−32 x 1/2 WPL 3150190 Contact Us For Availability
OPT-65
Screw, WPL 3148975 Contact Us For Availability
OPT-67
Screw, WPL 307972 Contact Us For Availability
OPT-71
Rack, Broiler WPL 308173 Contact Us For Availability
OPT-73
Clip, Harness WPL 312804 Contact Us For Availability
OPT-75
Following Parts Not Illustrated WPL 309961 Contact Us For Availability
× ![]()
