Model Whirlpool LHE5700W0 ELECTRIC DRYER – Common Parts & Diagrams

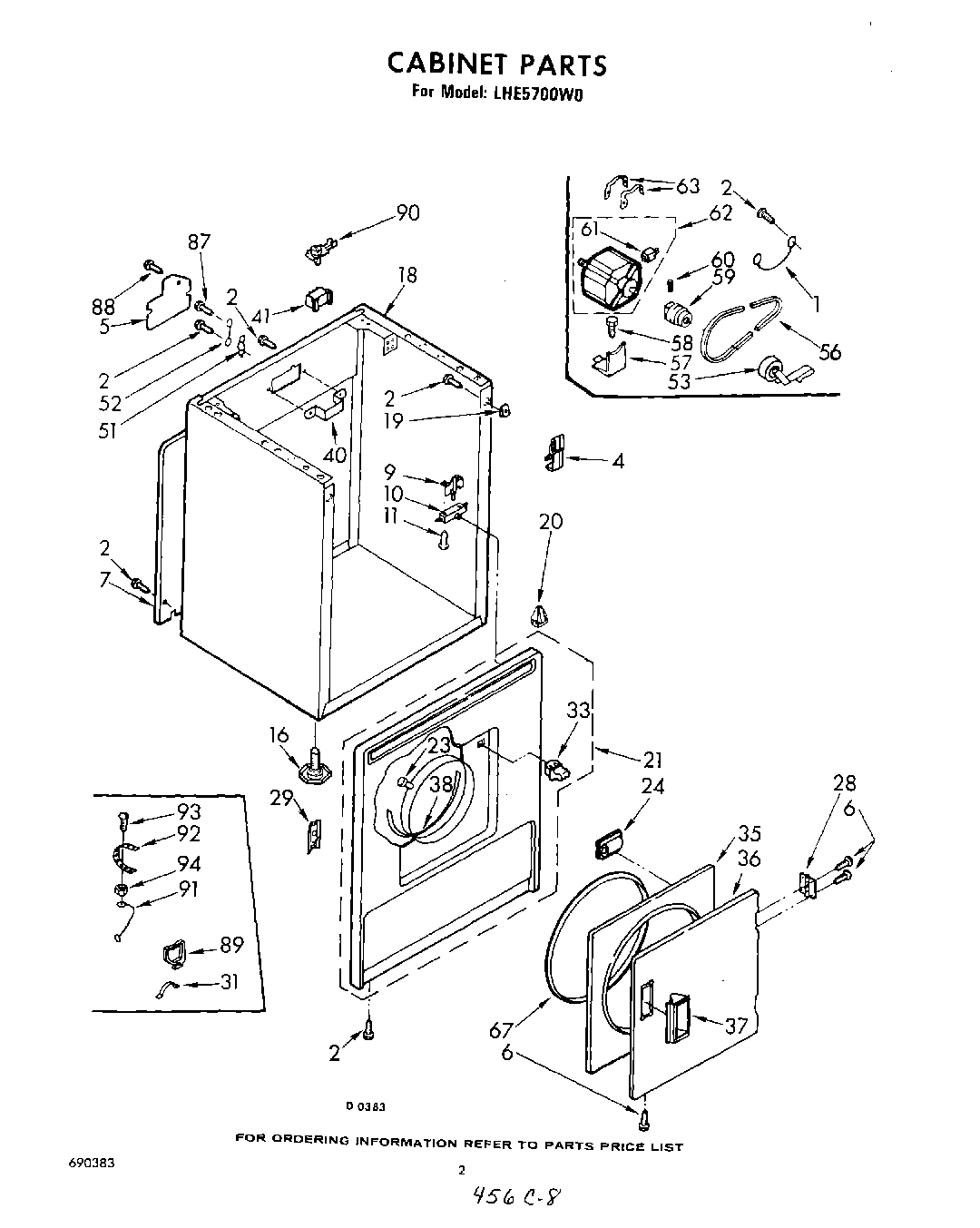

02 - SECTION

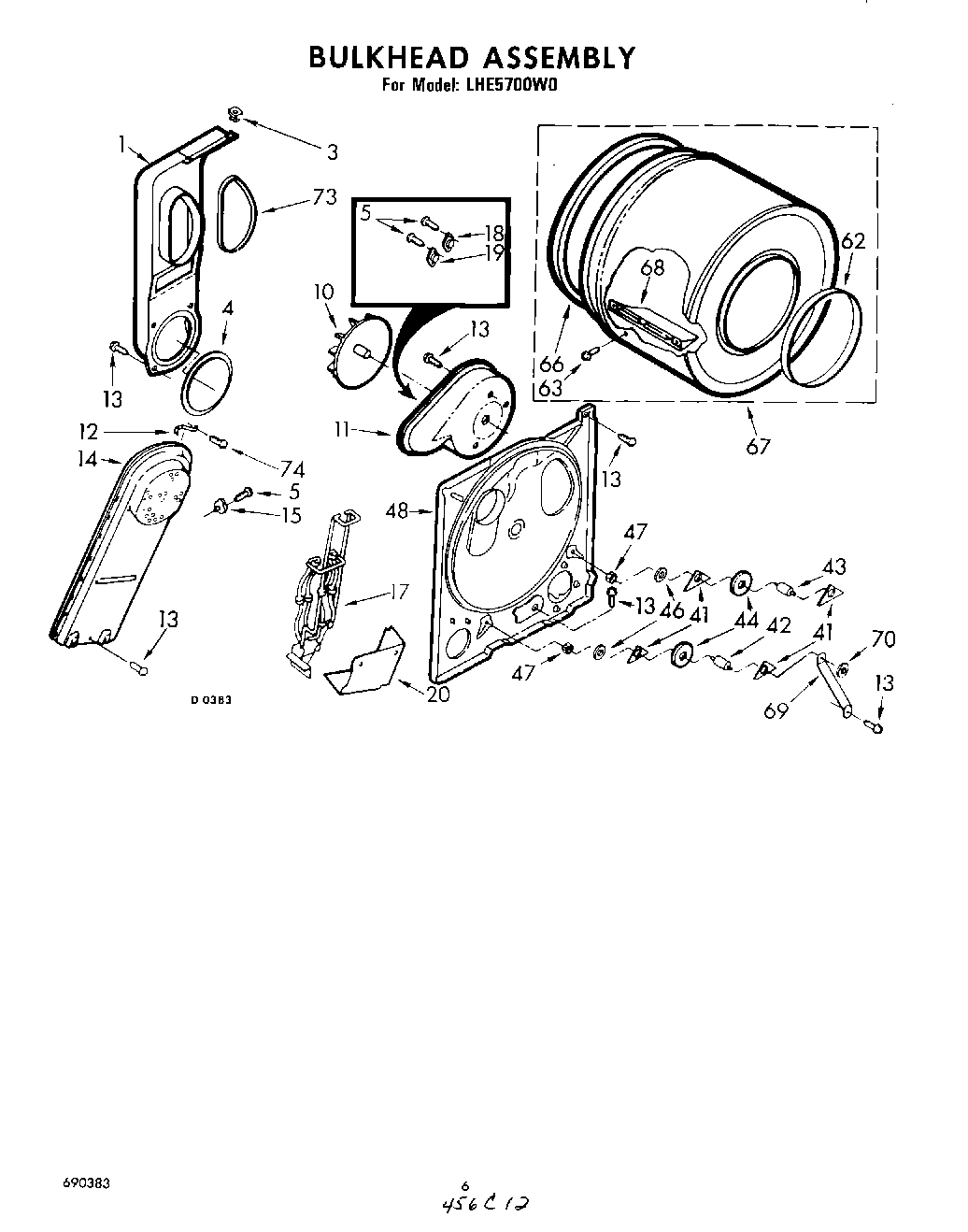

04 - SECTION

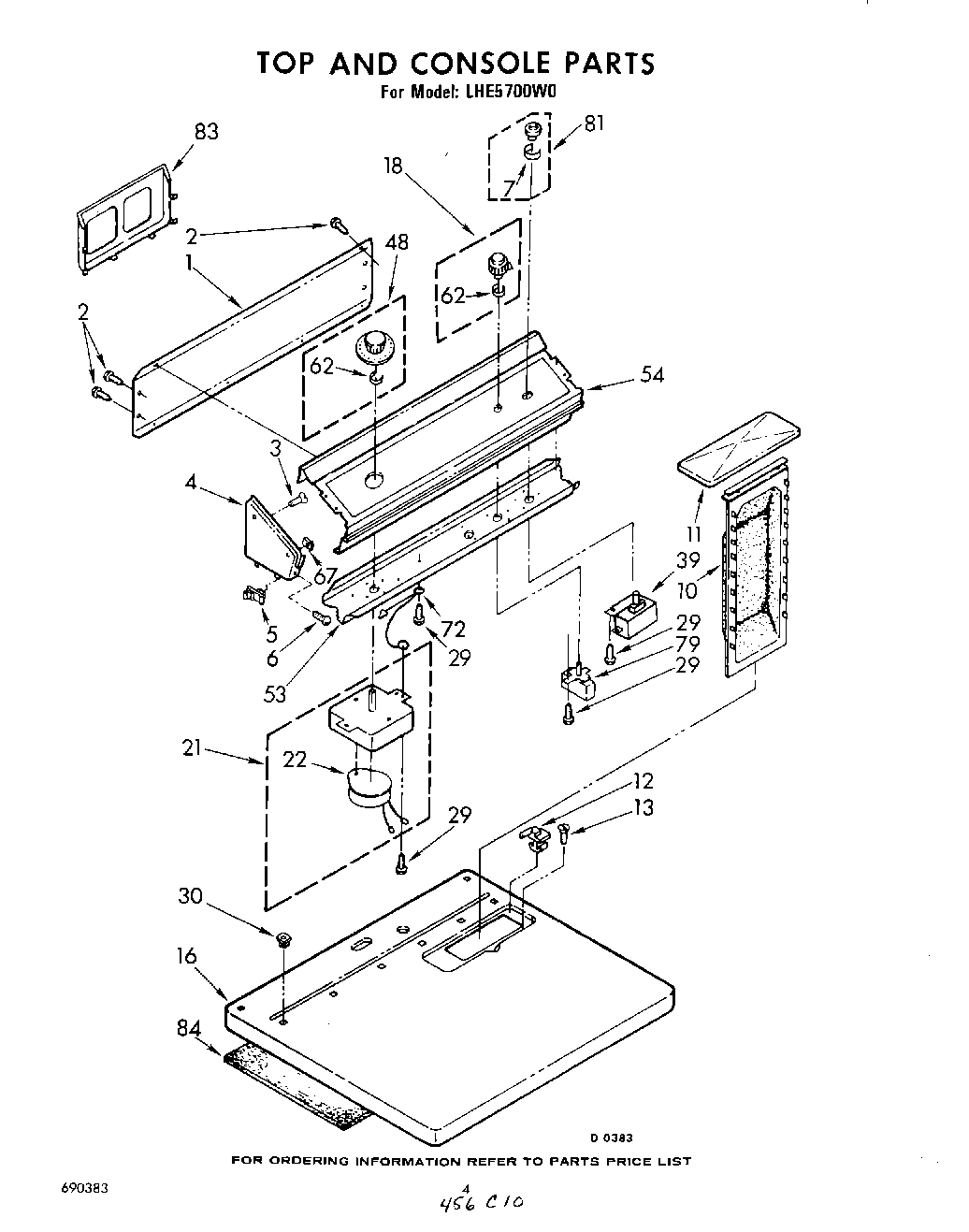

03 - SECTION

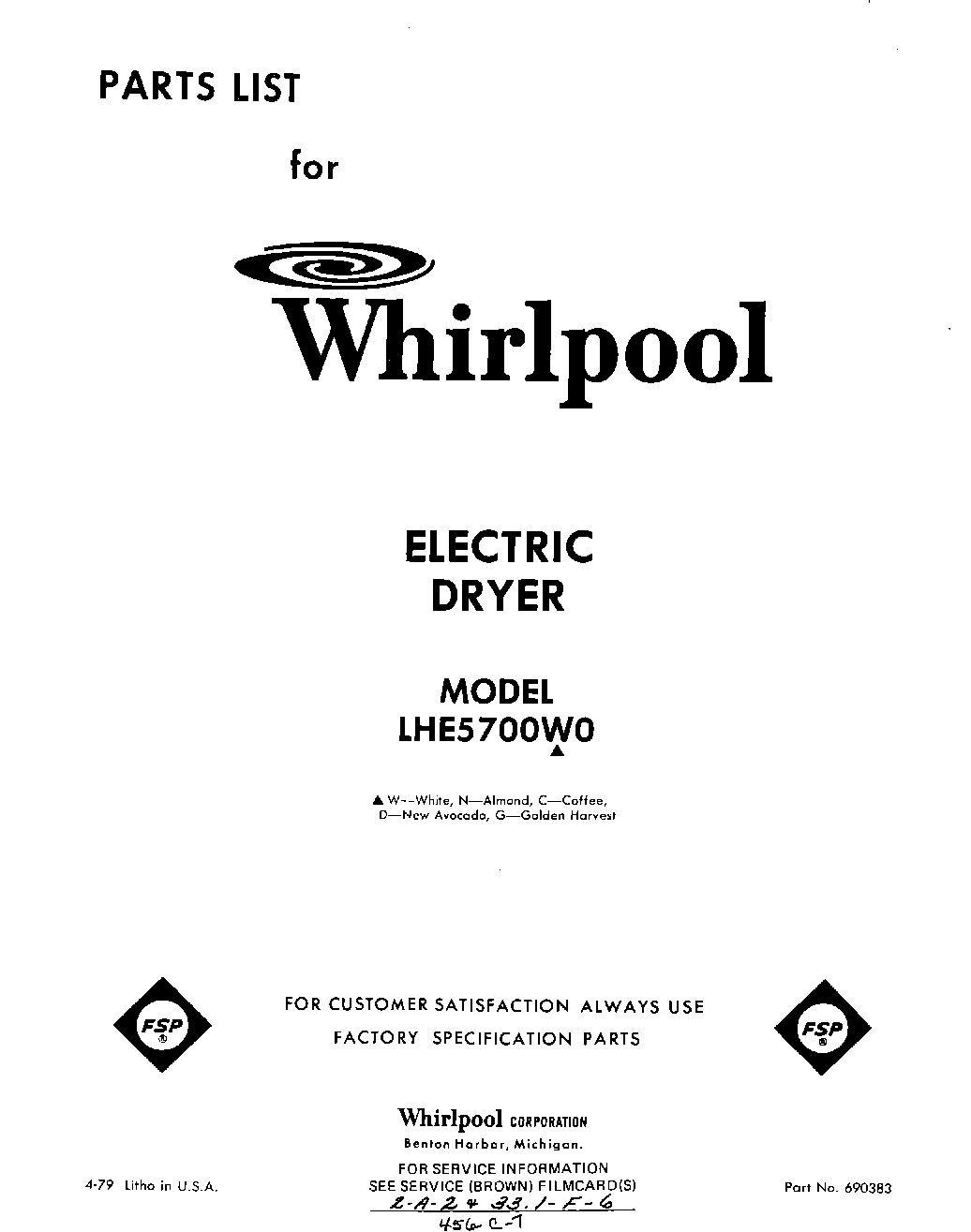

01 - SECTION
Common parts from model Whirlpool LHE5700W0 ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Panel, Rear Console WPL 358434 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375316 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
5
Stop, Push-In WPL 358472 Contact Us For Availability
6
Screw, 8-18 WPL 358225 Contact Us For Availability
7
Clip WPL 90015 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 348495 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Coffee) WPL 689311 Contact Us For Availability
11
Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
14
Box, Heater WPL 685457 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Coffee) WPL 689450 Contact Us For Availability
16
Top (New Avocado) WPL 689451 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
17
Element, Heater (50 Hz.) (Use 279139 Jumper W WPL 685943 Contact Us For Availability
18
Control Knob Assembly WPL 690292 Contact Us For Availability
20
Reflector, Heat WPL 348618 Contact Us For Availability
21
Timer, 50 Hz. WPL 687939 Contact Us For Availability
21
Timer, 60 Hz. WPL 687950 Contact Us For Availability
22
Motor, 60 Hz. (Use W/687950 Timer) WPL 343528 Contact Us For Availability
22
Motor, 50 Hz. (Use W/687939 Timer) WPL 685886 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door, Front (Coffee) WPL 689315 Contact Us For Availability
36
Door, Front (New Avocado) WPL 689318 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
37
Handle, Door (Almond) WPL 689306 Contact Us For Availability
37
Handle, Door (Coffee) WPL 689307 Contact Us For Availability
37
Handle, Door (New Avocado) WPL 689583 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
39
Switch, Push-To-Start WPL 346364 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
48
Timer Knob Assembly WPL 690201 Contact Us For Availability
52
Wire, Gro WPL 340025 Contact Us For Availability
53
Bracket, Control WPL 358467 Contact Us For Availability
54
Panel, Control WPL 690411 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
61
WPL 298699 WPL 298699 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 688121 Contact Us For Availability
79
Switch, Rotary WPL 348686 Contact Us For Availability
81
Button Assembly WPL 346219 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
84
Instructions, Wiring WPL 230083 Contact Us For Availability
84
Coffee WPL 261886 Contact Us For Availability
84
New Avocado WPL 261888 Contact Us For Availability
84
Golden Harvest WPL 261890 Contact Us For Availability
84
H WPL 339896 Contact Us For Availability
84
WPL 340704 WPL 340704 Contact Us For Availability
84
WPL 350941 WPL 350941 Contact Us For Availability
84
WPL 685870 WPL 685870 Contact Us For Availability
84
WPL 687858 WPL 687858 Contact Us For Availability
84
WPL 688643 WPL 688643 Contact Us For Availability
84
WPL 688786 WPL 688786 Contact Us For Availability
84
WPL 688857 WPL 688857 Contact Us For Availability
84
WPL 688898 WPL 688898 Contact Us For Availability
84
WPL 690002 WPL 690002 Contact Us For Availability
84
WPL 690383 WPL 690383 Contact Us For Availability
84
WPL 72108 WPL 72108 Contact Us For Availability
84
WPL 799351 WPL 799351 Contact Us For Availability
89
WPL 688412 WPL 688412 Contact Us For Availability
91
WPL 685449 WPL 685449 Contact Us For Availability
92
WPL 22965 WPL 22965 Contact Us For Availability
93
WPL 132848 WPL 132848 Contact Us For Availability
× ![]()
