Model Whirlpool LDE9904ACE ELECTRIC DRYER – Common Parts & Diagrams
06 - HEATER

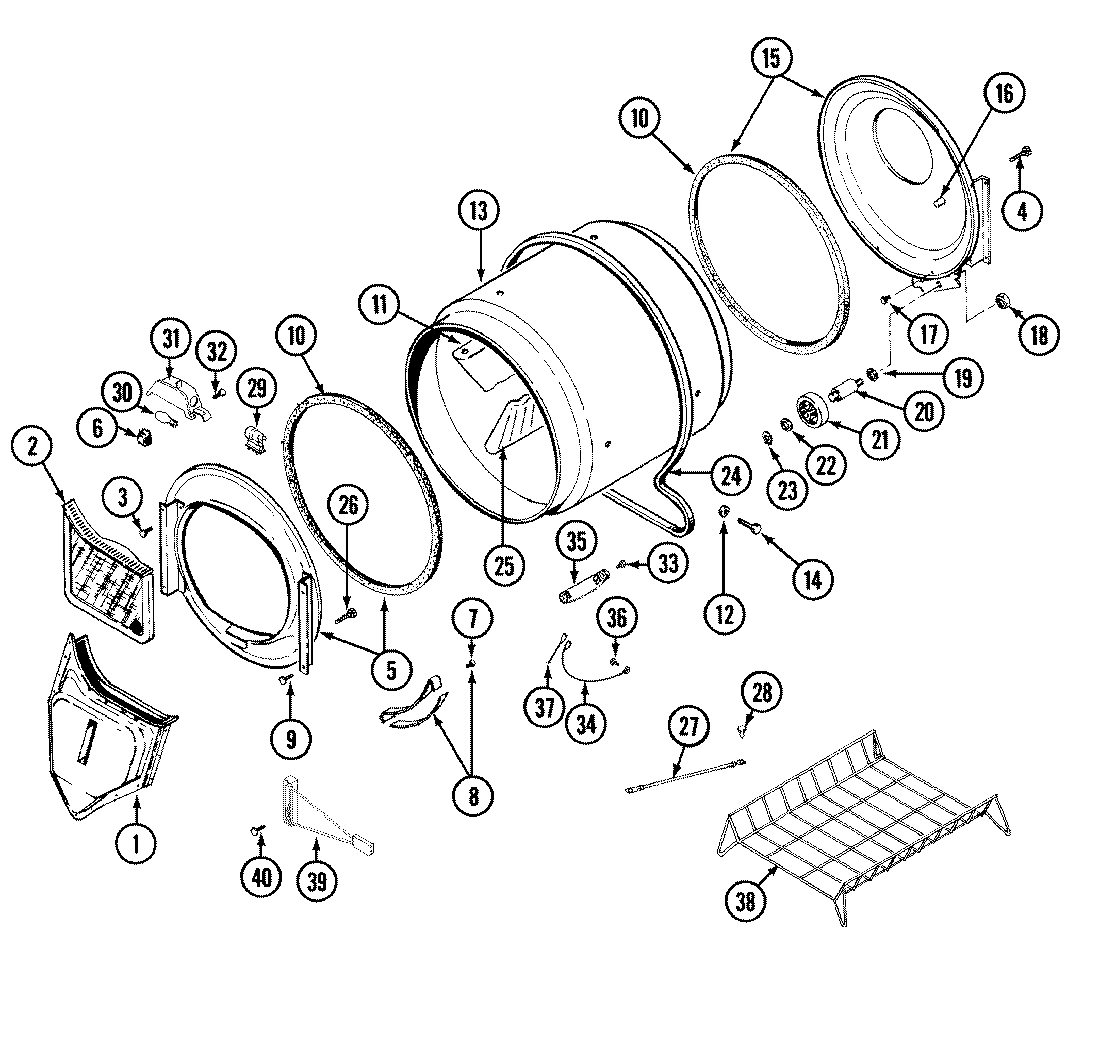

08 - TUMBLER

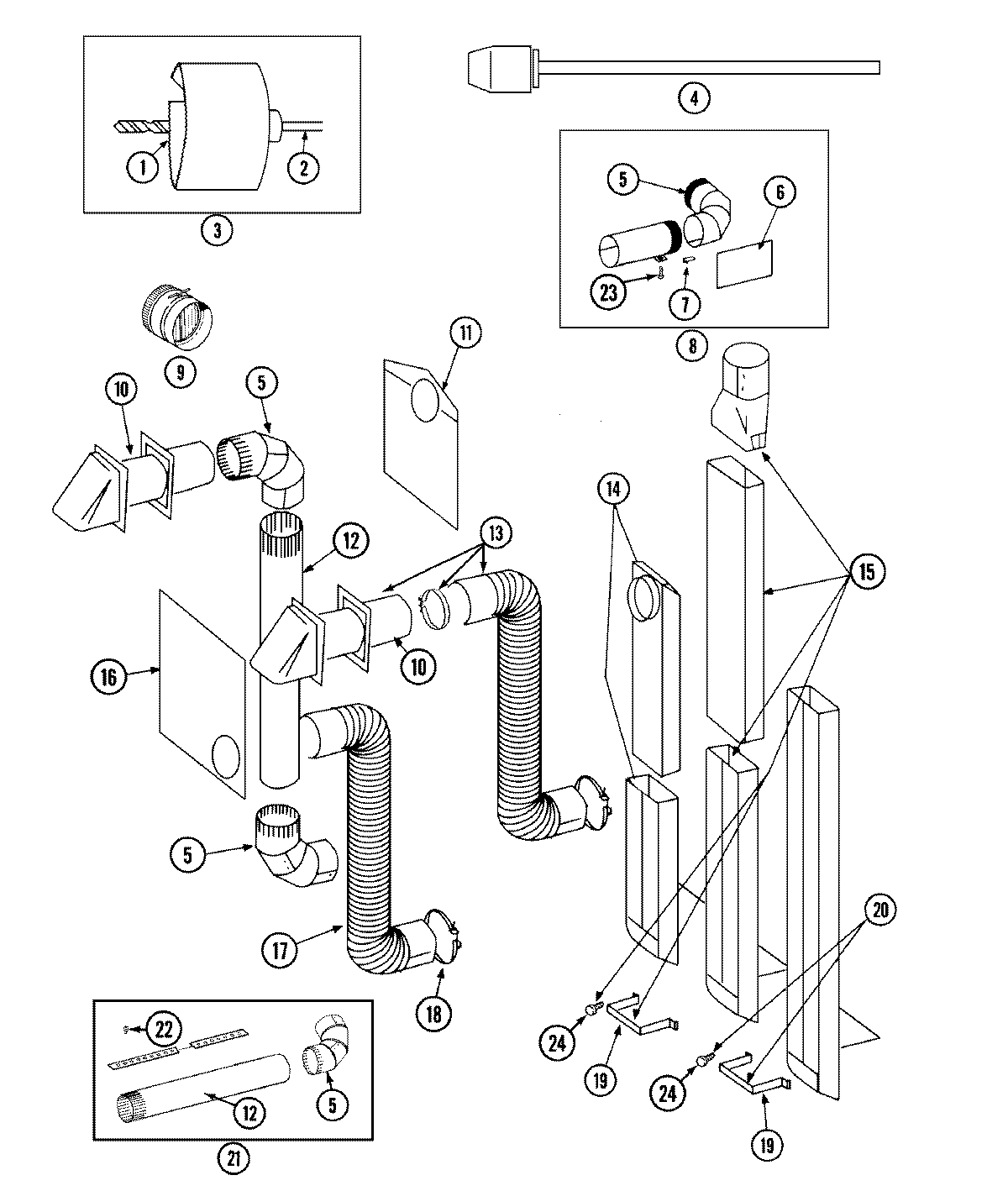

05 - DUCTING

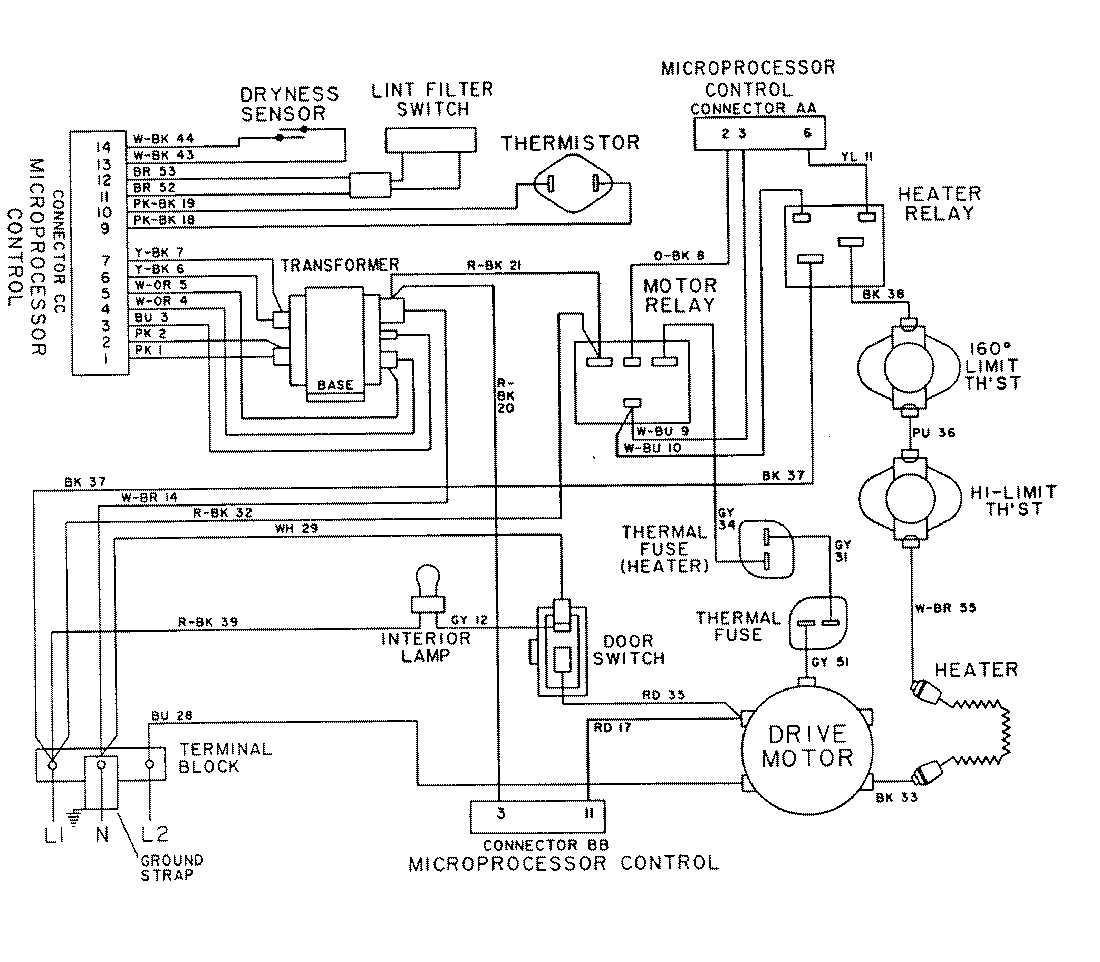

09 - WIRING INFORMATION-LDE9904ACx

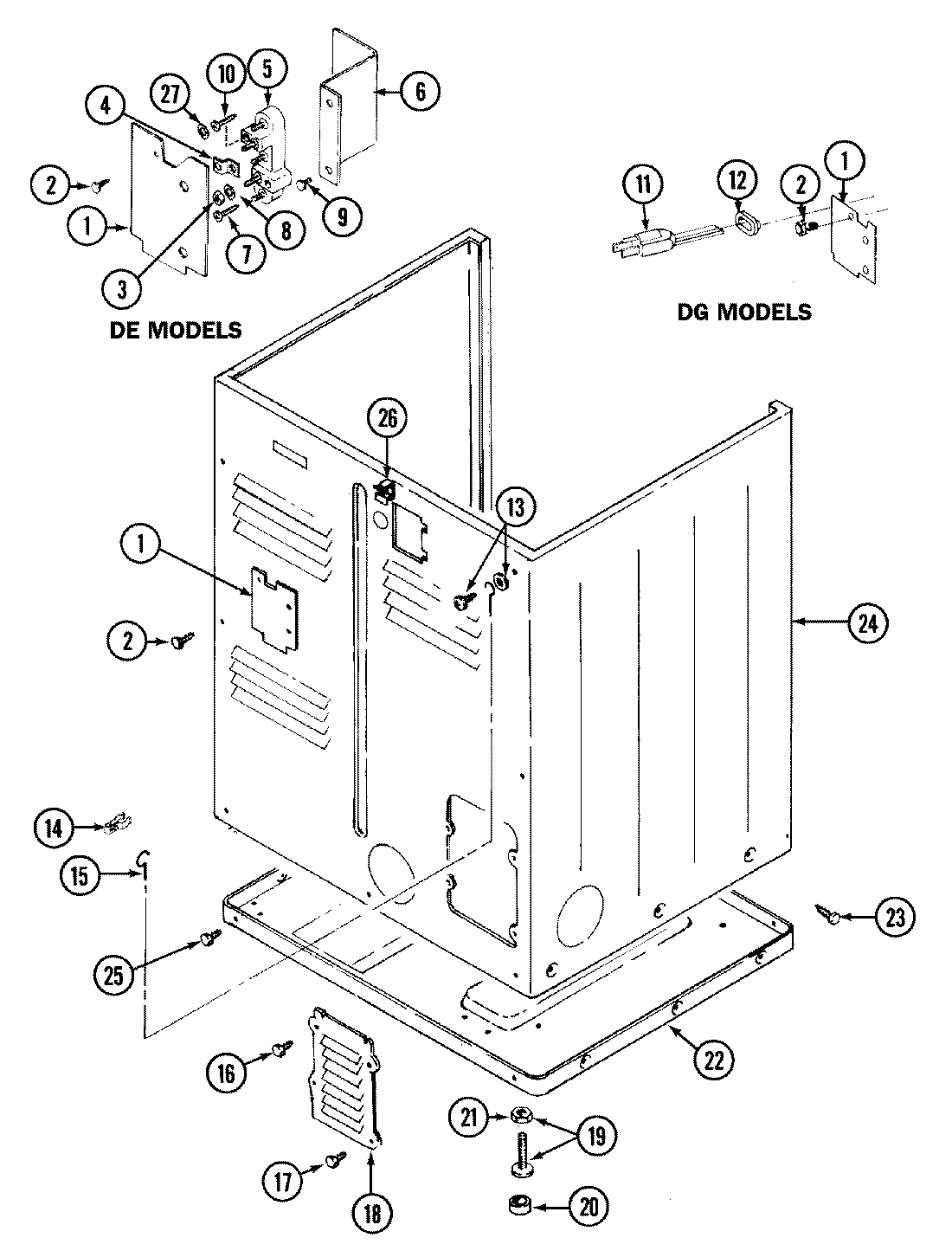

02 - CABINET-REAR

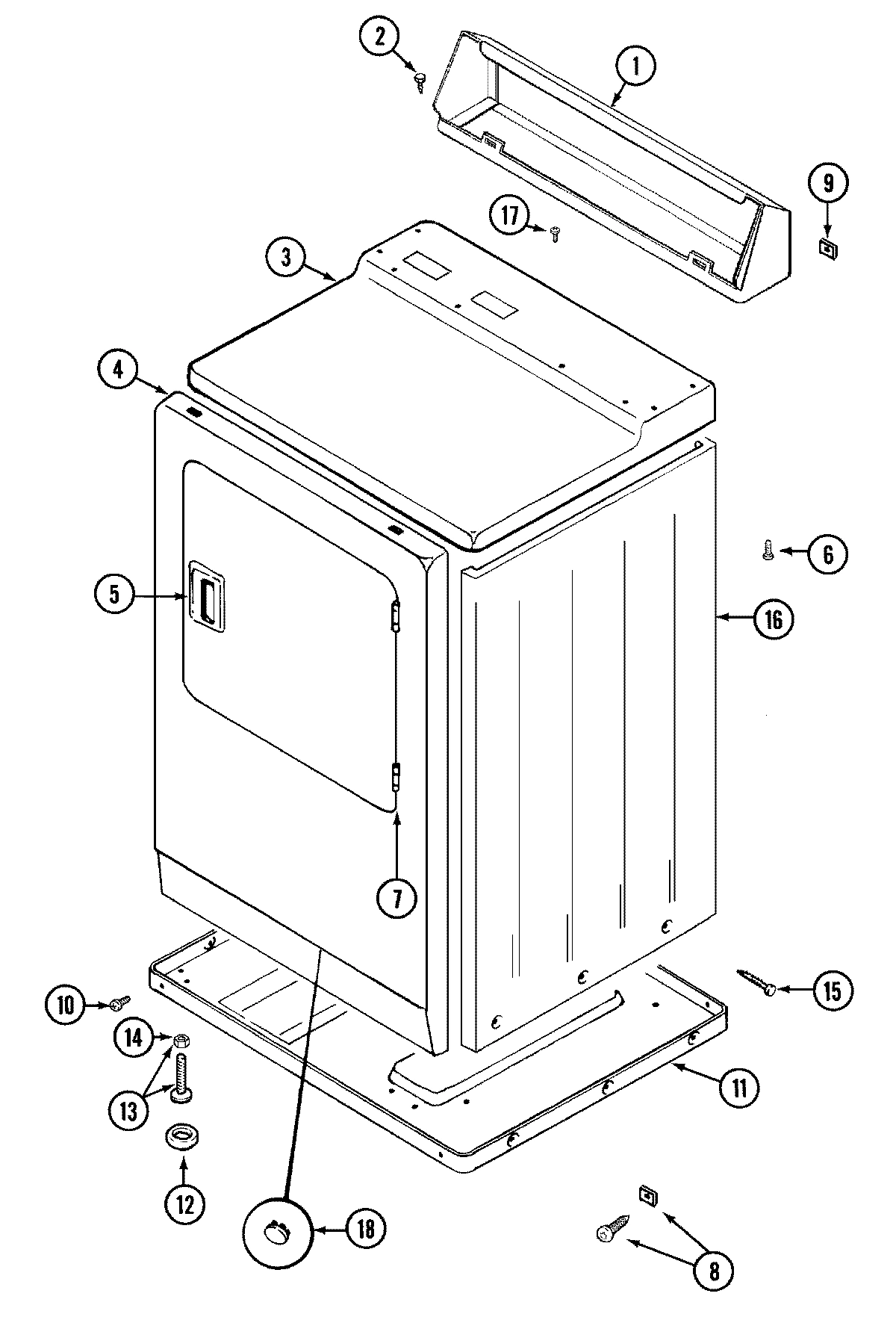

01 - CABINET-FRONT

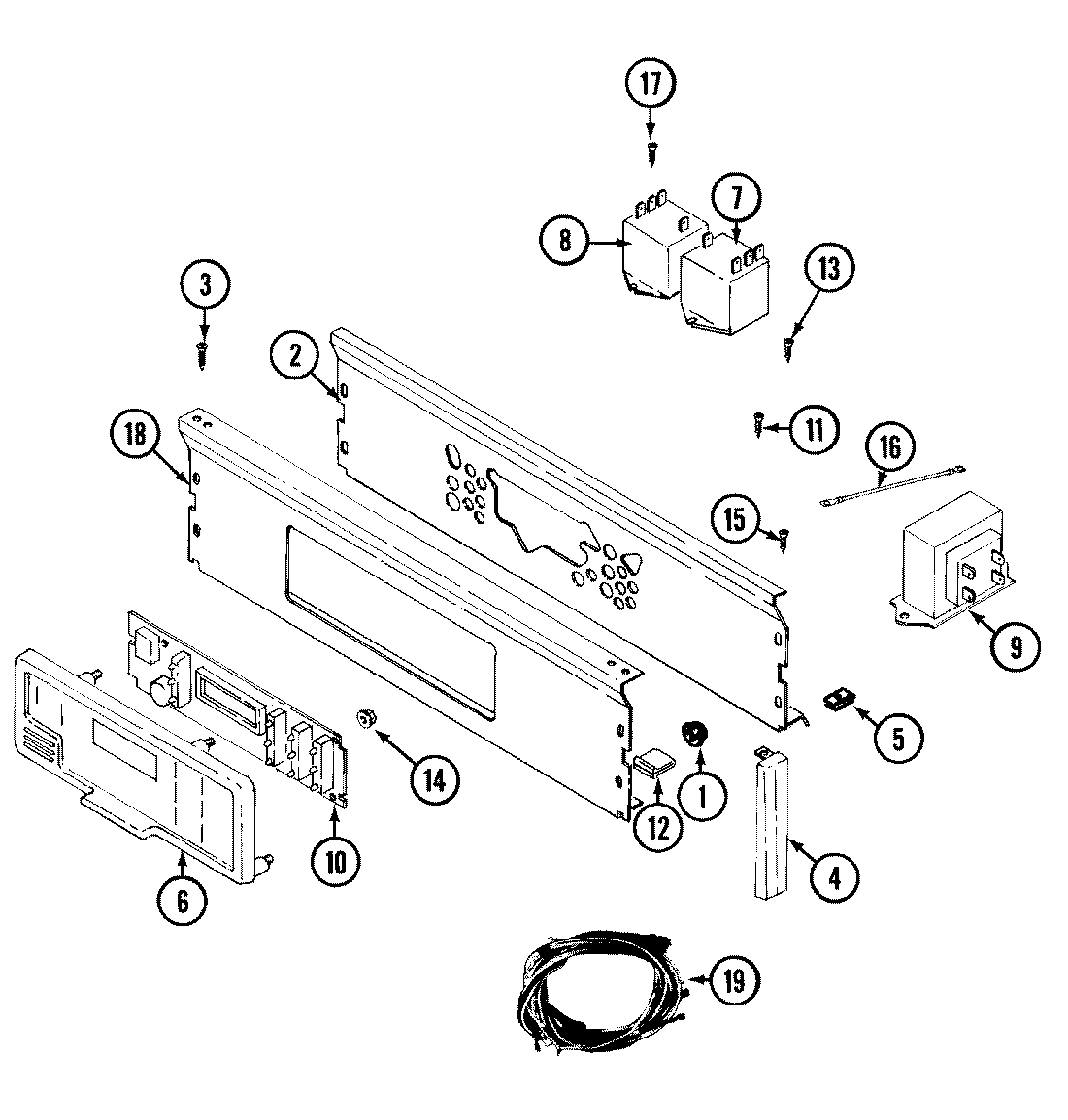

03 - CONTROL PANEL
04 - DOOR

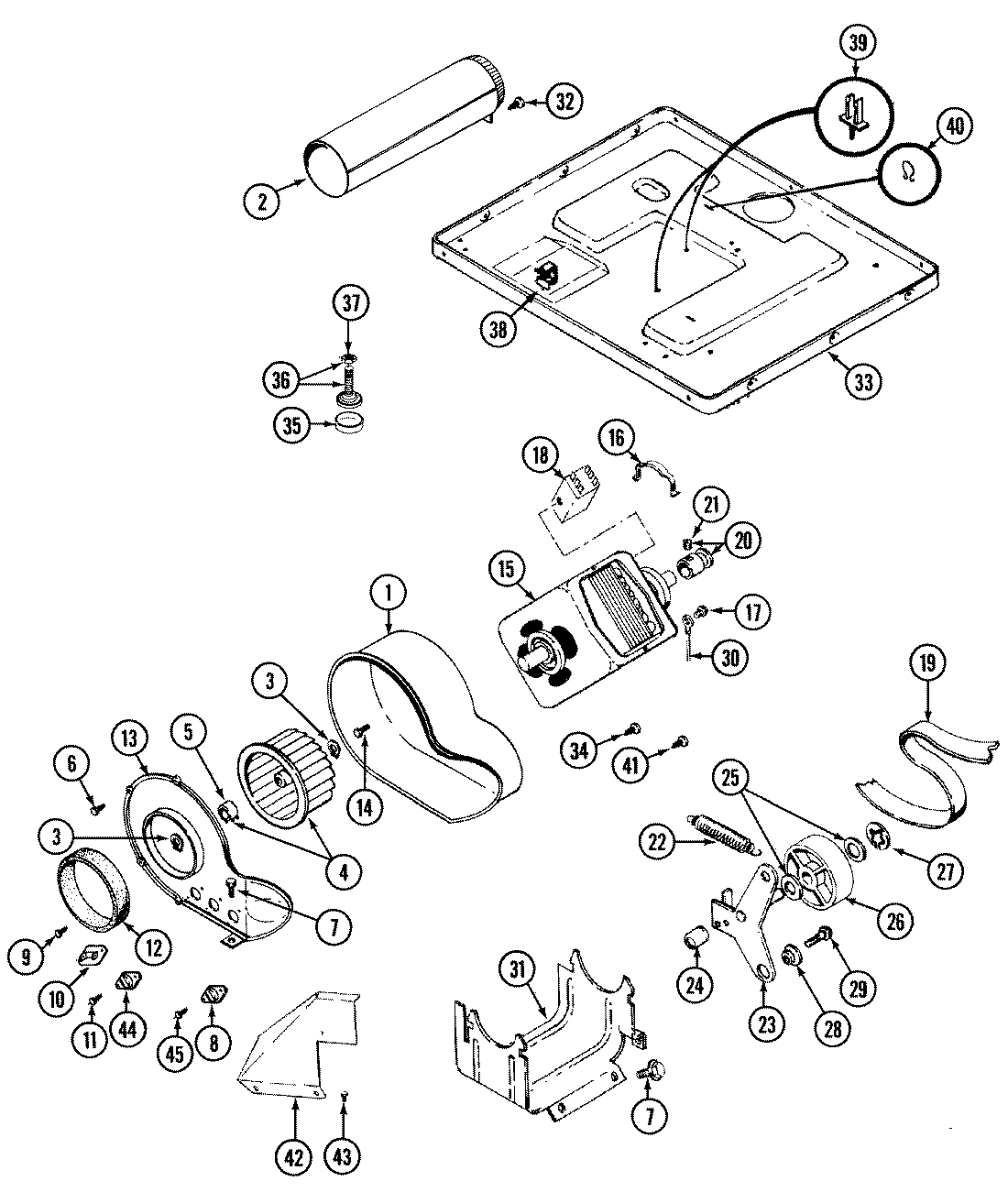

07 - MOTOR DRIVE
Common parts from model Whirlpool LDE9904ACE ELECTRIC DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
1
CONSOLE (WHT) WPL Y305193 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
2
FILTER, LINT WPL 33001167 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
HINGE, DOOR WPL 33001230 Contact Us For Availability
2
BACKUP PLATE WPL 315028 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
3
COVER, TOP (WHT) WPL 33001165 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
3
DOOR (WHT) WPL 33001240 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
4
STRAP, GROUND WPL Y312184 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-WHT) WPL 22001289 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-WHT) WPL 22001291 Contact Us For Availability
4
CAP, END (RT-WHT) WPL 22001564 Contact Us For Availability
4
CAP, END (LT-WHT) WPL 22001565 Contact Us For Availability
5
FRONT ASSY., TUMBLER WPL 33001423 Contact Us For Availability
5
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
5
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
6
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
6
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
6
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
6
PANEL ASSY., MOUNTING (WHT) WPL 33001056 Contact Us For Availability
7
SCREW----NA WPL Y313561 Contact Us For Availability
7
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
7
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
8
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
8
RELAY, HEATER WPL 306199 Contact Us For Availability
8
THERMOSTAT, LIMIT WPL 307200 Contact Us For Availability
9
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
9
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
9
TRANSFORMER WPL 207766 Contact Us For Availability
10
BOARD ASSY., CIRCUIT WPL 33001158 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
11
BASE ASSY. WPL Y303361 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
PIPE, VENTING WPL Y059130 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
SCREW, PLASTIC WPL 33001172 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
13
PANEL, FRONT (WHT) WPL 33001242 Contact Us For Availability
13
COVER FOR BLOWER WPL 314778 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
14
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
14
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
14
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
15
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
15
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
16
CABINET (WHT) WPL 33001159 Contact Us For Availability
16
WIRE, GROUND WPL 205810 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
COVER, ACCESS WPL Y312951 Contact Us For Availability
18
PANEL, CONTROL (WHT) WPL 33001279 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
19
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
19
HARNESS, WIRE WPL 308323 Contact Us For Availability
19
HARNESS, WIRE WPL 33001517 Contact Us For Availability
20
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
20
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
21
EXHAUST DEFLECTOR KIT WPL 306399 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
29
HOLDER, LIGHT WPL 307097 Contact Us For Availability
30
WIRE, GROUND WPL 901220 Contact Us For Availability
31
ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
34
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
35
SENSOR ASSEMBLY (W/SCREWS) WPL Y303389 Contact Us For Availability
36
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
37
RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
38
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
38
RACK, DRYING WPL Y308116 Contact Us For Availability
39
SWITCH, REED & HOUSING WPL 33001001 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SCREW WPL 314554 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
42
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
43
SCREW WPL Y310632 Contact Us For Availability
44
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001074 Contact Us For Availability
× ![]()
