Model Whirlpool LDE24CT ELECTRIC DRYER – Common Parts & Diagrams

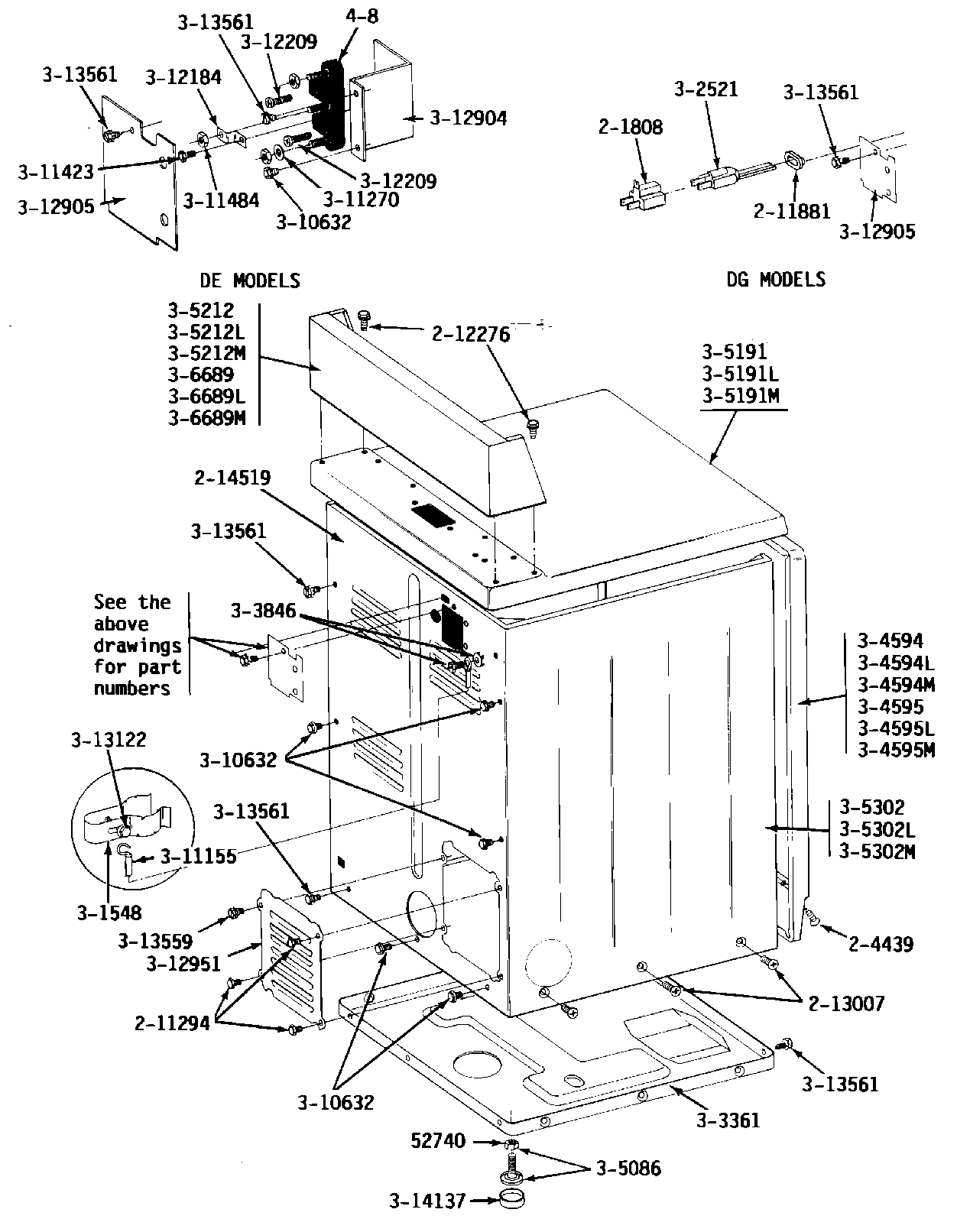

05 - REAR VIEW

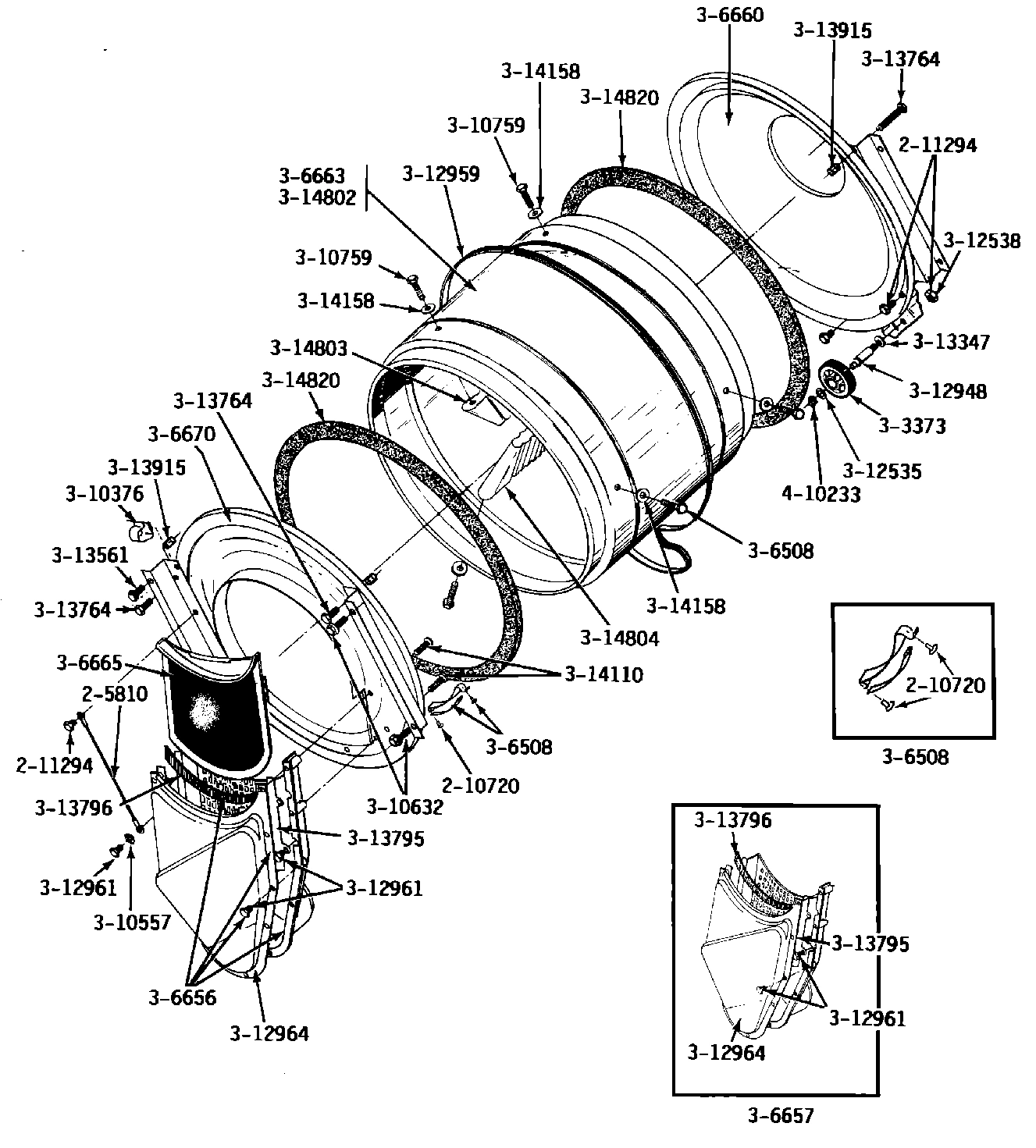

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

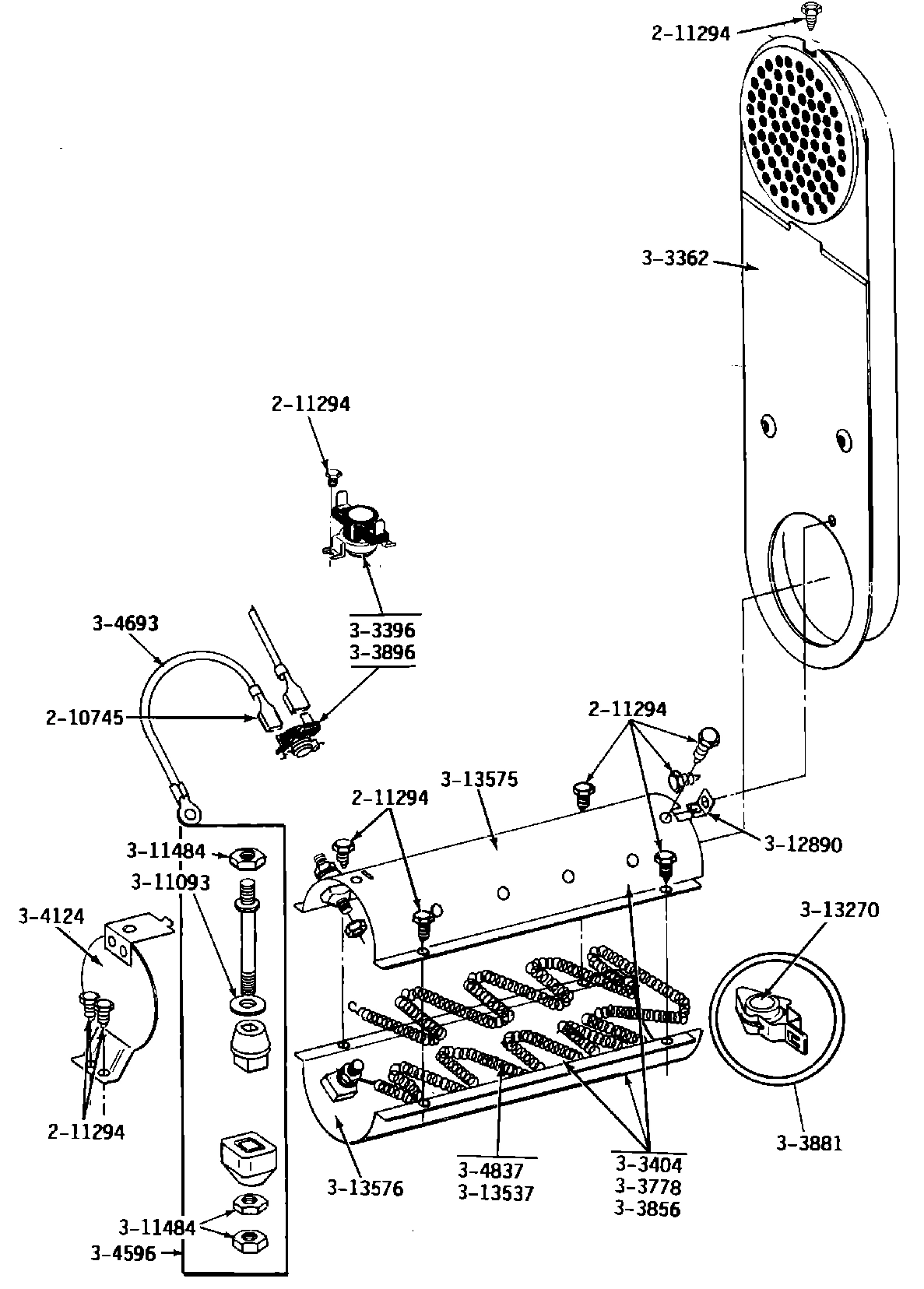

08 - INLET DUCT & HEATER ASSEMBLY

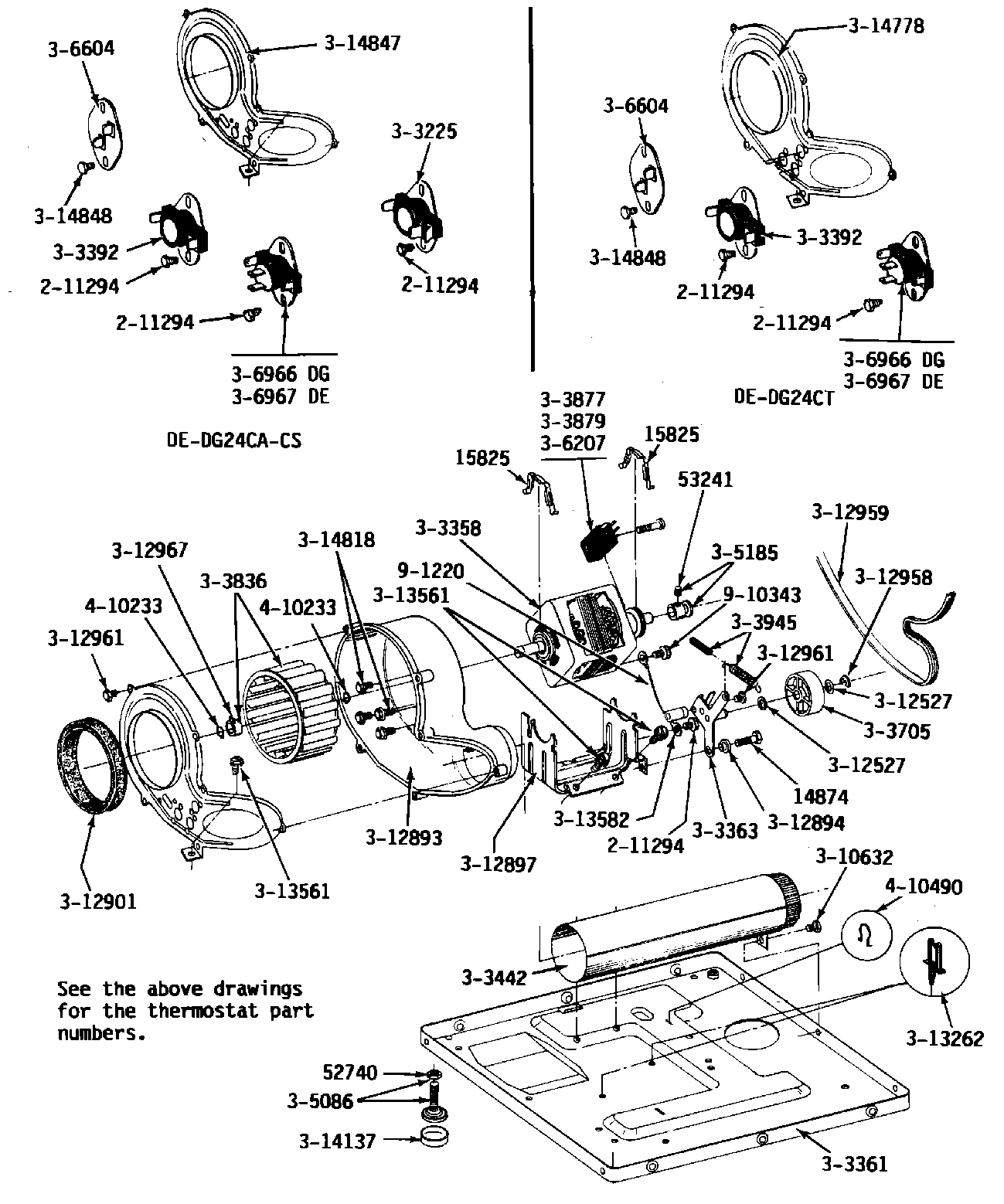

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

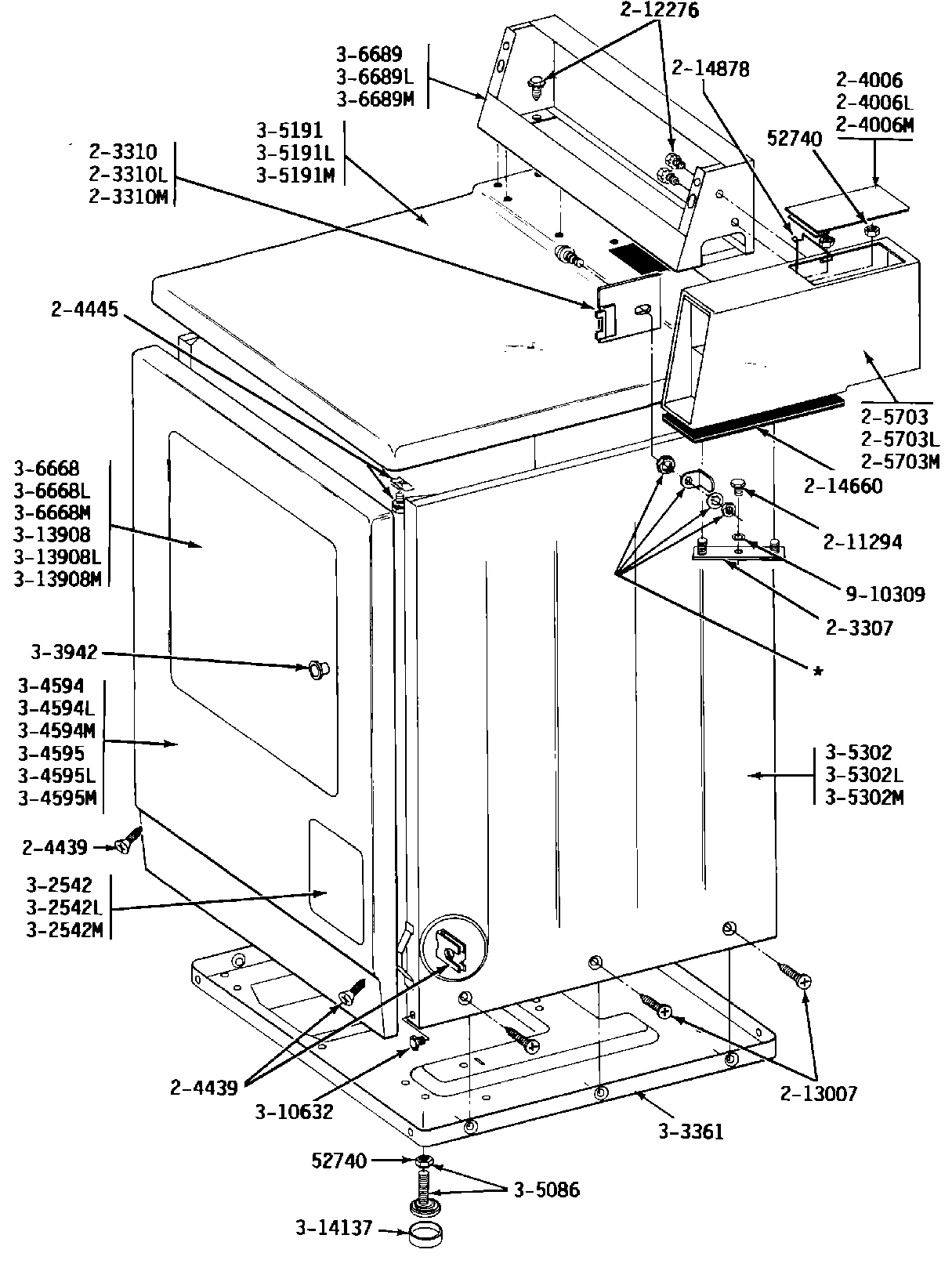

04 - FRONT VIEW

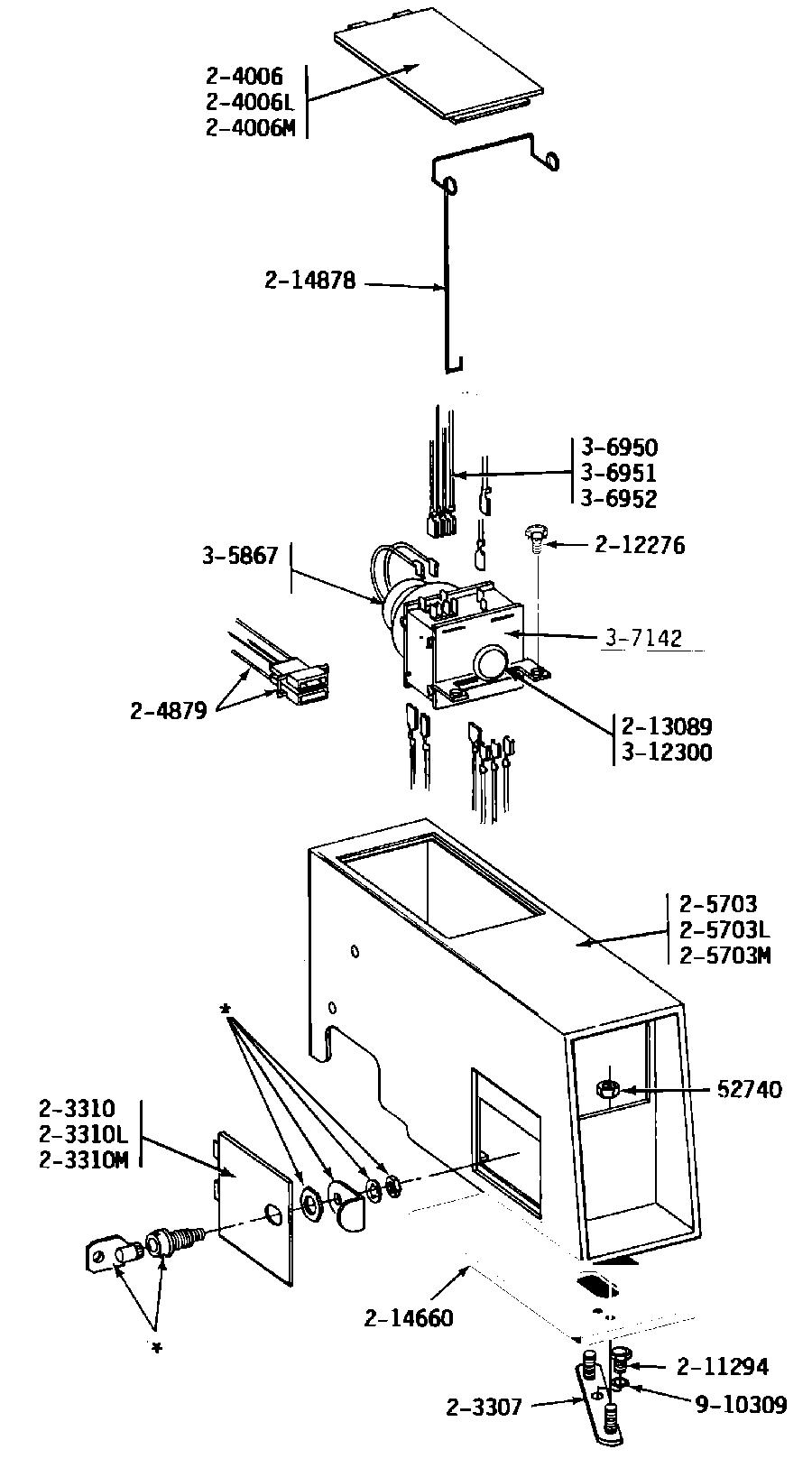

02 - CT CONTROL PANEL/TIMER

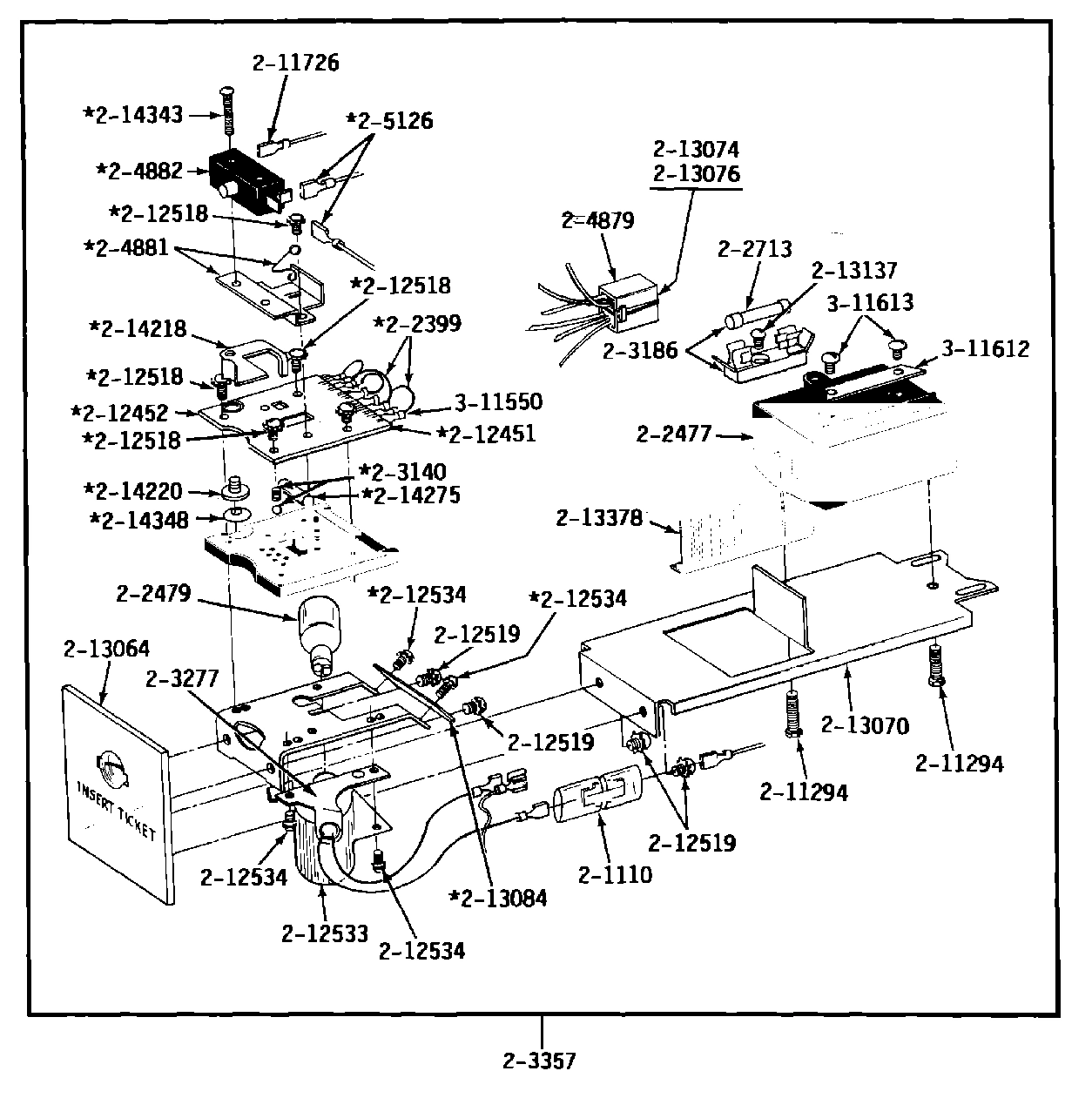

03 - CT CONTROL CENTER COMPONENTS

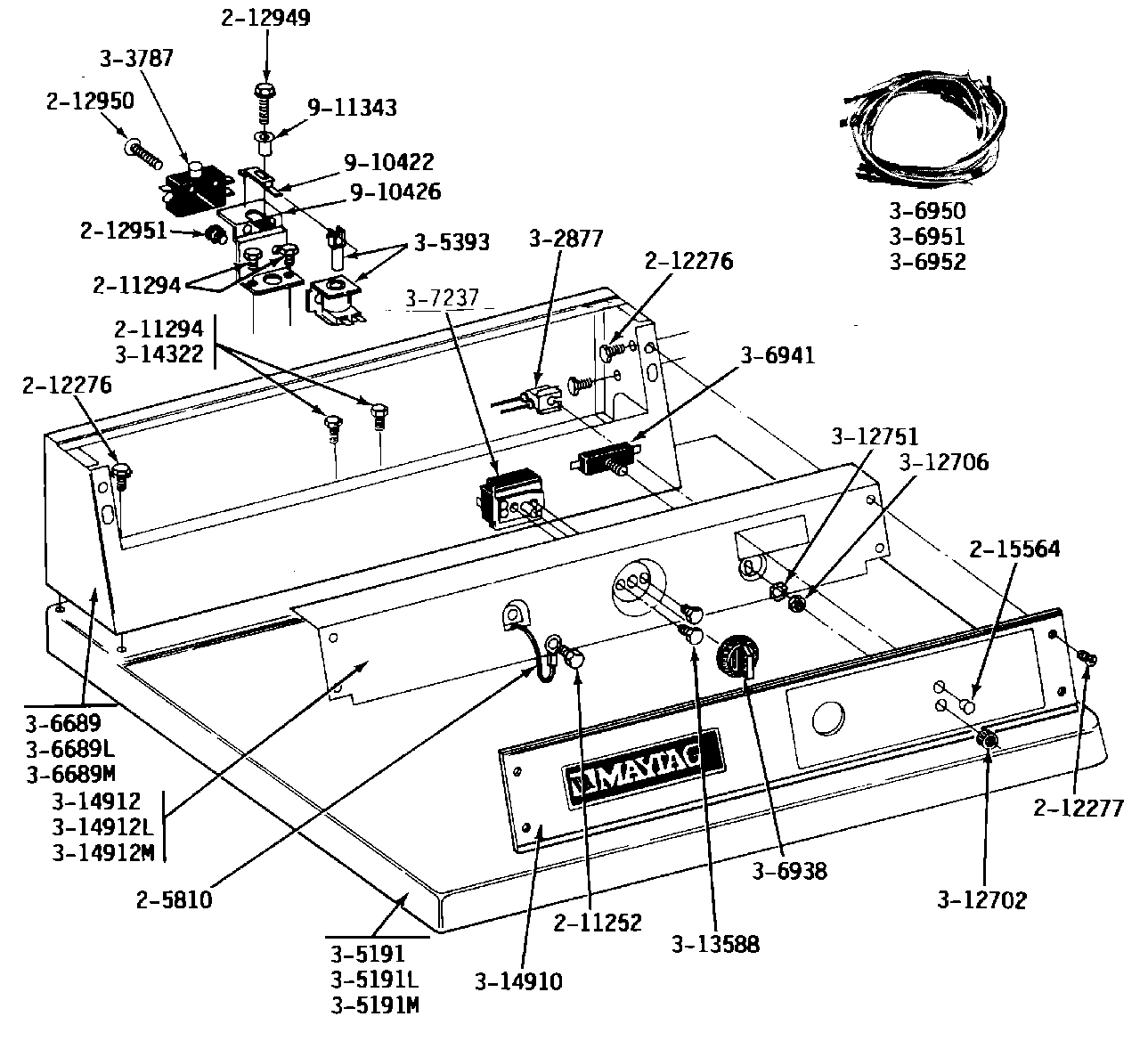

01 - CT CONTROL PANEL

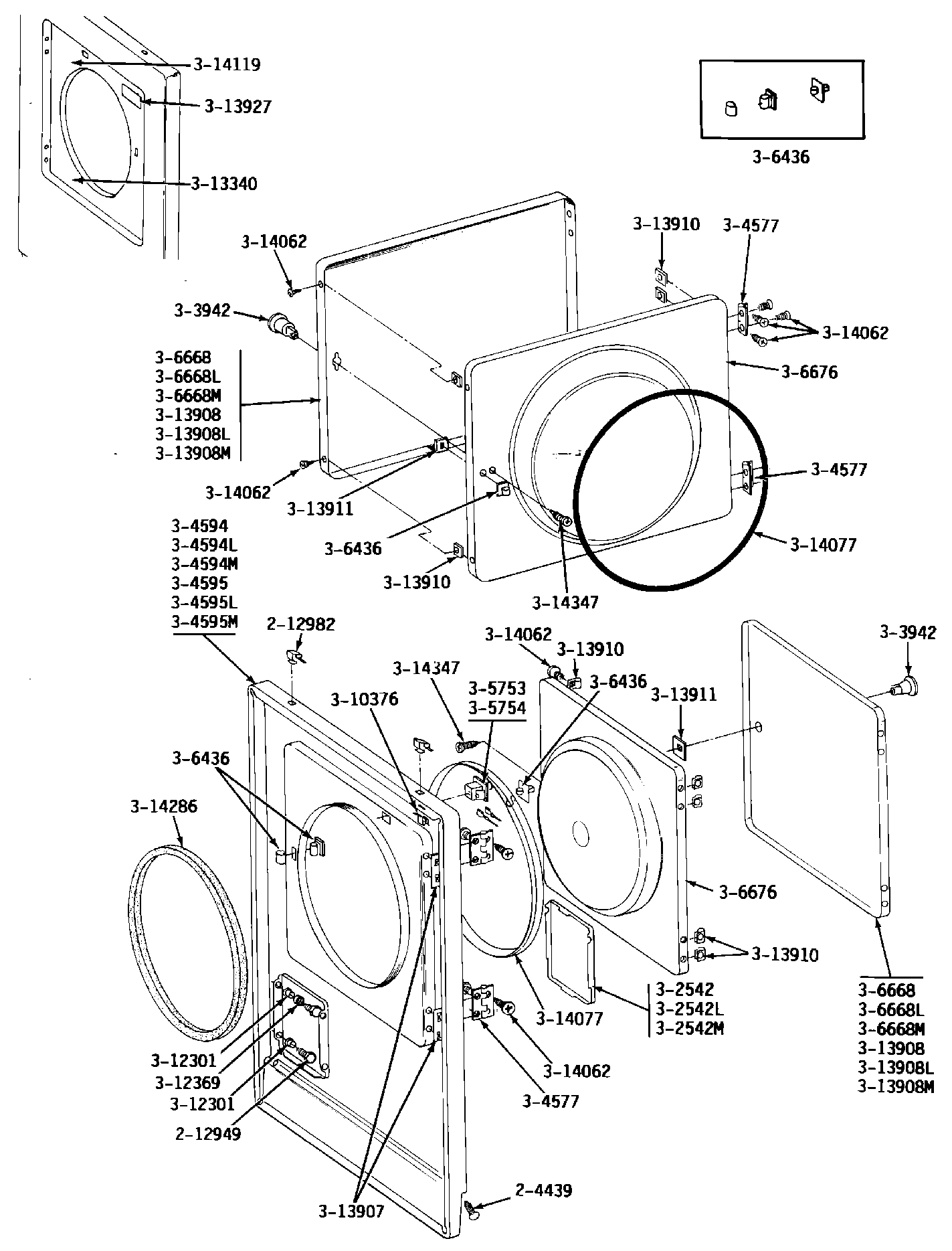

06 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool LDE24CT ELECTRIC DRYER
001
WIRE, GROUND WPL 205810 Contact Us For Availability
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
003
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
003
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
005
TICKET CONTROL WPL 202509 Contact Us For Availability
006
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
006
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
006
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
007
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
007
CONTACT BALL KIT WPL 203140 Contact Us For Availability
007
SCREW, RELAY SWITCH TO BRKT WPL 212950 Contact Us For Availability
008
TUMBLER BACK WPL Y306660 Contact Us For Availability
008
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
FASTENER WPL 215003 Contact Us For Availability
010
HEATER SHIELD WPL 304124 Contact Us For Availability
010
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
011
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
012
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
012
SWITCH FOR RELAY WPL Y303787 Contact Us For Availability
013
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
013
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
014
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
014
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
015
KNOB FOR TIMER WPL 213089 Contact Us For Availability
016
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
016
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
016
GASKET, METER CASE WPL 214660 Contact Us For Availability
017
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
017
LATCH FOR ACCESS DOOR WPL 214878 Contact Us For Availability
018
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
DOOR WPL Y306668 Contact Us For Availability
018
CIRCUIT BOARD WPL 212452 Contact Us For Availability
019
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
019
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
020
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
020
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
021
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
022
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
022
BASE ASSY. WPL Y303361 Contact Us For Availability
022
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
022
TIMER WITH KNOB AND PIN WPL 307142 Contact Us For Availability
023
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
023
GROOV-PIN WPL Y312300 Contact Us For Availability
024
WASHER WPL 910309 Contact Us For Availability
024
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
025
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
025
PIN RECEPTACLE FOR PLUG WPL 213074 Contact Us For Availability
025
KNURLED NUT WPL Y312702 Contact Us For Availability
025
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
026
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
026
LINT SEAL WPL Y313796 Contact Us For Availability
026
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
026
TWIN FASTENER WPL Y313907 Contact Us For Availability
027
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
029
WASHER WPL 314158 Contact Us For Availability
029
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
030
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
030
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
030
SWITCH LEVER WPL 214218 Contact Us For Availability
030
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
031
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
031
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
031
BACK-UP PLATE - WHITE WPL 314912 Contact Us For Availability
031
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
032
ROLLER FOR CAM WPL 214275 Contact Us For Availability
032
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
033
SCREW WPL Y314062 Contact Us For Availability
034
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
034
DOOR SEAL WPL 314077 Contact Us For Availability
035
SCREW----NA WPL Y313561 Contact Us For Availability
035
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
036
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
036
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
037
SCREW FOR DOOR KNOB----NA WPL NLA Contact Us For Availability
037
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
038
STRAP, GROUND WPL Y312184 Contact Us For Availability
038
COVER FOR BLOWER WPL 314778 Contact Us For Availability
039
SCREW WPL 314818 Contact Us For Availability
040
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
040
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
041
COVER, TERMINAL WPL Y312905 Contact Us For Availability
042
COVER, ACCESS WPL Y312951 Contact Us For Availability
043
SCREW WPL Y310632 Contact Us For Availability
043
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
043
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
044
WIRE, GROUND WPL 901220 Contact Us For Availability
047
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
× ![]()
