Model Whirlpool LDE24CS ELECTRIC DRYER – Common Parts & Diagrams
01 - CS CONTROL PANEL

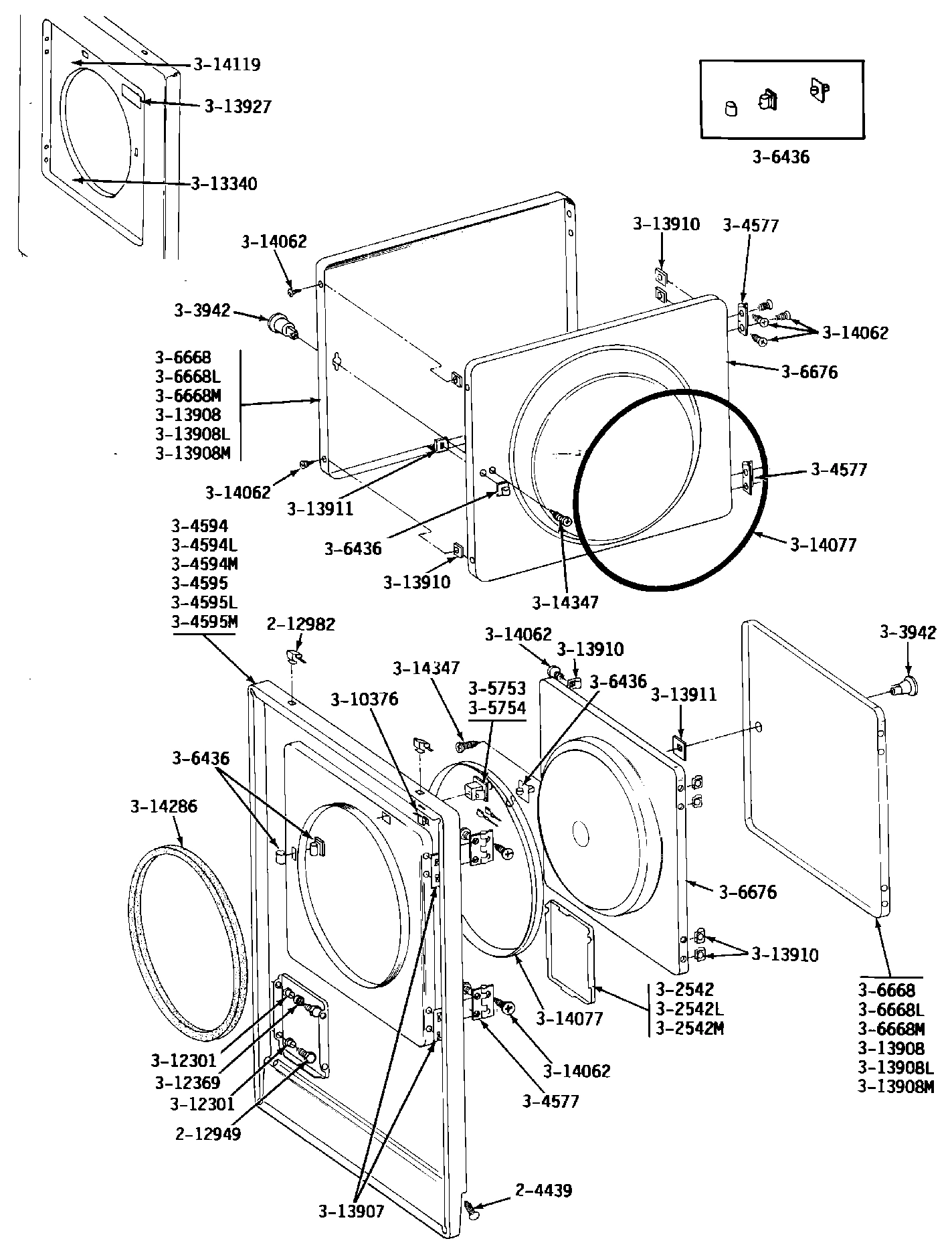

06 - FRONT PANEL & DOOR ASSEMBLY

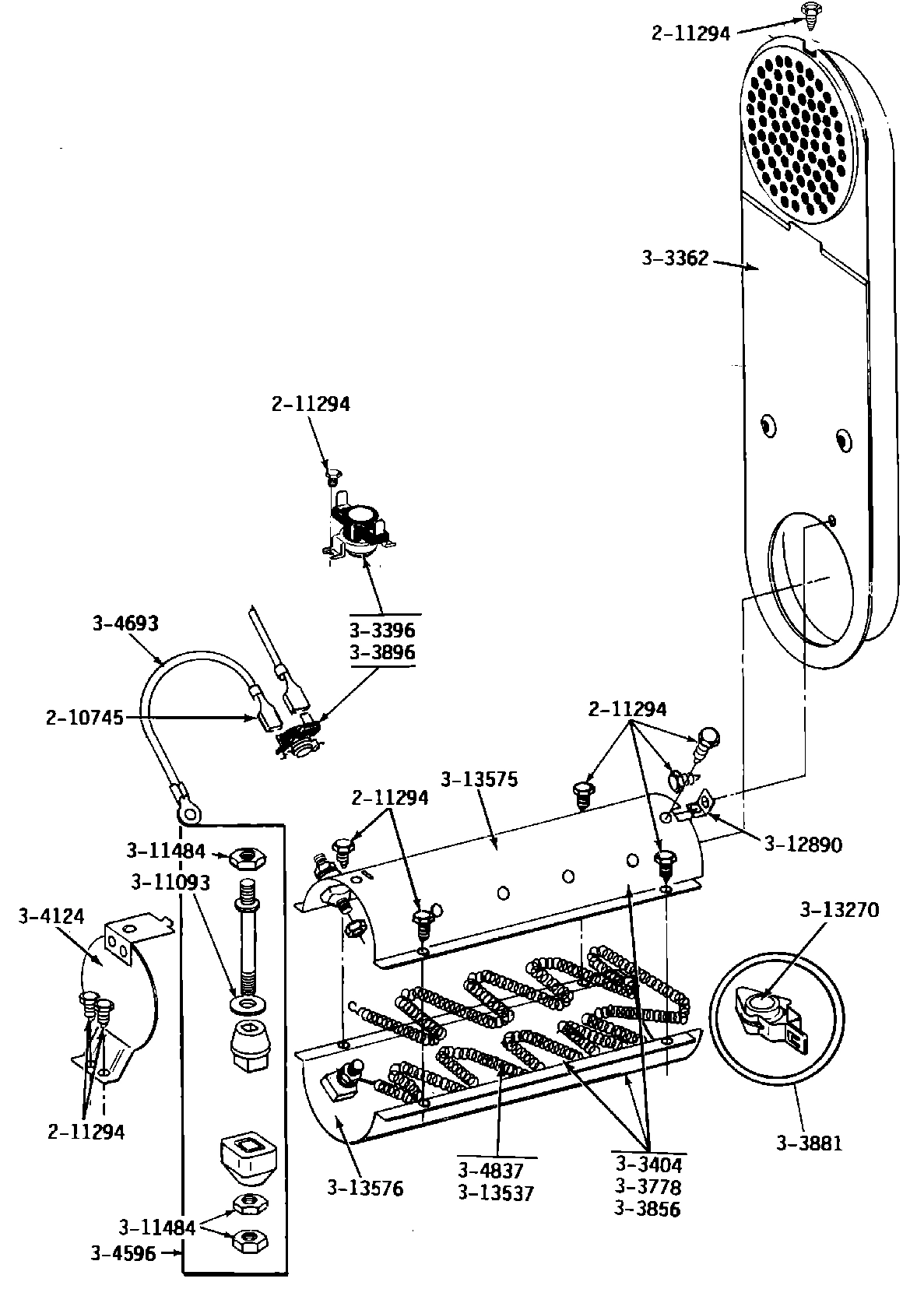

08 - INLET DUCT & HEATER ASSEMBLY

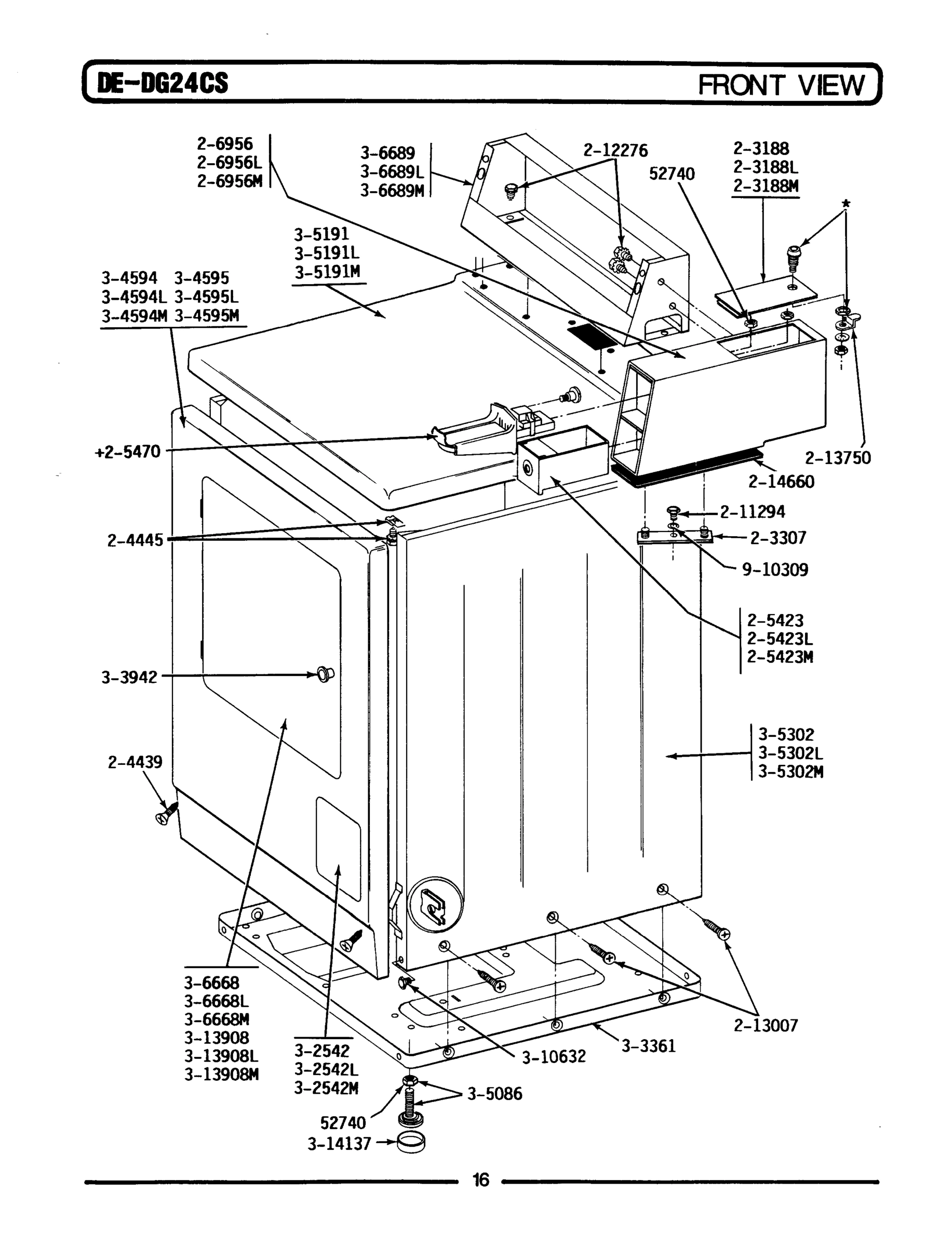

03 - MAYTAG COIN SLIDE

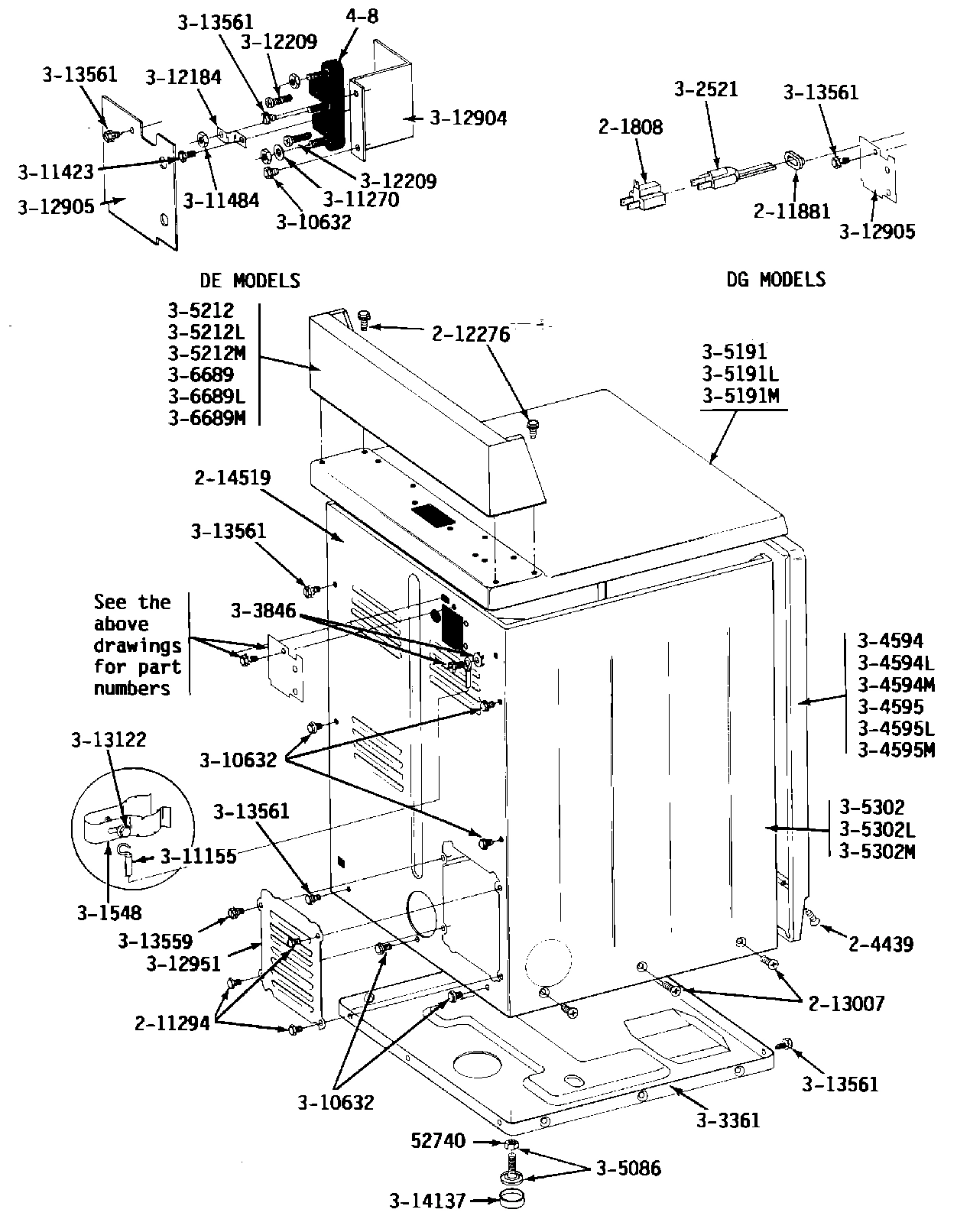

05 - REAR VIEW
10 - 50HZ CONVERSION LIST

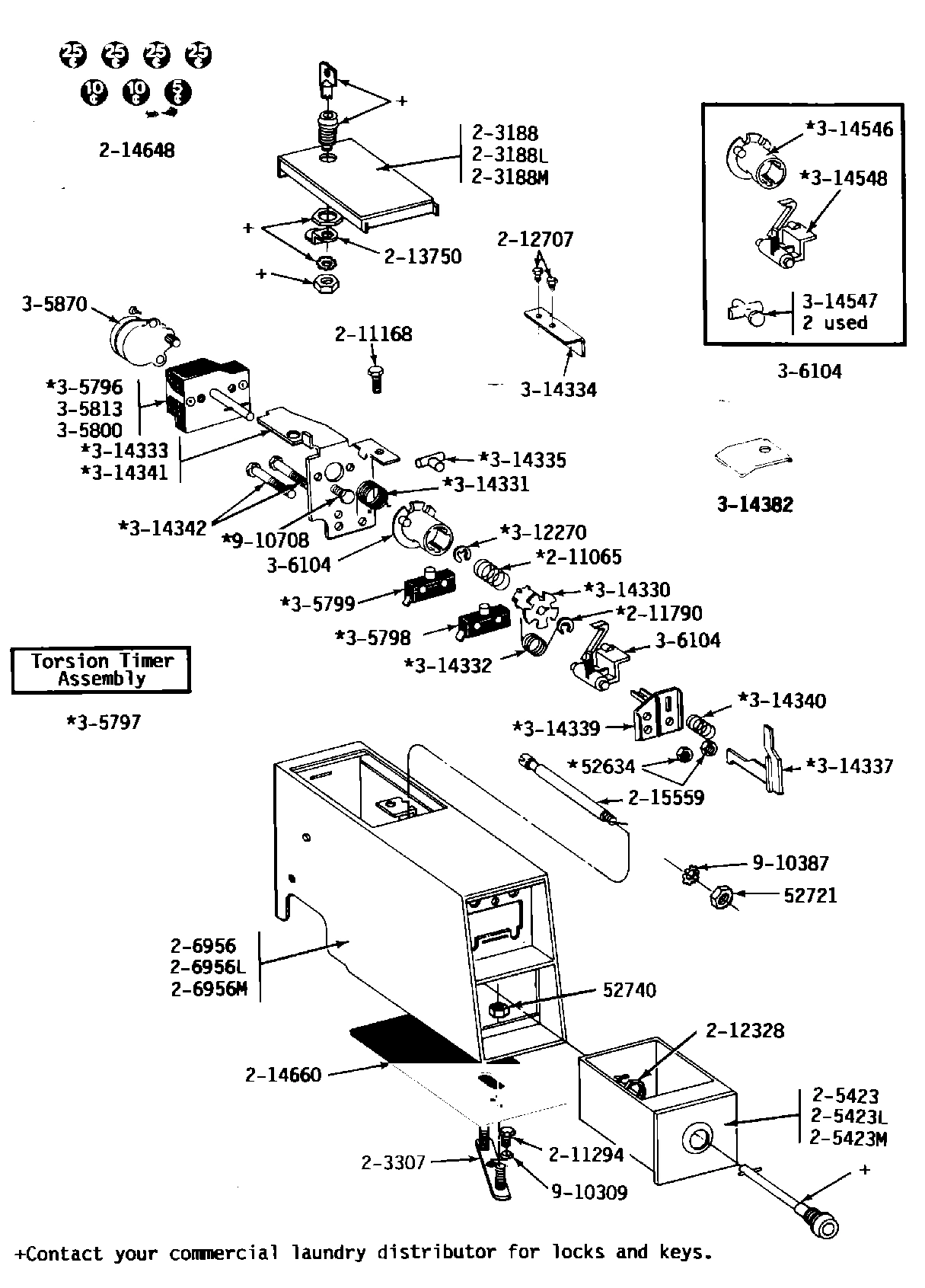

02 - CS CONTROL PANEL/COIN BOX

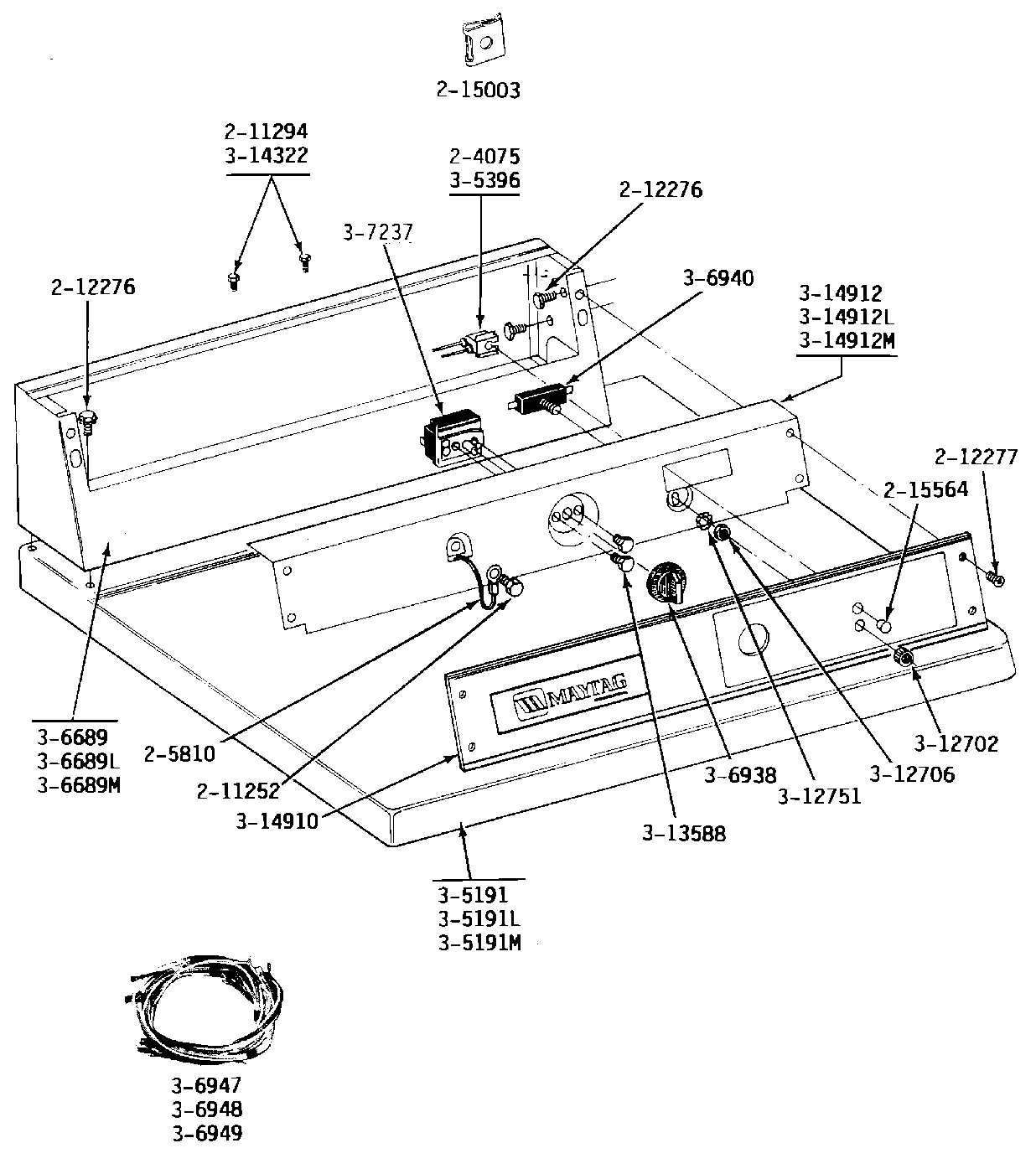

04 - FRONT VIEW

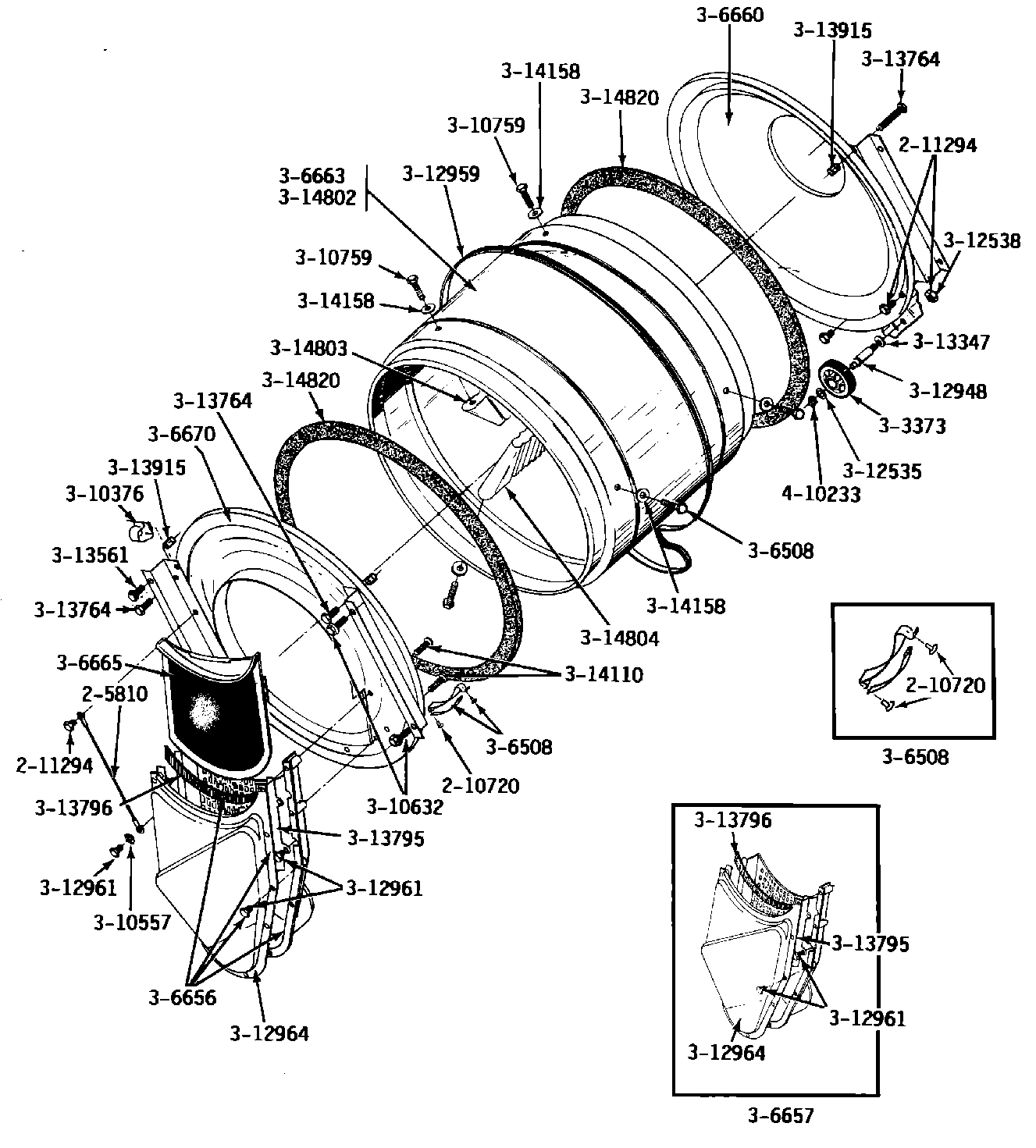

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

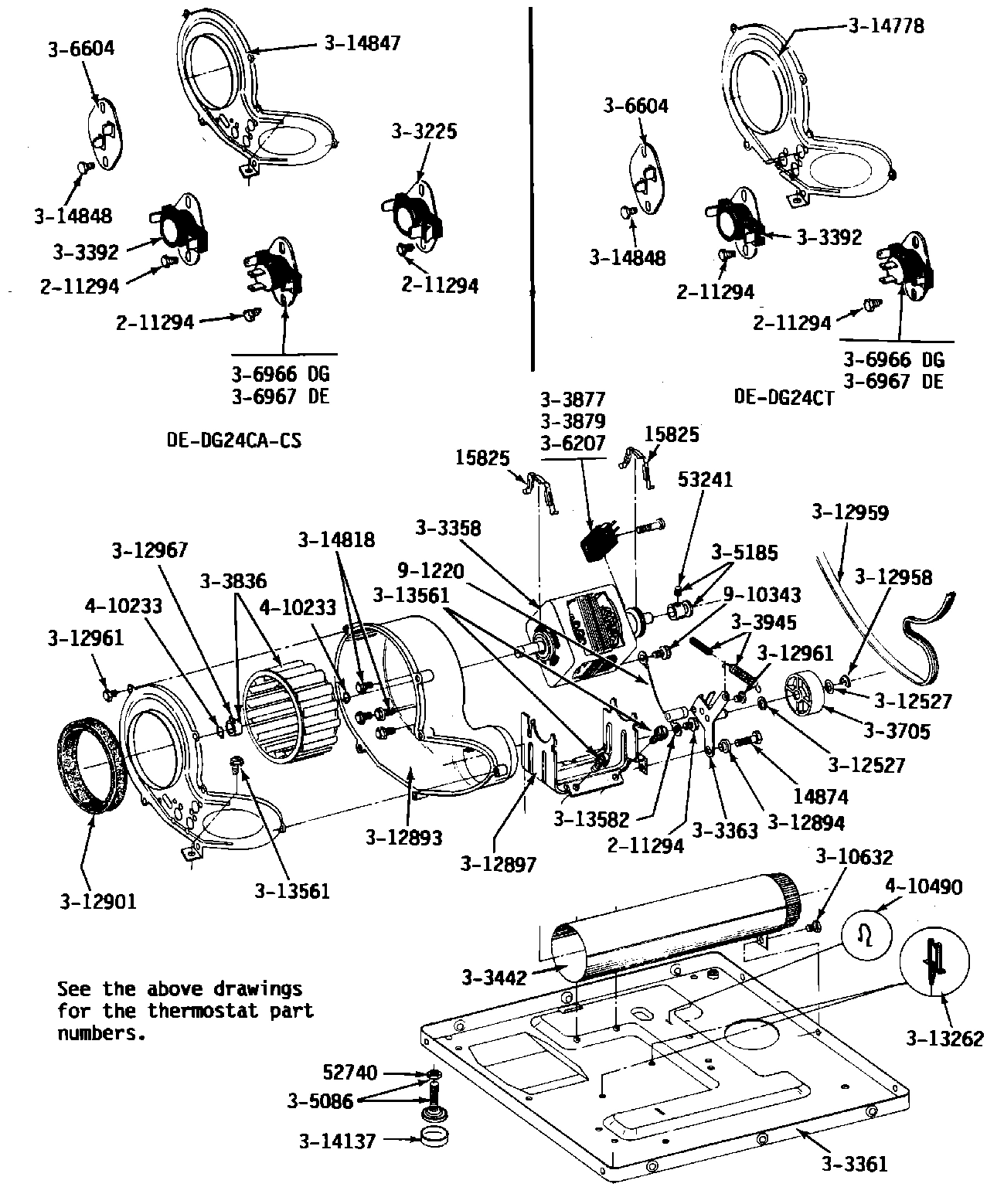

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Whirlpool LDE24CS ELECTRIC DRYER
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
001
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
WIRE, GROUND WPL 205810 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
002
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
002
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
003
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
003
MOTOR 240-50 WPL Y304656 Contact Us For Availability
003
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
004
BURNER ASSEMBLY WPL Y304697 Contact Us For Availability
004
ACCESS DOOR-HARVEST WHEAT WPL 203188M Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
005
GAS VALVE (240-50) WPL Y304698 Contact Us For Availability
006
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
006
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
006
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability

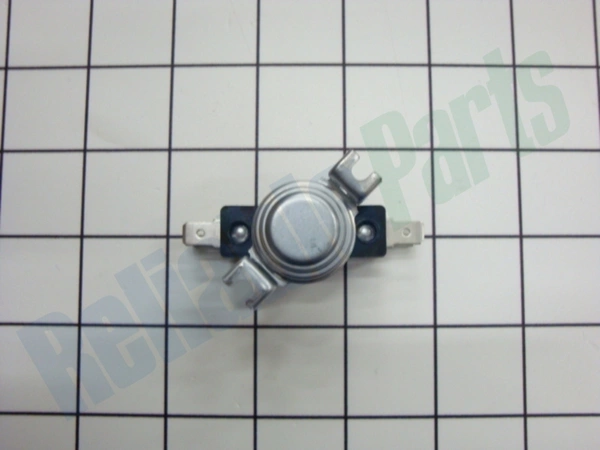

006
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
007
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
007
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
008
RATCHET ARM WPL 214572 Contact Us For Availability
008
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
008
BASE ASSY. WPL Y303361 Contact Us For Availability
008
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
008
COIN BOX-WHITE WPL 205423 Contact Us For Availability
008
TUMBLER BACK WPL Y306660 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
010
HEATER SHIELD WPL 304124 Contact Us For Availability
010
POWER CORD WPL 302521 Contact Us For Availability
010
TIMER 240-50 WPL Y305758 Contact Us For Availability
010
COIN BOX-HARVEST WHEAT WPL 205423M Contact Us For Availability
011
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
011
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
011
TIMER 240-50 WPL 305812 Contact Us For Availability
011
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
012
INDICATOR LAMP WPL Y305396 Contact Us For Availability
012
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
012
TIMER MOTOR 240-50 WPL 306527 Contact Us For Availability
012
COIN METER ASSY - WHITE WPL 206956 Contact Us For Availability
013
COIN METER ASSY - ALMOND WPL 206956L Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
014
RETURN SPRING WPL 214581 Contact Us For Availability
014
COIN METER ASSY-HARV WHEAT--NA WPL 206956M Contact Us For Availability
014
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability

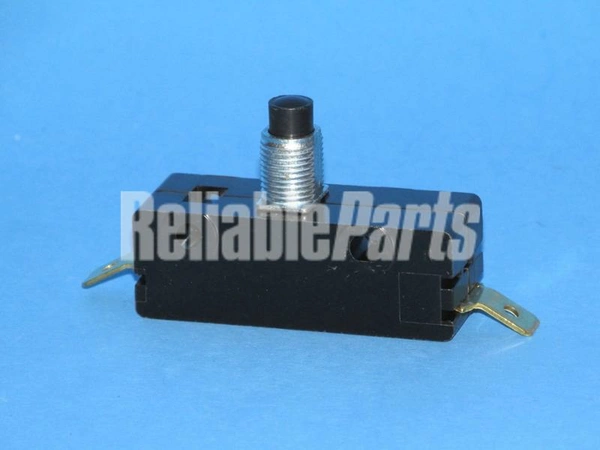

015
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

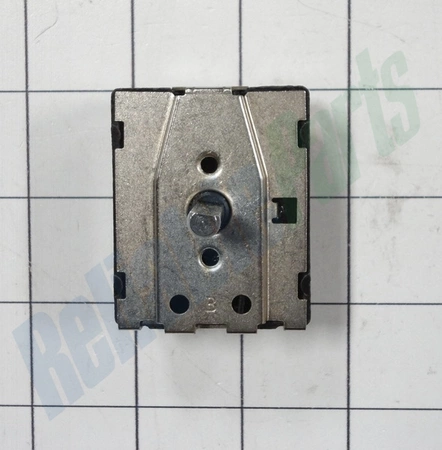

016
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
016
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
016
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
016
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
016
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

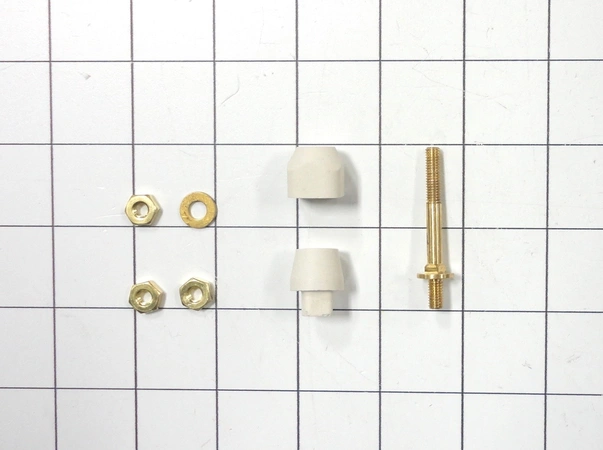

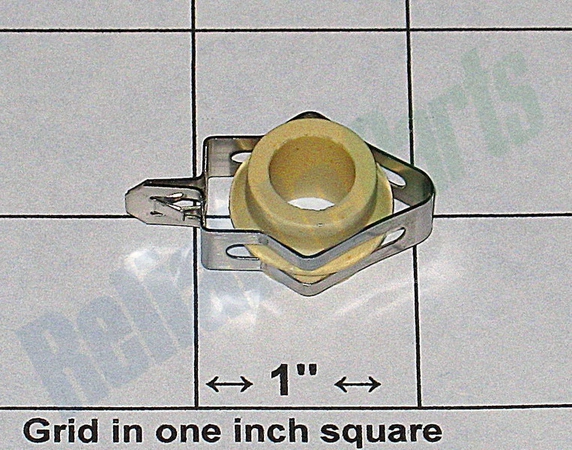

017
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
017
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
017
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
017
SCREW WPL Y311711 Contact Us For Availability

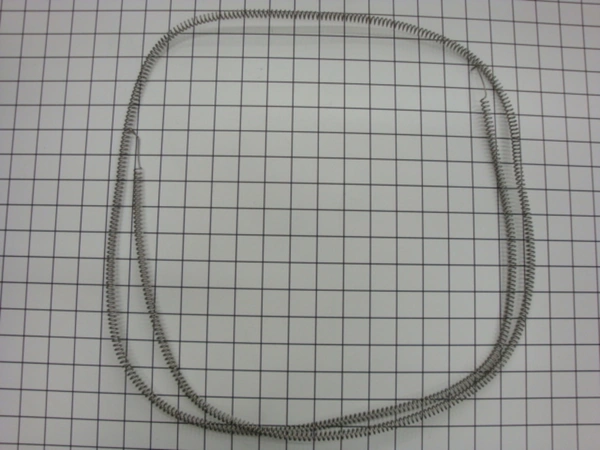

018
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
018
SPRING CLIP WPL 214589 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
019
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
019
PILOT TUBE WPL Y312483 Contact Us For Availability
019
GASKET, METER CASE WPL 214660 Contact Us For Availability
020
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
020
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
020
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
020
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
021
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
021
COINAGE DECAL WPL 214648 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
022
KNURLED NUT WPL Y312702 Contact Us For Availability
022
TWIN FASTENER WPL Y313907 Contact Us For Availability
022
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
022
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
023
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
023
SCREW WPL 214597 Contact Us For Availability
023
BOLT, LOCKING WPL 215559 Contact Us For Availability
023
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
024
TIMER WPL 305796 Contact Us For Availability
025
TORSION TIMER ASSM COMPLETE WPL 305797 Contact Us For Availability
025
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
026
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
026
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
026
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
026
BYPASS SWITCH FOR MOTOR WPL 305798 Contact Us For Availability
026
LINT SEAL WPL Y313796 Contact Us For Availability
027
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
027
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
027
BYPASS SWITCH FOR HEATER WPL Y305799 Contact Us For Availability
028
BACK-UP PLATE - WHITE WPL 314912 Contact Us For Availability
028
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
028
WIRE HARNESS FOR TIMER WPL 305800 Contact Us For Availability
029
SCREW WPL Y314062 Contact Us For Availability
029
TIMER - CANADA RPR WPL 305813 Contact Us For Availability
029
WASHER WPL 314158 Contact Us For Availability
030
DOOR SEAL WPL 314077 Contact Us For Availability
030
TIMER MOTOR RPR WPL 305870 Contact Us For Availability
030
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
031
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
032
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
032
E CLIP WPL Y312270 Contact Us For Availability
032
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
033
DOOR WPL Y306668 Contact Us For Availability
033
DRIVER FOR INDEX WHEEL WPL 314330 Contact Us For Availability
034
RETURN SPRING WPL 314331 Contact Us For Availability
034
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
035
STRAP, GROUND WPL Y312184 Contact Us For Availability
035
SCREW----NA WPL Y313561 Contact Us For Availability
035
ACTUATOR SPRING WPL 314332 Contact Us For Availability
036
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
037
BRACKET FOR COIN SLIDE WPL 314334 Contact Us For Availability
037
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
038
COVER, TERMINAL WPL Y312905 Contact Us For Availability
038
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
038
SCREW WPL 314818 Contact Us For Availability
039
COVER, ACCESS WPL Y312951 Contact Us For Availability
039
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
040
SCREW WPL NLA Contact Us For Availability
040
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
040
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
040
SWITCH AND SLIDER BRACKET WPL 314339 Contact Us For Availability
042
WIRE, GROUND WPL 901220 Contact Us For Availability
044
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
044
WASHER WPL 910309 Contact Us For Availability
045
INDEX WHEEL WPL 314546 Contact Us For Availability
047
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
049
LOCK WASHER WPL 910387 Contact Us For Availability
× ![]()
