Model Whirlpool LB3000XKW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

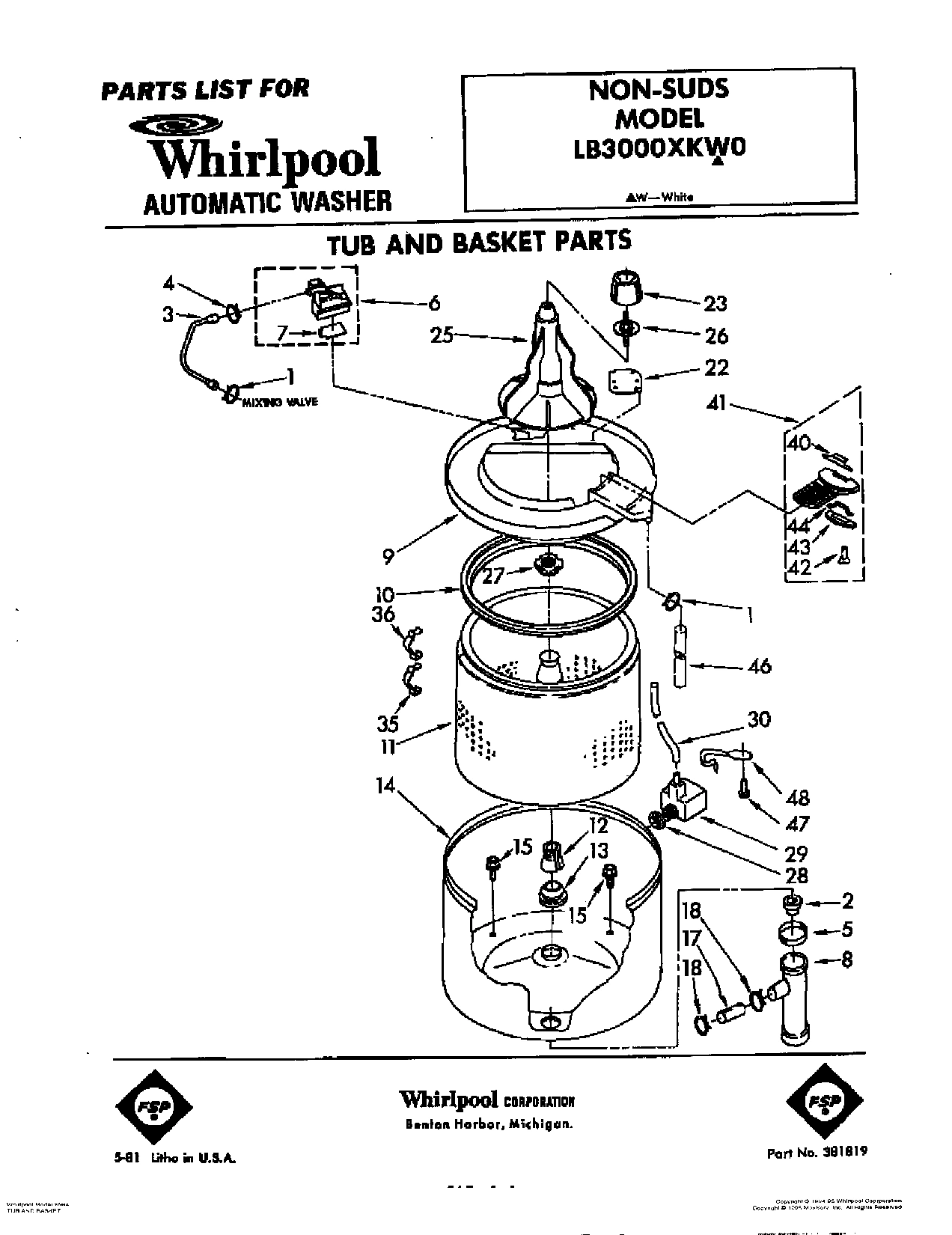

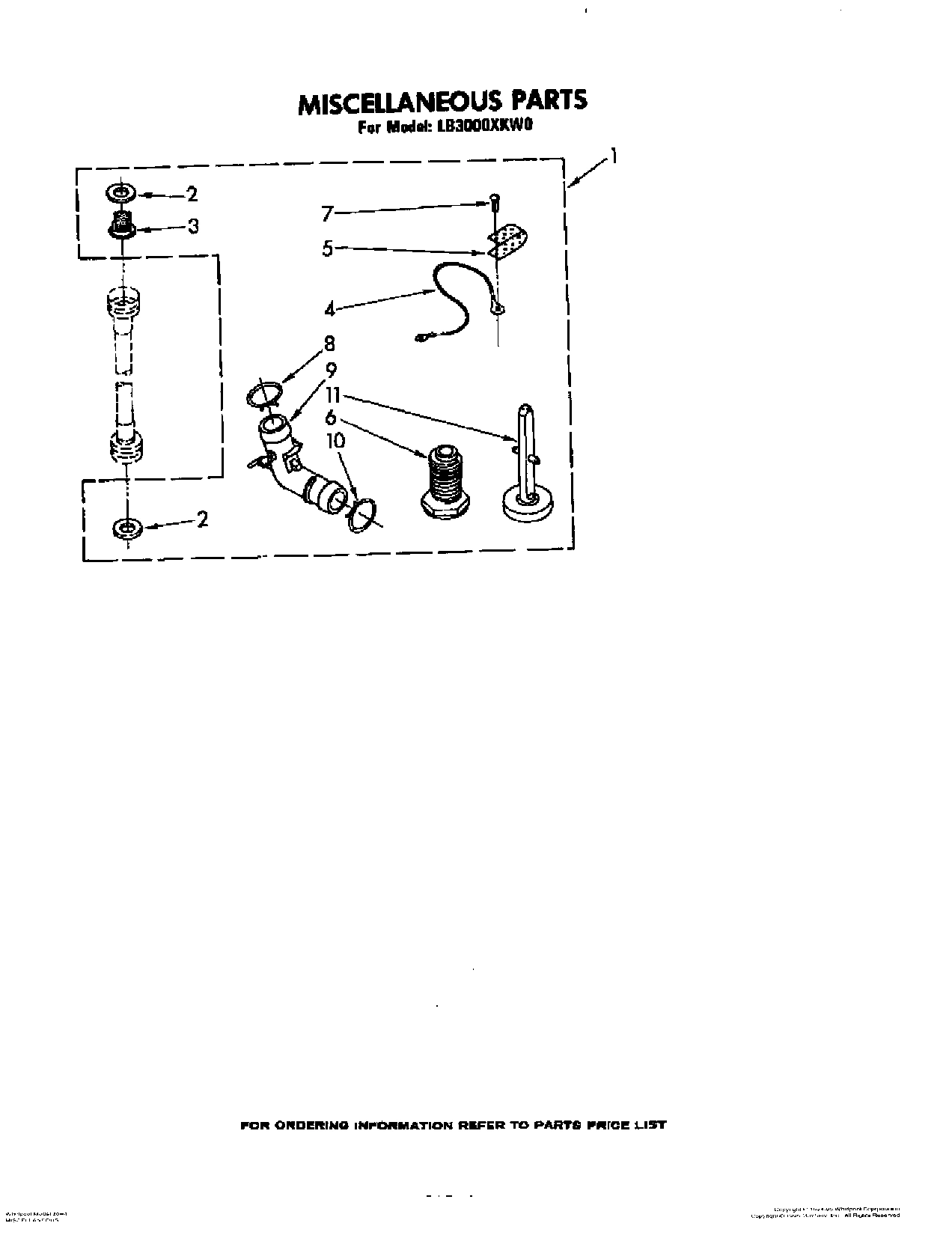

Miscellaneous Parts Bag WPL 375962 Contact Us For Availability

1

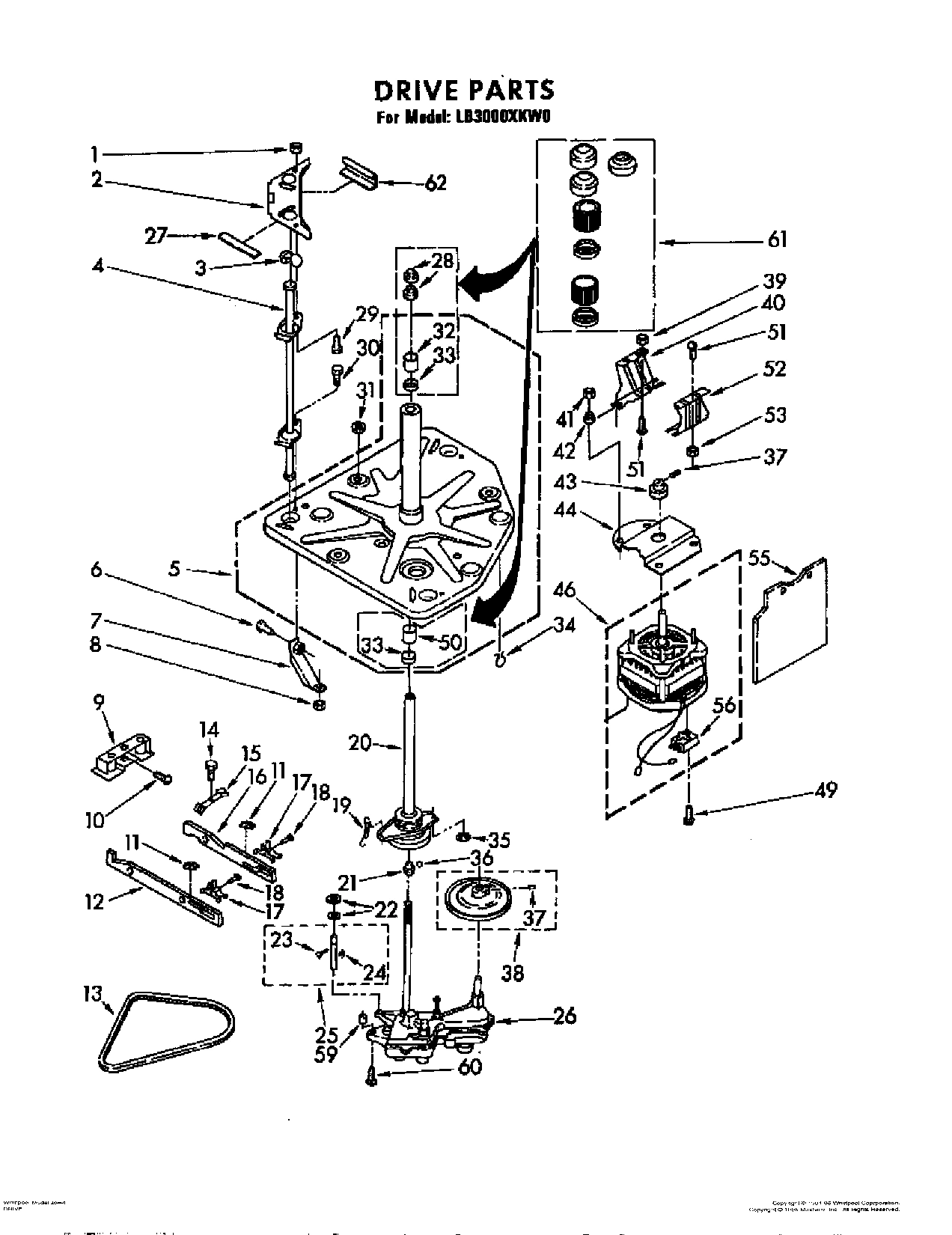

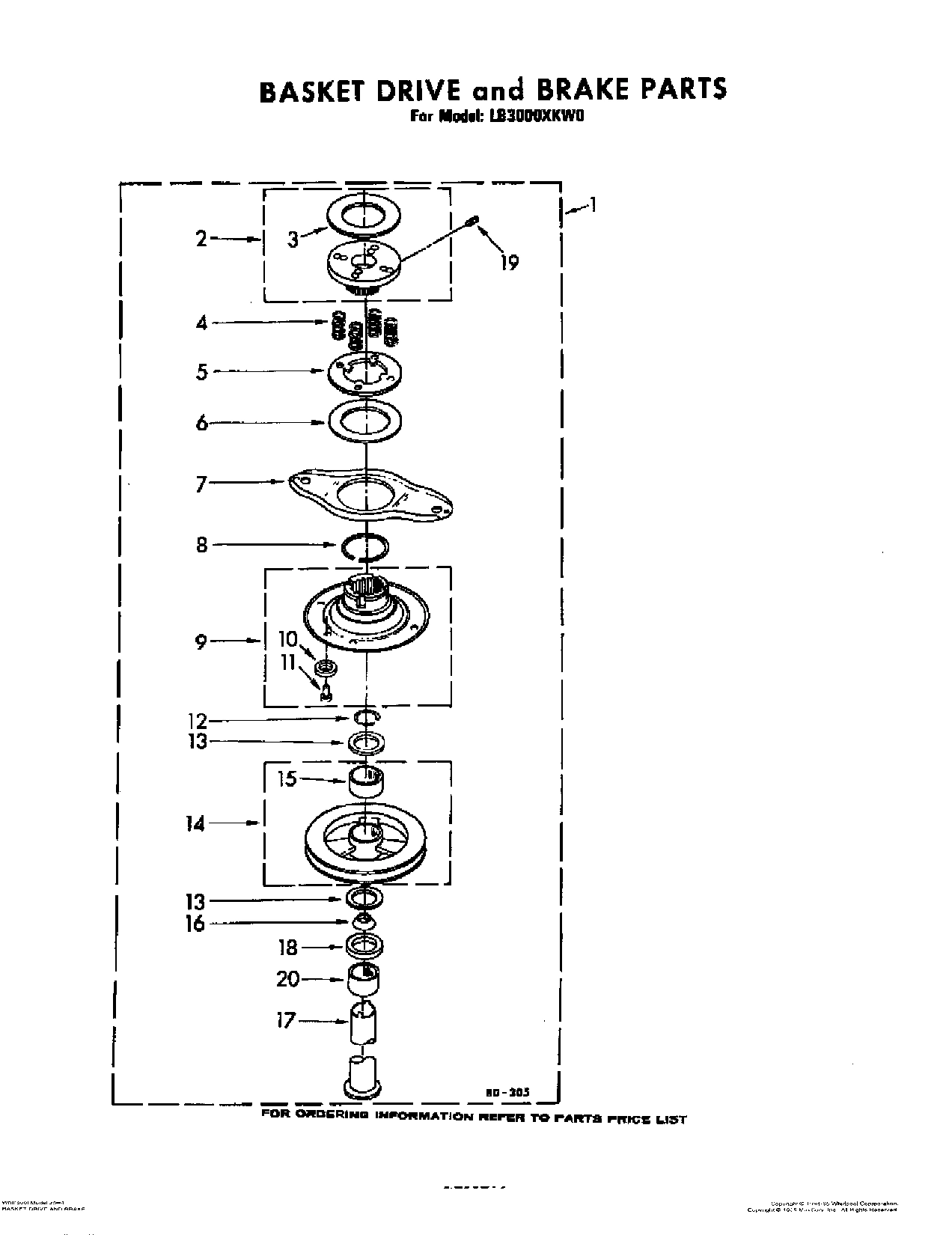

Basket Drive & Brake WPL 359517 Contact Us For Availability

1

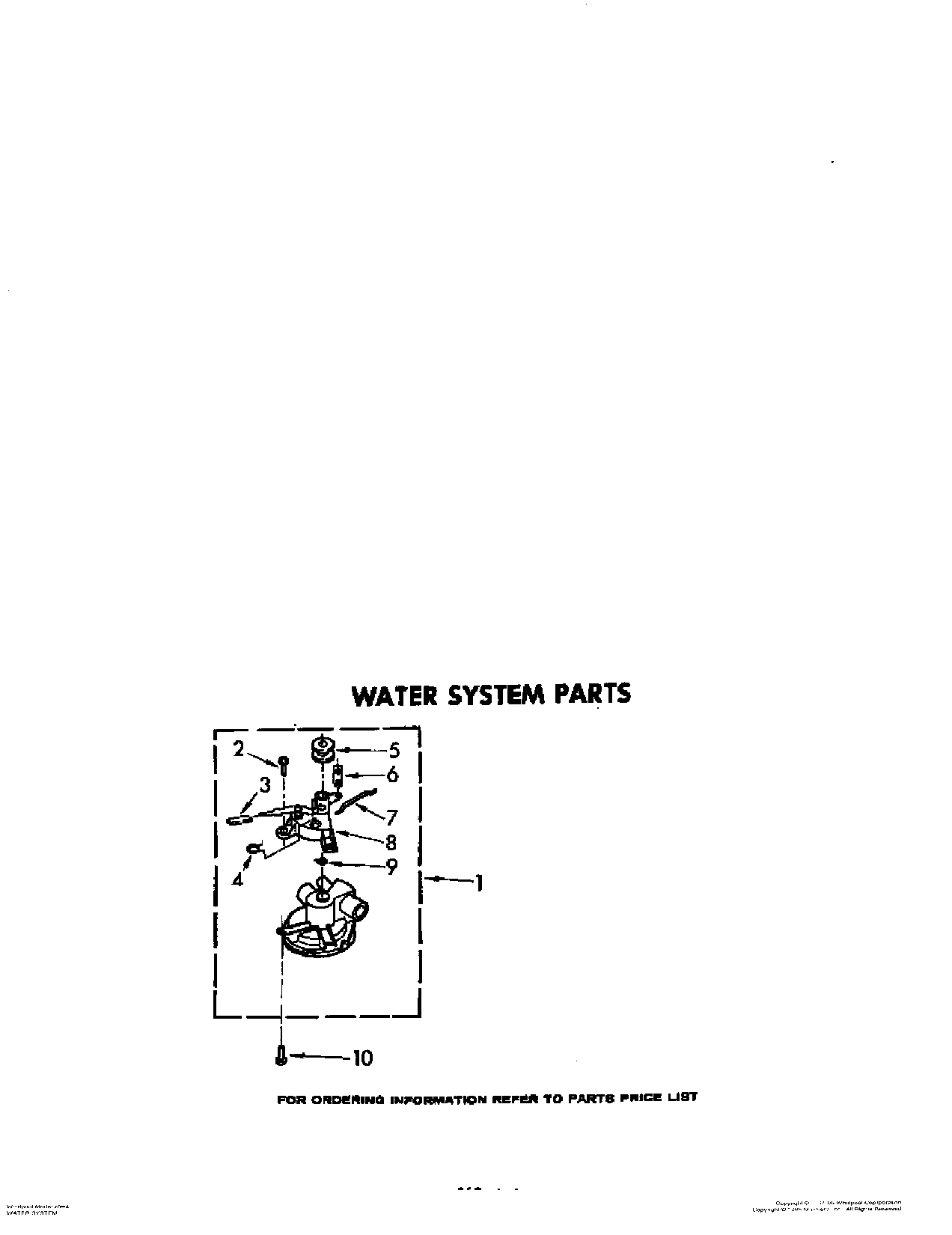

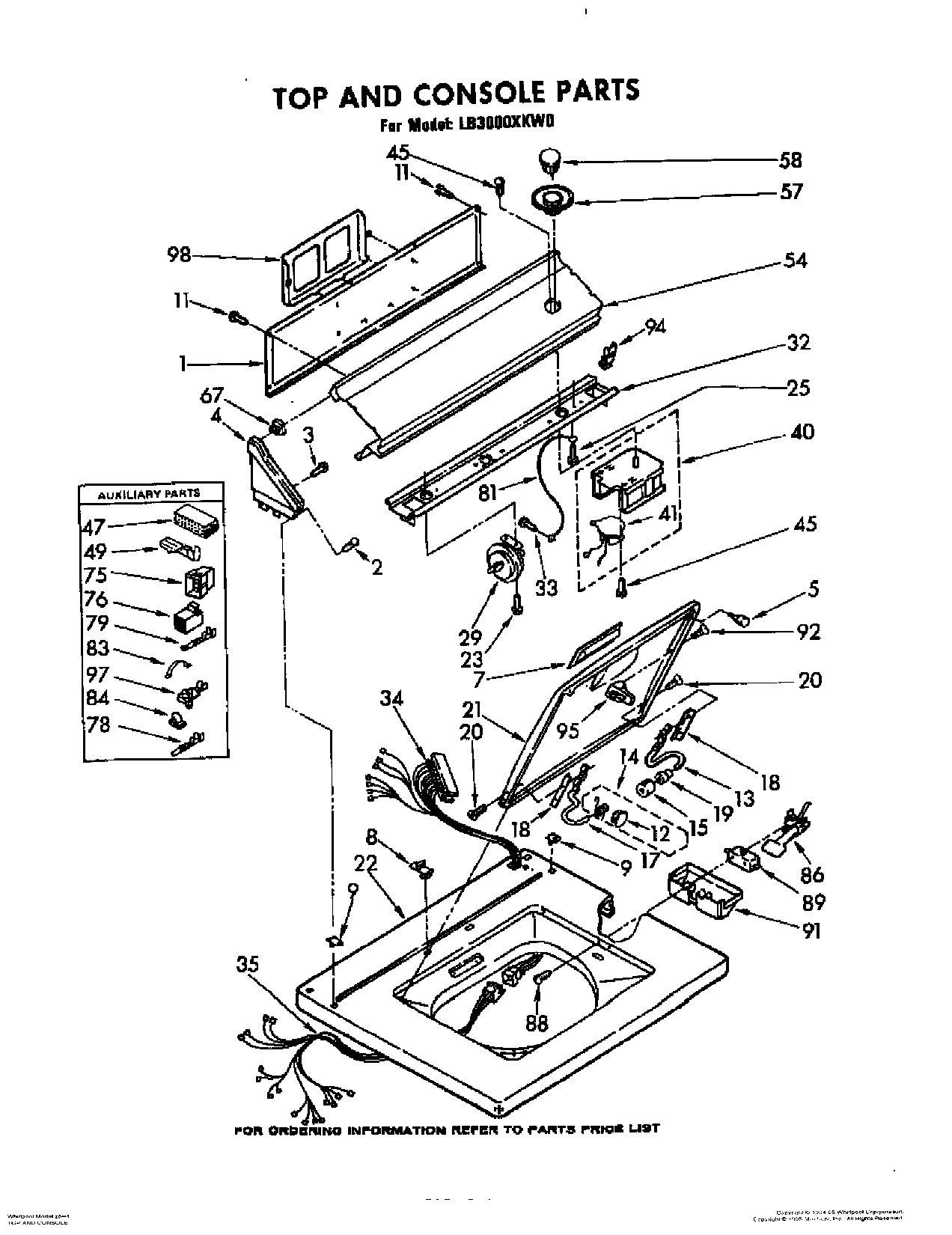

Panel, Rear Console WPL 358590 Contact Us For Availability

1

Pump Assembly WPL 357729 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (Front) WPL 356434 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

2

Screw, 8-18 WPL 358225 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Screw, 12-16 x 5/8 WPL 355326 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

Wire, Ground WPL 364089 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 377314 Contact Us For Availability

4

Cap, End (L.H) (White) WPL 377315 Contact Us For Availability

4

Spring, Basket Drive (Red) (4) WPL 354276 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

5

Scrap, Ground WPL 22965 Contact Us For Availability

5

Baseplate & Centerpost WPL 358843 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Pulley WPL 359630 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

7

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

7

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Brace, Baseplate WPL 356581 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $7.72

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

8

Stop, Push-In Top WPL 358473 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Bearing Block Assembly WPL 87290 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Nut, Push-In (2) WPL 358472 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $30.26

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

Screw, Taper End WPL 16135 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Instructions, Installation WPL 372845 Contact Us For Availability

List, Repair Parts WPL 381819 Contact Us For Availability

Label, Energy Guide WPL 382259 Contact Us For Availability

Instructions, Operating WPL 382599 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Block, Drive WPL 96384 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

Plug, Button WPL 54690 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WP95405 Whirlpool Belt In Stock WPL WP95405 $30.67

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring Assembly L.H. WPL 53749 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Hose, Pump Discharge WPL 21114 Contact Us For Availability

16

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

16

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

16

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Hose WPL 92231 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Drive Tube & Bearing, Basket (Includes Illus. WPL 357964 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

19

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

Spring, Brake Yoke WPL 17261 Contact Us For Availability

19

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

21

Lid (White) WPL 343491 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $4.55

22

Plate, Snubber WPL 355852 Contact Us For Availability

22

Lid (White) WPL 380290 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

23

Cap, Agitator WPL 358432 Contact Us For Availability

23

Pin, Roll WPL 90532 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

25

Agitator & Insert WPL 363633 Contact Us For Availability

25

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

25

Cabinet (White) WPL 378921 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

26

Sud, Agitator Shaft WPL 358440 Contact Us For Availability

26

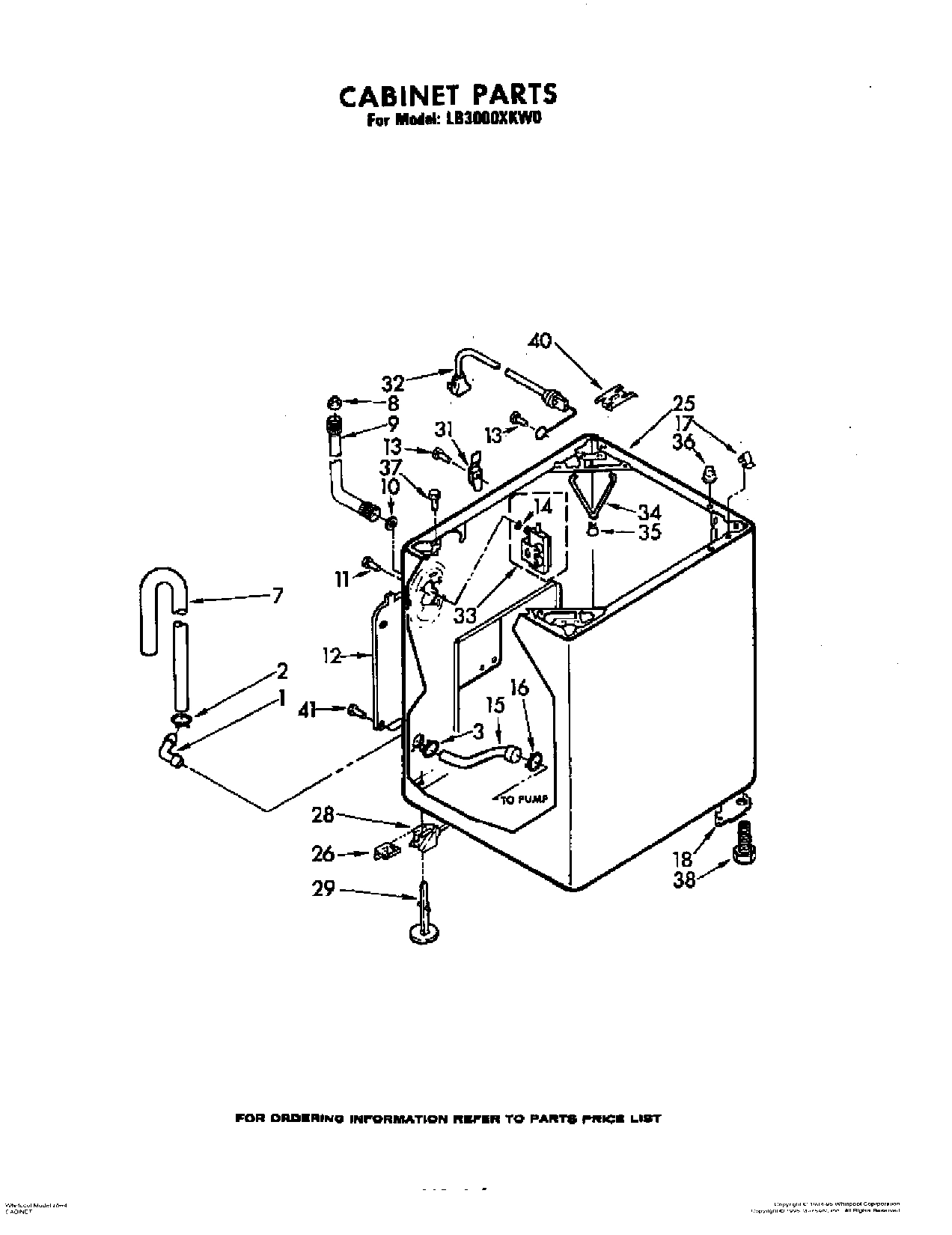

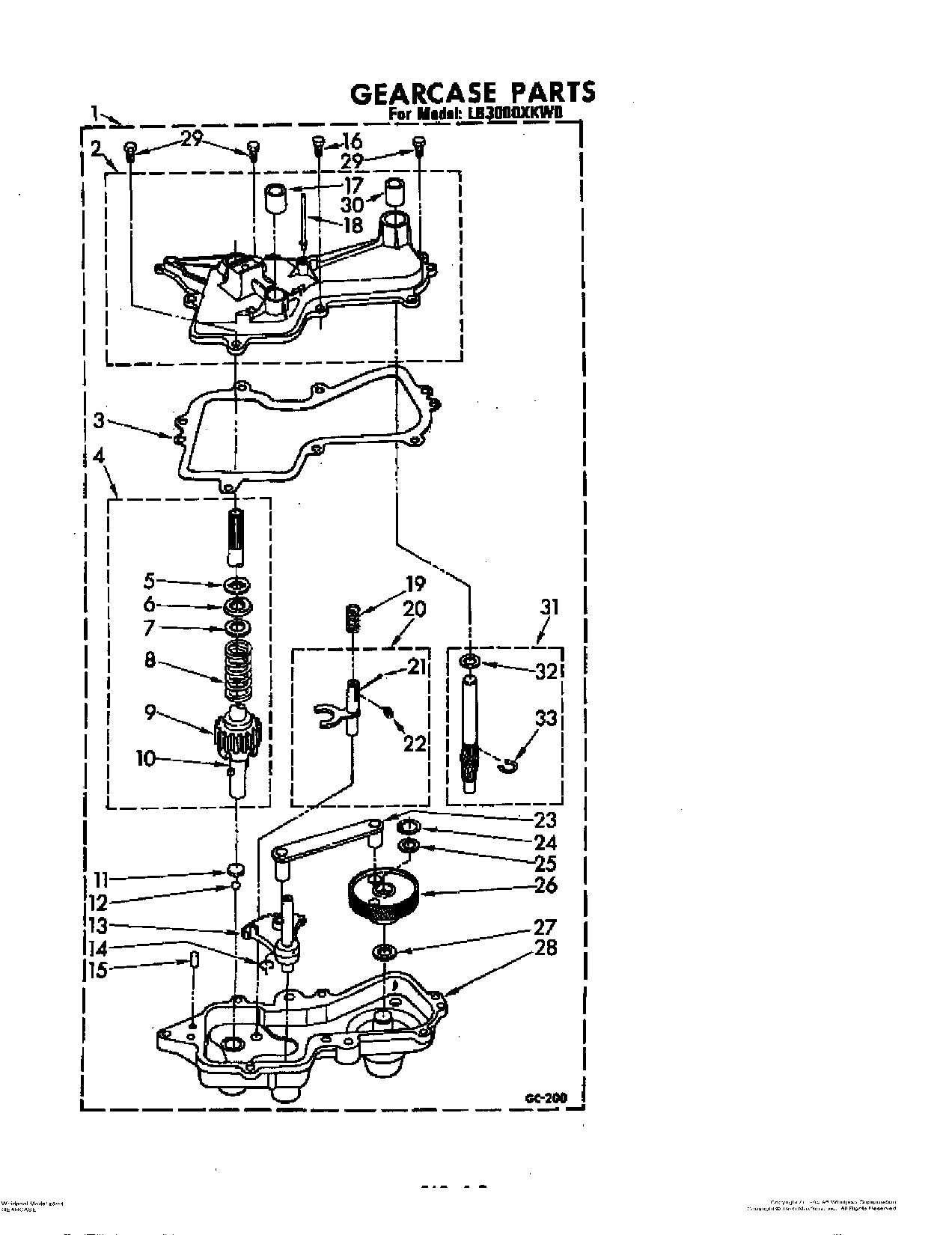

Gearcase (Refer to Gearcase Parts Page for Fu WPL 358483 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

28

WP358652 Whirlpool Link In Stock WPL WP358652 $54.38

28

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

28

Seal WPL 351830 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

Air Dome Assembly WPL 360804 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Switch, Water Level WPL 366509 Contact Us For Availability

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

31

Hinge, R.H. WPL 18775 Contact Us For Availability

31

Hinge, L.H. WPL 92657 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

32

Bracket, Control WPL 359758 Contact Us For Availability

32

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $12.46

34

Harness, Console WPL 359384 Contact Us For Availability

34

Spring, Snubber WPL 357974 Contact Us For Availability

Snubber WPL 358336 Contact Us For Availability

Clip, Tub Ring (2) WPL 356701 Contact Us For Availability

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

Harness, Base WPL 359385 Contact Us For Availability

36

Clip, Tub Ring (1) WPL 356700 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

Latch WPL 357249 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Timer, 60 Hz. (C.C.A.) WPL 359312 Contact Us For Availability

Plug, Cabinet (1) WPL 354179 Contact Us For Availability

41

Filter Assembly WPL 359785 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 357295 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

43

Retainer WPL 357250 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

46

Hose, Pump To Filter WPL 357612 Contact Us For Availability

46

Motor (Emerson) WPL 357875 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

47

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.84

48

Bracket, Hose WPL 358339 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

54

Panel, Control WPL 375695 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 359826 Contact Us For Availability

58

Knob, Timer WPL 359822 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

62

WPL 54656 WPL 54656 Contact Us For Availability

67

Nut, Push-In (4) WPL 689559 Contact Us For Availability

75

Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability

76

Plug, Terminal (Cabinet Harness) WPL 94611 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

81

Wire, Ground WPL 357534 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

86

Switch Actuator Assembly WPL 370959 Contact Us For Availability

88

Screw And Washer WPL 354764 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

91

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

92

Screw And Washer WPL 354975 Contact Us For Availability

94

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

95

Strike, Lid Switch WPL 357633 Contact Us For Availability

97

Ring, Grounding WPL 357695 Contact Us For Availability

98

Rack, Literature WPL 357645 Contact Us For Availability
