Model Whirlpool KTRS19KFAL01 REFRIGERATOR – Common Parts & Diagrams

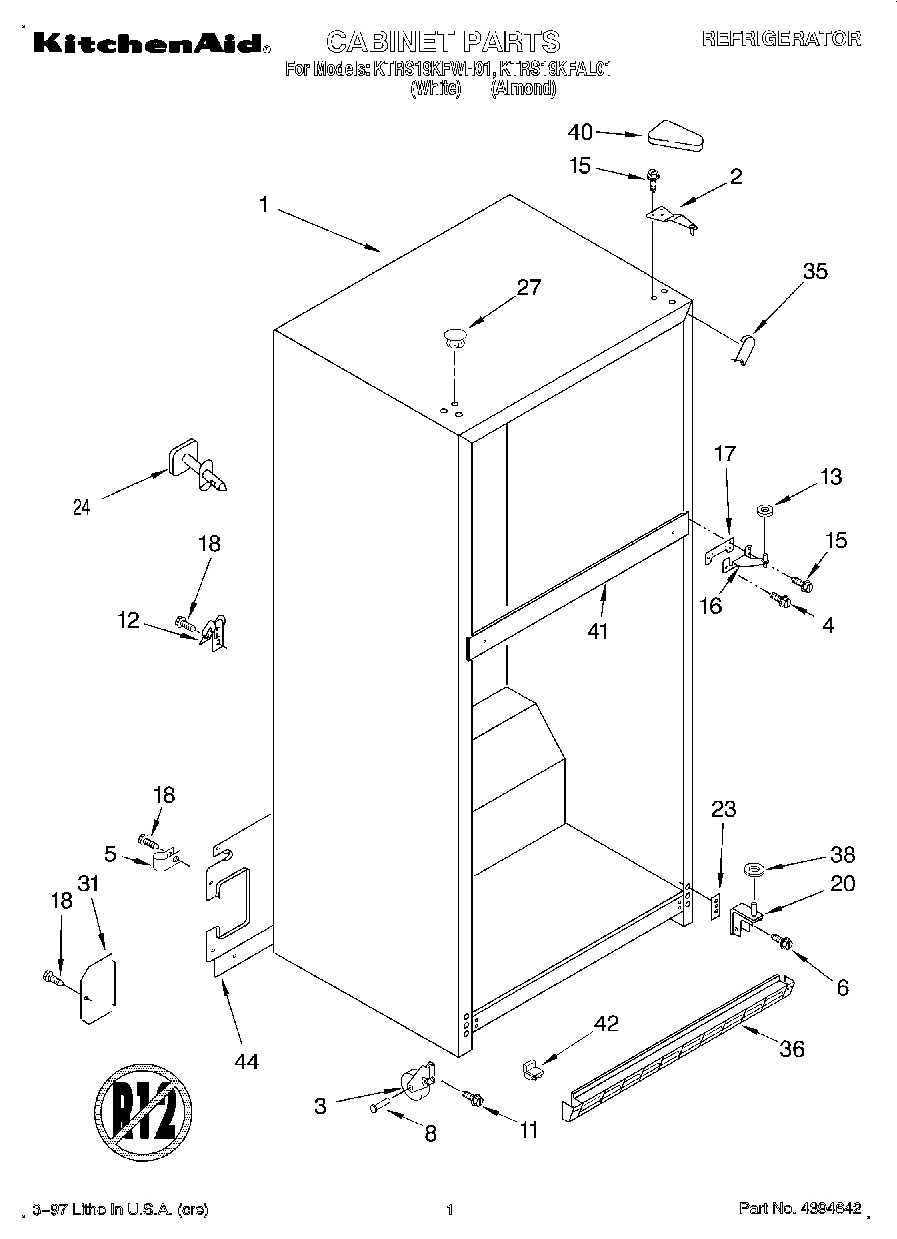

01 - CABINET

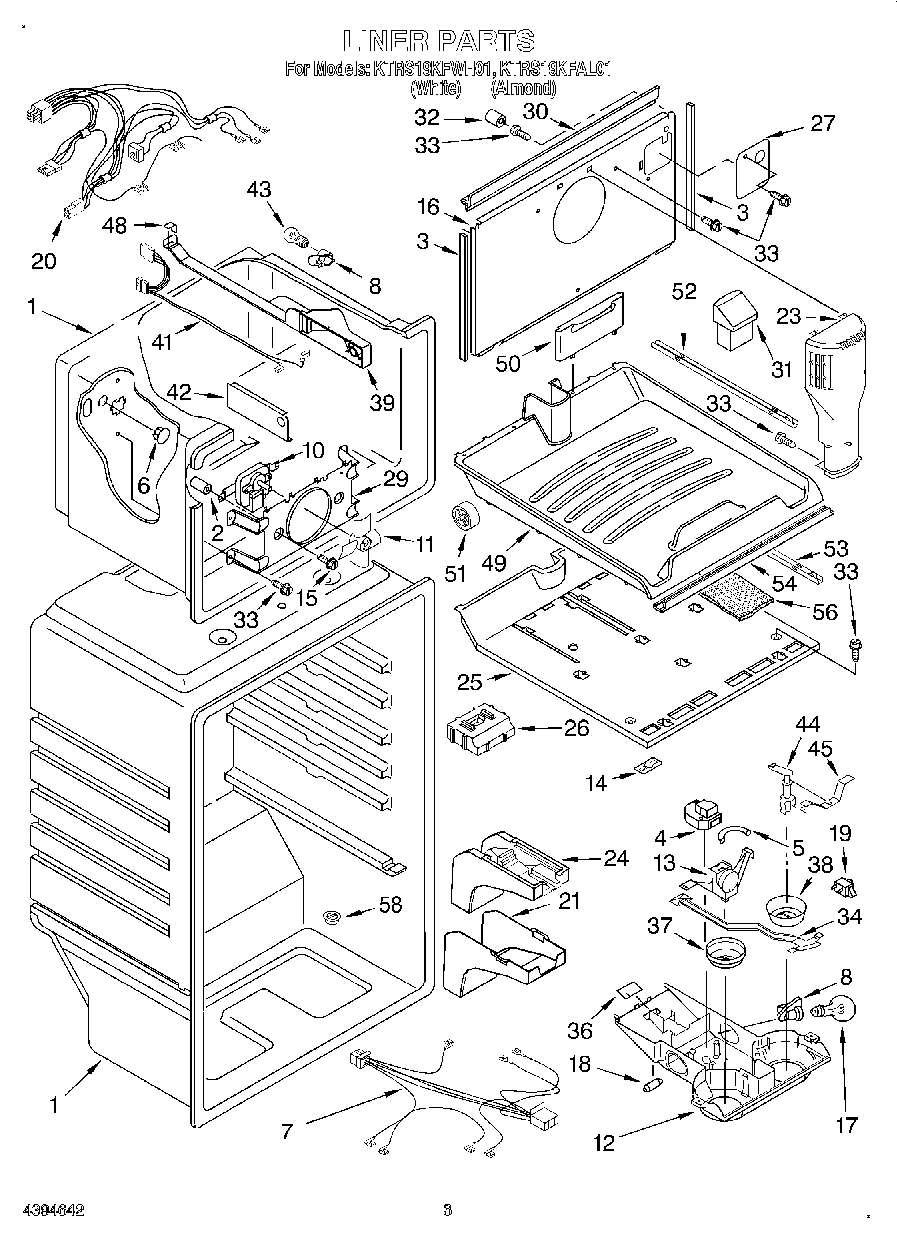

02 - LINER

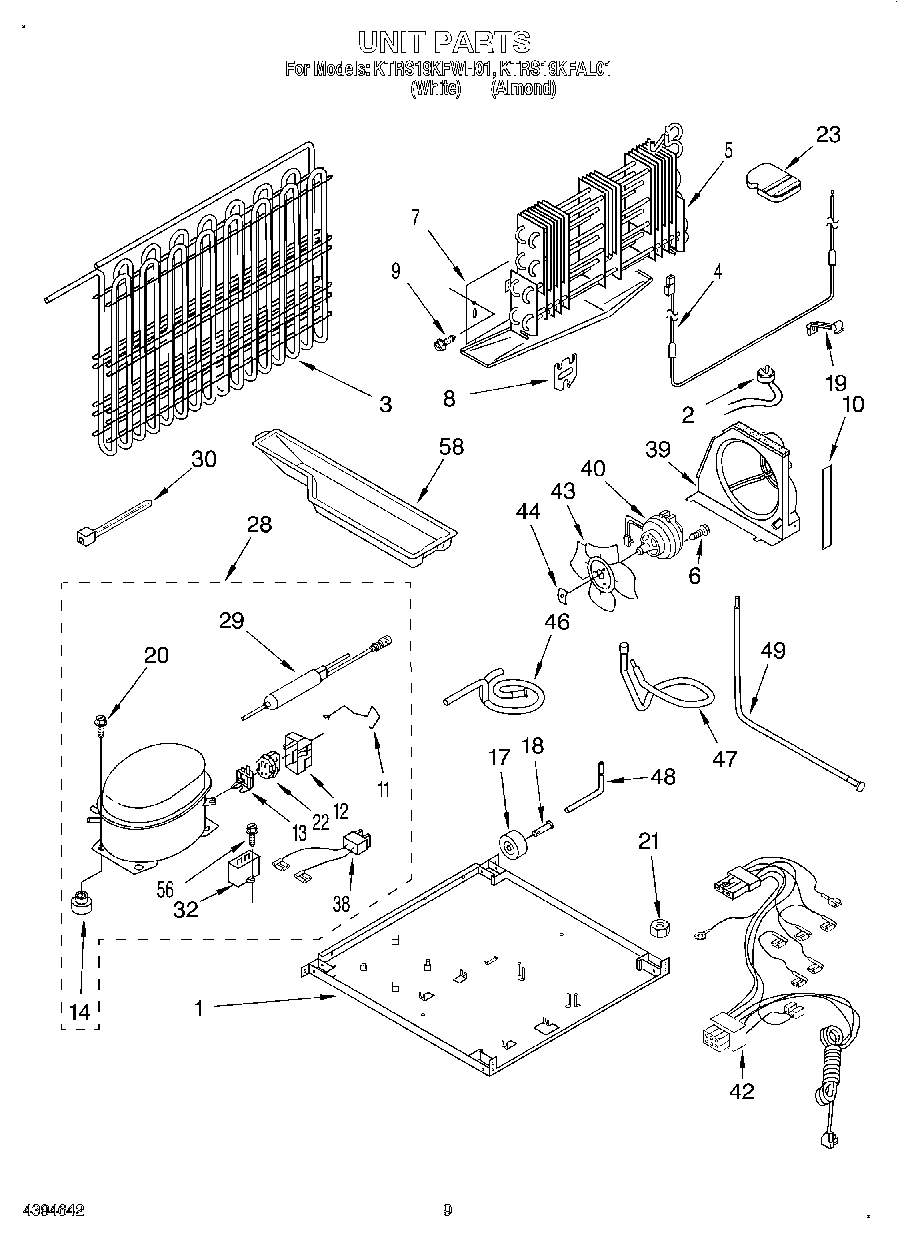

05 - UNIT

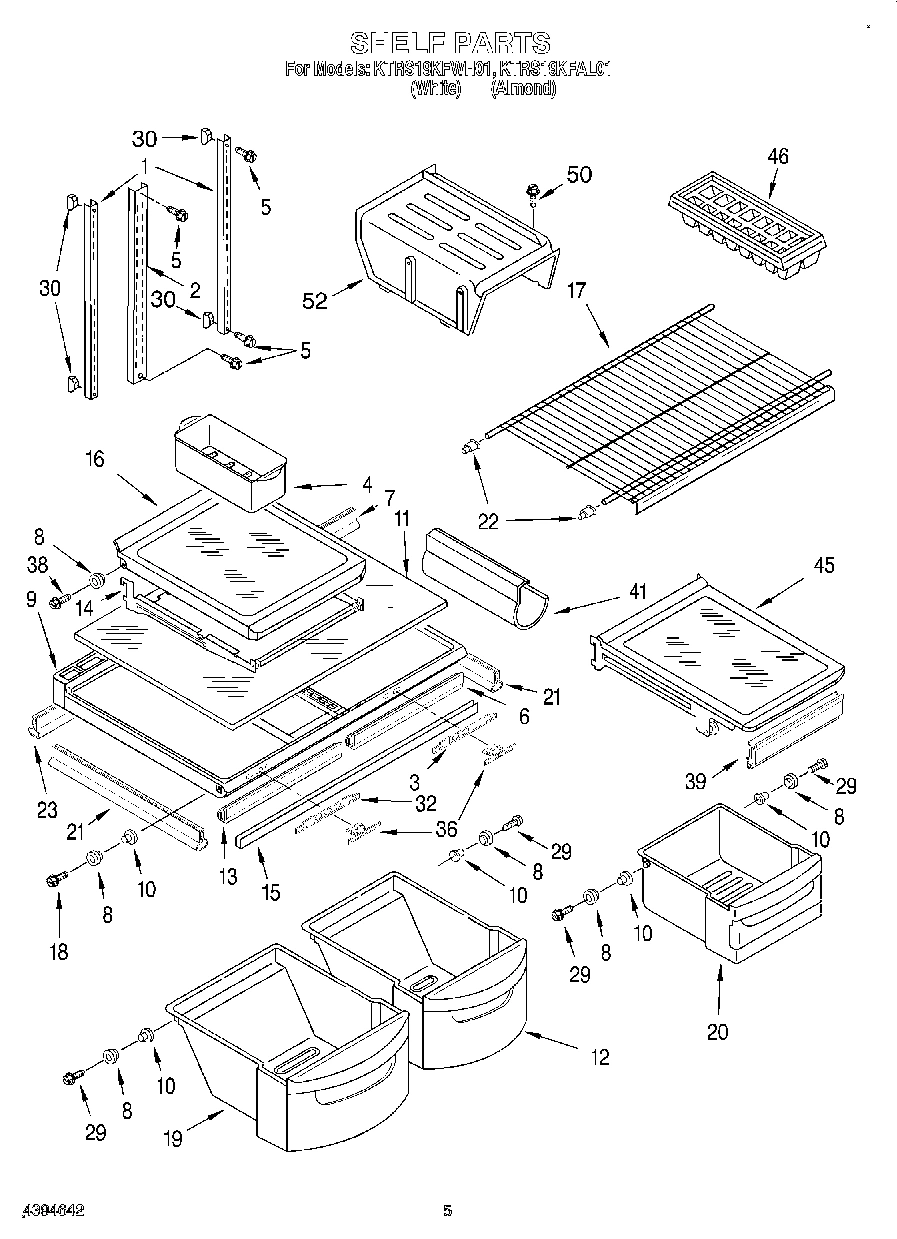

03 - SHELF

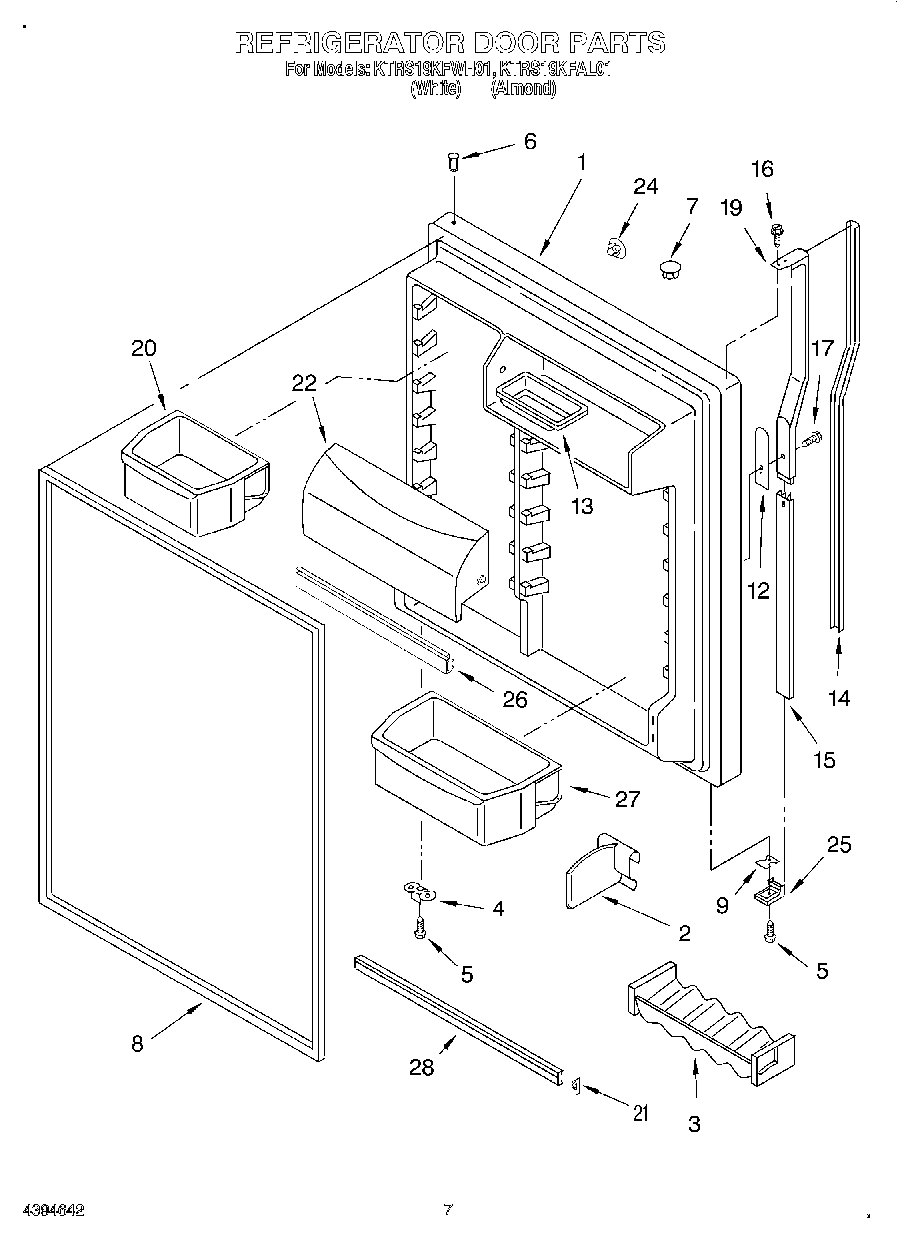

04 - REFRIGERATOR DOOR

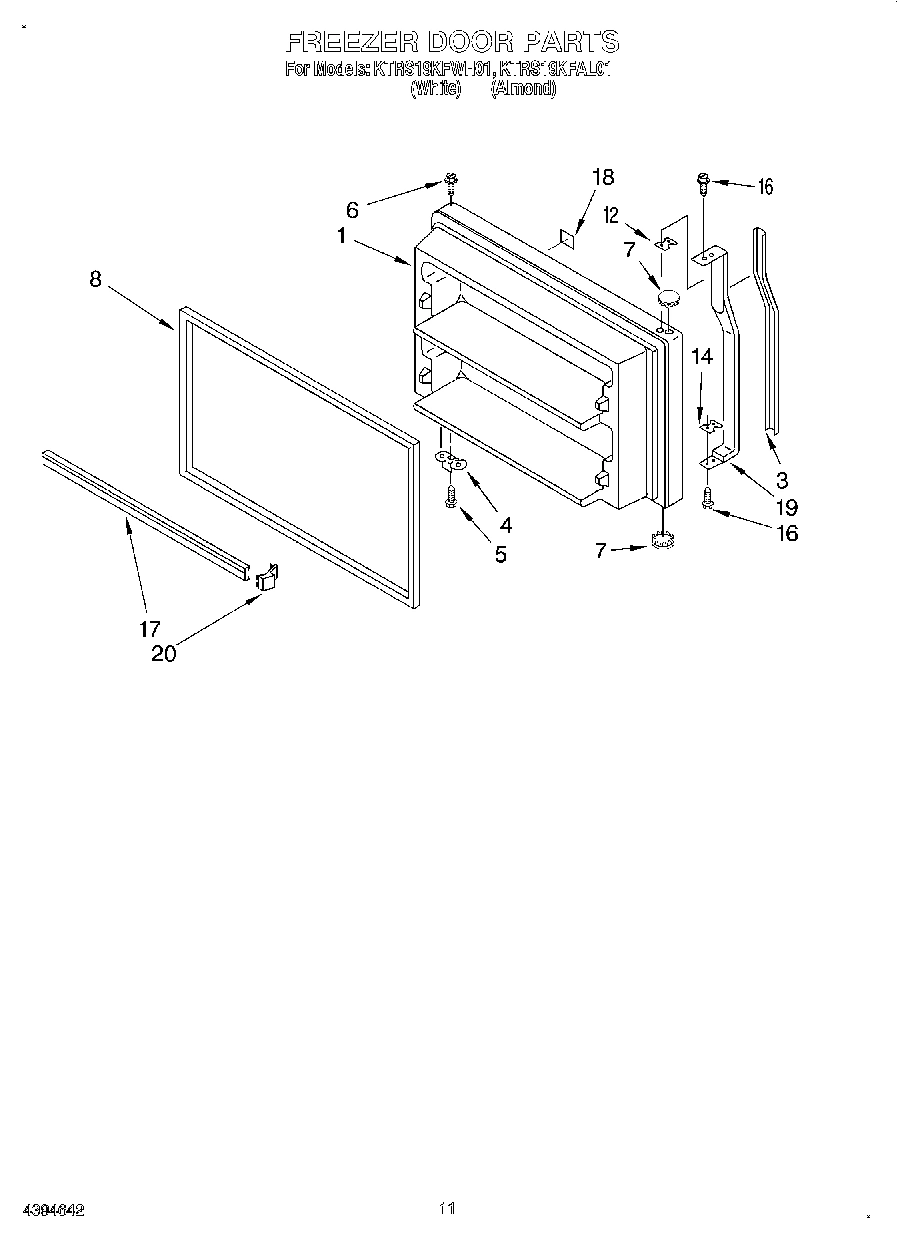

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRS19KFAL01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195462 WPL LIT2195462 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2195582 WPL LIT2195582 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2183866 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Alm WPL 2183867 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2183861 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
3
Insert, Handle (White) WPL 2168898 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2175446 Contact Us For Availability
12
Spacer, Door Handle WPL 1107650 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
15
Retainer, Insert WPL 2168900 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
17
Trim-Door (2) WPL 2171282 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175450 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111569A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Relay (See Overload) WPL ARI111570A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2176302 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
End Cap Bottom WPL 1107236 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Air Baffle WPL 2195677 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 17,20) Also see Ref. Dr. WPL 2182575 Contact Us For Availability
100
Door Reversal Instructions WPL 2180007 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
