Model Whirlpool KTRP19KGWH00 REFRIGERATOR – Common Parts & Diagrams

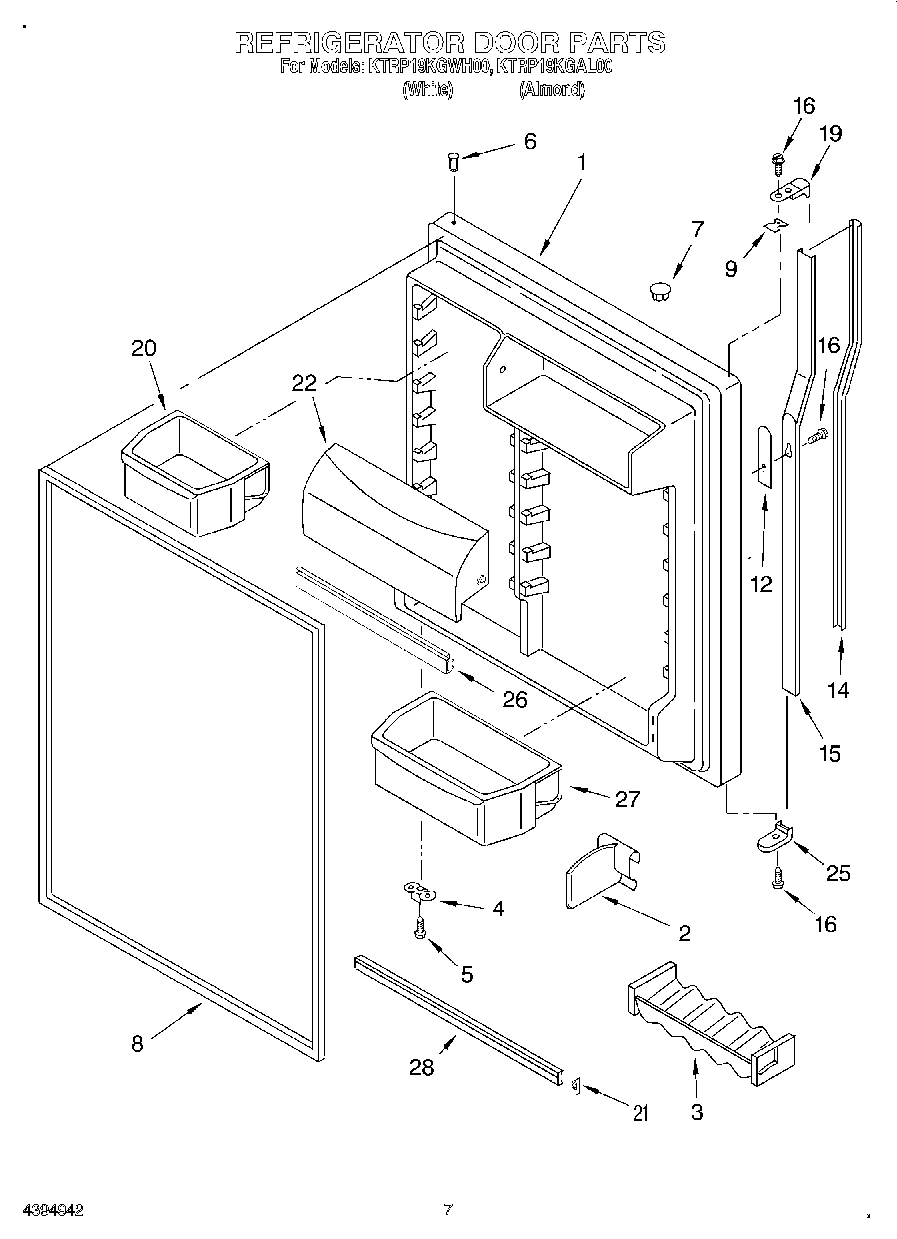

04 - REFRIGERATOR DOOR

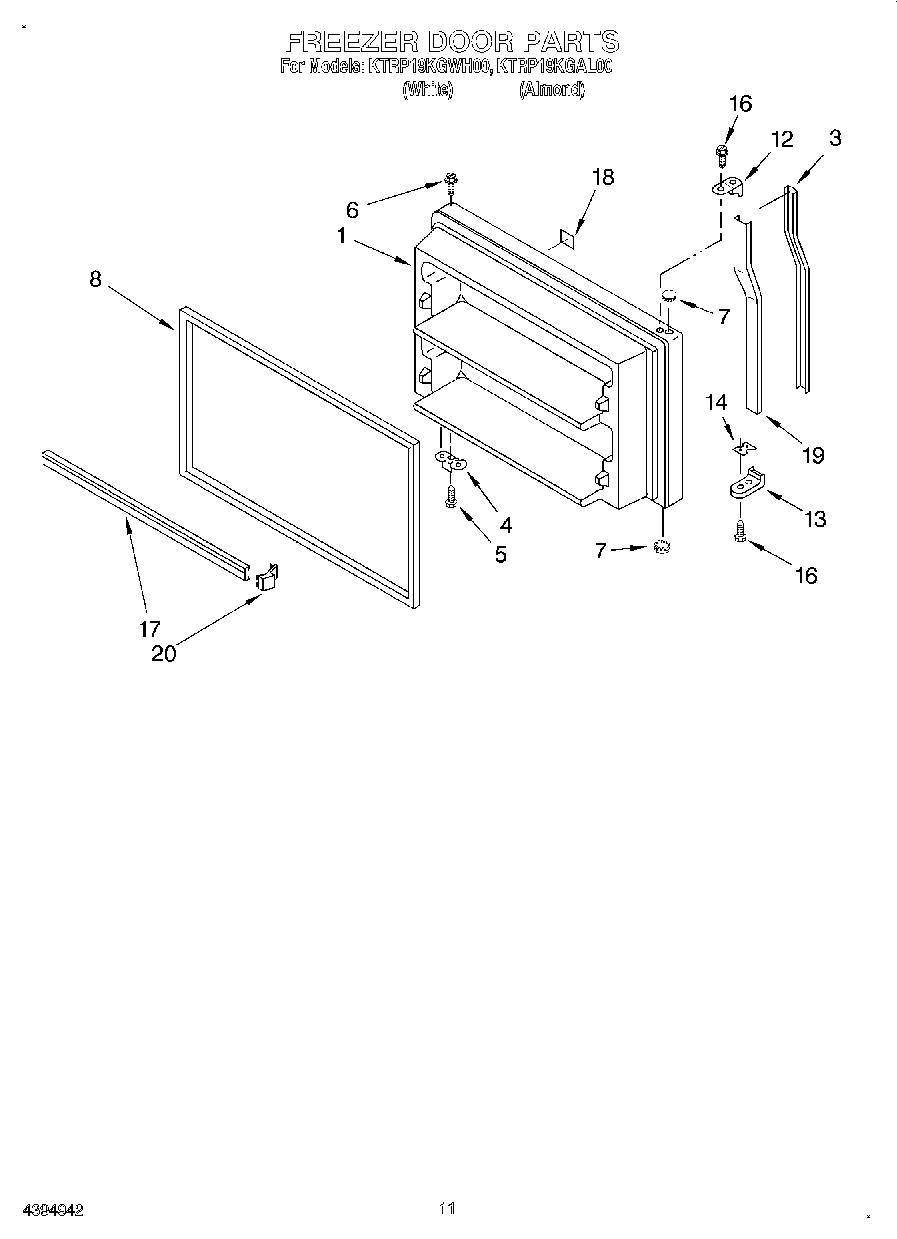

06 - FREEZER DOOR, LIT/OPTIONAL

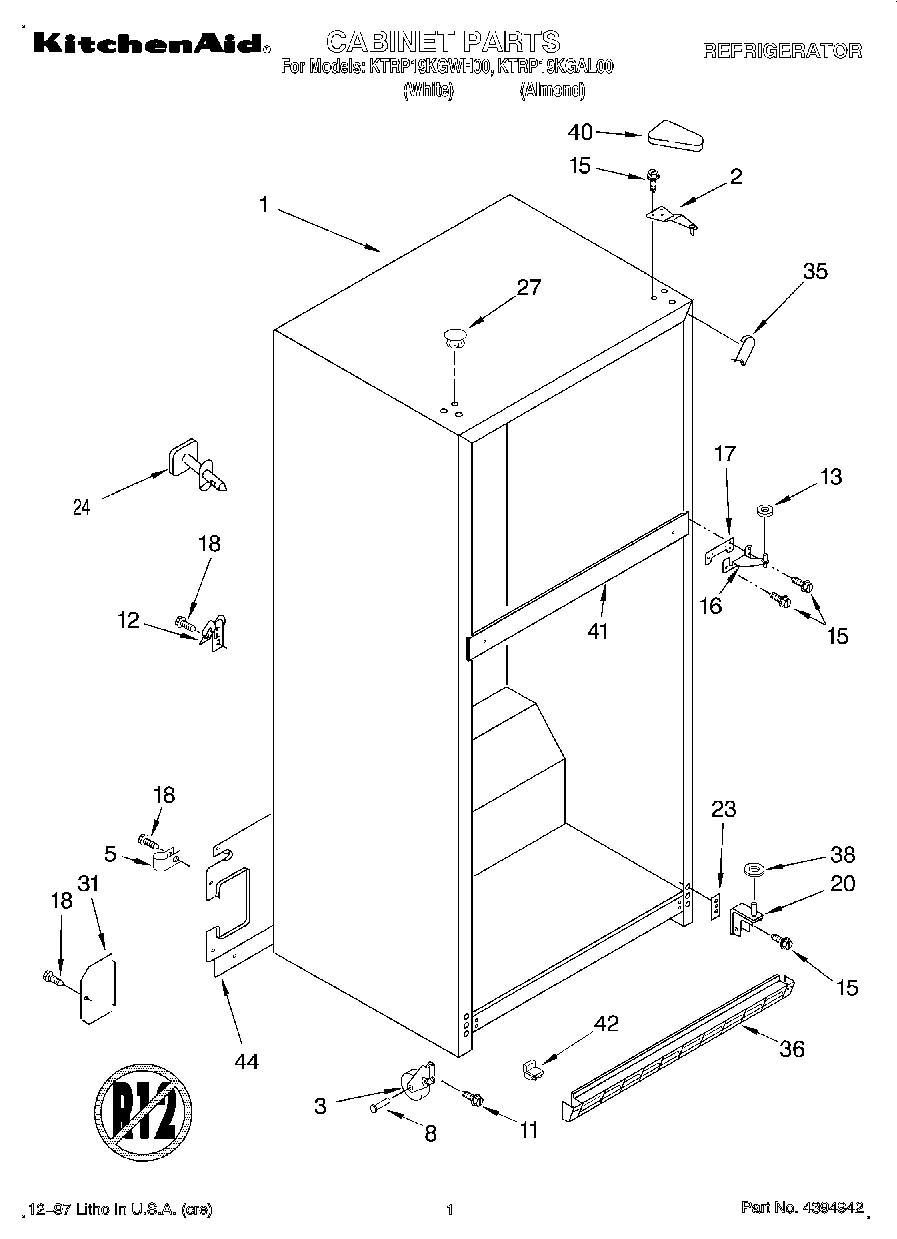

01 - CABINET

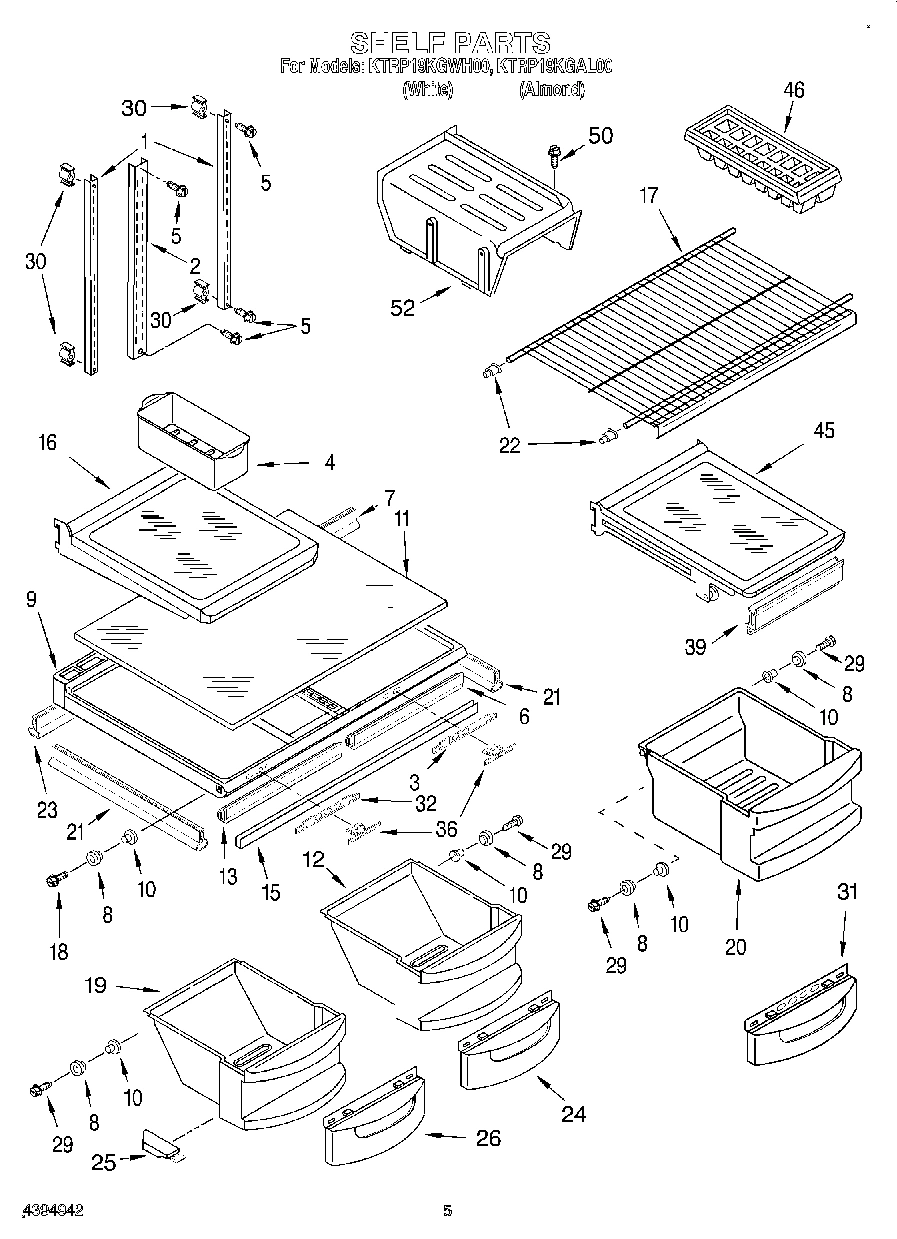

03 - SHELF

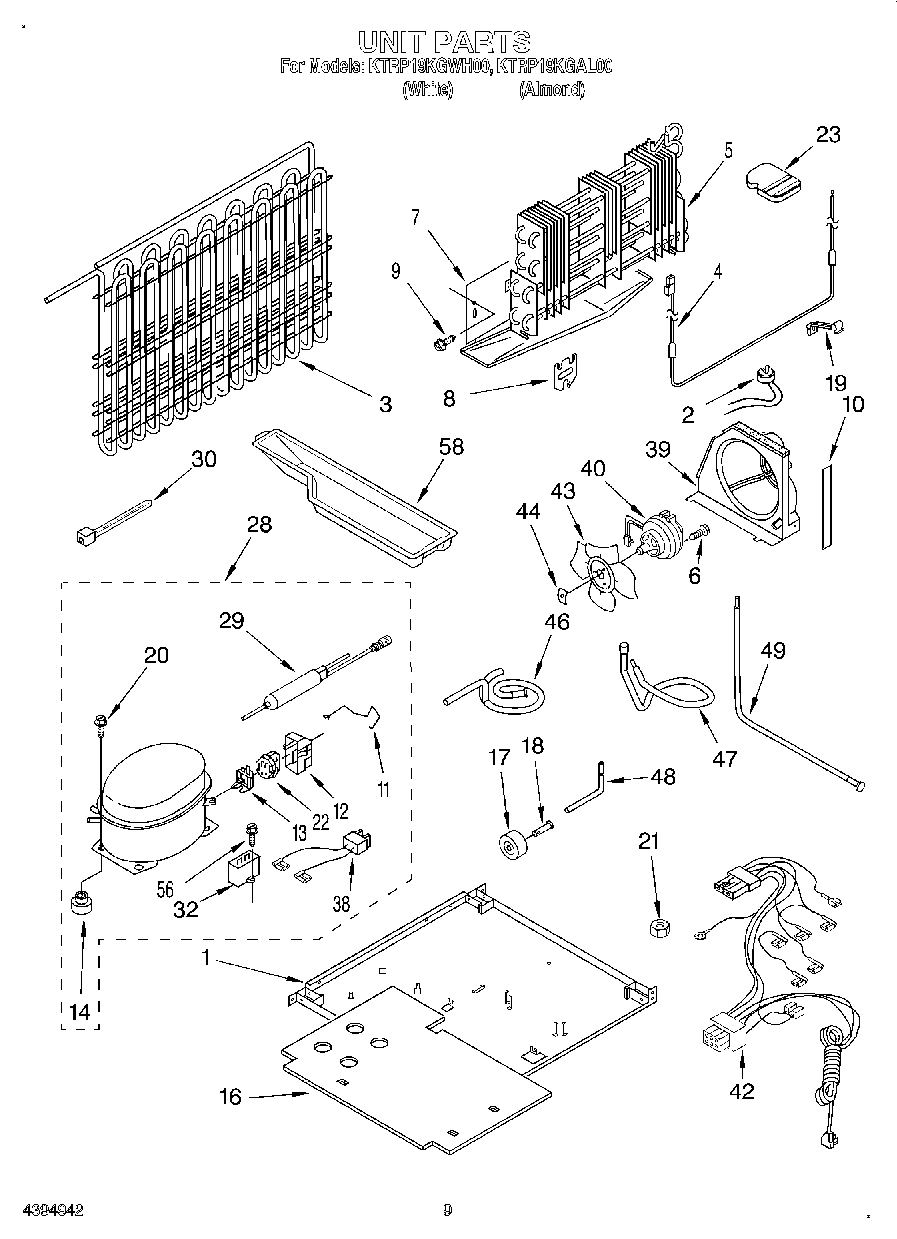

05 - UNIT

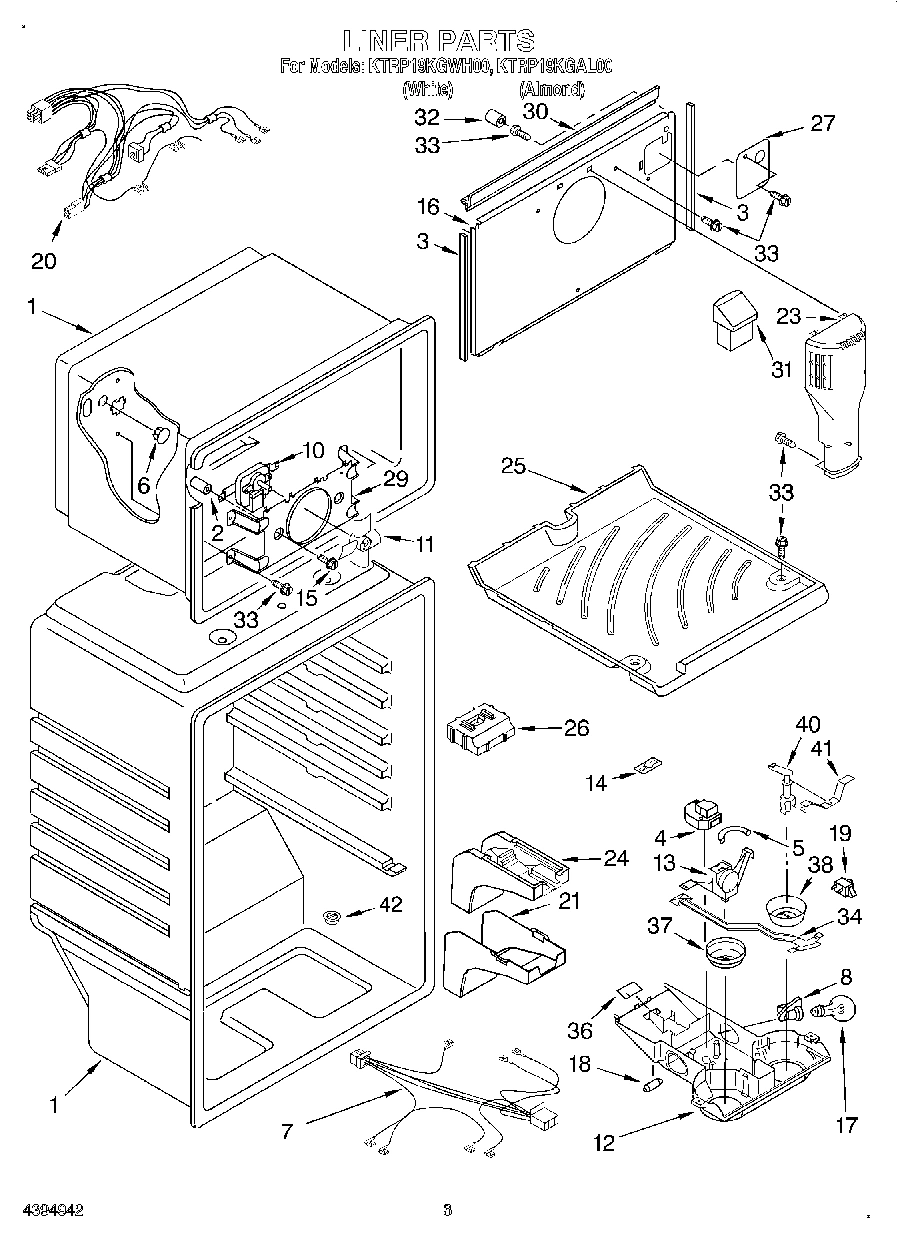

02 - LINER
Common parts from model Whirlpool KTRP19KGWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110822A Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Endcap (White) WPL 2195994W Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2175446 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174029 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174078 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110823A Contact Us For Availability
22
Relay (See Overload) WPL ARI110824A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
23
Support Block WPL 2176302 Contact Us For Availability
24
Window, Crisper Pan WPL 2175444 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Window, Crisper Pan WPL 2175373 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
31
Window, Meat Pan WPL 2175449 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
34
Air Damper WPL 2179858 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Knob, Thermostat WPL 2193455 Contact Us For Availability
38
Knob, Damper WPL 2176297 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Post, Damper WPL 2179859 Contact Us For Availability
41
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 4, 8, 10, 14, 16, 20, 31 WPL 2199044 Contact Us For Availability
× ![]()
