Model Whirlpool KTRD18KDWH01 – Common Parts & Diagrams
01 - CABINET
02 - FREEZER DOOR

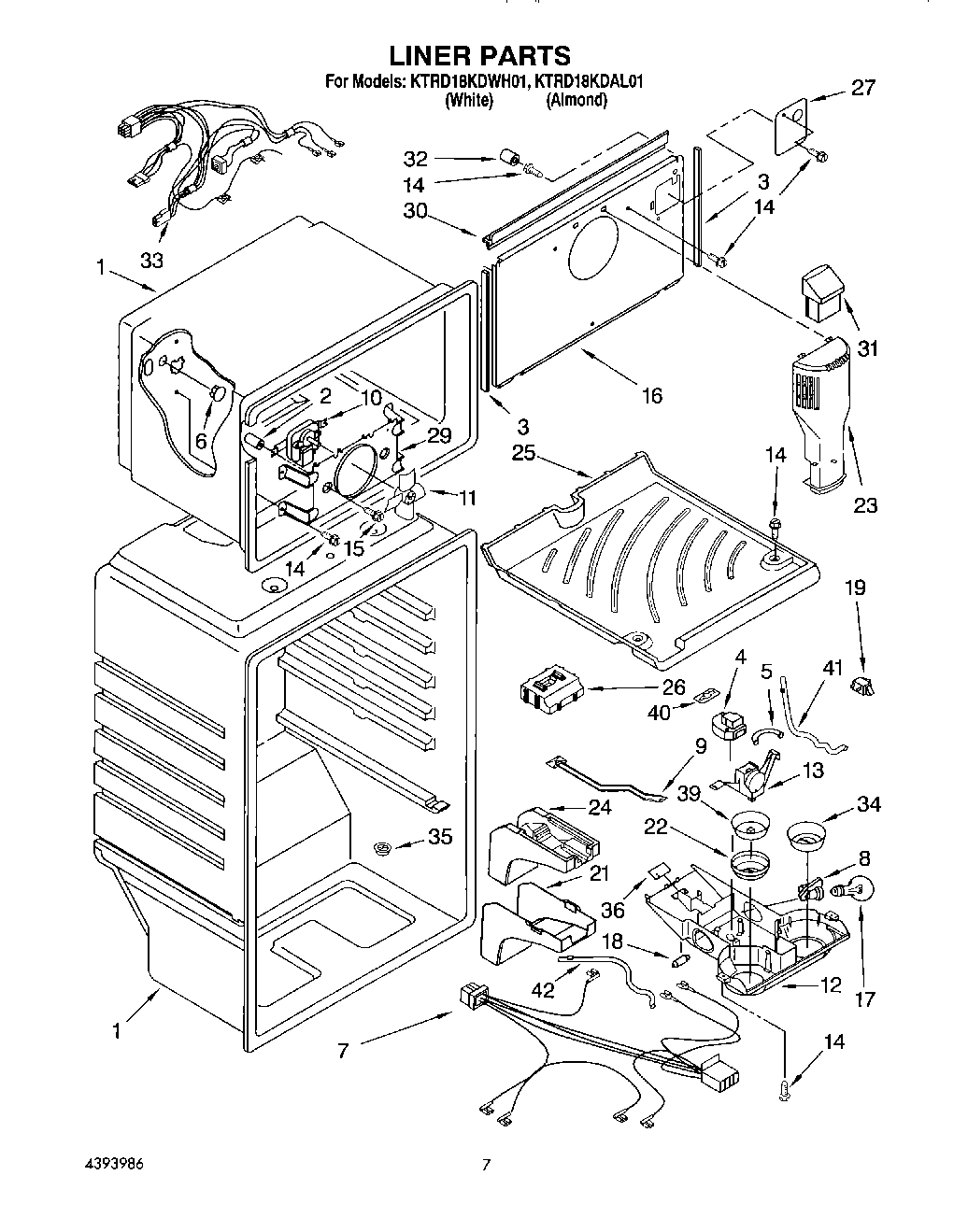

05 - LINER

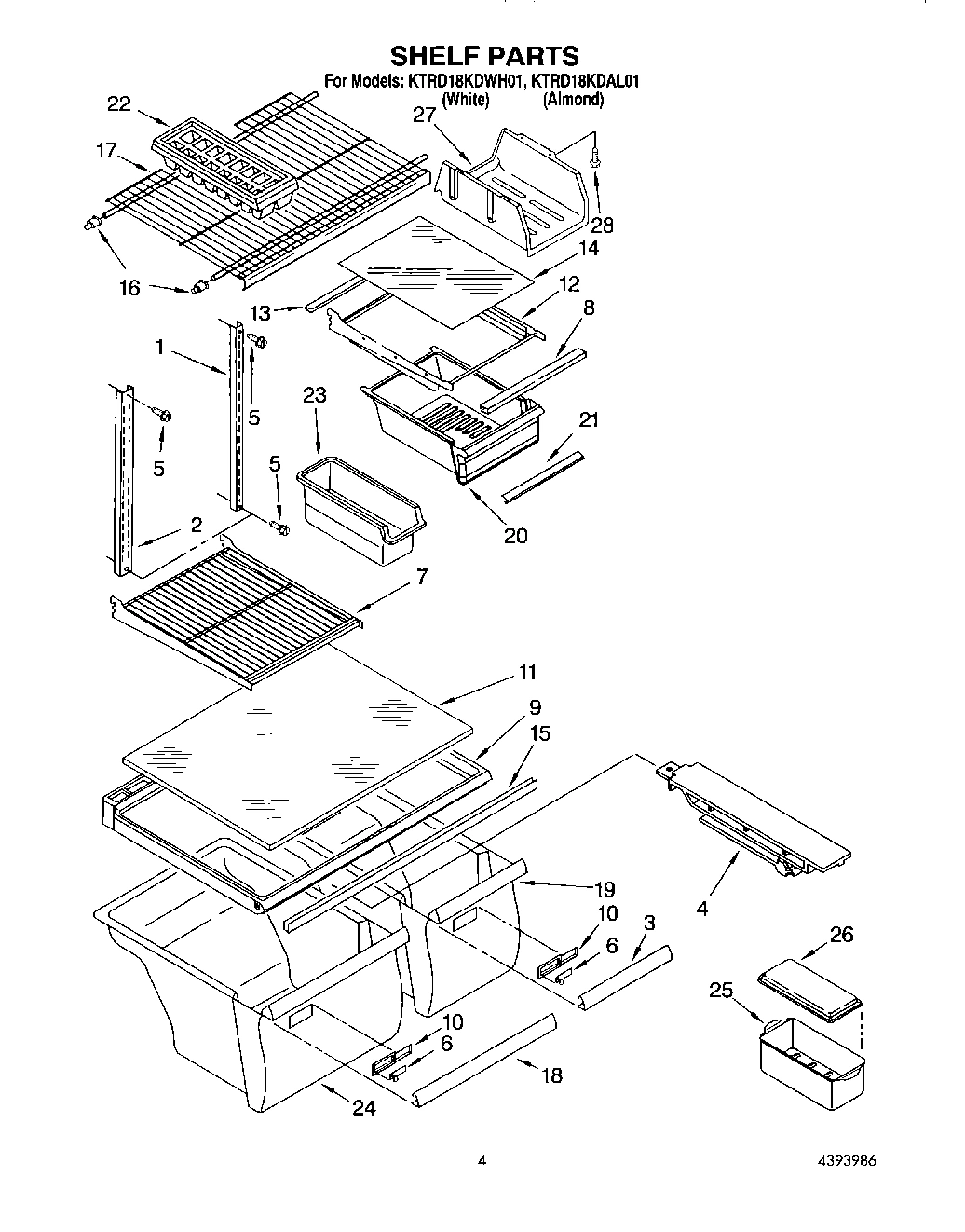

03 - SHELF

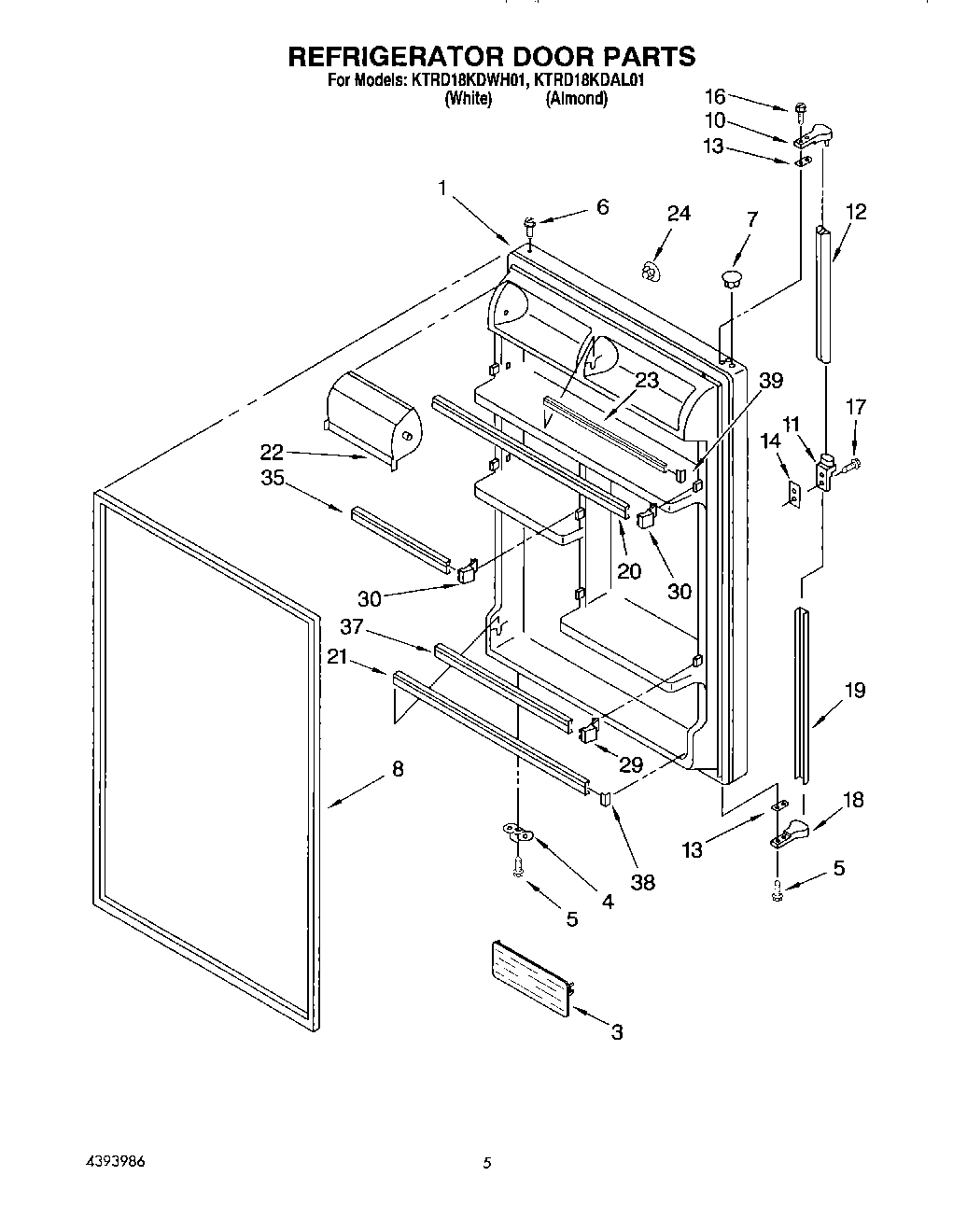

04 - REFRIGERATOR DOOR

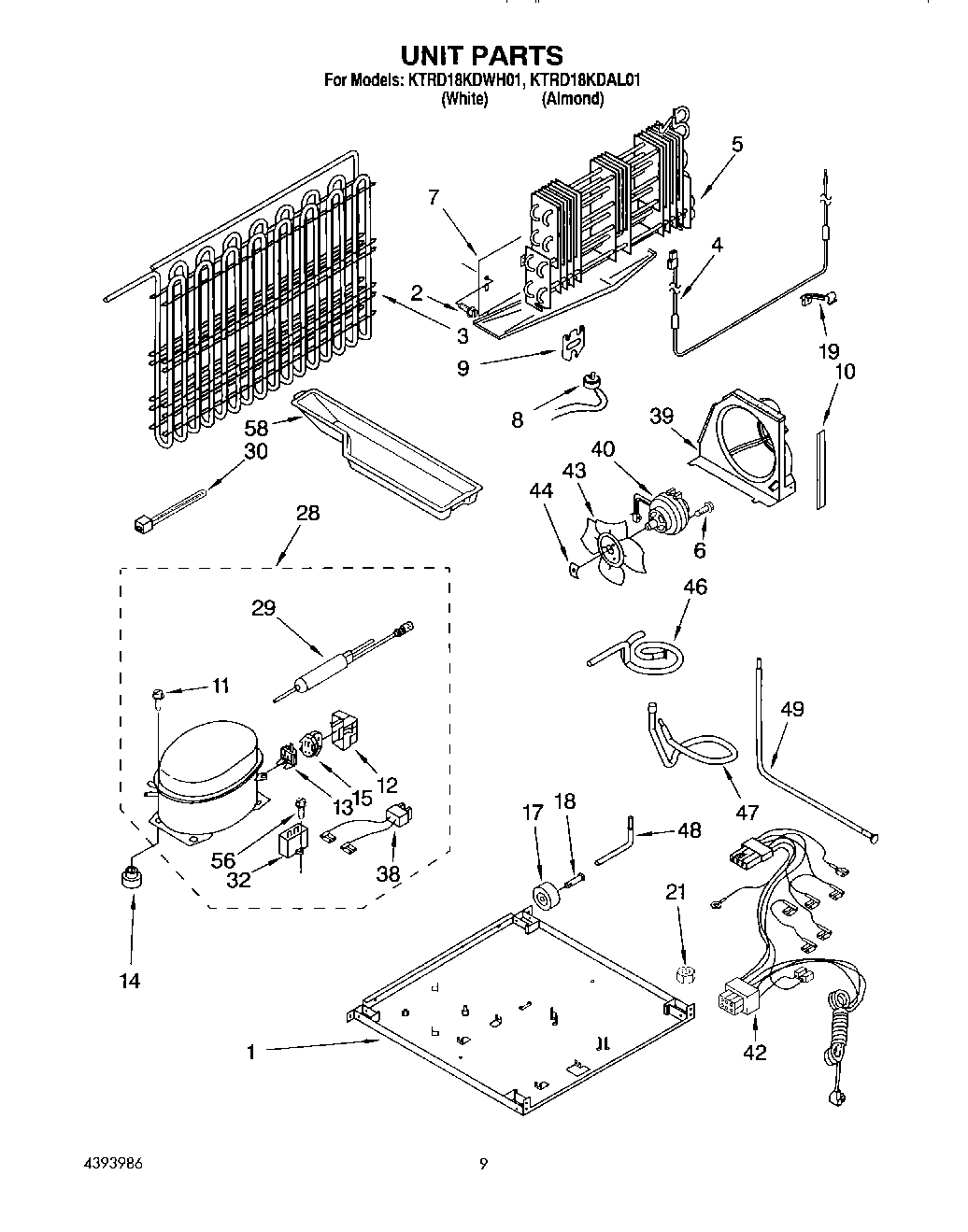

06 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool KTRD18KDWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168977 WPL LIT2168977 Contact Us For Availability
WPL LIT2169007 WPL LIT2169007 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171228 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171229 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Trim, Crisper Pan WPL 2179704 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Slide, Humidity Control WPL 2176222 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2163853 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Handle End WPL 944302 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Handle End, Side WPL 987870 Contact Us For Availability
11
Screw WPL 489433 Contact Us For Availability
12
Control Box WPL 2179798 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Handle, Center (Almond) WPL 1123133 Contact Us For Availability
12
Handle, Center (White) WPL 2156670 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Spacer, Handle WPL 944320 Contact Us For Availability
14
Glass, Meat Cover WPL 2168969 Contact Us For Availability
14
Shim, End Cap WPL 987872 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI110589A Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Crisper Pan WPL 2179705 Contact Us For Availability
18
Endcap, Insert Retainer WPL 1123210 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle, Extension (White) WPL 2168980 Contact Us For Availability
19
Handle, Extension (Almond) WPL 2168981 Contact Us For Availability
20
Trim, Door Shelf WPL 2168973 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Meat Pan WPL 2176356 Contact Us For Availability
21
Trim, Door Shelf WPL 2168975 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110590A Contact Us For Availability
22
Knob, Thermostat WPL 2174522 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Cover, Egg Bin WPL 2169935 Contact Us For Availability
27
Shelf, Freezer WPL 2172569 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2182478 Contact Us For Availability
35
Trim, Door Shelf WPL 2168968 Contact Us For Availability
37
Trim, Door Shelf WPL 2168974 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
41
Light Bar, R.S. WPL 2174627 Contact Us For Availability
42
Light Bar, L.S. WPL 2174628 Contact Us For Availability
42
Wire Assy. Unit WPL 2182376 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2182415 Contact Us For Availability
48
Tube, Process WPL 2179725 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2176379 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
