Model Whirlpool KTRC22MJBL01 REFRIGERATOR – Common Parts &amp; Diagrams

1

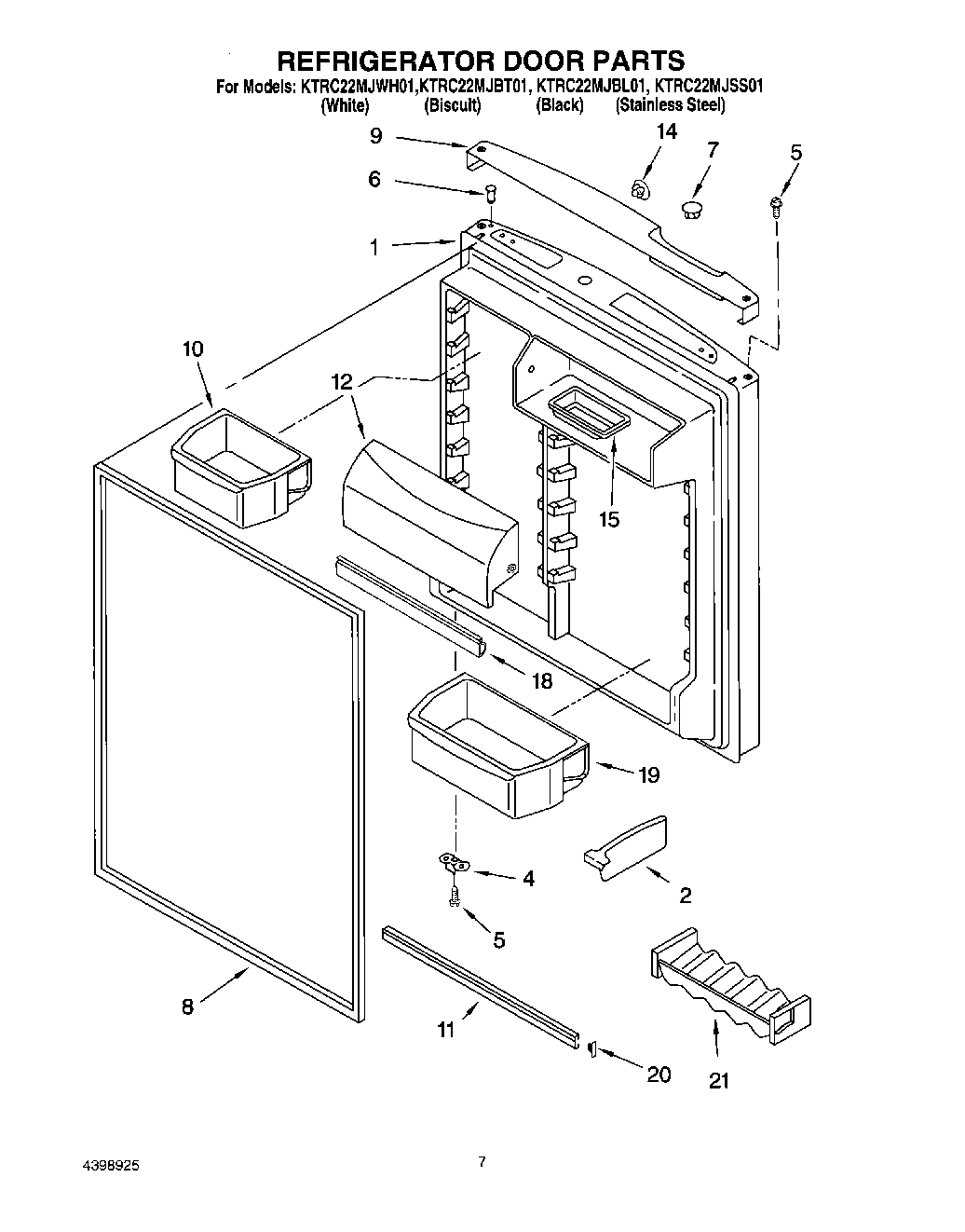

Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205214 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205215 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205217 Contact Us For Availability

1

Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2212418 Contact Us For Availability

1

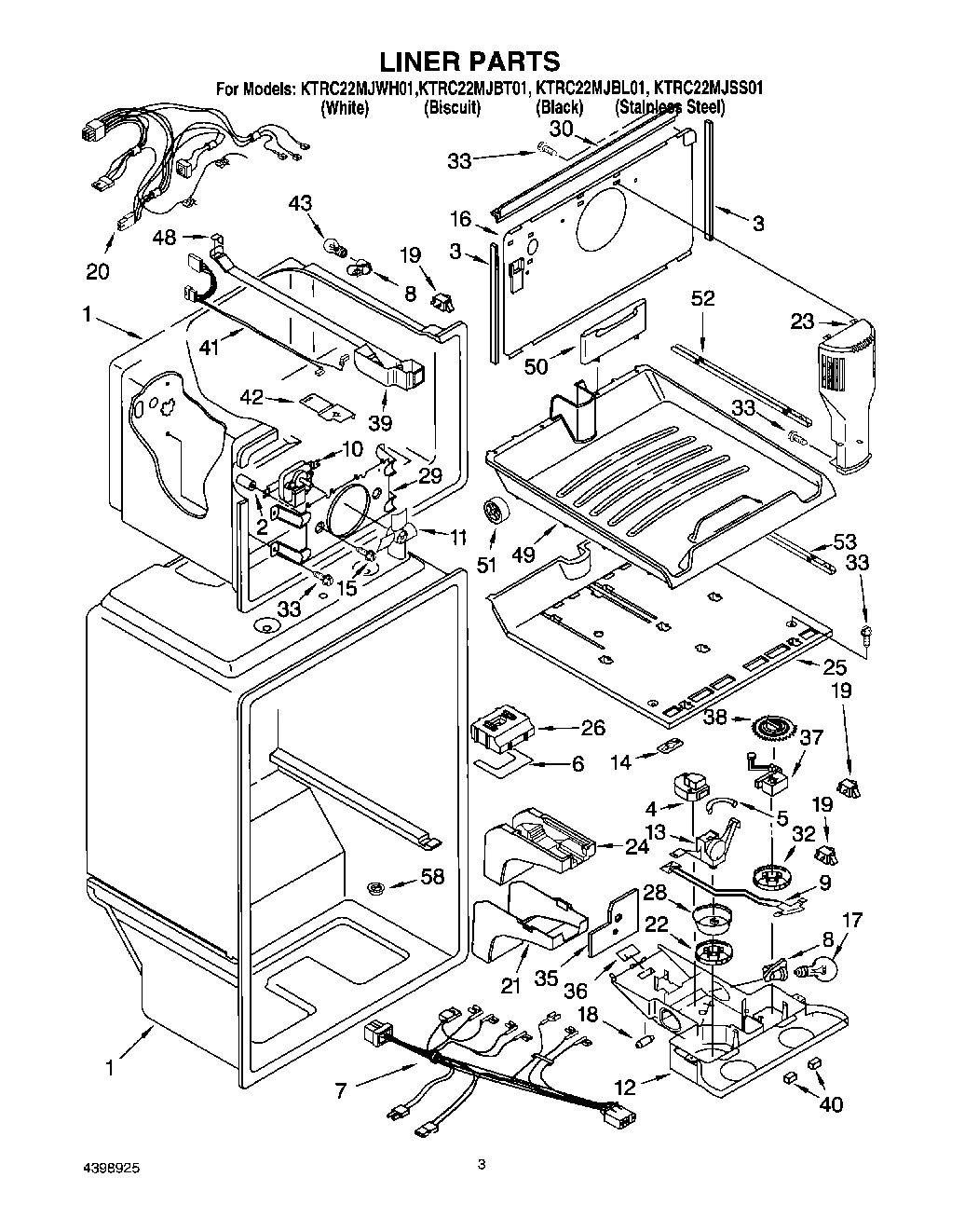

Liner (Not A Serviceable Part) WPL ARI110433A Contact Us For Availability

1

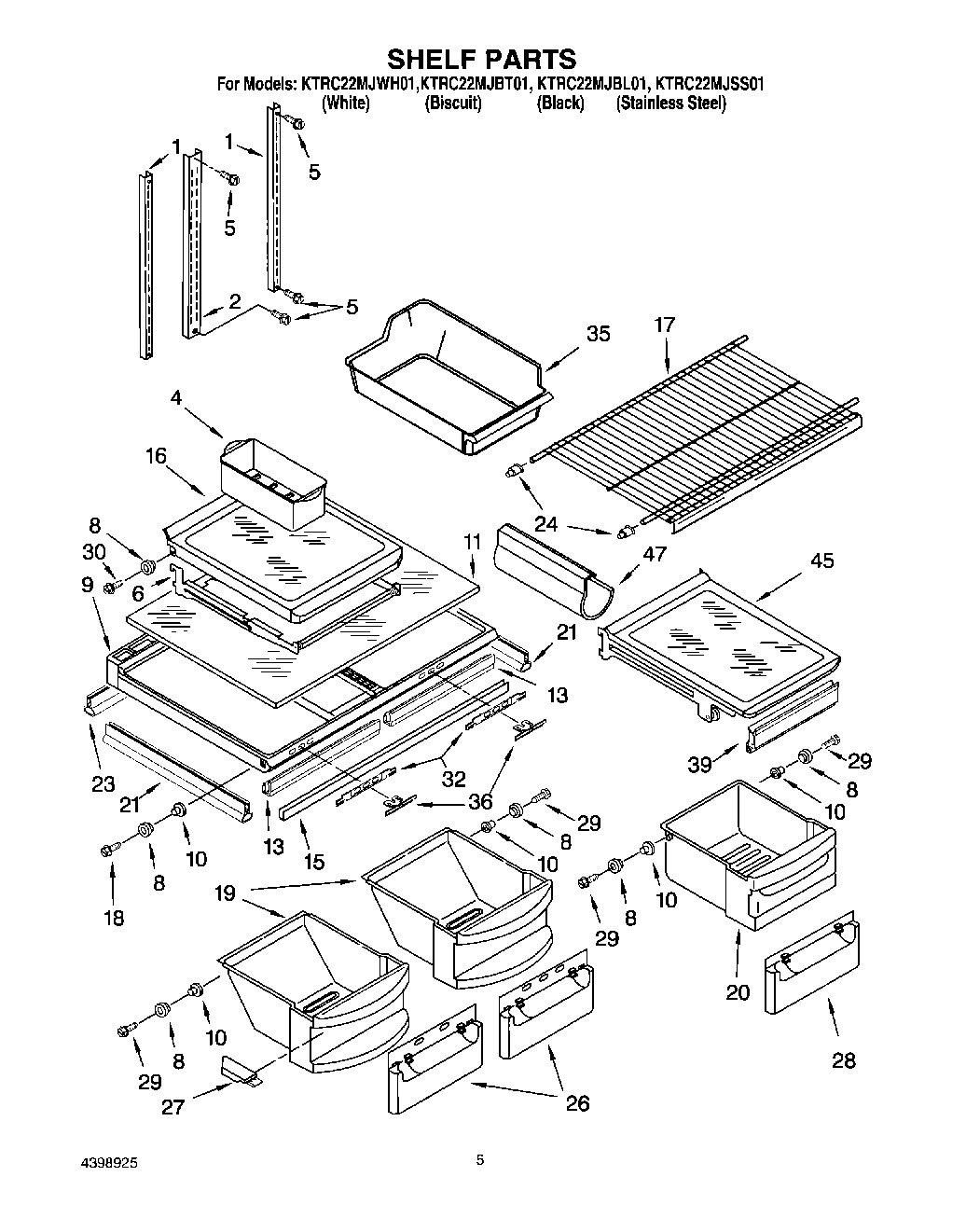

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

Divider, Door Bin WPL 1123293 Contact Us For Availability

2

Grommet (2) WPL 531933 Contact Us For Availability

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

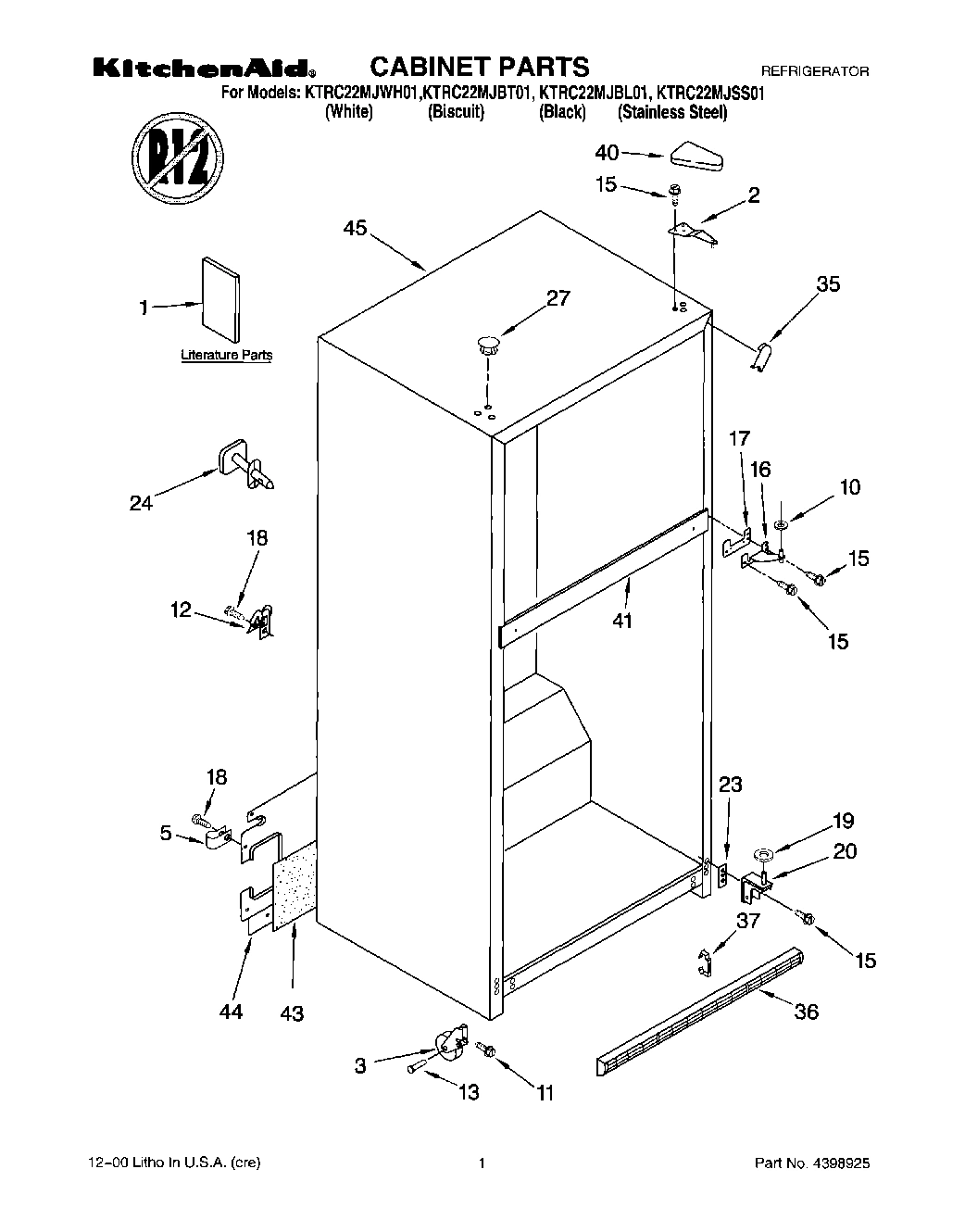

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

Timer, Defrost WPL 2193084 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Wire Assy. Control Box WPL 2187306 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $226.99

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $112.65

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $222.99

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $253.50

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

End Cap (White) WPL 2205188 Contact Us For Availability

9

End Cap (Biscuit) WPL 2205189 Contact Us For Availability

9

End Cap (Black) WPL 2205191 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

9

Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $51.99

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

Fan Motor WPL 2183833 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $46.99

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (W WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Glass, Crisper Cover WPL 2174141 Contact Us For Availability

12

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

12

Control Box WPL 2212461 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Tray, Butter WPL 2165792 Contact Us For Availability

Screw WPL 489412 Contact Us For Availability

16

Cover, Evaporator WPL 2201180 Contact Us For Availability

16

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

2174157 Whirlpool Refrigerator Front Cover Backorder WPL 2174157 $62.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

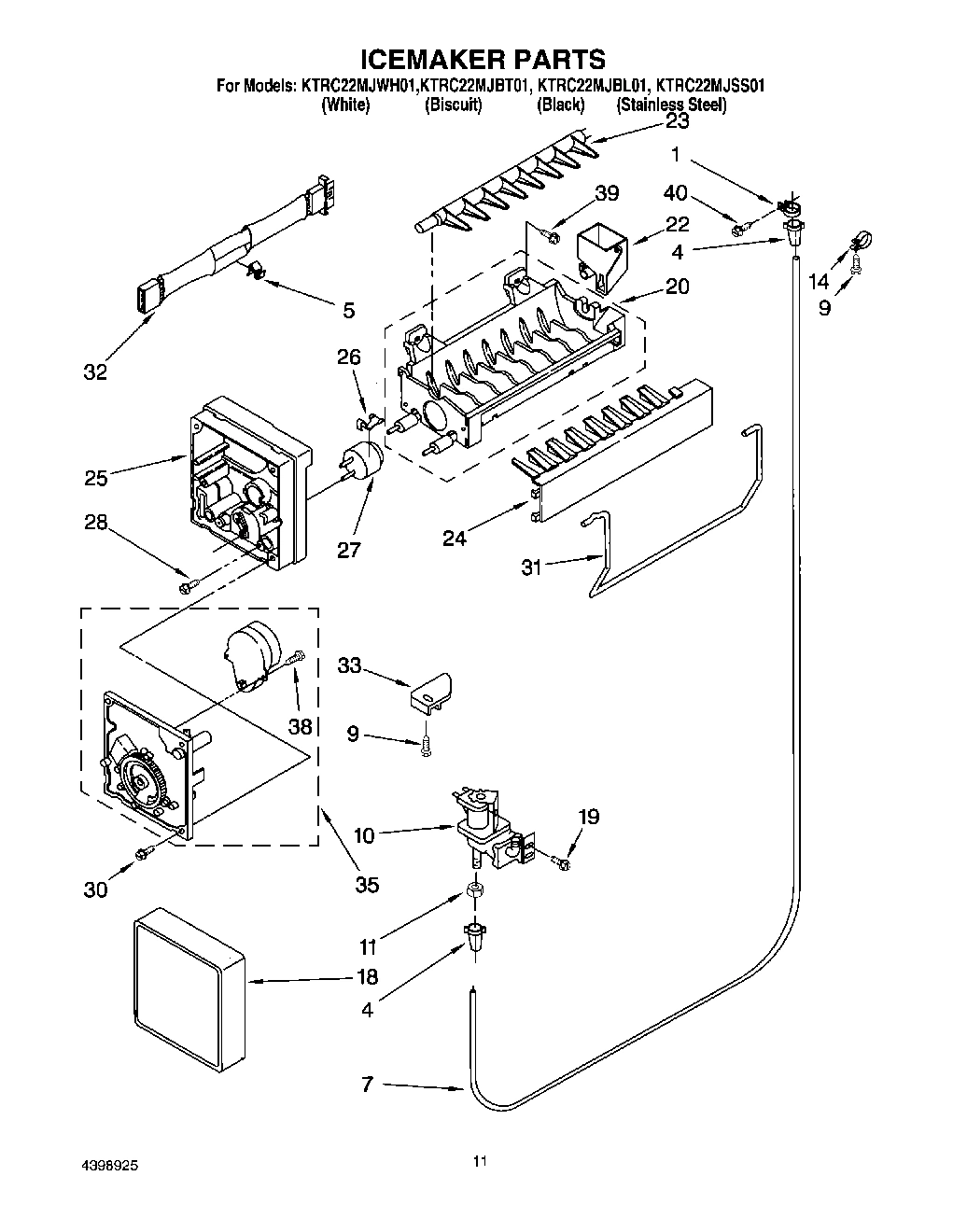

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Wire Assembly, Freezer Compartment WPL 2187295 Contact Us For Availability

Pan, Meat (Includes Rollers) WPL 2188289 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Beverage Holder WPL 2193409 Contact Us For Availability

21

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

22

Support WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

24

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

Freezer Floor WPL 2190589 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Window, Crisper WPL 2188276 Contact Us For Availability

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $45.03

Installation Kit WPL 482801 Contact Us For Availability

Window, Meat Pan WPL 2188278 Contact Us For Availability

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

30

Screw WPL 489439 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

32

Knob, Damper WPL 2204951 Contact Us For Availability

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.97

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

Shield, heat WPL 2204639 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.17

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

39

Housing Base WPL 2201153 Contact Us For Availability

39

Gasket, Front WPL 2174396 Contact Us For Availability

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

40

Air Seal, Foam WPL 2205055 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI110432A Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $14.99

43

Blade, Fan WPL 2190685 Contact Us For Availability

43

Insulation WPL 2200778 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

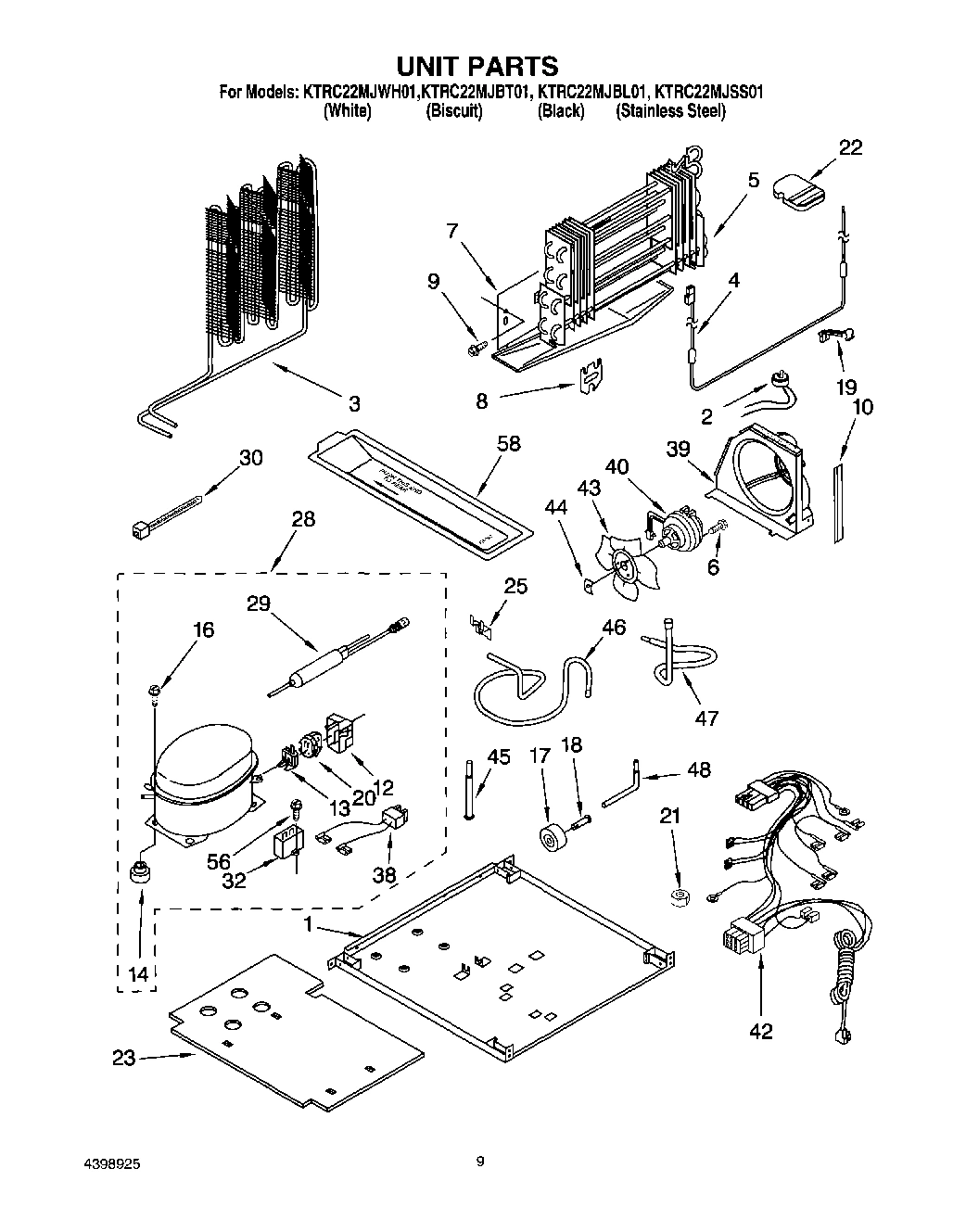

Cover, Unit WPL 2210542 Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor Assembly WPL 2179713 Contact Us For Availability

53

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
