Model Whirlpool KTRC20KDAL00 – Common Parts & Diagrams
01 - CABINET

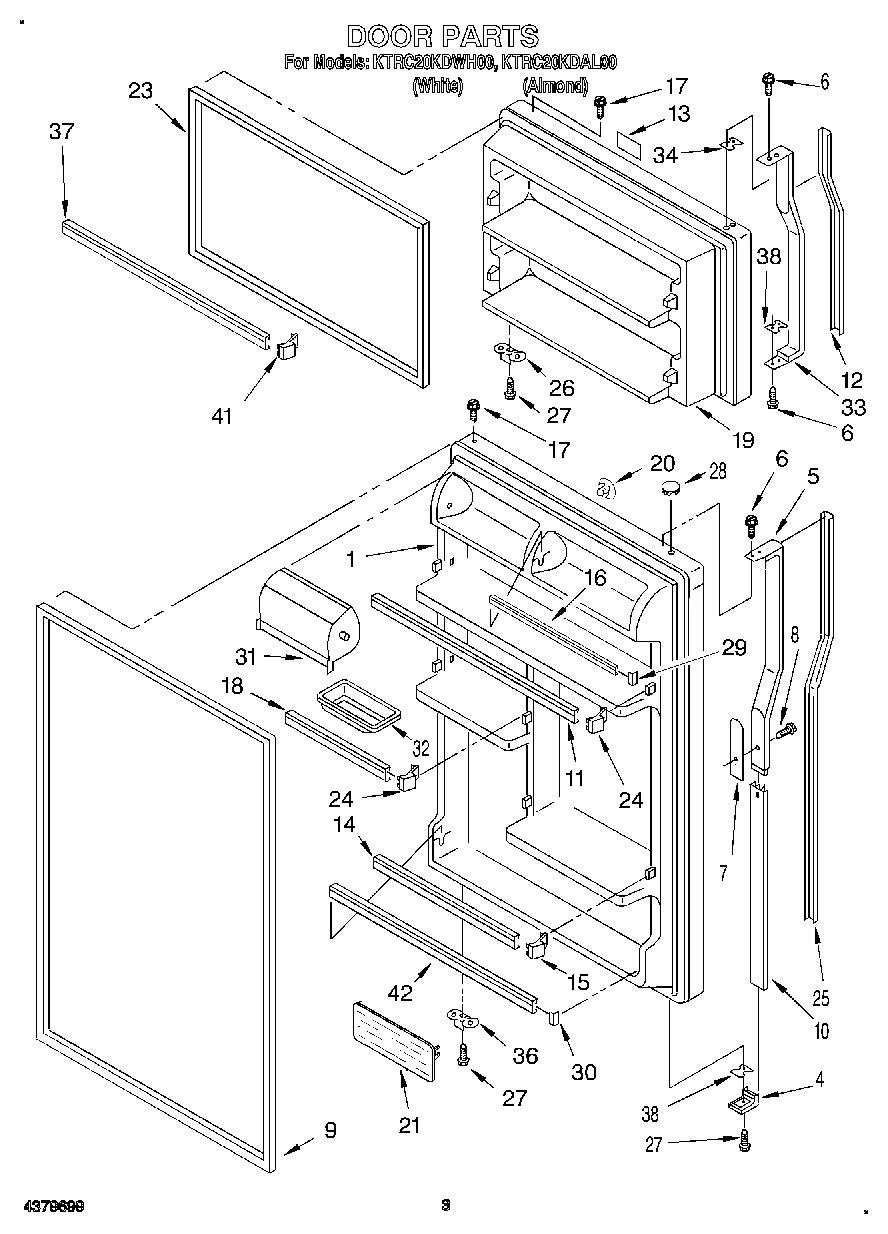

02 - DOOR

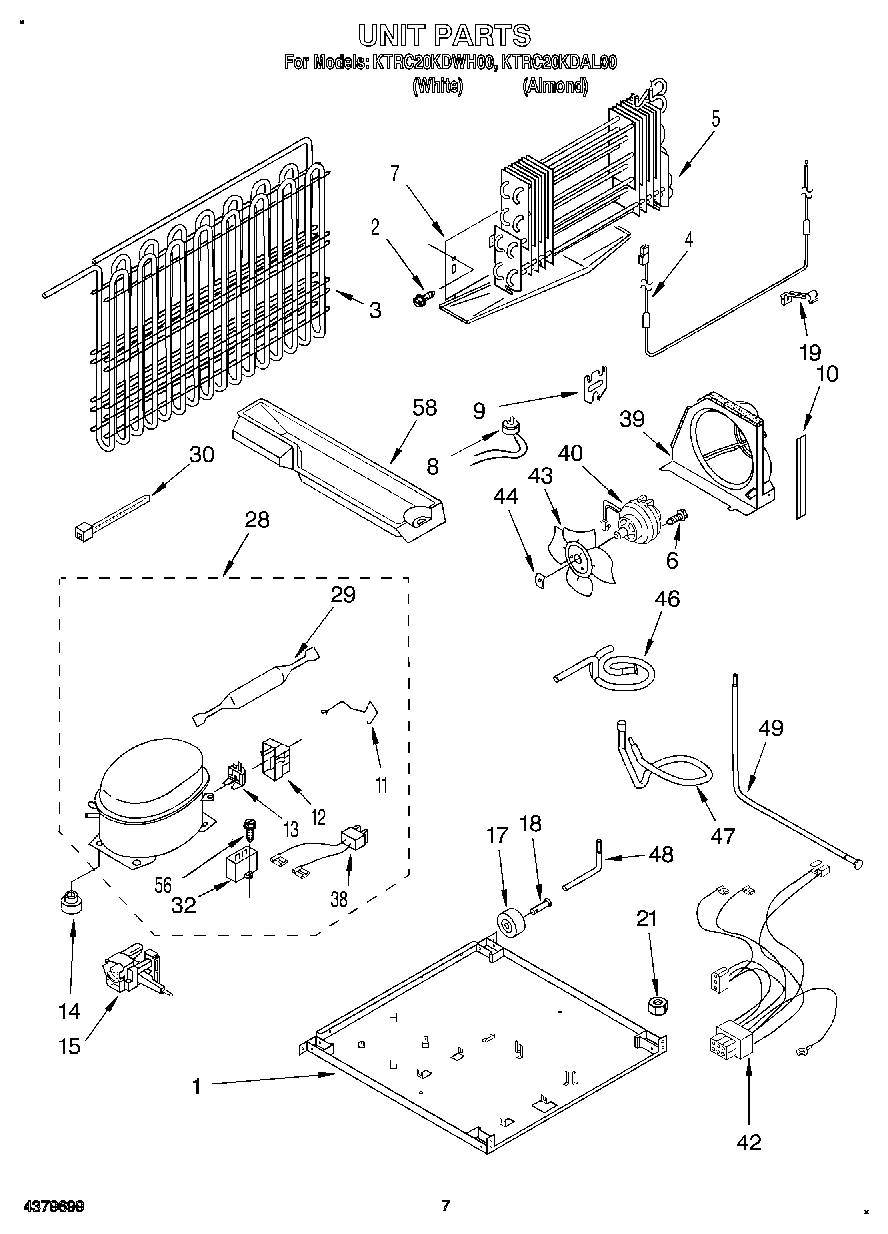

04 - UNIT

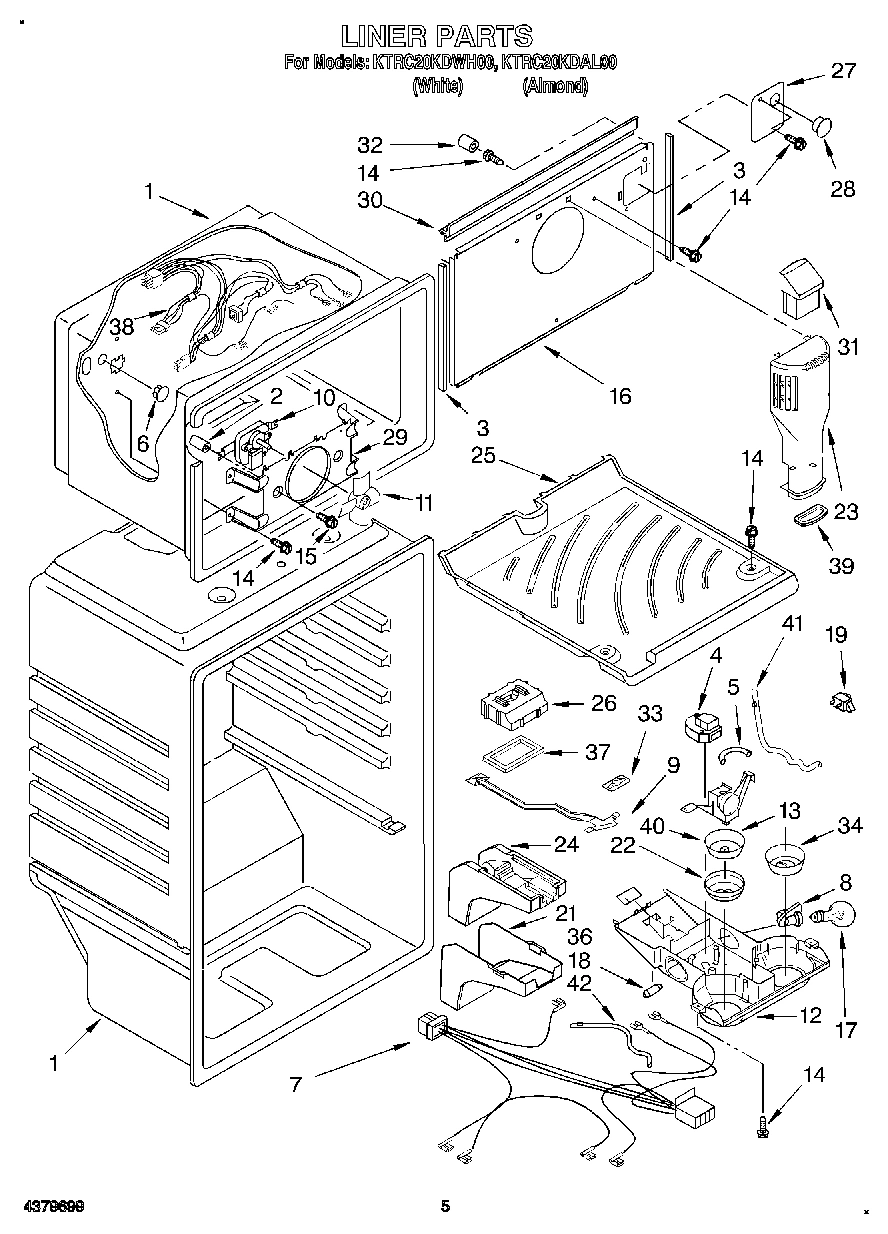

03 - LINER

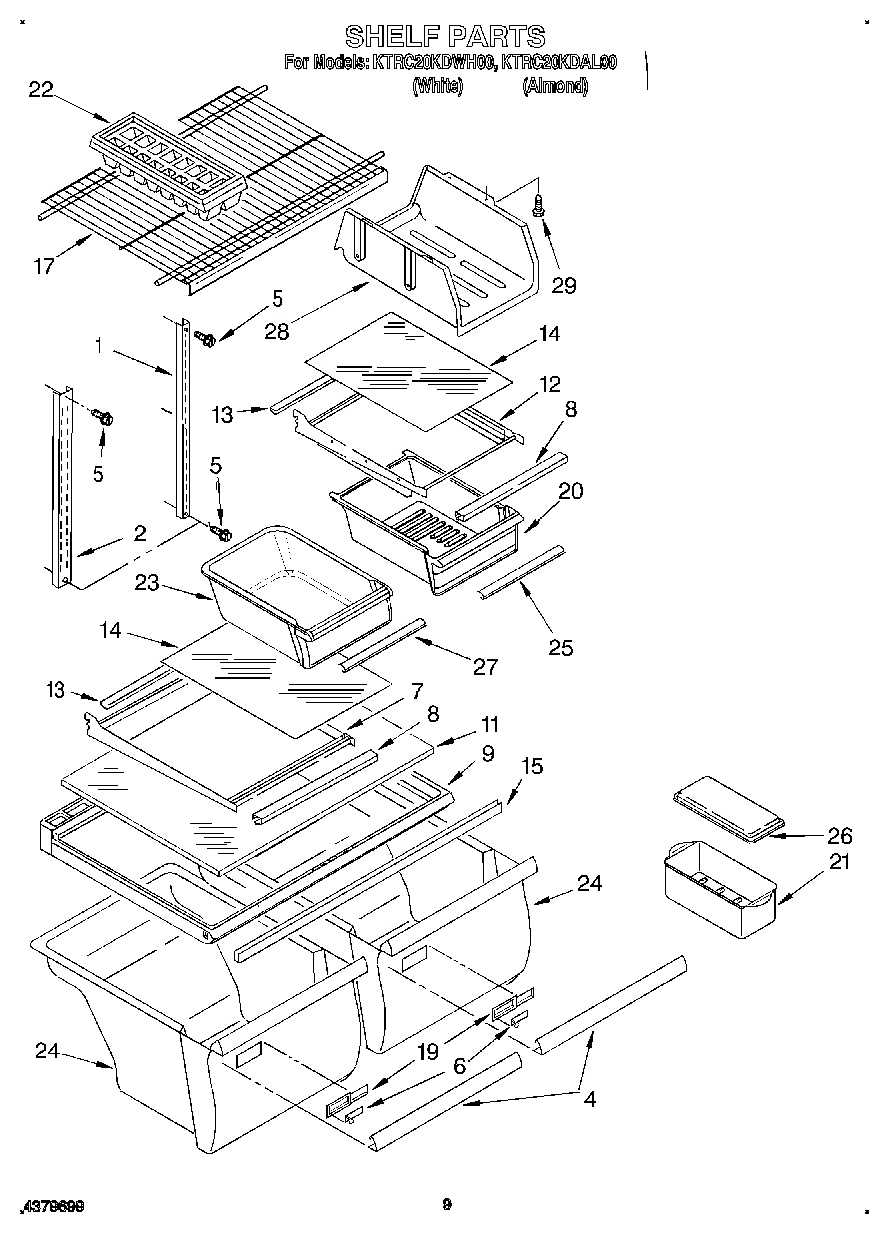

05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool KTRC20KDAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168977 WPL LIT2168977 Contact Us For Availability
WPL LIT2169957 WPL LIT2169957 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2180058 WPL LIT2180058 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174624 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI109676A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
4
Trim, Crisper Pan WPL 2179705 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Shelf, Cantilever WPL 2163860 Contact Us For Availability
8
Trim, Shelf Front WPL 2176263 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2176268 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Trim, Door Shelf WPL 2177248 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Insert, Handle (White) WPL 2168898 Contact Us For Availability
12
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
12
Control Box WPL 2179798 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176306 Contact Us For Availability
13
Nameplate (White Model) WPL 2168800 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
13
Trim, Shelf Repair WPL 2163883 Contact Us For Availability
14
Trim, Door Shelf WPL 2168974 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
14
Glass, Shelf WPL 2180068 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2163819 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
18
Trim, Door WPL 2177249 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2171226 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2171227 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Pan, Meat WPL 2180072 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI109677A Contact Us For Availability
22
Knob, Thermostat WPL 2174522 Contact Us For Availability
23
Door Gasket, Magnetic (Phantom Gray) WPL 2177312 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Ice Bucket WPL 2168967 Contact Us For Availability
25
Insert, Handle (White) WPL 2168896 Contact Us For Availability
25
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
25
Freezer Floor WPL 2172680 Contact Us For Availability
25
Trim, Meat Pan WPL 2176357 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
26
Cover, Egg Bin WPL 2164374 Contact Us For Availability
27
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
28
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
29
KIT, FOAM S WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Door Reversal Instructions WPL 2180007 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
32
Butter, Tray WPL 1125936 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2168901 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Spacer, Handle WPL 1107628 Contact Us For Availability
34
Knob, Damper WPL 2174521 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
37
Trim-Door (2) WPL 2177247 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim, Handle WPL 2151813 Contact Us For Availability
38
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
39
Gasket, Air Tower WPL 2179839 Contact Us For Availability
41
Light Bar, R.S. WPL 2174627 Contact Us For Availability
42
Trim, Door WPL 2177246 Contact Us For Availability
42
Wire Assy. Unit WPL 2176279 Contact Us For Availability
42
Light Bar, L.S. WPL 2174628 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
