Model Whirlpool KTRC19KMSS02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $116.71

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI109344A WPL ARI109344A Contact Us For Availability

WPL ARI109345A WPL ARI109345A Contact Us For Availability

WPL ARI109346A WPL ARI109346A Contact Us For Availability

WPL ARI109347A WPL ARI109347A Contact Us For Availability

WPL ARI109348A WPL ARI109348A Contact Us For Availability

1

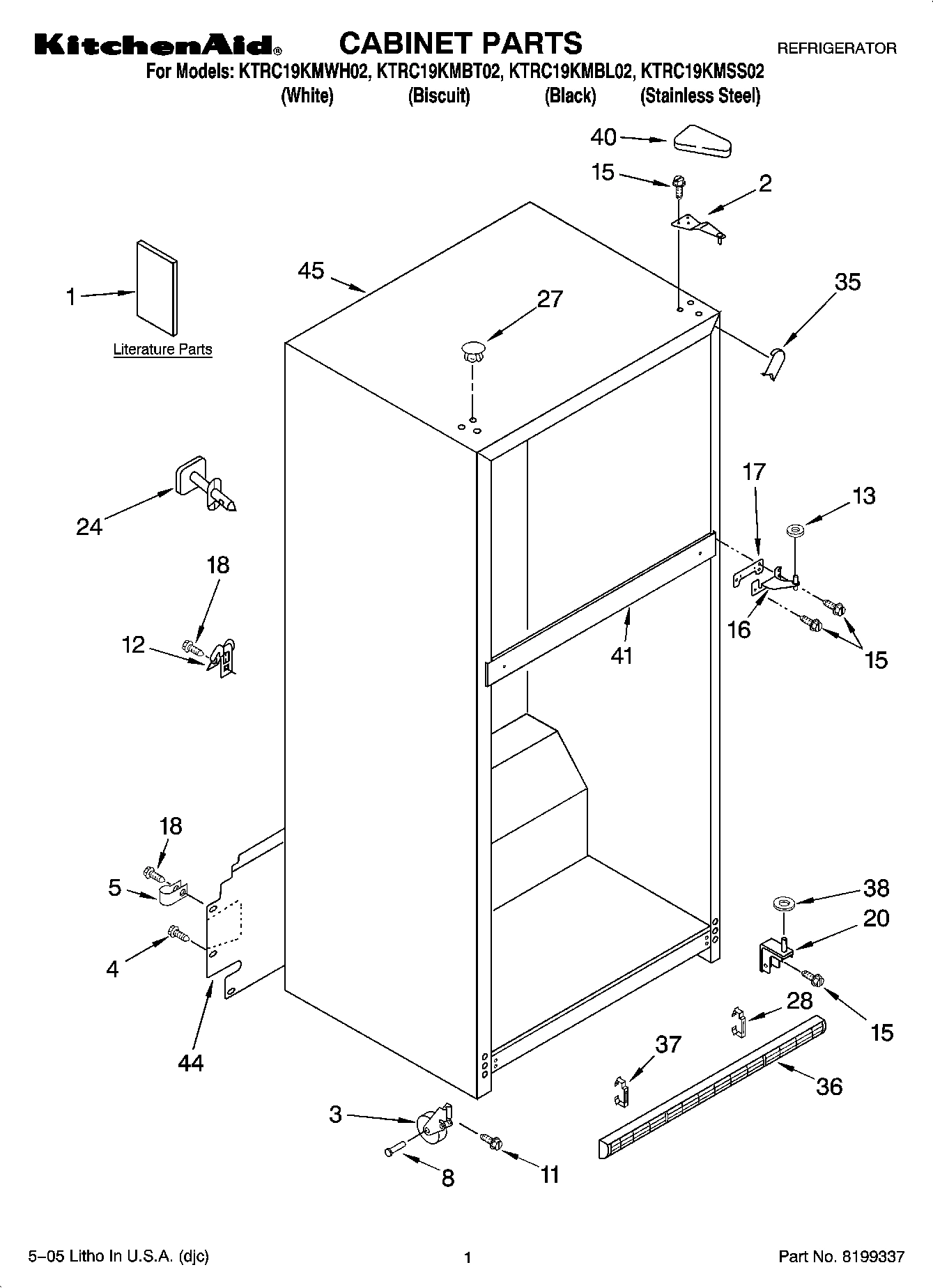

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

1

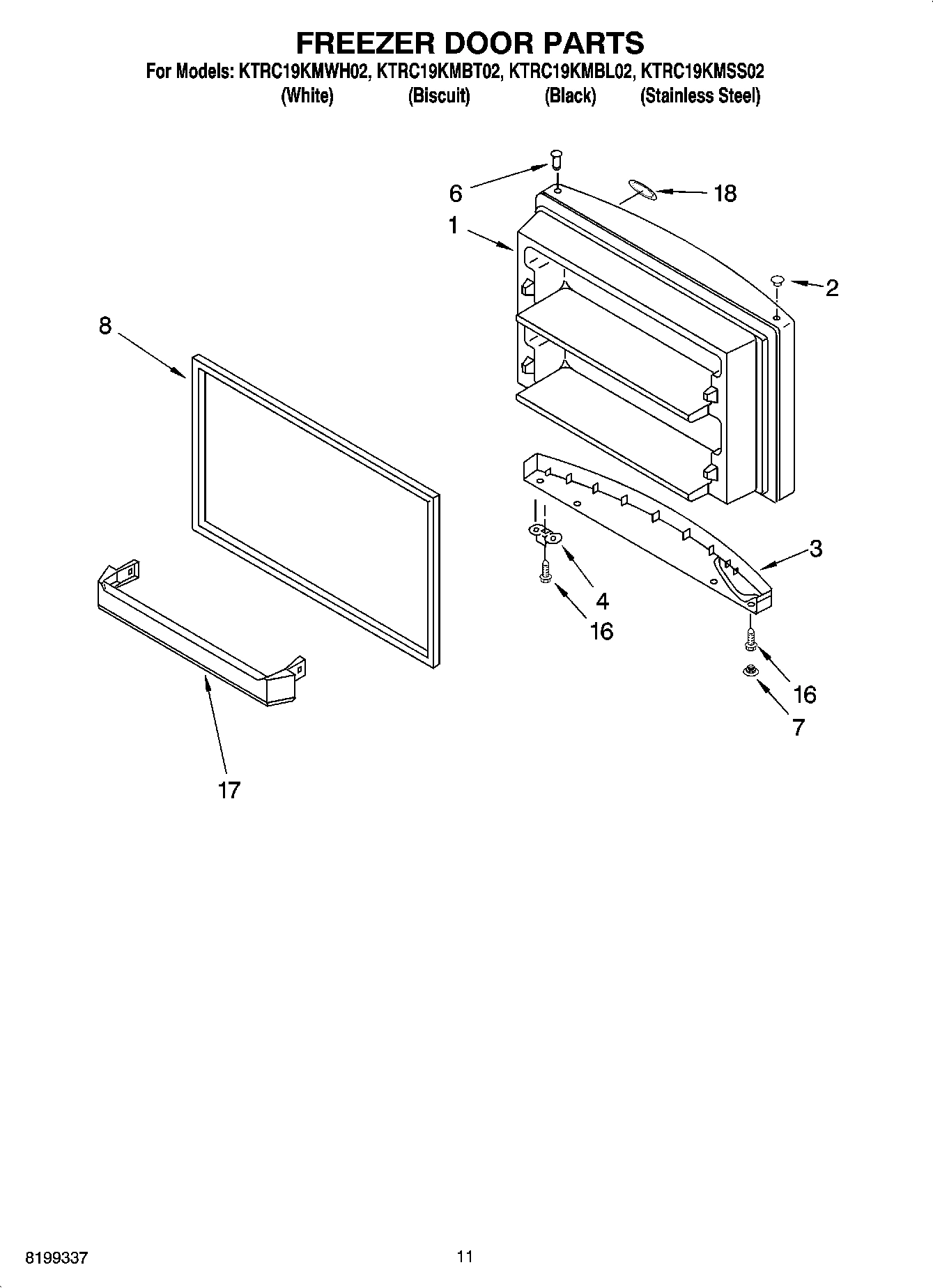

Freezer Door (Includes Illus. 6 & 8) (White) WPL 2205399 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2205400 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2205402 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212495 Contact Us For Availability

2

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

2

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

3

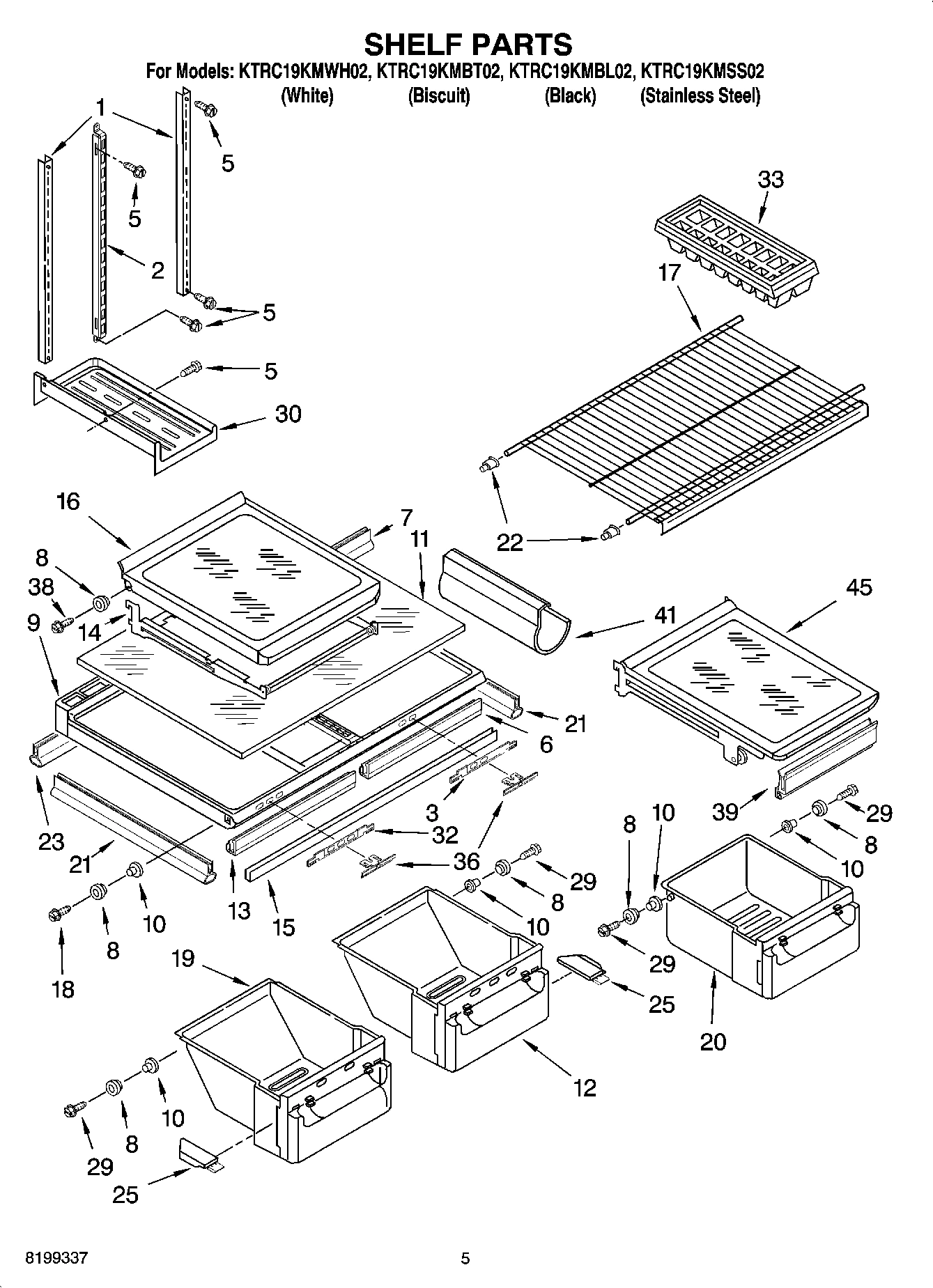

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

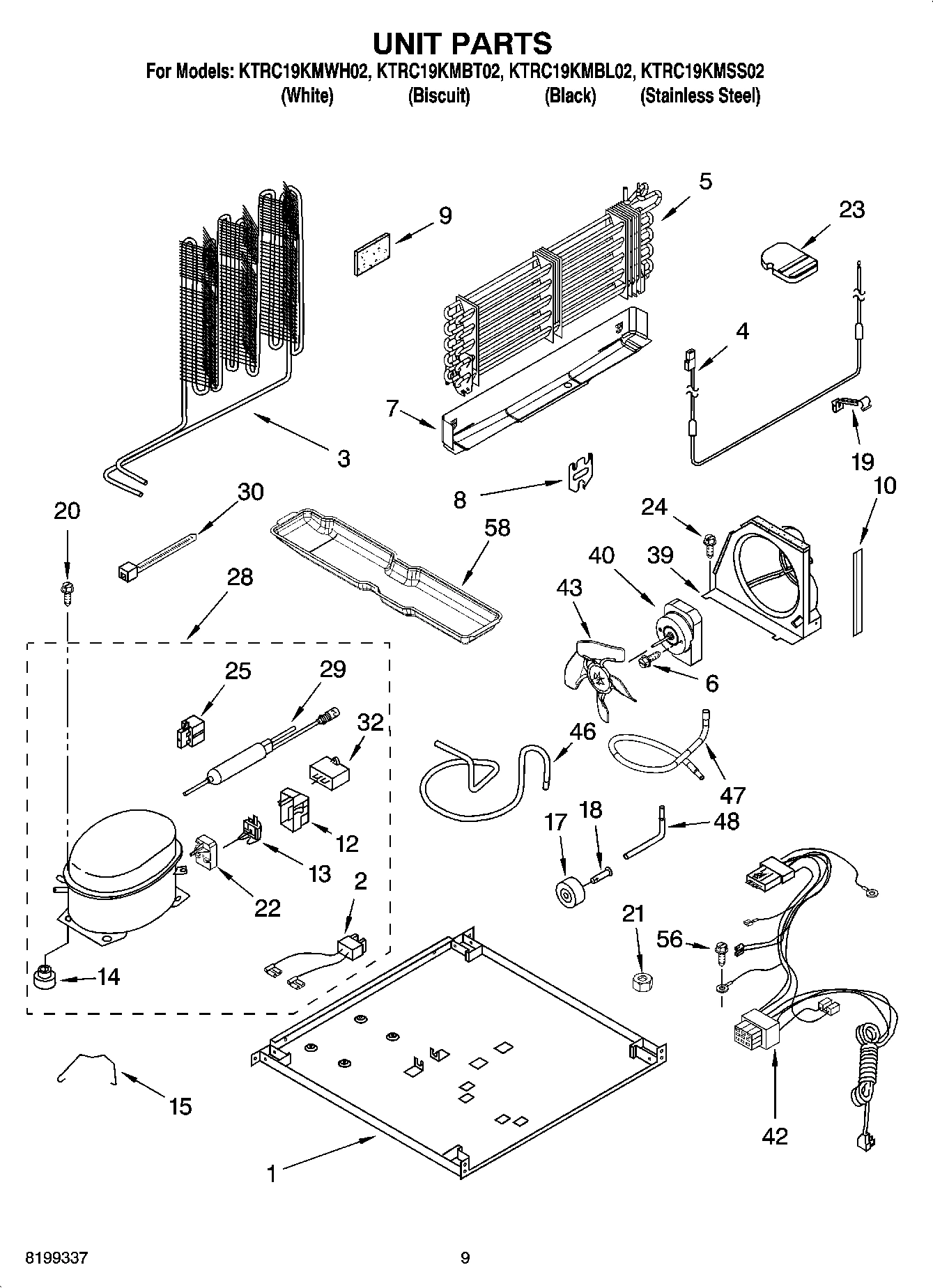

Condenser WPL 2214960 Contact Us For Availability

3

Slide, Humidity WPL 2174256 Contact Us For Availability

3

Handle, Endcap (White) WPL 2205459 Contact Us For Availability

3

Handle, Endcap (Biscuit) WPL 2205460 Contact Us For Availability

3

Handle, Endcap (Black) WPL 2221632 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $105.74

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

5

Evaporator Assy. WPL 2221760 Contact Us For Availability

6

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

6

WPW10171469 Whirlpool Refrigerator Screw Backorder WPL WPW10171469 $6.84

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability

7

Drain Pan WPL 2254294 Contact Us For Availability

7

HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability

7

Hole-Plug Endcap (Biscuit) WPL 2204838 Contact Us For Availability

7

HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $92.99

8

2177304 Whirlpool Refrigerator FIP Gasket In Stock WPL 2177304 $200.34

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

9

Crisper Cover (Includes Items 3,6,7,8,10,13,1 WPL 2198759 Contact Us For Availability

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

11

Glass, Crisper Cover WPL 2221694 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

12

Pan, Crisper (Includes Items 8,10,25 & 29) WPL 2188811 Contact Us For Availability

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $90.86

13

THERMOSTAT WPL 2302286 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

14

Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability

15

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

16

Shelf Assembly, Spillguard (Includes Items 8 WPL 2174009 Contact Us For Availability

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $86.42

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

Trim, Door (2) WPL 2159291 Contact Us For Availability

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

Pan, Crisper (Includes Items 8,10,25 & 29) WPL 2188816 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

Pan, Meat (Includes Items 8,10 & 29) WPL 2188817 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

Nut (Not Serviced) WPL ARI109341A Contact Us For Availability

22

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

Support Block WPL 2201184 Contact Us For Availability

23

Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability

24

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

25

Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability

25

Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability

25

Relay (Service Only) WPL 2183454 Contact Us For Availability

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

Bin, Door WPL 2171062 Contact Us For Availability

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $58.09

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

33

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $65.24

36

Grille (Includes Illus. 28 & 37) (Black) WPL 2254388 Contact Us For Availability

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $45.03

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

38

Screw WPL 489439 Contact Us For Availability

39

Housing Base WPL 2300417 Contact Us For Availability

39

Gasket, Front WPL 2174394 Contact Us For Availability

39

Air Baffle WPL 2302249 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $209.77

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

45

Shelf Assembly, Spillguard (Includes Illus. 3 WPL 2190503 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

57

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $51.32

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $100.75

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI109342A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI109343A Contact Us For Availability
