Model Whirlpool KSRS22QFAL00 – Common Parts & Diagrams
11 - ICEMAKER

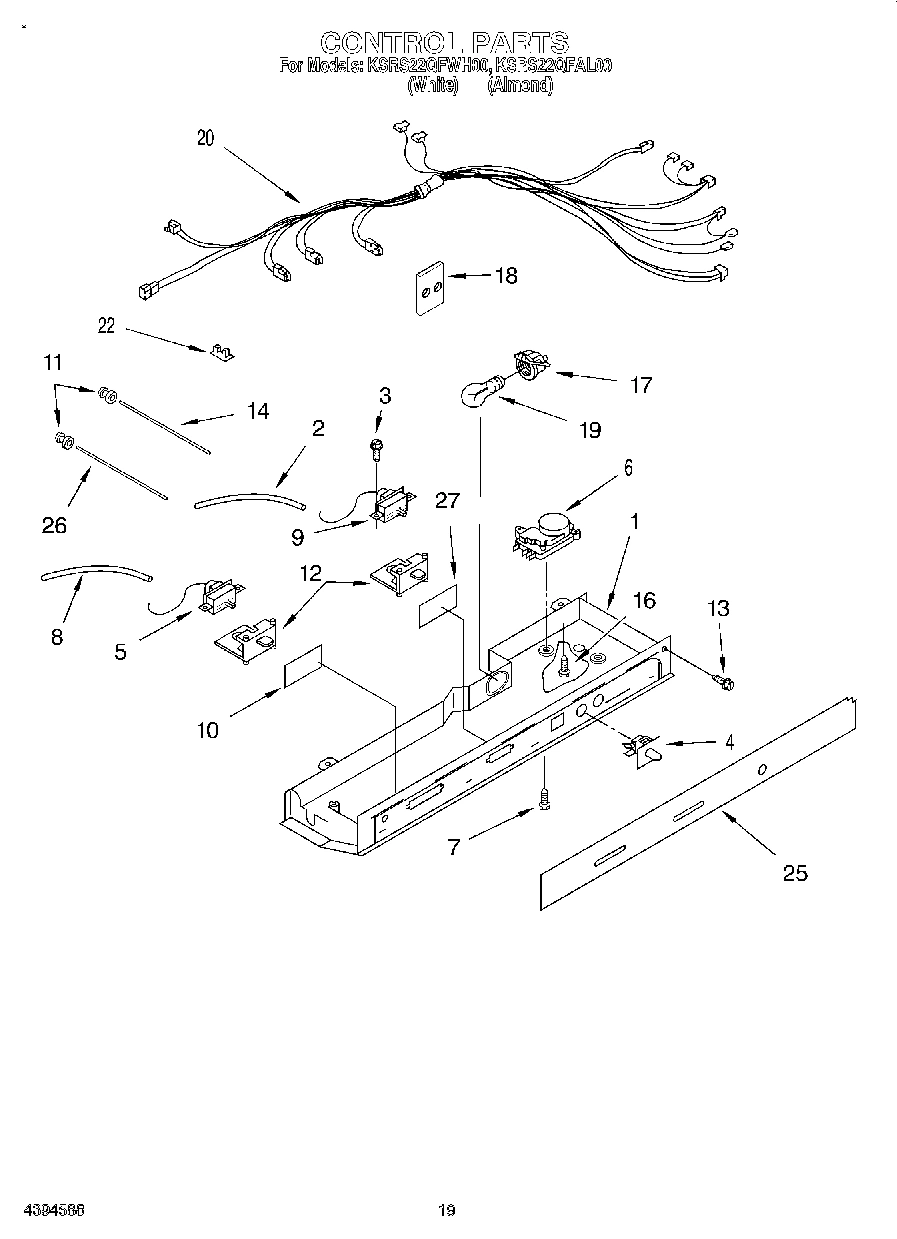

12 - CONTROL, LIT/OPTIONAL

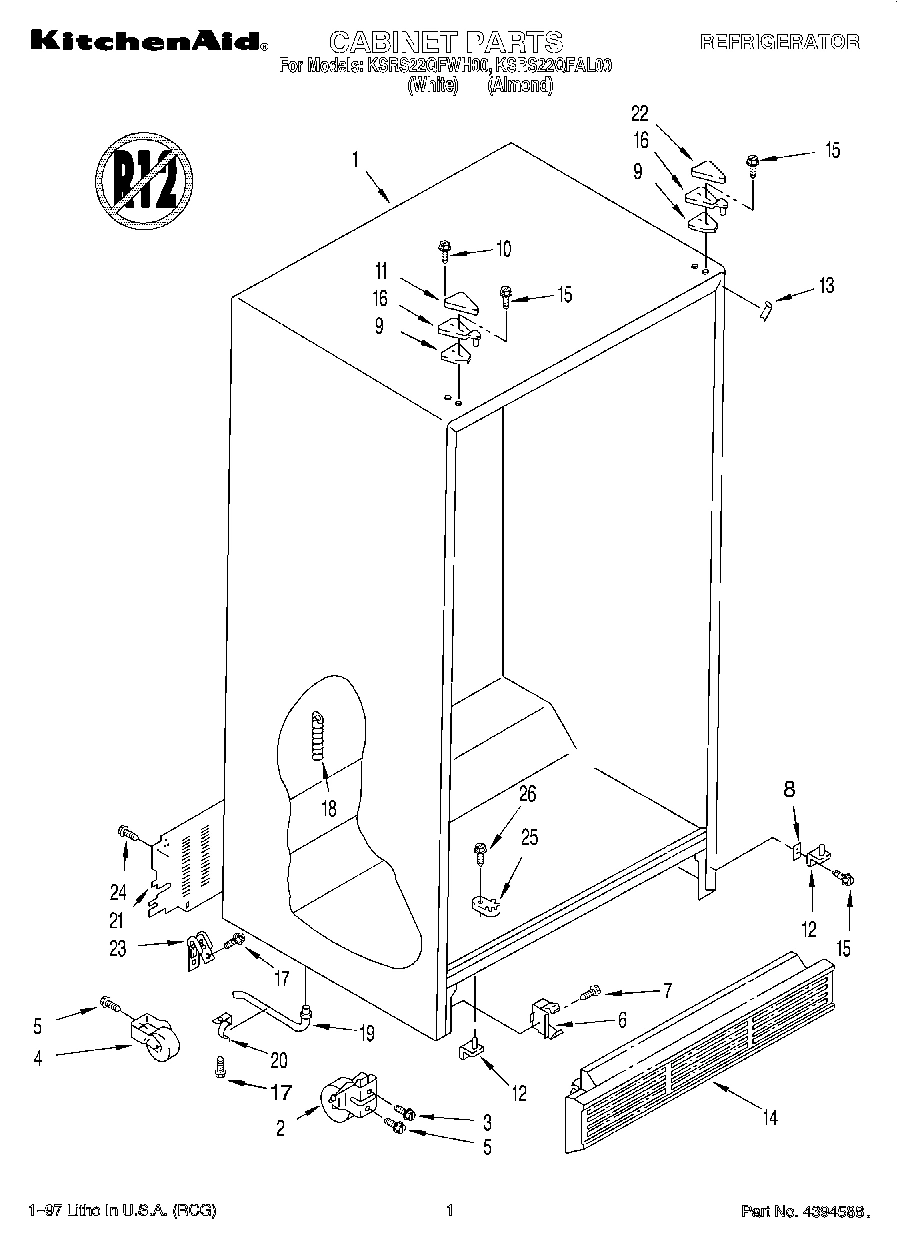

01 - CABINET

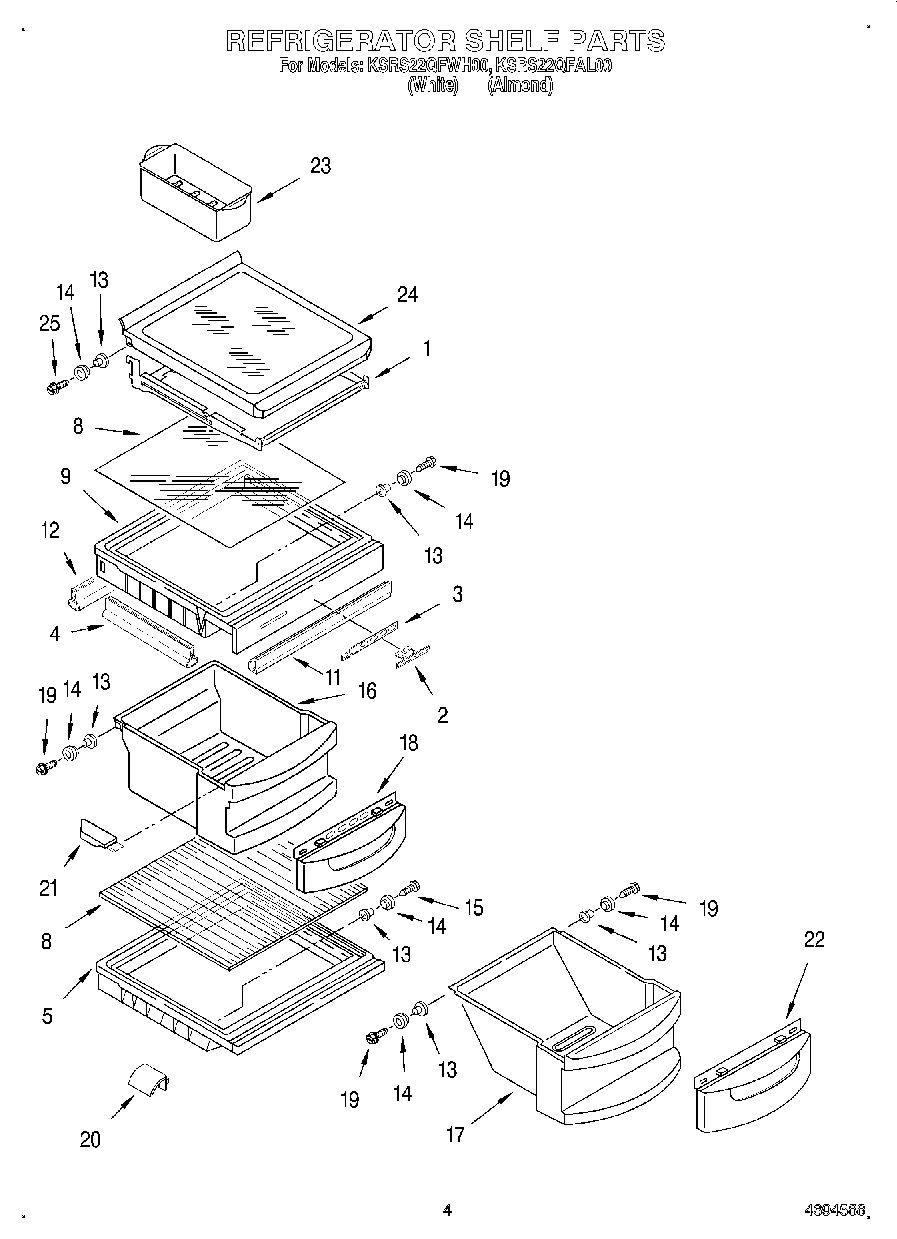

03 - REFRIGERATOR SHELF

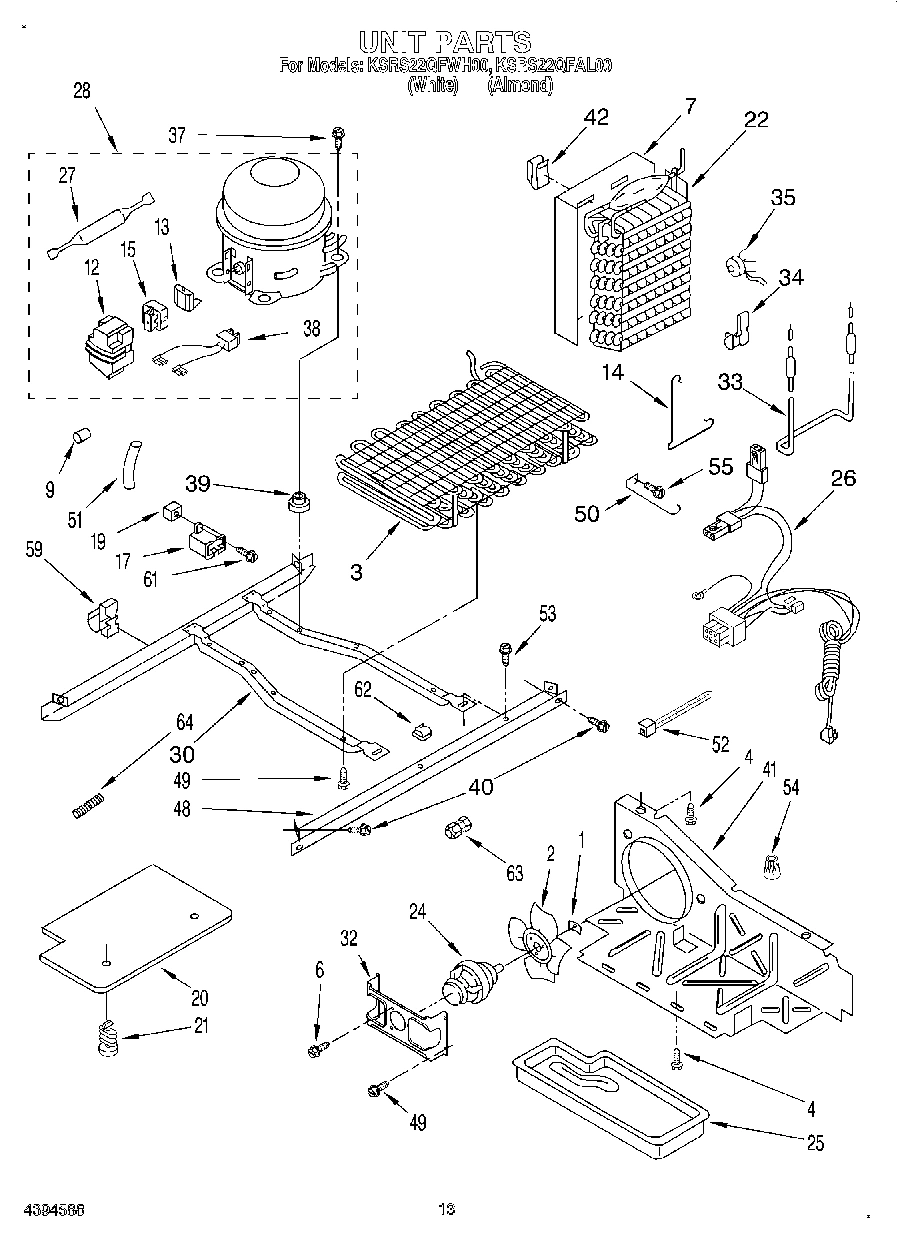

08 - UNIT

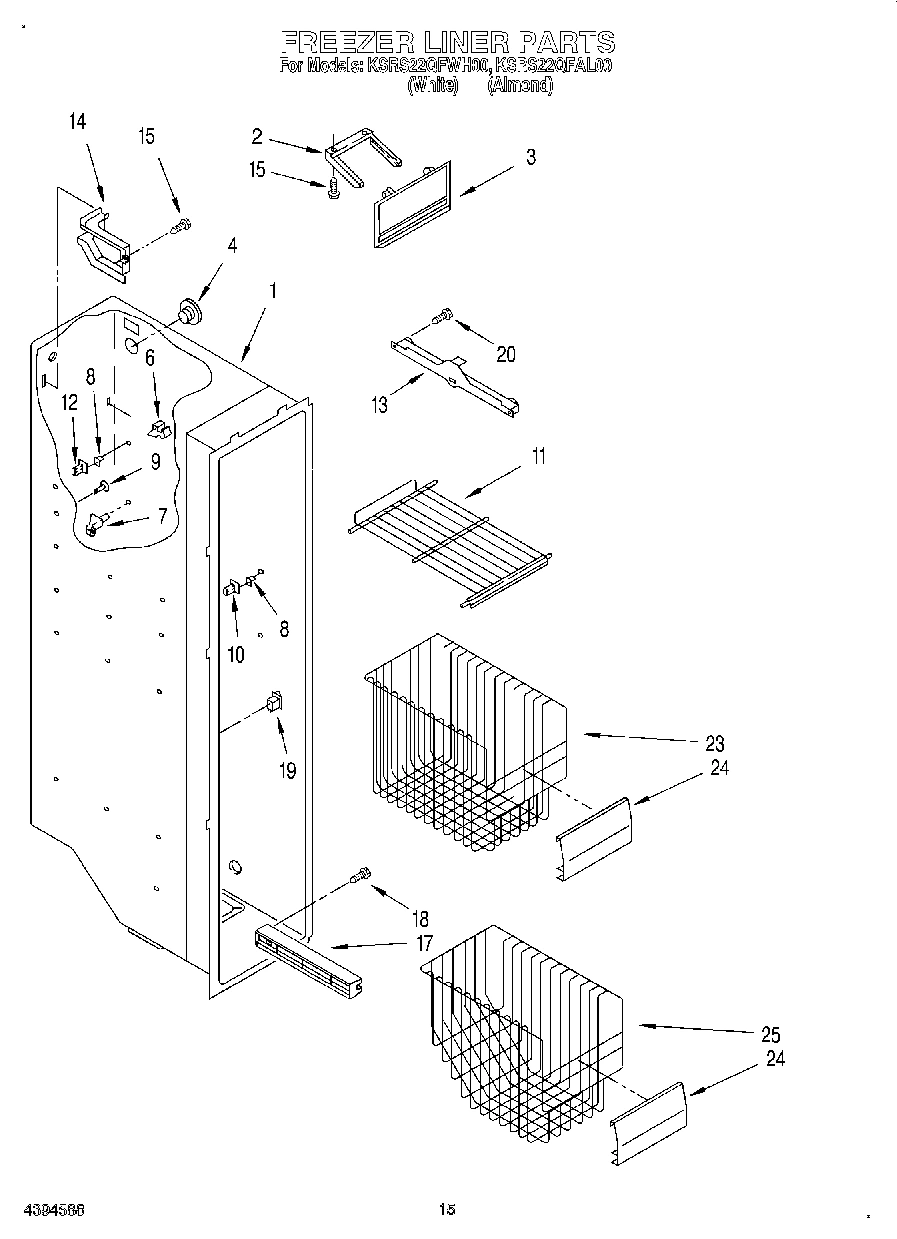

09 - FREEZER LINER
10 - AIRFLOW

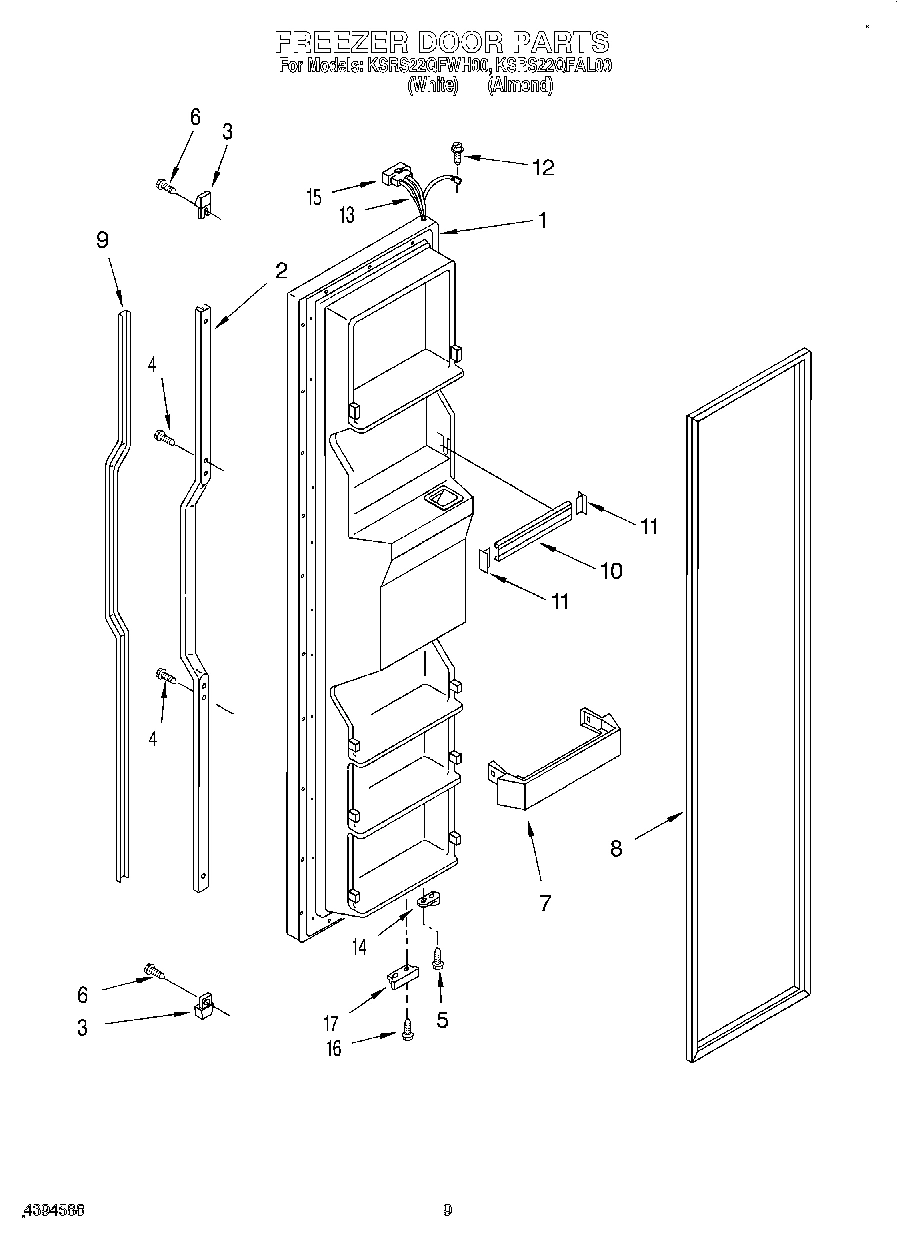

06 - FREEZER DOOR

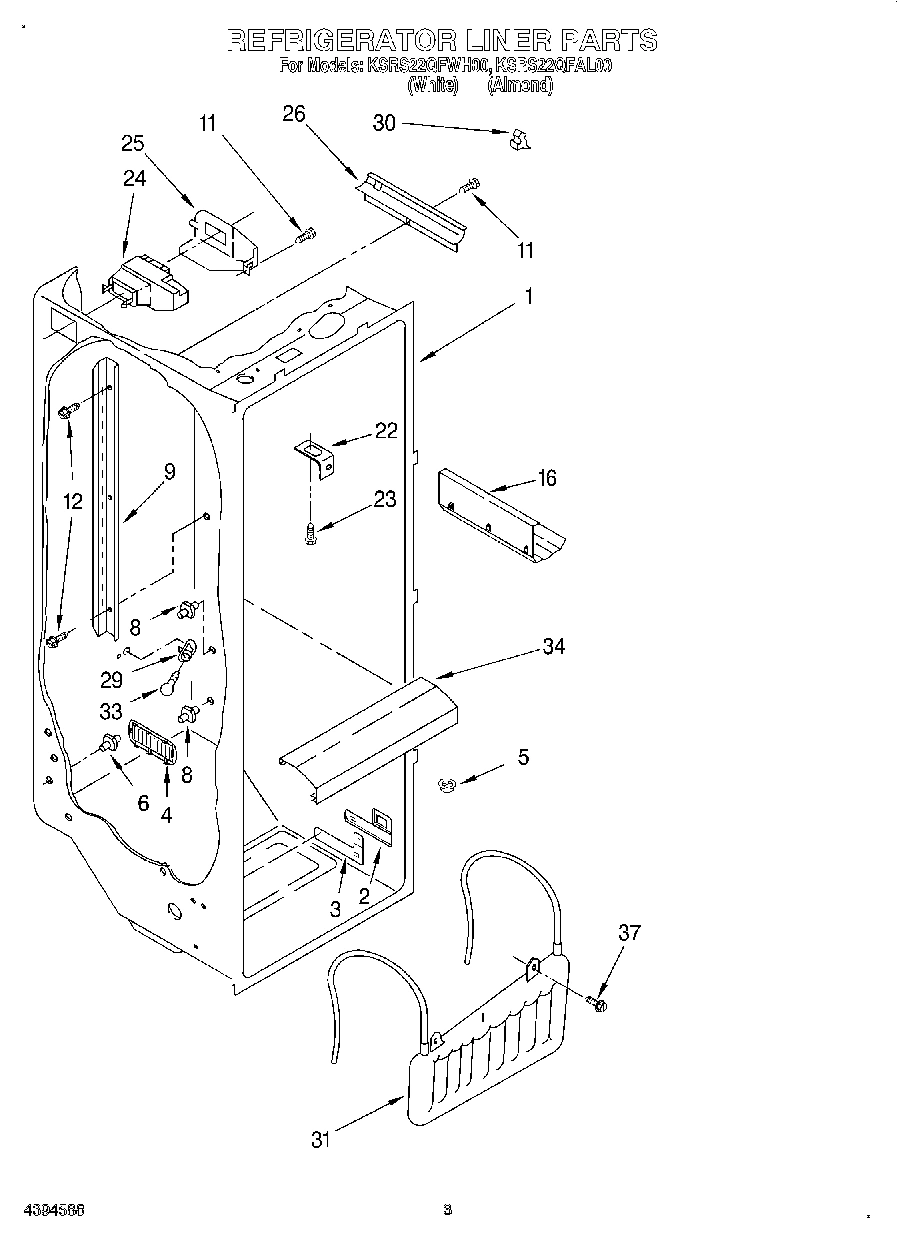

02 - REFRIGERATOR LINER

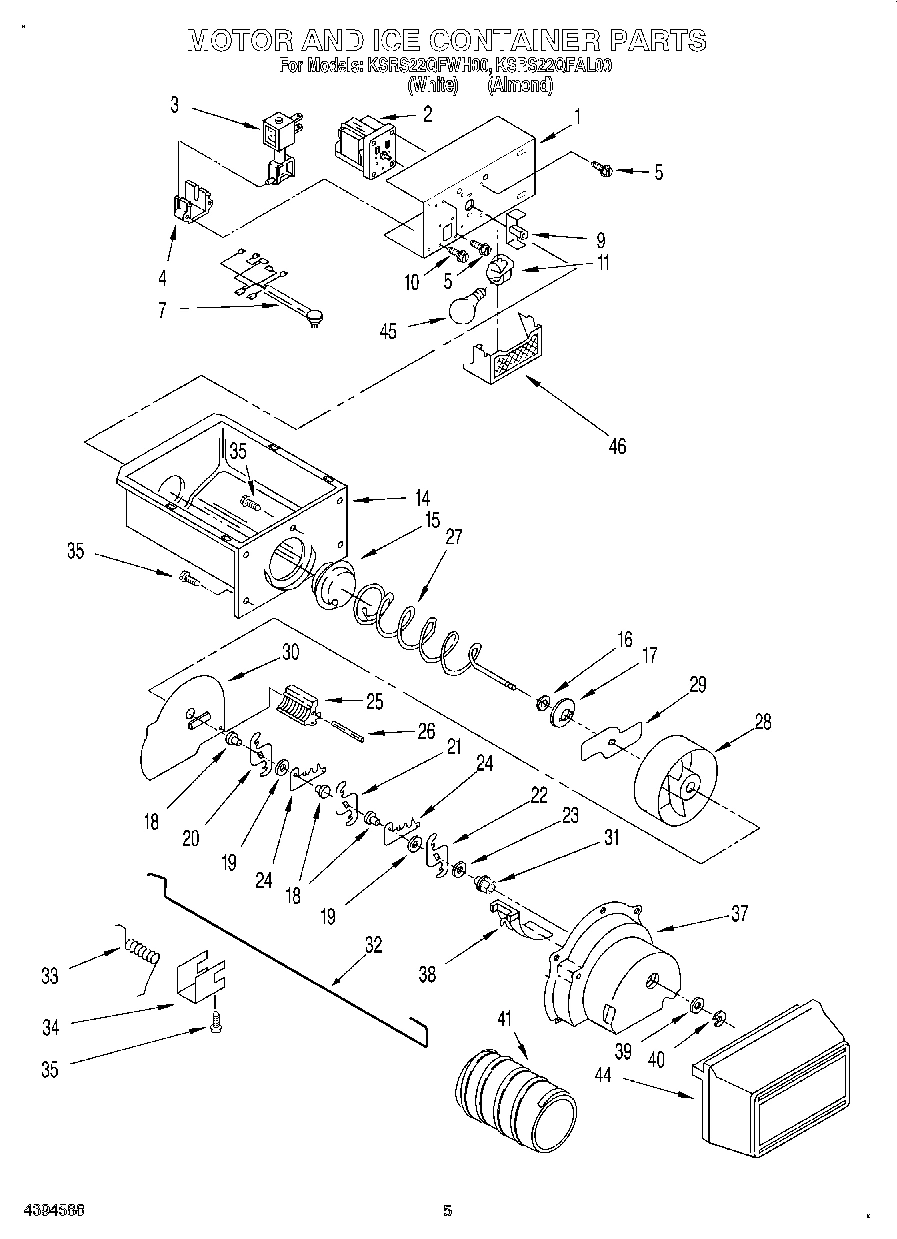

04 - MOTOR AND ICE CONTAINER

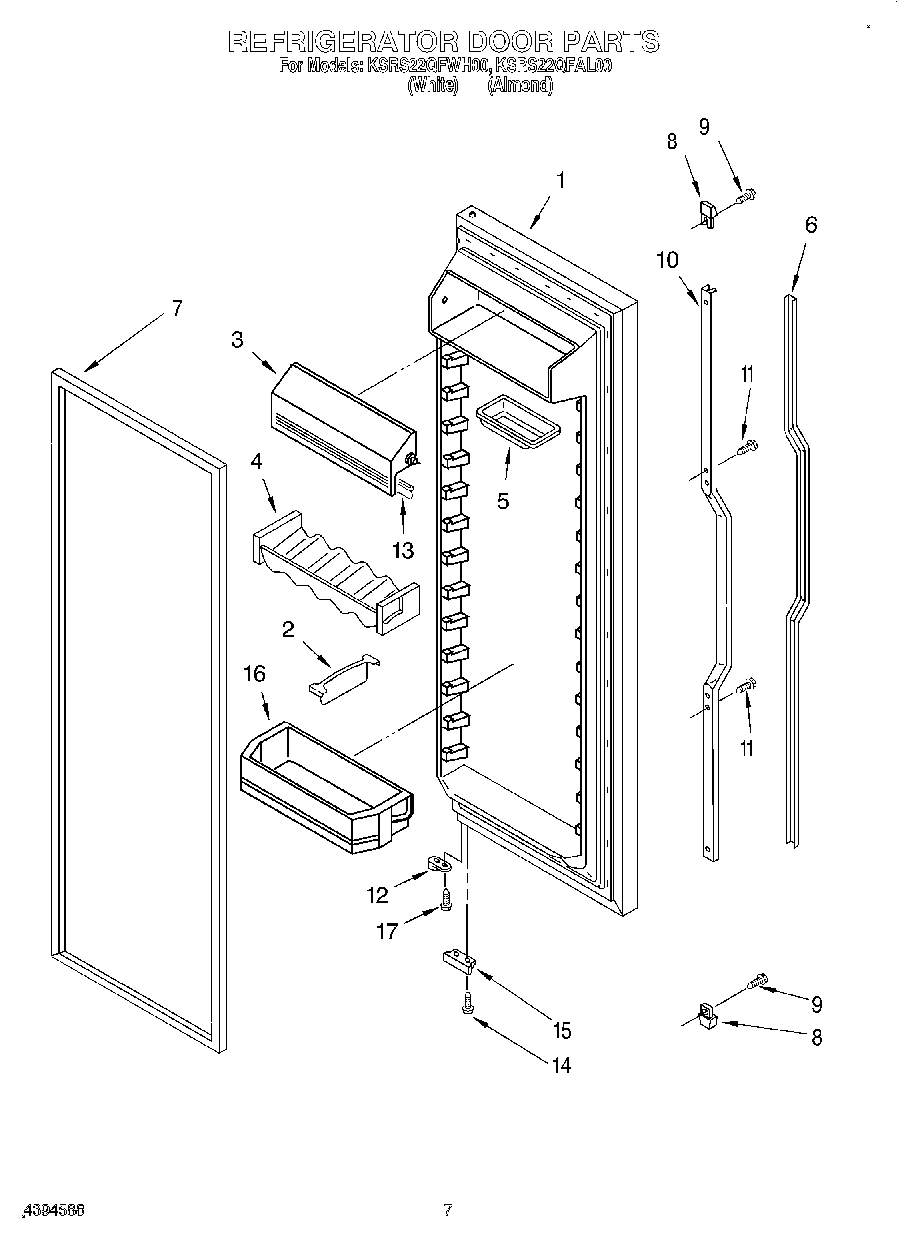

05 - REFRIGERATOR DOOR

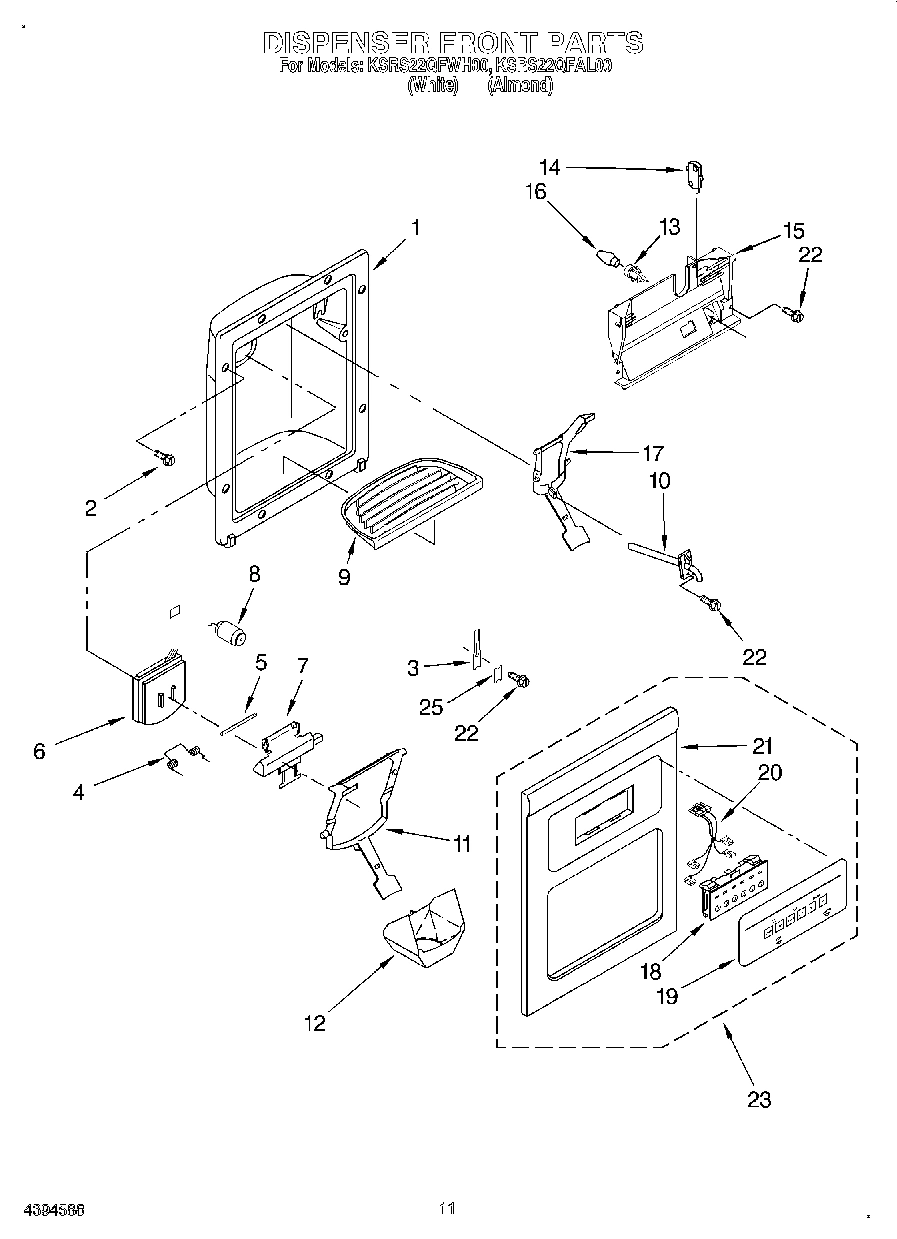

07 - DISPENSER FRONT
Common parts from model Whirlpool KSRS22QFAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100980A Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182860 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182861 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100976A Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI100977A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Insert, Handle (White) WPL 2173830 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Shelf Bin (4) WPL 2171071 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180365 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180366 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI100978A Contact Us For Availability
23
Basket, Upper WPL 2181761 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180393 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180394 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
27
KIT, WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
