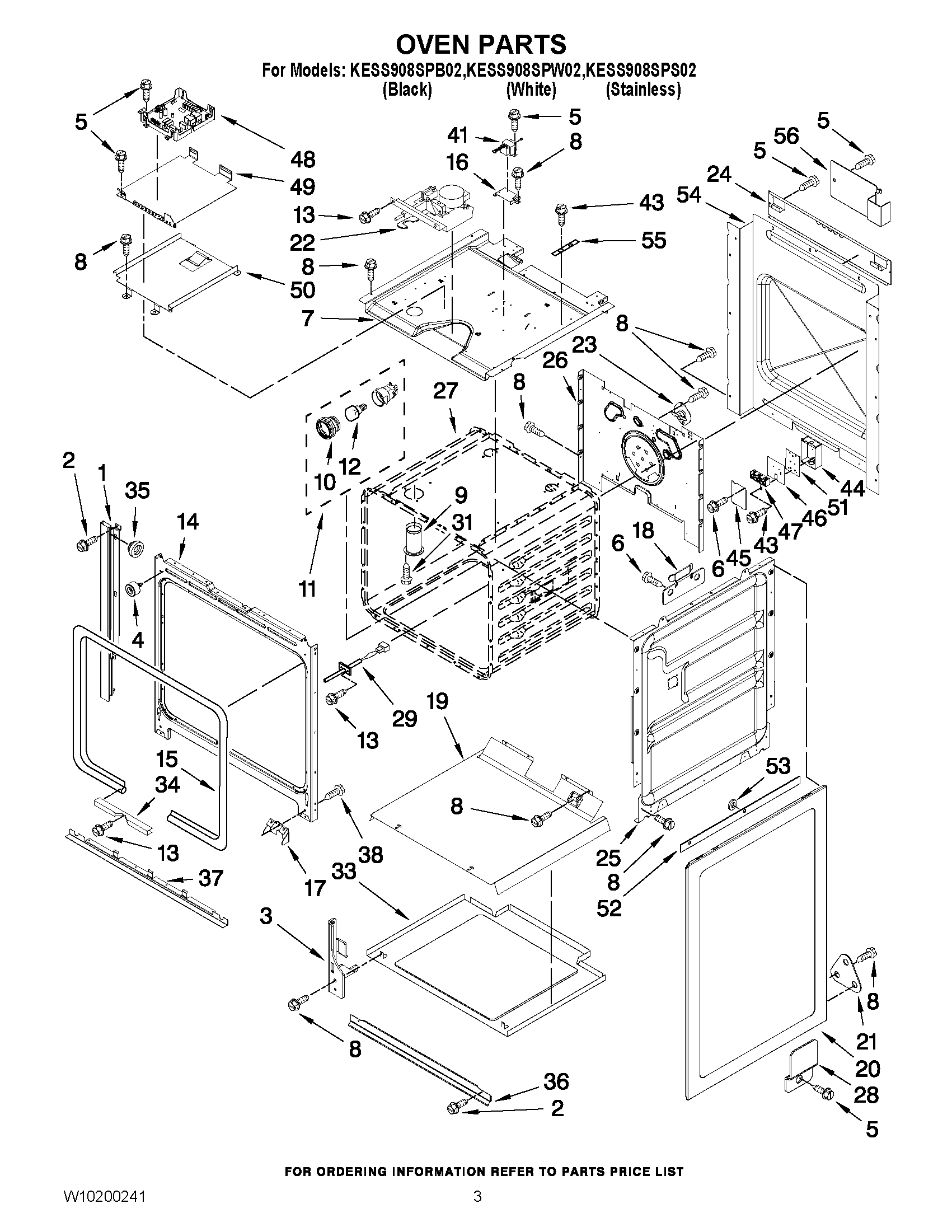

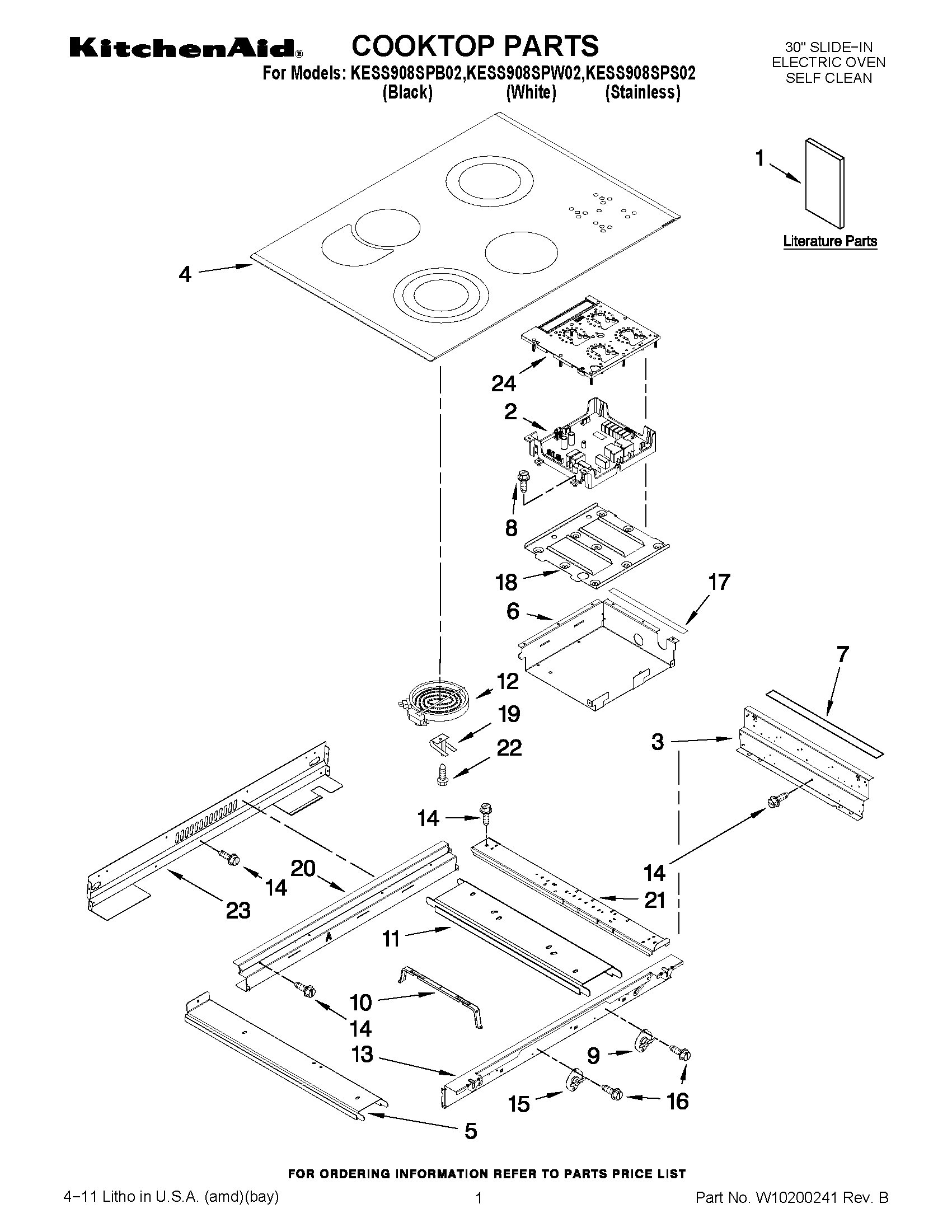

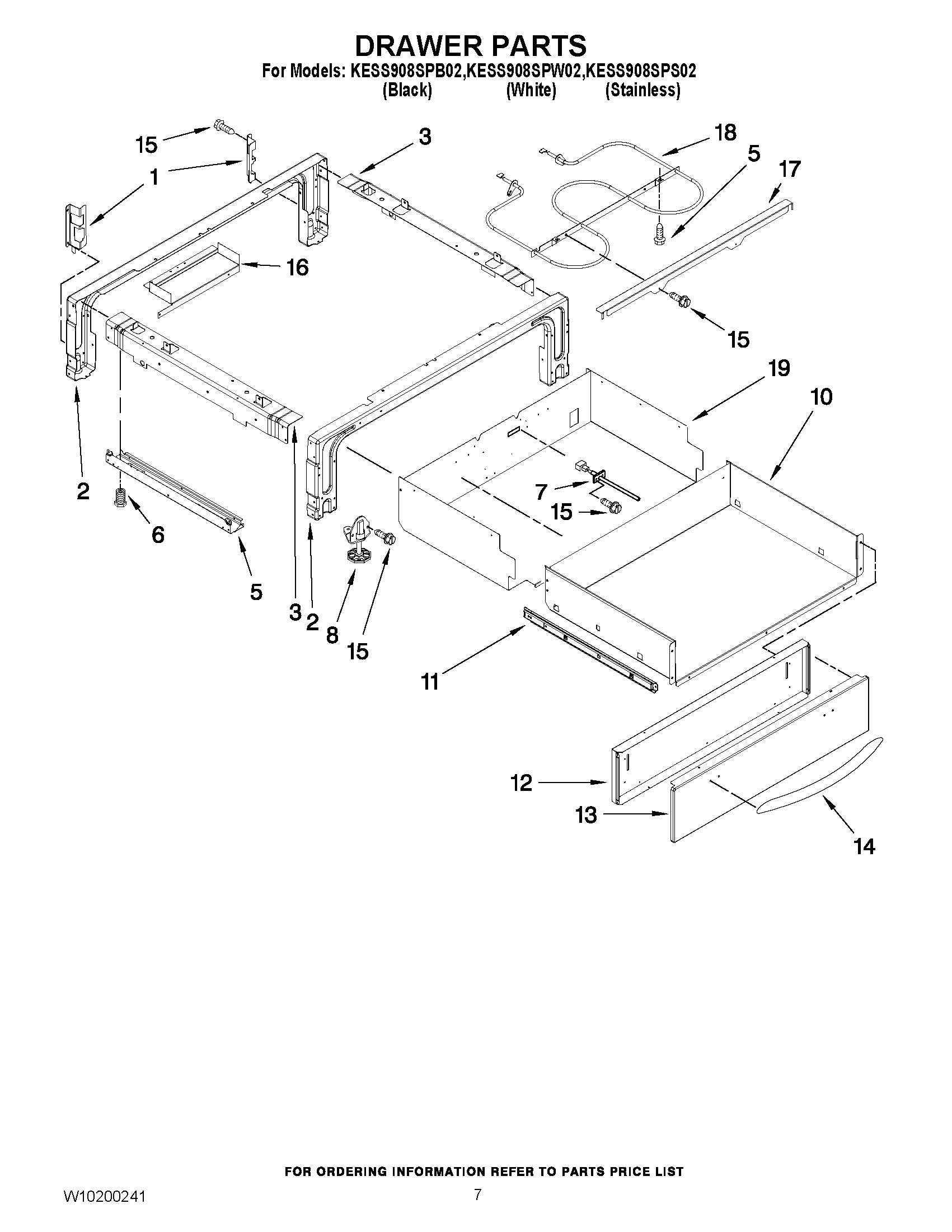

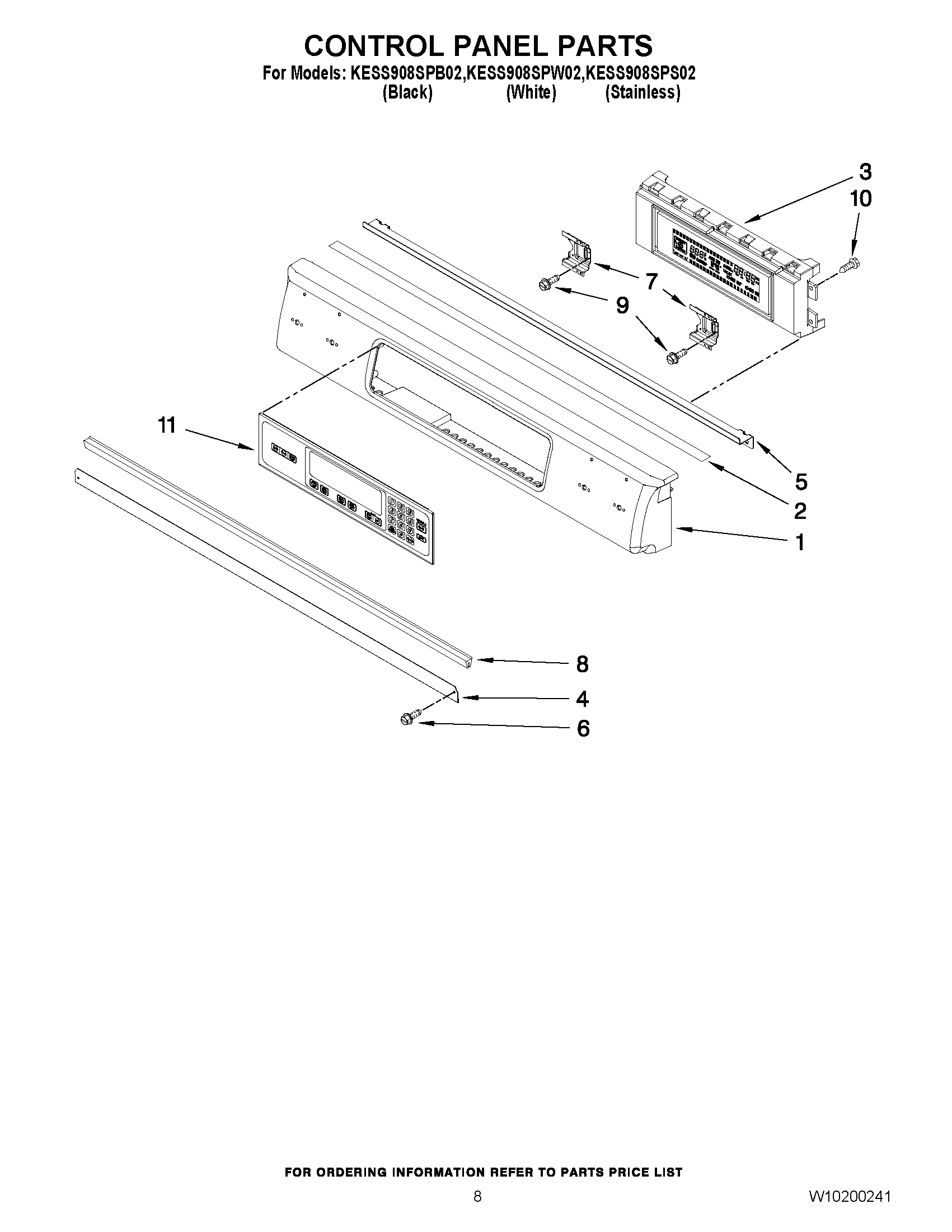

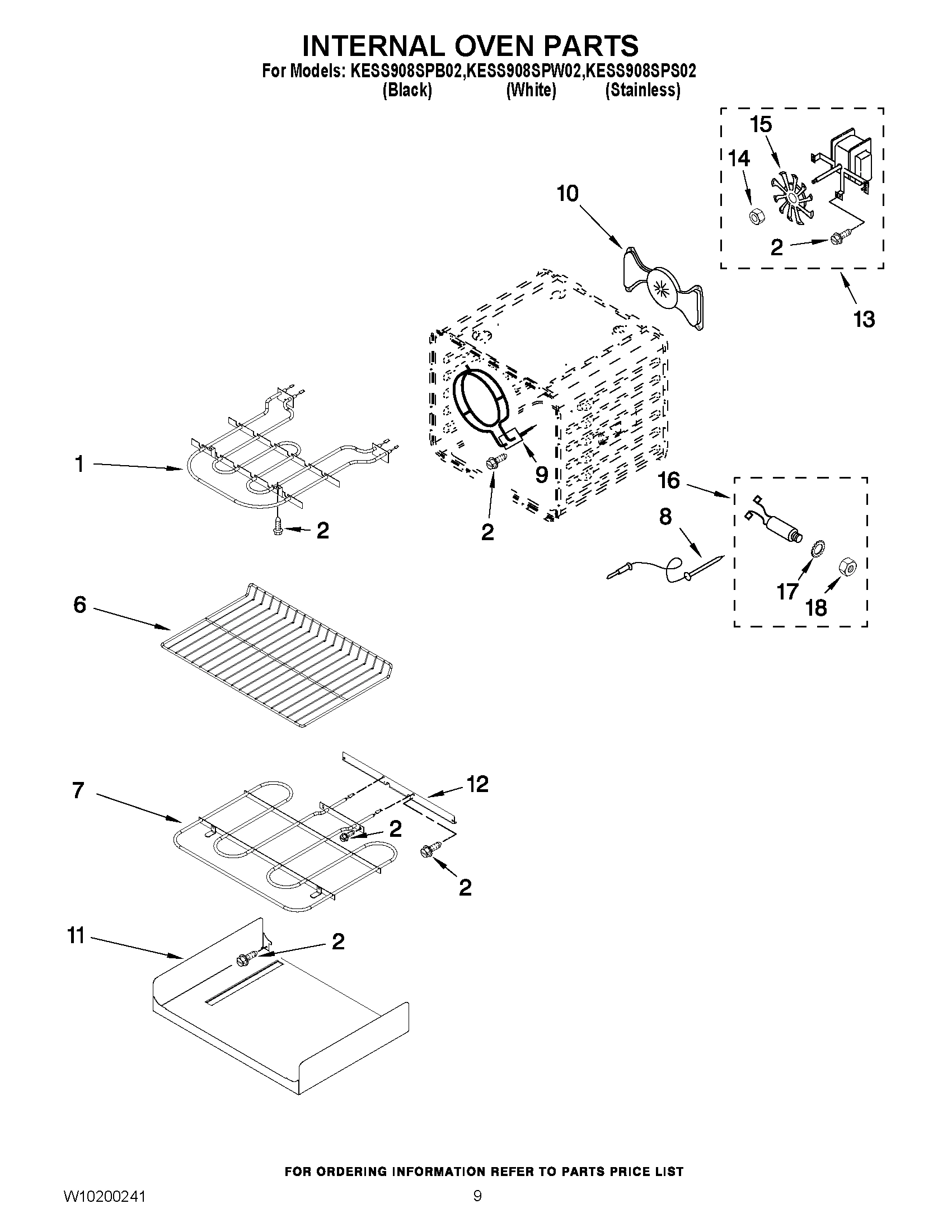

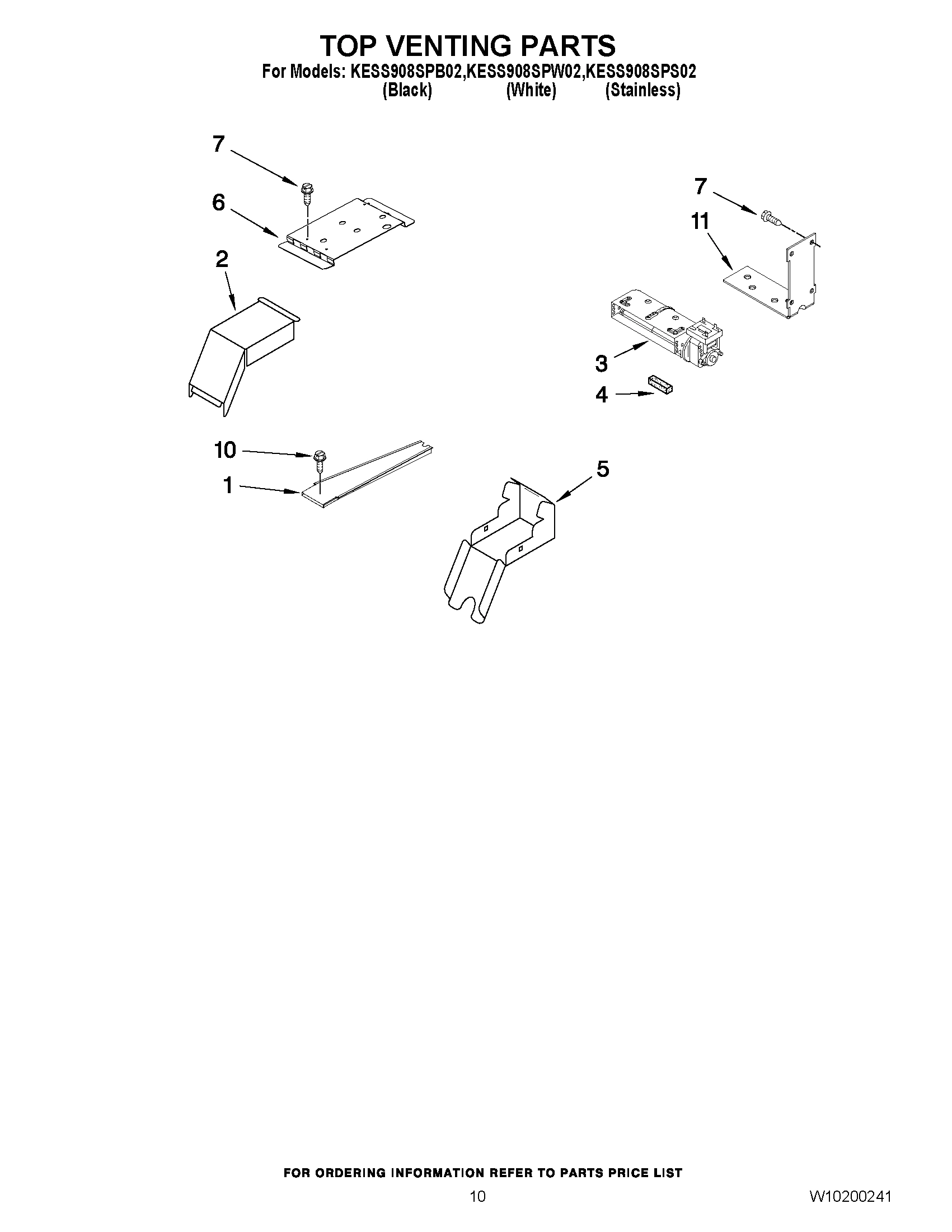

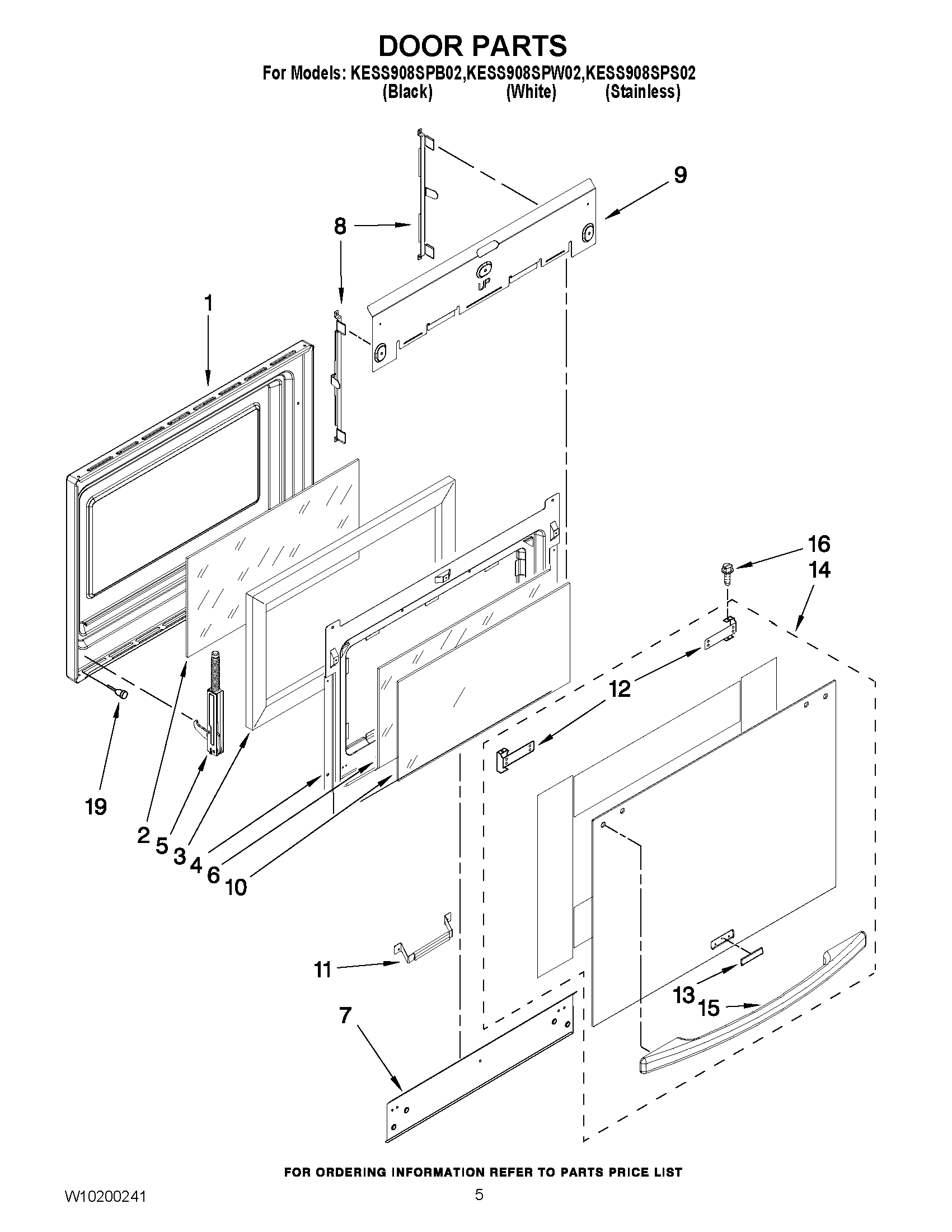

Model Whirlpool KESS908SPS02 30`` SLIDE-IN ELECTRIC OVEN SELF CLEAN – Common Parts &amp; Diagrams

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $214.40

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $190.99

1

Control Panel (White) WPL W10117034 Contact Us For Availability

1

Control Panel (Black) WPL W10117033 Contact Us For Availability

1

Control Panel (Stainless) WPL W10156272 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

W10110246 Whirlpool Gasket Backorder WPL W10110246 $97.87

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

2

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $125.29

2

Module, Appliance Manager WPL 8285348 Contact Us For Availability

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $228.60

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $82.61

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $82.61

3

Control, Electric WPL W10181439 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.67

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $195.54

4

Shield, Console Vent WPL W10105370 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $75.77

5

Side, Base (Right) WPL 9759953 Contact Us For Availability

5

Side, Base (Left) WPL 9759954 Contact Us For Availability

5

Bracket, Console WPL W10117524 Contact Us For Availability

6

W10491985 Whirlpool Screw Backorder WPL W10491985 $6.99

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

7

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $171.66

7

WPW10207398 Whirlpool Range Oven Bake Element In Stock WPL WPW10207398 $149.99

7

Gasket WPL W10076030 Contact Us For Availability

7

BRACKET, THERMOSTAT WPL 9761745 Contact Us For Availability

8

W10116195 Whirlpool Vent Gasket Backorder WPL W10116195 $59.25

8

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $53.98

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

8

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $68.99

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $121.47

9

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

9

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $135.99

9

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

W10860133 Whirlpool Convection Baffle Backorder WPL W10860133 $157.93

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $147.77

Lens, Light WPL W10067870 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 9780271 Contact Us For Availability

11

WP9761566 Whirlpool Membrane Switch In Stock WPL WP9761566 $269.82

11

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

12

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $58.50

12

WP4453907 Whirlpool Surface Element Backorder WPL WP4453907 $196.52

12

Element, Surface (LF/2300W) WPL 4453908 Contact Us For Availability

13

W10794022 Whirlpool Oven Cooktop Fan Motor In Stock WPL W10794022 $212.99

13

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

13

Badge (Stainless) WPL 8304603SS Contact Us For Availability

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $358.99

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $13.89

Assembly, Door Kit (White) WPL W10131889 Contact Us For Availability

Assembly, Door Kit (Black) WPL W10131888 Contact Us For Availability

15

W10758272 Whirlpool Convection Fan Backorder WPL W10758272 $4.82

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $42.99

15

Thermostat WPL 341196 Contact Us For Availability

16

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $109.99

17

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $22.21

17

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $4.55

18

9760775 Whirlpool Range Warm Element Backorder WPL 9760775 $113.36

18

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $4.82

19

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $258.76

23

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $55.98

24

Brace, Side Panel WPL 9757811 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

26

Back, Chassis WPL 9759761 Contact Us For Availability

27

LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability

28

Clip, Side Panel WPL 9759890 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

31

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

33

Base, Chassis WPL 9759713 Contact Us For Availability

34

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

35

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

36

Vent, Bottom Upper (Black) WPL 9756481BL Contact Us For Availability

36

Vent, Bottom Upper (White) WPL 9756481WH Contact Us For Availability

36

Vent, Bottom Upper (Stainless) WPL W10140533 Contact Us For Availability

37

Vent, Bottom Lower (Black) WPL W10104890 Contact Us For Availability

37

Vent, Bottom Lower (White) WPL W10104910 Contact Us For Availability

37

Vent, Bottom Lower (Stainless) WPL W10140546 Contact Us For Availability

38

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

41

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $187.56

43

Screw WPL 3400080 Contact Us For Availability

44

W10115858 Whirlpool Box Terminal Backorder WPL W10115858 $78.32

45

Cover, Termianl Box WPL 9757405 Contact Us For Availability

46

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $76.43

47

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $16.99

48

APPLIANCE, MANAGER WPL W10181438 Contact Us For Availability

49

Slide, GOC WPL W10083460 Contact Us For Availability

50

Bracket, Appliance Manager WPL 9756454 Contact Us For Availability

51

Insulation WPL 9759884 Contact Us For Availability

52

IN WPL 9759722 Contact Us For Availability

53

WPL 9760481 WPL 9760481 Contact Us For Availability

54

WPL 9758583 WPL 9758583 Contact Us For Availability

55

WPL 9759885 WPL 9759885 Contact Us For Availability

56

WPL 9759945 WPL 9759945 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

9757778 Whirlpool Range Bushing Backorder WPL 9757778 $63.81

9763481 Whirlpool Range Wire Harness Backorder WPL 9763481 $59.75

W10113901A Whirlpool Fill Kit Backorder WPL W10113901A $80.21

W10113902A Whirlpool Fill Kit Assembly Backorder WPL W10113902A $68.76

W10113903A Whirlpool Range Filler Kit Backorder WPL W10113903A $63.09

W10137678 Whirlpool Wire Harness Backorder WPL W10137678 $142.08

W10155097 Whirlpool Wire Harness Backorder WPL W10155097 $59.25

W10157935 Whirlpool Wire Harness Backorder WPL W10157935 $97.81

GROMMET Backorder WPL W10177363 $5.46

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $14.99

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP3400015 Whirlpool Screw Backorder WPL WP3400015 $4.82

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability

Harness, Main WPL W10137680 Contact Us For Availability

WPL 9756817 WPL 9756817 Contact Us For Availability

WPL 9756470 WPL 9756470 Contact Us For Availability

Clip, Ground Wire WPL 313660 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Grommet, Flexible (77mm) WPL 9756675 Contact Us For Availability

Gasket WPL W10076020 Contact Us For Availability
