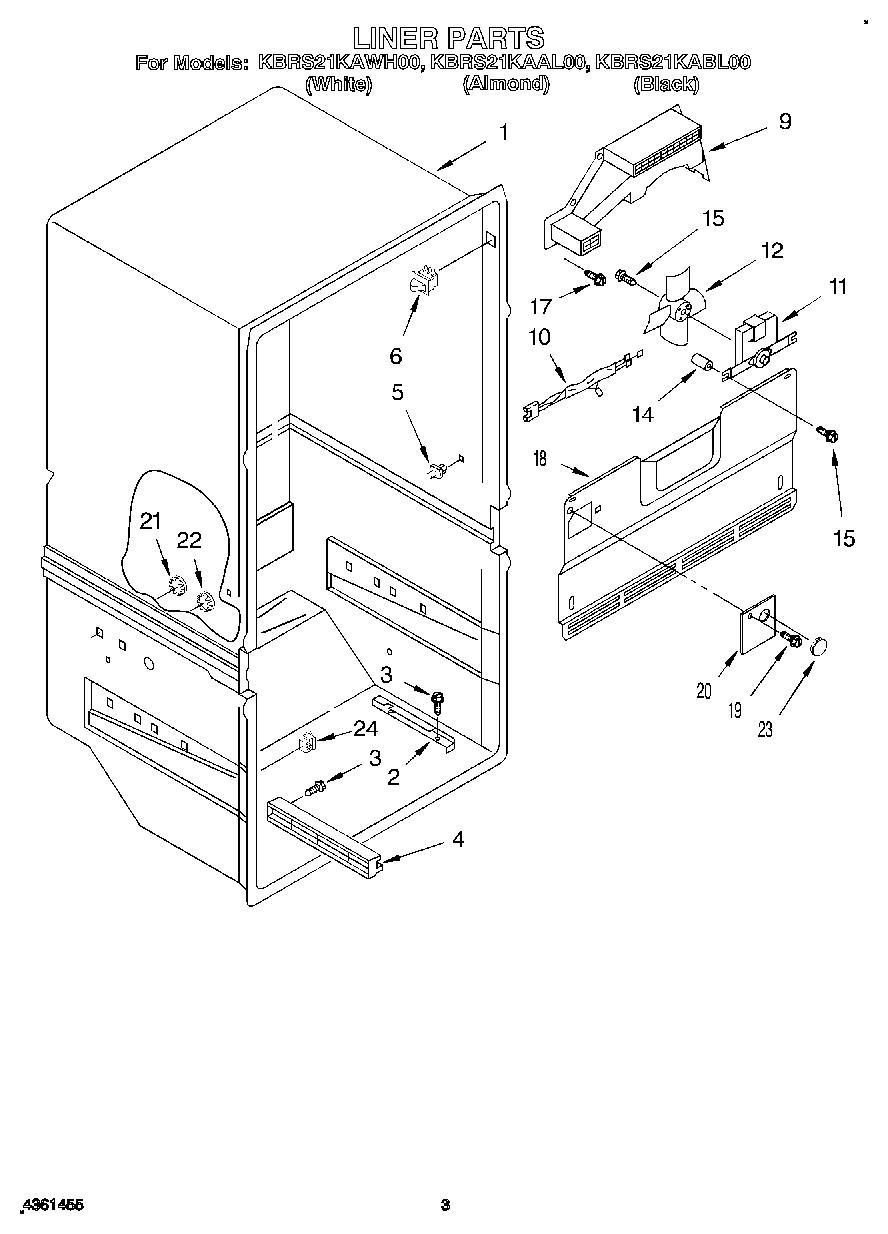

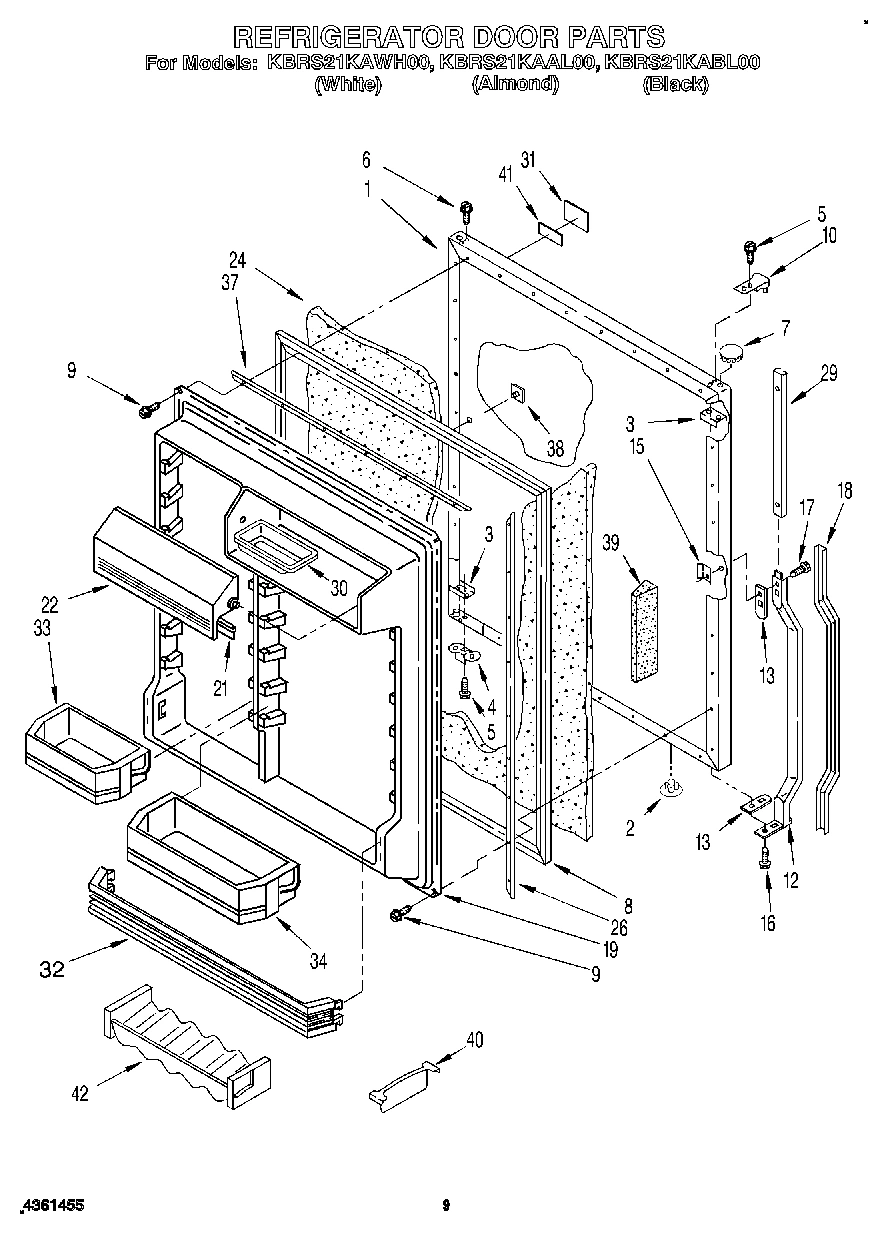

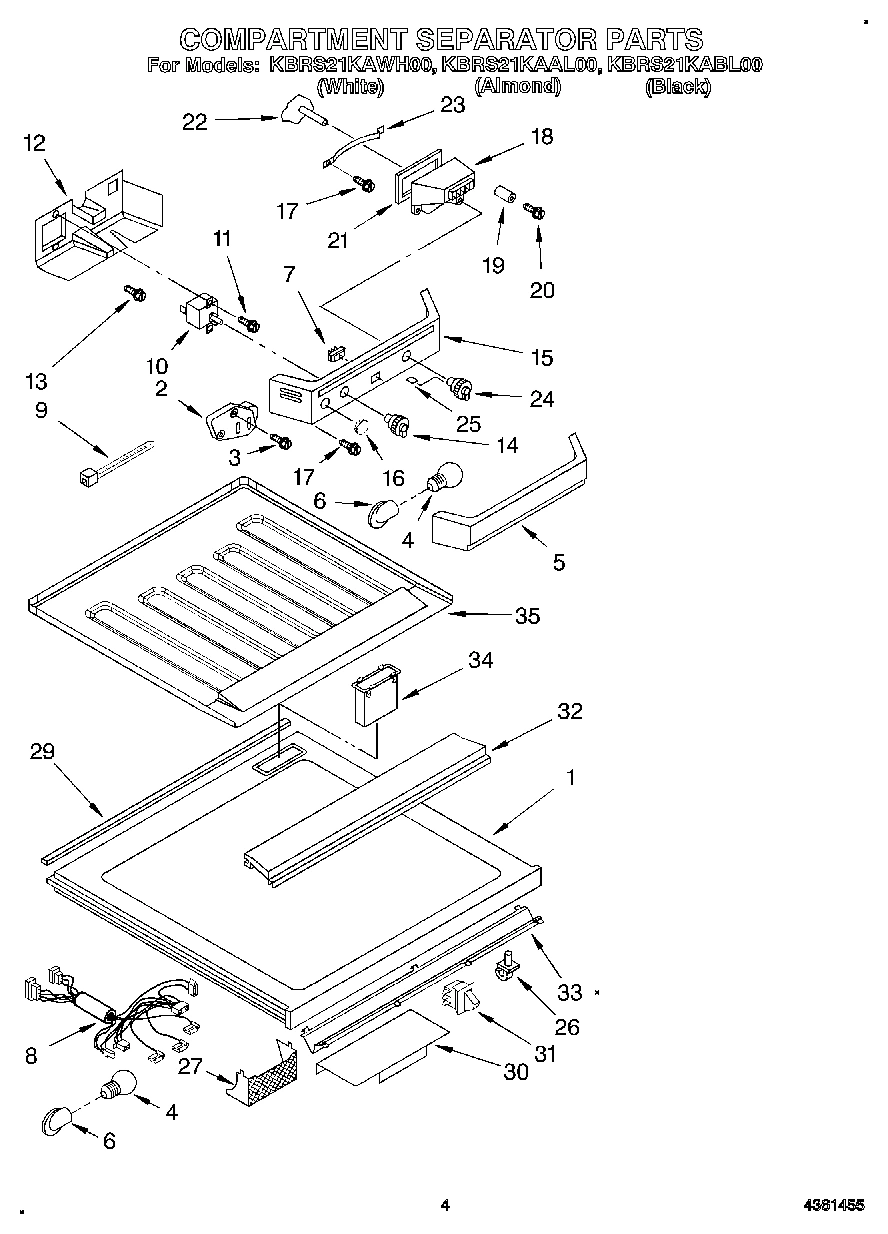

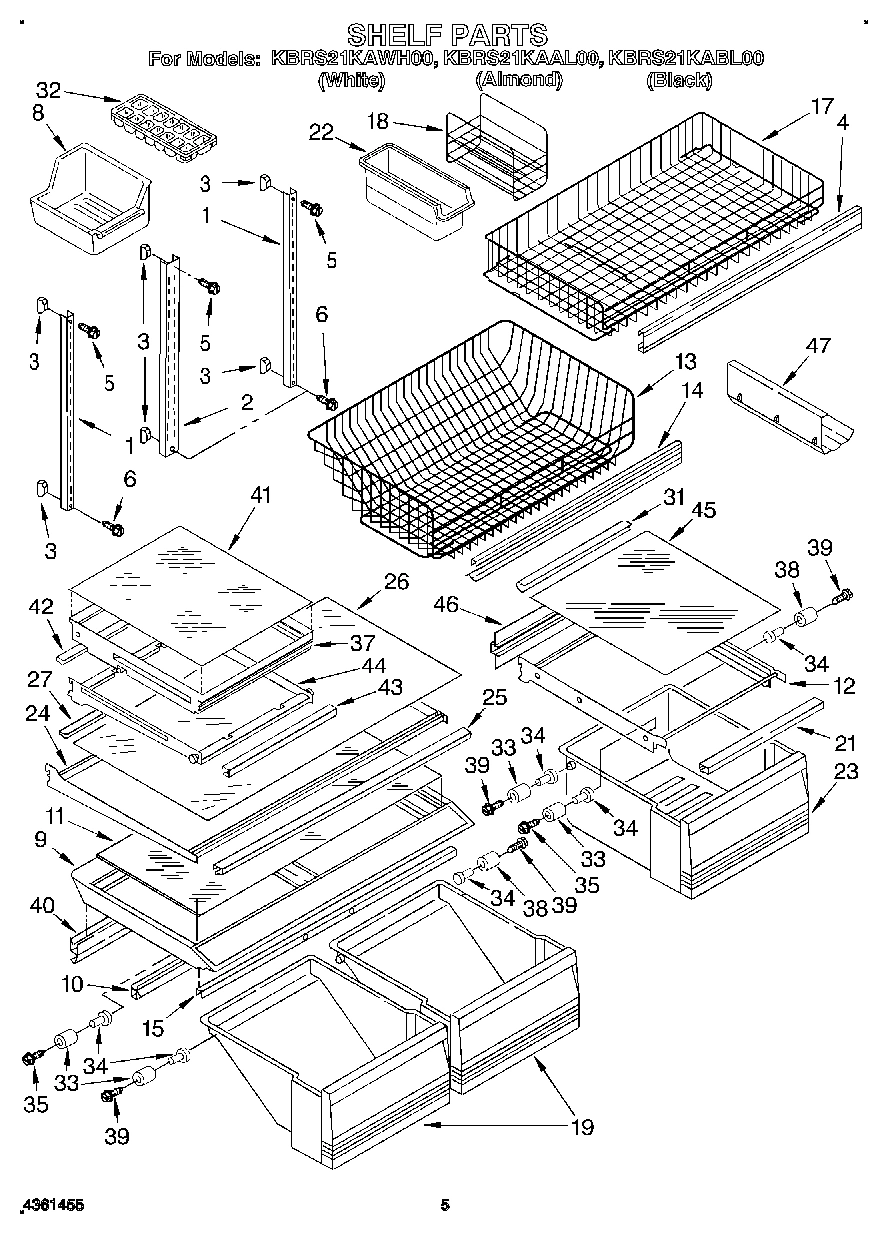

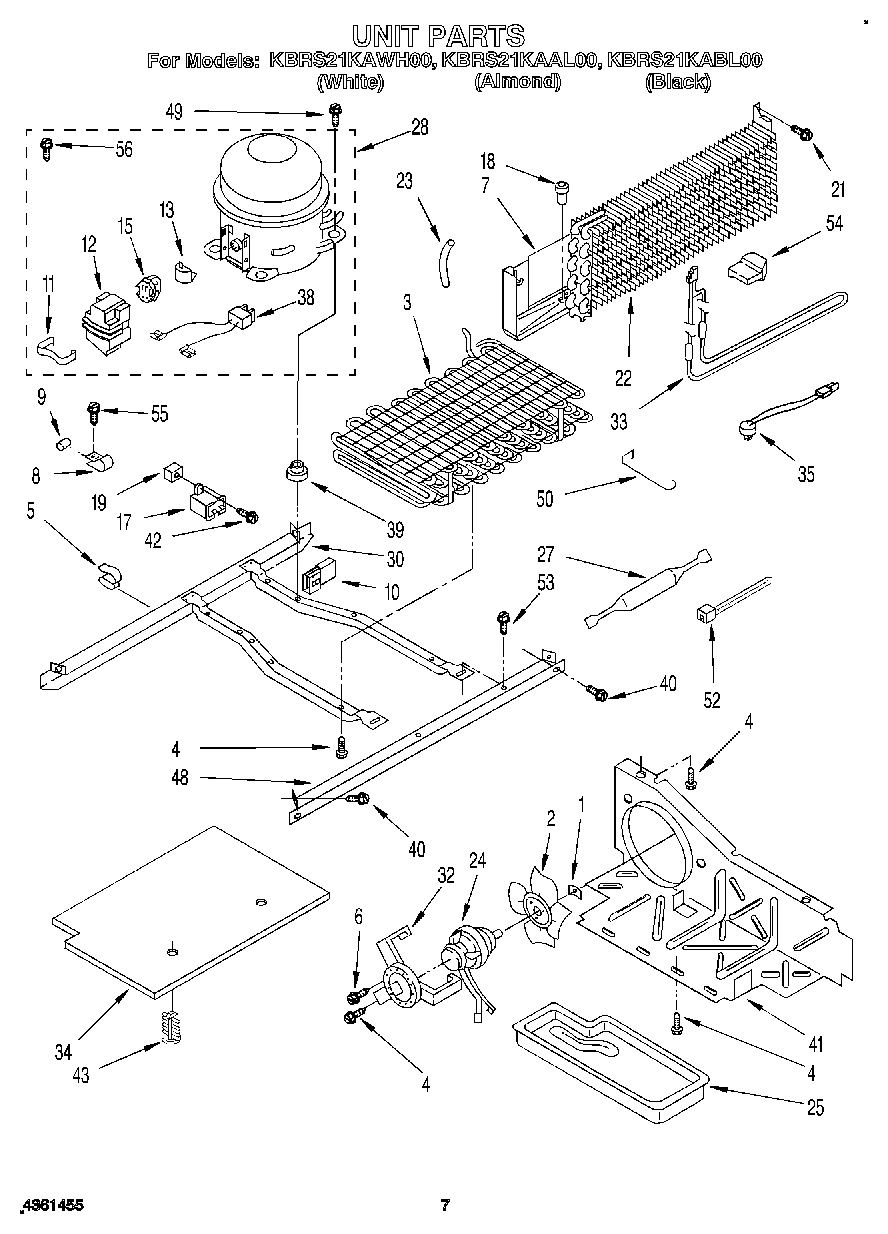

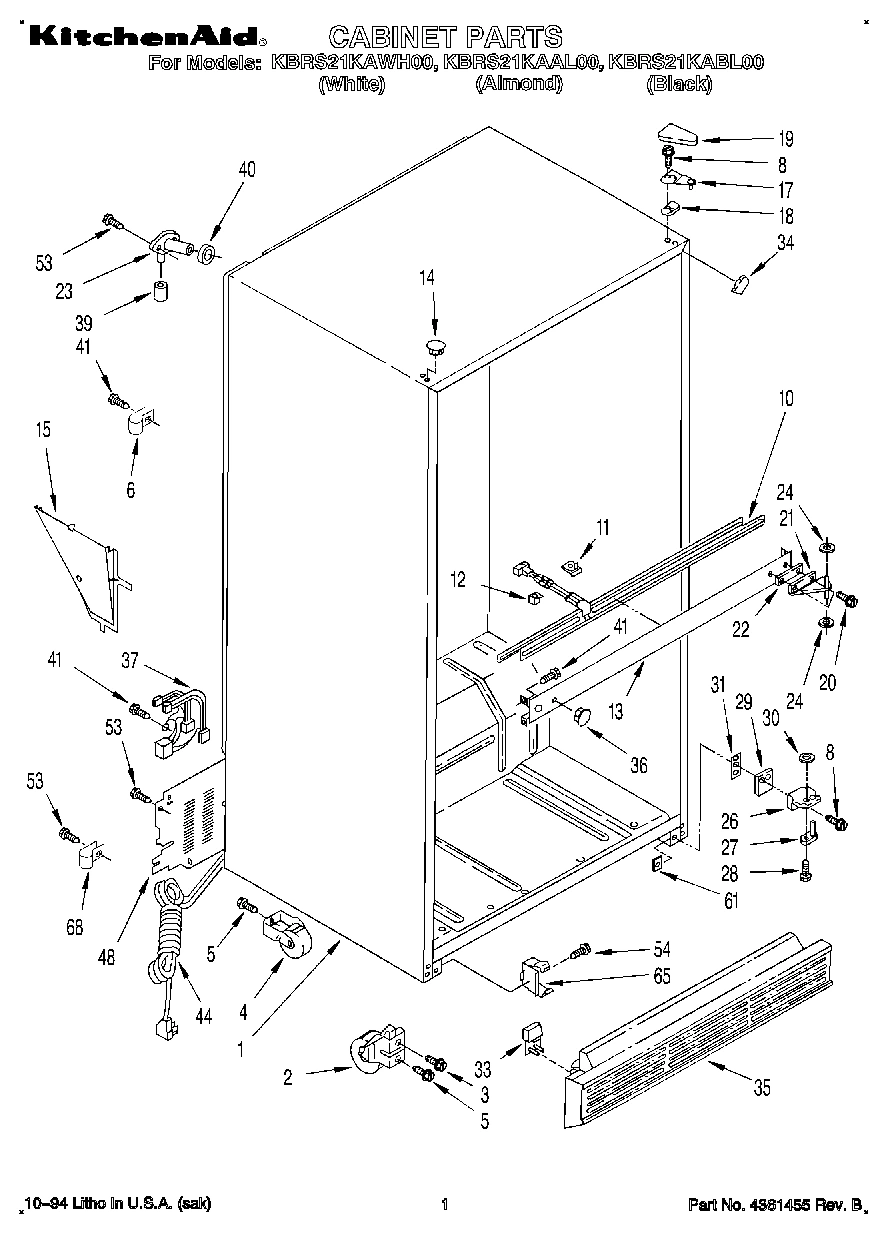

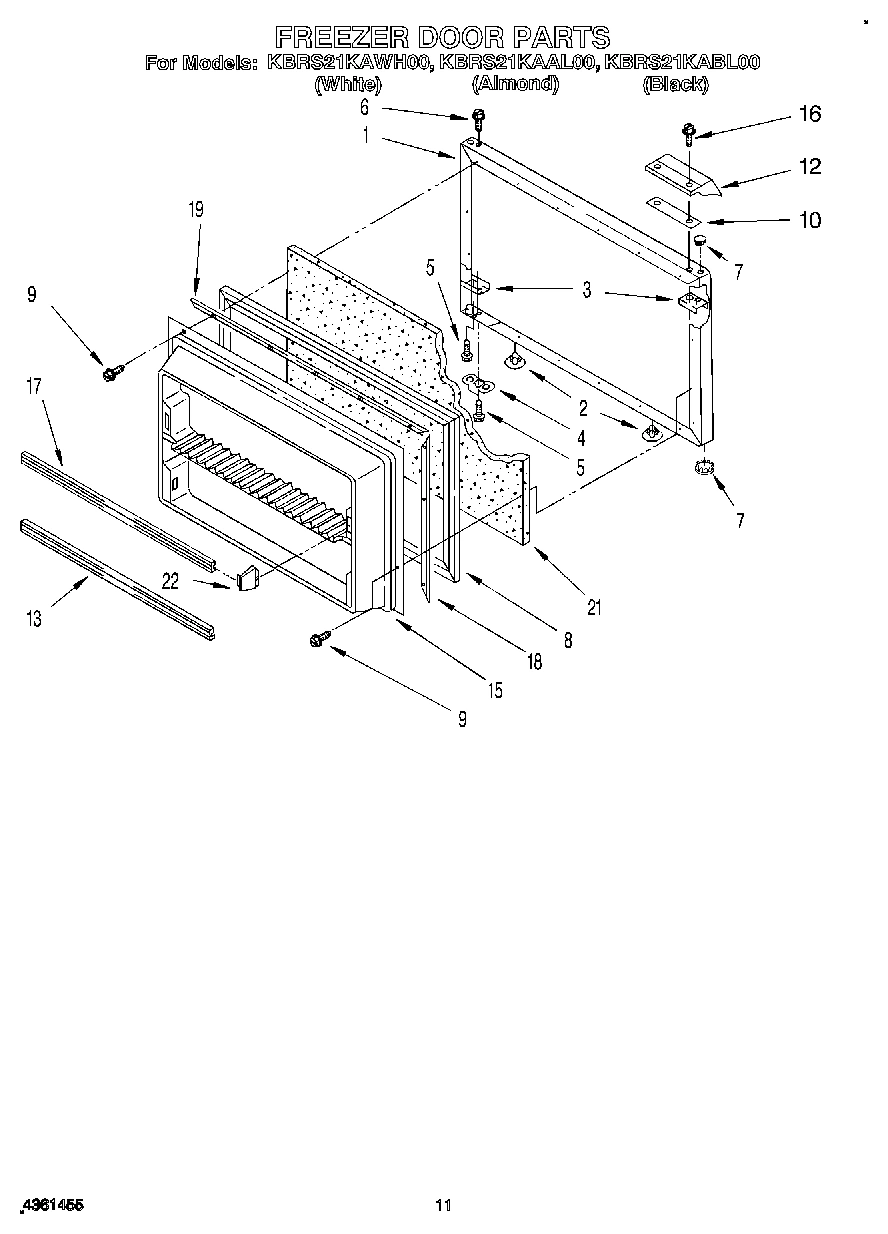

Model Whirlpool KBRS21KAWH00 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2152819 WPL LIT2152819 Contact Us For Availability

WPL LIT2152850 WPL LIT2152850 Contact Us For Availability

WPL LIT2160414 WPL LIT2160414 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2152871 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2161785 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161799 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI79844A9 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2152806 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160485 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160486 Contact Us For Availability

1

Compartment (White Separator Assembly (Includ WPL 2152764 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $64.97

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

3

Plate, Tap (4) WPL 1123568 Contact Us For Availability

3

Screw WPL 489386 Contact Us For Availability

3

Condenser Assembly WPL 2154010 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

4

Bracket, Door Stop WPL 2157748 Contact Us For Availability

4

Trim, Basket WPL 2152859 Contact Us For Availability

4

Shelf, Track (L.S.) WPL 2149174 Contact Us For Availability

4

Shelf, Track (R.S.) WPL 2149175 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

Screw, 8-15 x 1/2 WPL 488935 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Switch, Light WPL 938213 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Heat Shield & Drain Pan WPL 2152771 Contact Us For Availability

8

Door Gasket WPL 2160438 Contact Us For Availability

8

Ice Cube Pan WPL 1126135 Contact Us For Availability

8

Door Gasket, Magnetic WPL 2160437 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152849 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

9

Pan Cover & Roller Assembly WPL 2161767 Contact Us For Availability

9

Scroll, Fan WPL 2152779 Contact Us For Availability

9

Cable Tie WPL 1102000 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $183.16

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Shim WPL 989711 Contact Us For Availability

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Handle End WPL 1107236 Contact Us For Availability

Glass, Crisper Cover WPL 1125531 Contact Us For Availability

Fan Motor WPL 2160412 Contact Us For Availability

Spring, Relay Case (Service) WPL 938384 Contact Us For Availability

Spring, Relay Case (Production) WPL 943322 Contact Us For Availability

Handle WPL 657077 Contact Us For Availability

Pan Shelf & Roller Assembly WPL 2161758 Contact Us For Availability

Fan Blade WPL 2160471 Contact Us For Availability

Handle, Door & Bottom End Cap Assembly WPL 1126494 Contact Us For Availability

Bracket, Thermostat WPL 2152896 Contact Us For Availability

Case, Relay (Production) WPL 1105055 Contact Us For Availability

Case, Relay (Service) WPL 1108115 Contact Us For Availability

WP2149959 Whirlpool Refrigerator Overload Backorder WPL WP2149959 $87.75

Trim, Door Shelf WPL 2152877 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Spacer, Handle WPL 2161521 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

Overload) (Service (Includes Relay) WPL 1108114 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

Trim, Basket WPL 2152855 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Shim, Handle Door WPL 2151813 Contact Us For Availability

Control Knob WPL 1126092 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Interior Door Panel WPL 2152814 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Control Panel WPL 1125965 Contact Us For Availability

Relay (See Overload) WPL ARI79845A5 Contact Us For Availability

16

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

16

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

16

Screw WPL 488933 Contact Us For Availability

17

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

17

Trim, Door WPL 2152875 Contact Us For Availability

17

Freezer Basket (Upper) WPL 2152802 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Insert, Handle (White) WPL 2161523 Contact Us For Availability

Insert, Handle (Almond) WPL 2161524 Contact Us For Availability

Insert, Handle (Black Model) WPL 2161796 Contact Us For Availability

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

Drain Ferrule WPL 2155556 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Pan, Crisper WPL 2161776 Contact Us For Availability

Interior Door Panel WPL 2160429 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

Hole Cover, Evaporator WPL 2152852 Contact Us For Availability

20

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Gasket, Front WPL 1125576 Contact Us For Availability

Gasket, Utility Door WPL 1125695 Contact Us For Availability

Gasket WPL 2160428 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $13.82

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $17.72

Compartment Door, WPL 1125733 Contact Us For Availability

Damper, Air WPL 984658 Contact Us For Availability

Evaporator WPL 2152776 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

Meat Pan Assy. WPL 2161752 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Retainer, Air Damper WPL 836493 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $4.99

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Shelf, Full WPL 1125523 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 1125967 Contact Us For Availability

25

Gasket, Front Cantilever WPL 1125783 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

26

Stud WPL 2155555 Contact Us For Availability

26

Glass, Full Shelf WPL 1125524 Contact Us For Availability

26

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Retainer, Shelf WPL 1125525 Contact Us For Availability

Light Lens WPL 983359 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $282.18

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

29

Retainer Insert WPL 2161522 Contact Us For Availability

29

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

30

Butter, Tray WPL 1125936 Contact Us For Availability

30

Lens-Light WPL 2149068 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

Retainer WPL 1110744 Contact Us For Availability

Nameplate (White Model) WPL 1125818 Contact Us For Availability

Nameplate (Almond) WPL 1125819 Contact Us For Availability

Nameplate (Black) WPL 2161715 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Shelf Bin, Fixed WPL 1125557 Contact Us For Availability

Seperator Top-Front WPL 1121213 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

Roller WPL 2161749 Contact Us For Availability

Bin, Door Shelf Narrow WPL 1125556 Contact Us For Availability

Air Deflector WPL 2160402 Contact Us For Availability

Heater, Defrost WPL 2162083 Contact Us For Availability

Eyelet, Roller WPL 1112308 Contact Us For Availability

Bin, Door Shelf Deep. Wide WPL 1125555 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

Unit Cover, Bottom WPL 2160505 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

35

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

35

Separator, Top-Rear WPL 2152789 Contact Us For Availability

37

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

37

Frame & Roller Assembly WPL 2161704 Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

Roller WPL 2161750 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WPL 1126161 WPL 1126161 Contact Us For Availability

39

Grommet (Production) WPL 2162067 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

Gasket, Pan Cover-Rear WPL 1125529 Contact Us For Availability

WPL 1117999 WPL 1117999 Contact Us For Availability

41

Glass WPL 2161681 Contact Us For Availability

41

WPL 991259 WPL 991259 Contact Us For Availability

41

Air Baffle WPL 2155566 Contact Us For Availability

42

Reflector, Shelf WPL 2161807 Contact Us For Availability

42

WPL 1125981 WPL 1125981 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

43

Gasket (Front) WPL 2161684 Contact Us For Availability

44

Frame & Roller Assembly WPL 2161804 Contact Us For Availability

45

Glass, Shelf WPL 1125539 Contact Us For Availability

46

Gasket, Rear WPL 1125815 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Wine & Egg Rack WPL 1125913 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 489387 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $27.86

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Support (2) WPL 1115128 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91
