Model Maytag JS48PPDUDB02 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - CABINET TRIM PARTS

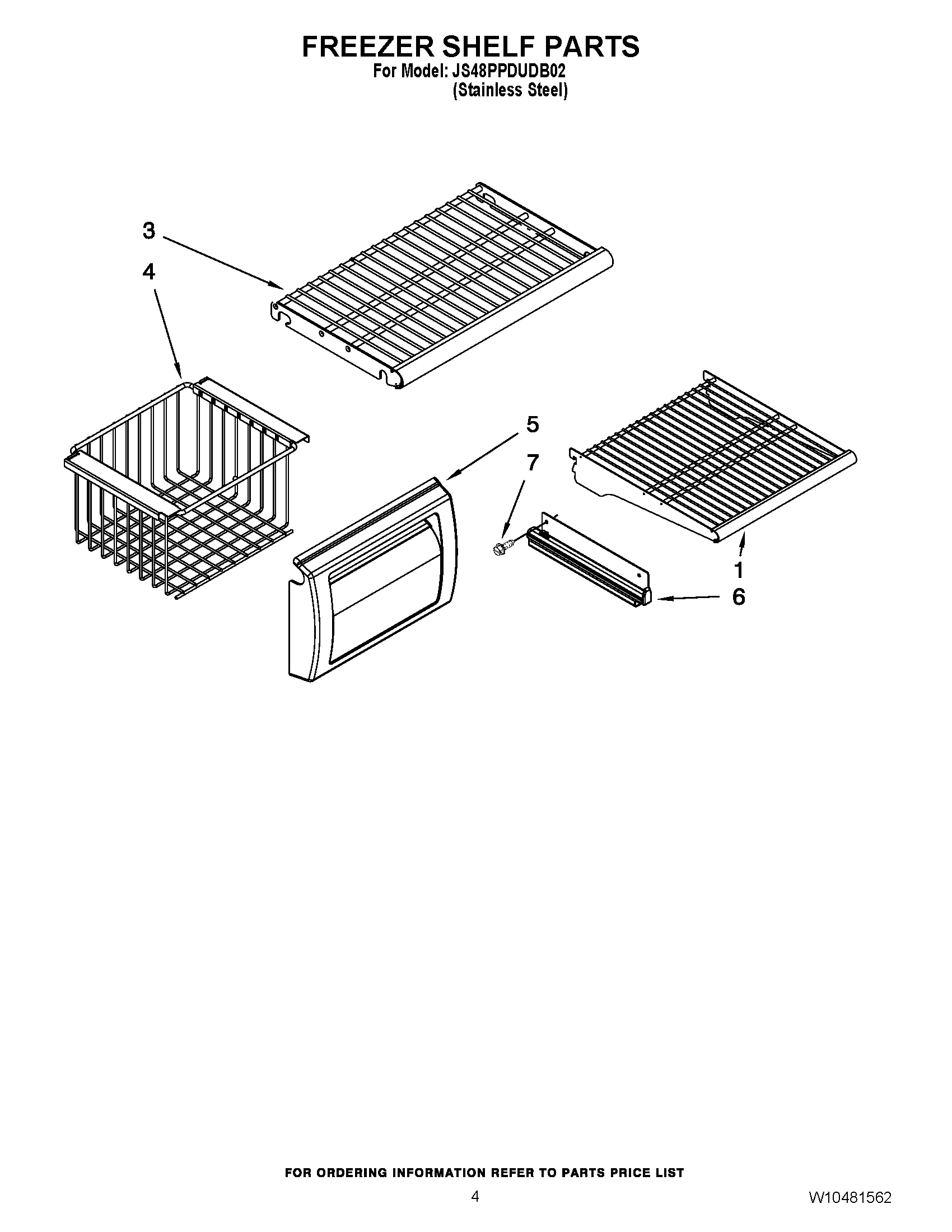

03 - FREEZER SHELF PARTS

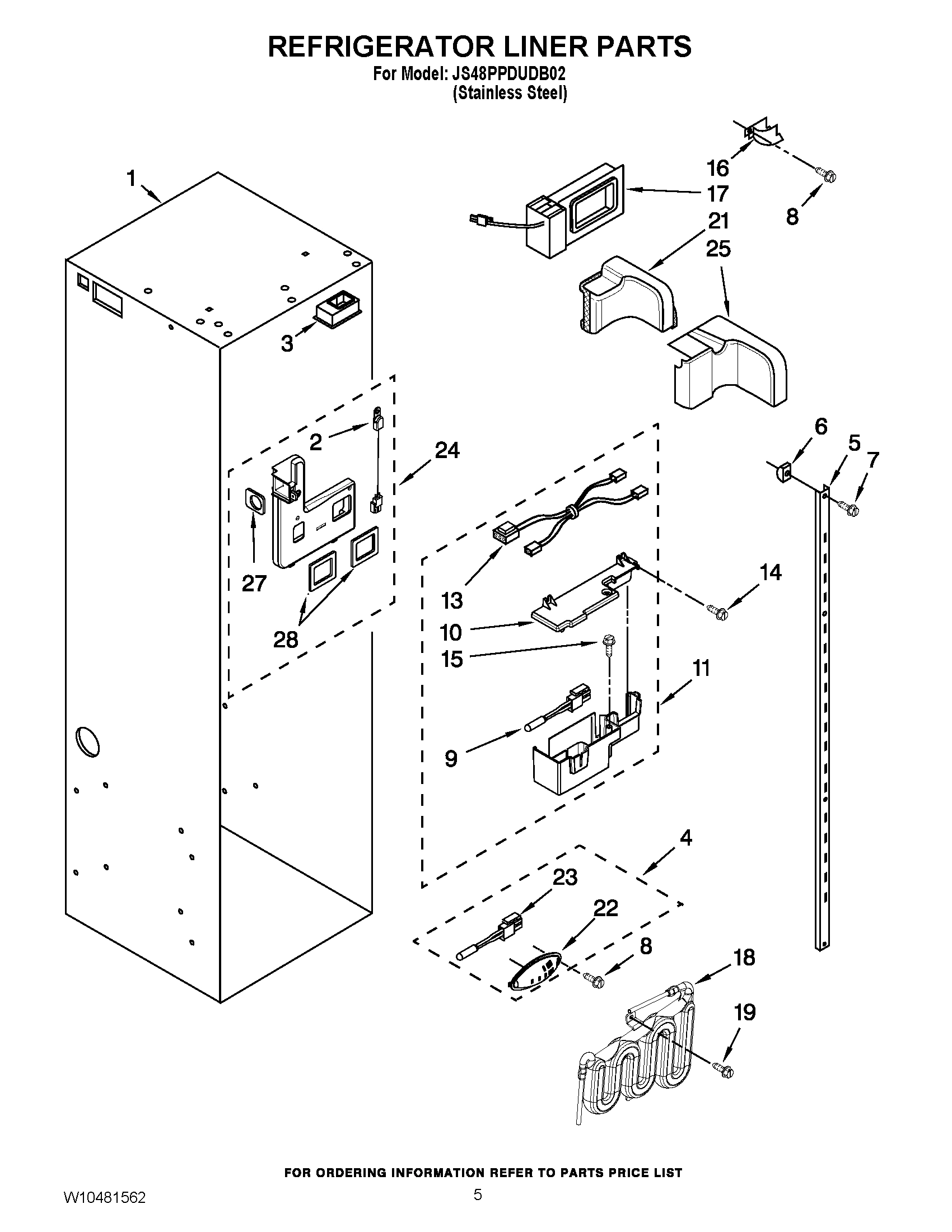

04 - REFRIGERATOR LINER PARTS

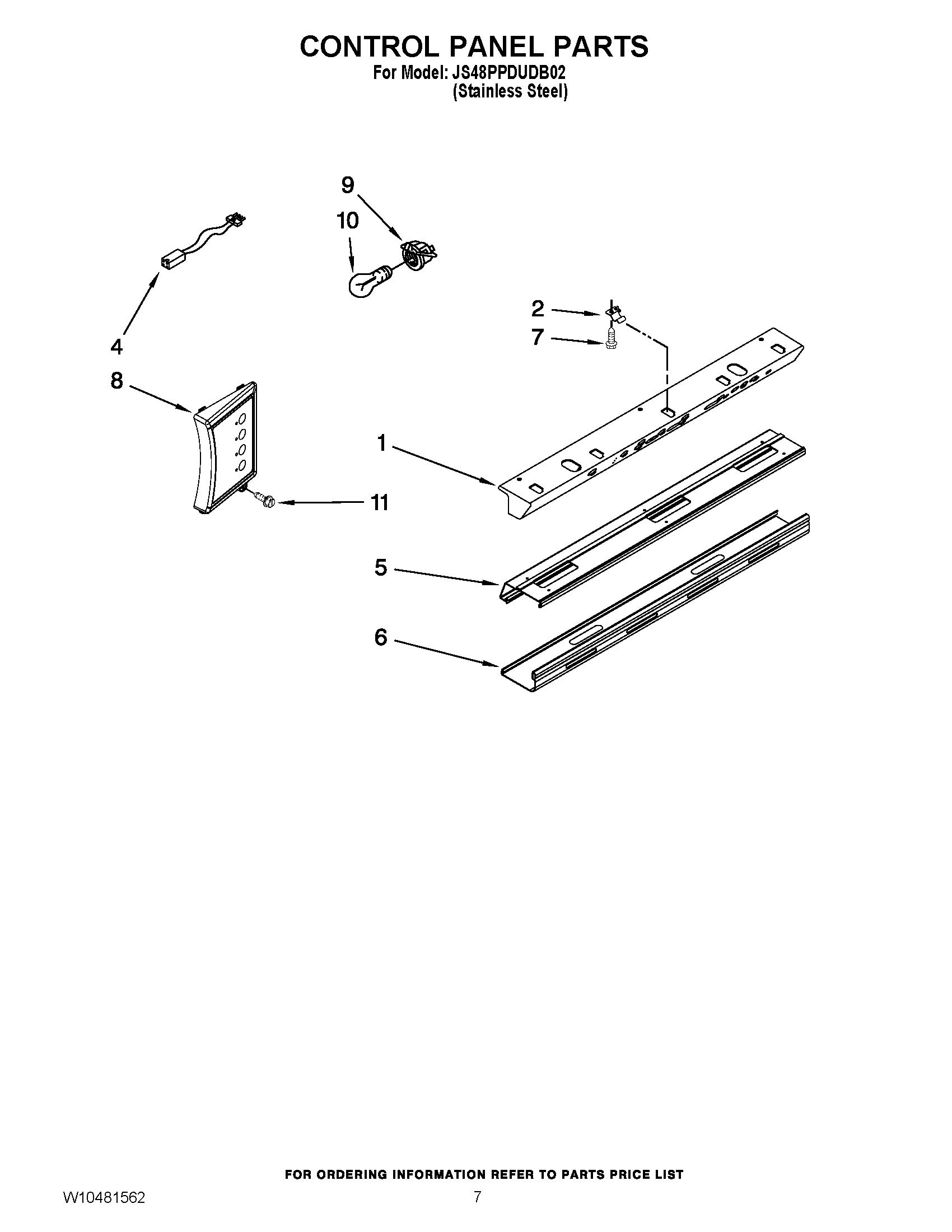

05 - CONTROL PANEL PARTS

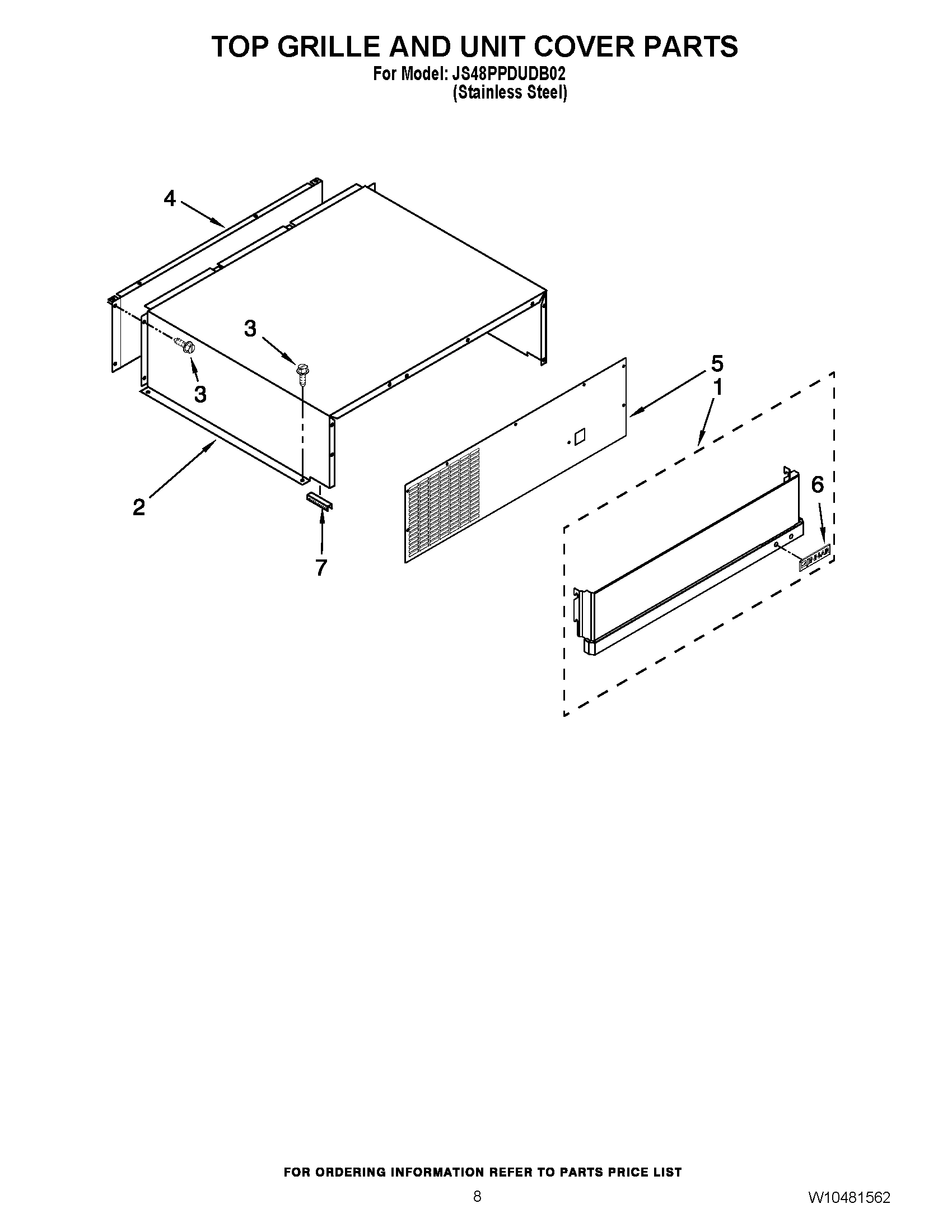

06 - TOP GRILLE AND UNIT COVER PARTS

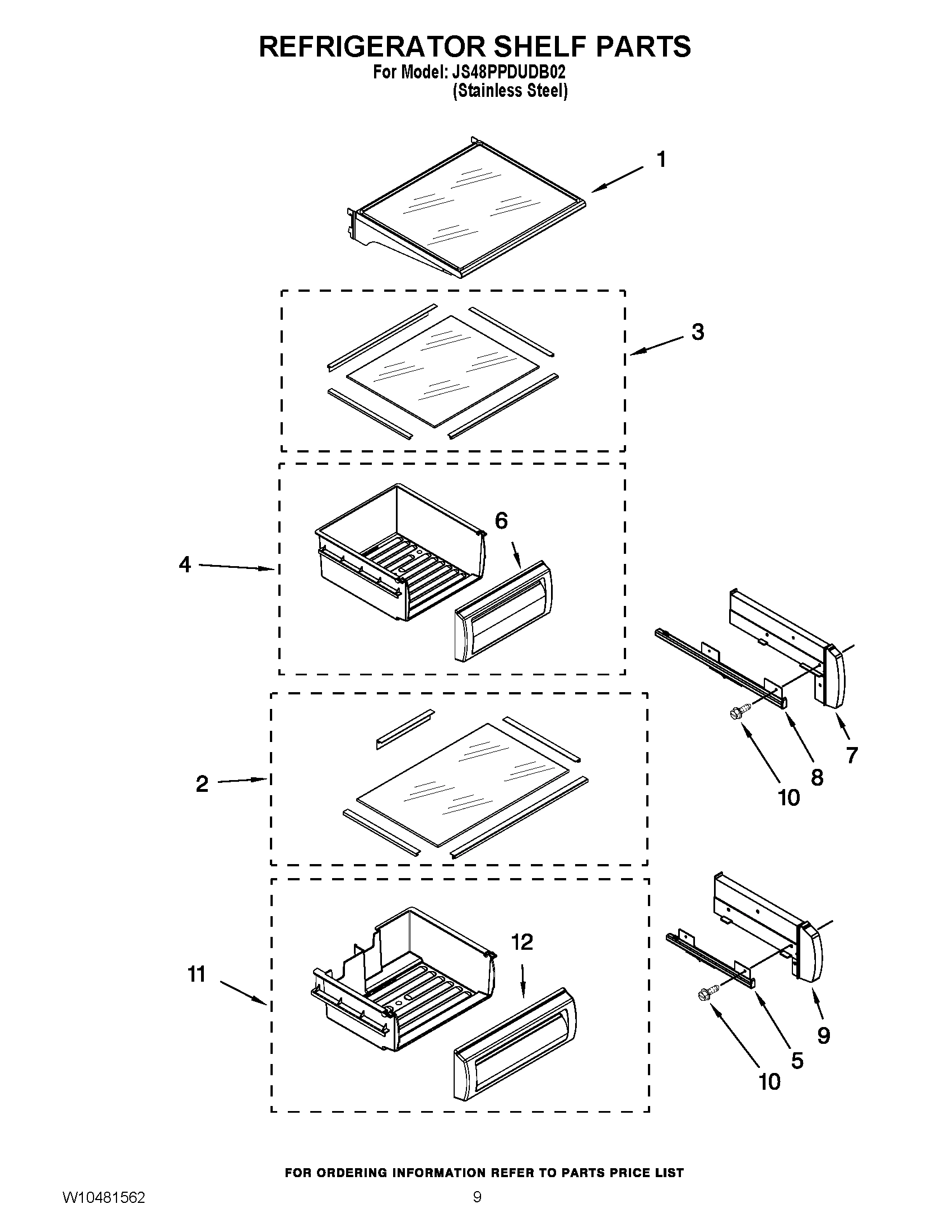

07 - REFRIGERATOR SHELF PARTS

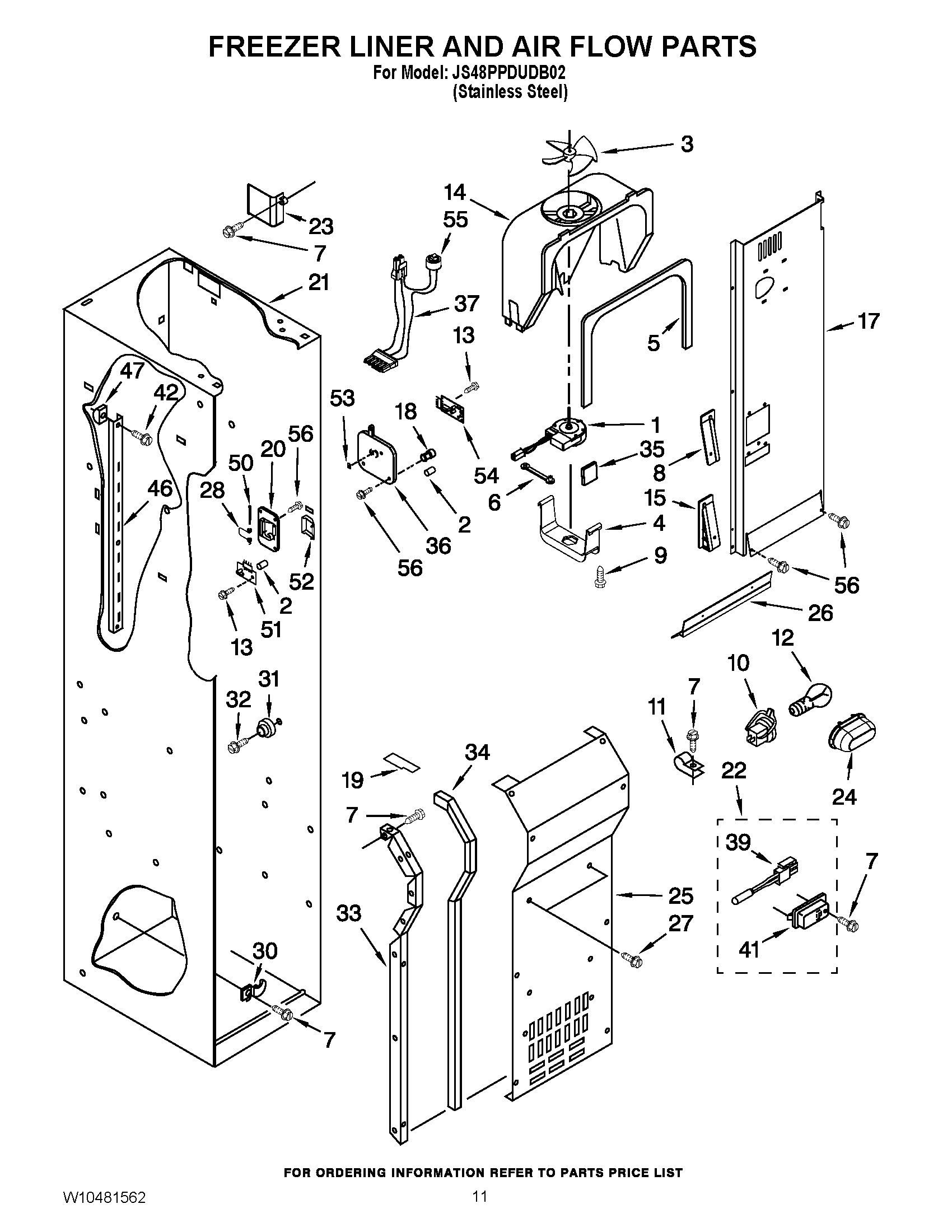

08 - FREEZER LINER AND AIR FLOW PARTS

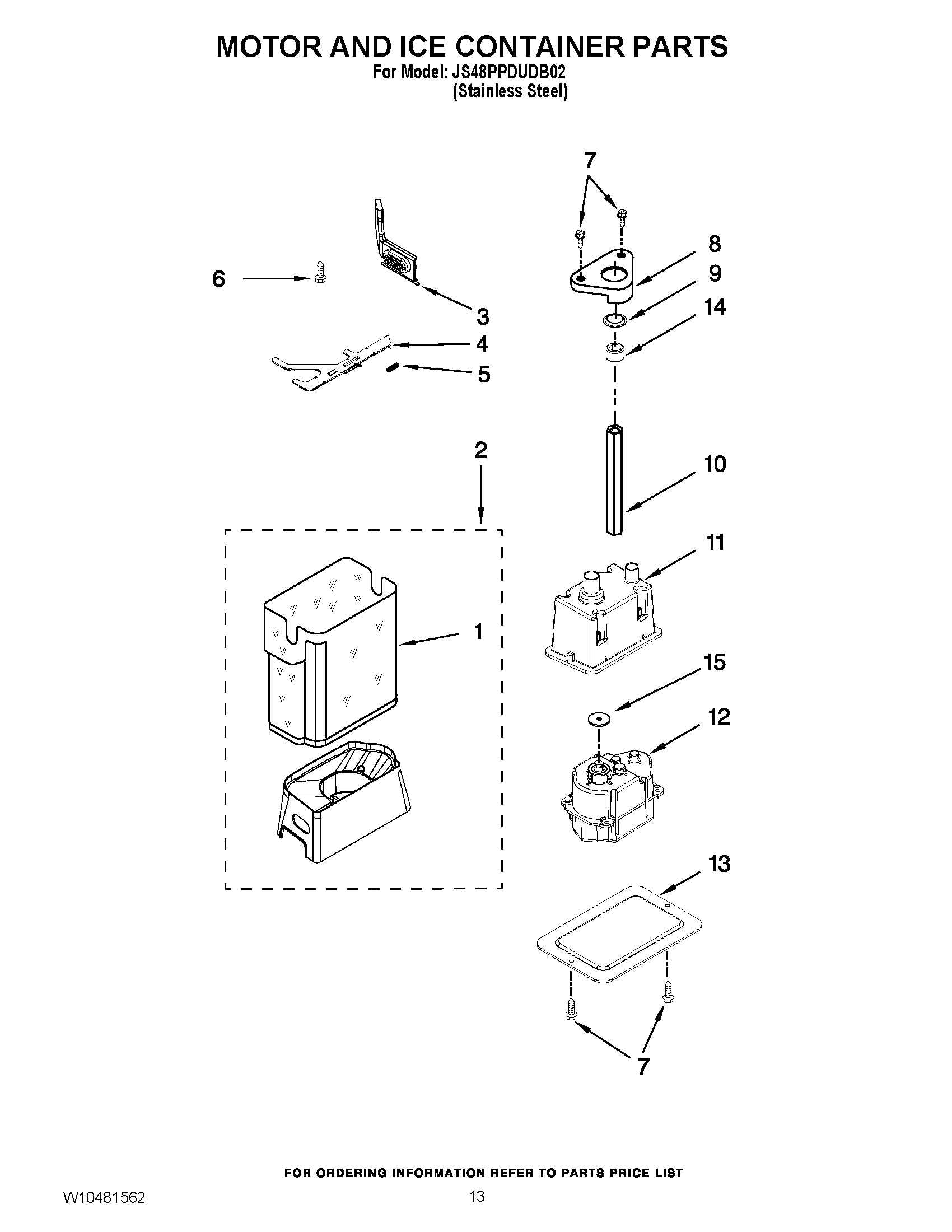

09 - MOTOR AND ICE CONTAINER PARTS

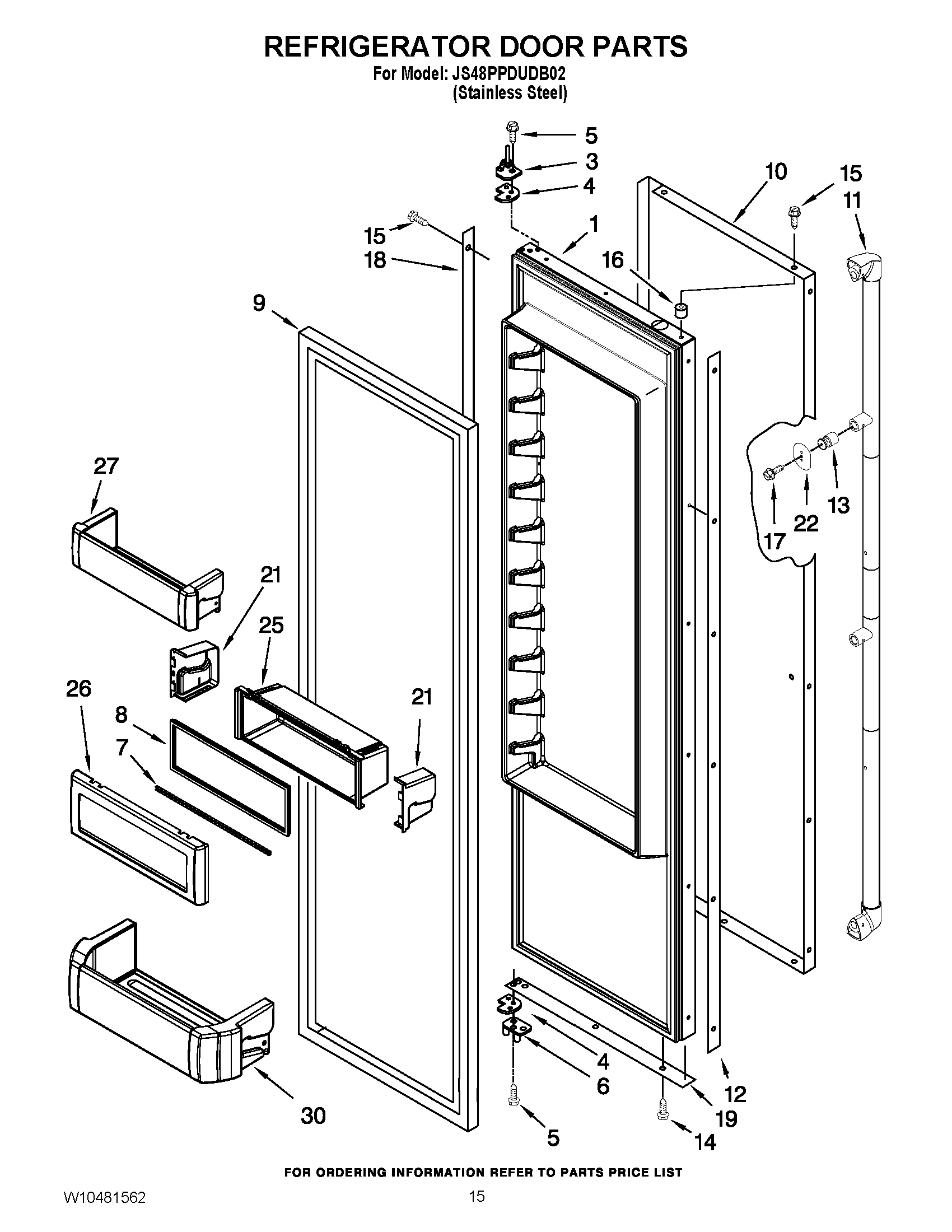

10 - REFRIGERATOR DOOR PARTS

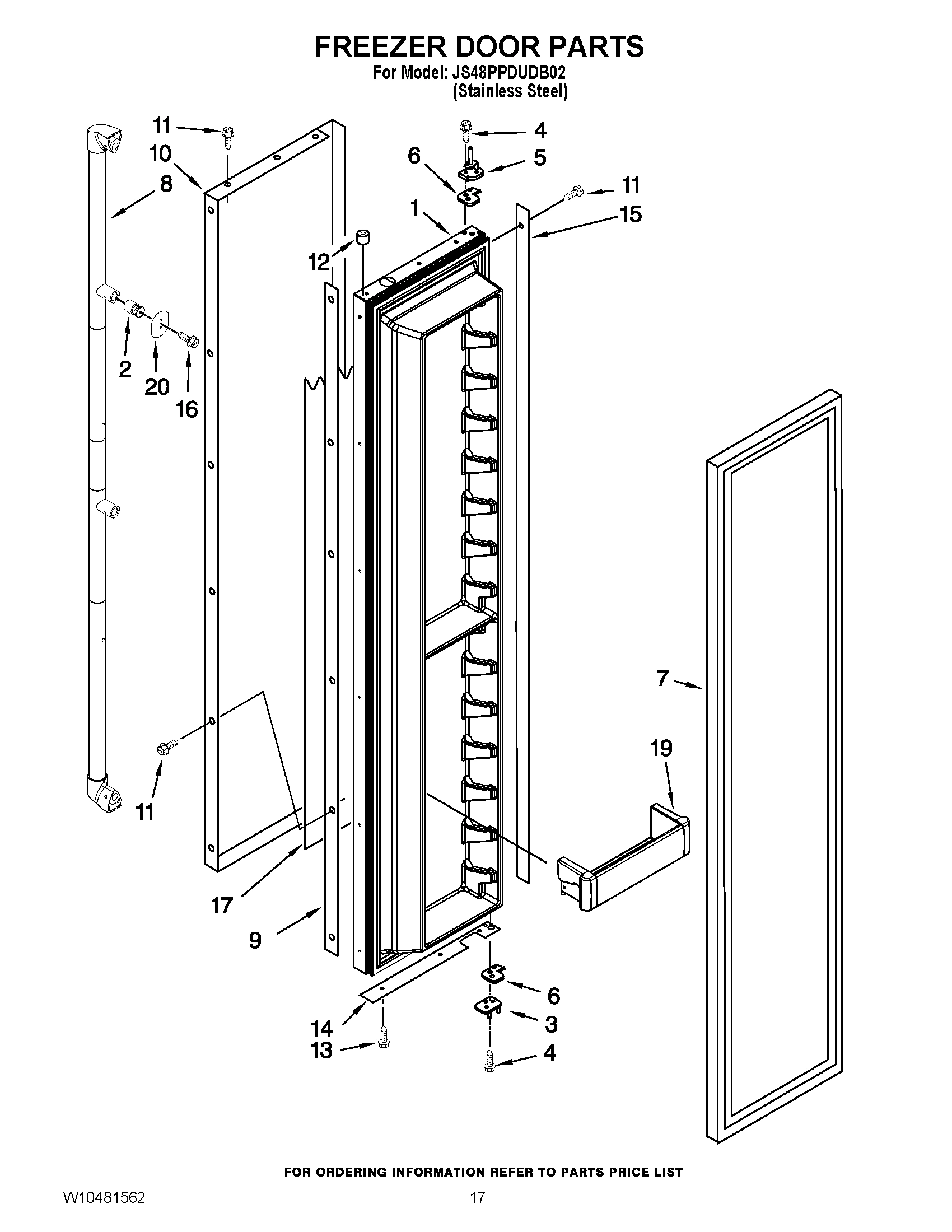

11 - FREEZER DOOR PARTS

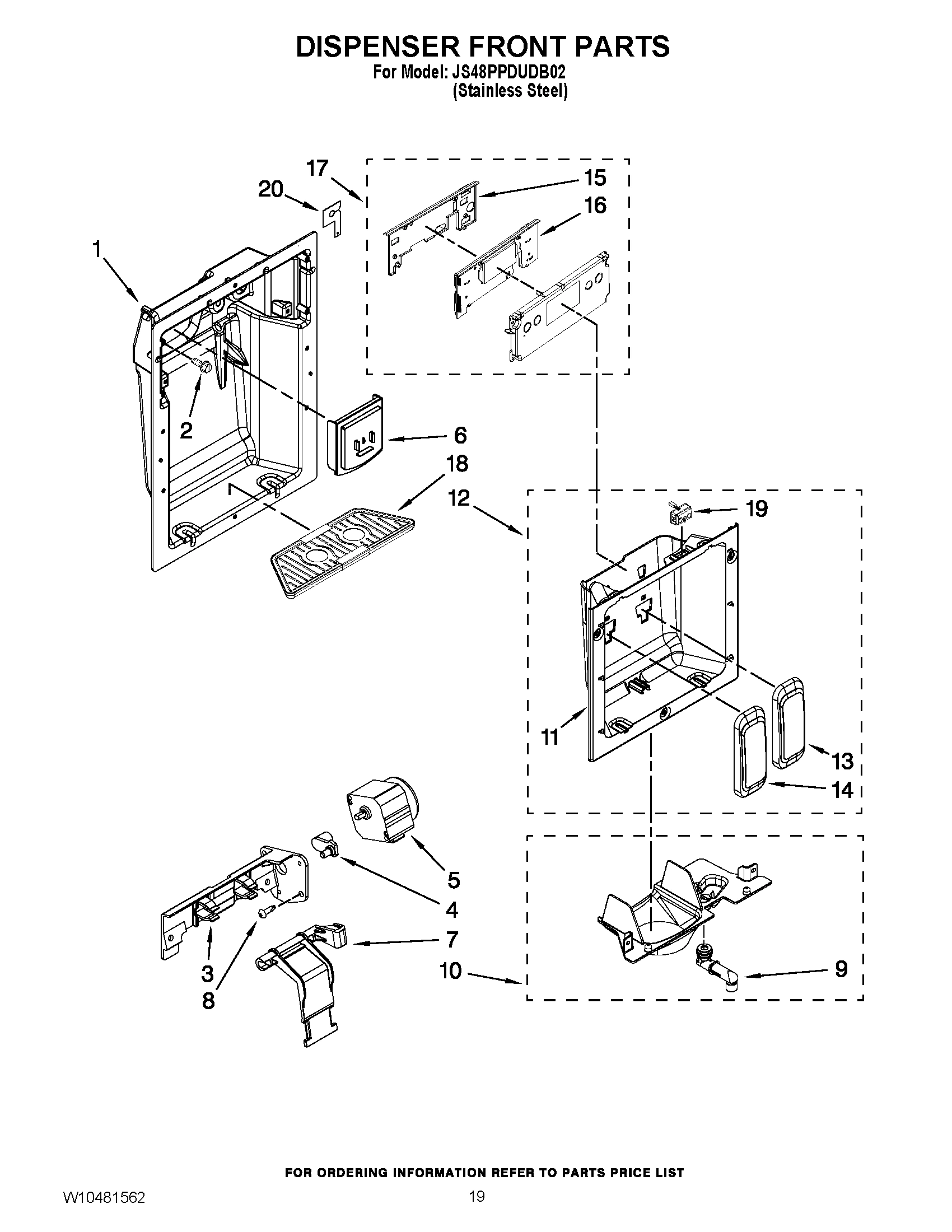

12 - DISPENSER FRONT PARTS

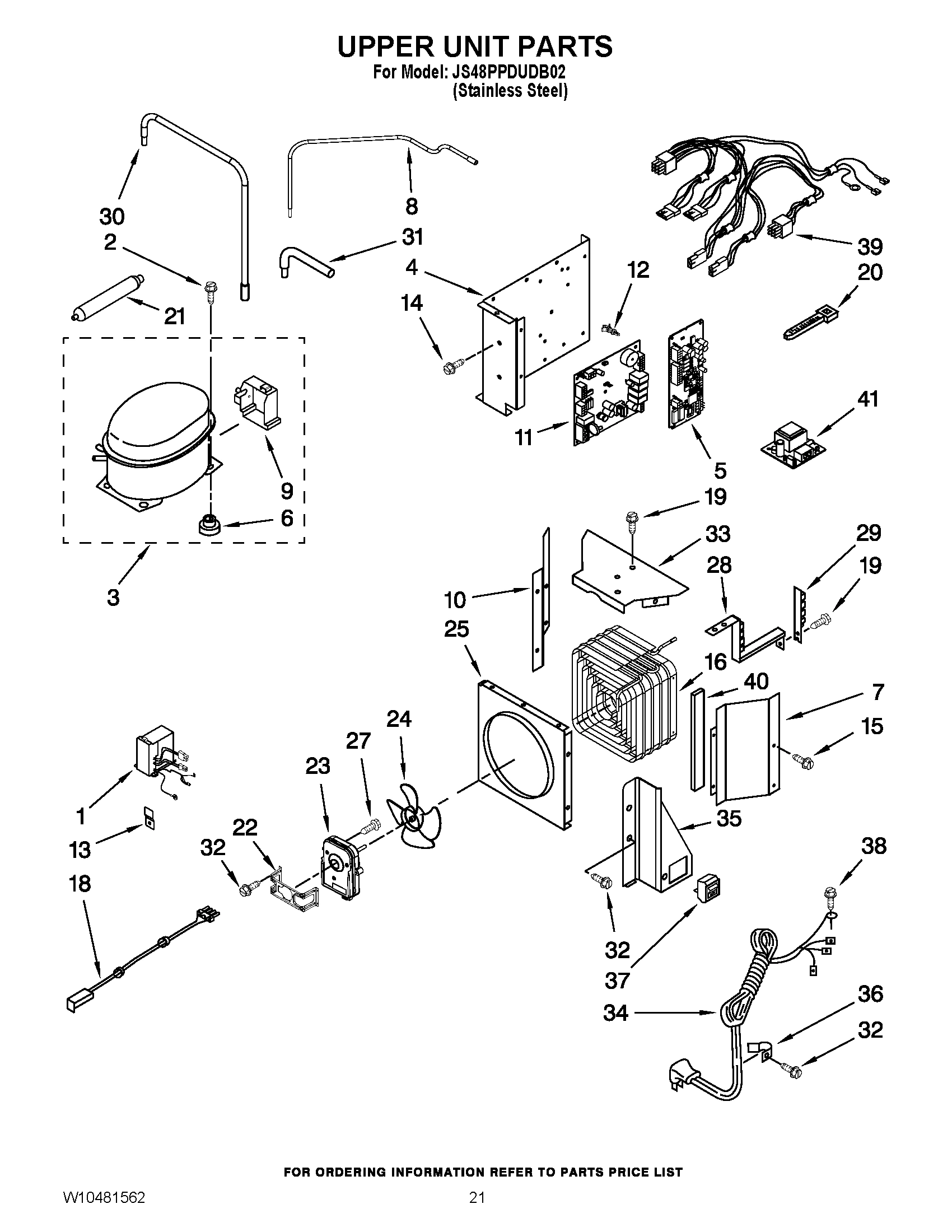

13 - UPPER UNIT PARTS

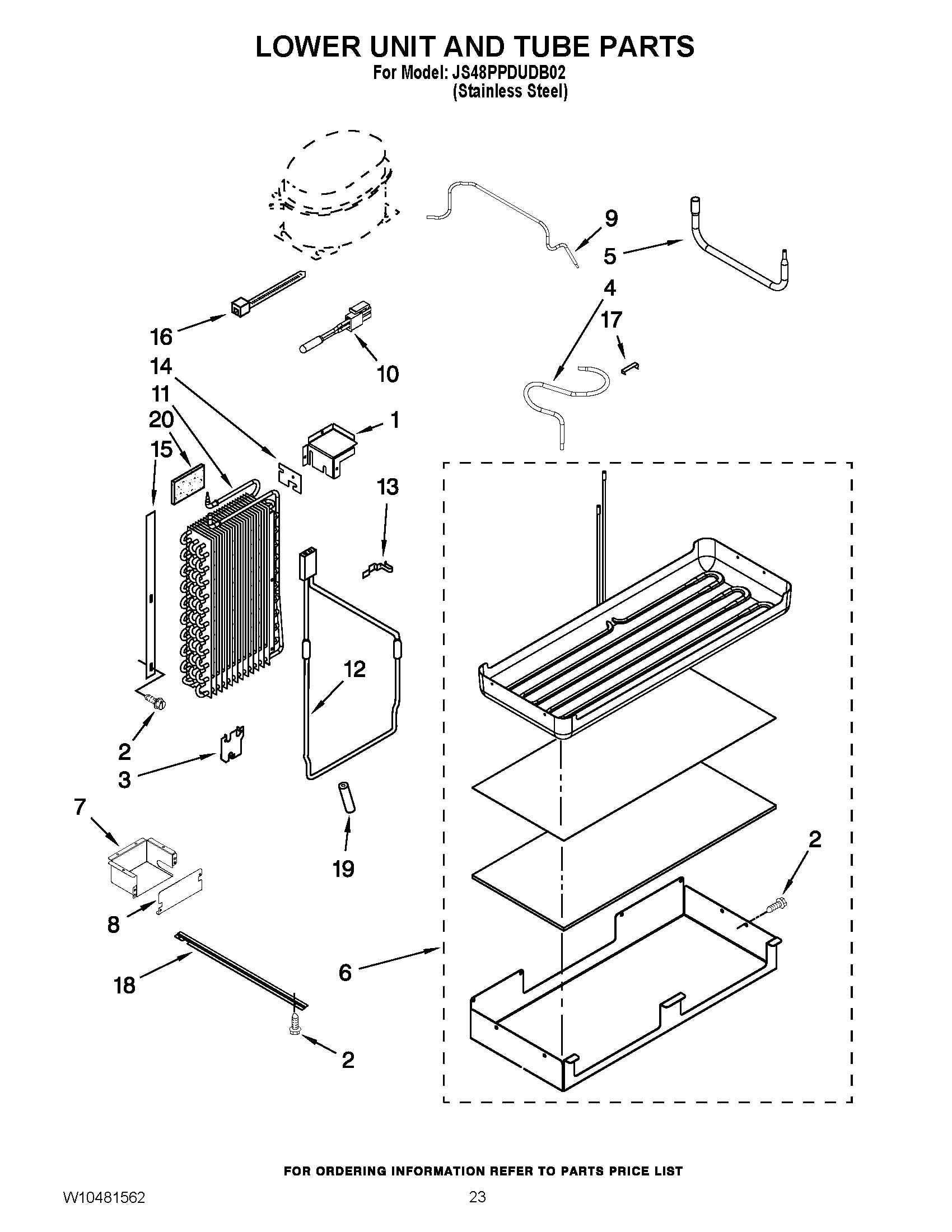

14 - LOWER UNIT AND TUBE PARTS

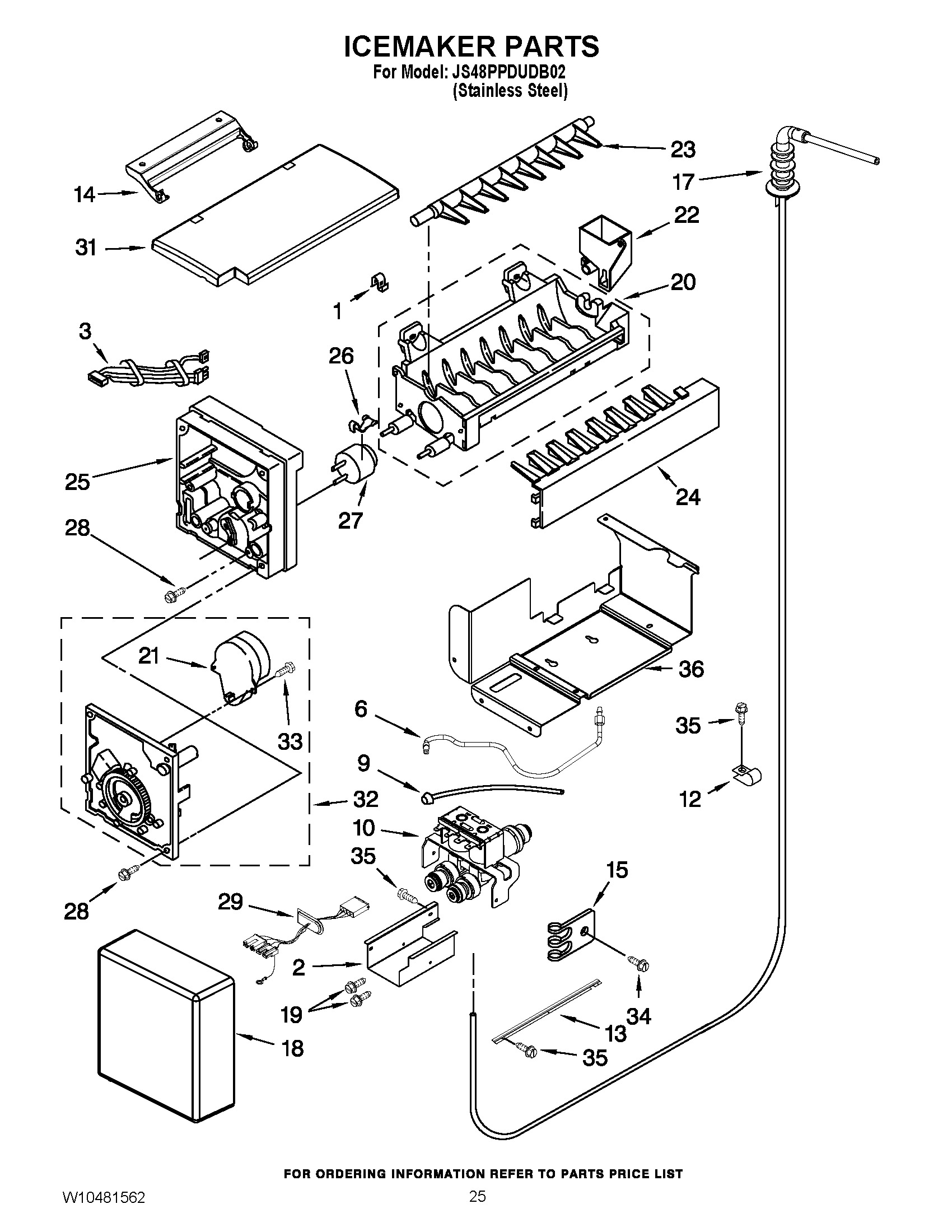

15 - ICEMAKER PARTS
Common parts from model Maytag JS48PPDUDB02 REFRIGERATOR
1
MAY 2306424 MAY 2306424 Contact Us For Availability
1
MAY W10159832 MAY W10159832 Contact Us For Availability
1
MAY W10205626 MAY W10205626 Contact Us For Availability
1
MAY W10300878 MAY W10300878 Contact Us For Availability
1
MAY W10303988 MAY W10303988 Contact Us For Availability
1
MAY W10379134 MAY W10379134 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Stainless Steel) MAY W10132472 Contact Us For Availability
1
WIRE, SHELF MAY W10175906 Contact Us For Availability
1
MAY W10151197 MAY W10151197 Contact Us For Availability
1
MAY W10150075 MAY W10150075 Contact Us For Availability
1
SHELF ASSEMBLY MAY W10141495 Contact Us For Availability
1
MAY 2259385 MAY 2259385 Contact Us For Availability
1
Ice Bin MAY 2222970 Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ITEM No.9) MAY W10193491 Contact Us For Availability
1
FREEZER DOOR (INCLUDES No.7) MAY W10292433 Contact Us For Availability
1
MAY W10133449 MAY W10133449 Contact Us For Availability
1
Bracket Assembly, Air Return MAY W10160981 Contact Us For Availability
1
CLIP,FUSE MAY 628379 Contact Us For Availability
2
Clip, Box MAY 2317000 Contact Us For Availability
2
Cover, Unit MAY W10188580 Contact Us For Availability
2
MAY W10151216 MAY W10151216 Contact Us For Availability
2
MAY 2198665 MAY 2198665 Contact Us For Availability
2
MAY W10395652 MAY W10395652 Contact Us For Availability
2
Stud, Handle MAY W10153450 Contact Us For Availability
2
SCREW, COMPRESSOR MOUNTING MAY 489373 Contact Us For Availability
2
Shield, Valve MAY 2320601 Contact Us For Availability
3
Button, Filter MAY 2260503B Contact Us For Availability
3
Screw (Stainless Steel) MAY 1163283 Contact Us For Availability
3
MAY 2302884 MAY 2302884 Contact Us For Availability
3
Air Duct MAY 2208970 Contact Us For Availability
3
MAY W10151214 MAY W10151214 Contact Us For Availability
3
Fan Blade MAY 2169142 Contact Us For Availability
3
MAY 2266800 MAY 2266800 Contact Us For Availability
3
Hinge, Bottom MAY 2302879 Contact Us For Availability
3
MAY W10132946 MAY W10132946 Contact Us For Availability
3
Compressor (Includes Items 6 & 9)(Also Order MAY W10173296 Contact Us For Availability
3
Bracket MAY W10157752 Contact Us For Availability
3
MAY 2310191 MAY 2310191 Contact Us For Availability
4
ROLLER, FRONT & REAR MAY W10138054 Contact Us For Availability
4
Cabinet, Trim (Bottom) MAY 2316688 Contact Us For Availability
4
Basket MAY 2259083 Contact Us For Availability
4
MAY 2310390 MAY 2310390 Contact Us For Availability
4
Back Panel MAY 2256466 Contact Us For Availability
4
CRISPER PAN MAY W10407625 Contact Us For Availability
4
MAY 2223733 MAY 2223733 Contact Us For Availability
4
MAY W10134785 MAY W10134785 Contact Us For Availability
4
MAY W10162602 MAY W10162602 Contact Us For Availability
4
MAY 2305242 MAY 2305242 Contact Us For Availability
4
MAY 2318087 MAY 2318087 Contact Us For Availability
4
SUCTION TUBE OIL TRAP MAY W10431124 Contact Us For Availability
5
Support, Leveler Assembly (Refrigerator Side) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (FREEZER SIDE) MAY W10279275 Contact Us For Availability
5
Front, Basket MAY 2256271 Contact Us For Availability
5
MAY 2259077 MAY 2259077 Contact Us For Availability
5
MAY 2324973 MAY 2324973 Contact Us For Availability
5
Cover, Unit Front MAY W10185625 Contact Us For Availability
5
SLIDE, MEAT PAN (LH) MAY 2302954 Contact Us For Availability
5
SLIDE, MEAT PAN (RH) MAY 2302955 Contact Us For Availability
5
Gasket, Cover MAY 2302817 Contact Us For Availability
5
MAY 2198608 MAY 2198608 Contact Us For Availability
5
Hinge, Top MAY 2266854 Contact Us For Availability
5
MAY W10205979 MAY W10205979 Contact Us For Availability
5
Control Board MAY 2318054 Contact Us For Availability
5
TUBE, CONNECT (DRIER/RESTRICTOR) MAY W10388653 Contact Us For Availability
6
LEVELER ASSY MAY 2005032 Contact Us For Availability
6
Cabinet, Trim Top MAY 2314018 Contact Us For Availability
6
SLIDE, BASKET (RH) MAY 2259317 Contact Us For Availability
6
SLIDE, BASKET (LH) MAY 2259318 Contact Us For Availability
6
SCREW SUPPORT, LADDER MAY 520965 Contact Us For Availability
6
MAY 2307596 MAY 2307596 Contact Us For Availability
6
MAY W10159578 MAY W10159578 Contact Us For Availability
6
MAY 2256249 MAY 2256249 Contact Us For Availability
6
GROMMET MAY W10449920 Contact Us For Availability
6
Screw MAY 2198671 Contact Us For Availability
6
Spacer-Door, Top & Bottom MAY 2316804 Contact Us For Availability
6
Hinge Assembly, Bottom MAY 2302878 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
Grommet, Mounting MAY 1100826 Contact Us For Availability
6
DRAIN PAN ASSY. MAY W10281063 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
Ring, Retainer MAY 2006841 Contact Us For Availability
7
Screw MAY 8281163 Contact Us For Availability
7
Cabinet Trim (Left Side) (Stainless Steel) MAY W10132541 Contact Us For Availability
7
GROMMET MAY 2215910 Contact Us For Availability
7
SPACER, CRISPER (RH) MAY 2256222 Contact Us For Availability
7
SPACER, CRISPER (LH) MAY 2256223 Contact Us For Availability
7
MAY 2222797 MAY 2222797 Contact Us For Availability
7
MAY 2222810 MAY 2222810 Contact Us For Availability
7
MAY 2318020 MAY 2318020 Contact Us For Availability
7
SUPPORT, CONENSER (RIGHT) MAY W10415668 Contact Us For Availability
7
MAY W10309012 MAY W10309012 Contact Us For Availability
8
MAY 2260518B MAY 2260518B Contact Us For Availability
8
NUTSERT MAY W10121451 Contact Us For Availability
8
MAY W10151210 MAY W10151210 Contact Us For Availability
8
SLIDE, CRISPER (RH) MAY 2302956 Contact Us For Availability
8
SLIDE, CRISPER (LH) MAY 2302957 Contact Us For Availability
8
Wedge, Air Duct MAY 2259464 Contact Us For Availability
8
MAY 2188919 MAY 2188919 Contact Us For Availability
8
MAY 2222983 MAY 2222983 Contact Us For Availability
8
MAY 12859107 MAY 12859107 Contact Us For Availability
8
MAY 4449745 MAY 4449745 Contact Us For Availability
8
TUBE, TRANISITON (COND/HT LOOP) MAY W10234133 Contact Us For Availability
8
COVER, BOX MAY W10321048 Contact Us For Availability
9
Mounting Stud, Grille MAY 2307640 Contact Us For Availability
9
SEAL-TRIM, SIDE MAY 2005925 Contact Us For Availability
9
MAY 2302937 MAY 2302937 Contact Us For Availability
9
SPACER, MEAT PAN (LH) MAY 2256243 Contact Us For Availability
9
SPACER, MEAT PAN (RH) MAY 2256244 Contact Us For Availability
9
MAY 2198628 MAY 2198628 Contact Us For Availability
9
MAY 2222812 MAY 2222812 Contact Us For Availability
9
Spacer, Door-Skin (Handle Side) (For Stainles MAY 2309060 Contact Us For Availability
9
SPIGOT MAY 2305235 Contact Us For Availability
9
Terminal Cover MAY 2215676 Contact Us For Availability
9
MAY W10412485 MAY W10412485 Contact Us For Availability
9
MAY 2317912 MAY 2317912 Contact Us For Availability
10
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
10
MAY W10001250 MAY W10001250 Contact Us For Availability
10
Screw (Left Side- (8-18 x .750)) MAY 8533928 Contact Us For Availability
10
Lid, Meat Pan Baffle MAY 2302986 Contact Us For Availability
10
Screw (Right Side- (8-18 x 1.375)) MAY 8533929 Contact Us For Availability
10
MAY 2188820 MAY 2188820 Contact Us For Availability
10
MAY W10191429 MAY W10191429 Contact Us For Availability
10
DRIVE SHAFT MAY 2318082 Contact Us For Availability
10
MAY W10144970 MAY W10144970 Contact Us For Availability
10
MAY W10144964 MAY W10144964 Contact Us For Availability
10
Separator Assembly MAY 2318017 Contact Us For Availability
10
SUPPORT, CONDENSER (LEFT) MAY W10415666 Contact Us For Availability
10
Valve, Solenoid MAY W10159842 Contact Us For Availability
11
MAY 2005783 MAY 2005783 Contact Us For Availability
11
Baffle, Control Assembly MAY W10169528 Contact Us For Availability
11
PAN ASSEMBLY MEAT MAY W10407628 Contact Us For Availability
11
MAY 2318011 MAY 2318011 Contact Us For Availability
11
MAY 12859108 MAY 12859108 Contact Us For Availability
11
Screw (Stainless Steel) MAY 8281250 Contact Us For Availability
11
Control Board MAY W10219462 Contact Us For Availability
11
MAY W10205102 MAY W10205102 Contact Us For Availability
12
MAY W10121140 MAY W10121140 Contact Us For Availability
12
MAY 2326255 MAY 2326255 Contact Us For Availability
12
Front, Meat Pan MAY 2256367 Contact Us For Availability
12
MAY 2221070 MAY 2221070 Contact Us For Availability
12
MAY 2315547 MAY 2315547 Contact Us For Availability
12
Spacer, Door-Skin (Top) MAY 2005433 Contact Us For Availability
12
HOUSING ASSEMBLY MAY W10260622 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
MAY W10140162 MAY W10140162 Contact Us For Availability
13
Tray, Drip Filter MAY 2318189 Contact Us For Availability
13
Jumper, Air Baffle MAY 2310205 Contact Us For Availability
13
Screw MAY 489214 Contact Us For Availability
13
MAY 2318028 MAY 2318028 Contact Us For Availability
13
SCREW MAY 488568 Contact Us For Availability
13
Water, Paddle Asy MAY 2305307GN Contact Us For Availability
13
Bracket, Inverter Box MAY 2256328 Contact Us For Availability
13
CLAMP, HEATER MAY 1113048 Contact Us For Availability
13
MAY 2320559 MAY 2320559 Contact Us For Availability
14
MAY 3400525 MAY 3400525 Contact Us For Availability
14
MAY 2182120 MAY 2182120 Contact Us For Availability
14
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
14
Spacer, Door-Skin (Bottom) MAY 2257386 Contact Us For Availability
14
Ice, Paddle Asy MAY 2305306GN Contact Us For Availability
14
Cover Seal, Evaporator Tubes MAY W10139908 Contact Us For Availability
14
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
15
Filter, Water MAY 4396841 Contact Us For Availability
15
Wedge, Air Duct MAY 2259465 Contact Us For Availability
15
WASHER, RUBBER MAY W10254073 Contact Us For Availability
15
Spacer, Door-Skin (Hinge Side) MAY W10142296 Contact Us For Availability
15
Cover, Control MAY 2305219 Contact Us For Availability
15
MAY 2220832 MAY 2220832 Contact Us For Availability
15
Clamp, Nylon Valve MAY 2208136 Contact Us For Availability
16
MAY 2003577 MAY 2003577 Contact Us For Availability
16
Screw, Handle MAY 308544 Contact Us For Availability
16
ELECTRONIC CONTROL (INCLUDES No.15) MAY 2321746 Contact Us For Availability
16
MAY 2307998 MAY 2307998 Contact Us For Availability
16
Wire Tie MAY 2155774 Contact Us For Availability
17
Screw, Door Stop MAY 3400230 Contact Us For Availability
17
Air Baffle Assembly MAY 2221296 Contact Us For Availability
17
Air Duct MAY 2307775 Contact Us For Availability
17
Filler, Door (Top) MAY W10159586 Contact Us For Availability
17
User Interface Asy MAY W10151236 Contact Us For Availability
17
MAY W10169509 MAY W10169509 Contact Us For Availability
17
MAY W10357286 MAY W10357286 Contact Us For Availability
18
Hinge (Top) MAY 2257644 Contact Us For Availability
18
WATER RESERVOIR MAY 2327509 Contact Us For Availability
18
MAY 2198643 MAY 2198643 Contact Us For Availability
18
Tray, Housing MAY 2318062US Contact Us For Availability
18
MAY 2310207 MAY 2310207 Contact Us For Availability
18
MAY 2320554 MAY 2320554 Contact Us For Availability
18
COVER MAY W10289690 Contact Us For Availability
19
MAY 489399 MAY 489399 Contact Us For Availability
19
BRACKET, MTG (WATER FILTER) MAY W10348782 Contact Us For Availability
19
MAY W10141518 MAY W10141518 Contact Us For Availability
19
SCREW MAY W10141604 Contact Us For Availability
19
BLOCK, FAN SCROLL (LH) MAY 2209066 Contact Us For Availability
19
BLOCK, FAN SCROLL (RH) MAY 2209482 Contact Us For Availability
19
Spacer, Door-Skin (Bottom) MAY 2004935 Contact Us For Availability
19
BIN, DOOR MAY W10323603 Contact Us For Availability
19
LED Assembly MAY 2305342 Contact Us For Availability
19
Dampener MAY 2215648 Contact Us For Availability
20
MAY W10151205 MAY W10151205 Contact Us For Availability
20
Plate, Door-Handle MAY W10127710 Contact Us For Availability
20
MAY 2305447 MAY 2305447 Contact Us For Availability
20
INSULATION, SOUND MAY 2169104 Contact Us For Availability
20
Mold & Heater (Also Order 542638 Silicone Gre MAY W10122527 Contact Us For Availability
21
MOTOR, (NOT SERVICEABLE ORDER ITEM 32) MAY N/P Contact Us For Availability
21
Lock, Adjustable Bushing MAY 2004994 Contact Us For Availability
21
Diffuser Assembly MAY 2309222 Contact Us For Availability
21
END CAP (RH) MAY W10323172 Contact Us For Availability
21
END CAP (LH) MAY W10323173 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
22
MAY 2300082 MAY 2300082 Contact Us For Availability
22
MAY 2317844 MAY 2317844 Contact Us For Availability
22
BRACKET, FAN MOTOR (CONDENSER FAN) MAY W10414681 Contact Us For Availability
22
MAY W10272168 MAY W10272168 Contact Us For Availability
23
MAY W10189203 MAY W10189203 Contact Us For Availability
23
MAY 2259025 MAY 2259025 Contact Us For Availability
23
Motor, Fan MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
Spring, Door Closure MAY 2221242 Contact Us For Availability
24
SPACER, AIR- BAFFLE MAY W10475010 Contact Us For Availability
24
Light Shield MAY 2307751 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
MAY W10272161 MAY W10272161 Contact Us For Availability
25
Cover, Diffuser MAY 2309087 Contact Us For Availability
25
MAY W10158005 MAY W10158005 Contact Us For Availability
25
MAY W10323037 MAY W10323037 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
Support MAY 2194712 Contact Us For Availability
26
Retaining Ring, Adjustable Bushing MAY 2005008 Contact Us For Availability
26
MAY 2302851 MAY 2302851 Contact Us For Availability
26
MAY 2257617 MAY 2257617 Contact Us For Availability
26
MAY 2315522 MAY 2315522 Contact Us For Availability
27
WIRE CLIP MAY W10129069 Contact Us For Availability
27
SCREW MAY 487539 Contact Us For Availability
27
MAY 2259412 MAY 2259412 Contact Us For Availability
27
BIN, DOOR MAY W10323600 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
THERMOSTAT (ALSO ORDER 542639 CEMENT ALUMILAS MAY W10290336 Contact Us For Availability
28
MAY 2006342 MAY 2006342 Contact Us For Availability
28
Seal, Air Duct (Square Hole) MAY 2259398 Contact Us For Availability
28
MAY 2198635 MAY 2198635 Contact Us For Availability
28
BRACKET, VIBRATION CONDENSER MAY 2317031 Contact Us For Availability
28
MAY 8533917 MAY 8533917 Contact Us For Availability
29
Hinge (Bottom) (Refrigerator Side) MAY 2006779 Contact Us For Availability
29
Hinge (Bottom) (Freezer Side) MAY 2006780 Contact Us For Availability
29
ARM, VIBRATION CONDENSER MAY 2317030 Contact Us For Availability
29
WIRE ASSEMBLY MAY W10279391 Contact Us For Availability
30
MAY 2302876 MAY 2302876 Contact Us For Availability
30
MAY 1112260 MAY 1112260 Contact Us For Availability
30
BIN, DOOR MAY W10323748 Contact Us For Availability
30
MAY 2307566 MAY 2307566 Contact Us For Availability
31
Screw 1/4-20 x 5/8 MAY 8533913 Contact Us For Availability
31
SHELF, STUD MAY W10173127 Contact Us For Availability
31
MAY 2194319 MAY 2194319 Contact Us For Availability
31
MAY W10151256 MAY W10151256 Contact Us For Availability
32
Skirt-Grille, Bottom (Black) MAY 2209026B Contact Us For Availability
32
MAY W10191952 MAY W10191952 Contact Us For Availability
32
Module Assembly (Includes Items 21 & 33) MAY W10223929 Contact Us For Availability
33
EXTENSION ARM, DOOR CLOSER (LH) MAY 2266881 Contact Us For Availability
33
EXTENSION ARM, DOOR CLOSER (RH) MAY 2266882 Contact Us For Availability
33
EVAPORATOR, COVER RAIL (LH) MAY 2221107 Contact Us For Availability
33
EVAPORATOR, COVER RAIL (RH) MAY 2259355 Contact Us For Availability
33
MAY 2309000 MAY 2309000 Contact Us For Availability
33
Screw MAY 489136 Contact Us For Availability
34
MAY 2325186B MAY 2325186B Contact Us For Availability
34
GASKET EVAPORATOR COVER MAY 2220904 Contact Us For Availability
34
MAY 2310251 MAY 2310251 Contact Us For Availability
34
MAY W10141645 MAY W10141645 Contact Us For Availability
35
MAY W10004850 MAY W10004850 Contact Us For Availability
35
MAY 1157158 MAY 1157158 Contact Us For Availability
35
MAY W10267707 MAY W10267707 Contact Us For Availability
35
MAY W10185556 MAY W10185556 Contact Us For Availability
36
BRACKET, SUPPORT BASE (FRONT) (RH) MAY 2006556 Contact Us For Availability
36
BRACKET, SUPPORT BASE (FRONT) (LH) MAY 2006616 Contact Us For Availability
36
MAY W10151208 MAY W10151208 Contact Us For Availability
36
MAY 549193 MAY 549193 Contact Us For Availability
36
MAY 2252228 MAY 2252228 Contact Us For Availability
37
MAY W10139189 MAY W10139189 Contact Us For Availability
37
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
38
BRACKET, SUPPORT BASE (REAR) MAY 2006617 Contact Us For Availability
38
Screw, Ground MAY 487294 Contact Us For Availability
39
WASHER MAY 2006346 Contact Us For Availability
39
MAY 2306010 MAY 2306010 Contact Us For Availability
39
Wiring Harness, Unit Compartment MAY W10178860 Contact Us For Availability
40
MAY 2316859 MAY 2316859 Contact Us For Availability
40
MAY 2309432 MAY 2309432 Contact Us For Availability
41
MAY 2317105 MAY 2317105 Contact Us For Availability
41
Power Supply, Ingredient Care Center MAY 2259350 Contact Us For Availability
42
CONNECTOR, WATER TUBE (1/4``) MAY W10271541 Contact Us For Availability
42
SCREW MAY 2006475 Contact Us For Availability
44
Switch, Rocker Arm (Freezer Door Side) MAY 1115373 Contact Us For Availability
44
Switch, Rocker Arm (Refrigerator Door Side) MAY 1118894 Contact Us For Availability
45
MAY 2215938 MAY 2215938 Contact Us For Availability
46
Screw MAY 487415 Contact Us For Availability
46
MAY 2259032 MAY 2259032 Contact Us For Availability
47
BRACKET, SWITCH (LH) MAY 2221096 Contact Us For Availability
47
BRACKET, SWITCH (RH) MAY 2221097 Contact Us For Availability
47
Support, Screw MAY 2259445 Contact Us For Availability
48
Cover, Rear MAY 2215612 Contact Us For Availability
49
Wire Assembly RC/FC Light Switch MAY W10167456 Contact Us For Availability
50
CAM ASSEMBLY MAY 2307857 Contact Us For Availability
50
MAY 2198634 MAY 2198634 Contact Us For Availability
51
MAY W10193840 MAY W10193840 Contact Us For Availability
52
MAY 2198633 MAY 2198633 Contact Us For Availability
53
MAY 2315398 MAY 2315398 Contact Us For Availability
54
MAY W10290817 MAY W10290817 Contact Us For Availability
55
Defrost, Bi-Metal MAY W10160570 Contact Us For Availability
56
SCREW MAY W10142283 Contact Us For Availability
100
Complete Icemaker Assembly MAY 2320636 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
AFFRESH KITCHEN APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
MAY W10355016 MAY W10355016 Contact Us For Availability
NI
MAY W10355049 MAY W10355049 Contact Us For Availability
× ![]()
