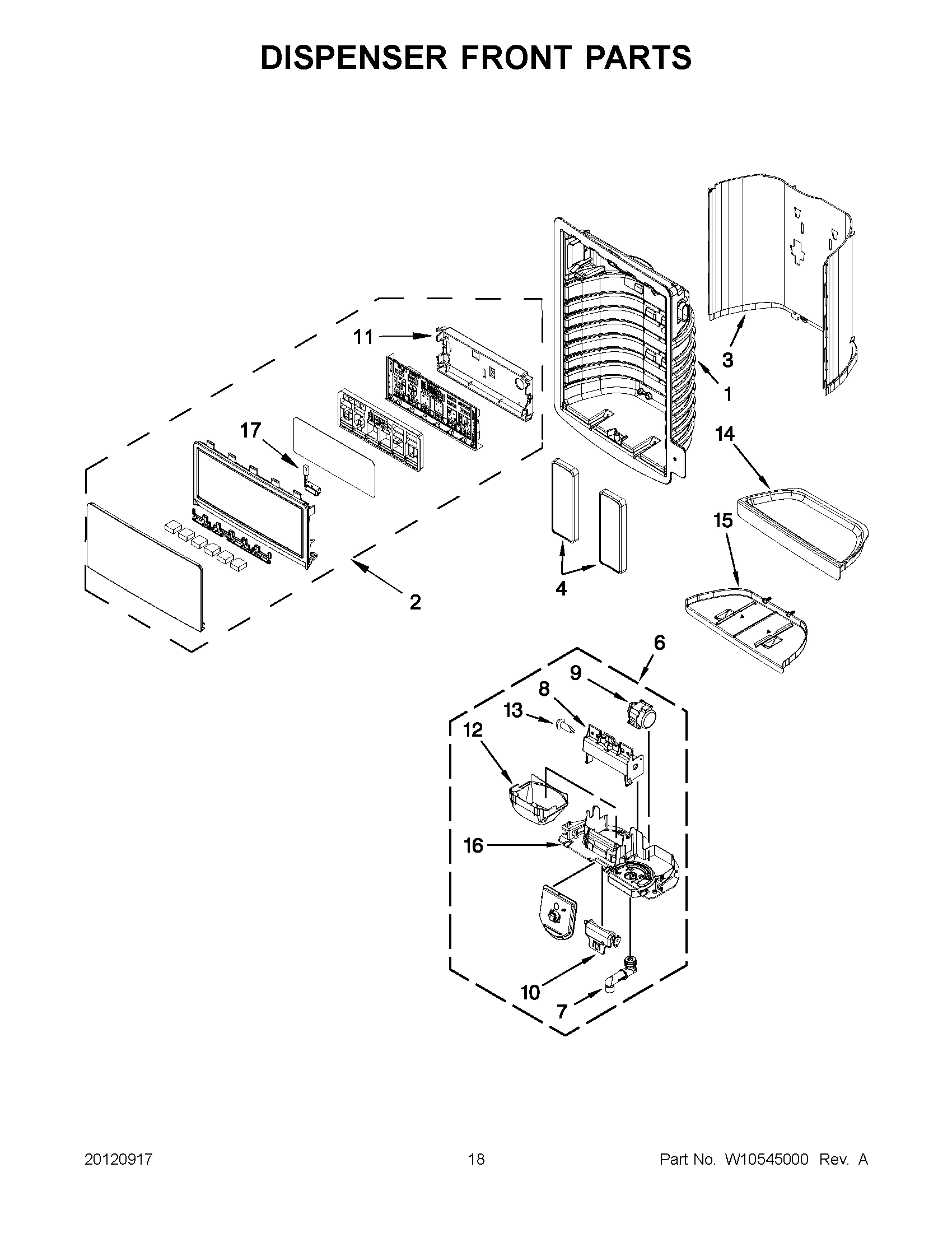

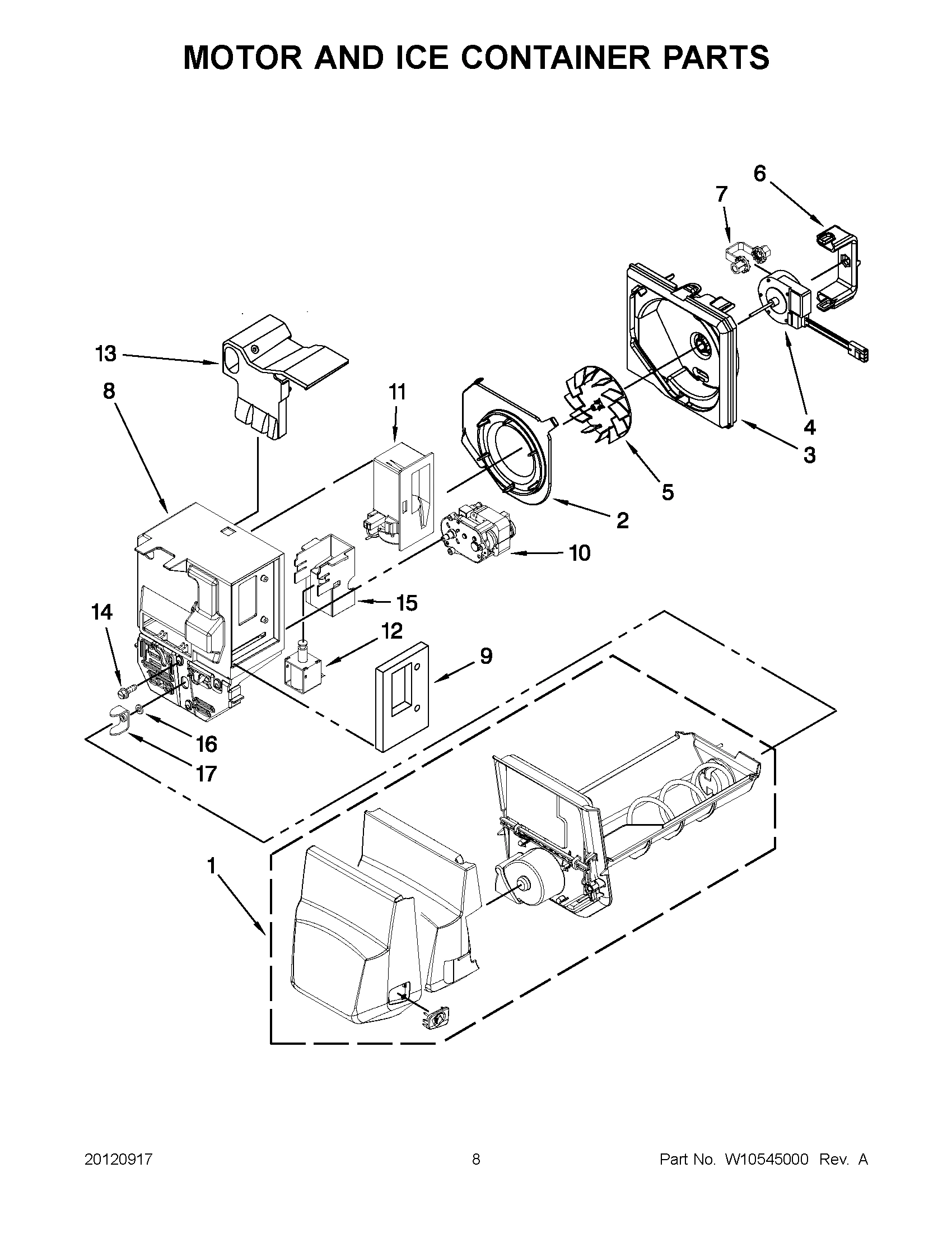

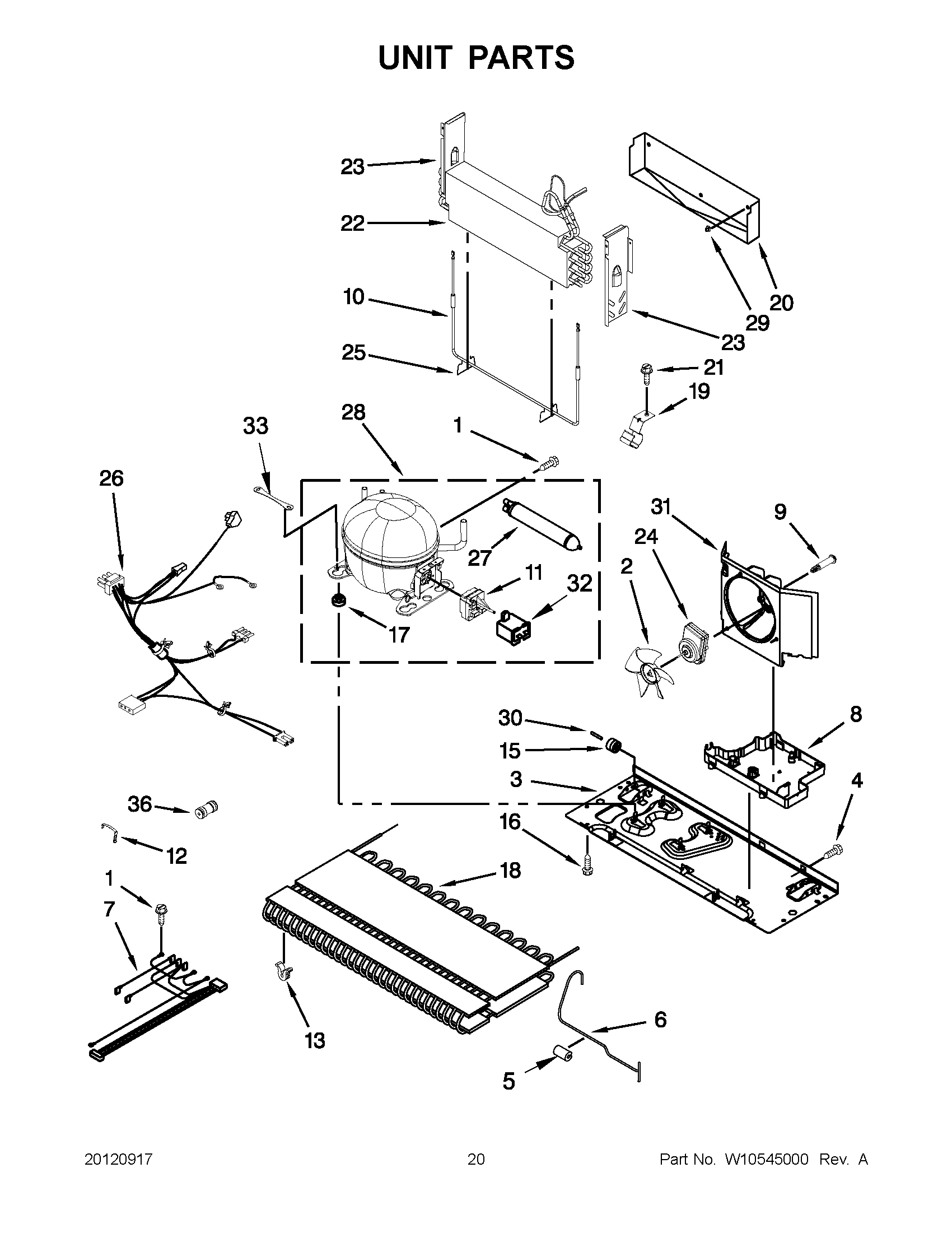

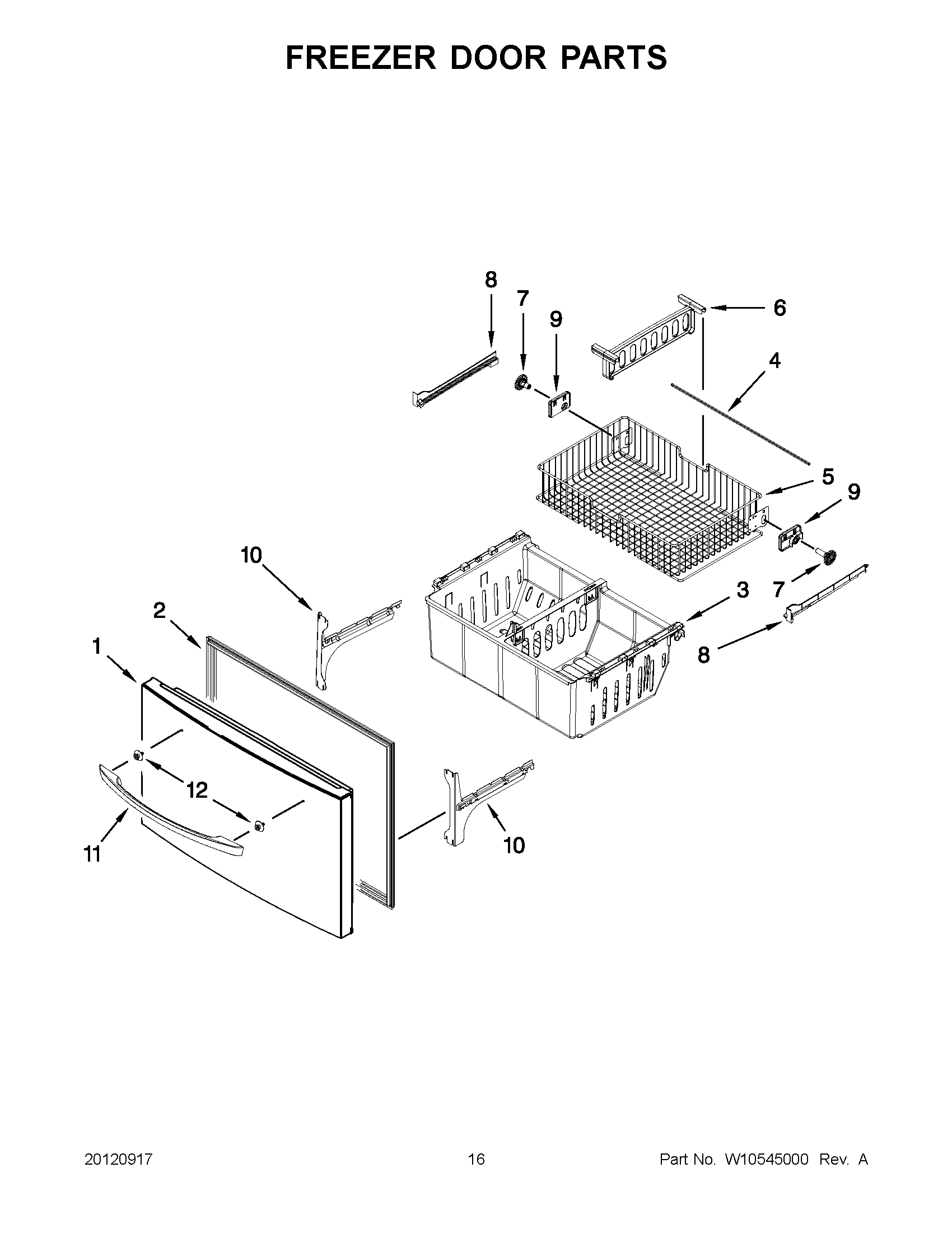

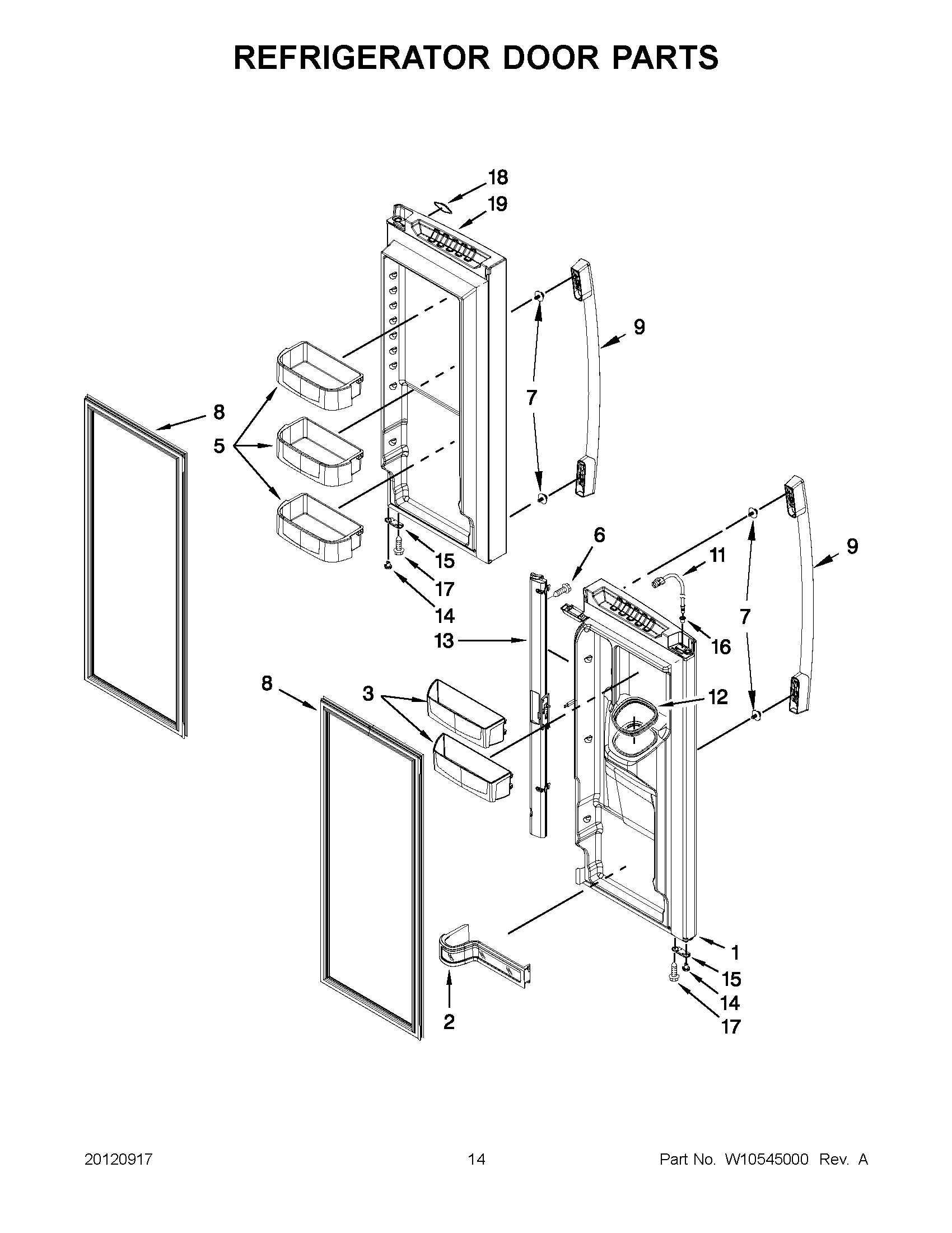

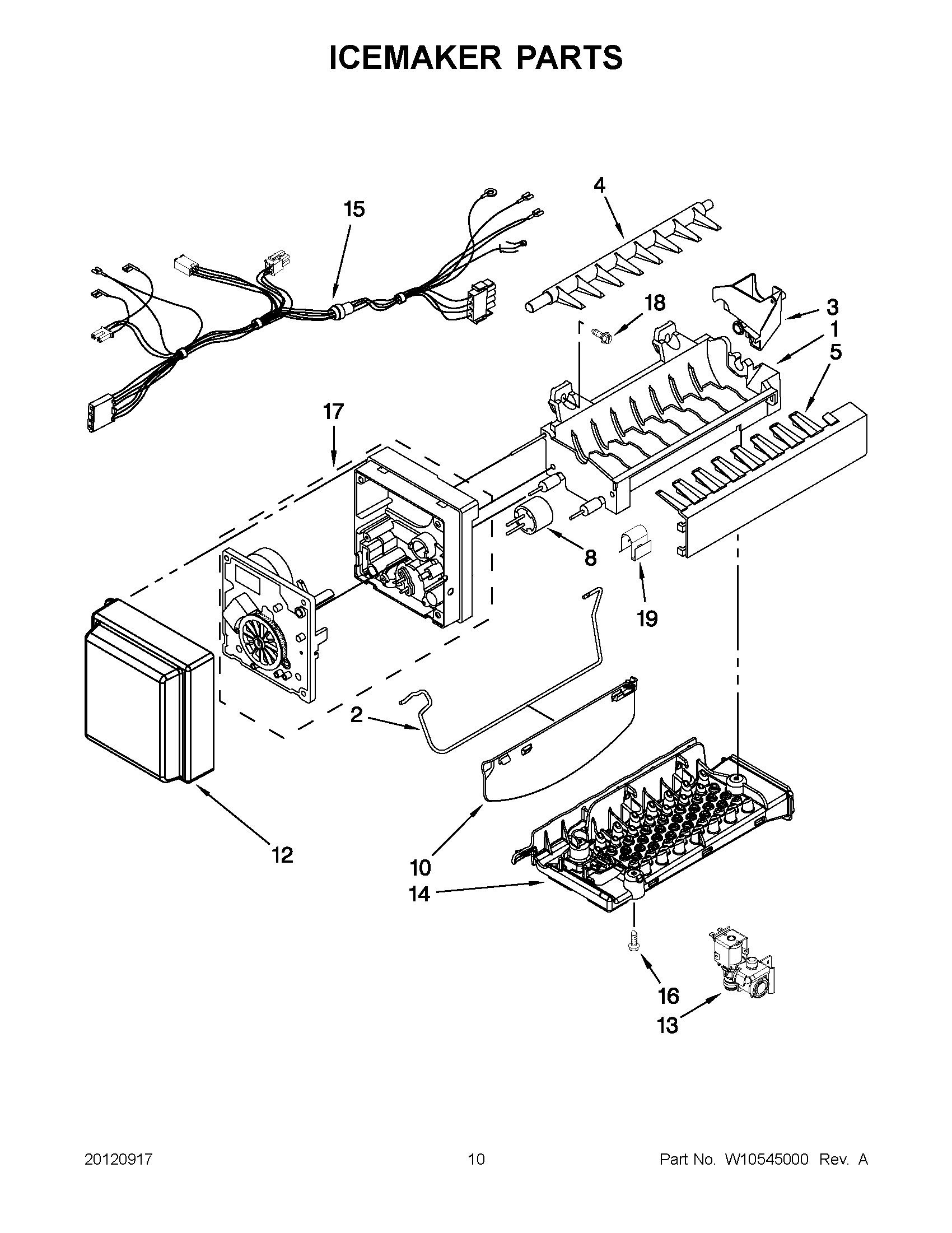

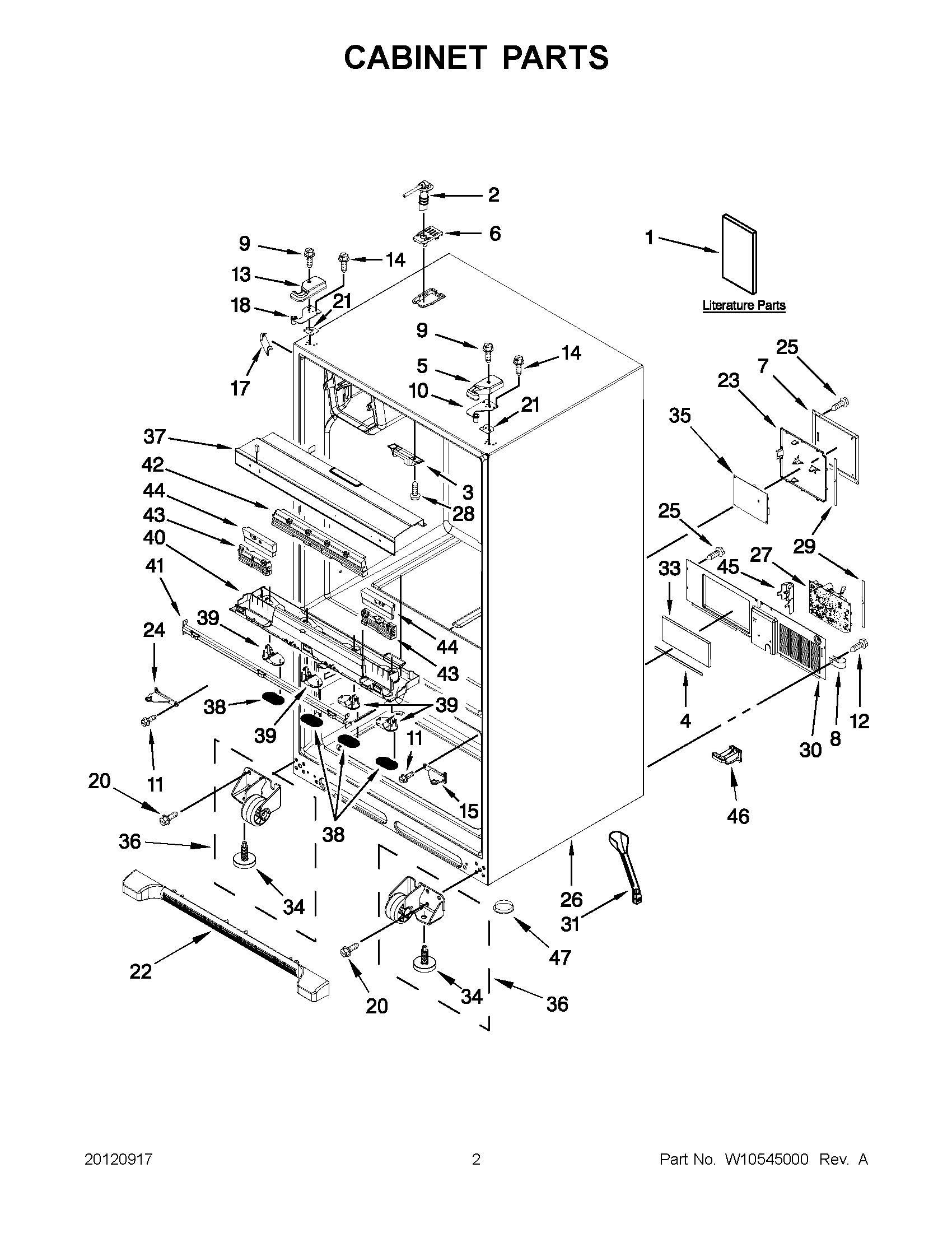

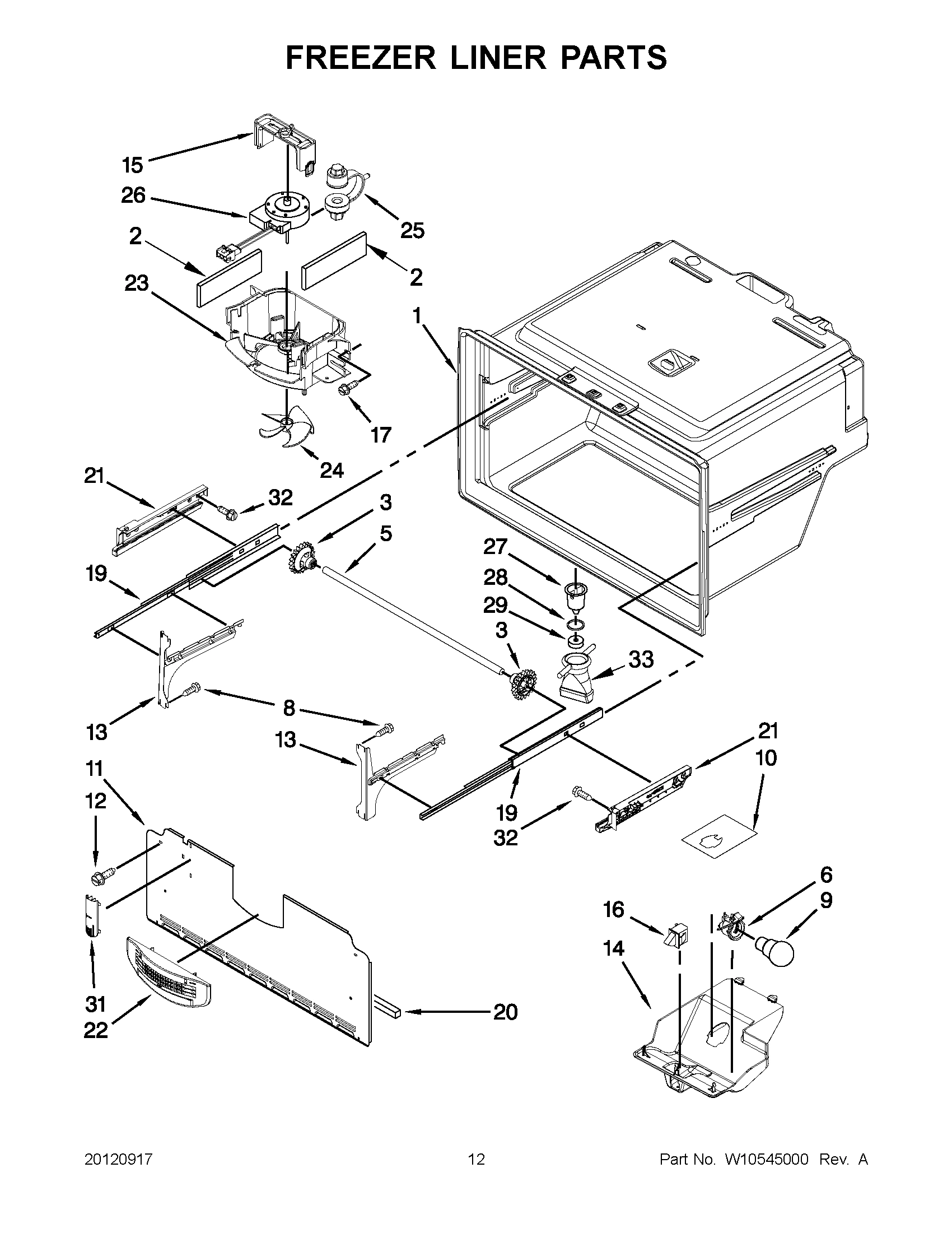

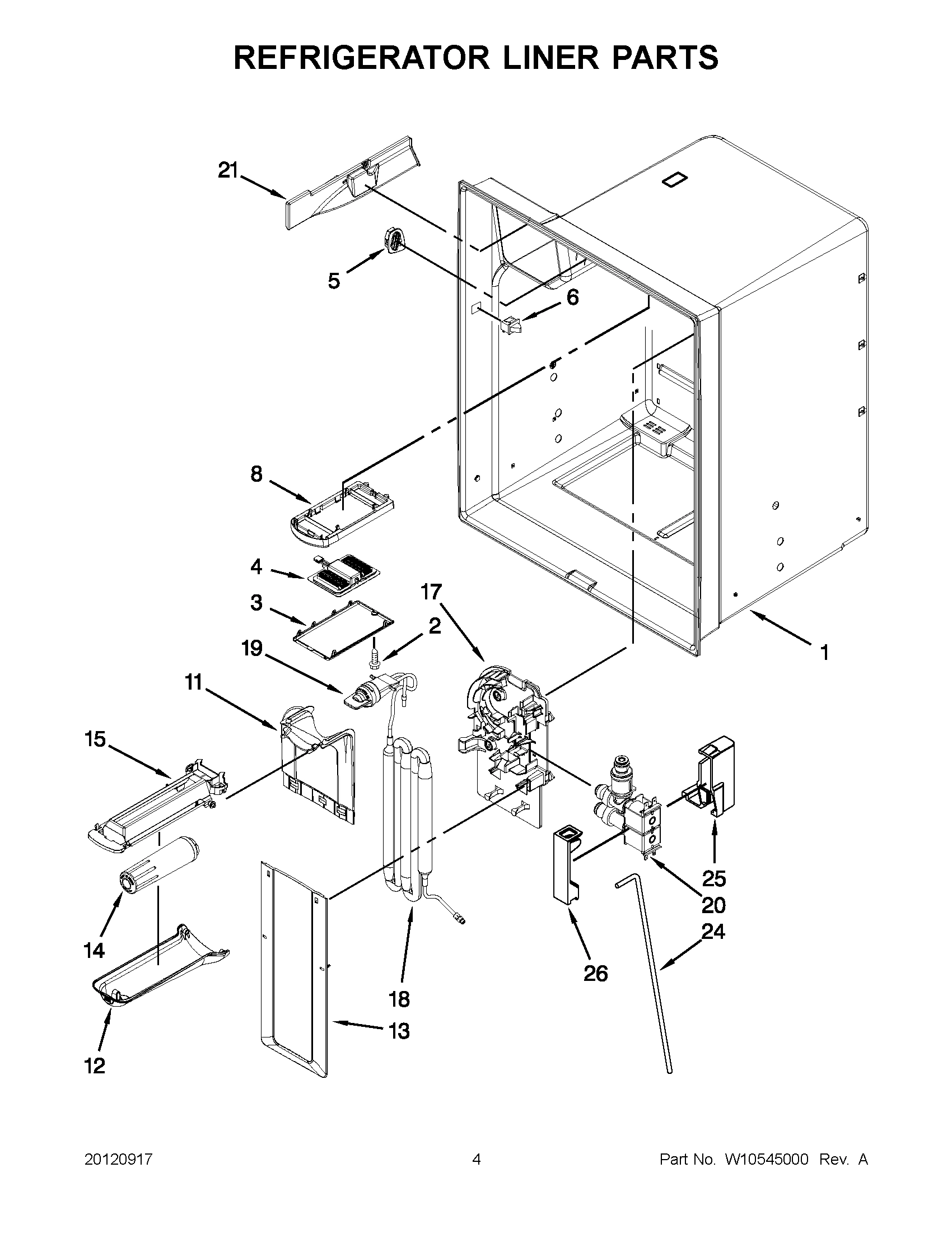

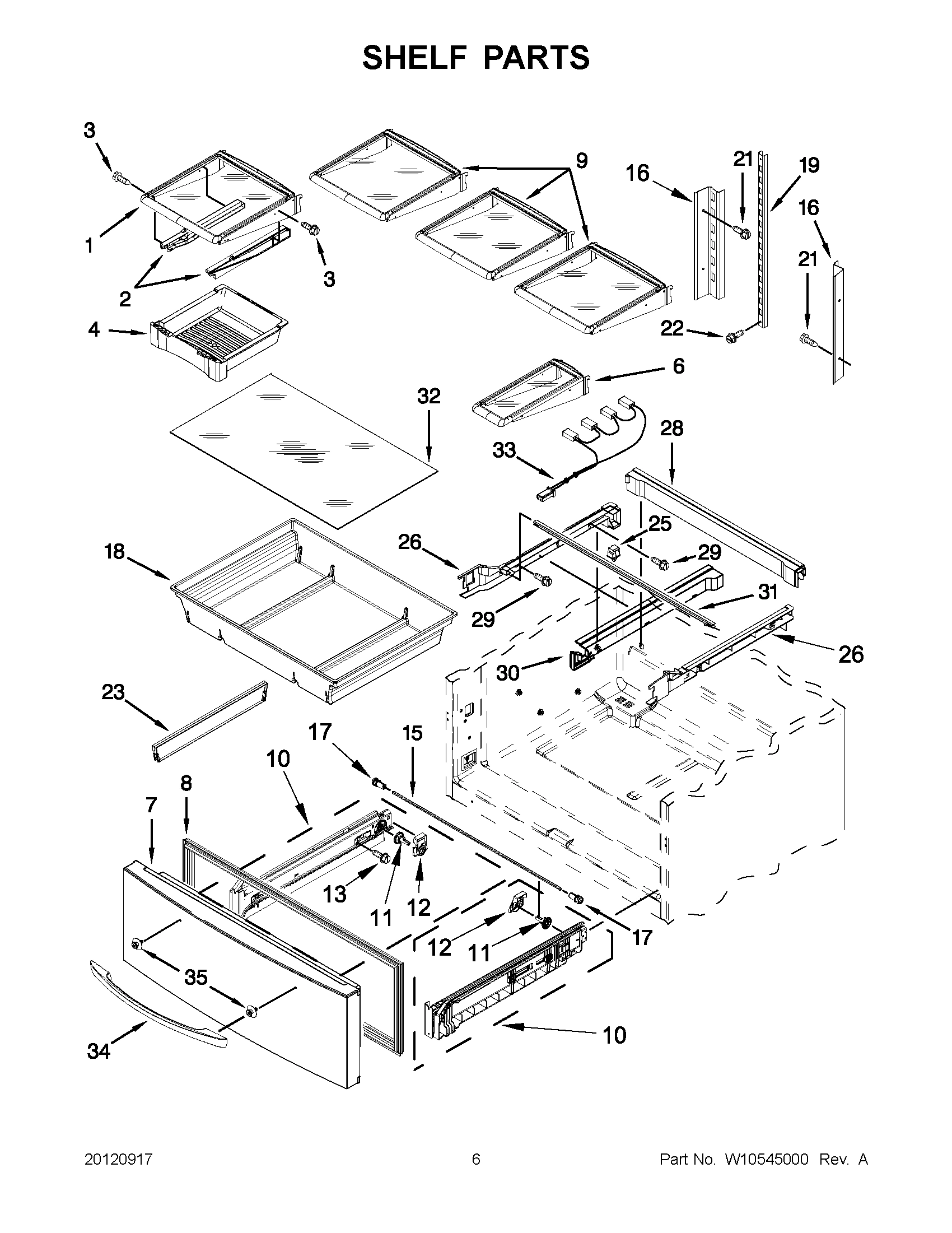

Model Whirlpool GZ25FSRXYY7 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP12883508SP Whirlpool Refrigerator Glass She Backorder WPL WP12883508SP $196.68

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $132.71

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.91

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.99

2

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

2

WPW10194031 Whirlpool Refrigerator Glide In Stock WPL WPW10194031 $81.62

2

WPW10194032 Whirlpool Refrigerator Glide Backorder WPL WPW10194032 $82.46

2

WPW10323808 Whirlpool Refrigerator Cantilever Backorder WPL WPW10323808 $49.47

2

WPW10378254 Whirlpool Refrigerator Shut Off A In Stock WPL WPW10378254 $47.99

2

WPW10521642-includeCORE Whirlpool WPW10521642 Backorder WPL WPW10521642-includeCORE $325.49

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.99

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $59.67

3

W10311756 Whirlpool Refrigerator Light Lens Backorder WPL W10311756 $97.45

3

W10377998 Whirlpool Refrigerator Cup Fill Backorder WPL W10377998 $54.10

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $53.95

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $66.10

3

WPW10212139 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10212139 $55.61

3

WPW10293682 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10293682 $135.96

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $17.99

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $115.99

4

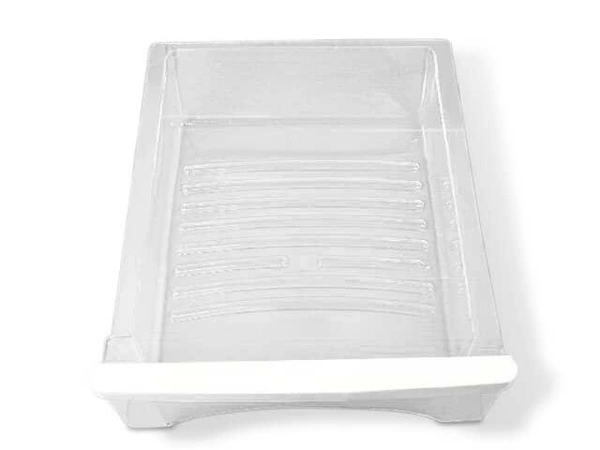

WPW10319333 Whirlpool Refrigerator Snack Pan Backorder WPL WPW10319333 $91.96

4

WPW10353848 Whirlpool Refrigerator Pad In Stock WPL WPW10353848 $148.99

5

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

5

W11218042 Whirlpool Refrigerator Freezer Bask Backorder WPL W11218042 $114.12

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $61.99

5

WPW10224961 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10224961 $69.73

6

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $19.99

6

W11197490 Whirlpool Refrigerator Cantilever S Backorder WPL W11197490 $154.65

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $82.29

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $120.99

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $75.11

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $84.48

7

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $119.99

7

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $19.79

7

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $19.61

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $51.99

8

W10830274 Whirlpool Door Gasket In Stock WPL W10830274 $179.99

8

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $13.79

8

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $13.79

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $78.68

8

WPW10443326 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10443326 $197.99

9

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $56.54

9

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $56.53

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

W11351147 Whirlpool Refrigerator Handle Backorder WPL W11351147 $119.22

9

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $140.94

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $67.75

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.94

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $102.99

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $136.74

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $28.47

WPW10351019 Whirlpool Refrigerator Extension In Stock WPL WPW10351019 $48.93

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $181.94

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.45

WPW10448874 Whirlpool Start Device In Stock WPL WPW10448874 $79.89

WPW10511930 Whirlpool Refrigerator Water Tube Backorder WPL WPW10511930 $78.29

GEAR, SPUR WPL W10277360 Contact Us For Availability

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $47.26

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $54.32

W10460383 Whirlpool Refrigerator Front Cover Backorder WPL W10460383 $67.04

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $19.99

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $149.99

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $8.35

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $14.02

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

WPW10311757 Whirlpool Door Guide In Stock WPL WPW10311757 $91.87

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $95.99

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $96.99

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.79

W11192301 Whirlpool Refrigerator Drip Tray Backorder WPL W11192301 $41.02

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $20.51

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $53.99

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $210.88

15

W10298176 Whirlpool Refrigerator Shaft Backorder WPL W10298176 $65.93

15

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $55.91

15

W11029433 Whirlpool Refrigerator Wire Harness Backorder WPL W11029433 $165.55

16

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $8.89

16

W11378860 Whirlpool Refrigerator Spacer In Stock WPL W11378860 $12.99

16

SEPARATOR WPL W10278987 Contact Us For Availability

17

W10882923 Whirlpool Refrigerator Ice Maker As Backorder WPL W10882923 $136.66

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

17

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $7.18

W11346622 Whirlpool Water Tank Assembly In Stock WPL W11346622 $121.95

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $16.65

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $232.59

WPW10393265 Whirlpool Refrigerator Nameplate In Stock WPL WPW10393265 $53.46

19

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $19.26

19

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $40.99

19

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $11.67

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.38

20

WPW10349187 Whirlpool Water Valve In Stock WPL WPW10349187 $189.68

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $64.97

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $65.67

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $87.15

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $135.29

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $71.47

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $145.69

23

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $54.05

24

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $54.08

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $73.99

24

WPW10444033 Whirlpool Refrigerator Water Tube Backorder WPL WPW10444033 $80.84

25

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $57.94

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

25

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

26

W10311723 Whirlpool Refrigerator Rail In Stock WPL W10311723 $88.79

26

W11715934 Whirlpool Rail Backorder WPL W11715934 $26.50

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

27

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $279.99

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

30

W10211854 Whirlpool Refrigerator Back Cover Backorder WPL W10211854 $114.78

30

W10311725 Whirlpool Refrigerator Cover Backorder WPL W10311725 $10.50

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

32

WPW10296571 Whirlpool Glass Shelf Assembly In Stock WPL WPW10296571 $153.36

32

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $74.46

33

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

33

W10335721 Whirlpool Refrigerator Harness Swit Backorder WPL W10335721 $52.73

33

INSULATION WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

34

WPW10223025K Whirlpool Refrigerator Handle Backorder WPL WPW10223025K $134.96

35

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $5.82

36

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $14.46

36

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $60.99

36

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $61.97

40

W10311719 Whirlpool Refrigerator Housing Backorder WPL W10311719 $81.63

41

W10492234 Whirlpool Refrigerator Brace Backorder WPL W10492234 $77.99

42

W10311721 Whirlpool Refrigerator Insulation Backorder WPL W10311721 $47.31

43

W10316401 Whirlpool Refrigerator Insulation Backorder WPL W10316401 $47.60

44

WEDGE, SPACER LEFT HAND & RIGHT HAND WPL W10316403 Contact Us For Availability

45

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $56.92

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS WPL 978029 Contact Us For Availability

INSULATION, FOAM WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL WPL 479502 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
