Model Whirlpool GDE412 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

1

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

1

SCREW WPL 313764 Contact Us For Availability

1

BLOCK, TERMINAL WPL 400008 Contact Us For Availability

1

LOCK WASHER WPL 211194 Contact Us For Availability

2

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

2

SCREW----NA WPL Y313561 Contact Us For Availability

2

COVER, THREAD WPL 313915 Contact Us For Availability

2

INSTRUCTION LABEL WPL Y313927 Contact Us For Availability

2

BRACKET FOR START SWITCH WPL 314177 Contact Us For Availability

2

COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability

2

INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability

3

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

3

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

3

WP303896 Whirlpool High Limit Thermostat Backorder WPL WP303896 $63.87

3

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

3

TUMBLER BACK WPL Y306660 Contact Us For Availability

3

SWITCH, PUSH/TO/START W/BKT WPL 306533 Contact Us For Availability

3

STRAP, GROUND WPL Y312184 Contact Us For Availability

3

TOP COVER ASSY WPL 307104M Contact Us For Availability

4

WP33313541 Whirlpool Tumbler Seal In Stock WPL WP33313541 $37.77

4

WPY304693 Whirlpool Wire Jumper In Stock WPL WPY304693 $6.02

4

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

4

SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability

4

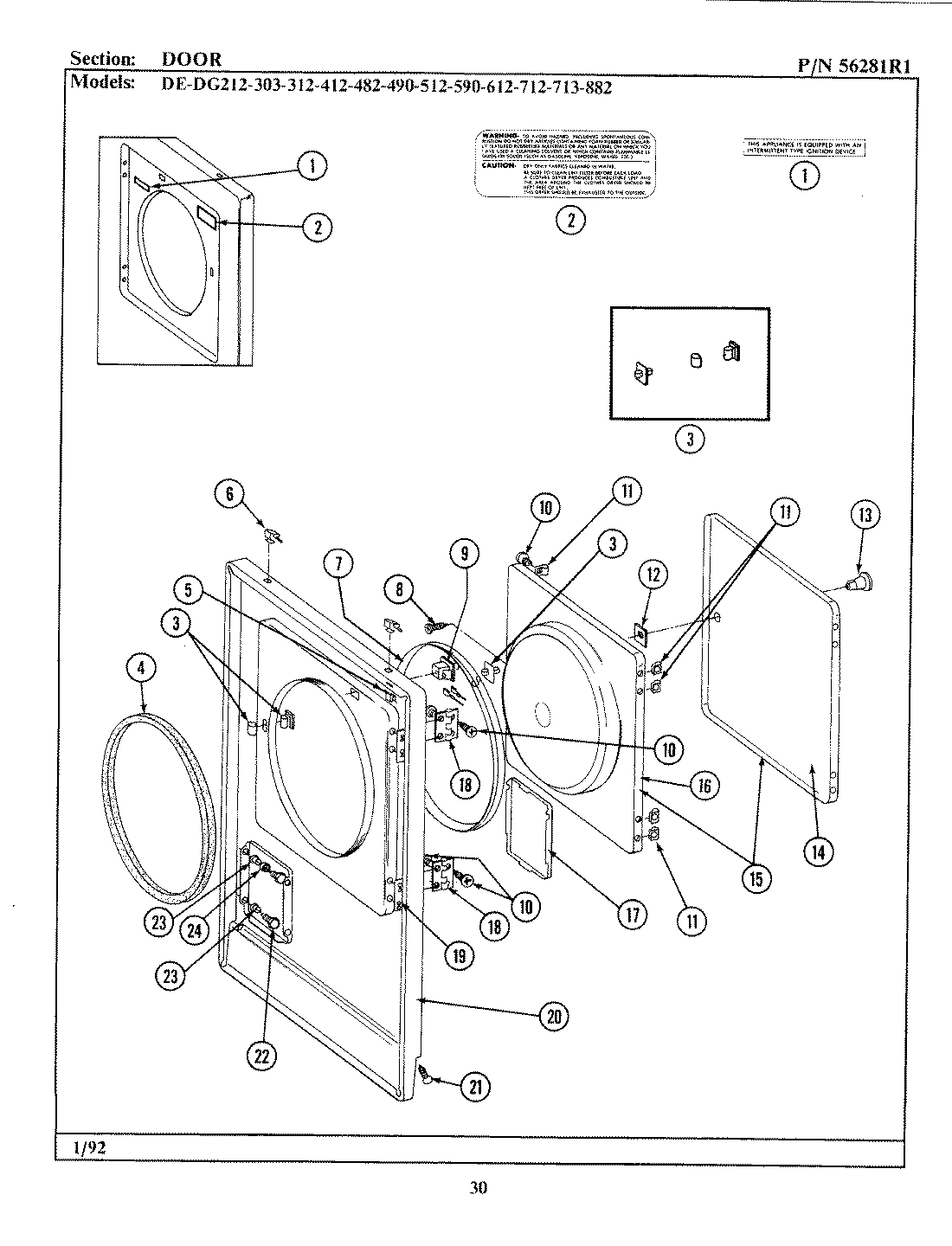

DOOR, HARVEST WHEAT WPL 306668M Contact Us For Availability

4

PALNUT, END CAP WPL 214872 Contact Us For Availability

5

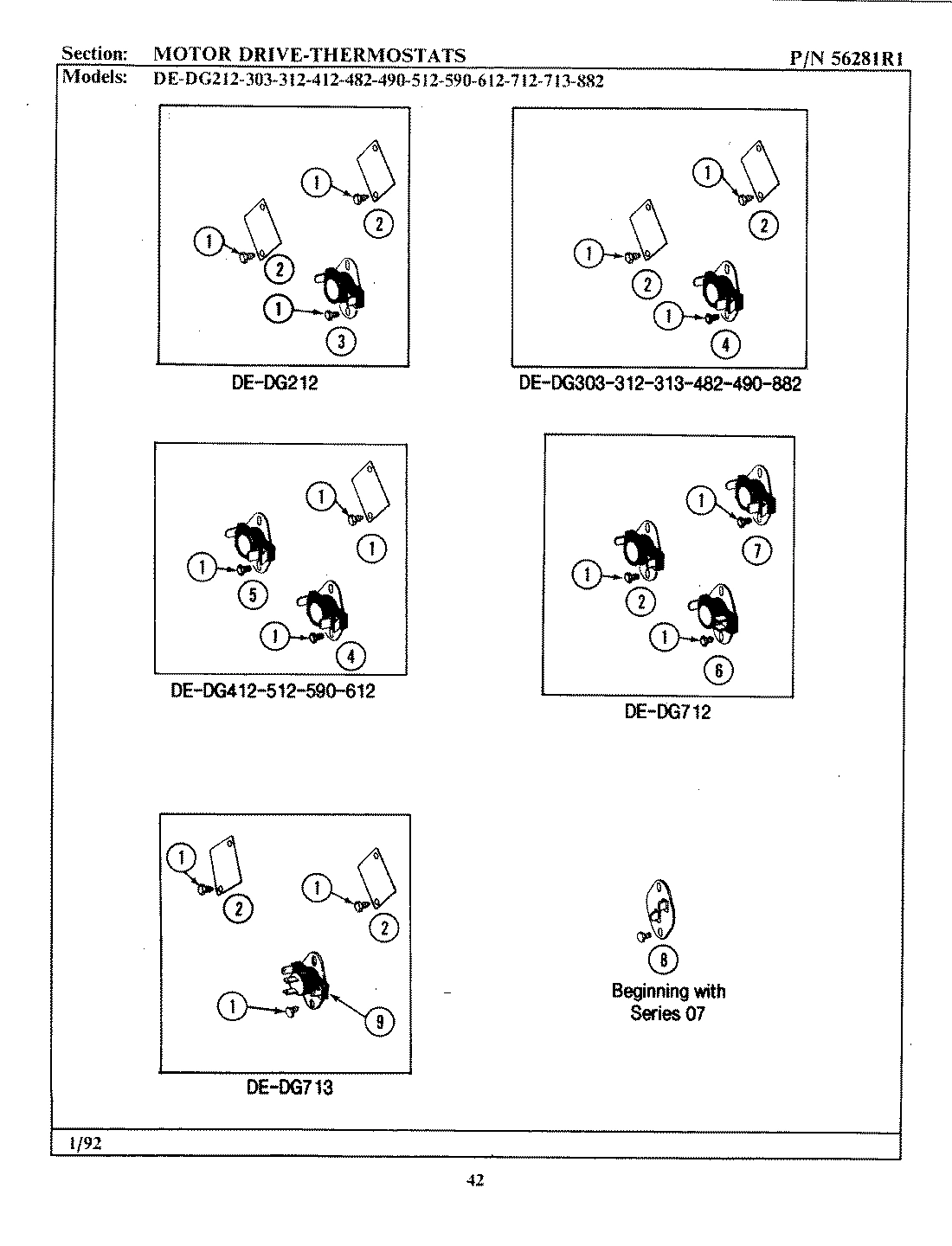

WPY304474 Whirlpool Cycling Thermostat Backorder WPL WPY304474 $65.57

5

SCREW WPL Y310759 Contact Us For Availability

5

KNOB AND SCREW WPL 303942 Contact Us For Availability

5

BACK UP PLATE WPL 314184 Contact Us For Availability

5

COVER, TERMINAL WPL Y312905 Contact Us For Availability

5

WIRE TERMINAL WPL 210745 Contact Us For Availability

6

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

6

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

6

WASHER WPL 314158 Contact Us For Availability

6

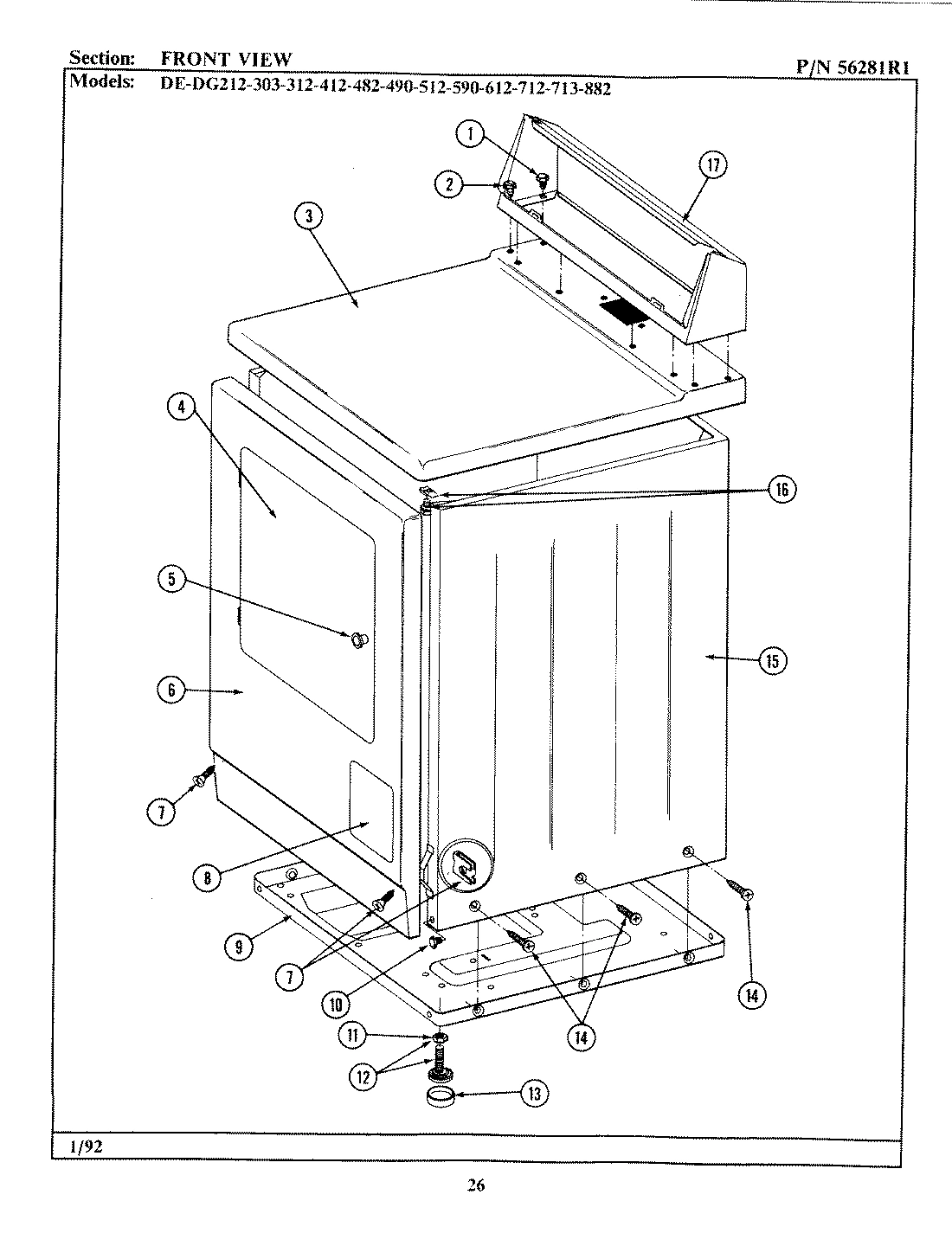

FRONT PANEL-HARVEST WHEAT WPL 304595M Contact Us For Availability

6

WIRE WPL 306448 Contact Us For Availability

7

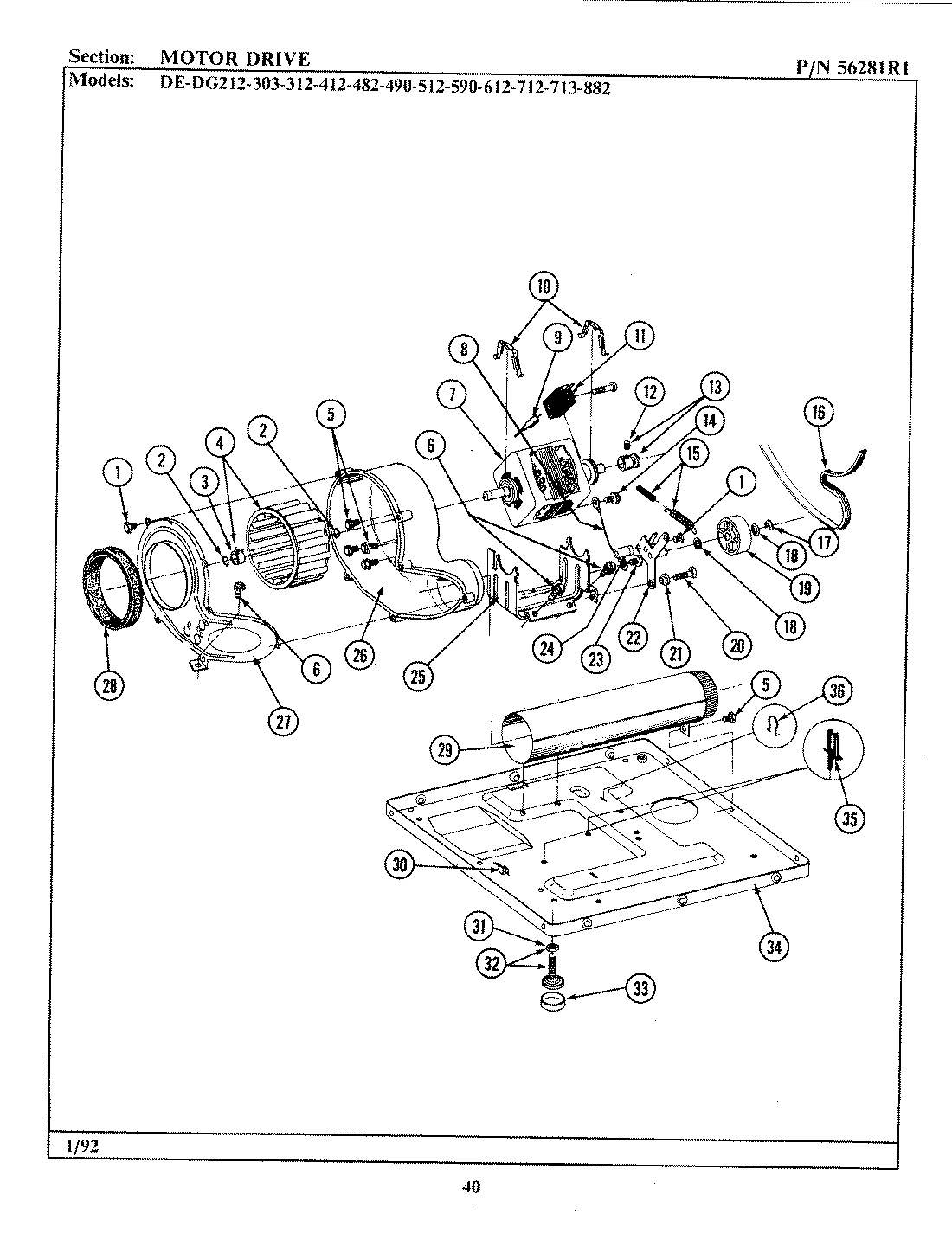

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

7

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

7

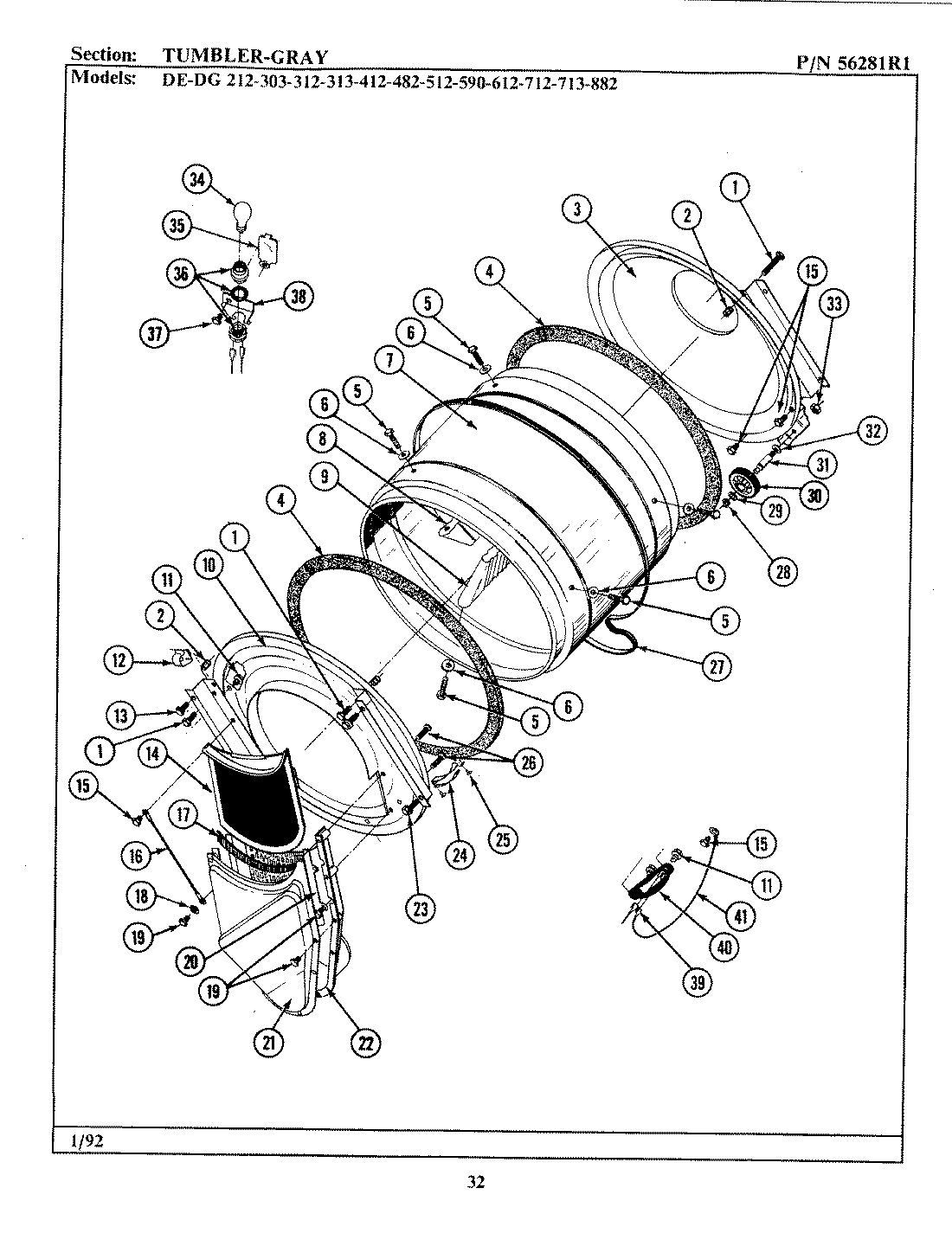

TUMBLER WPL 305187 Contact Us For Availability

7

TUMBLER WPL Y314153 Contact Us For Availability

7

DOOR SEAL WPL 314077 Contact Us For Availability

7

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

7

END CAP F/CONTROL PANEL-LH WPL 214815 Contact Us For Availability

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

8

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

8

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

8

TUMBLER BAFFLE - SHORT WPL 314154 Contact Us For Availability

8

WIRE, GROUND WPL 901220 Contact Us For Availability

8

FASTENER, END CAP WPL 214894 Contact Us For Availability

9

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

9

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

9

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

9

BASE ASSY. WPL Y303361 Contact Us For Availability

9

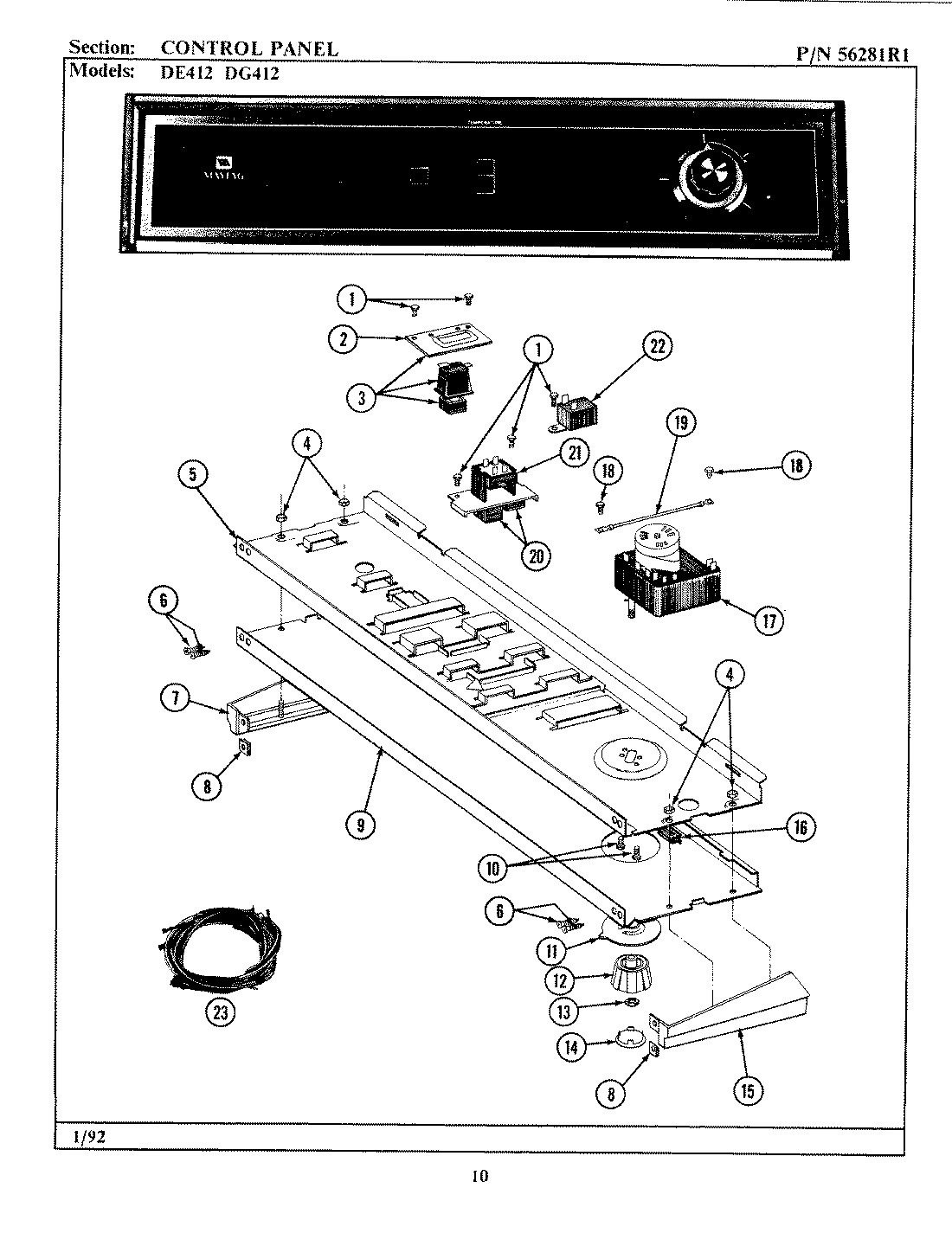

CONTROL PANEL WPL 305882 Contact Us For Availability

9

CONTROL PANEL WPL 306382 Contact Us For Availability

9

HEATER SHIELD WPL 304124 Contact Us For Availability

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

Y304596 Whirlpool Terminal Insulator Assembly Backorder WPL Y304596 $14.31

SCREW WPL Y310632 Contact Us For Availability

TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability

SCREW WPL Y314062 Contact Us For Availability

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

TIMER DIAL INDICATOR WPL 314422 Contact Us For Availability

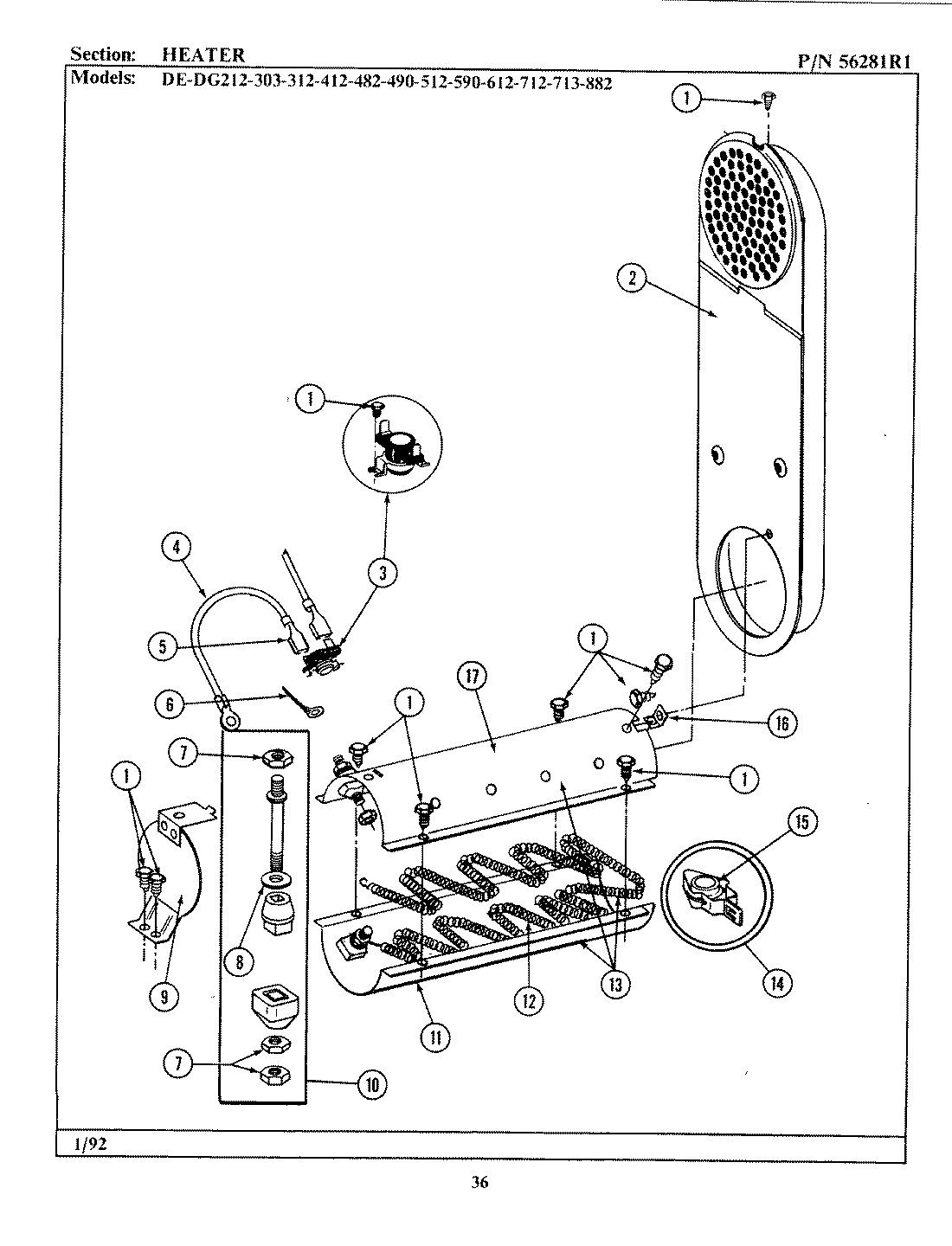

HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability

W10116793 Whirlpool Element Backorder WPL W10116793 $134.47

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

WFR314421 Whirlpool AD-25,50 T Backorder WPL WFR314421 $31.80

WPY313538 Whirlpool Heater Element In Stock WPL WPY313538 $47.77

DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

13

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

13

WPY303404 Whirlpool Heating Element In Stock WPL WPY303404 $242.96

13

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

WP33001003 Whirlpool Lint Filter In Stock WPL WP33001003 $31.97

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WPY303881 Whirlpool Clip and Insulator Backorder WPL WPY303881 $13.77

DOOR PANEL-HARVEST WHEAT WPL 313908M Contact Us For Availability

CAP FOR KNOB WPL 215164 Contact Us For Availability

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

DOOR-HARVEST WHEAT WPL 304579M Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

END CAP F/CONTROL PANEL-RH WPL 214816 Contact Us For Availability

INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability

CABINET-HARVEST WHEAT WPL 305302M Contact Us For Availability

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

WIRE, GROUND WPL 205810 Contact Us For Availability

INNER DOOR WITH KNOB & SCRE WPL 305835 Contact Us For Availability

INNER DOOR WITH KNOB WPL 306676 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

WP305448 Whirlpool Timer Backorder WPL WP305448 $227.40

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

LINT SEAL WPL Y313796 Contact Us For Availability

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

CONSOLE-HARVEST WHEAT WPL 305193M Contact Us For Availability

HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

WASHER WPL 310557 Contact Us For Availability

DOOR HINGE WPL Y304577 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

19

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

19

TWIN FASTENER WPL Y313907 Contact Us For Availability

19

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

20

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

20

GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability

20

BUTTON FOR SWITCH WPL 215210 Contact Us For Availability

21

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

21

OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability

21

TEMPERATURE SWITCH WPL 305963 Contact Us For Availability

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability

OUTLET DUCT & GRID WPL 306657 Contact Us For Availability

OUTLET DUCT ASSEMBLY WPL Y304810 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

23

MAIN WIRE HARNESS WPL 305341 Contact Us For Availability

23

WIRE HARNESS, MAIN WPL 306879 Contact Us For Availability

23

MAIN WIRE HARNESS WPL Y306607 Contact Us For Availability

24

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

24

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

25

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

25

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

26

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

27

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

27

COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability

28

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

29

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

29

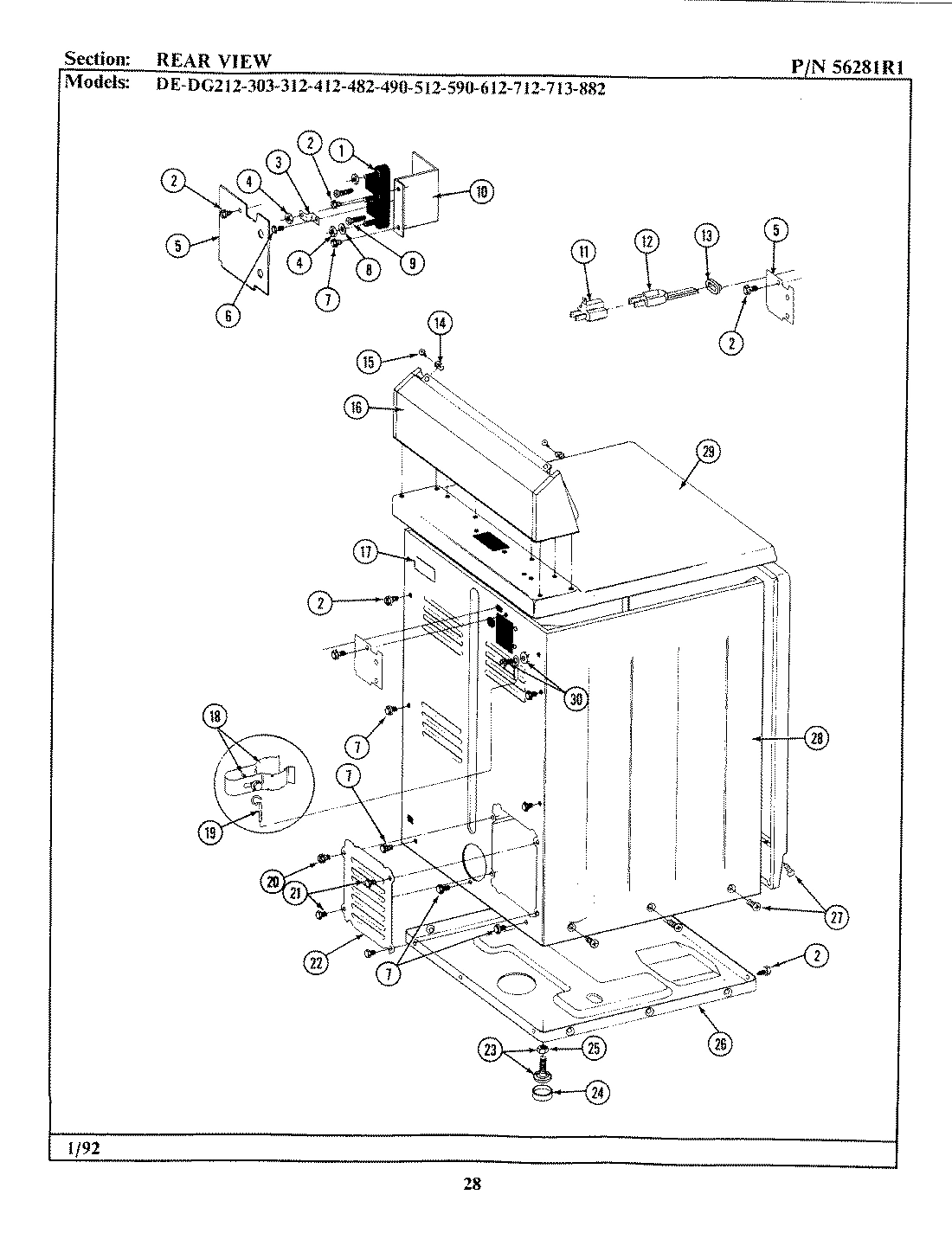

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

30

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

30

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

30

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

33

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

35

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

36

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability

TIMER - 240V-50HZ WPL 306622 Contact Us For Availability

ADJUSTABLE BUZZER WPL 306623 Contact Us For Availability

MOTOR 240-50 WPL Y304656 Contact Us For Availability
