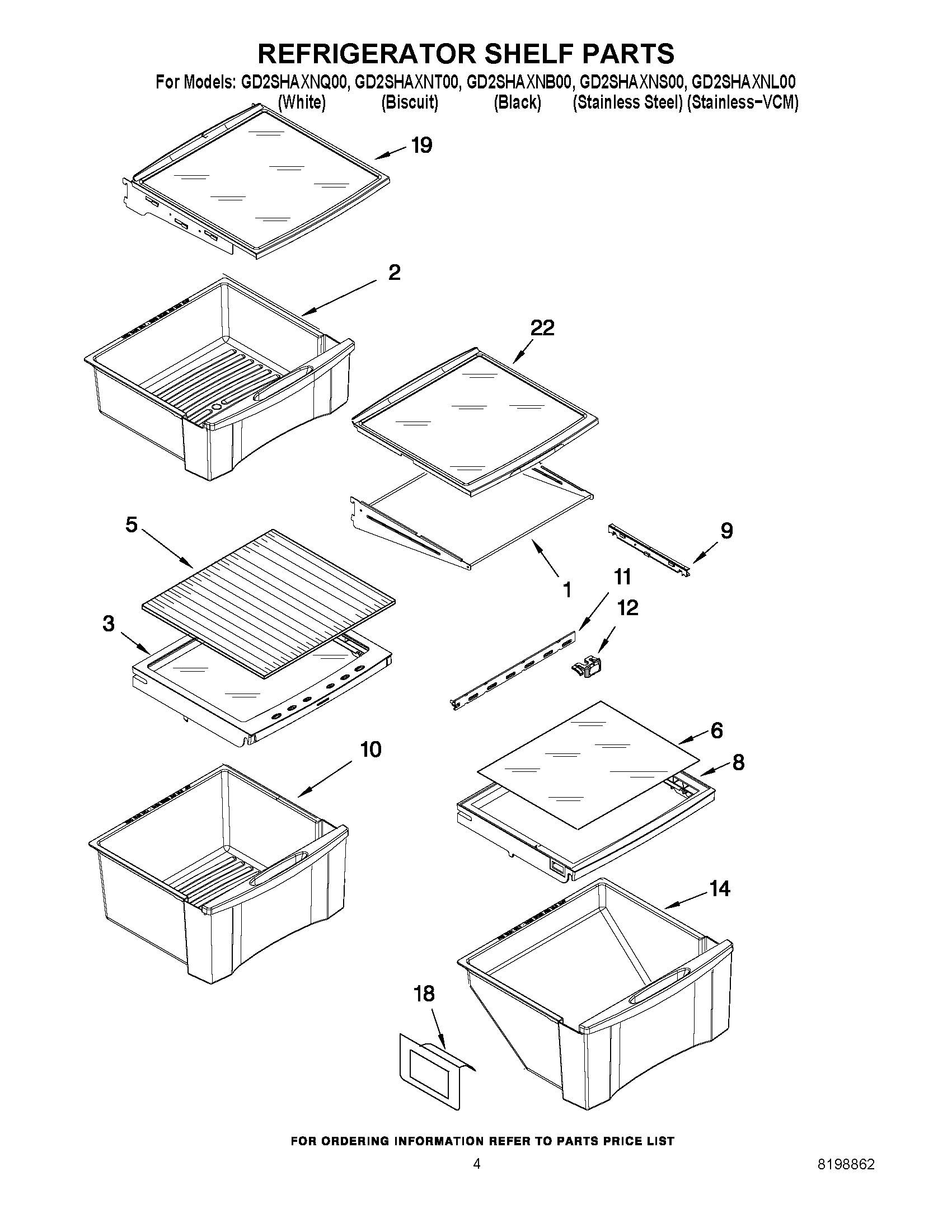

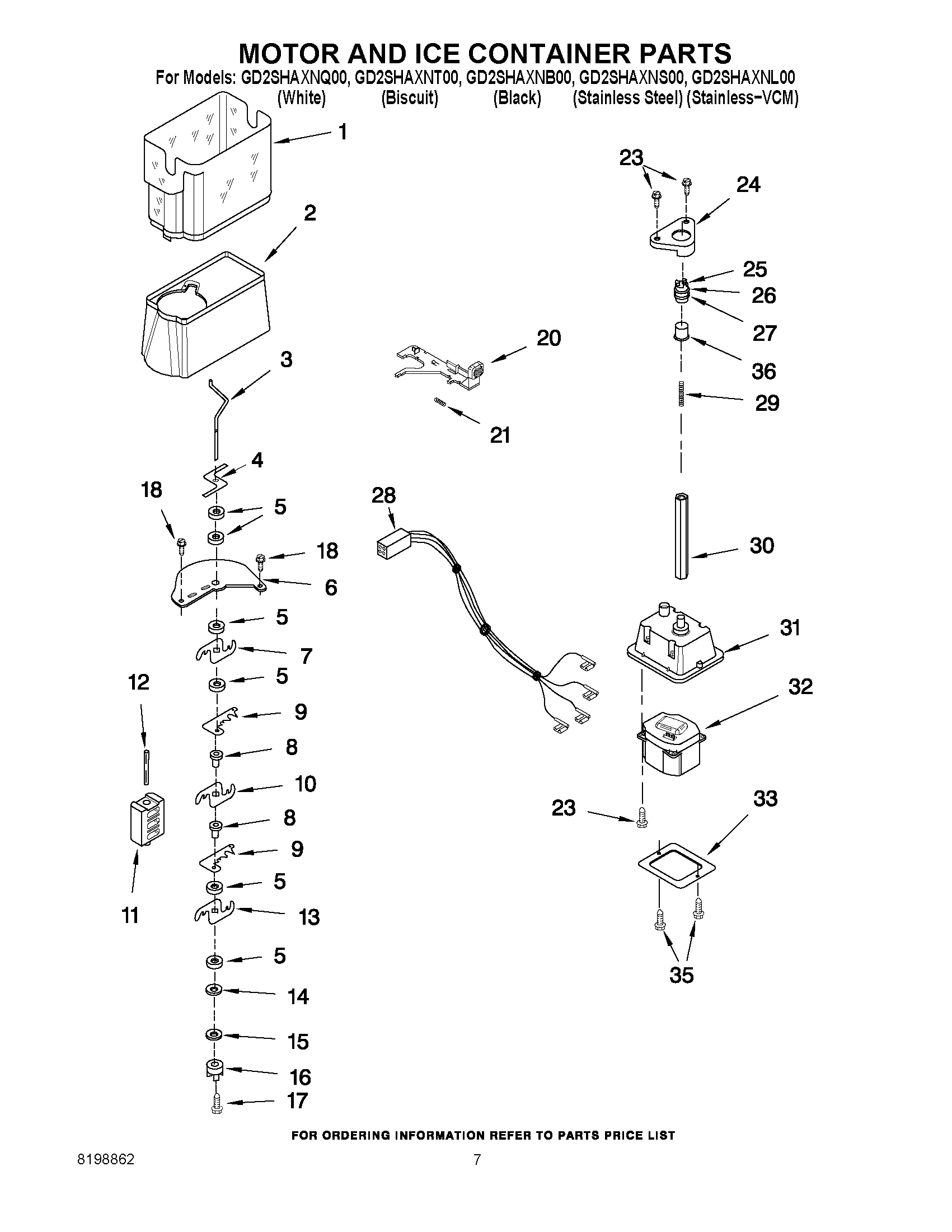

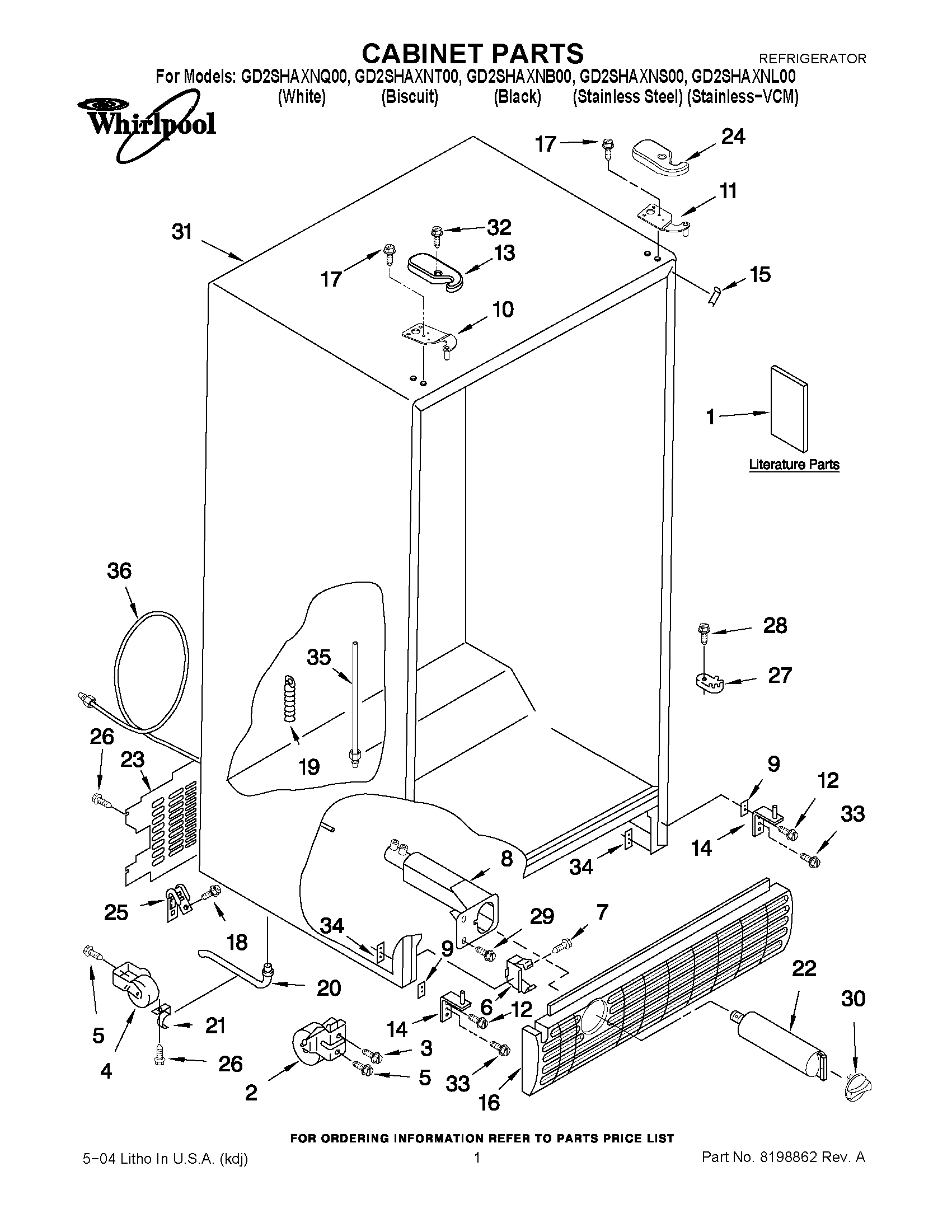

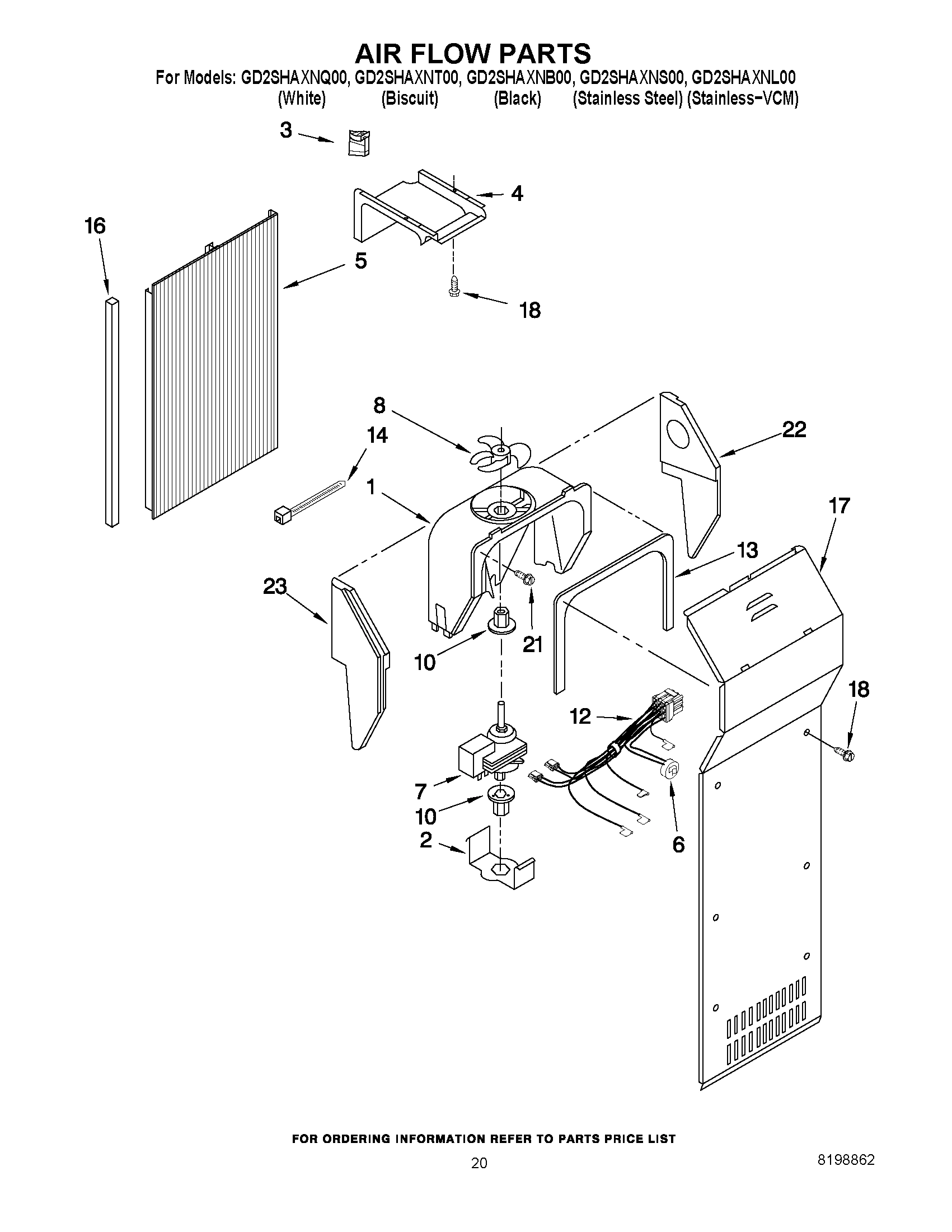

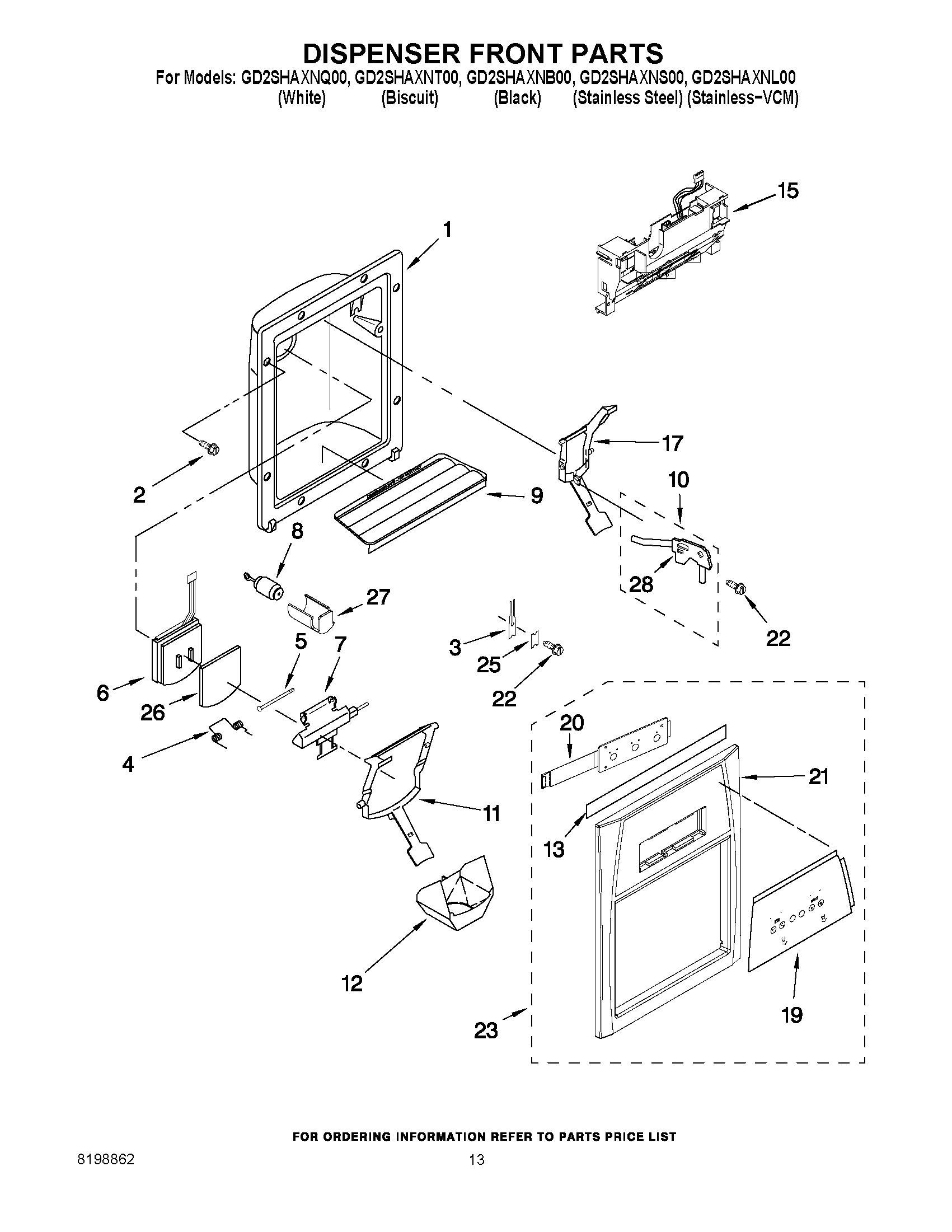

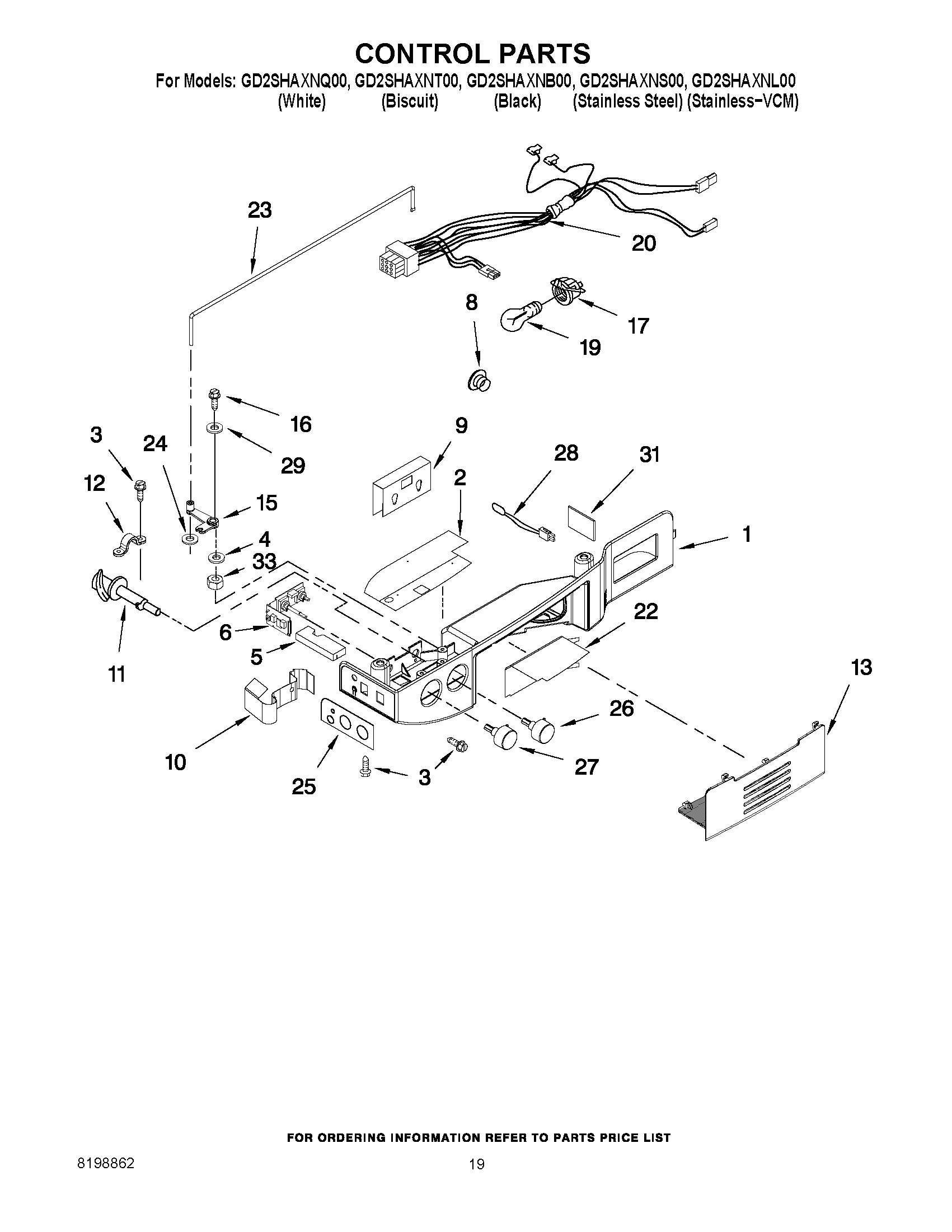

Model Whirlpool GD2SHAXNB00 REFRIGERATOR – Common Parts &amp; Diagrams

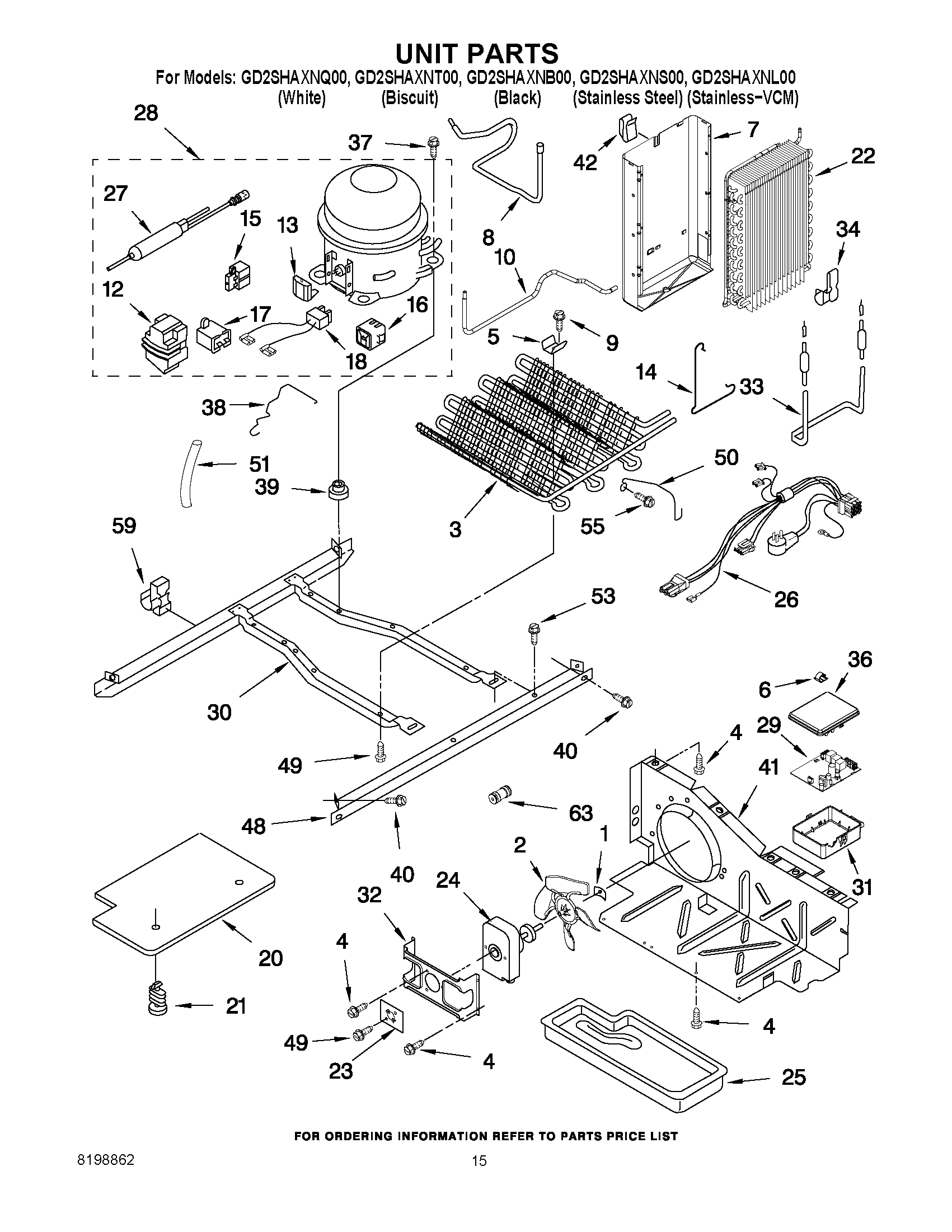

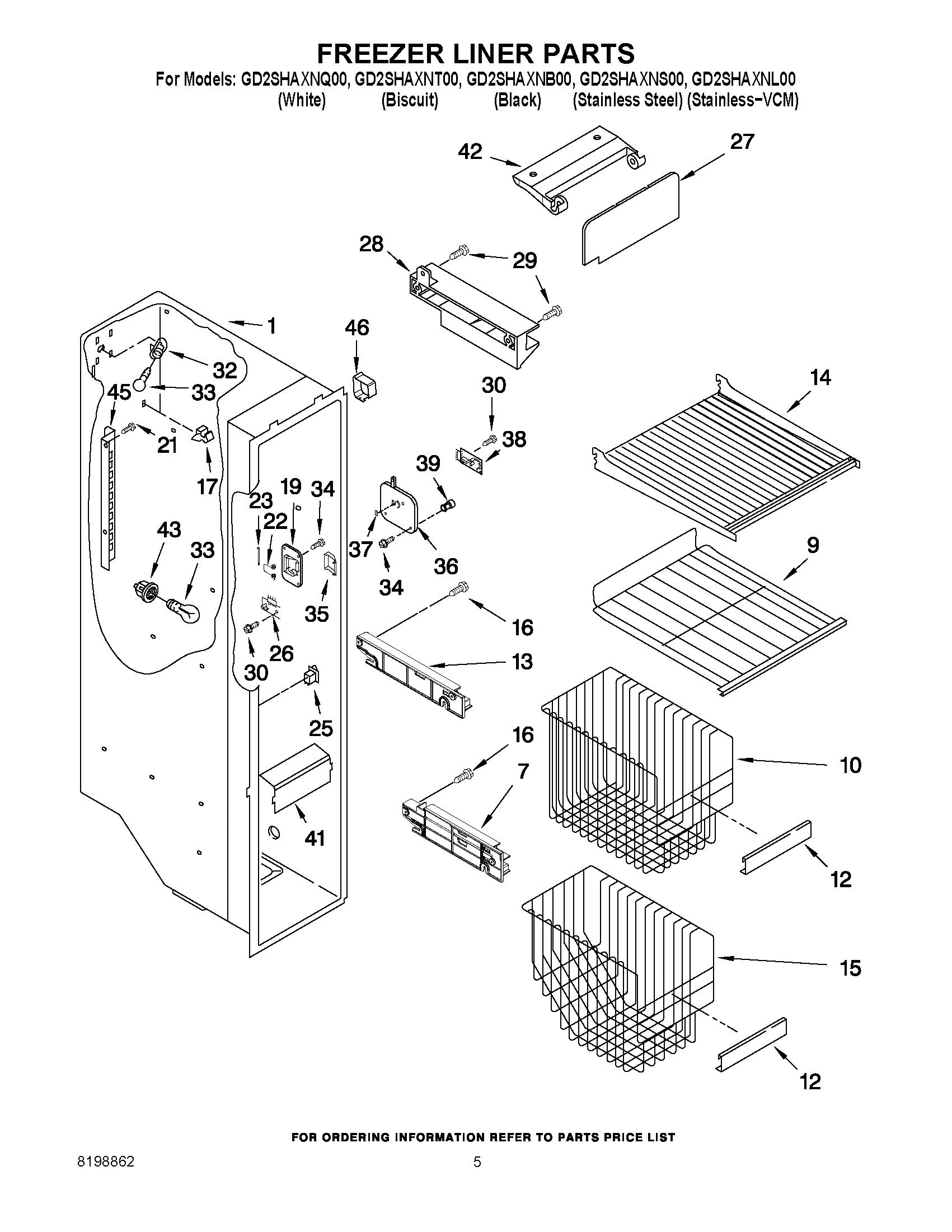

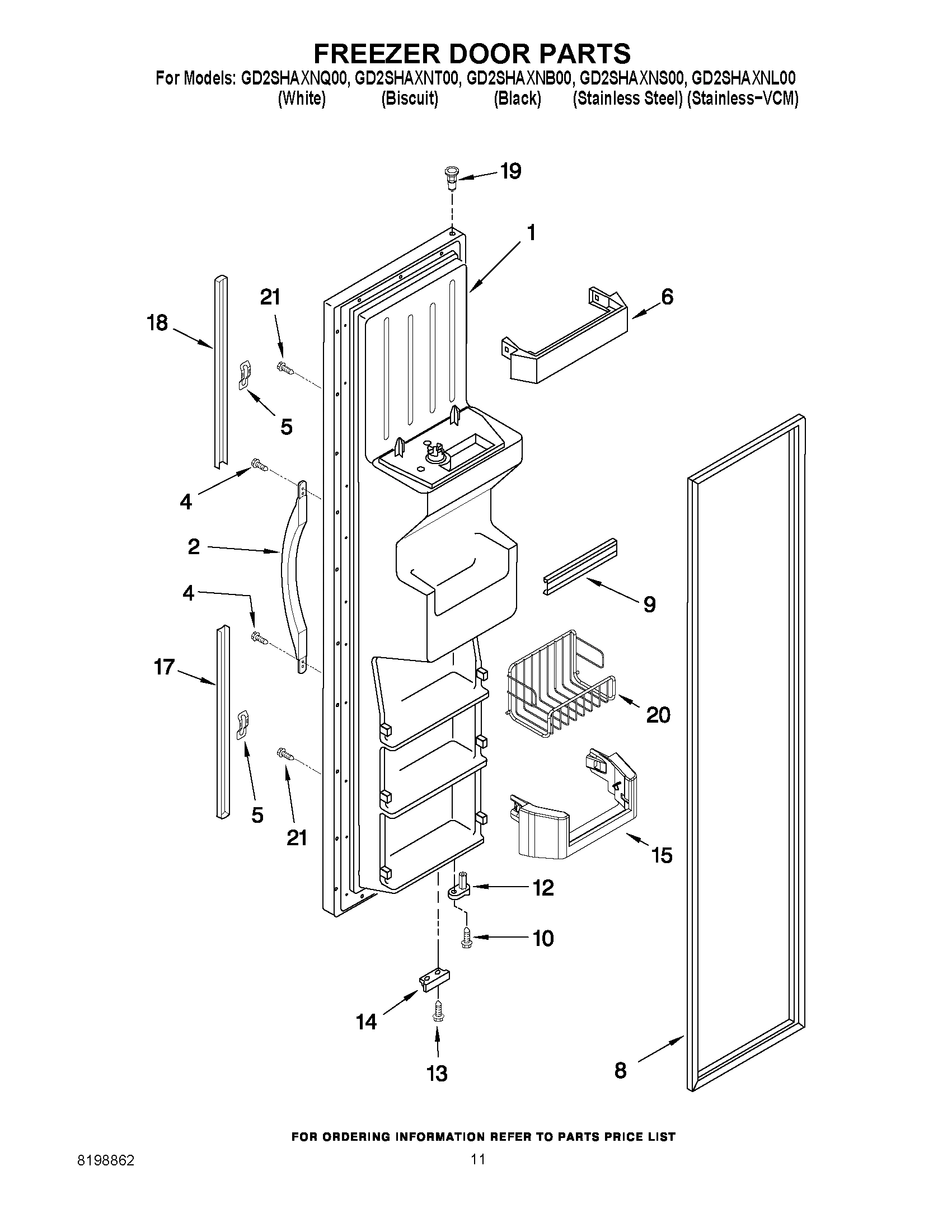

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

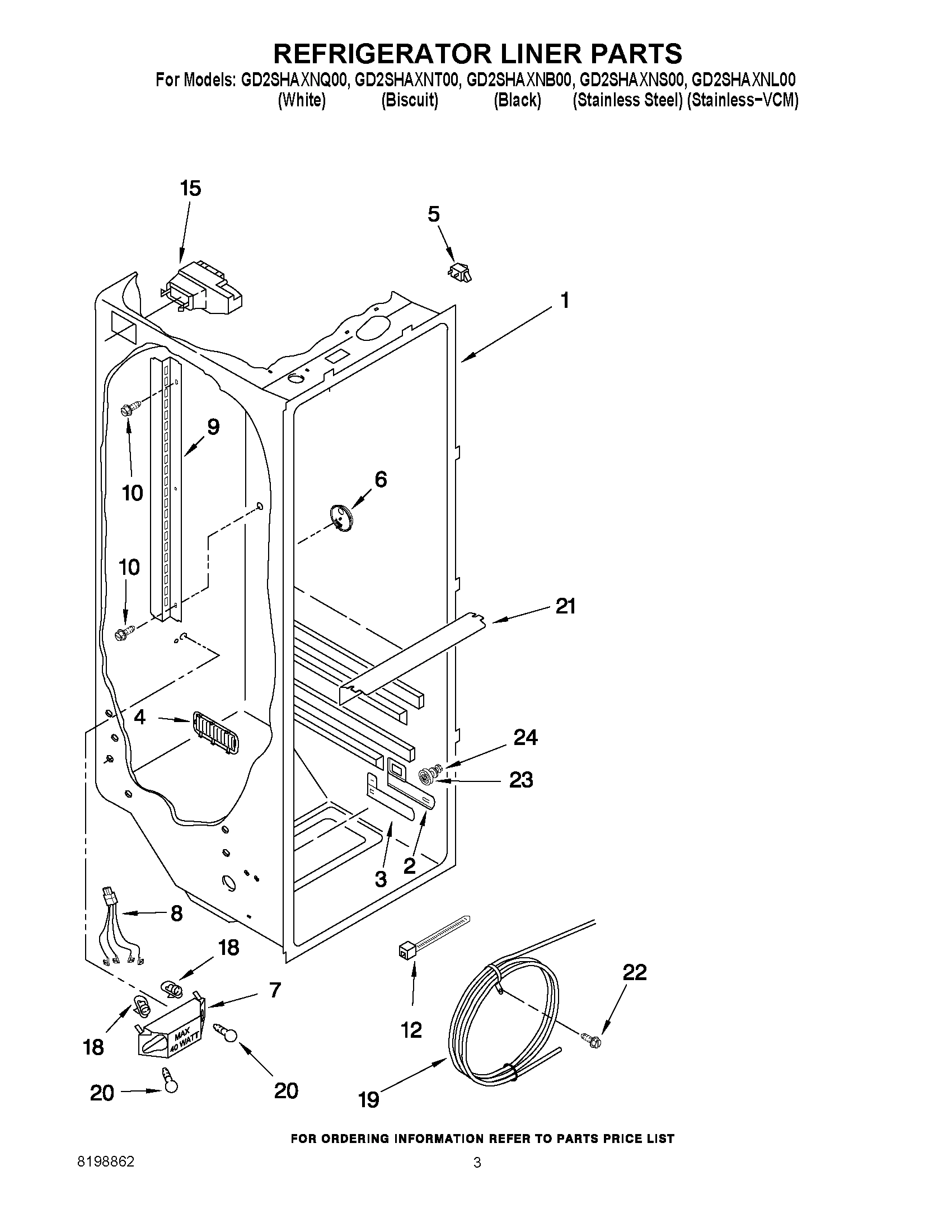

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

Control Box WPL 2255222 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Shield WPL 2255991 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 3400972 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Glass, Cover WPL 2223591 Contact Us For Availability

5

Foam, Shield WPL 2261329 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Glass, Cover WPL 2223714 Contact Us For Availability

6

Electronic Control WPL 2303805 Contact Us For Availability

7

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

7

Track, Basket-Dual (Right) WPL 2301289 Contact Us For Availability

7

Track, Basket-Dual (Left) WPL 2301290 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.99

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Handle, Center (Black) WPL 2186649B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Shelf, Slide Out WPL 2211743 Contact Us For Availability

9

Shield, Electrical WPL 2261232 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

BASKET, TALL (INCLUDES No.12) WPL 2301357 Contact Us For Availability

Shield, Electrical WPL 2261231 Contact Us For Availability

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $60.23

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Nameplate WPL 2220214 Contact Us For Availability

Bearing Body WPL 2255413 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $117.44

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $119.75

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Extension, Top (White) WPL 2194971W Contact Us For Availability

Light Lens WPL 2255225 Contact Us For Availability

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

14

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

14

Shelf WPL 2212343 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

BASKET, SLOPE (INCLUDES No.12) WPL 2301358 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

20

Control Box Harness WPL 2255235 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Light Lens WPL 2209769 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Shelf, Slide Out WPL 2255160 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Connecting Rod WPL 2255228 Contact Us For Availability

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

Escutcheon, Control Box WPL 2255611 Contact Us For Availability

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

Shield, Ice Door WPL 987121 Contact Us For Availability

Knob, RC WPL 2255232 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

Knob, FC WPL 2255992 Contact Us For Availability

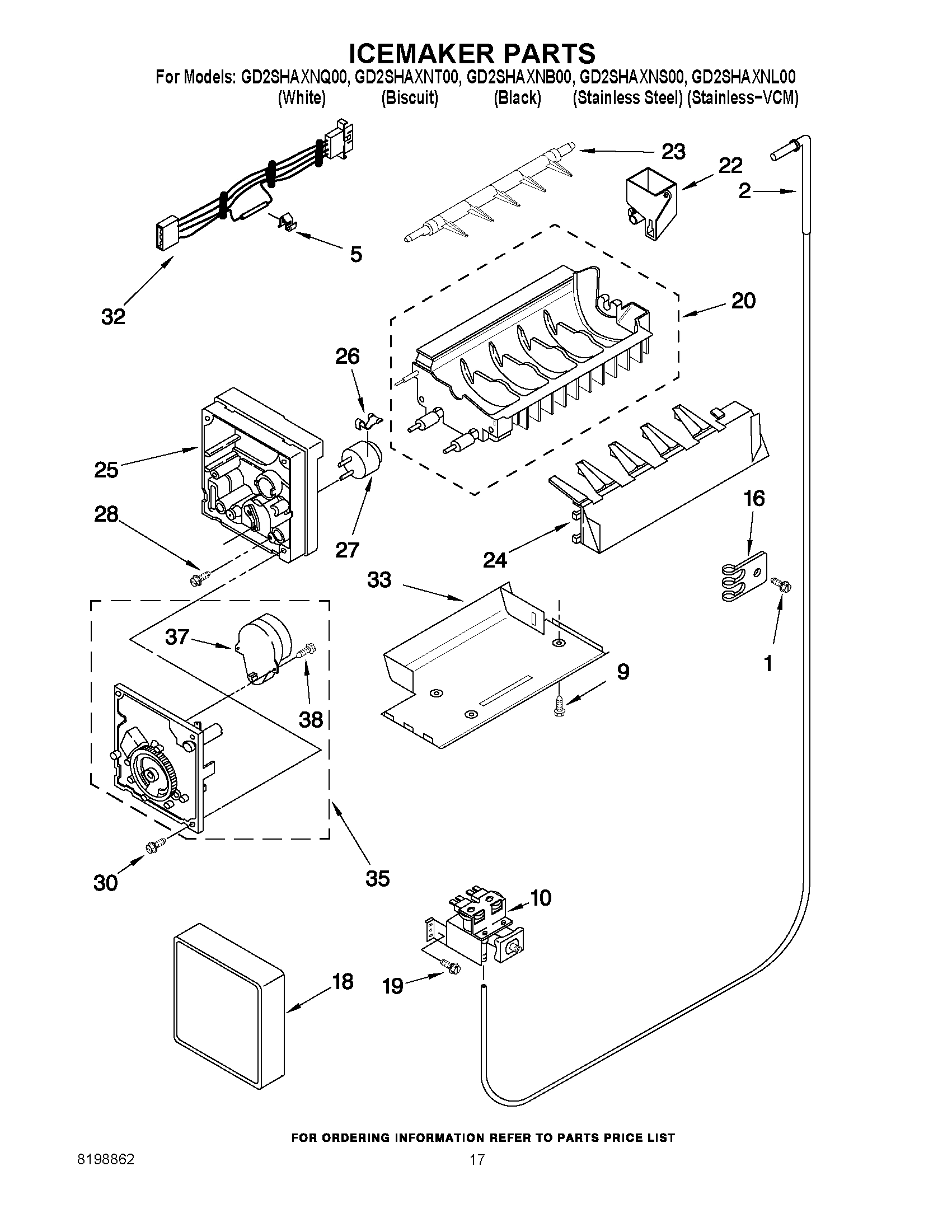

Cover, Icemaker WPL 2255589 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

Control Box WPL 2255623 Contact Us For Availability

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $177.51

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

33

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Nut, Hex WPL 3400971 Contact Us For Availability

34

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2255558 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $62.24

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 2255576 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, BLACK (1 QT. UN WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
