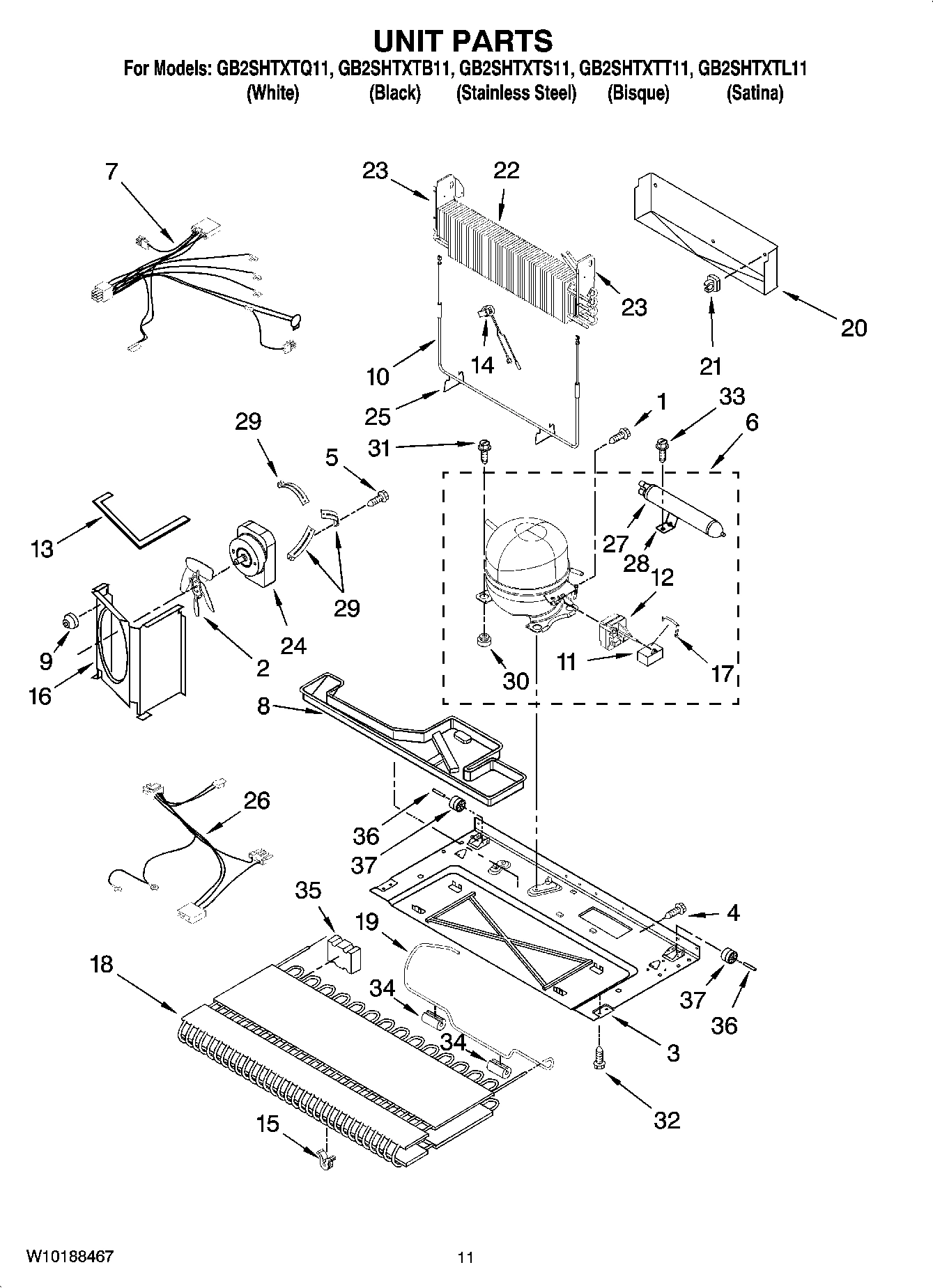

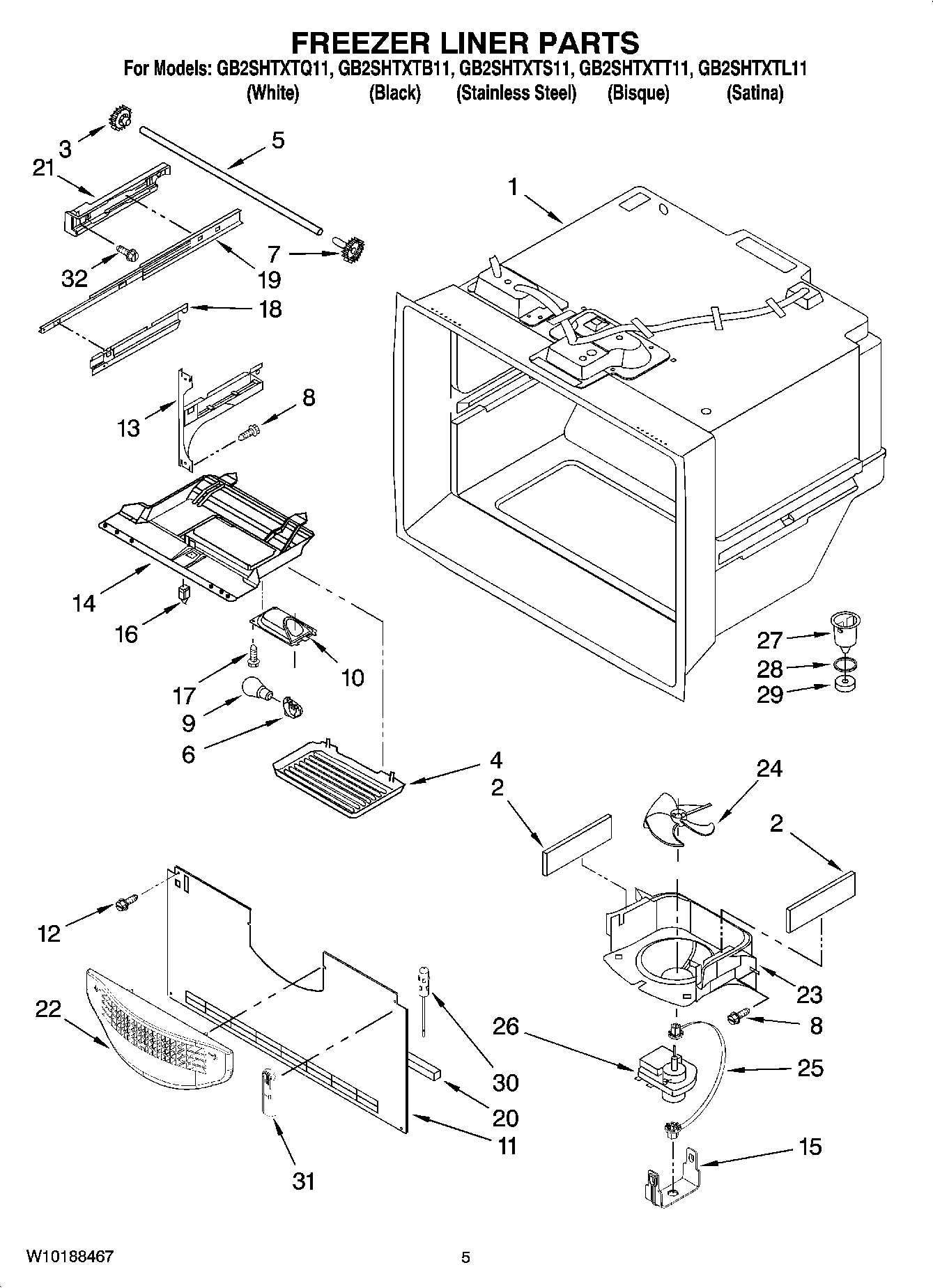

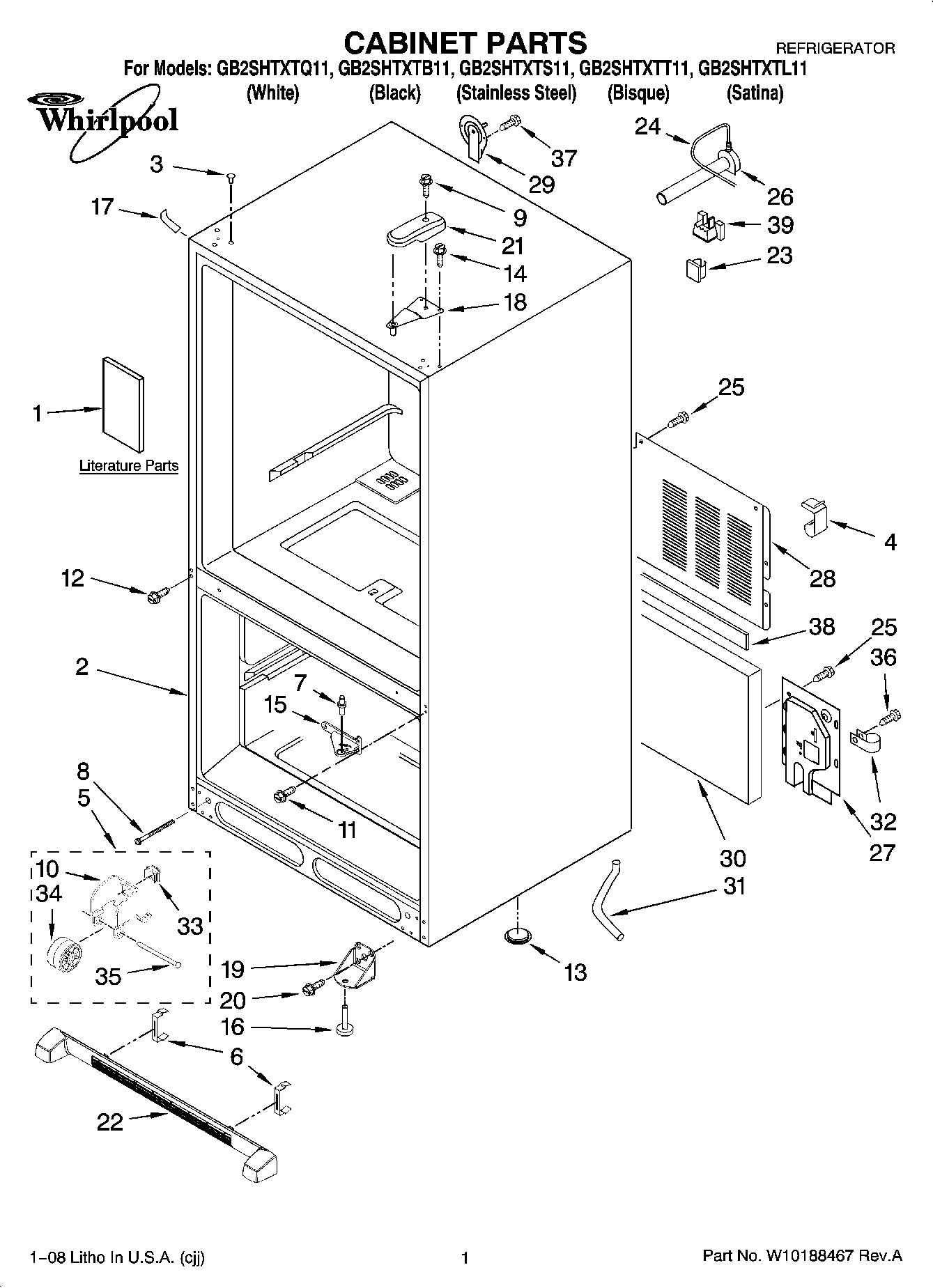

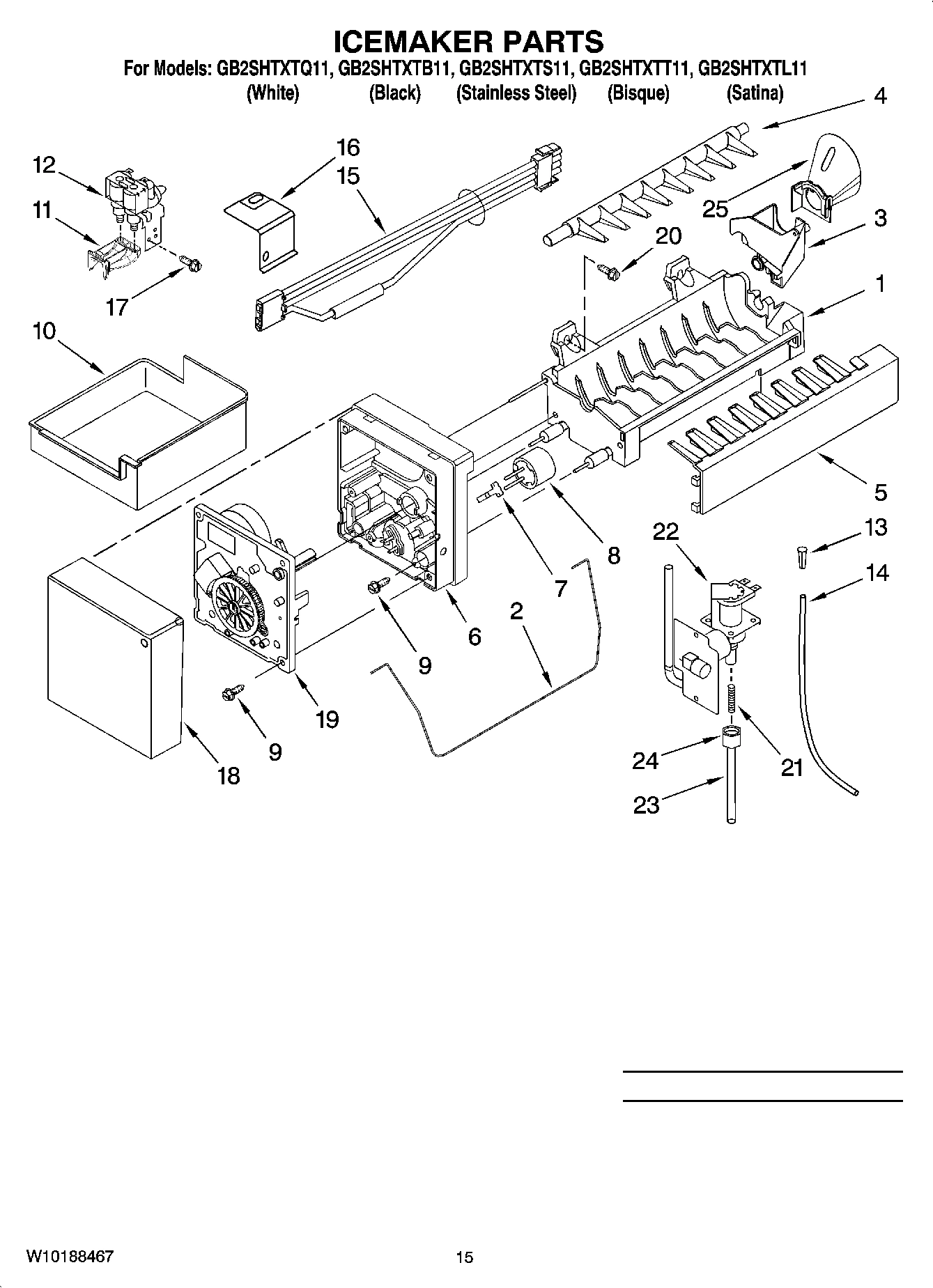

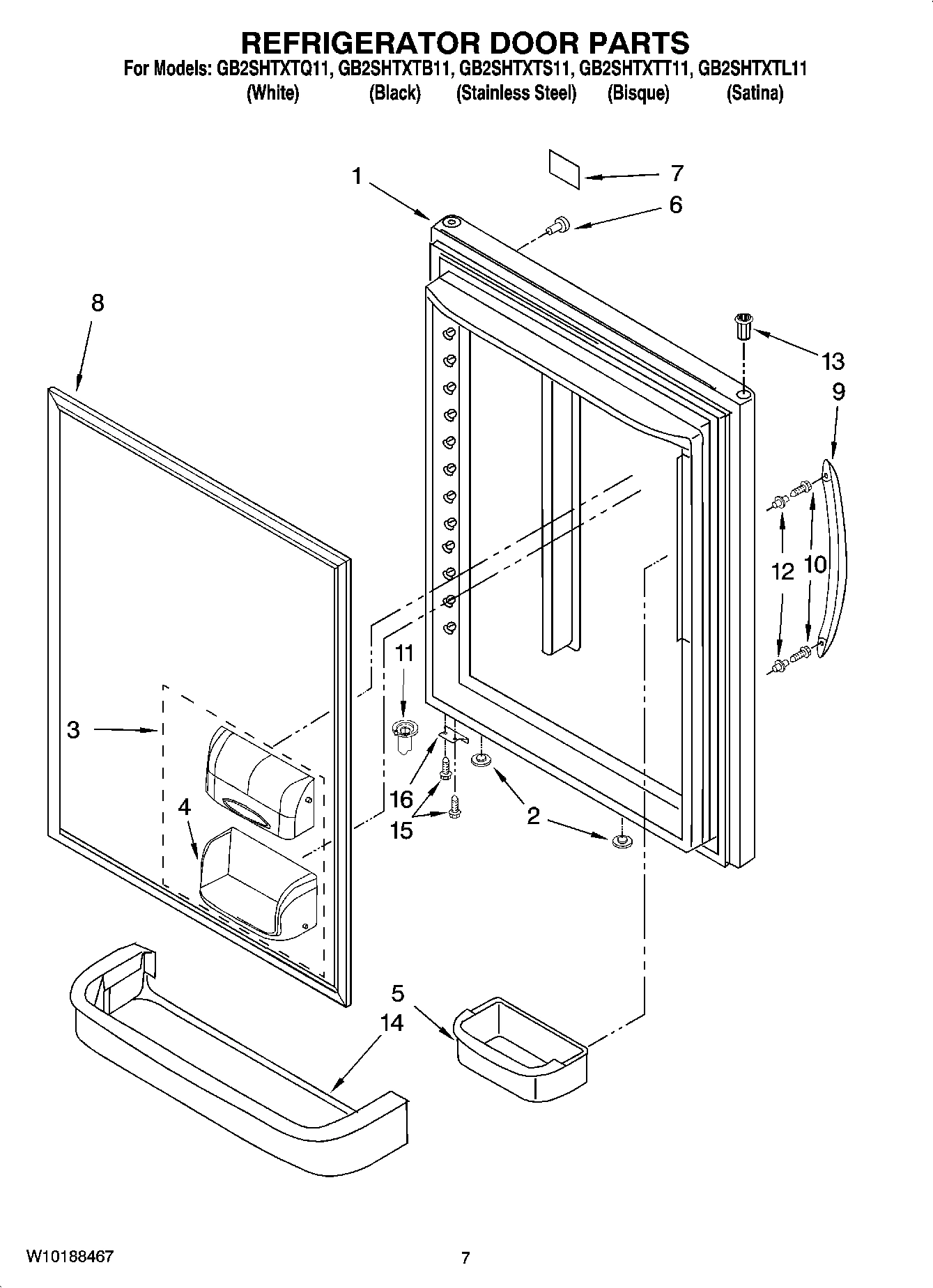

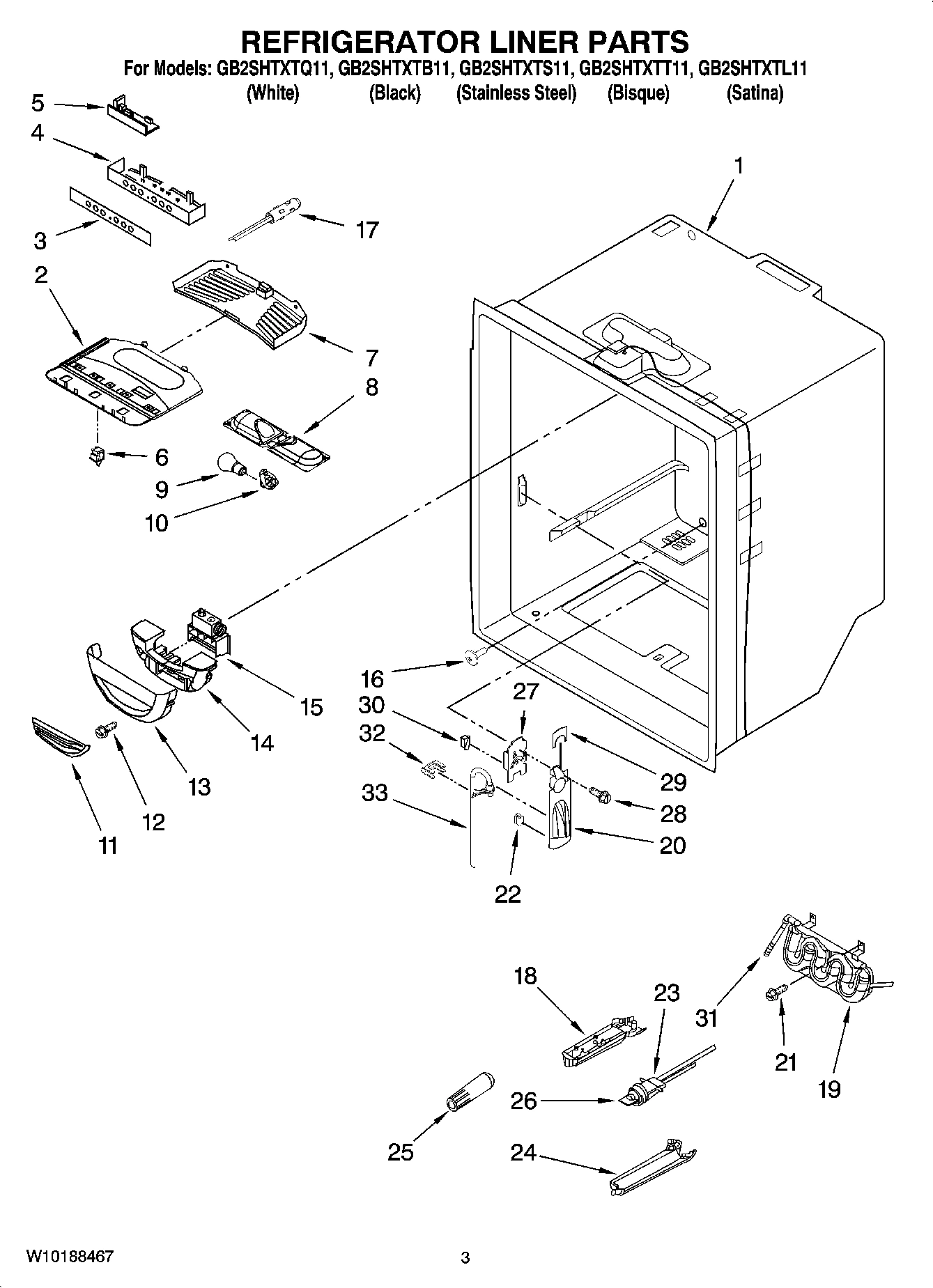

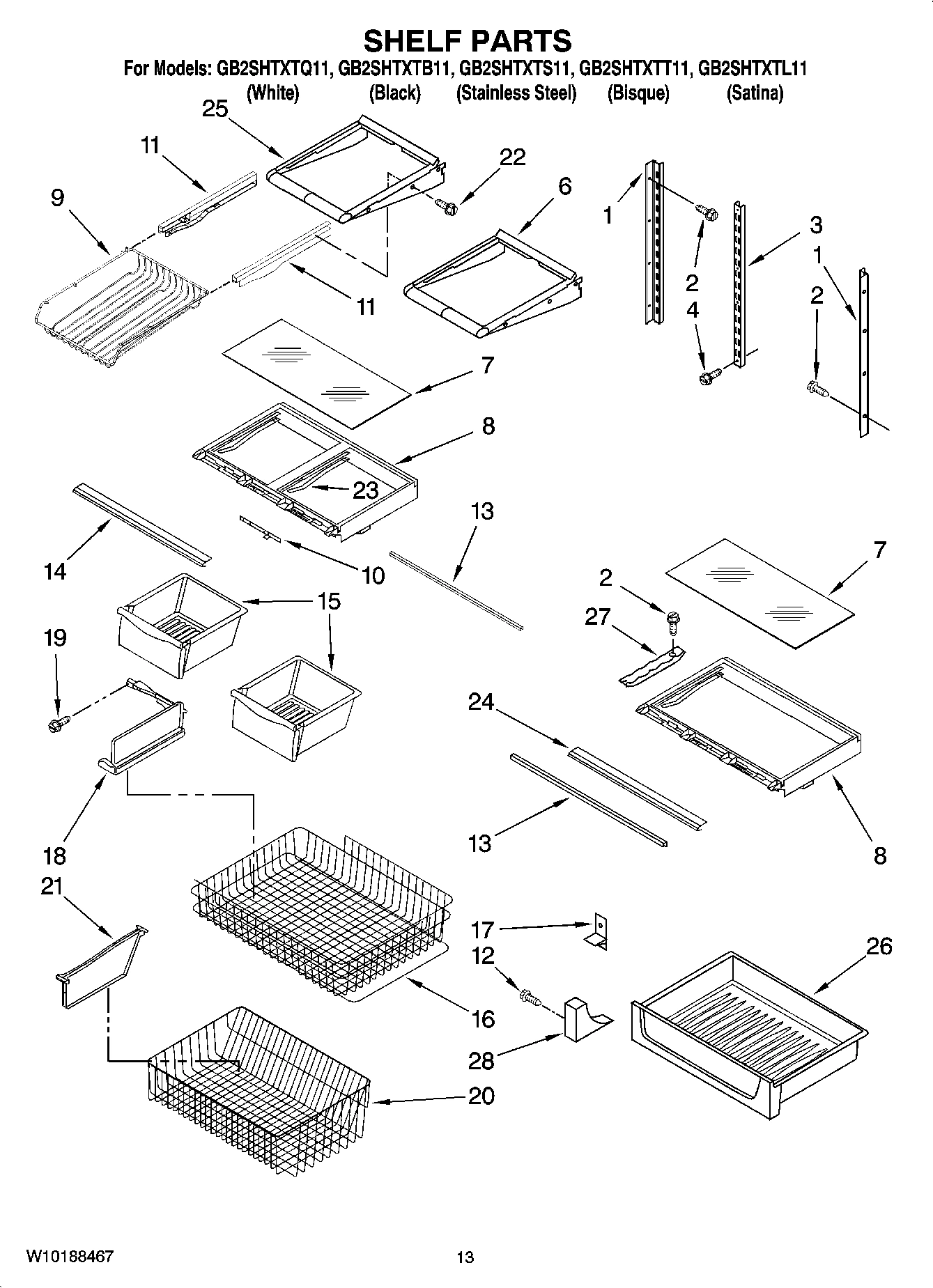

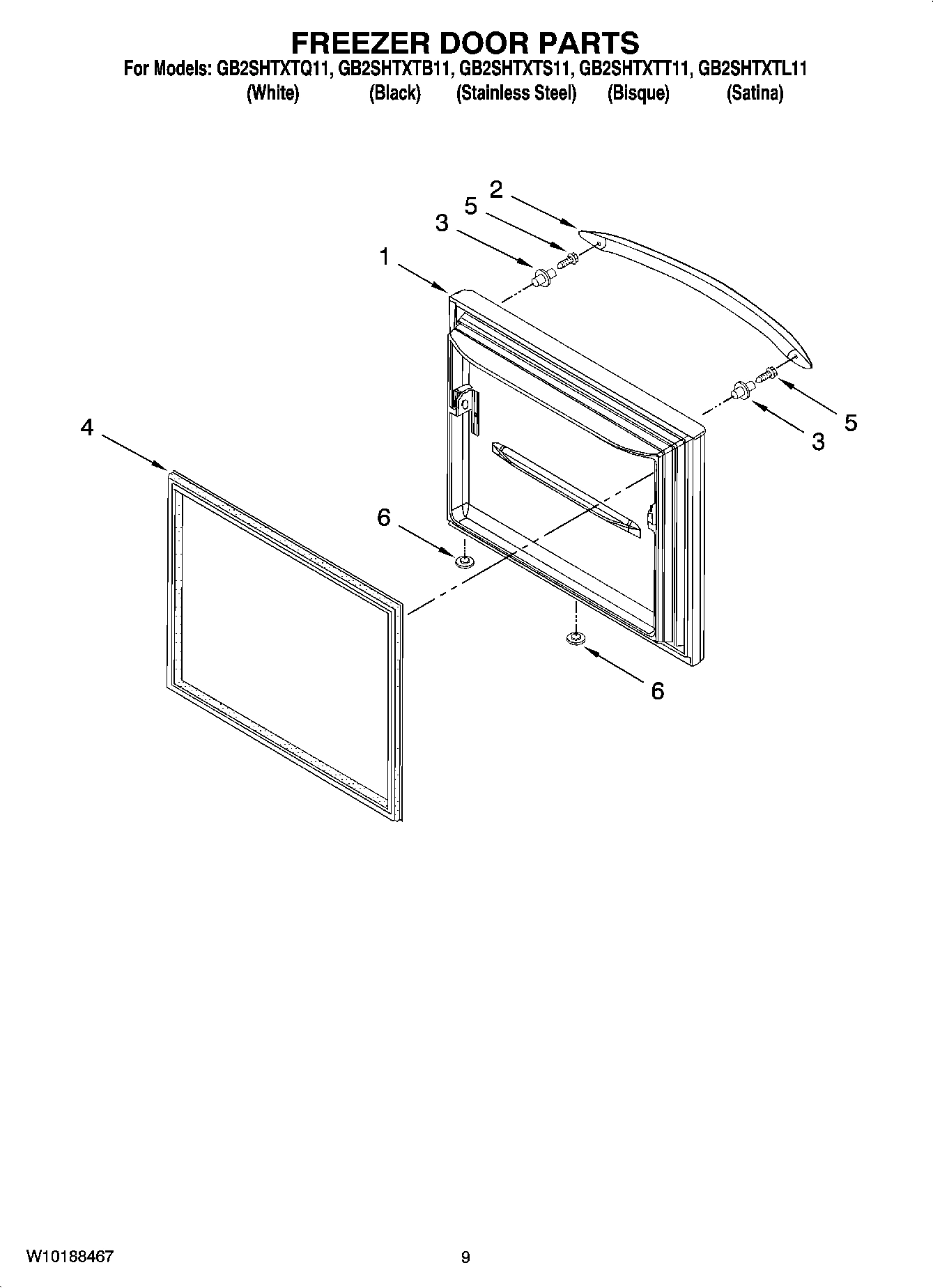

Model Whirlpool GB2SHTXTS11 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $22.65

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

W11619328 Whirlpool Wire Harness In Stock WPL W11619328 $51.96

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI147668A Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI147669A Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI147670A Contact Us For Availability

Cleaner, Stainless Steel WPL 31462 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Following Parts Not Illustra WPL ARI147674A Contact Us For Availability

WPL ARI147675A WPL ARI147675A Contact Us For Availability

WPL ARI147676A WPL ARI147676A Contact Us For Availability

WPL ARI147677A WPL ARI147677A Contact Us For Availability

WPL ARI147678A WPL ARI147678A Contact Us For Availability

WPL ARI147679A WPL ARI147679A Contact Us For Availability

Following Parts Not Illustrated WPL ARI147666A Contact Us For Availability

1

12658533BQ Whirlpool Refrigerator FIP Door Backorder WPL 12658533BQ $778.59

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $21.63

1

Liner (Not A Seviceable Part) WPL ARI147667A Contact Us For Availability

1

Mold & Heater Assembly (Not Available Order D WPL ARI147671A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI147665A Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Bisque) WPL 67004776 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 67004777 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Stainless WPL W10187674 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Satina) WPL W10187675 Contact Us For Availability

2

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $7.01

2

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.35

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $37.72

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.51

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.88

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $64.71

3

Basepan WPL 67005744 Contact Us For Availability

3

Cup, Fill WPL 951001 Contact Us For Availability

3

Overlay WPL 67005190 Contact Us For Availability

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $44.66

4

Cover, Light WPL 67003905 Contact Us For Availability

4

Ejector WPL 951011 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $40.64

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $50.42

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $150.54

5

Ice Stripper WPL 951021 Contact Us For Availability

6

W10709784 Whirlpool Refrigerator Handle Plug Backorder WPL W10709784 $15.93

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $4.19

6

WP12246610 Whirlpool Refrigerator Handle Plug In Stock WPL WP12246610 $4.51

6

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.19

6

COMPRESSOR WPL W10130129 Contact Us For Availability

6

Support & Motor Assembly WPL 951031 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $43.81

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

7

Retainer, Thermostat WPL 951041 Contact Us For Availability

7

Nameplate WPL 67002684 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $70.32

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $147.58

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $181.24

8

Drain Pan WPL 67004713 Contact Us For Availability

8

Thermostat (Not Available Order D7824706Q) WPL ARI147672A Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $174.02

9

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $162.75

9

Grommet (3) WPL 61004743 Contact Us For Availability

9

Screw (4) WPL 951061 Contact Us For Availability

9

Handle, Door (Stainless Steel) WPL 2254600S Contact Us For Availability

9

Handle, Door (Bisque) WPL 2254600T Contact Us For Availability

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.59

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $90.21

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.19

Housing, Frz. Light WPL 67001035 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $129.25

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.22

Capacitor (See Item 12) WPL 2164017 Contact Us For Availability

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.58

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $132.73

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $63.70

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $6.28

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $45.66

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.19

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $67.83

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $72.57

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $76.82

Backorder WPL W11750607 $29.70

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.22

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.62

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $47.01

Trim, Door Shelf WPL 67001748 Contact Us For Availability

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $69.72

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $57.30

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.87

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.19

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.00

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $36.05

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.01

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $8.00

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

Shroud, Condenser WPL W10158508 Contact Us For Availability

Bracket WPL 951071 Contact Us For Availability

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $15.96

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $12.24

W10136415 Whirlpool Clip Backorder WPL W10136415 $55.94

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $14.93

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

Cover, Corner (Bisque) WPL 67003486 Contact Us For Availability

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $19.53

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.65

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $221.82

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $42.36

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $42.36

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $86.05

Tank, Water WPL W10153958 Contact Us For Availability

Bracket, Foot WPL 67007174 Contact Us For Availability

Tube, Discharge WPL W10167036 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI147673A Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.22

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $16.57

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $116.70

Dispenser WPL W10158503 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $43.21

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $16.76

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

WPW10284681 Whirlpool Refrigerator Bracket Backorder WPL WPW10284681 $188.19

Cover, Hinge (Bisque) WPL 67001013 Contact Us For Availability

Bracket, Slide (Left) WPL W10128118 Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

SPRING WPL A1055105 Contact Us For Availability

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $315.69

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $8.08

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $73.43

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $57.53

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $58.15

Grille Assembly (Includes Clips) (Bisque) WPL 67006791 Contact Us For Availability

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.43

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $6.99

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $89.69

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $44.34

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $53.79

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.33

Motor, Fan WPL 67004432 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.42

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $65.34

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $29.16

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.57

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.43

Harness, Unit (Includes Cord) WPL W10188474 Contact Us For Availability

Head, Filter Bypass WPL 12664501 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $51.89

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $67.70

Cover, Water Valve WPL 67004611 Contact Us For Availability

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $7.15

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

28

Cover, Unit WPL 12575101ED Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $9.16

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.49

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $45.92

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $36.15

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.19

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $14.22

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $13.59

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.87

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $17.13

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $3.51

Screw (6) WPL 67006573 Contact Us For Availability

33

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $41.67

33

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.41

33

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $56.40

34

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

34

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.20

35

Pin WPL M1205302 Contact Us For Availability

35

Block, Condenser WPL 67005491 Contact Us For Availability

36

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.20

37

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $12.24

38

Gasket WPL B5759649 Contact Us For Availability

39

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $5.73

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $123.26
