Model Whirlpool ET25DQRBW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

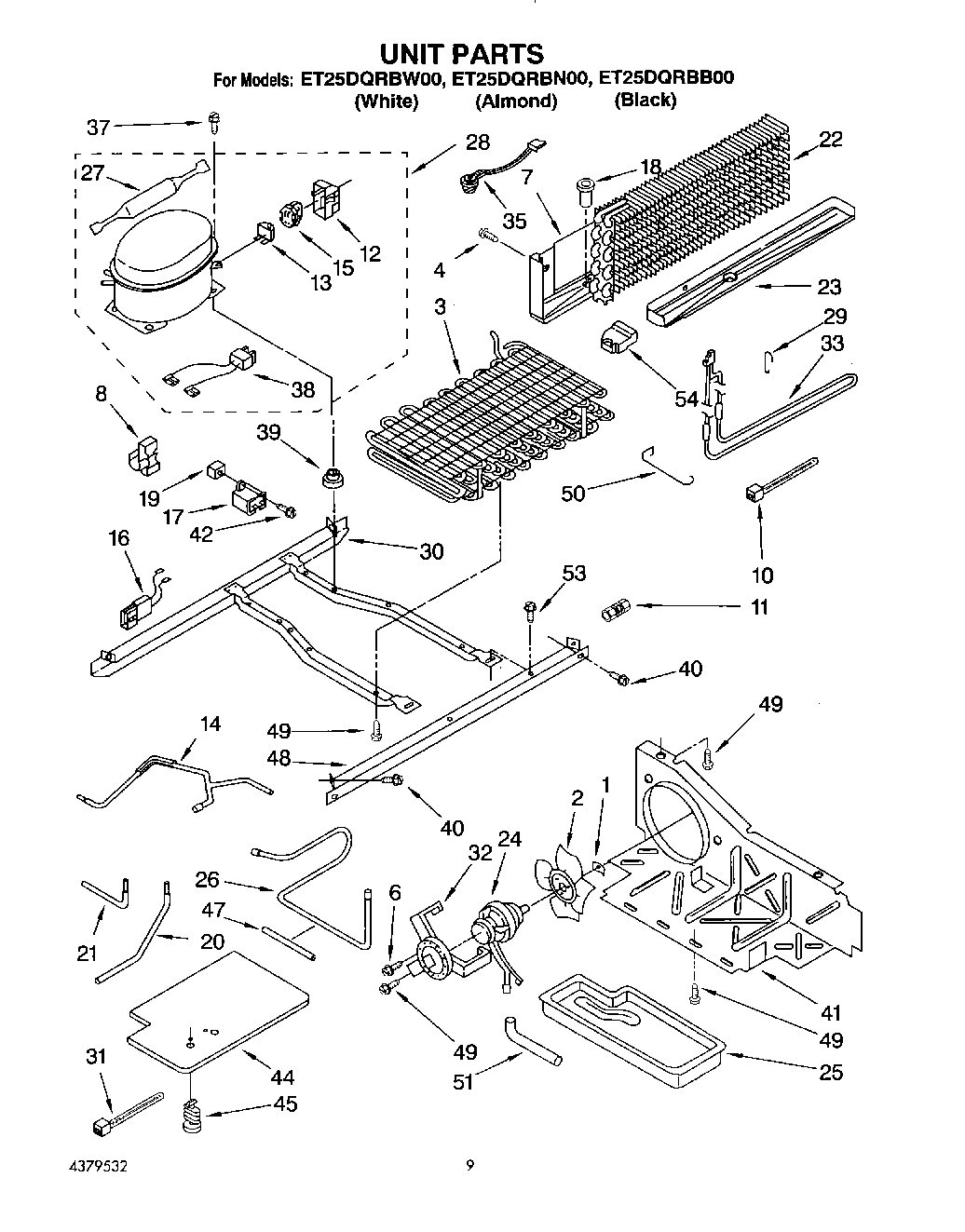

06 - UNIT

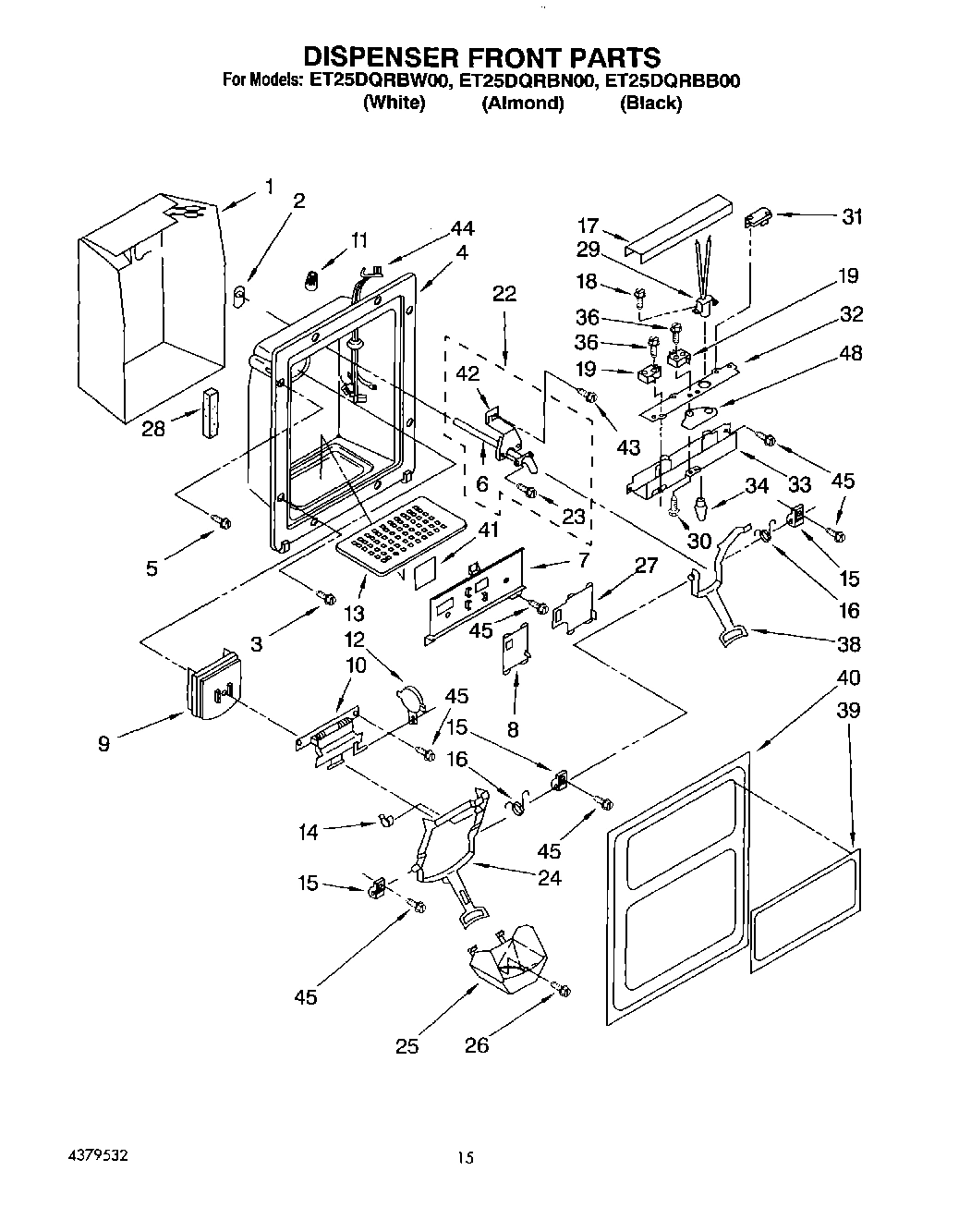

09 - DISPENSER FRONT

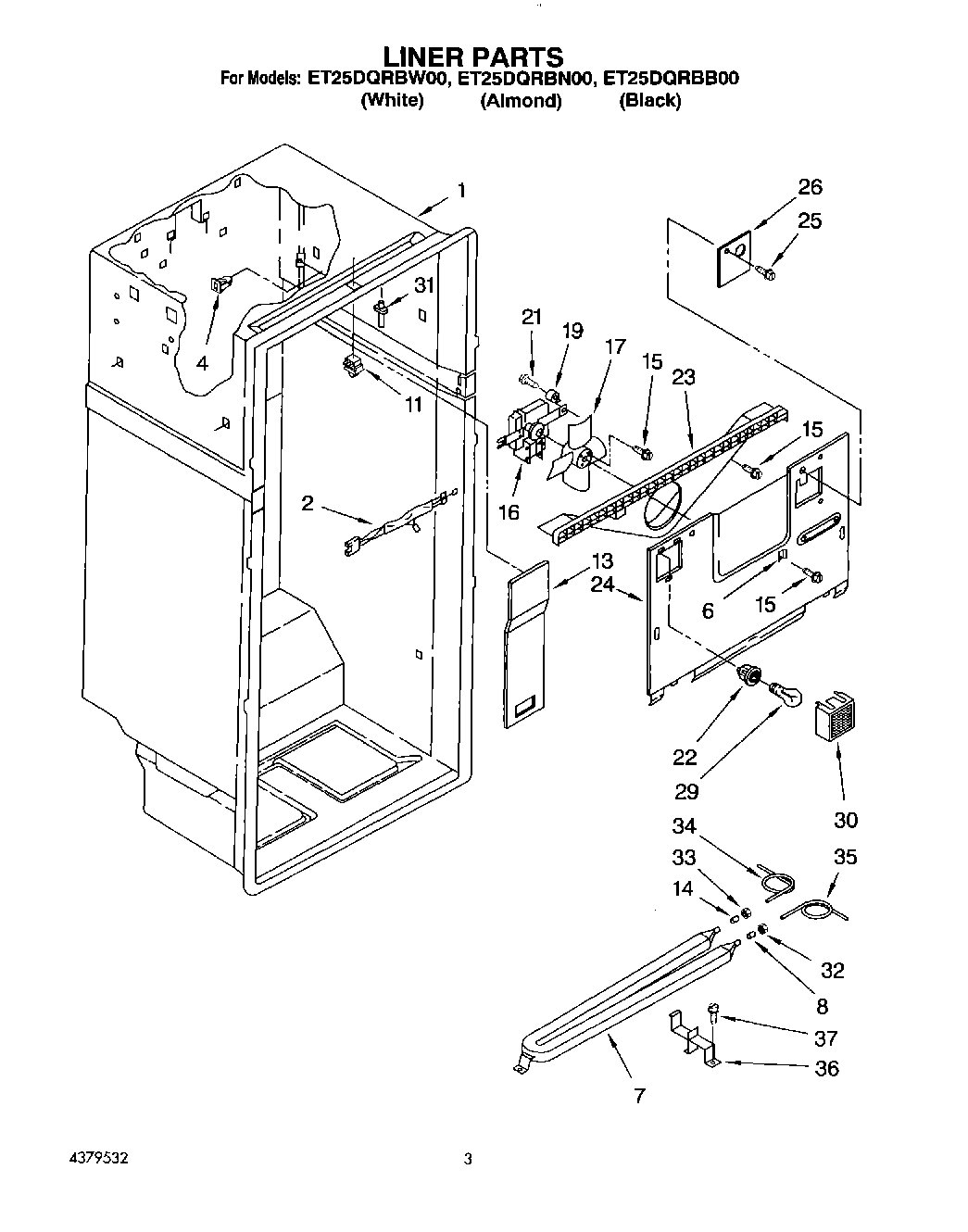

02 - LINER

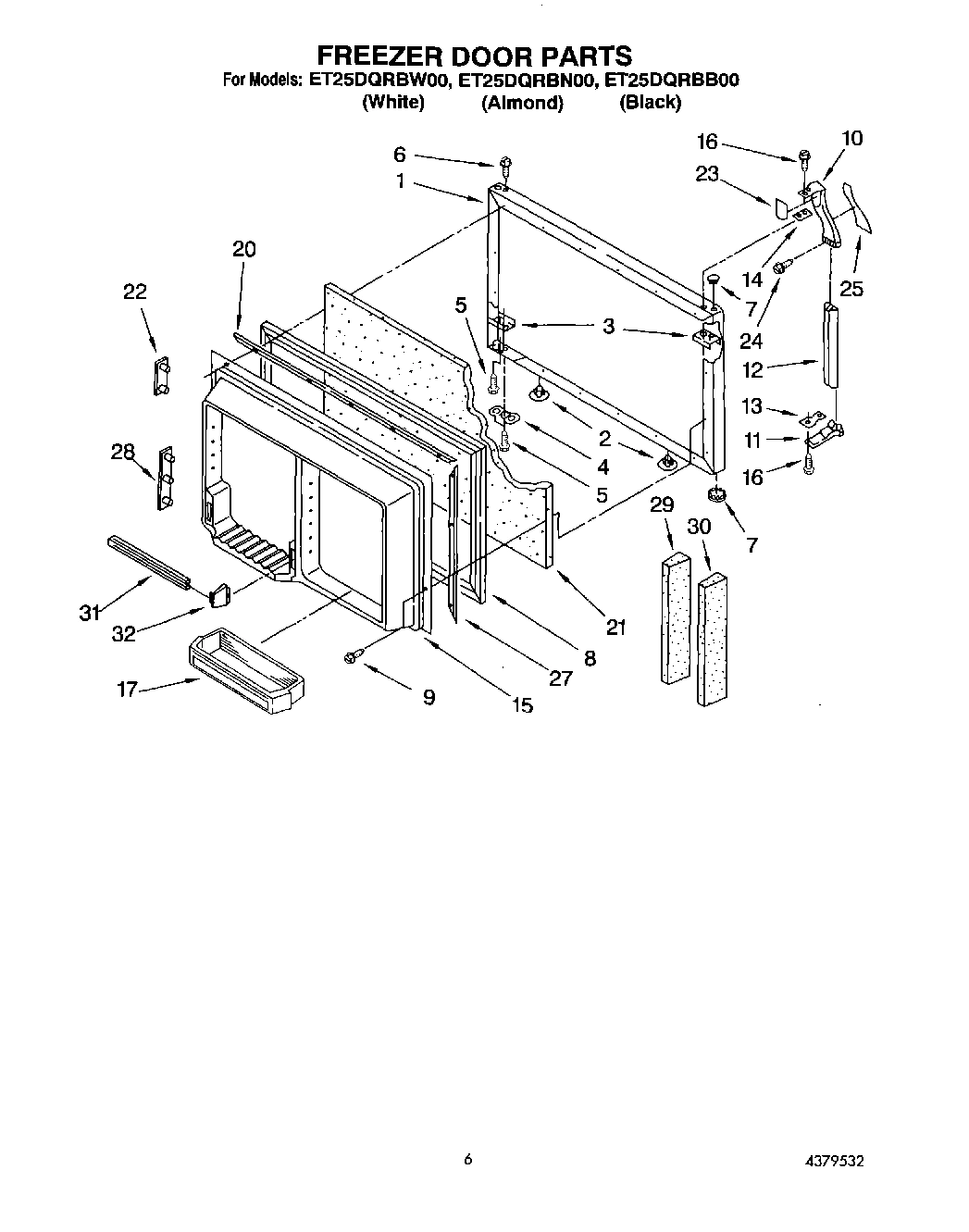

04 - FREEZER DOOR

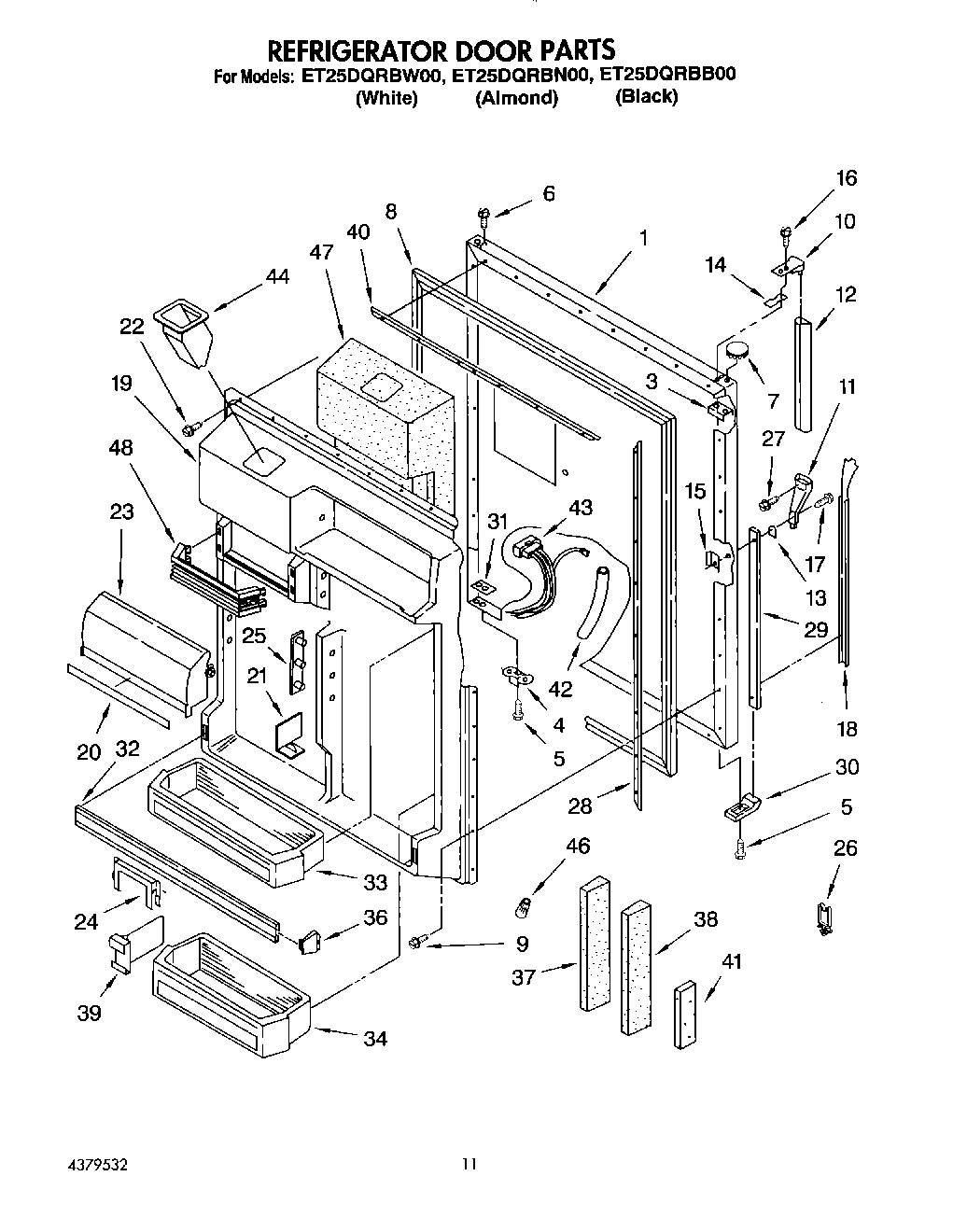

07 - REFRIGERATOR DOOR

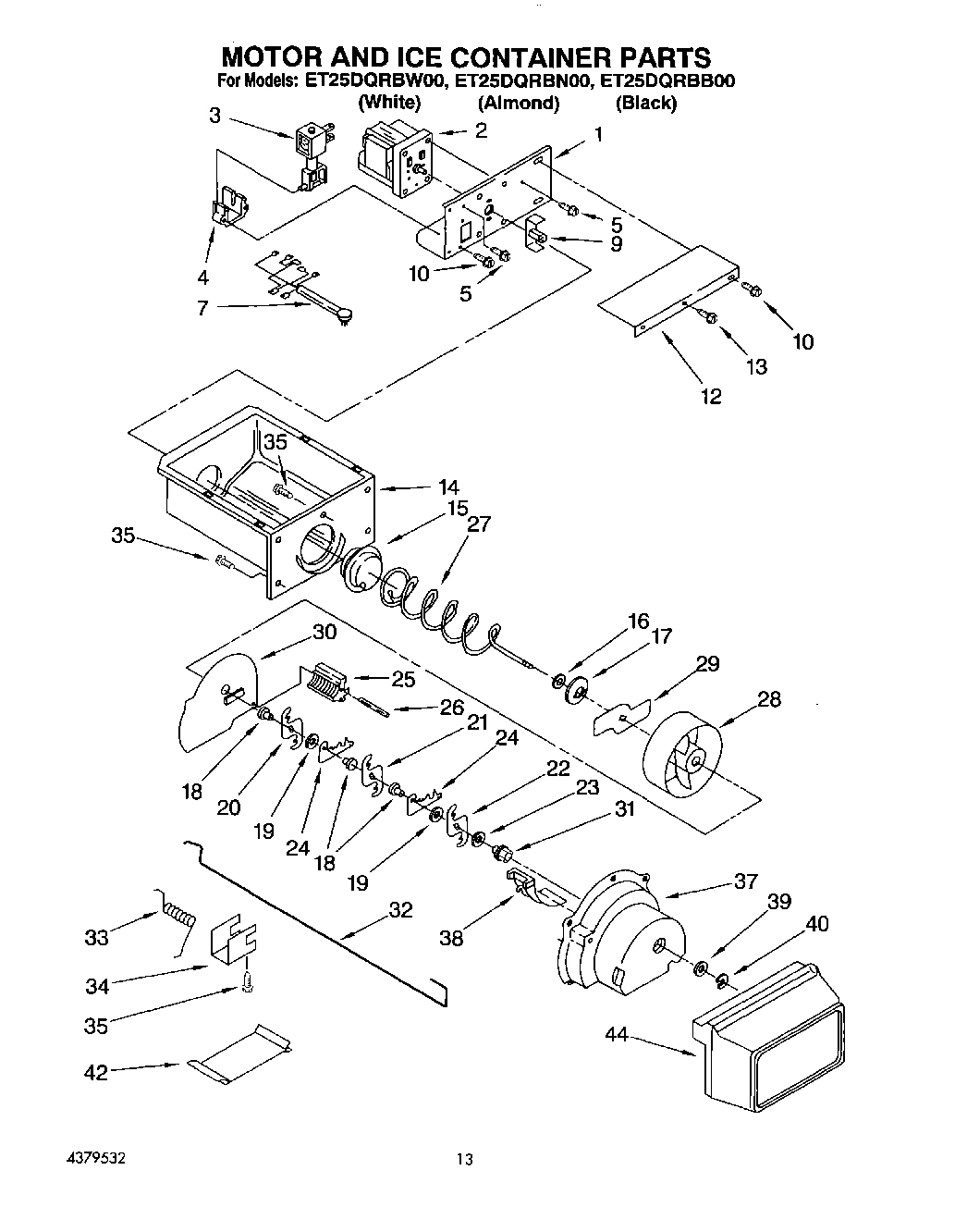

08 - MOTOR AND ICE CONTAINER

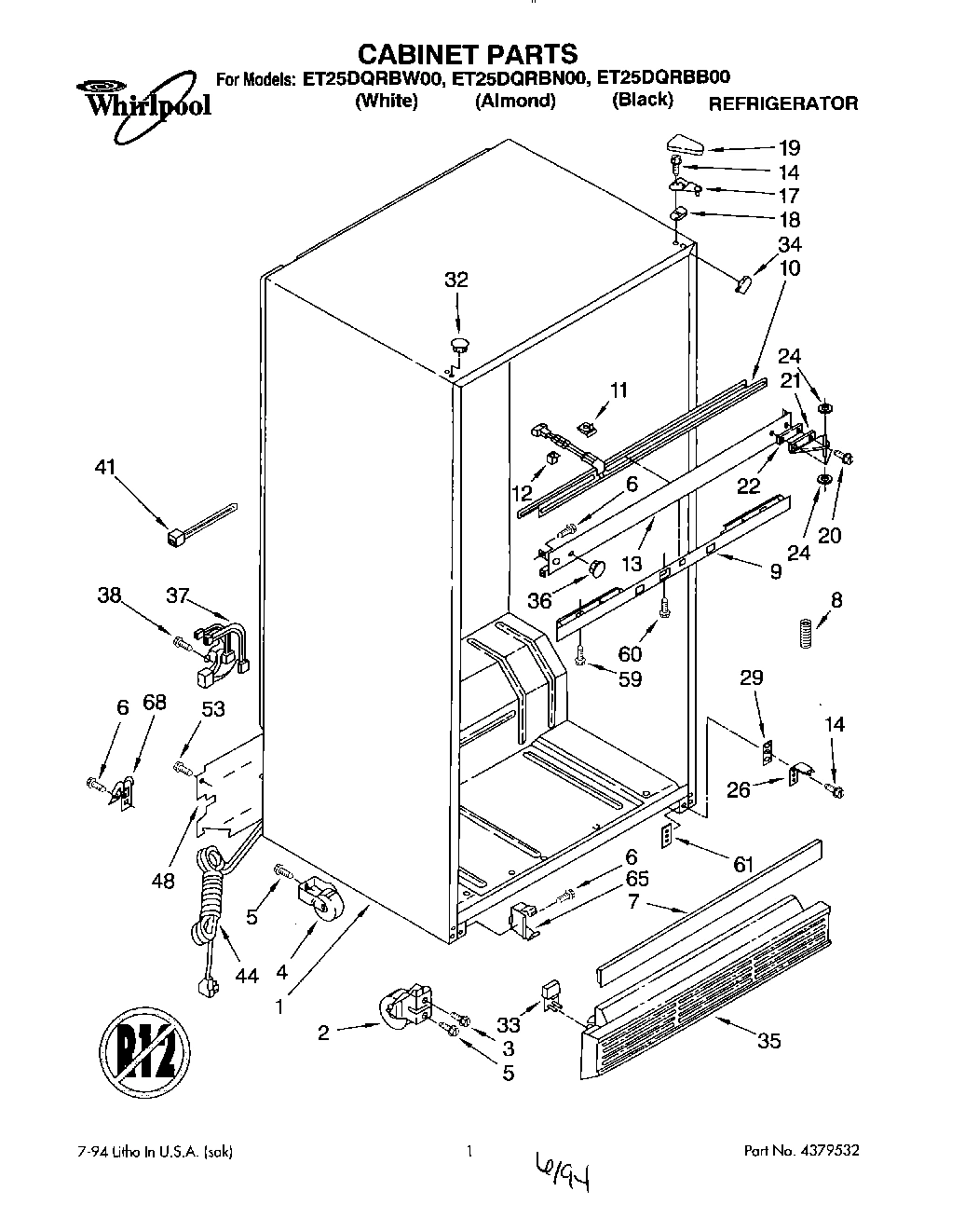

01 - CABINET

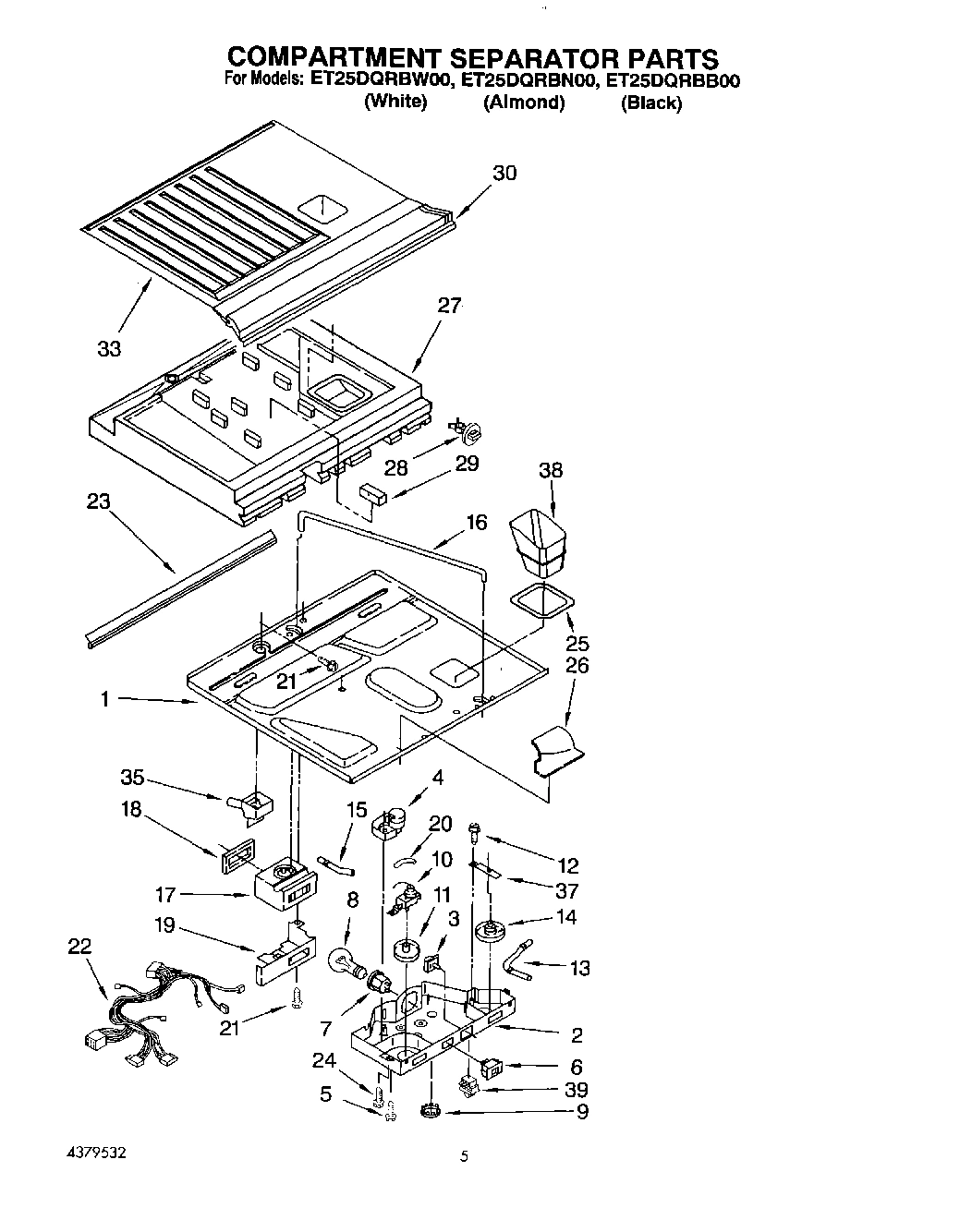

03 - COMPARTMENT SEPARATOR

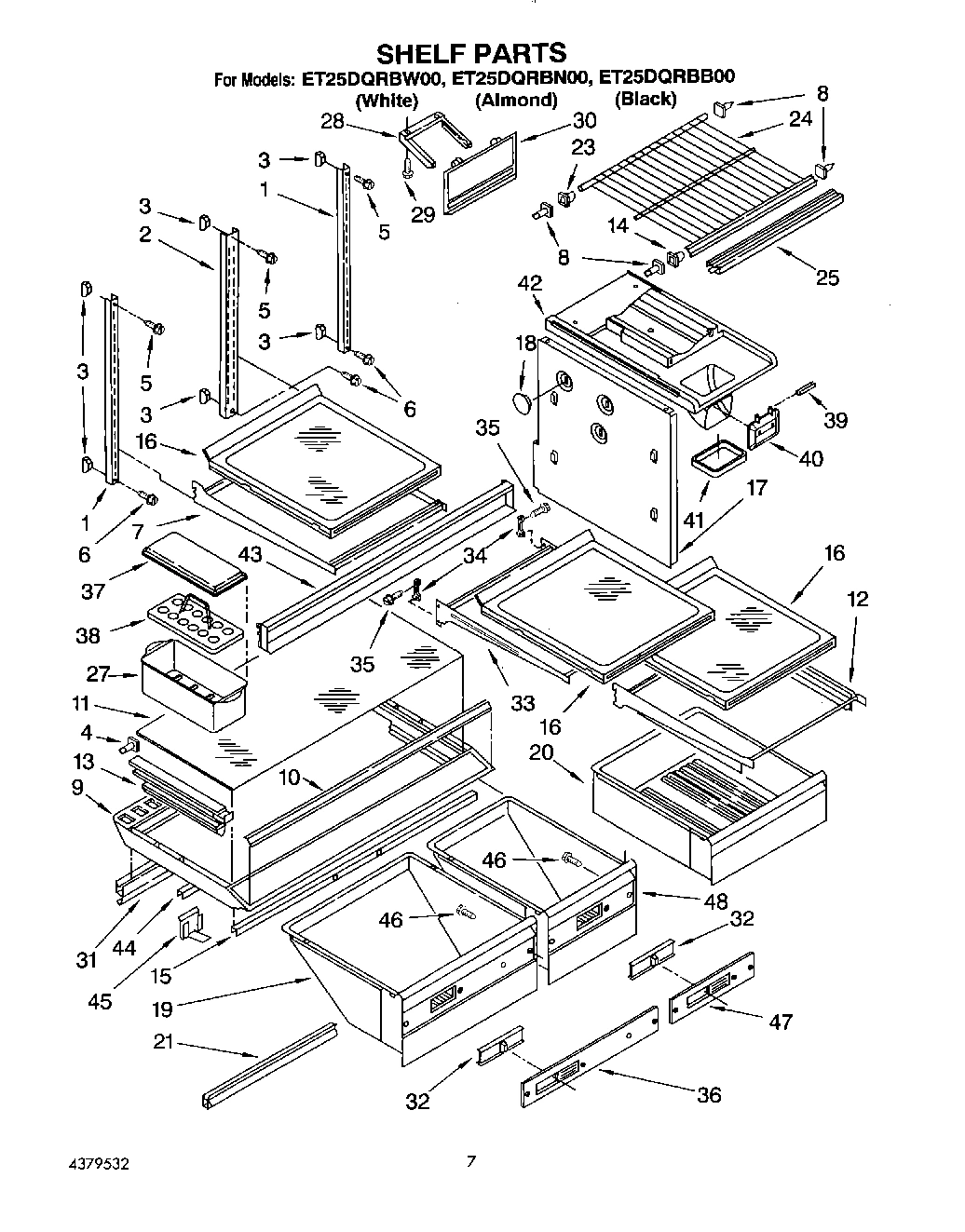

05 - SHELF, LIT/OPTIONAL

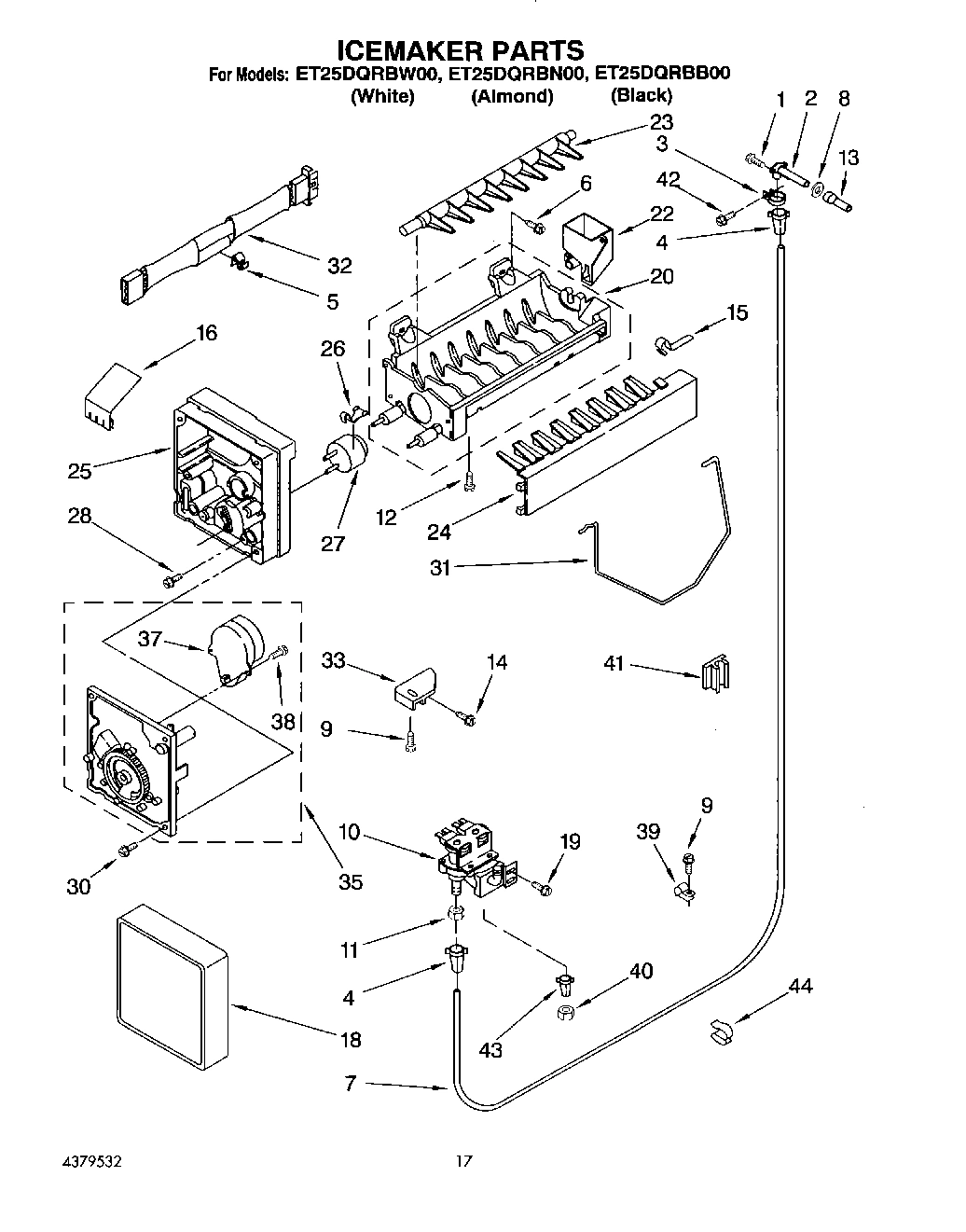

10 - ICEMAKER
Common parts from model Whirlpool ET25DQRBW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169248 WPL LIT2169248 Contact Us For Availability
WPL LIT2170501 WPL LIT2170501 Contact Us For Availability
WPL LIT2170983 WPL LIT2170983 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146895A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2160678 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168608 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168609 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146894A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172830 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2160635 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Grommet WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Deck Rail Cover WPL 2154186 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2160307 Contact Us For Availability
8
Door Gasket Magnetic (Almond Model) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (White Model) WPL 1125922 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
8
Door Gasket, Magnetic (Almond Model) WPL 1121176 Contact Us For Availability
8
Door Gasket, Magnetic (White Model) WPL 1125923 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170602 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Control, Front Cover WPL 2148635 Contact Us For Availability
9
Crisper Cover WPL 2162920 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162848 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162982 Contact Us For Availability
12
Handle, Center (Black) WPL 2159622 Contact Us For Availability
12
Handle, Center (Almond) WPL 2162694 Contact Us For Availability
12
Handle, Center (White) WPL 2162741 Contact Us For Availability
12
Handle, Center (Black) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Shelf Assembly, Cantilever WPL 2166328 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail WPL 2154187 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
13
Crisper Track, Center WPL 1118092 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Shelf Stud (2) WPL 946356 Contact Us For Availability
15
Interior Door Panel WPL 2160724 Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Crisper, Support WPL 1114568 Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160323 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Insert, Handle (Black) WPL 1120830 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Grommet WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 2160667 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2162859 Contact Us For Availability
20
Trim, Door Compartment WPL 2162896 Contact Us For Availability
20
Pan, Meat WPL 2162931 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Divider, Door Shelf WPL 1123293 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Crisper, Gasket Front WPL 1116665 Contact Us For Availability
22
Pin Plate (4) WPL 1118048 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Compartment Door Left Side, WPL 2148847 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Retainer, Bottle WPL 2163566 Contact Us For Availability
24
Blade, Fixed WPL 1119009 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160694 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Insert, Handle (White Model) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond Model) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black Model) WPL 1114390 Contact Us For Availability
25
Pin Plate (6) WPL 1116986 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Trim, Shelf WPL 2170855 Contact Us For Availability
26
Clip WPL 2168567 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
30
Door, Ice Compartment WPL 2170849 Contact Us For Availability
31
Trim, Door Shelf WPL 2170856 Contact Us For Availability
31
Tap Plate WPL 2160674 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116666 Contact Us For Availability
32
Trim, Door Shelf WPL 2162842 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Bin, Door Shelf WPL 2162893 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
33
Slide Shelf Frame, Cantilever WPL 2169601 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2162892 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Grille (Black) WPL 2160687 Contact Us For Availability
35
Grille (Almond) WPL 2160758 Contact Us For Availability
35
Grille (White) WPL 2168620 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
36
WPL 489155 WPL 489155 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Hole Plug (White) WPL 1129062 Contact Us For Availability
36
Front, Crisper Pan WPL 2162852 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Door Dike, Center WPL 1118008 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2149199 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover, Egg Bin WPL 2164374 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
38
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162923 WPL 2162923 Contact Us For Availability
39
WPL 2162924 WPL 2162924 Contact Us For Availability
39
WPL 2152335 WPL 2152335 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
40
WPL 2148705 WPL 2148705 Contact Us For Availability
40
WPL 2162925 WPL 2162925 Contact Us For Availability
40
WPL 2162927 WPL 2162927 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
WPL 1121119 WPL 1121119 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
WPL 2168584 WPL 2168584 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
WPL 2160673 WPL 2160673 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
WPL 2160685 WPL 2160685 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169801 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
WPL 2160684 WPL 2160684 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Support, Bar Rear WPL 2147047 Contact Us For Availability
44
Clip WPL 934011 Contact Us For Availability
45
Clip WPL 2149078 Contact Us For Availability
46
WPL 227991 WPL 227991 Contact Us For Availability
46
Screw WPL 489162 Contact Us For Availability
47
WPL 2160683 WPL 2160683 Contact Us For Availability
47
Front, Crisper Pan WPL 2162853 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 876029 WPL 876029 Contact Us For Availability
48
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
48
WPL 799344 WPL 799344 Contact Us For Availability
48
WPL 2170852 WPL 2170852 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
48
Pan, Crisper WPL 2162858 Contact Us For Availability
48
Door Removal Instructions WPL 2168575 Contact Us For Availability
48
WPL 542639 WPL 542639 Contact Us For Availability
48
WPL 799833 WPL 799833 Contact Us For Availability
48
WPL 978883 WPL 978883 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
