Model Whirlpool ET25DQRBN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

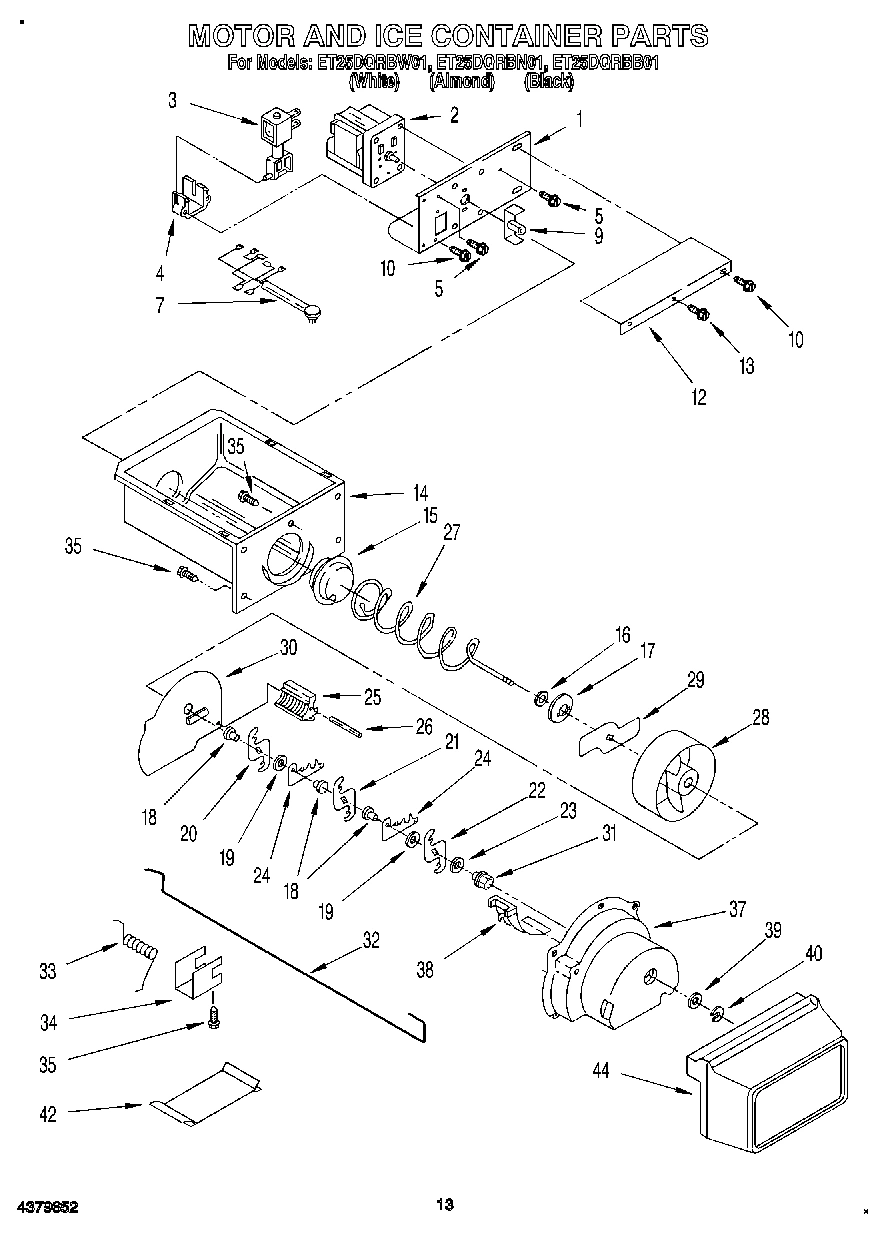

08 - MOTOR AND ICE CONTAINER

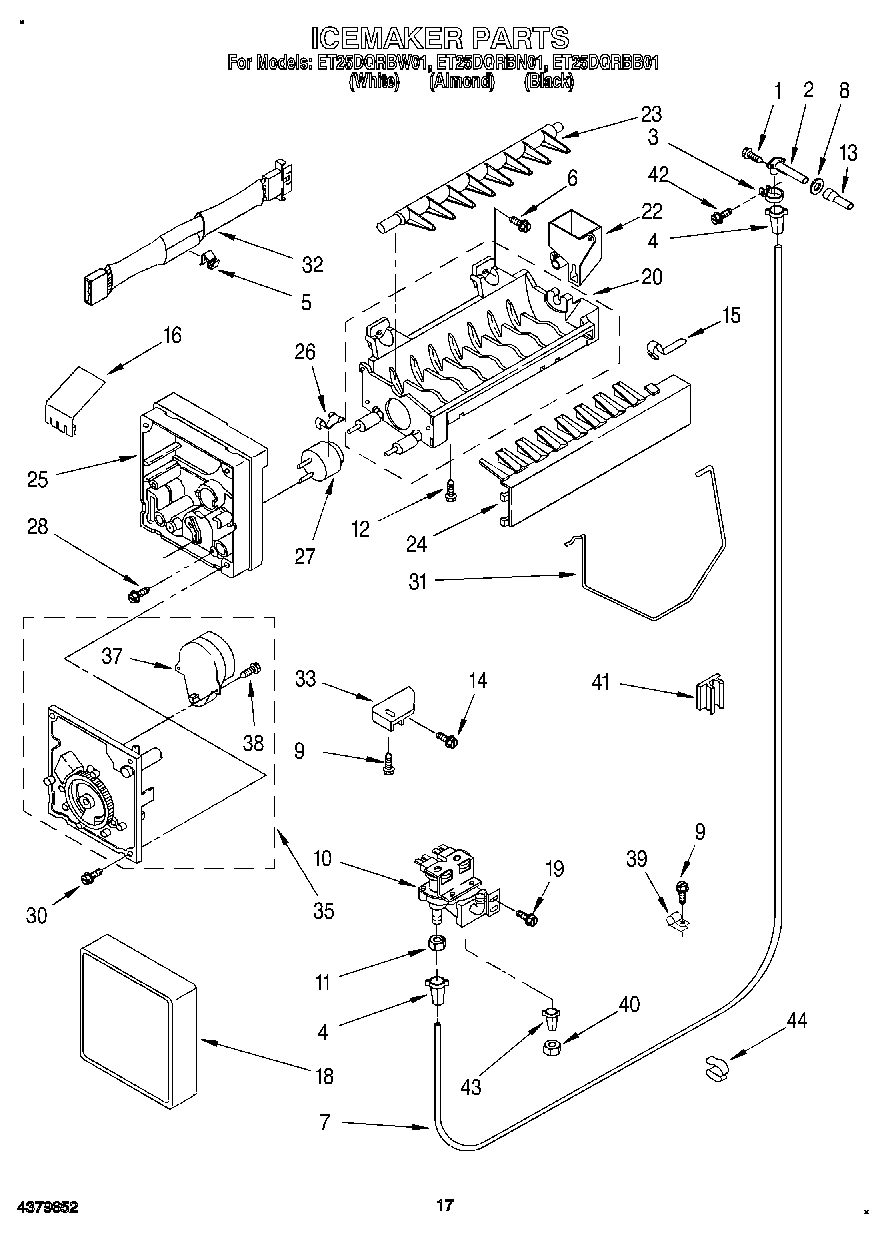

10 - ICEMAKER

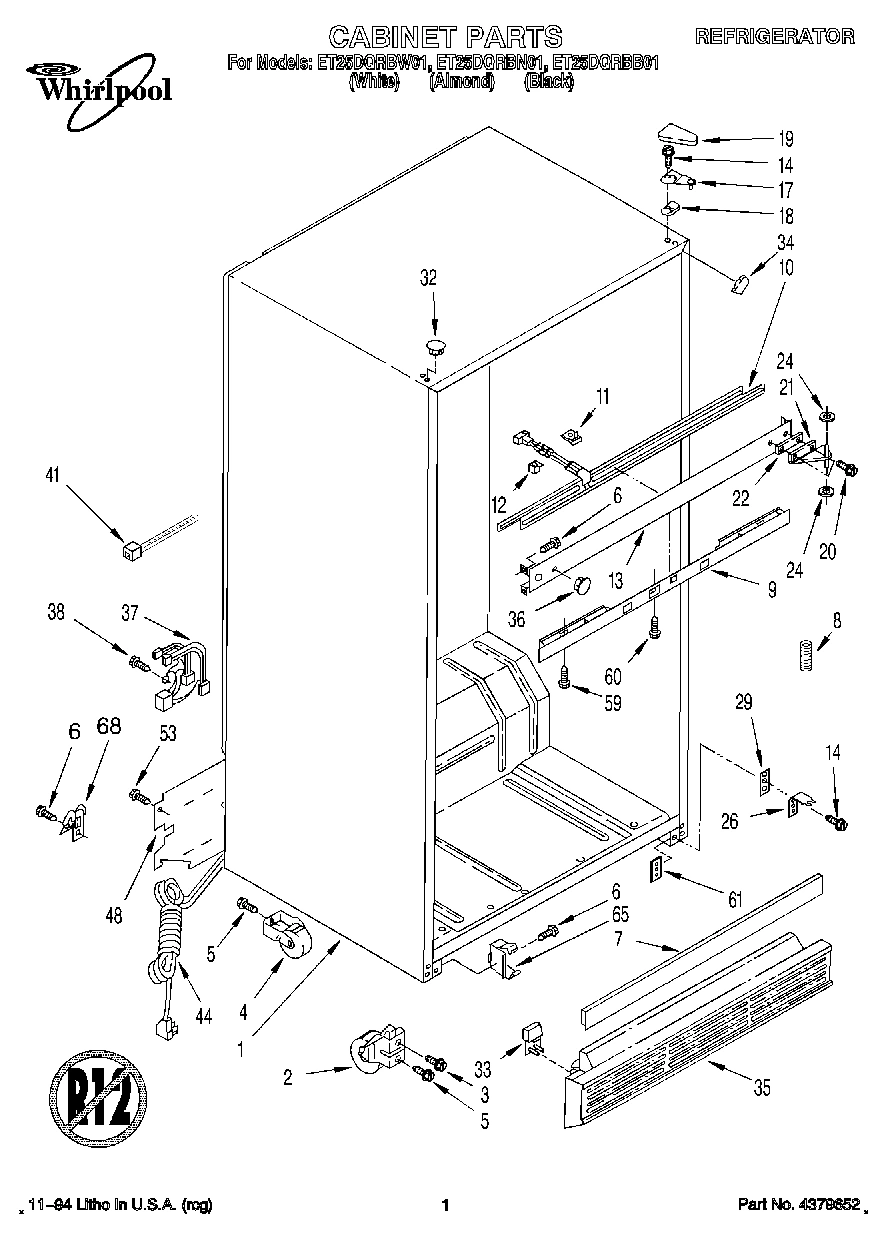

01 - CABINET

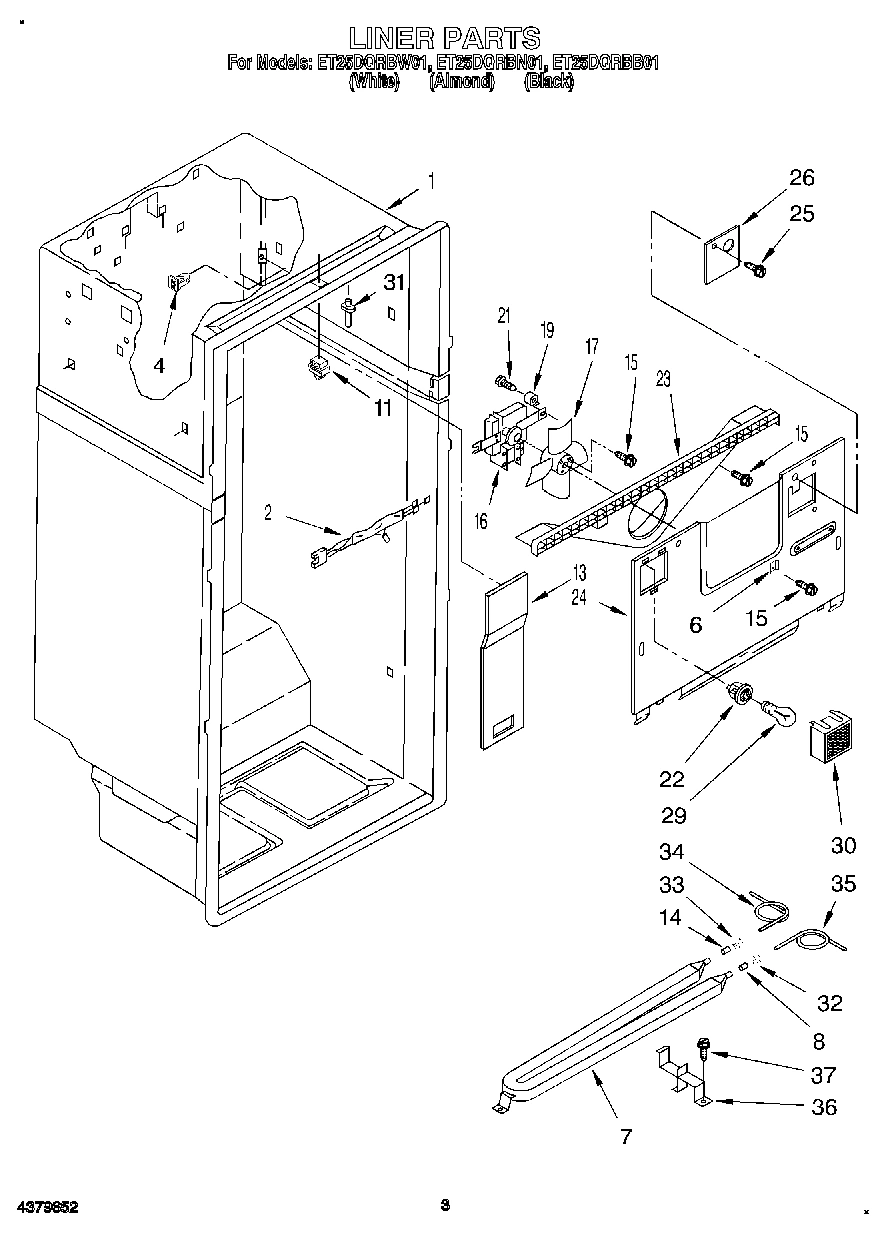

02 - LINER

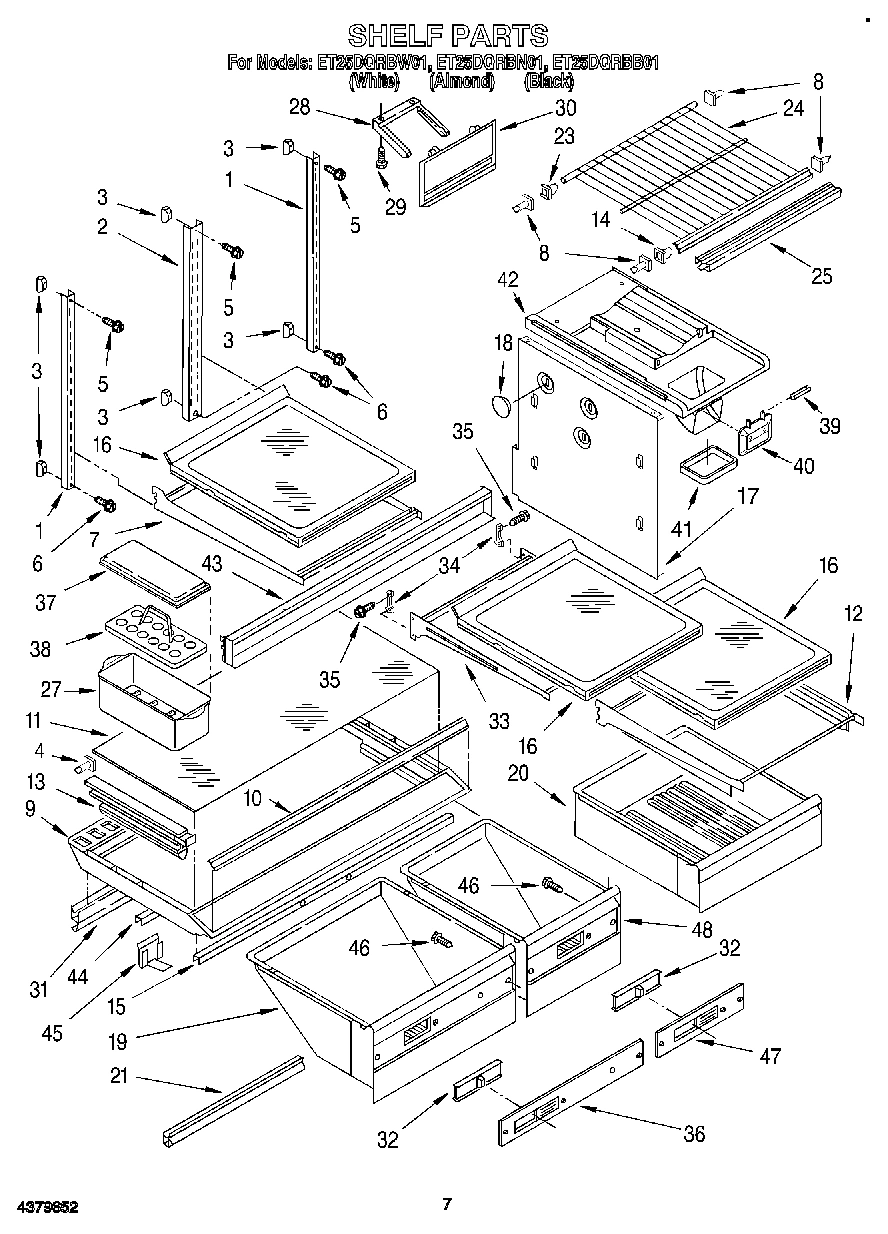

05 - SHELF, LIT/OPTIONAL

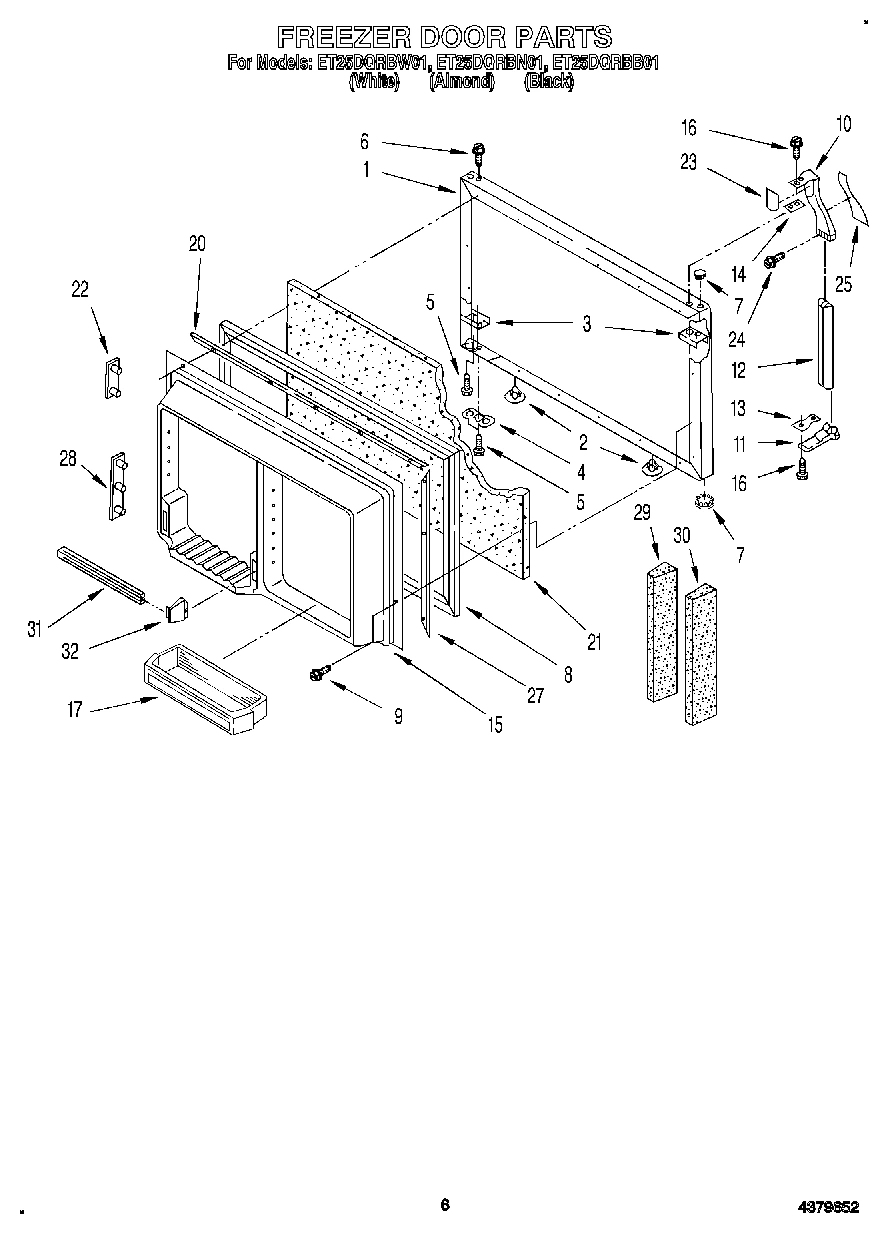

04 - FREEZER DOOR

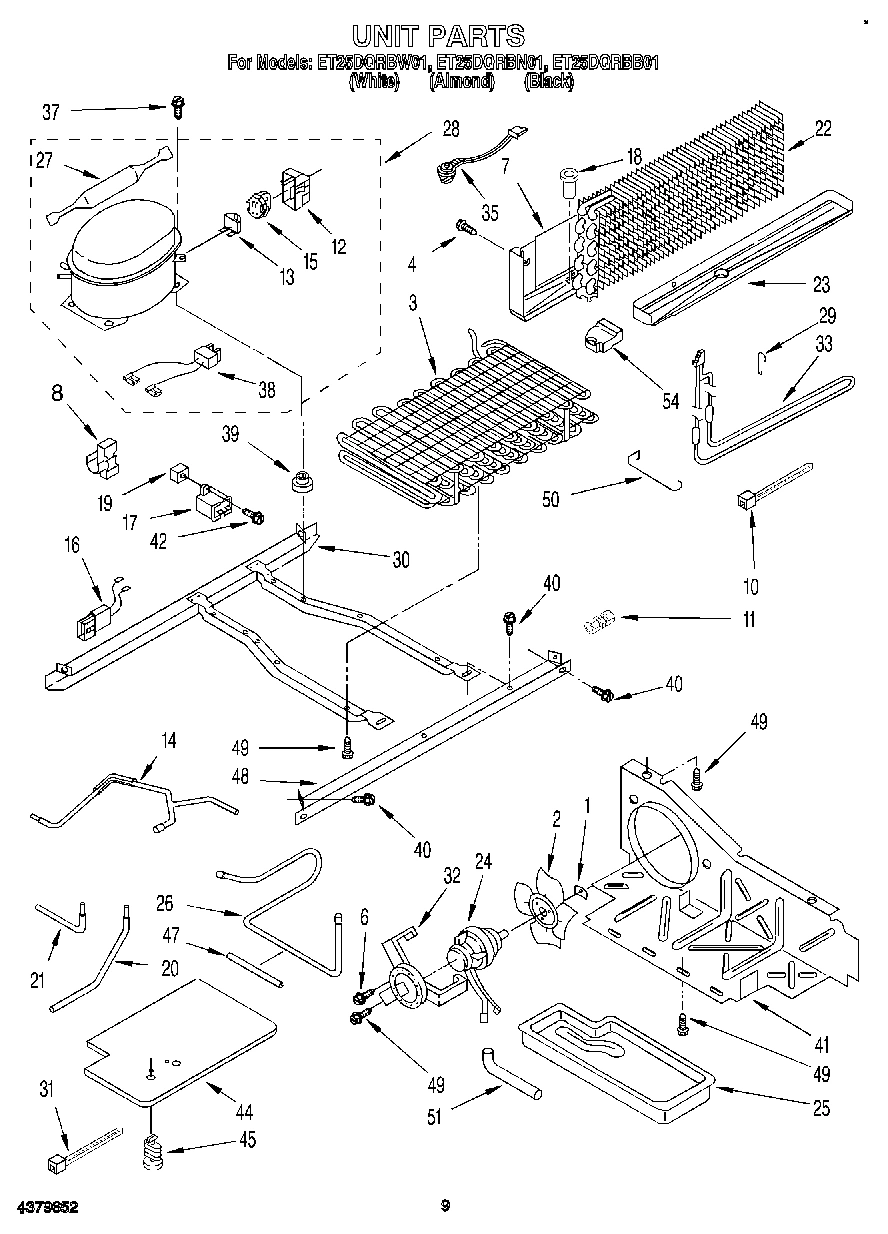

06 - UNIT

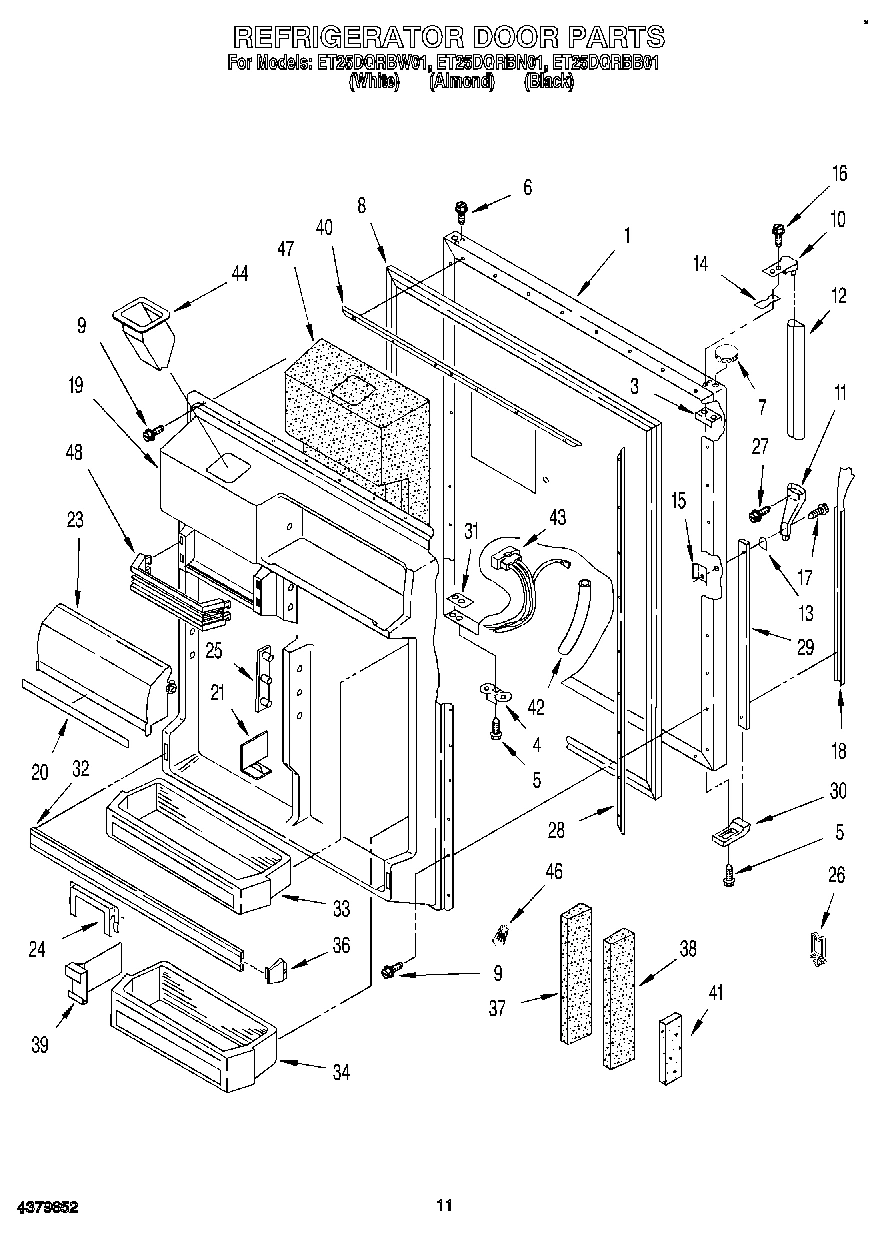

07 - REFRIGERATOR DOOR

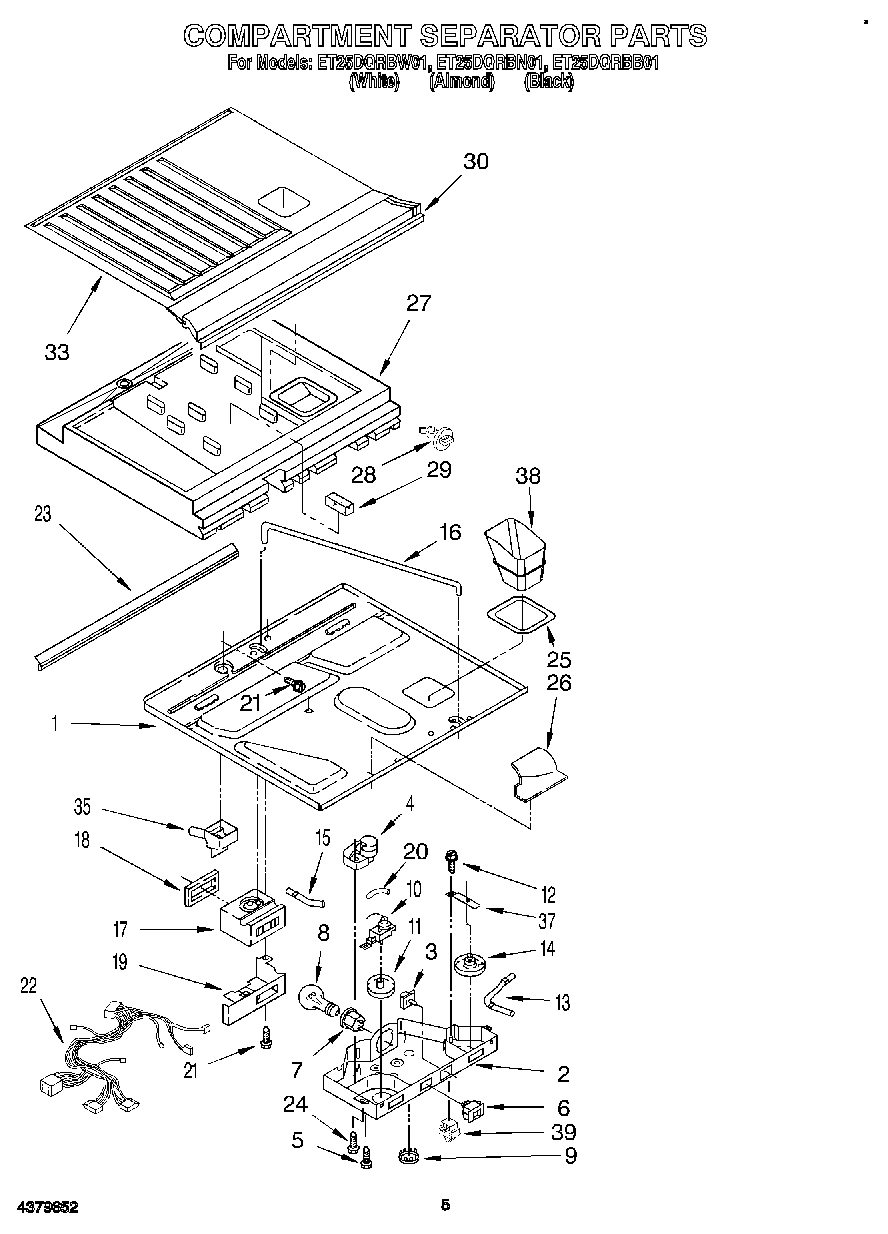

03 - COMPARTMENT SEPARATOR

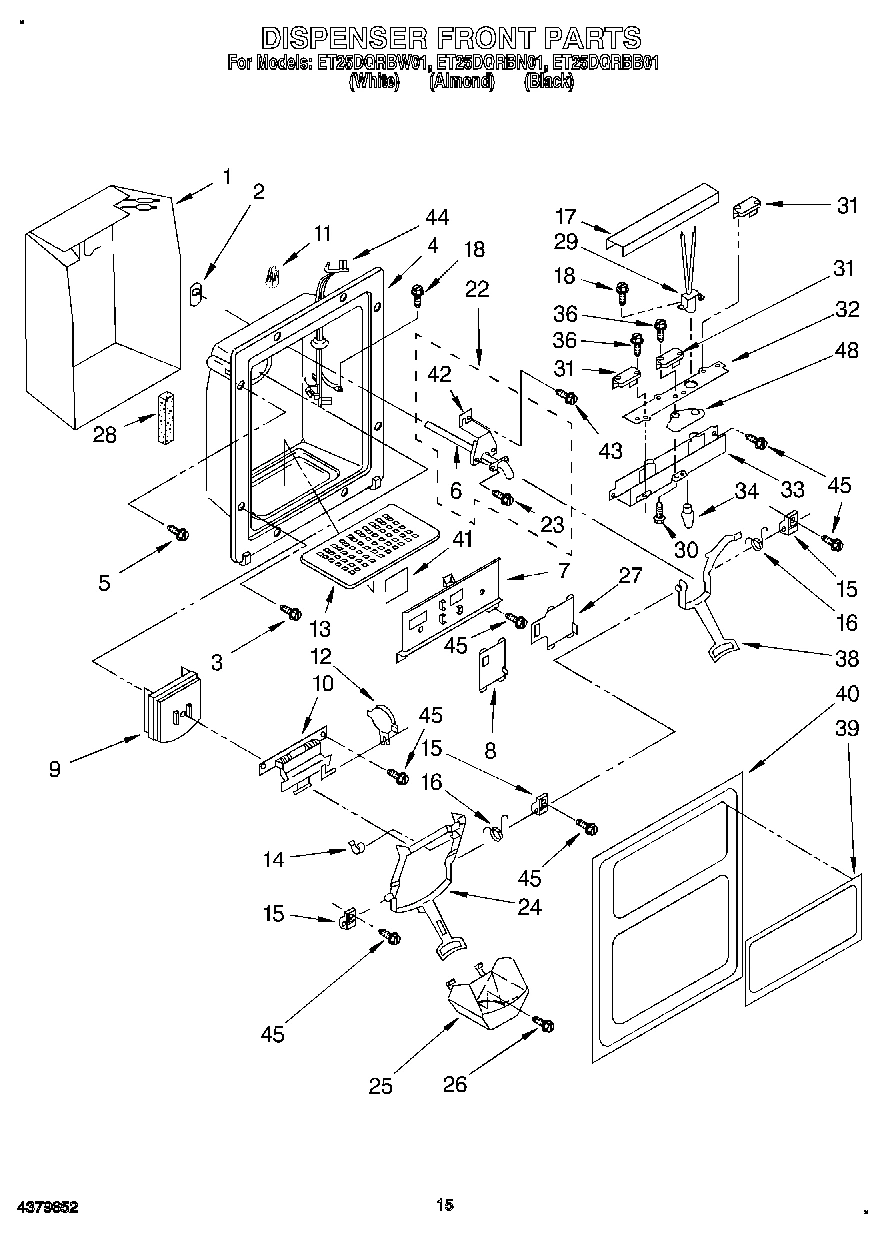

09 - DISPENSER FRONT
Common parts from model Whirlpool ET25DQRBN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169248 WPL LIT2169248 Contact Us For Availability
WPL LIT2170501 WPL LIT2170501 Contact Us For Availability
WPL LIT2170983 WPL LIT2170983 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146891A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2160678 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168608 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168609 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172830 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
2
Wiring, Fan Motor WPL 2169524 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Box, Control WPL 2160635 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Shelf Stud (2) WPL 1106612 Contact Us For Availability
4
Grommet WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 988420 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI146893A Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 2160307 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan & Heat Shield WPL 1116511 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Door Gasket Magnetic (Almond Model) WPL 1121202 Contact Us For Availability
8
Door Gasket Magnetic (White Model) WPL 1125922 Contact Us For Availability
8
Door Gasket Magnetic (Black Model) WPL 2170603 Contact Us For Availability
8
Wire Clip, Water Tube WPL 2155658 Contact Us For Availability
8
Door Gasket, Magnetic (Almond Model) WPL 1121176 Contact Us For Availability
8
Door Gasket, Magnetic (White Model) WPL 1125923 Contact Us For Availability
8
Door Gasket, Magnetic (Black Model) WPL 2170602 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Crisper Cover WPL 2162920 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162848 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162982 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
12
Shelf Assembly, Cantilever WPL 2166328 Contact Us For Availability
12
Handle, Center (Black) WPL 2159622 Contact Us For Availability
12
Handle, Center (Almond) WPL 2162694 Contact Us For Availability
12
Handle, Center (White) WPL 2162741 Contact Us For Availability
12
Handle, Center (Black) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Crisper Track, Center WPL 1118092 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Light, Bar Left WPL 2160638 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Shelf Stud (2) WPL 946356 Contact Us For Availability
14
Tube, Discharge WPL 2162475 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Crisper, Support WPL 1114568 Contact Us For Availability
15
Interior Door Panel WPL 2160724 Contact Us For Availability
15
Relay (See Overload) WPL ARI146892A Contact Us For Availability
15
Light, Bar Right WPL 2160639 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2160323 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
17
Blade, Fan WPL 2169221 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
17
Running Capacitor WPL 2169137 Contact Us For Availability
17
Air Diffuser Assembly WPL 2169523 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Insert, Handle (Black) WPL 1120830 Contact Us For Availability
18
Insert, Handle (White) WPL 2150153 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150154 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Grommet WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162859 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2160667 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Pan, Meat WPL 2162931 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
20
Trim, Door Compartment WPL 2162896 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front WPL 1116665 Contact Us For Availability
21
Divider, Door Shelf WPL 1123293 Contact Us For Availability
22
Pin Plate (4) WPL 1118048 Contact Us For Availability
22
Evaporator WPL 2174780 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Scroll, Fan WPL 2169469 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Drain Pan WPL 1114597 Contact Us For Availability
23
Compartment Door WPL 2148289 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160694 Contact Us For Availability
24
Retainer, Bottle WPL 2163566 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Trim, Shelf WPL 2170855 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
25
Pin Plate (6) WPL 1116986 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Tube, Suction WPL 2162473 Contact Us For Availability
26
Clip WPL 2168567 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Screw (Stainless Steel) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Screw WPL 489022 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Shim, Bottom WPL 2172743 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
29
Rubber Strip WPL 2168582 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Door, Ice Compartment WPL 2170849 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116666 Contact Us For Availability
31
Trim, Door Shelf WPL 2170856 Contact Us For Availability
31
Tap Plate WPL 2160674 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Door Shelf WPL 2162842 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Slide Shelf Frame, Cantilever WPL 2169601 Contact Us For Availability
33
Bin, Door Shelf WPL 2162893 Contact Us For Availability
33
Heater, Defrost WPL 2162021 Contact Us For Availability
33
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Hook, Shelf WPL 2169608 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2162892 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Screw WPL 489419 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Front, Crisper Pan WPL 2162852 Contact Us For Availability
36
WPL 489155 WPL 489155 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Cover, Egg Bin WPL 2164374 Contact Us For Availability
37
Door Dike, Center WPL 1118008 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Divider, Bin WPL 2152335 Contact Us For Availability
39
WPL 2150319 WPL 2150319 Contact Us For Availability
39
WPL 2162923 WPL 2162923 Contact Us For Availability
39
WPL 2162924 WPL 2162924 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
40
Retainer, Gasket WPL 1121119 Contact Us For Availability
40
WPL 2148705 WPL 2148705 Contact Us For Availability
40
WPL 2162925 WPL 2162925 Contact Us For Availability
40
WPL 2162927 WPL 2162927 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Support, Pin Plate WPL 2168584 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Slide Track Assy., Shelf WPL 2169801 Contact Us For Availability
43
Plug, Crossover WPL 2174771 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Support, Bar Rear WPL 2147047 Contact Us For Availability
44
Cover, Unit Bottom WPL 2157369 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
45
Clip WPL 2149078 Contact Us For Availability
46
Screw WPL 489162 Contact Us For Availability
46
Co WPL 227991 Contact Us For Availability
47
Front, Crisper Pan WPL 2162853 Contact Us For Availability
47
WPL 2160683 WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 876029 WPL 876029 Contact Us For Availability
48
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
48
WPL 799344 WPL 799344 Contact Us For Availability
48
Cover, Unit WPL 2157366 Contact Us For Availability
48
Pan, Crisper WPL 2162858 Contact Us For Availability
48
Door Removal Instructions WPL 2168575 Contact Us For Availability
48
WPL 542639 WPL 542639 Contact Us For Availability
48
WPL 799833 WPL 799833 Contact Us For Availability
48
WPL 978883 WPL 978883 Contact Us For Availability
48
WPL 2170852 WPL 2170852 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Wedge, Air Baffle WPL 2174787 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
