Model Whirlpool ET21DKXDB03 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

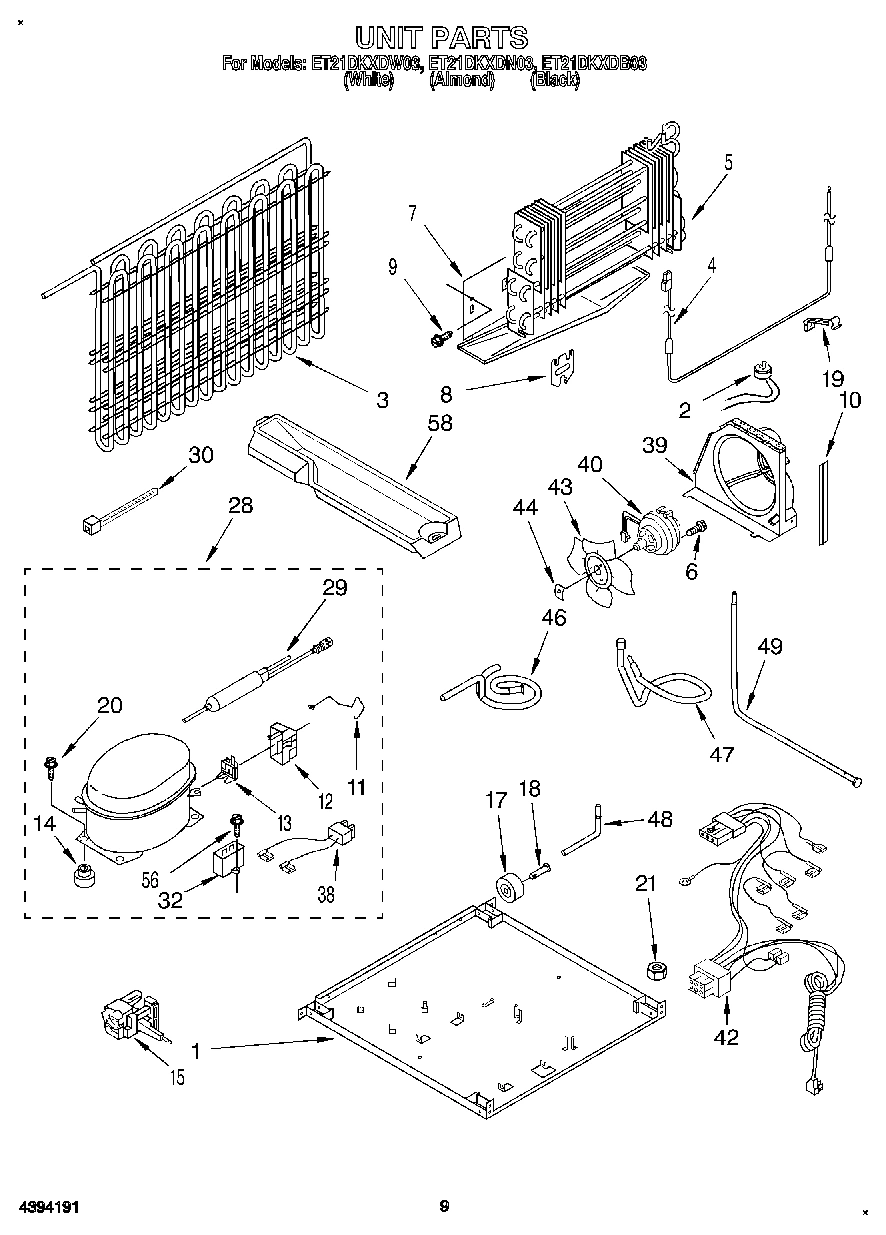

05 - UNIT

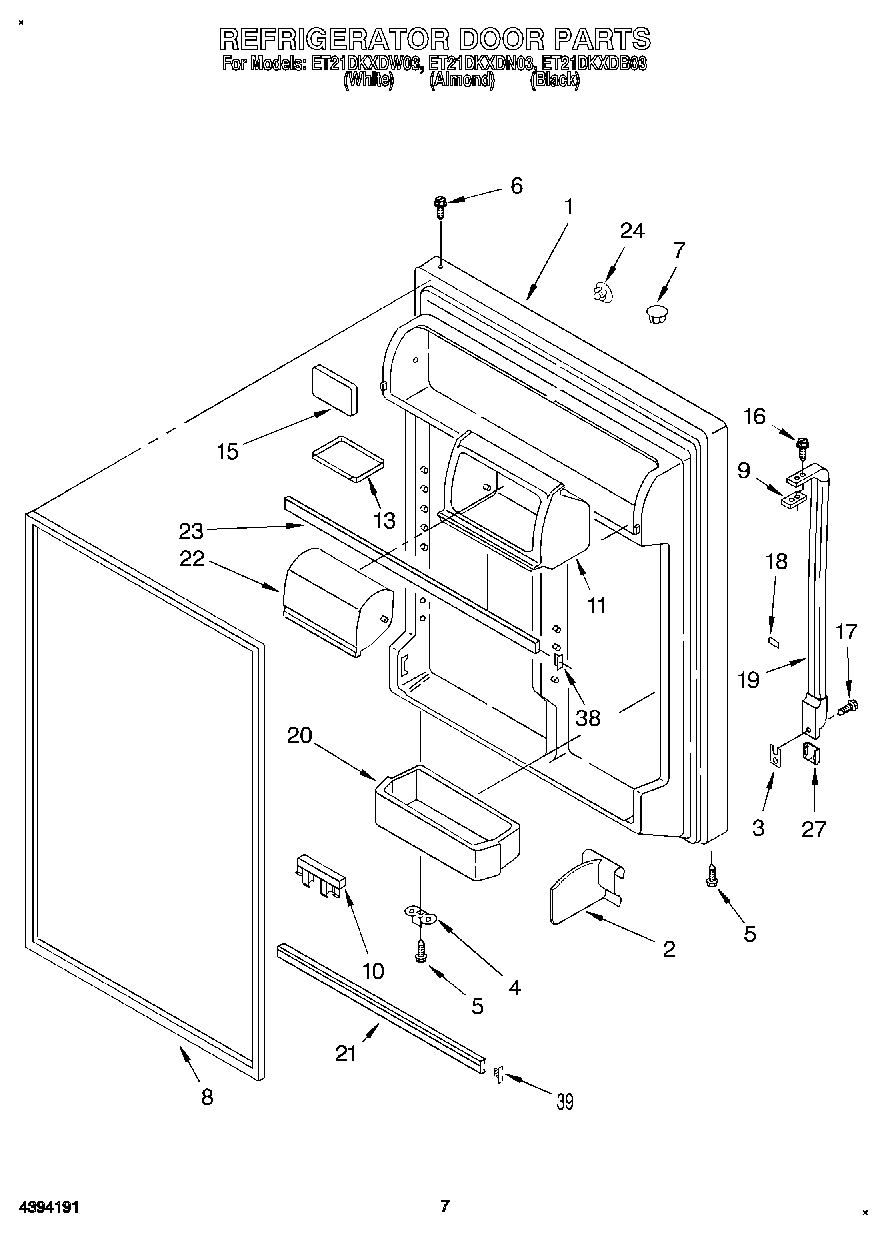

04 - REFRIGERATOR DOOR

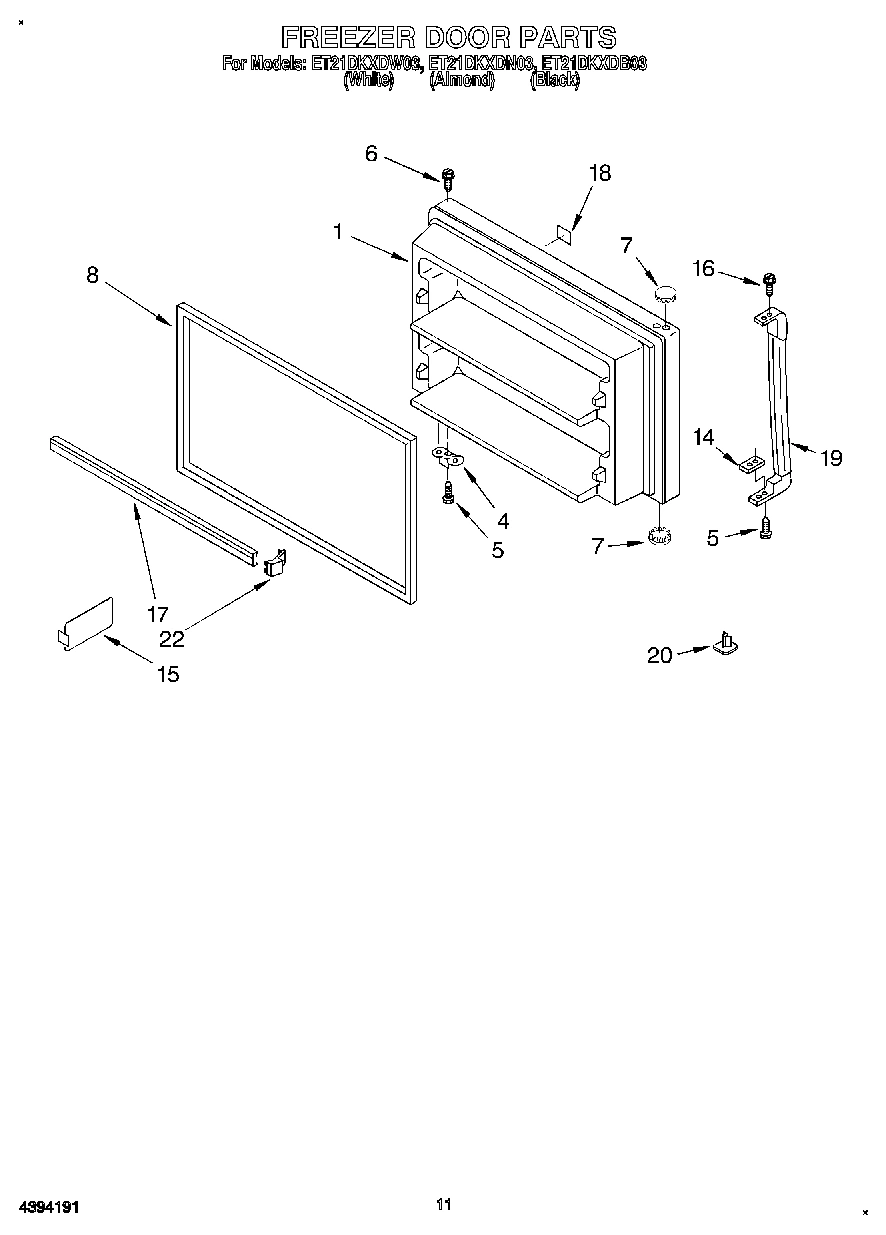

06 - FREEZER DOOR, LIT/OPTIONAL

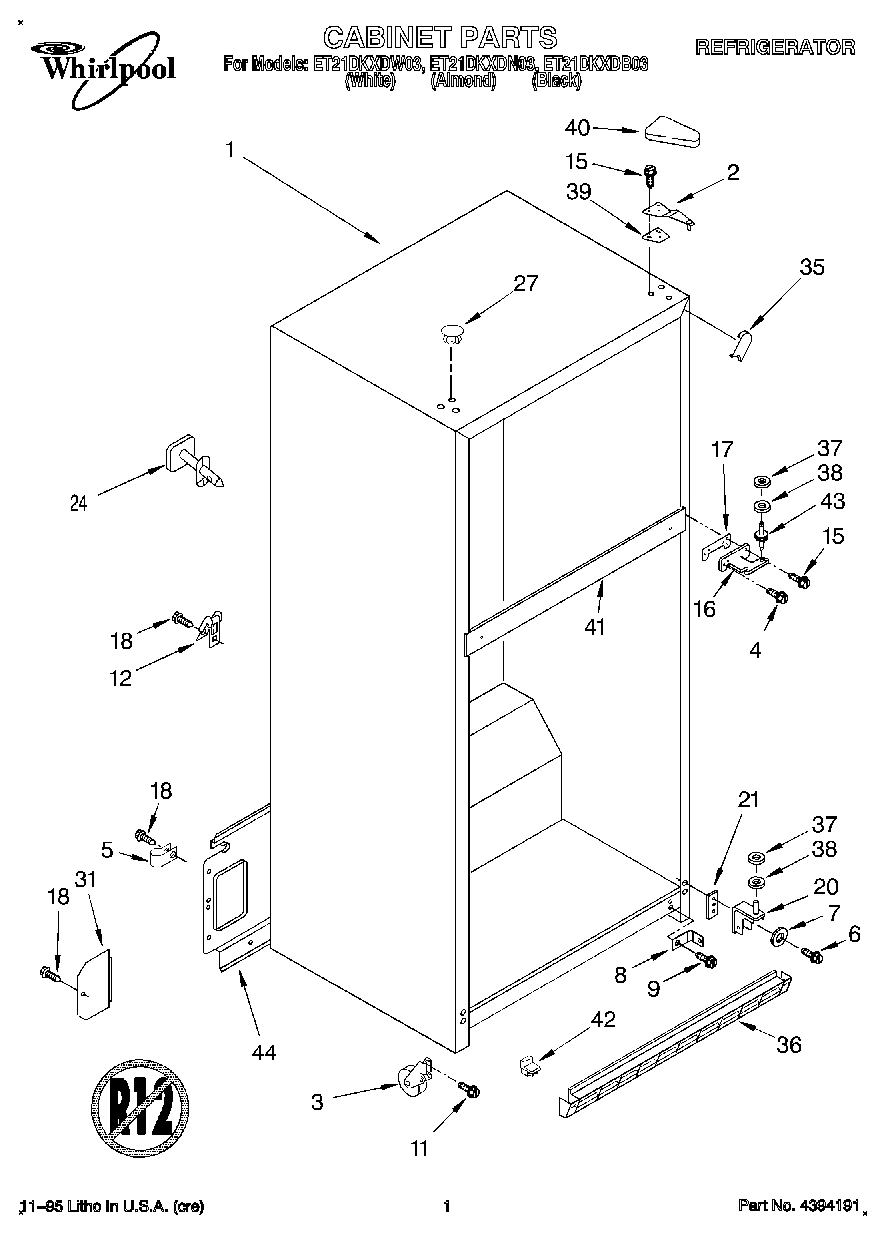

01 - CABINET

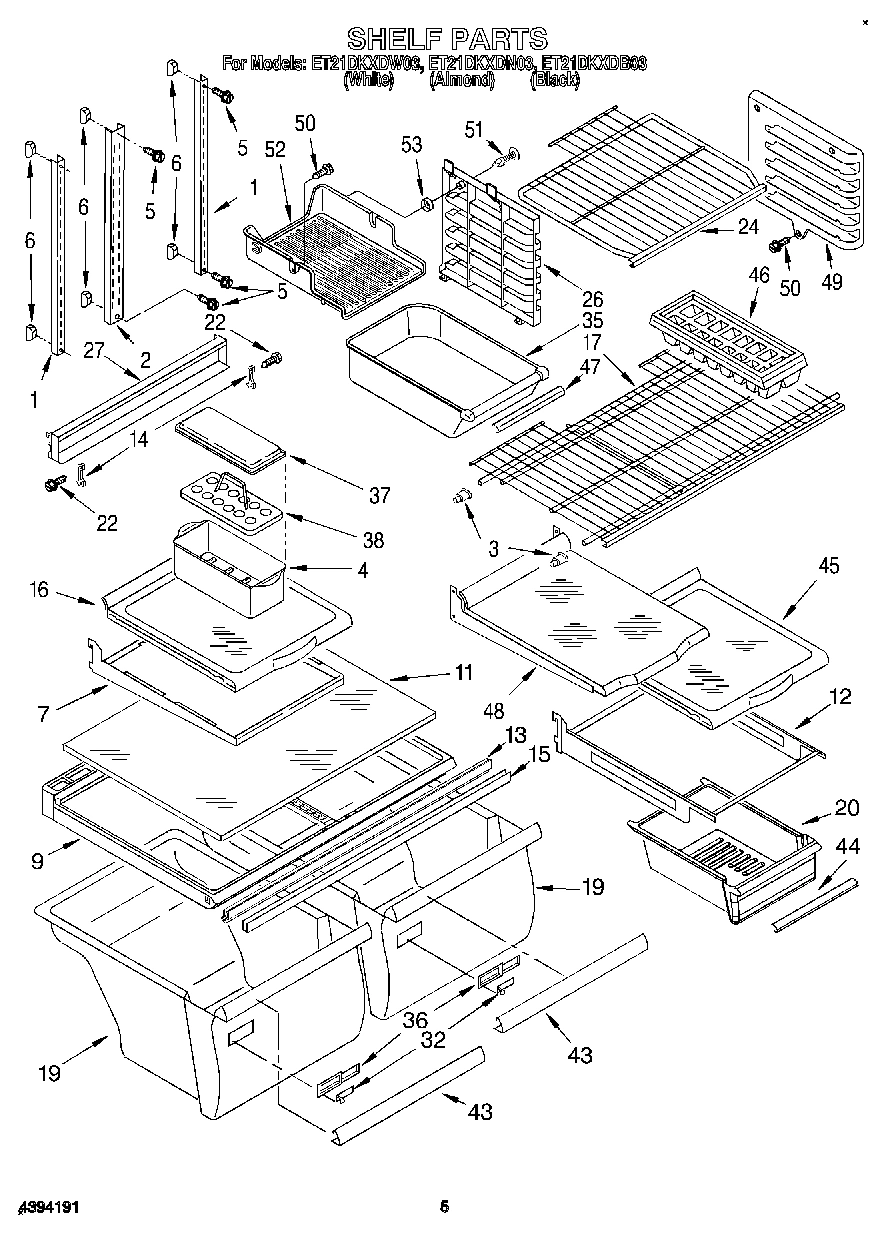

03 - SHELF

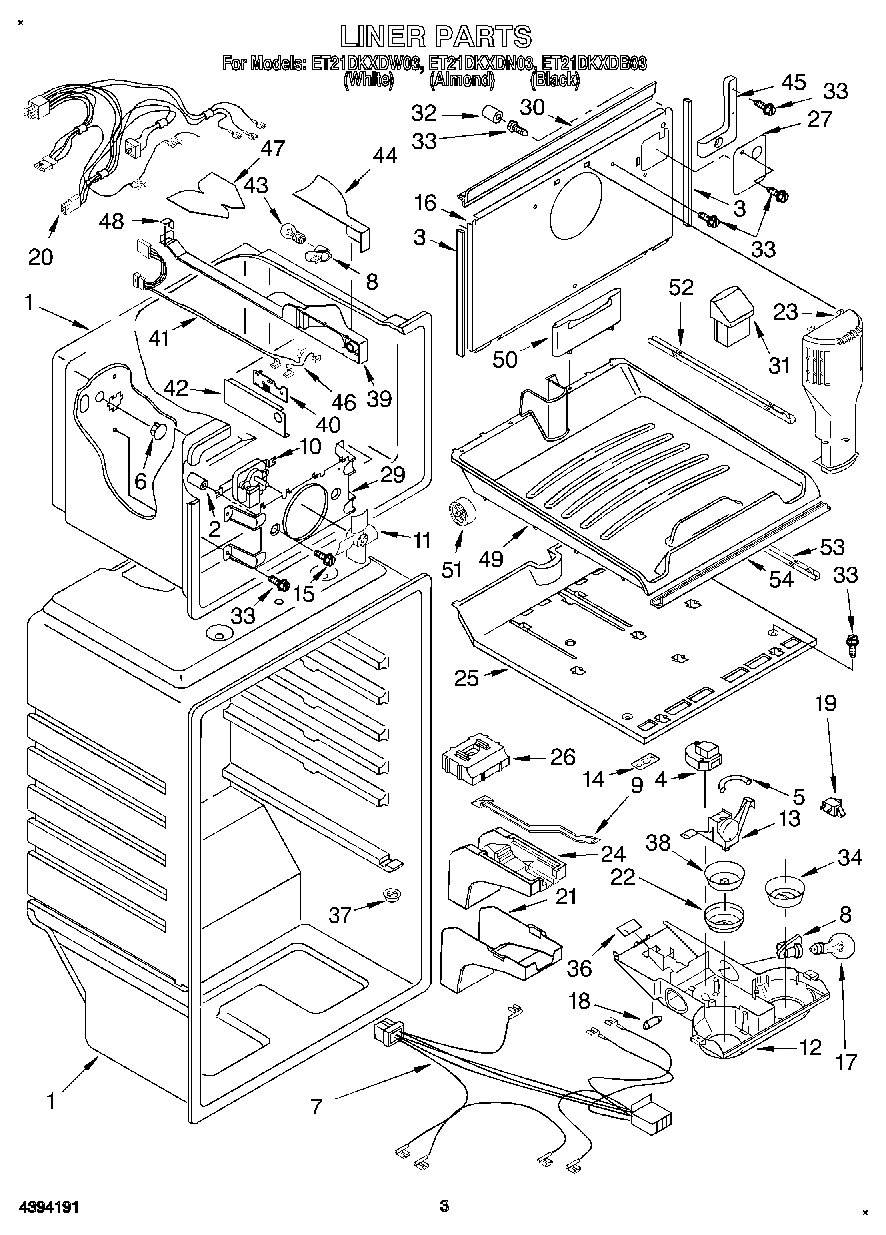

02 - LINER
Common parts from model Whirlpool ET21DKXDB03 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2182504 WPL LIT2182504 Contact Us For Availability
WPL LIT2184589 WPL LIT2184589 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171221 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171241 Contact Us For Availability
1
Freezer Door (Includes No.8) (Black) WPL 2171242 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI49520A1 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49523A2 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172684 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2166223 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2180545 Contact Us For Availability
18
Nameplate (Black) WPL 2180546 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2179311 Contact Us For Availability
19
Handle (Almond) WPL 2179312 Contact Us For Availability
19
Handle (Black) WPL 2179313 Contact Us For Availability
19
Handle (White) WPL 2179302 Contact Us For Availability
19
Handle (Almond) WPL 2179303 Contact Us For Availability
19
Handle (Black) WPL 2179304 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
20
Hole Plug (Black) WPL 2174435 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shim WPL 2172745 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT. WPL 799344 Contact Us For Availability
22
Door Compartment WPL 2182402 Contact Us For Availability
22
Door Reversal Instructions WPL 2176379 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI49521A6 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2166112 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176241 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Black) WPL 2166189 Contact Us For Availability
35
Ice Bucket WPL 2174616 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Housing Base WPL 2166269 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Cover-Hinge (Black) WPL 2176206 Contact Us For Availability
40
PC Board, Freezer Light WPL 2166266 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI49522A7 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2166281 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2166280 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
44
Trim, Meat Pan WPL 2190556 Contact Us For Availability
44
Cover, Freezer Light WPL 2166270 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Wiring Harness, Freezer Light WPL 2166274 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174648 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2172504 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freez WPL 2179721 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
