Model Whirlpool ET20NKXDN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
05 - SHELF, LIT/OPTIONAL
02 - DOOR

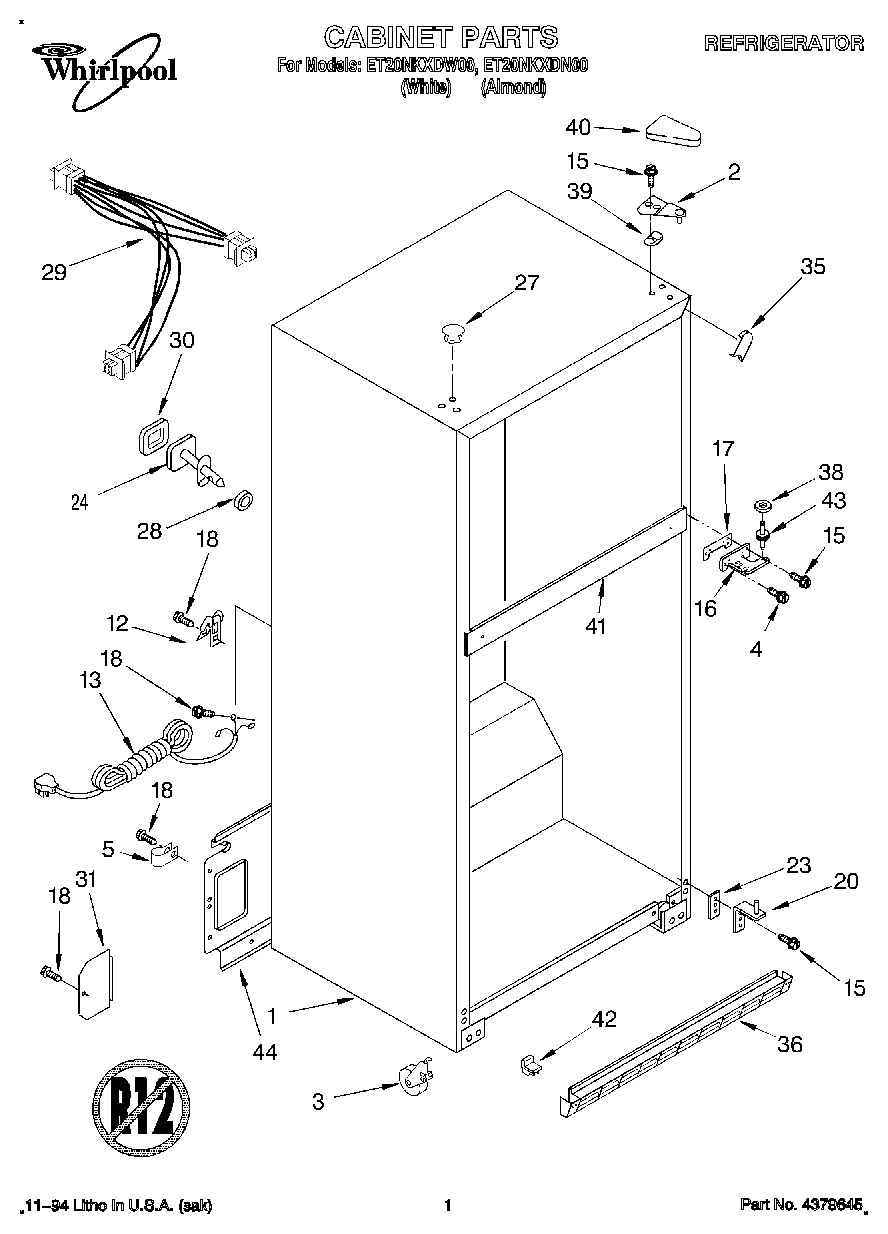

01 - CABINET
03 - LINER
04 - UNIT
Common parts from model Whirlpool ET20NKXDN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48899A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI48904A1 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174624 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2176347 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Relay (See Overload) WPL ARI48905A6 Contact Us For Availability
16
Cover-Evaporator WPL 2163819 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159274 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI48906A3 Contact Us For Availability
22
Knob, Thermostat WPL 2174605 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI48900A3 Contact Us For Availability
25
Freezer Floor WPL 2172680 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179753 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI48901A5 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2176382 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI48902A4 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2154565 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2174604 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
36
Grille (White) WPL 2163890 Contact Us For Availability
36
Grille (Almond) WPL 2166135 Contact Us For Availability
37
Trim-Door (2) WPL 2171153 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI48903A6 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2176279 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163815 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
