Model Whirlpool ET20GMXYW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
02 - LINER
05 - FREEZER DOOR

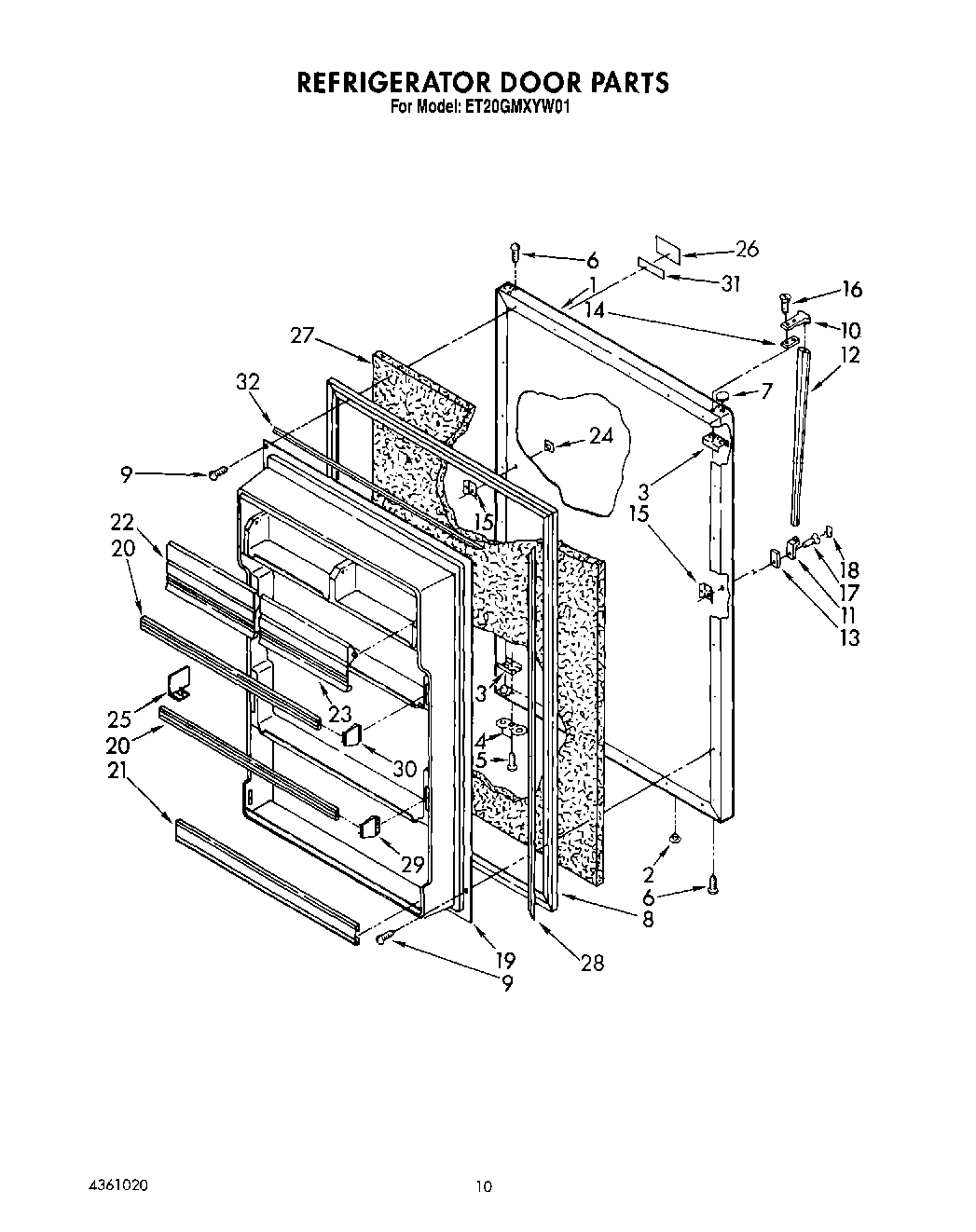

07 - REFRIGERATOR DOOR

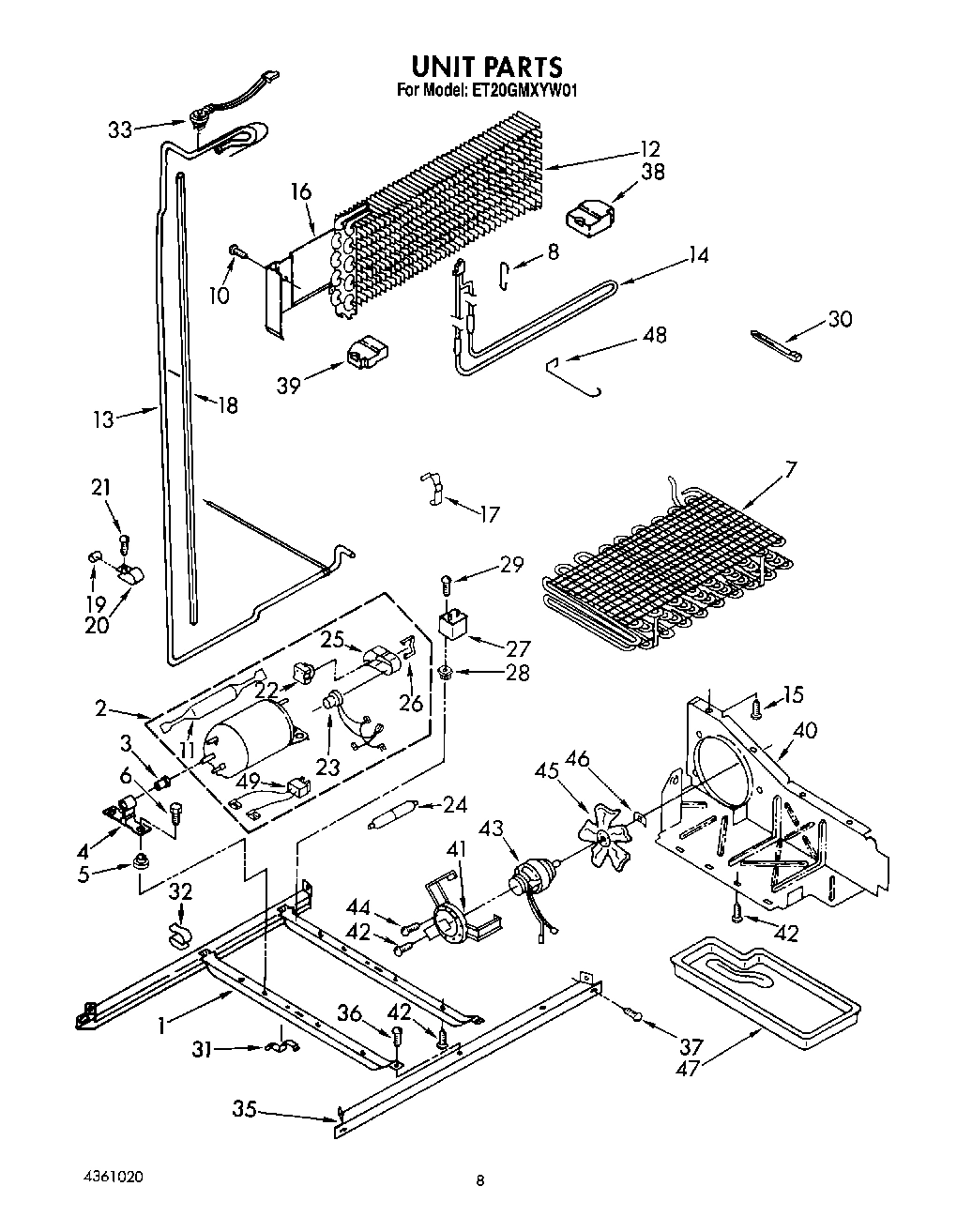

06 - UNIT

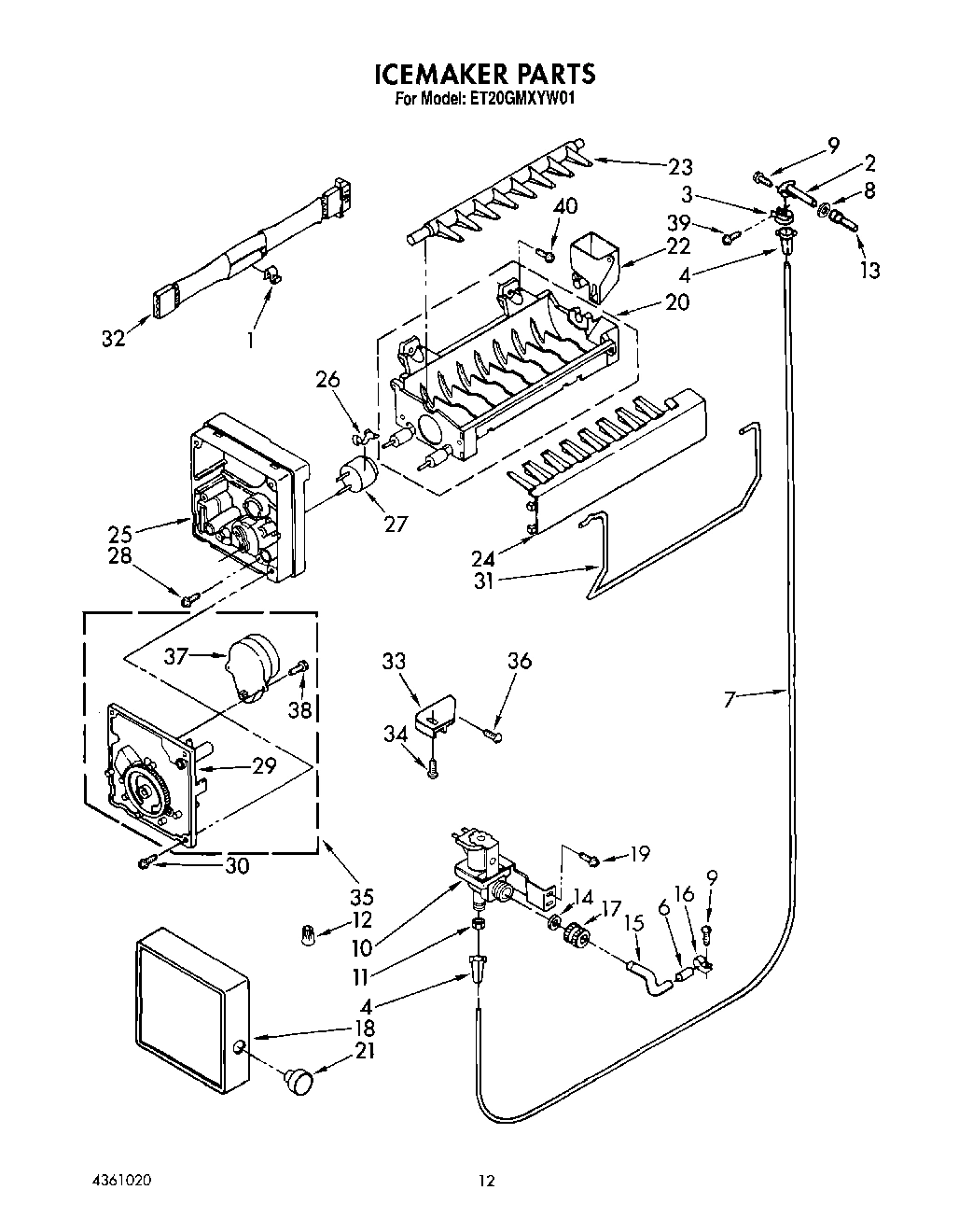

08 - ICEMAKER, LIT/OPTIONAL

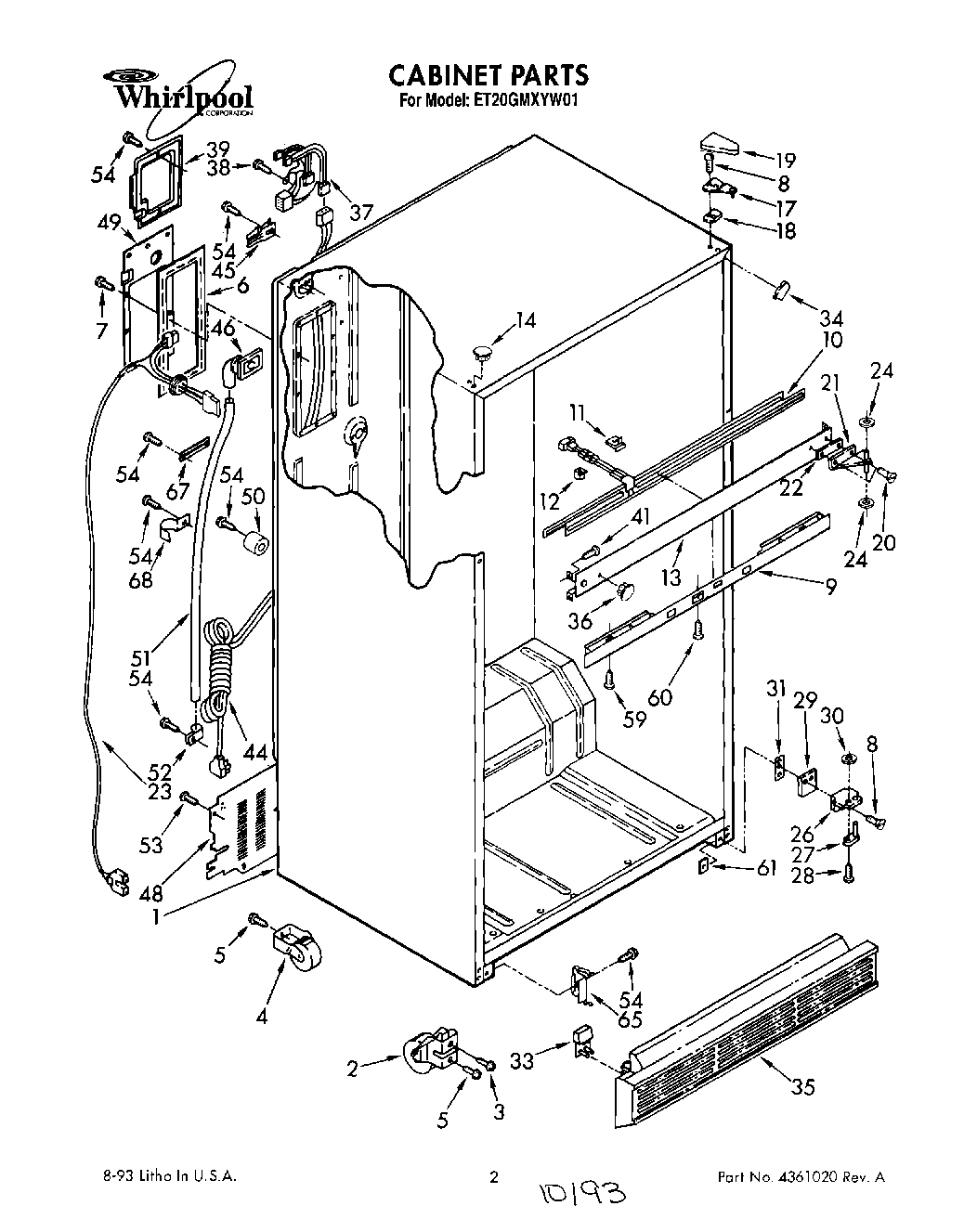

01 - CABINET
03 - COMPARTMENT SEPARATOR
04 - SHELF
Common parts from model Whirlpool ET20GMXYW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148174 WPL LIT2148174 Contact Us For Availability
WPL LIT2148939 WPL LIT2148939 Contact Us For Availability
WPL LIT2154422 WPL LIT2154422 Contact Us For Availability
WPL LIT4361020 WPL LIT4361020 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Unit, Frame WPL 2154451 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI48839A3 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1122715 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Screw, Support Center (2) WPL 520959 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
6
Sealing Gasket WPL 1114548 Contact Us For Availability
6
Switch, Toggle WPL 1106601 Contact Us For Availability
7
Condenser Assembly WPL 2149613 Contact Us For Availability
7
Shelf, Cantilever WPL 1110739 Contact Us For Availability
8
Support, Heater WPL 2149120 Contact Us For Availability
8
Trim, Shelf WPL 1110742 Contact Us For Availability
9
Control, Front Cover WPL 2148146 Contact Us For Availability
10
Heater, Mullion WPL 1105433 Contact Us For Availability
10
Trim, Crisper Cover WPL 1105649 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Glass, Crisper Cover WPL 1106929 Contact Us For Availability
12
Handle, Center WPL 1111547 Contact Us For Availability
12
Evaporator Assembly WPL 1118548 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Heat, Exchanger WPL 2149616 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Trim, Ice Cube Pan WPL 654218 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2149645 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
15
Tube, Inlet Valve WPL 627854 Contact Us For Availability
16
Heat Shield WPL 1105545 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Glass, Shelf WPL 2148208 Contact Us For Availability
17
Clamp, Dryer WPL 1127590 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Trim, Shelf Front WPL 1106618 Contact Us For Availability
19
Dampener WPL 510769 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2148160 Contact Us For Availability
20
Trim, Door (2) WPL 2148750 Contact Us For Availability
20
Ground Wire WPL 1114482 Contact Us For Availability
20
Pan, Meat WPL 2148934 Contact Us For Availability
21
Trim, Door WPL 2148170 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Compartment Door, Utility WPL 2148168 Contact Us For Availability
22
Relay (See Overload) WPL ARI48841A7 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2154411 Contact Us For Availability
22
Ice Cube Pan WPL 838530 Contact Us For Availability
23
Compartment, Butter Door WPL 2148167 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 1116635 Contact Us For Availability
23
Gasket, Bottom Separator 8-32 x 1/2 (2) WPL 1114382 Contact Us For Availability
23
Reflector WPL 1110744 Contact Us For Availability
24
Retainer, Gasket WPL 1122553 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Muffler WPL 1121121 Contact Us For Availability
24
Shelf, Full Length Cantilever WPL 1116350 Contact Us For Availability
25
Divider WPL 1114380 Contact Us For Availability
25
Terminal Cover (Production) WPL 1105221 Contact Us For Availability
25
Terminal Cover (Service) WPL 1108115 Contact Us For Availability
25
Trim, Shelf WPL 1114436 Contact Us For Availability
26
Nameplate WPL 2152334 Contact Us For Availability
26
Strap, Cover (Production) WPL 1105222 Contact Us For Availability
26
Strap, Cover (Service) WPL 938384 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Insulation, Filler WPL 942817 Contact Us For Availability
26
Glass, Full Length Cantilever WPL 1114434 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Reflector WPL 1114435 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Strap WPL 1123230 Contact Us For Availability
31
Tape WPL 991259 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
32
Film Card 800-A-1 (See Complete Cross-Referen WPL 4314268 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Unit, Rail WPL 2149717 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Screw, 8-15 x 1/2 WPL 489365 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 2149633 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Support (R.S.) WPL 1118805 Contact Us For Availability
39
Support (L.S.) WPL 1118806 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
39
Drain Pan WPL 1105521 Contact Us For Availability
40
Air, Baffle WPL 1127938 Contact Us For Availability
41
Bracket, Fan Mounting WPL 548695 Contact Us For Availability
42
Screw WPL 488624 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan, Blade WPL 989524 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
49
WPL 978029 WPL 978029 Contact Us For Availability
49
WPL 978028 WPL 978028 Contact Us For Availability
49
Cover, Plug WPL 2147326 Contact Us For Availability
50
Bumper, Back Panel WPL 1120595 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
67
Tube Clamp WPL 1105607 Contact Us For Availability
68
Clamp WPL 1110564 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
