Model Whirlpool ET18ZKXDW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

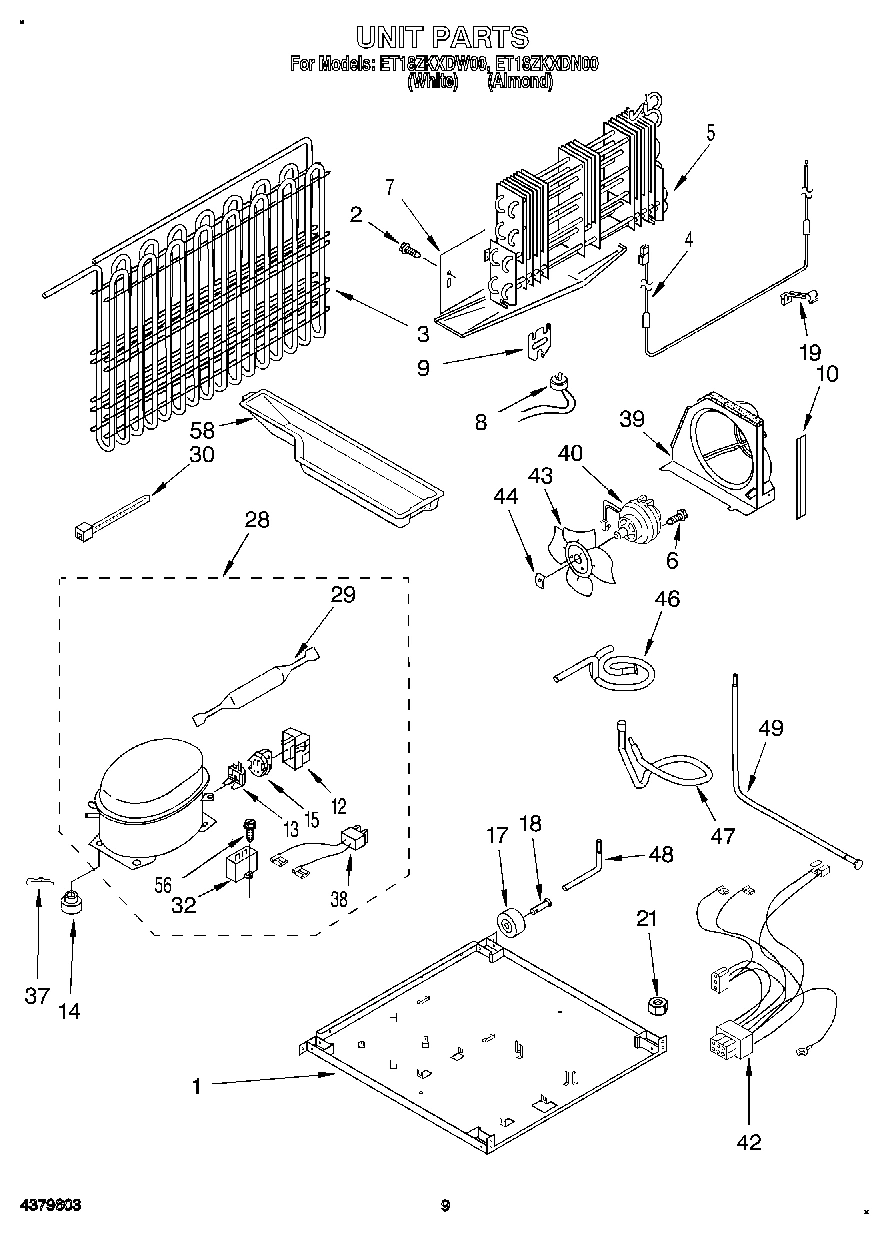

06 - UNIT, LIT/OPTIONAL

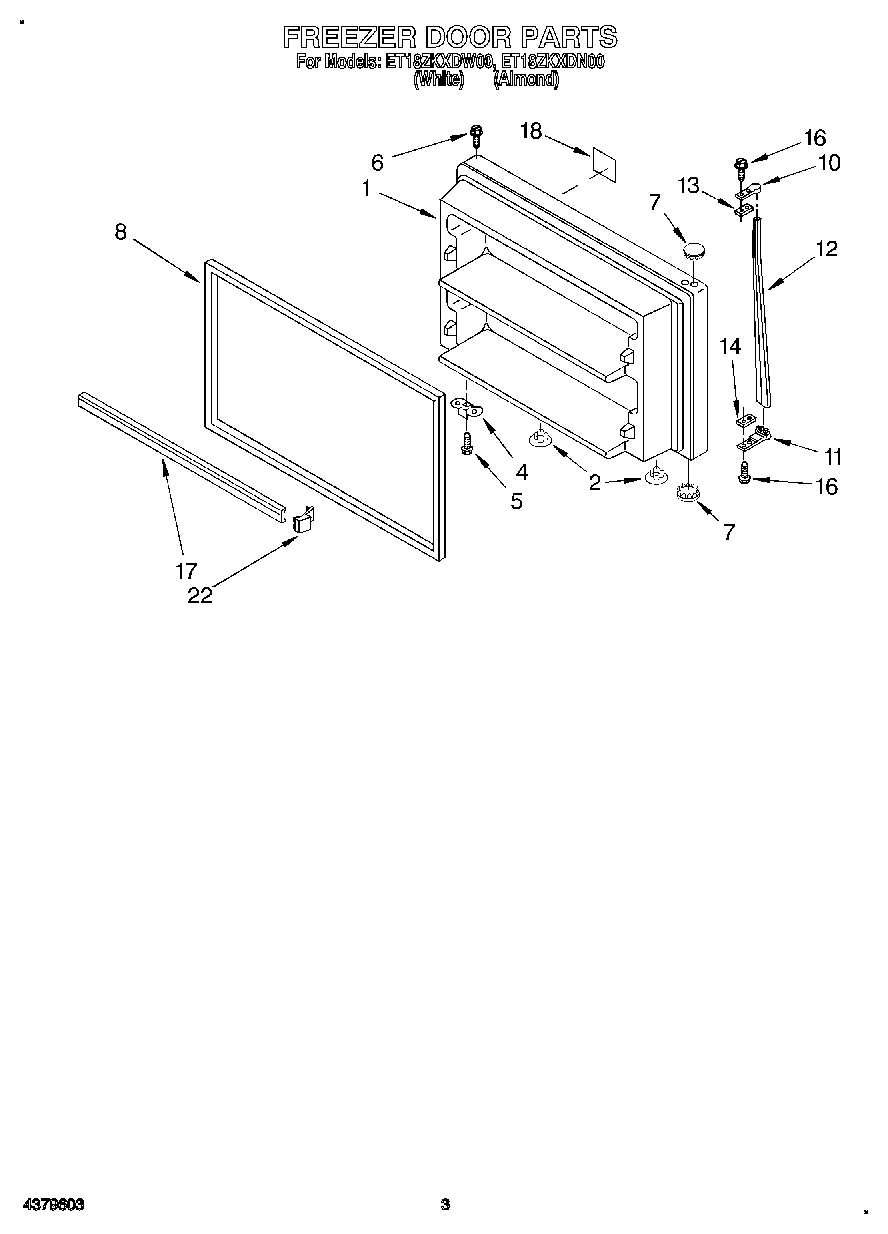

02 - FREEZER DOOR

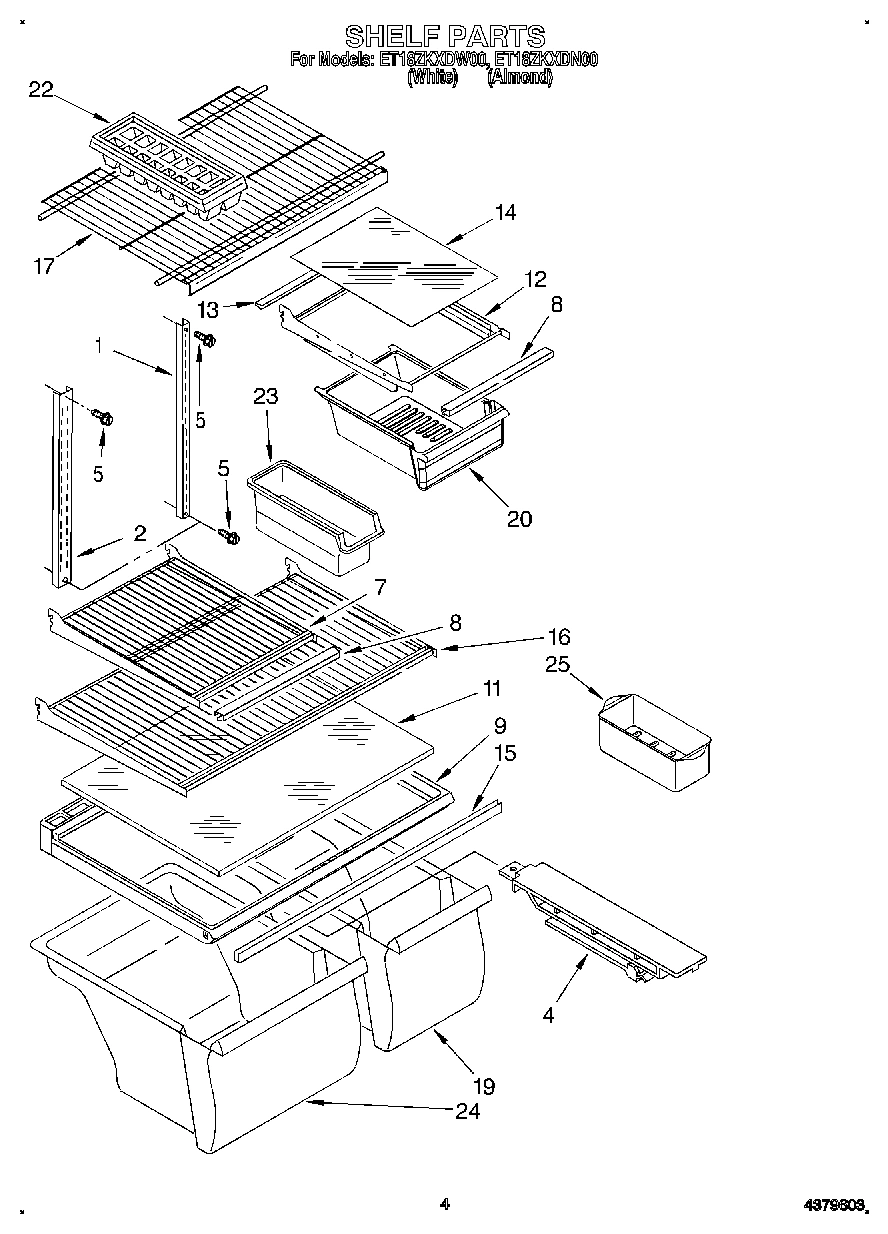

03 - SHELF

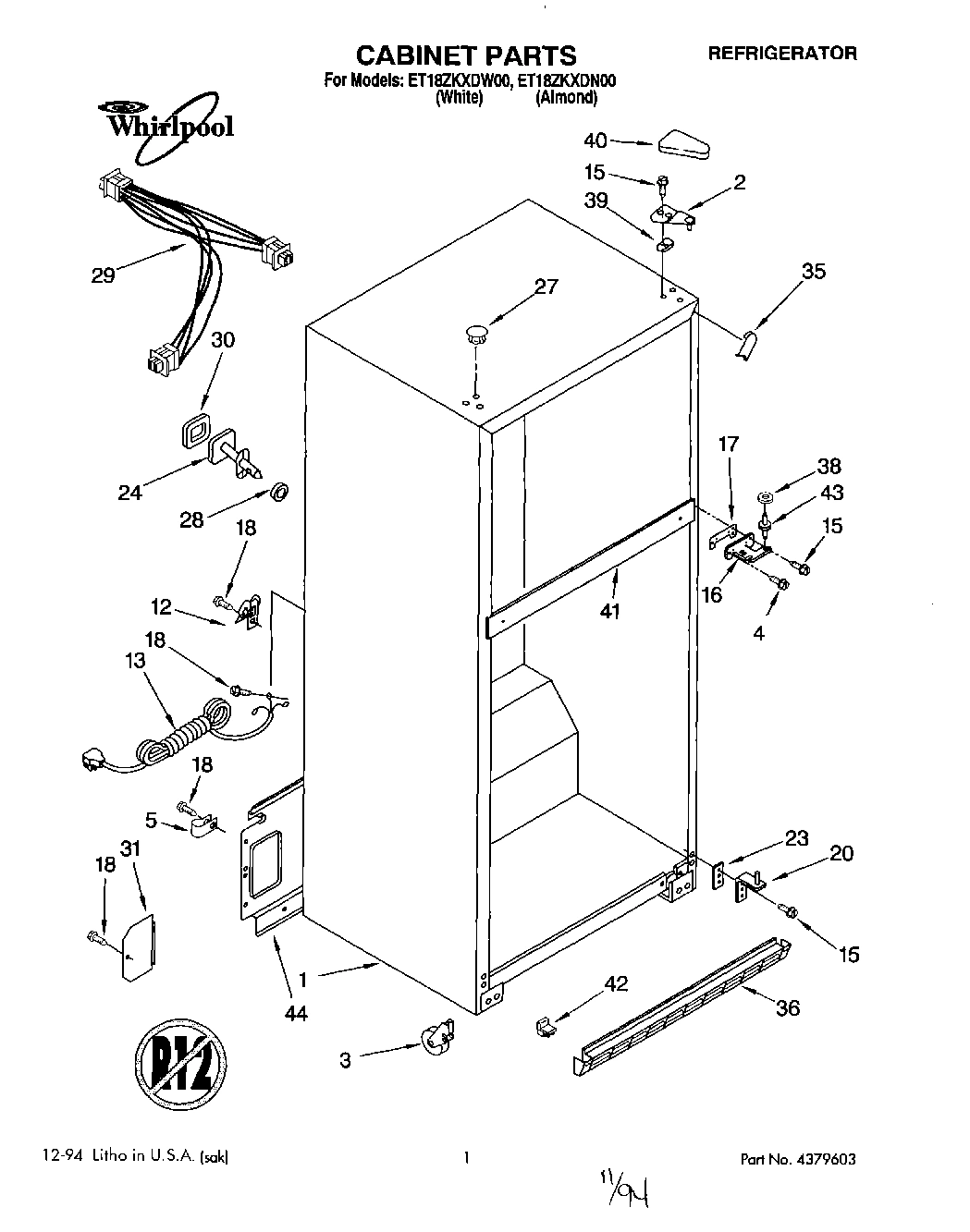

01 - CABINET

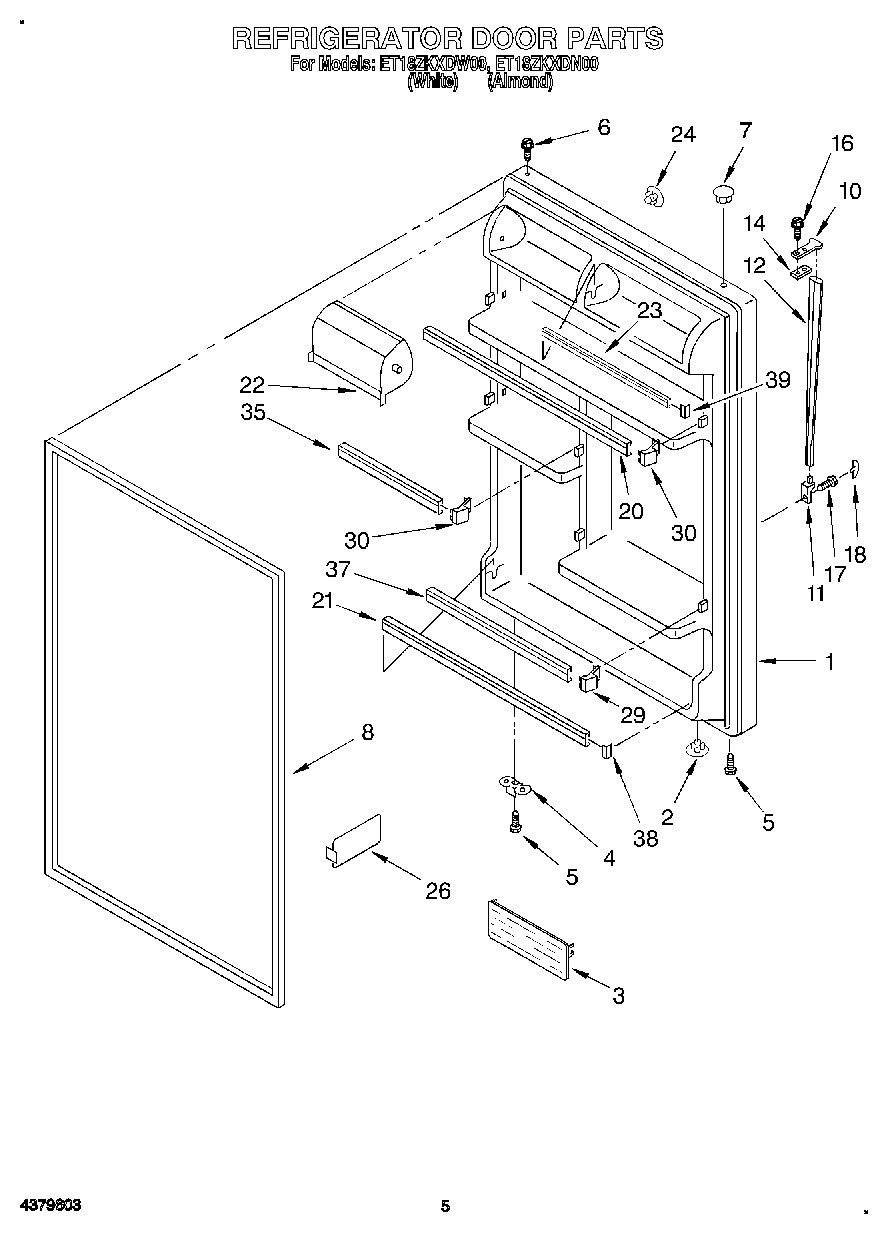

04 - REFRIGERATOR DOOR

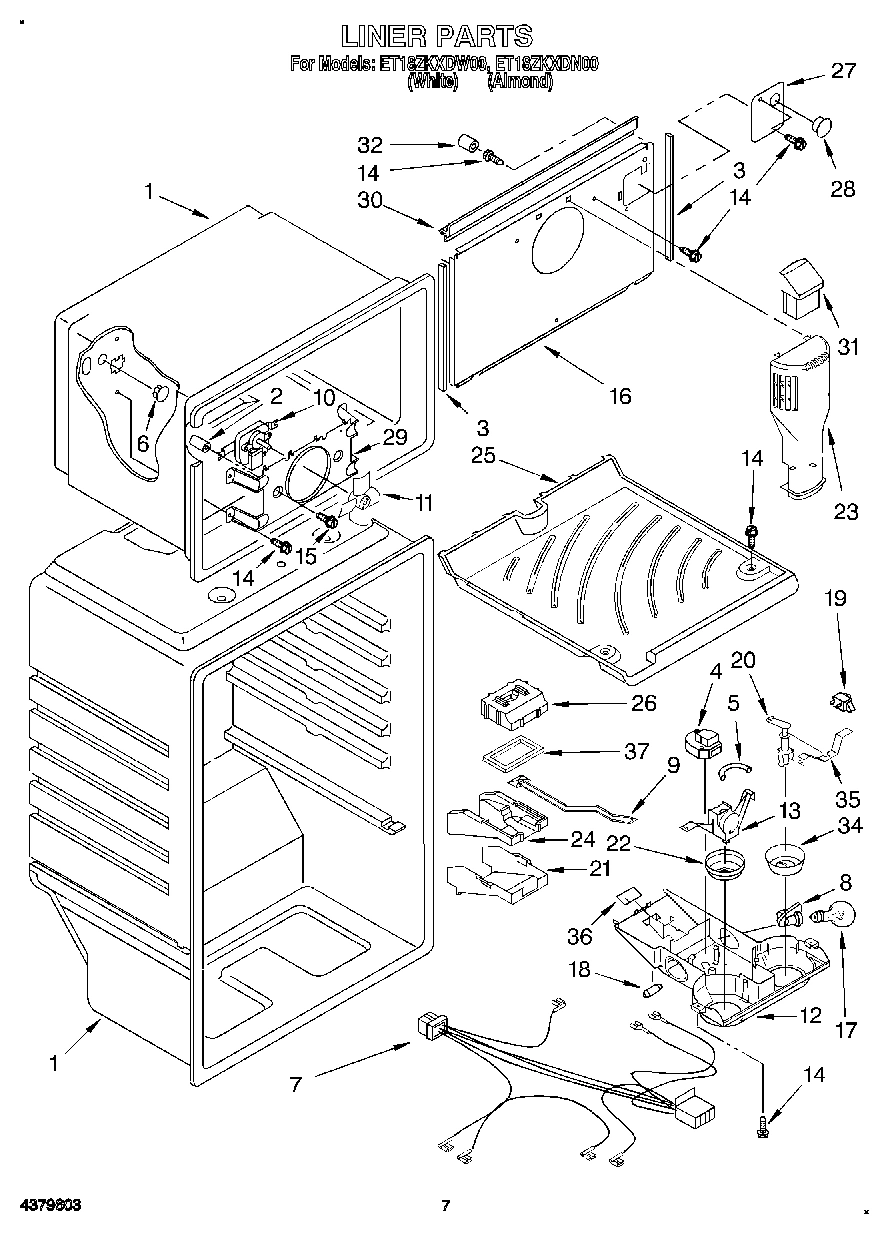

05 - LINER
Common parts from model Whirlpool ET18ZKXDW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2159270 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2159271 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45366A1 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171029 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171030 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45371A8 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Timer, Defrost WPL 2172691 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2163853 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2172570 Contact Us For Availability
10
Fan Motor WPL 2163766 Contact Us For Availability
12
Handle, Center (Almond) WPL 2171044 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Control Box WPL 2172566 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
14
Glass, Meat Cover WPL 2166216 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163856 Contact Us For Availability
16
Cover - Evaporator WPL 2163818 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171037 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Screw Cover (White) WPL 9791769 Contact Us For Availability
18
Screw Cover (Almond) WPL 9791770 Contact Us For Availability
18
Nameplate (White Model) WPL 2162781 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Trim, Door Shelf WPL 2171038 Contact Us For Availability
20
Post, Damper WPL 2163809 Contact Us For Availability
21
Trim, Door Shelf WPL 2171141 Contact Us For Availability
21
Cover, Air Diffuser WPL 2172560 Contact Us For Availability
22
Knob, Thermostat WPL 2174605 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Trim, Door Shelf WPL 2171040 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI45367A8 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Air Diffuser, Bottom WPL 2172564 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (12) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI45368A2 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI45369A5 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Damper WPL 2174604 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Trim, Door Shelf WPL 2171039 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
37
Trim-Door Shelf WPL 2171041 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI45370A7 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
44
Cover, Unit WPL 2176272 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
