Model Whirlpool ET18JKXDN03 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

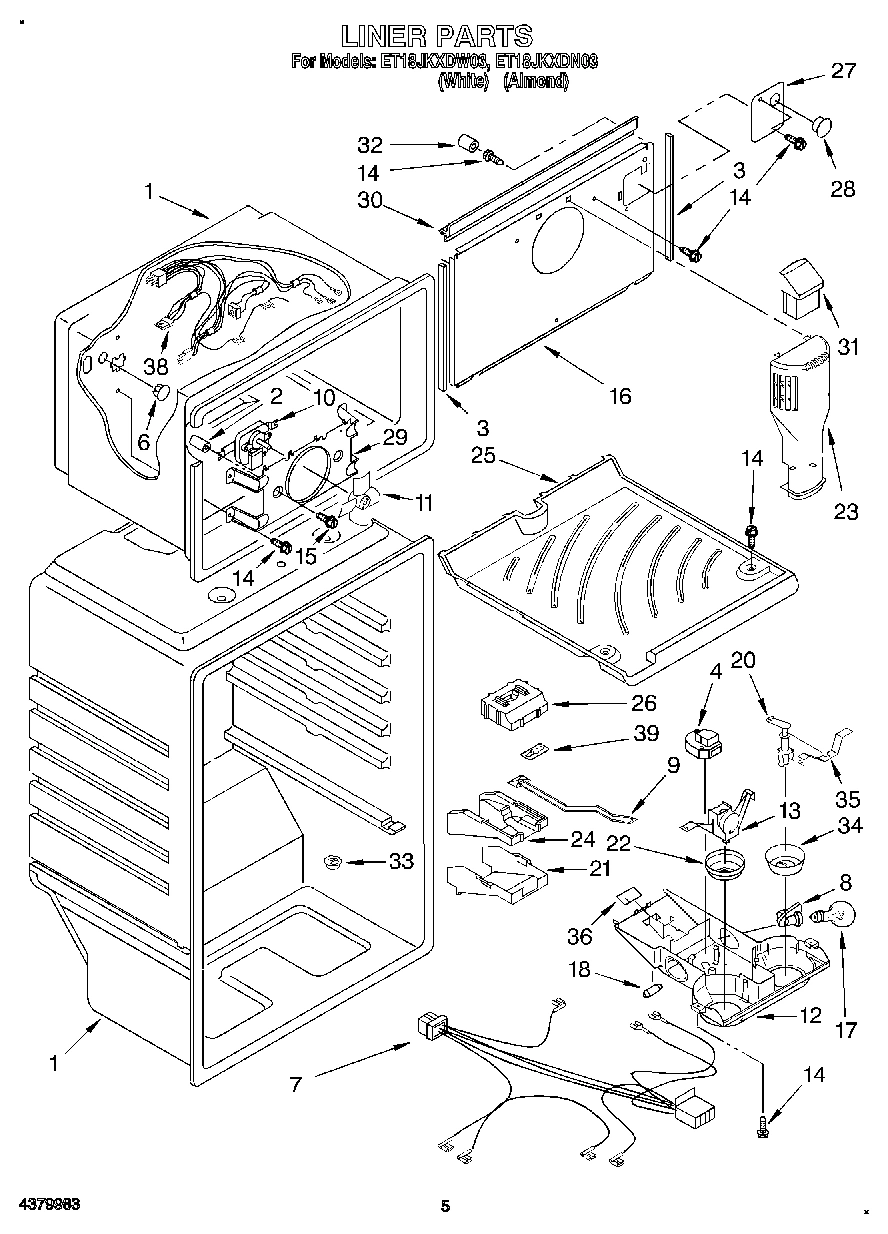

03 - LINER

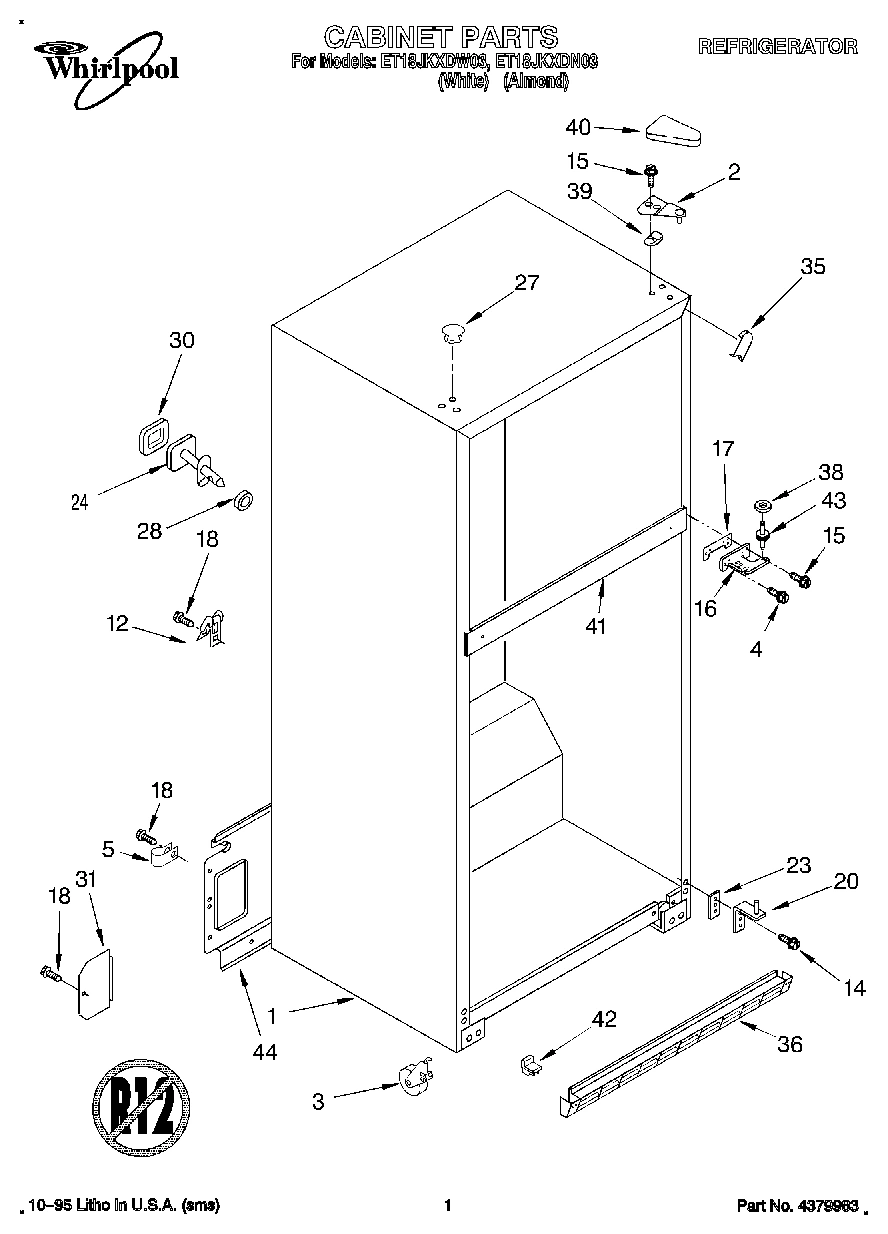

01 - CABINET

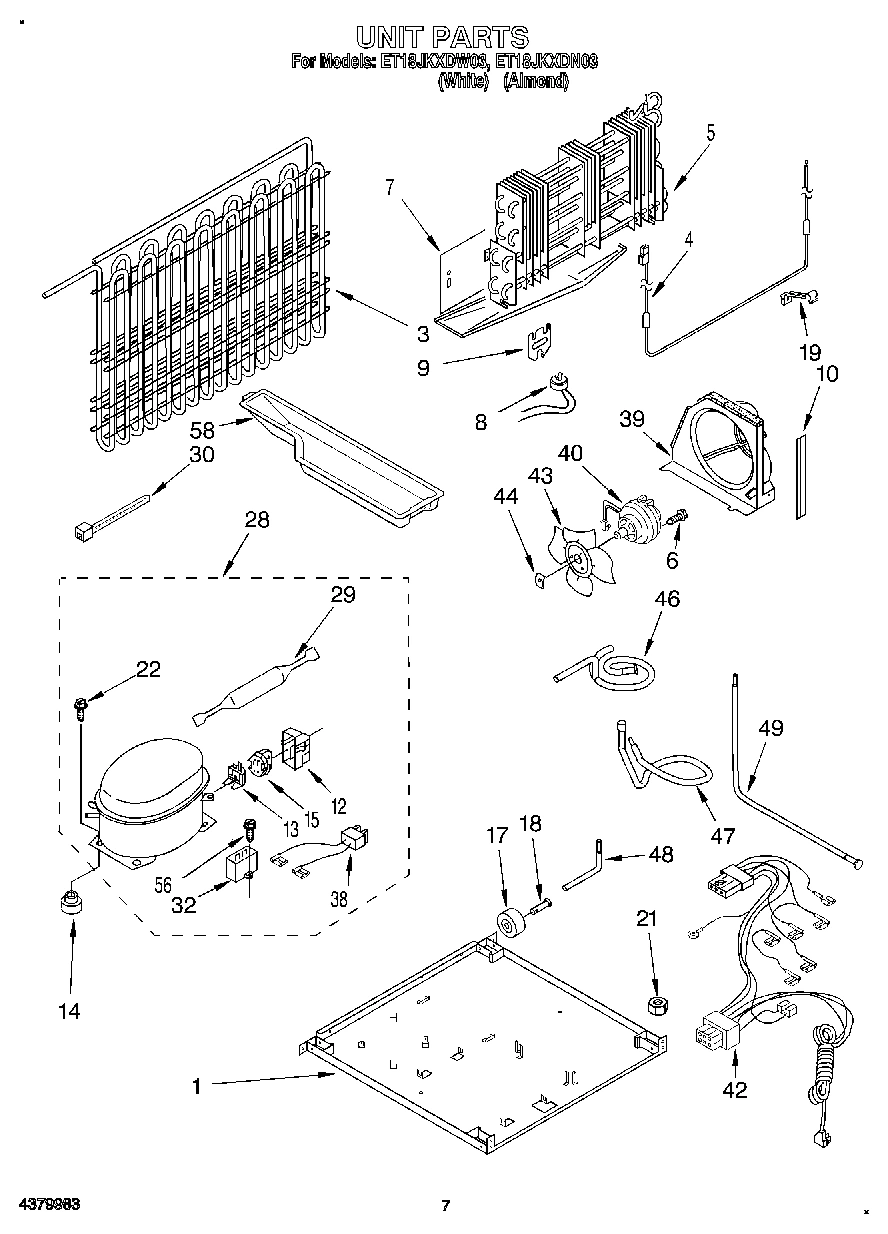

04 - UNIT

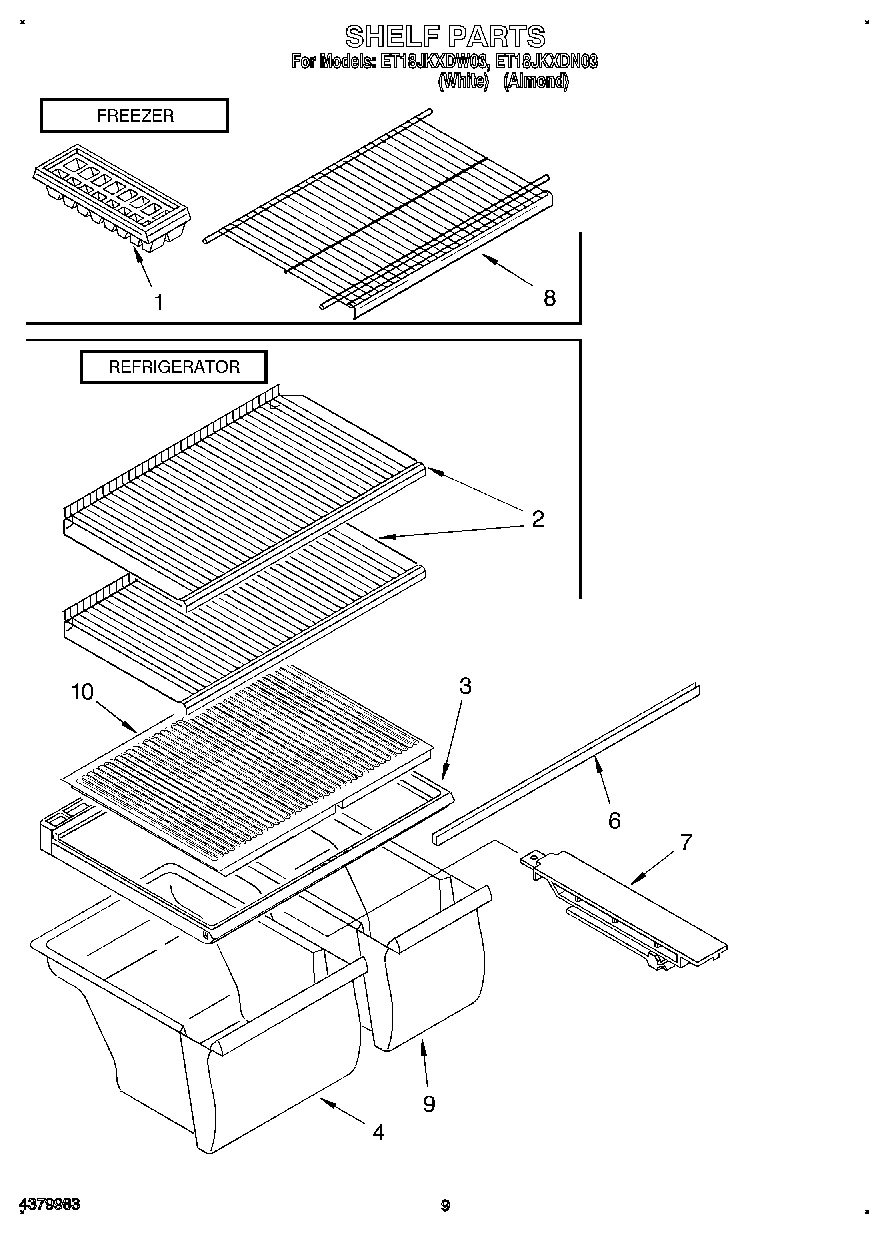

05 - SHELF, LIT/OPTIONAL

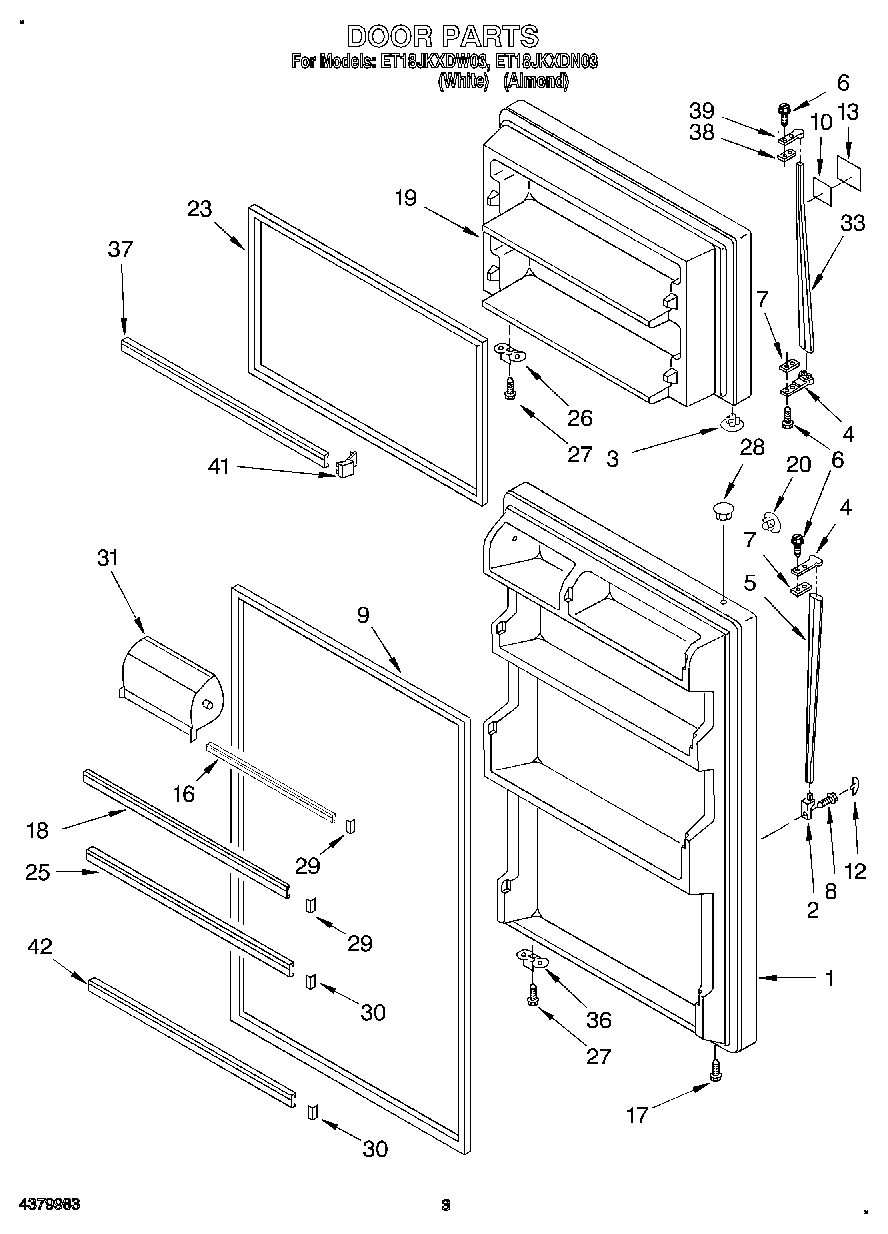

02 - DOOR
Common parts from model Whirlpool ET18JKXDN03 TOP MOUNT REFRIGERATOR
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring Sheet WPL LIT2172667 Contact Us For Availability
Use & Care Guide WPL LIT2180402 Contact Us For Availability
Energy Tag WPL LIT2182370 Contact Us For Availability
Do-It-Yours WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 2171270 Contact Us For Availability
2
Shelf (2) WPL 2166147 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
10
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
10
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
10
Insert WPL 2166149 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Door Reversal Instructions WPL 2172516 Contact Us For Availability
10
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
10
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
10
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
10
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
15
Relay (See Overload) WPL ARI43887A5 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2159270 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2159271 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut WPL ARI43888A1 Contact Us For Availability
22
Screw WPL 489473 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI43885A8 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2182376 Contact Us For Availability
42
Trim, Door WPL 2171141 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2182415 Contact Us For Availability
48
Tube, Process WPL 2179725 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
