Model Whirlpool ET16ZKYWN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

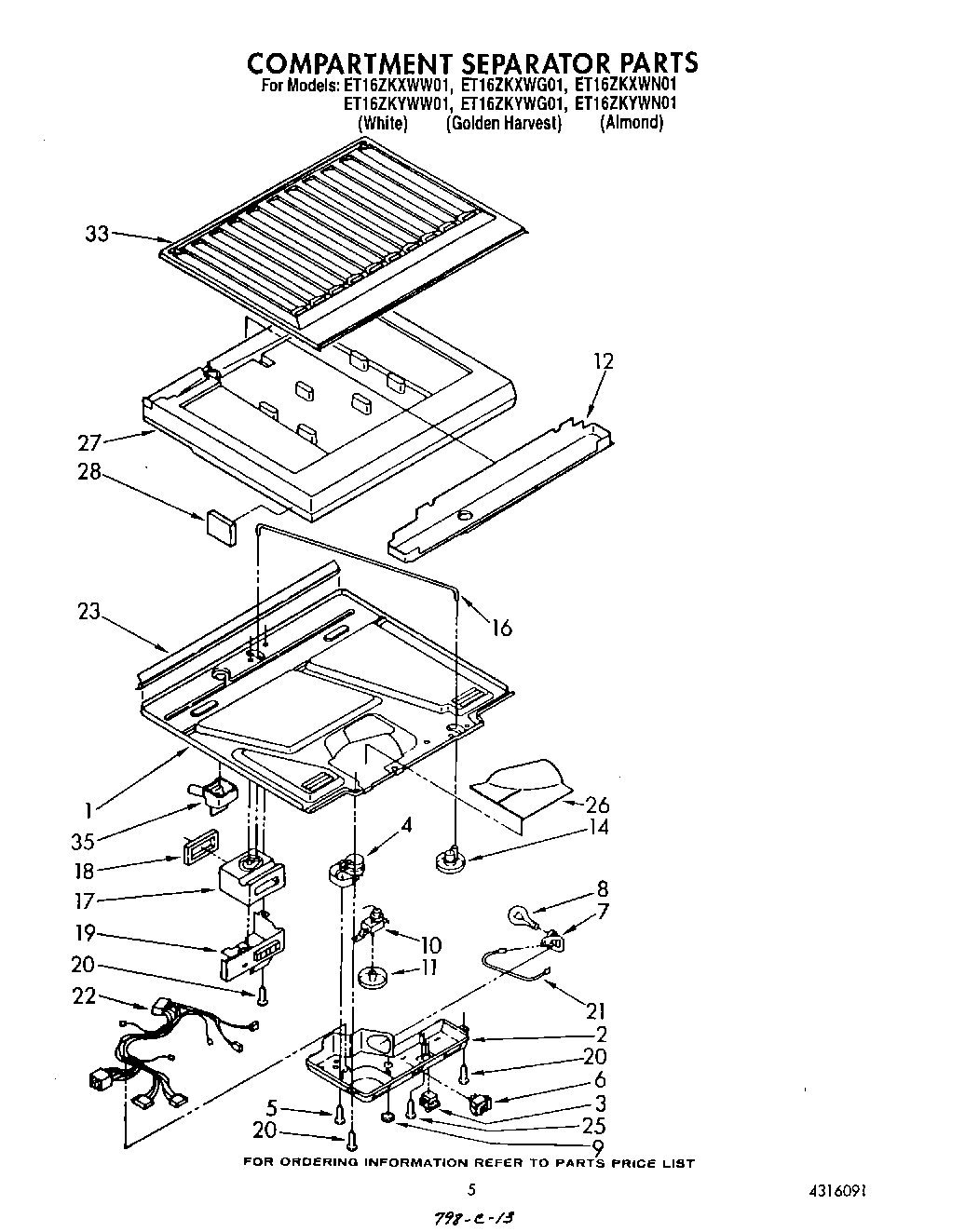

04 - COMPARTMENT SEPARATOR

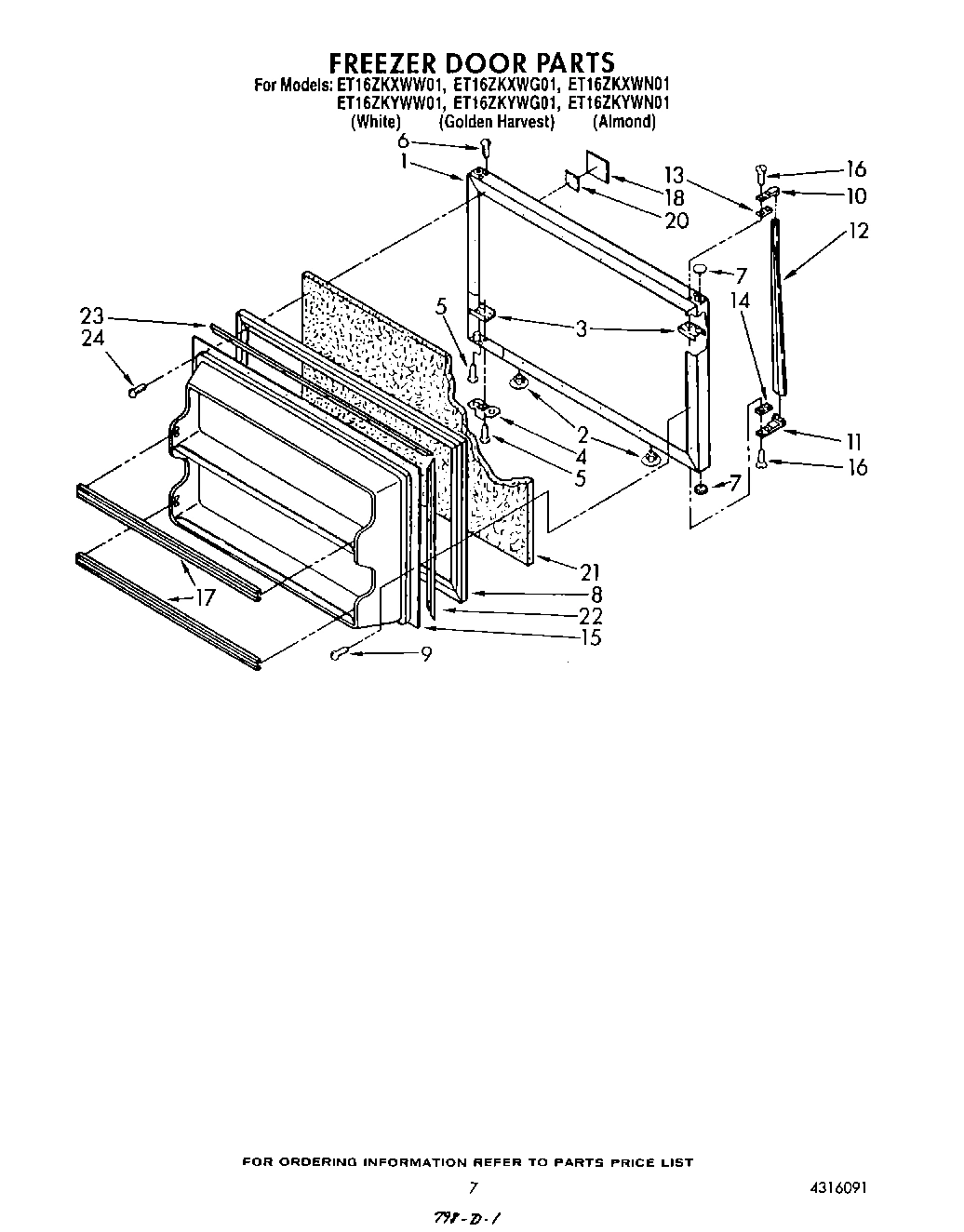

06 - FREEZER DOOR

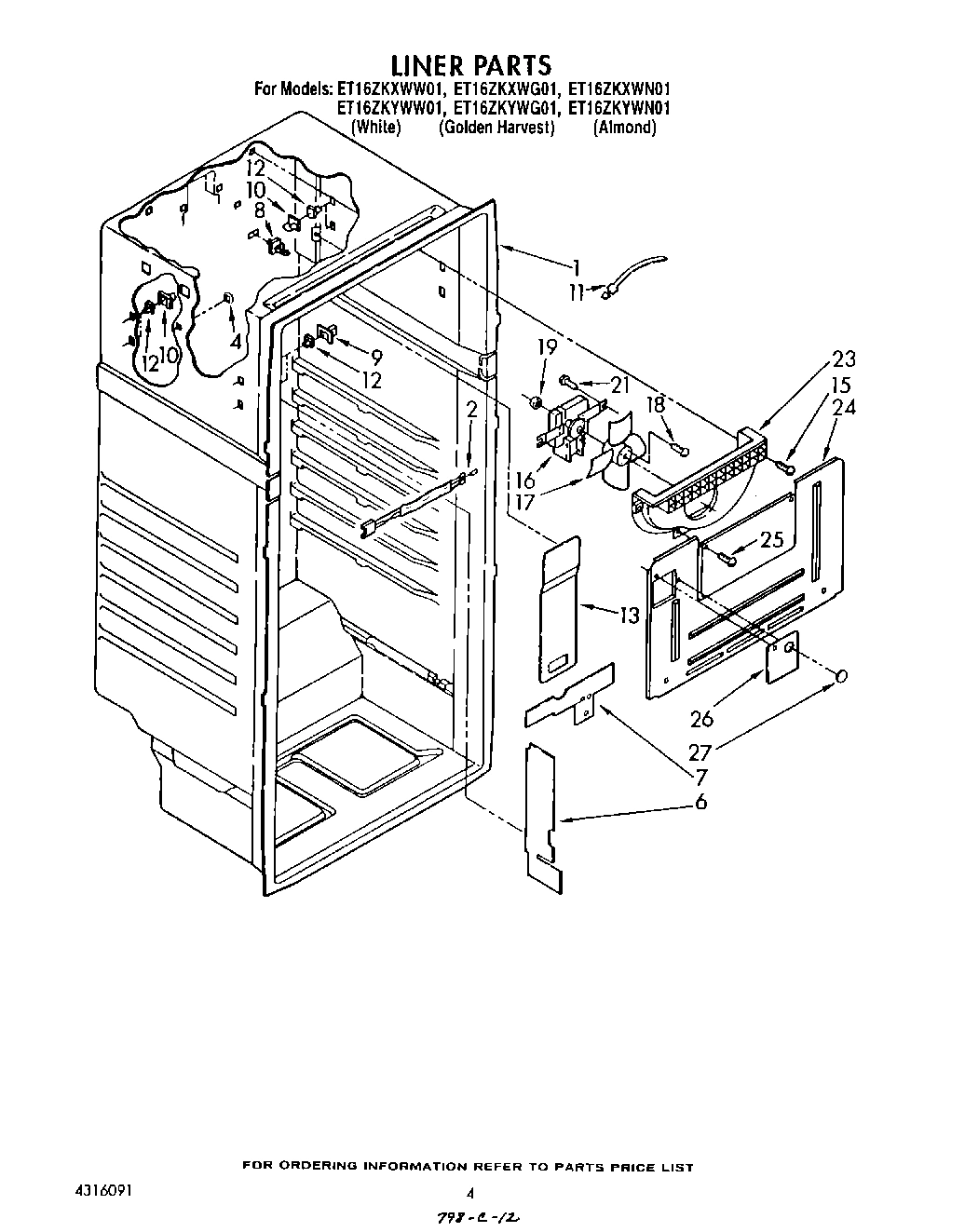

03 - LINER

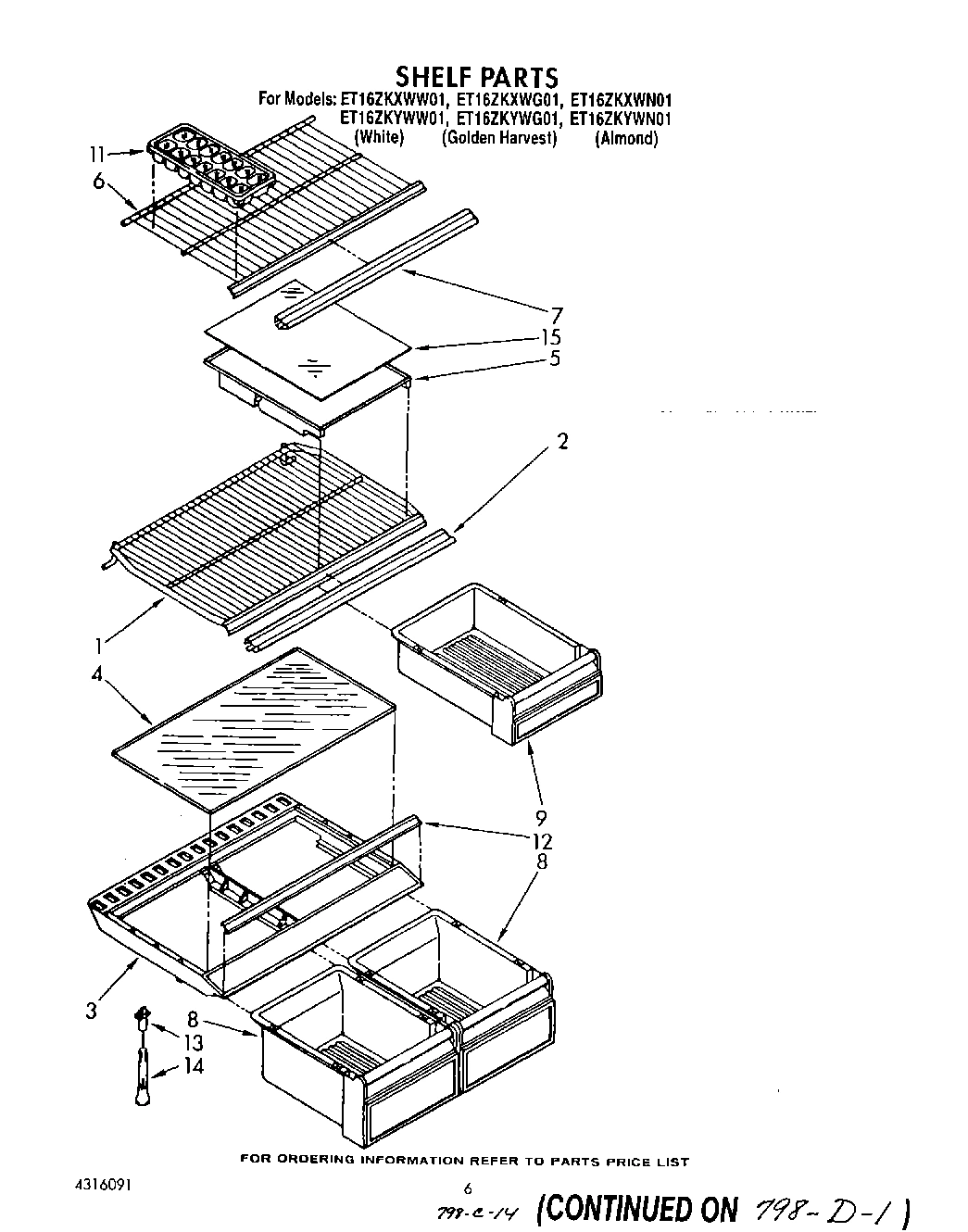

05 - SHELF

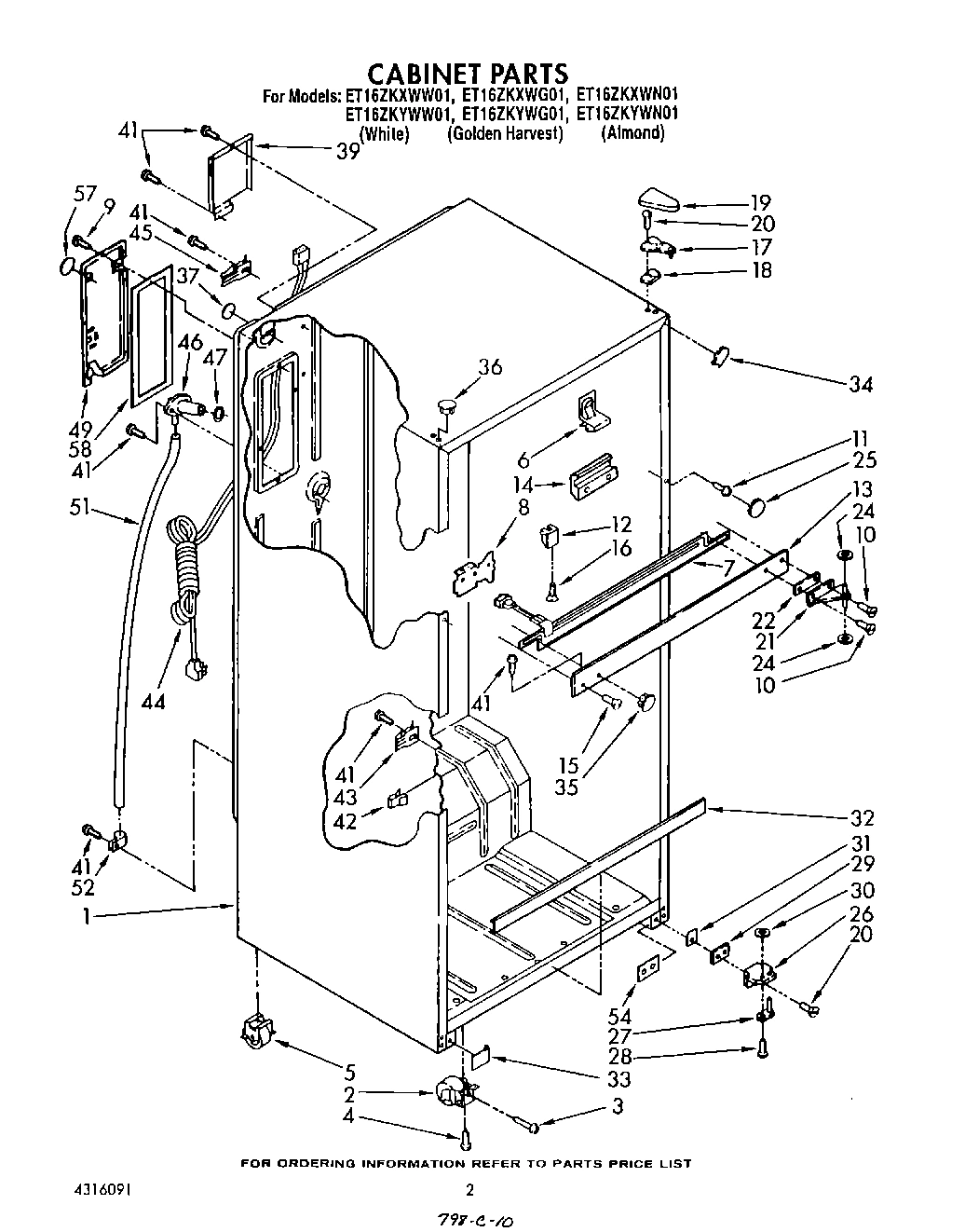

02 - CABINET

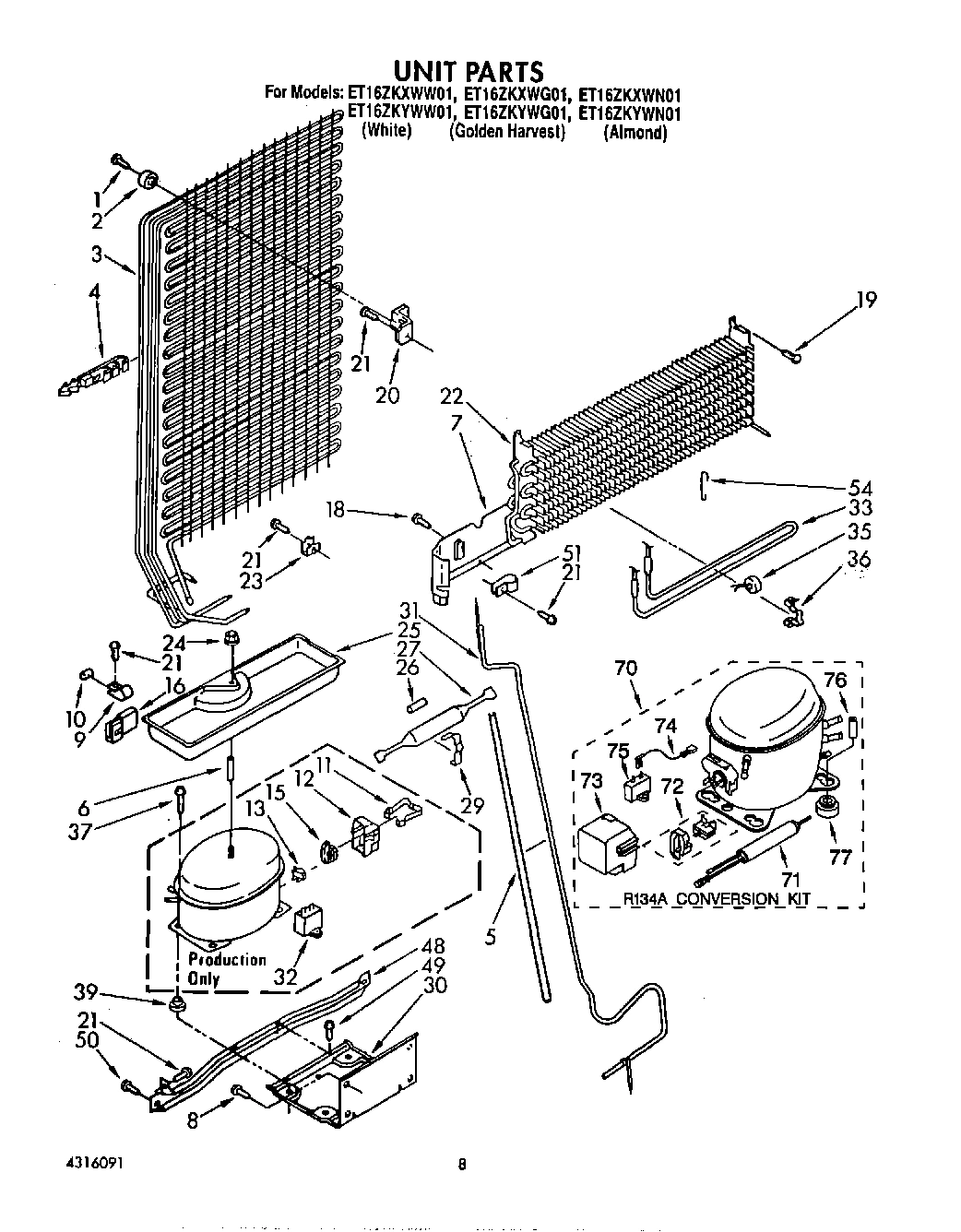

07 - UNIT

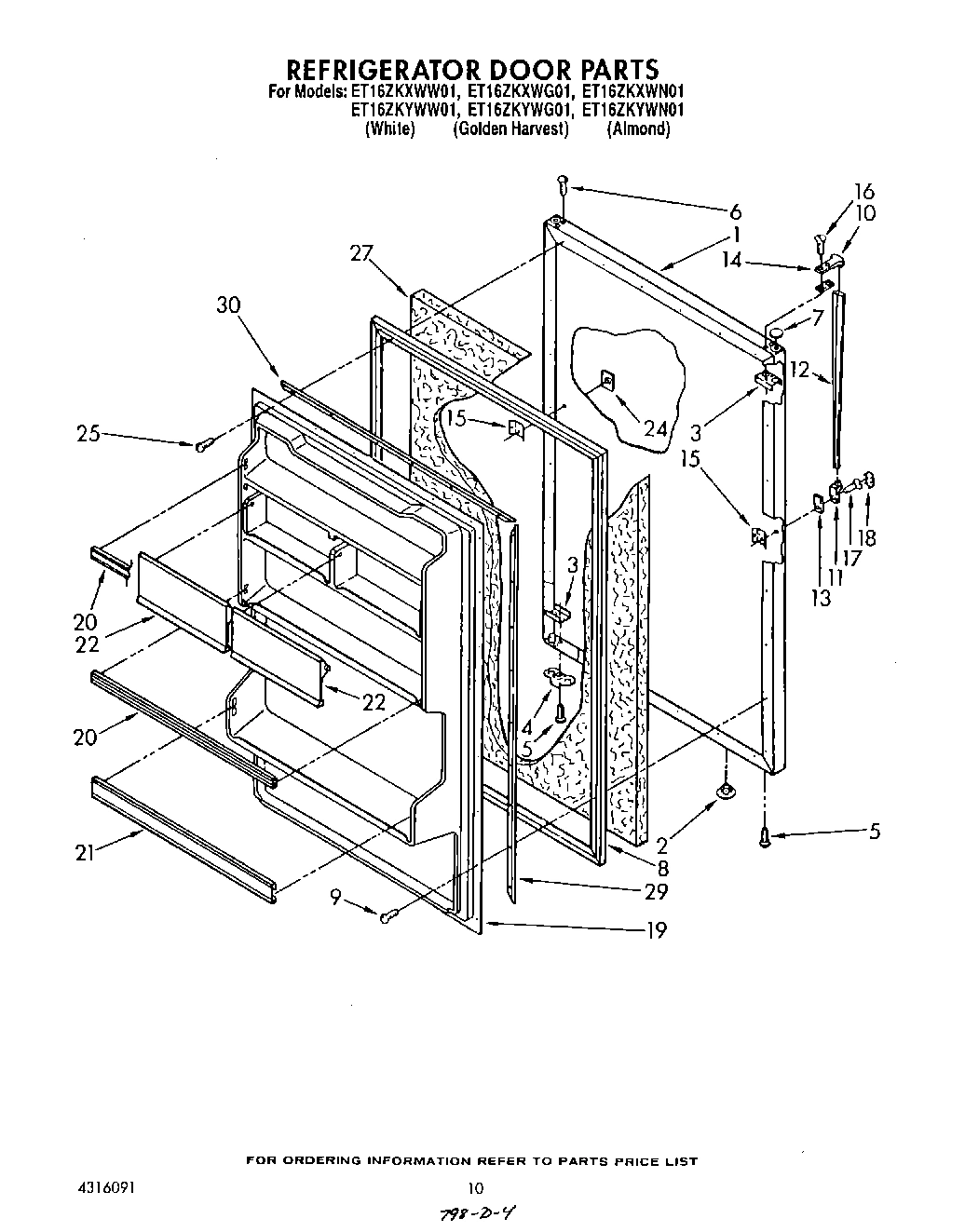

08 - REFRIGERATOR DOOR , LIT/OPTIONAL
Common parts from model Whirlpool ET16ZKYWN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124782 WPL LIT1124782 Contact Us For Availability
WPL LIT1124990 WPL LIT1124990 Contact Us For Availability
WPL LIT2149680 WPL LIT2149680 Contact Us For Availability
WPL LIT4316091 WPL LIT4316091 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43040A7 Contact Us For Availability
1
Shelf, Pullout (3) WPL 943785 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI43039A8 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103917 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103918 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1103919 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Trim, Shelf (Front) WPL 935749 Contact Us For Availability
2
Roller, Front (2) WPL 942774 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
3
Cover, Crisper WPL 2150103 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1105138 Contact Us For Availability
4
Glass, Crisper Cover WPL 2150104 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Cover, Meat Pan WPL 1108739 Contact Us For Availability
5
Roller, Rear (2) WPL 937216 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Shelf, Freezer WPL 943783 Contact Us For Availability
6
Clip, Center Rail WPL 1129018 Contact Us For Availability
6
Spacer WPL 1105130 Contact Us For Availability
6
Screw (Repair) WPL 488930 Contact Us For Availability
7
Top, Electric Shield WPL 1129067 Contact Us For Availability
7
Trim, Shelf (Front) WPL 942840 Contact Us For Availability
7
Heater, Mullion WPL 1118897 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108169 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Stud, Evaporator (2) WPL 942750 Contact Us For Availability
8
Pan, Crisper (2) WPL 2150106 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Pan, Meat WPL 2150107 Contact Us For Availability
9
Tube Clamp WPL 510716 Contact Us For Availability
10
Dampener WPL 945593 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Trim, Crisper Cover WPL 946434 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center (Golden Harvest) WPL 1106189 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Support, Crisper Cover WPL 1103731 Contact Us For Availability
13
Center Rail (White) WPL 1111510 Contact Us For Availability
13
Center Rail (Golden Harvest) WPL 1111511 Contact Us For Availability
13
Center Rail (Almond) WPL 1111512 Contact Us For Availability
13
Overload WPL 1105172 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Post, Cripser Cover WPL 836410 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
15
Panel, Interior Door (Freezer) WPL 1120633 Contact Us For Availability
15
Glass, Meat Pan Cover WPL 2150105 Contact Us For Availability
15
Screw WPL 489319 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1124988 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
18
Nameplate WPL 945114 Contact Us For Availability
18
Shim, Hinge Top WPL 1100511 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
19
Interior Door Panel WPL 1120632 Contact Us For Availability
20
Tape Strip WPL 991259 Contact Us For Availability
20
Screw (Repair) WPL 489297 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
20
Bracket, Condenser (2) WPL 944791 Contact Us For Availability
20
Trim, Door (Top) (2) WPL 1124985 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Trim, Door (Bottom) WPL 1124986 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Shim, Hinge Center WPL 836194 Contact Us For Availability
22
Evaporator WPL 942866 Contact Us For Availability
22
Compartment, Door (2) WPL 1124987 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
24
Evaporator Cover WPL 2151569 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability
25
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
25
Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability
25
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
25
Evaporator Tray WPL 1101002 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
30
WPL 876029 WPL 876029 Contact Us For Availability
30
WPL 479502 WPL 479502 Contact Us For Availability
30
WPL 799344 WPL 799344 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
30
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
30
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
30
WPL 350941 WPL 350941 Contact Us For Availability
30
WPL 542639 WPL 542639 Contact Us For Availability
30
WPL 799340 WPL 799340 Contact Us For Availability
30
WPL 799833 WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Cover, Glider Rail (Golden Harvest) WPL 2151423 Contact Us For Availability
31
Exchanger, Heat WPL 1127874 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability
32
Cover, Deck Rail (Golden Harvest) WPL 1109361 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability
33
Heater, Defrost WPL 1127659 Contact Us For Availability
34
Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability
34
Filler, Wrap Corner (2) WPL 1110686 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
WPL 1119707 WPL 1119707 Contact Us For Availability
35
WPL 1119708 WPL 1119708 Contact Us For Availability
35
WPL 1119709 WPL 1119709 Contact Us For Availability
36
WPL 842031 WPL 842031 Contact Us For Availability
36
WPL 989195 WPL 989195 Contact Us For Availability
36
WPL 989876 WPL 989876 Contact Us For Availability
36
Clamp WPL 942873 Contact Us For Availability
37
WPL 1129056 WPL 1129056 Contact Us For Availability
39
WPL 942845 WPL 942845 Contact Us For Availability
44
WPL 937360 WPL 937360 Contact Us For Availability
45
WPL 937357 WPL 937357 Contact Us For Availability
46
WPL 942813 WPL 942813 Contact Us For Availability
47
WPL 1106507 WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118782 Contact Us For Availability
49
WPL 1106511 WPL 1106511 Contact Us For Availability
50
Screw, 1/4-28 x 1 (2) WPL 488973 Contact Us For Availability
51
Clamp WPL 489151 Contact Us For Availability
52
WPL 519405 WPL 519405 Contact Us For Availability
54
WPL 2147312 WPL 2147312 Contact Us For Availability
54
Support, Heater WPL 1108172 Contact Us For Availability
57
WPL 1120224 WPL 1120224 Contact Us For Availability
58
WPL 1106510 WPL 1106510 Contact Us For Availability
70
Install Kit WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
