Model Whirlpool ET16XKYZW00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

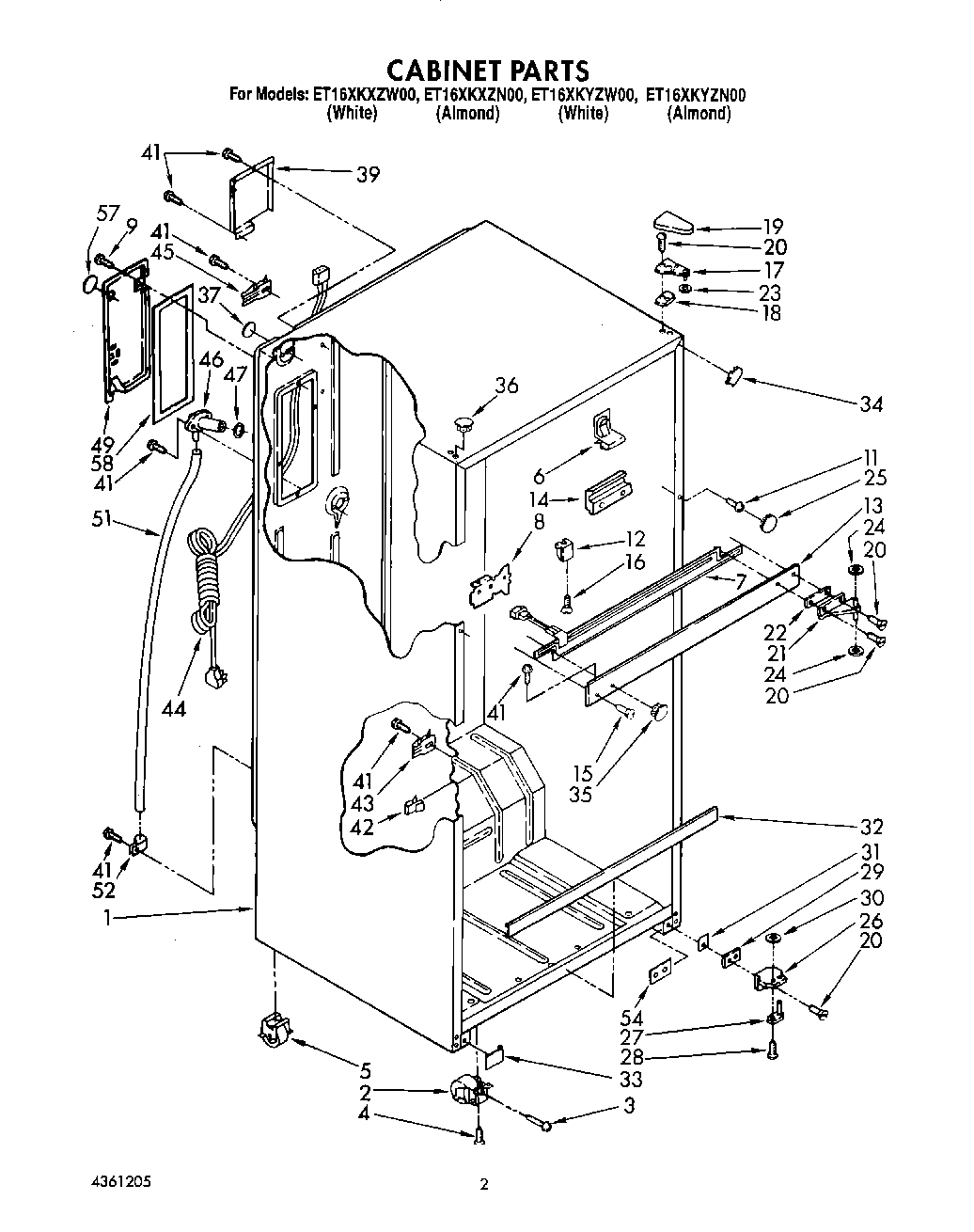

Cabinet (Not A Serviceable Part) WPL ARI43017A6 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI43018A5 Contact Us For Availability

1

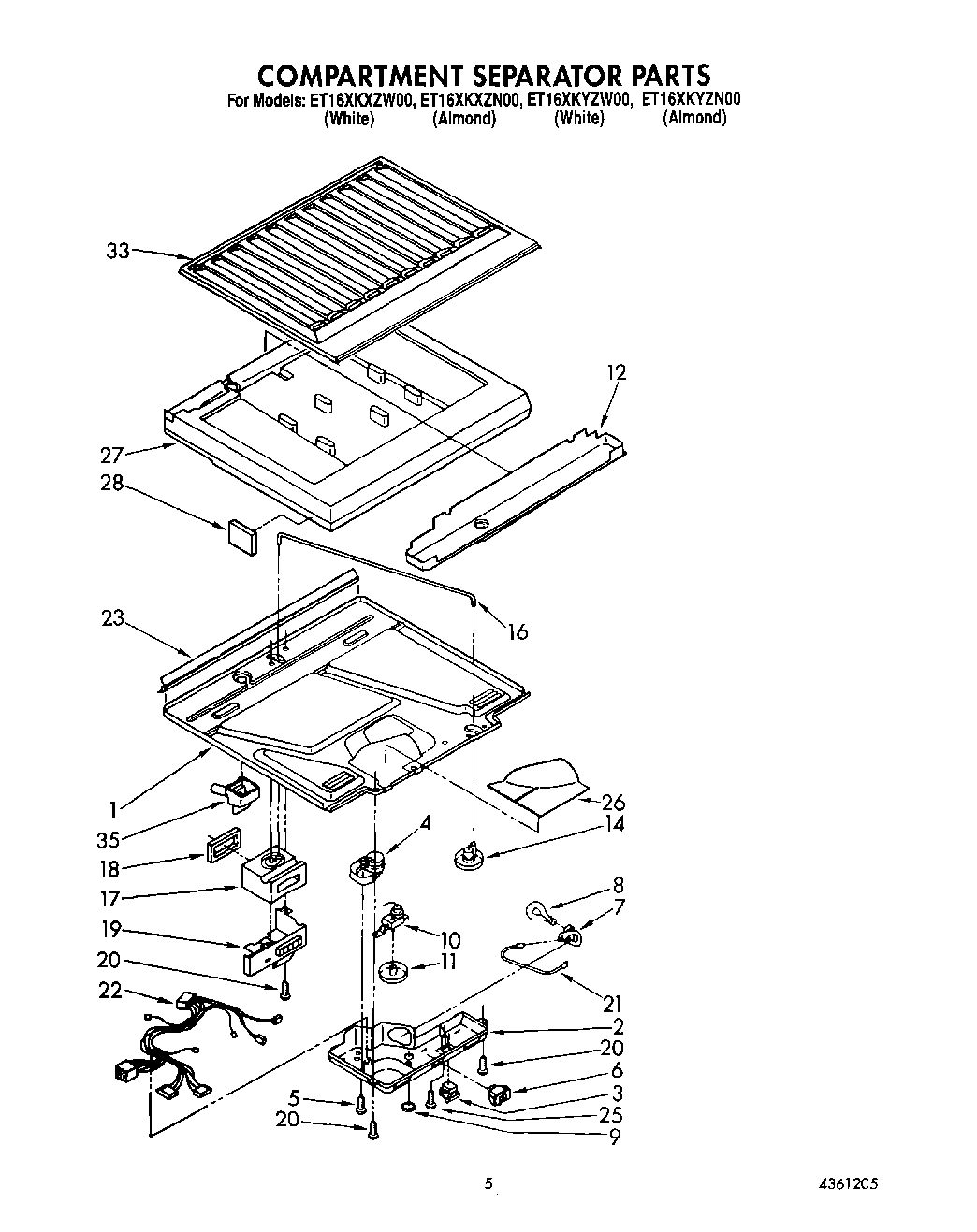

Bottom, Compartment Separator WPL 1111794 Contact Us For Availability

1

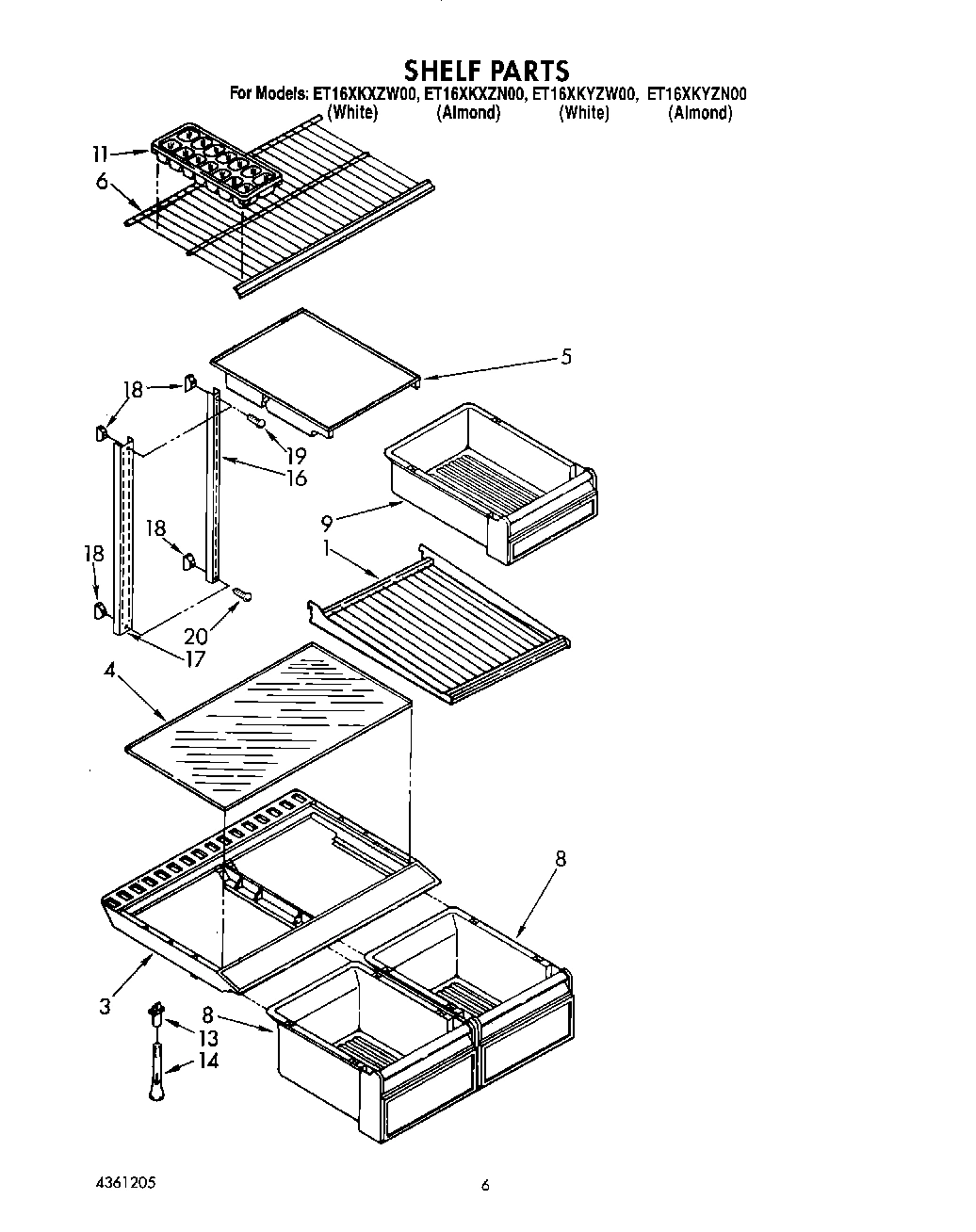

Shelf, Cant. (4) WPL 2156310 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front (2) WPL 2152013 Contact Us For Availability

2

Box, Control WPL 1126703 Contact Us For Availability

2

Bumper (2) WPL 944772 Contact Us For Availability

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Cover, Crisper WPL 2156328 Contact Us For Availability

3

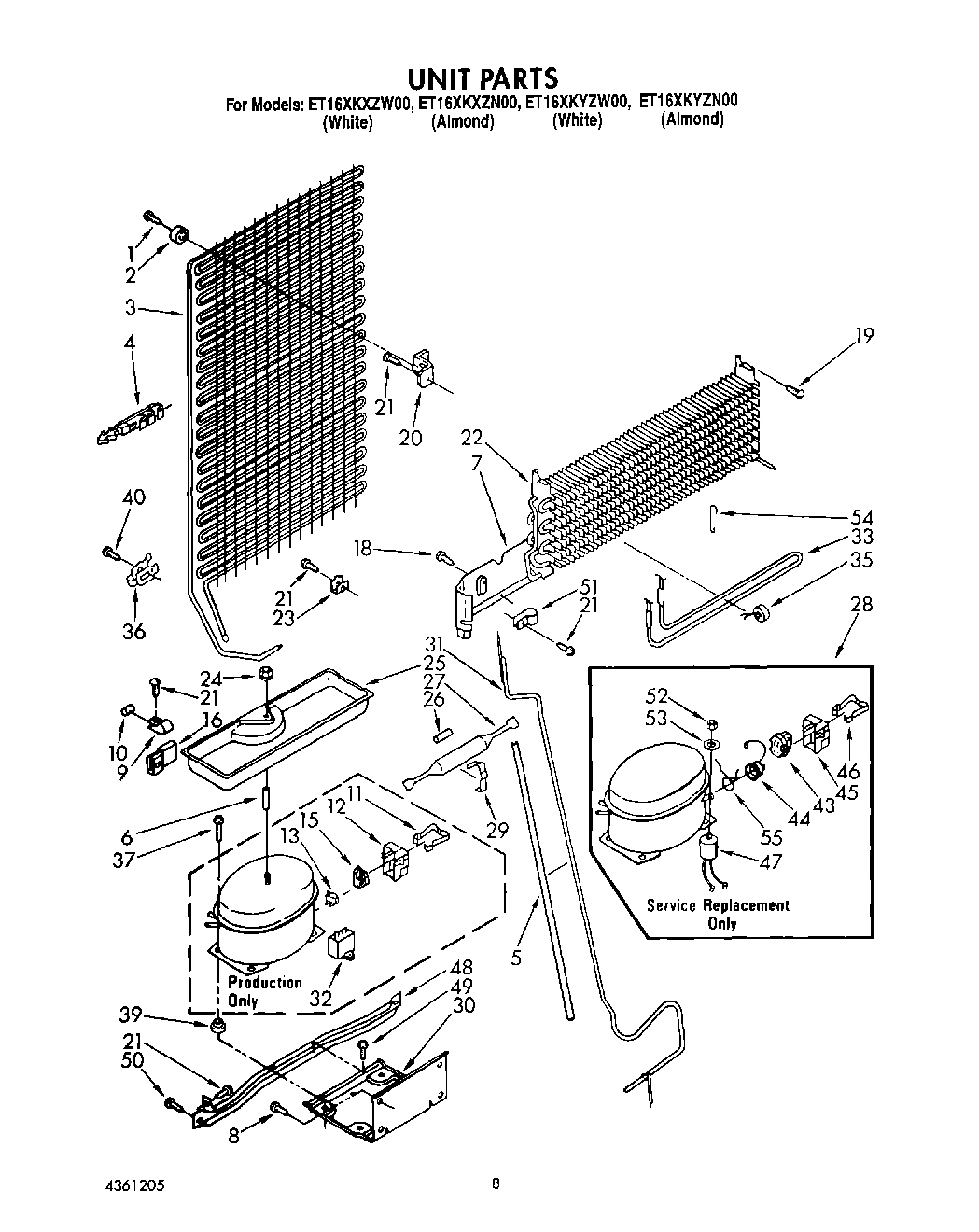

Condenser WPL 2154869 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 2154666 Contact Us For Availability

4

Glass, Crisper Cover WPL 2150104 Contact Us For Availability

4

Clip, Tube (2) WPL 1118652 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $4.82

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Roller, Rear (2) WPL 2152014 Contact Us For Availability

5

Cover, Meat Pan WPL 944739 Contact Us For Availability

6

Clip, Center Rail WPL 1129018 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Shelf, Freezer WPL 943783 Contact Us For Availability

6

Spacer WPL 2154438 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

Heater, Mullion WPL 1118897 Contact Us For Availability

7

Top, Electric Shield WPL 1129067 Contact Us For Availability

7

Heat Shield Evaporator WPL 1108169 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

8

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Pan, Crisper (2) WPL 2160133 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

9

Stud (2) WPL 946356 Contact Us For Availability

9

Pan, Meat WPL 2160134 Contact Us For Availability

9

Tube Clamp WPL 510716 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $148.53

10

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $24.52

10

Dampener WPL 945593 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Screw, 8-32 x 1/2 (2) WPL 489370 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

Knob, Thermostat WPL 2148148 Contact Us For Availability

12

Spacer (2) WPL 2149077 Contact Us For Availability

12

support stud (8) WPL 946355 Contact Us For Availability

12

Drain Pan WPL 1108170 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Support, Crisper Cover WPL 1103731 Contact Us For Availability

Overload WPL 1105172 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Post, Cripser Cover WPL 836410 Contact Us For Availability

Center, Rail Shim (2) WPL 2151428 Contact Us For Availability

Knob, Air Control WPL 2148149 Contact Us For Availability

15

Screw WPL 489378 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $65.89

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Rod, Connecting WPL 1111271 Contact Us For Availability

Ladder-Shelf, Side WPL 1111807 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $59.86

Hinge, Top WPL 1129045 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

Ladder, Center WPL 1114465 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Nameplate WPL 2152334 Contact Us For Availability

Shim, Hinge Top WPL 2151698 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $4.82

Grommet (2) WPL 531933 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Screw, WPL 489345 Contact Us For Availability

20

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

20

Screw WPL 489327 Contact Us For Availability

20

Bracket, Condenser (2) WPL 944791 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Trim, Door (Bottom) WPL 2151708 Contact Us For Availability

Hinge, Center WPL 1129047 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Wiring Assembly WPL 937078 Contact Us For Availability

Compartment, Door WPL 2160143 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box & Cabinet WPL 2154705 Contact Us For Availability

Evaporator WPL 942866 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $4.55

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

Scroll, Fan WPL 1122814 Contact Us For Availability

Gasket, Bottom Separator WPL 1123916 Contact Us For Availability

285002 Whirlpool Nut Backorder WPL 285002 $8.13

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.99

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Evaporator Cover WPL 2151569 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

Evaporator Tray WPL 1101002 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $32.12

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Restrictor Sleeve WPL 510446 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1123390 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Bin, Shelf WPL 2156312 Contact Us For Availability

Pad (2) WPL 946367 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317960 Contact Us For Availability

29

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

29

Shim, Bottom WPL 943708 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Washer, 7/64 WPL 489201 Contact Us For Availability

Unit Mounting Plate WPL 1118781 Contact Us For Availability

31

Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability

31

Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability

31

Exchanger, Heat WPL 1127874 Contact Us For Availability

32

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

32

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Separator, Compartment (Top) WPL 1119324 Contact Us For Availability

Heater, Defrost WPL 1127659 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability

34

Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Almond) WPL 1119709 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

36

Hole Plug (2) (Almond) WPL 2151653 Contact Us For Availability

36

Clip, Tube WPL 1105406 Contact Us For Availability

37

Hole Seal WPL 1129056 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

Cover, Wiring WPL 942845 Contact Us For Availability

40

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $6.42

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $83.99

44

Cord, Service WPL 937360 Contact Us For Availability

44

Overload WPL 1108114 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

45

Cover WPL 1108115 Contact Us For Availability

46

Fitting, Drain WPL 942813 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

47

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

47

Seal, Gasket WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118782 Contact Us For Availability

49

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

49

Cover, Plug WPL 1106511 Contact Us For Availability

50

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $78.15

51

Clamp WPL 489151 Contact Us For Availability

52

Clamp (2) WPL 519405 Contact Us For Availability

52

Nut WPL 489142 Contact Us For Availability

53

Washer WPL 489143 Contact Us For Availability

54

Tap Plate (2) WPL 2147312 Contact Us For Availability

54

Support, Heater WPL 1108172 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

57

Hole WPL 1120224 Contact Us For Availability

58

WPL 1106510 WPL 1106510 Contact Us For Availability
