Model Whirlpool ET14MNXMWR1 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

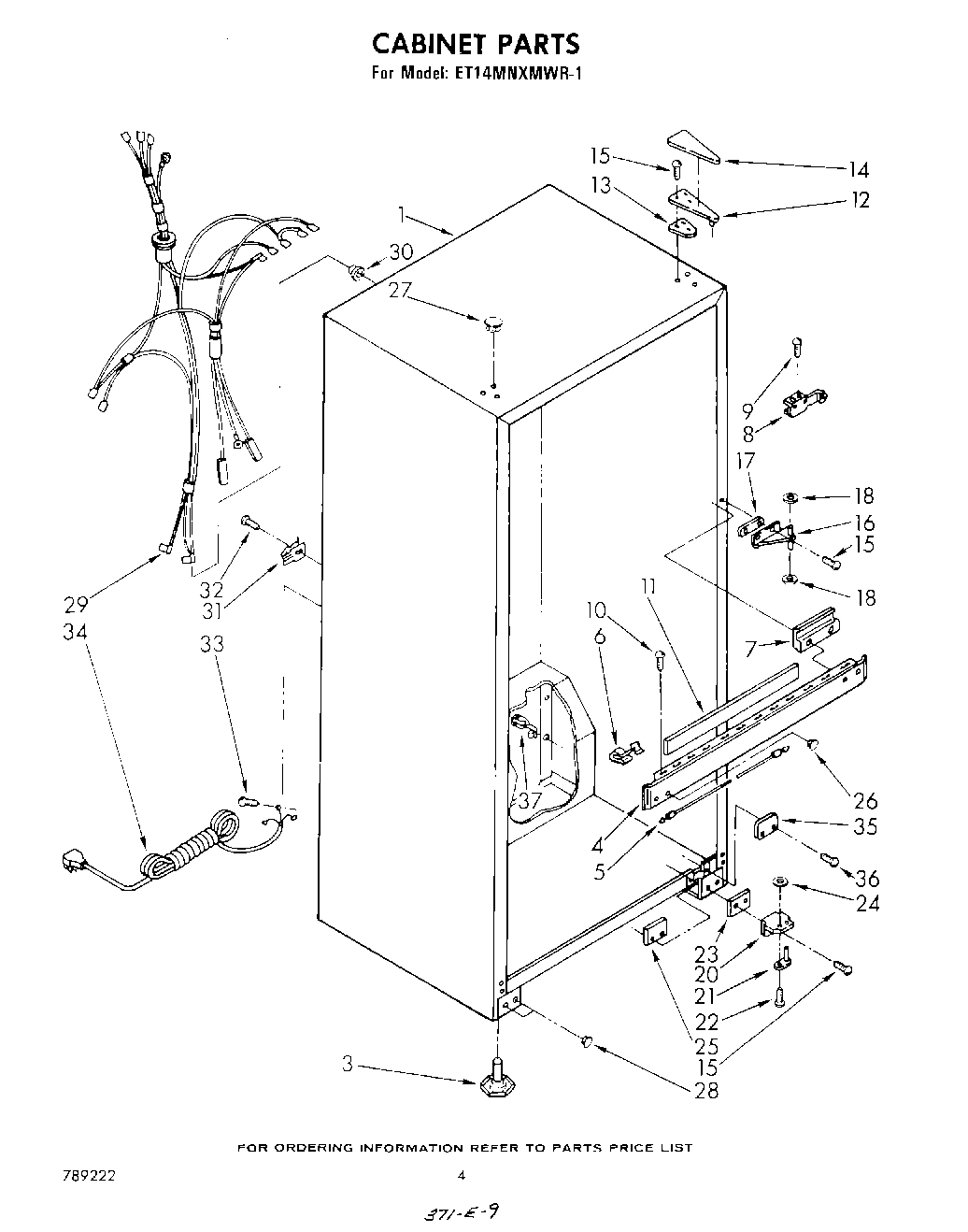

03 - CABINET

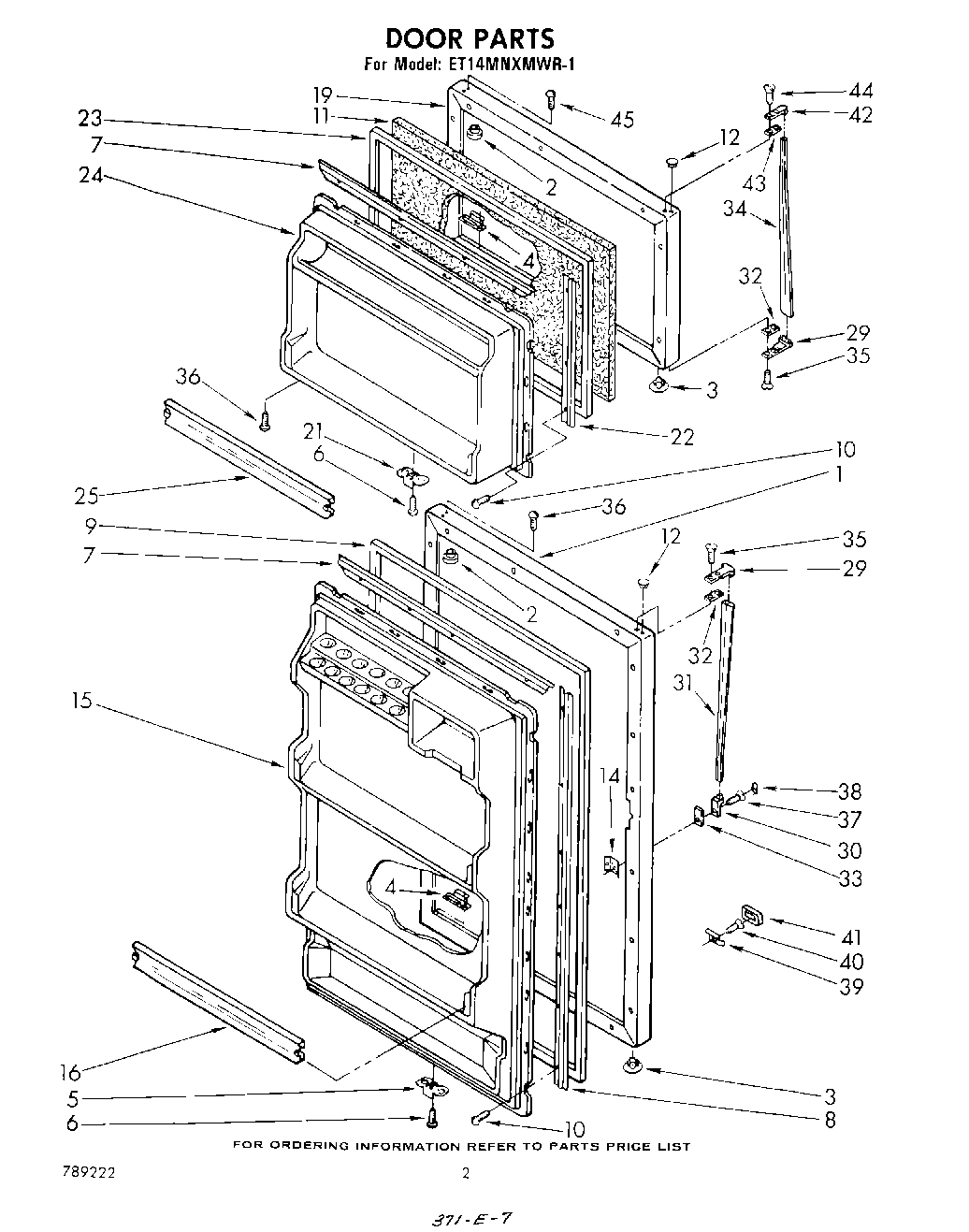

02 - DOOR

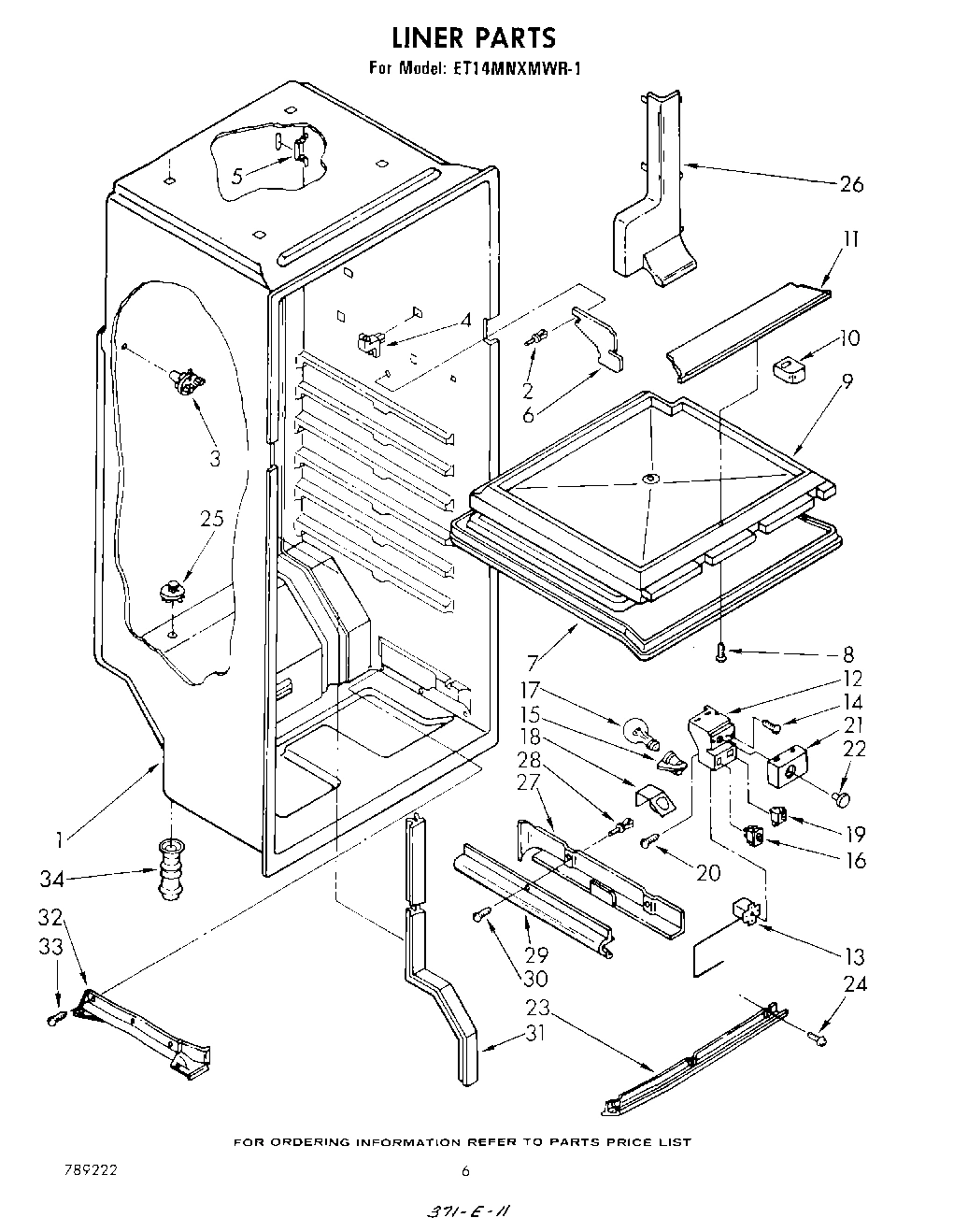

04 - LINER , LIT/OPTIONAL

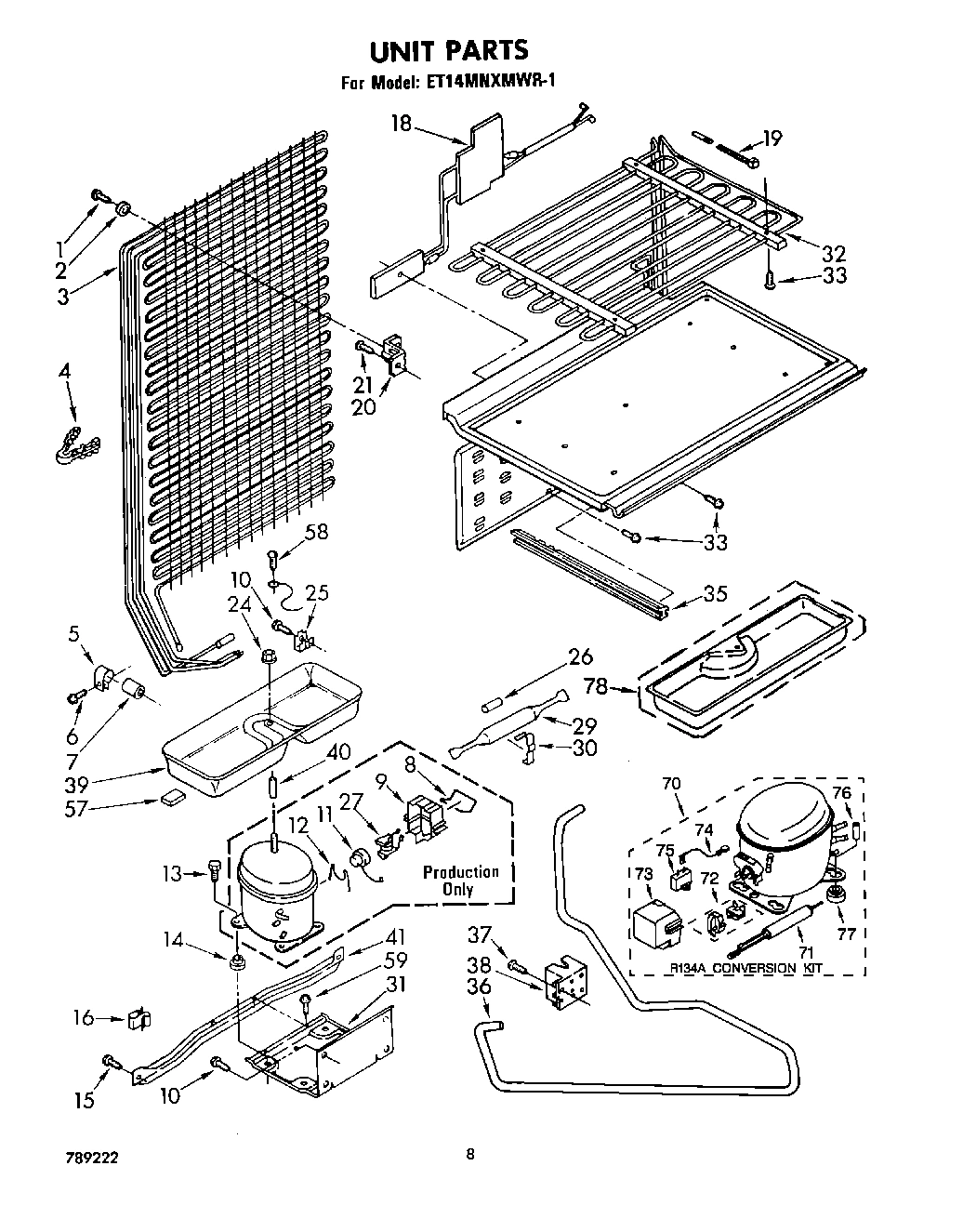

05 - UNIT
Common parts from model Whirlpool ET14MNXMWR1 TOP MOUNT REFRIGERATOR
1
Exterior, Door Panel (Toast) WPL 1100225 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 944095 Contact Us For Availability
1
Refrigerator Door Panel (Coffee) WPL 944096 Contact Us For Availability
1
Refrigerator Door Panel (Harvest Gold) WPL 944097 Contact Us For Availability
1
Refrigerator Door Panel (New Avocado) WPL 944098 Contact Us For Availability
1
Refrigerator Door Panel (Almond) WPL 944099 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI42454A3 Contact Us For Availability
1
Screw, 8 x 3/4 (2) WPL 487888 Contact Us For Availability
2
Cap, Hinge WPL 509929 Contact Us For Availability
2
Bumper (2) WPL 204349 Contact Us For Availability
3
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Screw Anchor (4) WPL 939989 Contact Us For Availability
3
condenser & precooler assembly WPL 943305 Contact Us For Availability
4
Support Stud (4) WPL 939203 Contact Us For Availability
4
Tube Clip (2) WPL 942739 Contact Us For Availability
5
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Speed Clip (3) WPL 533998 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
6
Electric Shield WPL 937228 Contact Us For Availability
7
Retainer Gasket, Top & Bottom (2) WPL 935759 Contact Us For Availability
7
Bottom, Compartment Separator WPL 937014 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
8
Retainer, Gasket Side (2) WPL 935760 Contact Us For Availability
8
Strap WPL 943322 Contact Us For Availability
9
Insulation, Compartment Separator WPL 937015 Contact Us For Availability
9
Terminal Cover WPL 943321 Contact Us For Availability
10
Insulation, Crossover Tube WPL 1100975 Contact Us For Availability
11
Breaker Trim, Mullion WPL 937016 Contact Us For Availability
11
Overload WPL 1100921 Contact Us For Availability
12
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
12
Hole Plug (Almond) WPL 989196 Contact Us For Availability
12
Hole Plug (Coffee) WPL 989892 Contact Us For Availability
12
Hole Plug (New Avocado) WPL 989894 Contact Us For Availability
12
Control Box WPL 939089 Contact Us For Availability
12
Overload Spring WPL 943320 Contact Us For Availability
13
Thermostat WPL 1101095 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 1100059 Contact Us For Availability
16
Trim, Door Shelf WPL 1100047 Contact Us For Availability
18
Light Shield WPL 937230 Contact Us For Availability
18
Defrost Heater WPL 1101093 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Toas WPL 1100227 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 944101 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Coff WPL 944102 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Harv WPL 944103 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (New WPL 944104 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 944105 Contact Us For Availability
19
Strap (2) WPL 851095 Contact Us For Availability
20
Condenser Bracket (2) WPL 510721 Contact Us For Availability
21
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
21
Bracket, Door Stop WPL 944035 Contact Us For Availability
21
Cover, Control Box WPL 937028 Contact Us For Availability
22
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
22
Retainer, Gasket Side (Freezer) WPL 935775 Contact Us For Availability
22
Control Knob WPL 845233 Contact Us For Availability
23
Drain Trough WPL 937022 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 1100062 Contact Us For Availability
25
Trim, Door Sh WPL 1100117 Contact Us For Availability
25
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
26
Tube Cover WPL 937021 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Wire Cover (Rear) WPL 939957 Contact Us For Availability
27
Relay WPL 943317 Contact Us For Availability
28
Hole Plug (2) (Toast) WPL 1100223 Contact Us For Availability
28
Hole, Plug (2) (White) WPL 941416 Contact Us For Availability
28
Hole, Plug (2) (Almond) WPL 941417 Contact Us For Availability
28
Hole Plug (2) (Co WPL 941418 Contact Us For Availability
28
WPL 941419 WPL 941419 Contact Us For Availability
28
WPL 941420 WPL 941420 Contact Us For Availability
28
Plastic, Rivet WPL 939961 Contact Us For Availability
29
WPL 937011 WPL 937011 Contact Us For Availability
29
Wire Cover (Front) WPL 939960 Contact Us For Availability
30
WPL 938284 WPL 938284 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
WPL 939009 WPL 939009 Contact Us For Availability
31
WPL 982946 WPL 982946 Contact Us For Availability
31
Tube Entry Cover (Rear) WPL 937032 Contact Us For Availability
31
Unit, Plate WPL 942860 Contact Us For Availability
32
WPL 943188 WPL 943188 Contact Us For Availability
32
Tube Entry Cover (Bottom) WPL 941776 Contact Us For Availability
32
Evaporator Assembly WPL 1100912 Contact Us For Availability
33
WPL 992872 WPL 992872 Contact Us For Availability
33
WPL 488474 WPL 488474 Contact Us For Availability
33
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
34
WPL 876029 WPL 876029 Contact Us For Availability
34
WPL 479502 WPL 479502 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
34
WPL 850626 WPL 850626 Contact Us For Availability
34
WPL 982978 WPL 982978 Contact Us For Availability
34
Service & Wiring Sheet WPL 1101091 Contact Us For Availability
34
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
34
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
34
xEnamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
34
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
34
xEnamel, Harvest Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
34
Enamel, Harvest Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
34
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
34
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
34
Leveler, Enamel (13 WPL 350941 Contact Us For Availability
34
WPL 542639 WPL 542639 Contact Us For Availability
34
WPL 72108 WPL 72108 Contact Us For Availability
34
WPL 72112 WPL 72112 Contact Us For Availability
34
WPL 789222 WPL 789222 Contact Us For Availability
34
WPL 799340 WPL 799340 Contact Us For Availability
34
WPL 799351 WPL 799351 Contact Us For Availability
34
WPL 799832 WPL 799832 Contact Us For Availability
34
WPL 799833 WPL 799833 Contact Us For Availability
34
WPL 842256 WPL 842256 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
35
WPL 1100698 WPL 1100698 Contact Us For Availability
35
WPL 935707 WPL 935707 Contact Us For Availability
35
WPL 935708 WPL 935708 Contact Us For Availability
35
WPL 935709 WPL 935709 Contact Us For Availability
35
WPL 935710 WPL 935710 Contact Us For Availability
35
WPL 935711 WPL 935711 Contact Us For Availability
35
WPL 488923 WPL 488923 Contact Us For Availability
35
Gasket, Evaporator Lower R.S. WPL 940115 Contact Us For Availability
35
Gasket, Evaporator Lower L.S. WPL 940116 Contact Us For Availability
36
WPL 488895 WPL 488895 Contact Us For Availability
36
Heat Exchanger WPL 1100917 Contact Us For Availability
37
WPL 544108 WPL 544108 Contact Us For Availability
38
Box, Junction WPL 937068 Contact Us For Availability
39
WPL 843213 WPL 843213 Contact Us For Availability
39
Tray, Evaporator WPL 935781 Contact Us For Availability
40
Spacer WPL 938275 Contact Us For Availability
41
WPL 1100194 WPL 1100194 Contact Us For Availability
41
WPL 848382 WPL 848382 Contact Us For Availability
41
WPL 989901 WPL 989901 Contact Us For Availability
41
WPL 989902 WPL 989902 Contact Us For Availability
41
WPL 989903 WPL 989903 Contact Us For Availability
41
WPL 989904 WPL 989904 Contact Us For Availability
41
Unit, Rail WPL 945448 Contact Us For Availability
43
WPL 943187 WPL 943187 Contact Us For Availability
45
WPL 488930 WPL 488930 Contact Us For Availability
45
WPL 489112 WPL 489112 Contact Us For Availability
57
Pad, Sound WPL 301774 Contact Us For Availability
70
Install Kit & Item 78 WPL 482801 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388007 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
78
Tray, Evaporator (Required When Replacing Com WPL 1101002 Contact Us For Availability
78
Start Kit WPL 482278 Contact Us For Availability
78
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
