Model Whirlpool ED25PQXDN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
08 - DISPENSER FRONT

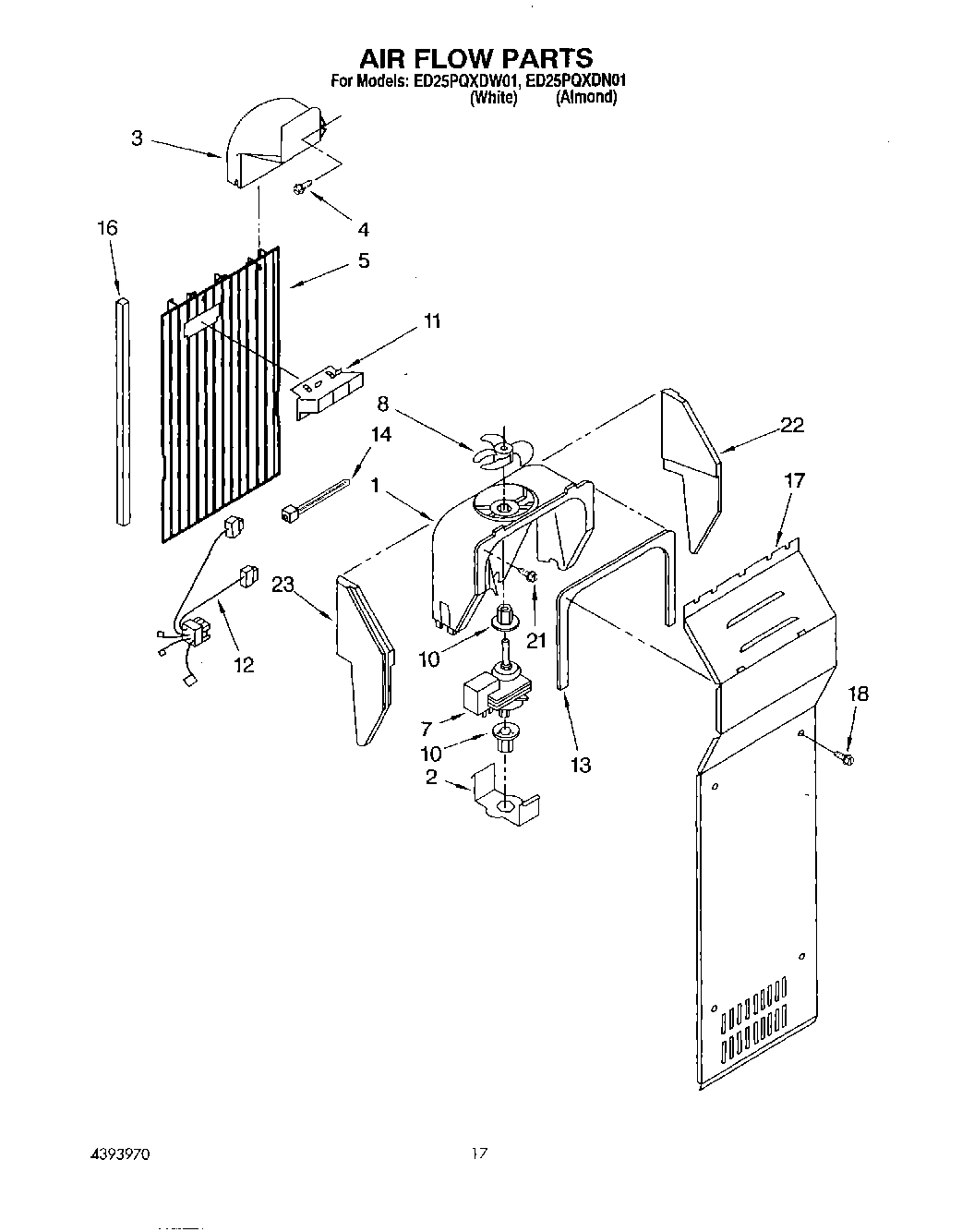

10 - AIR FLOW

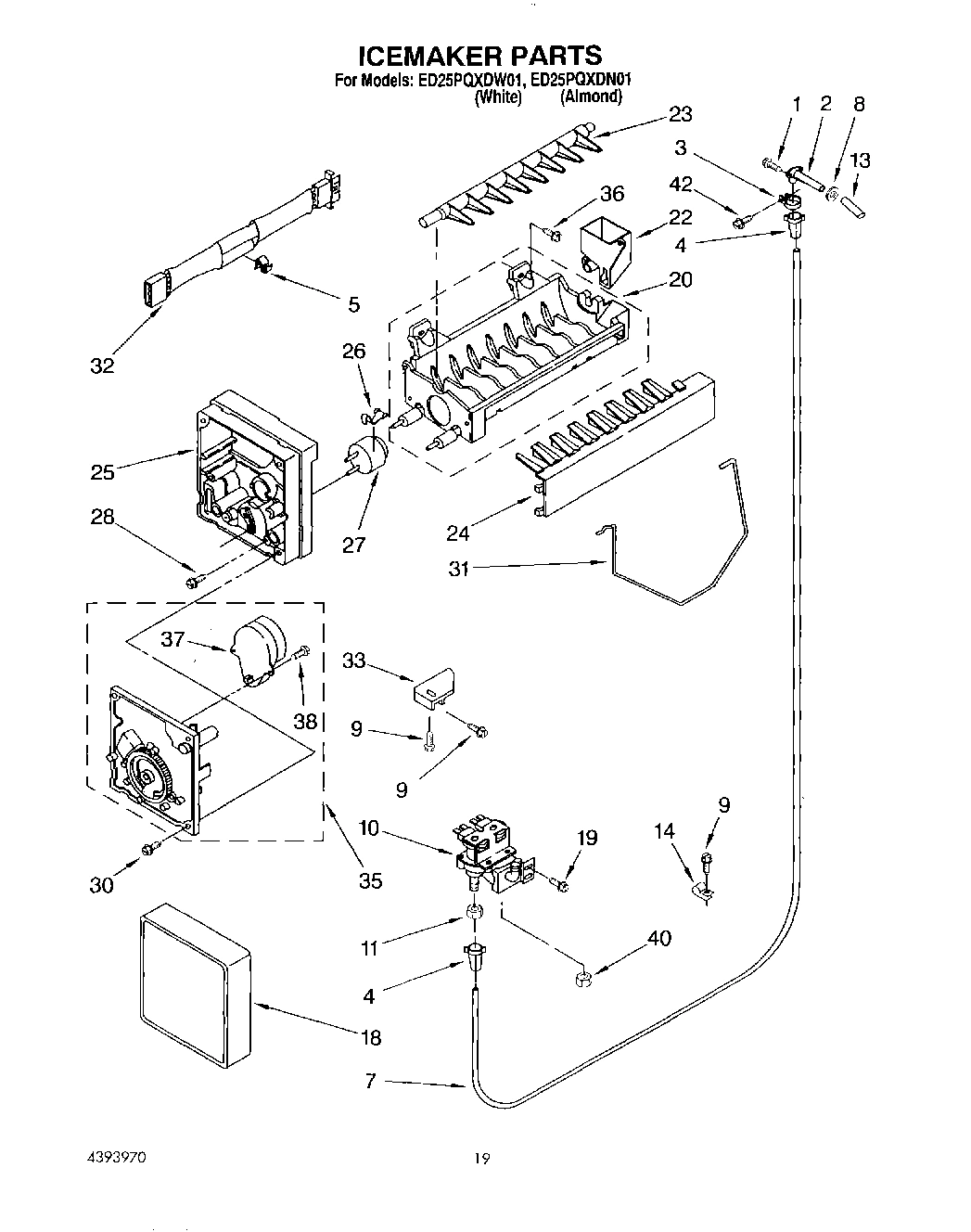

12 - ICEMAKER, LIT/OPTIONAL

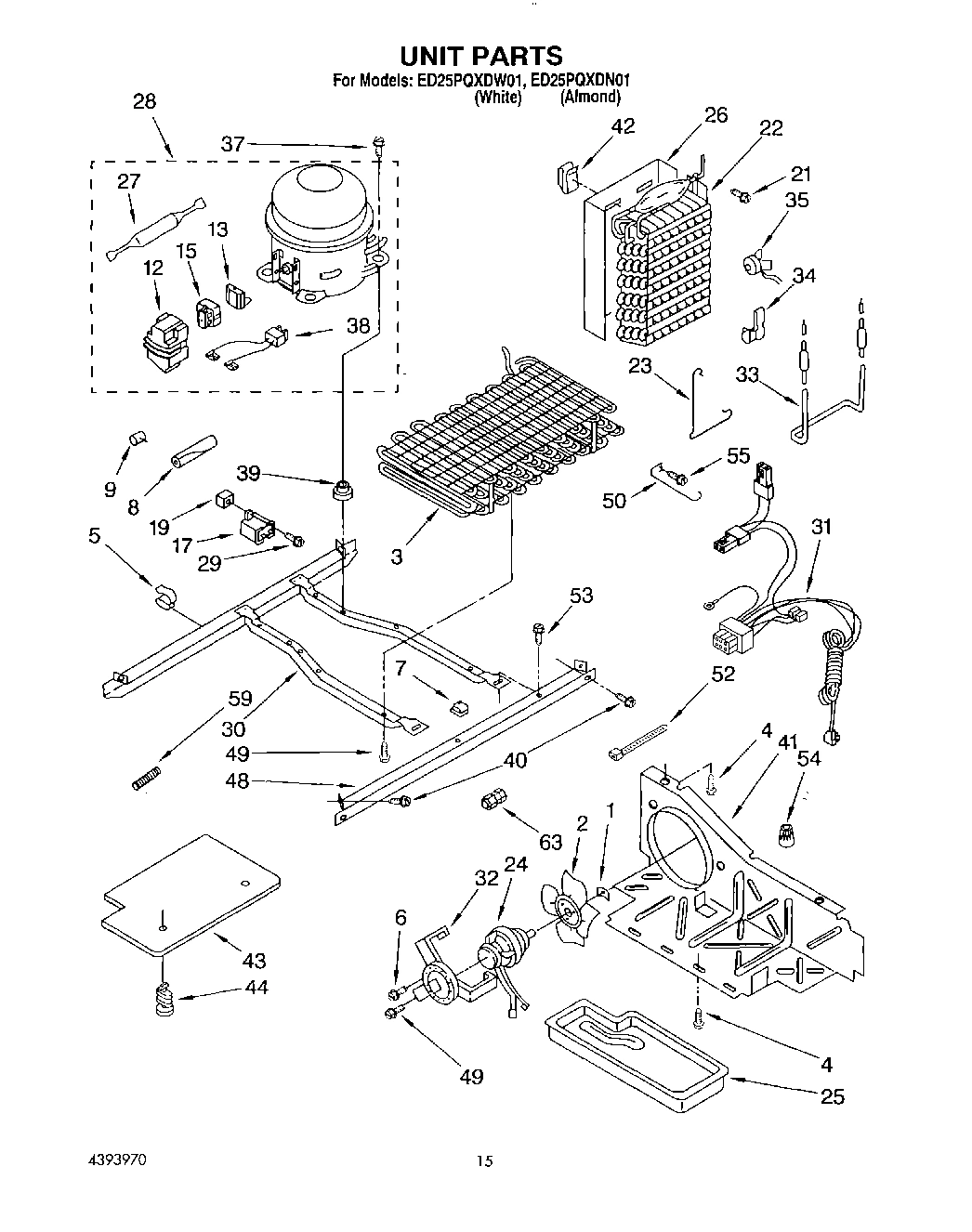

09 - UNIT

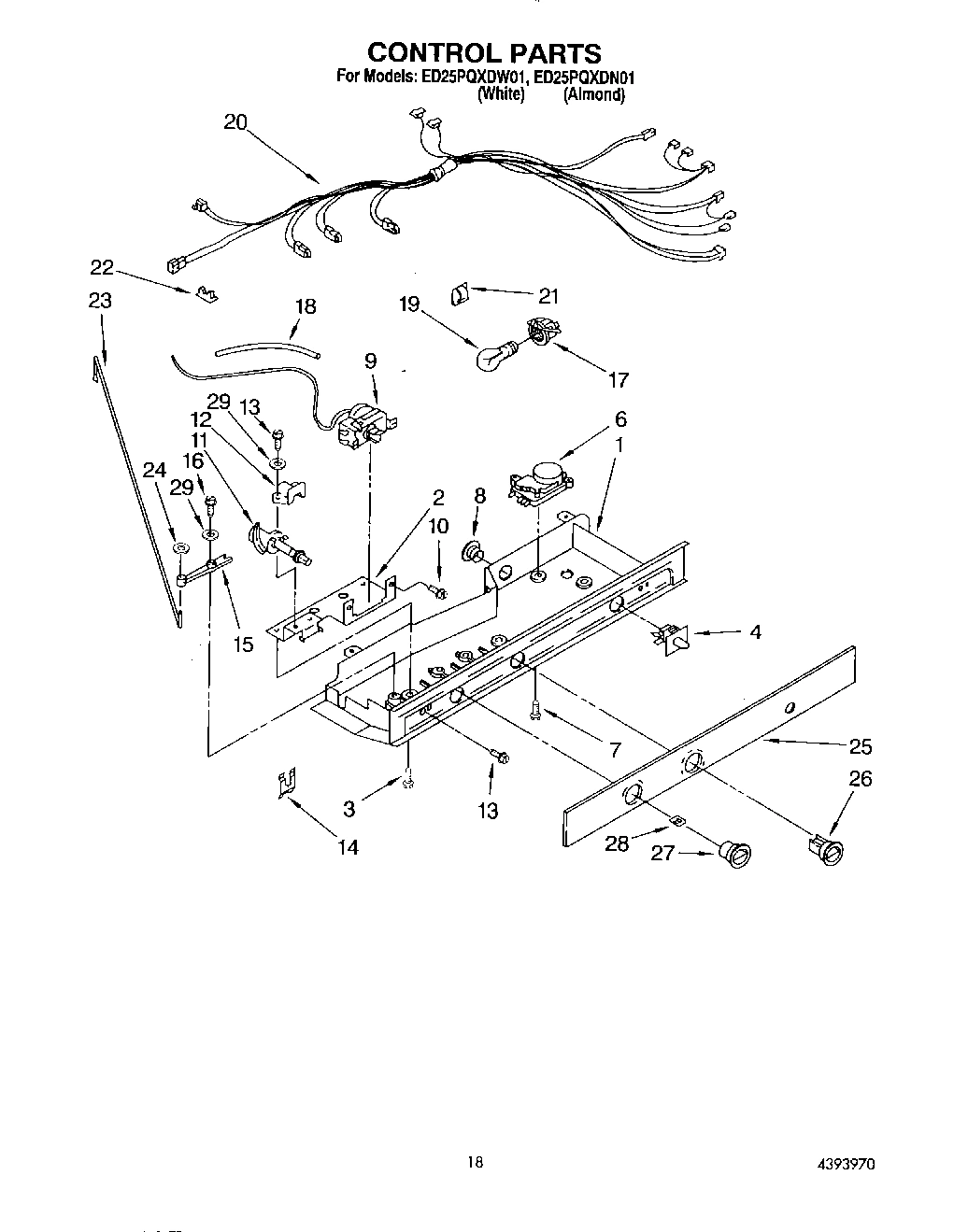

11 - CONTROL

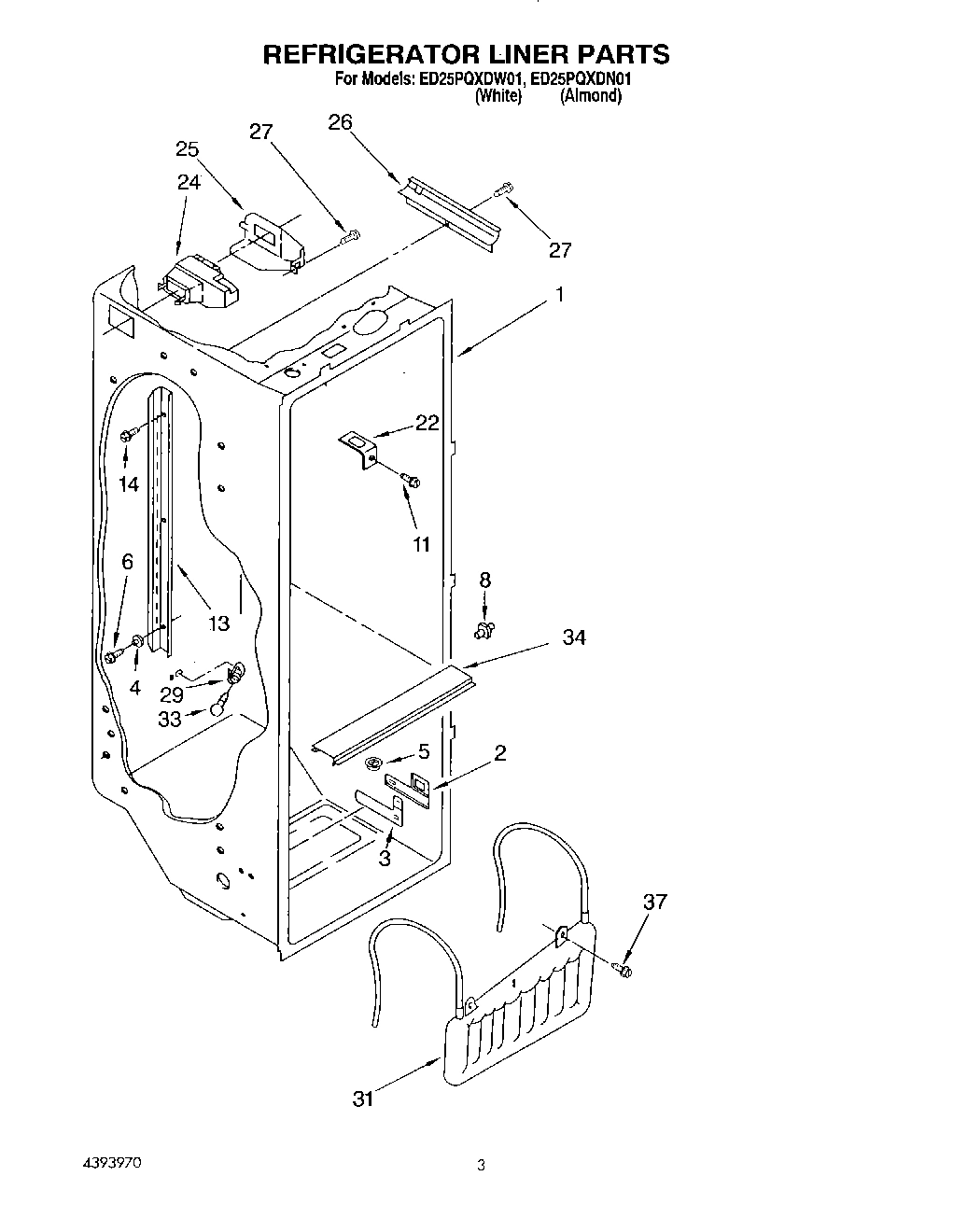

02 - REFRIGERATOR LINER

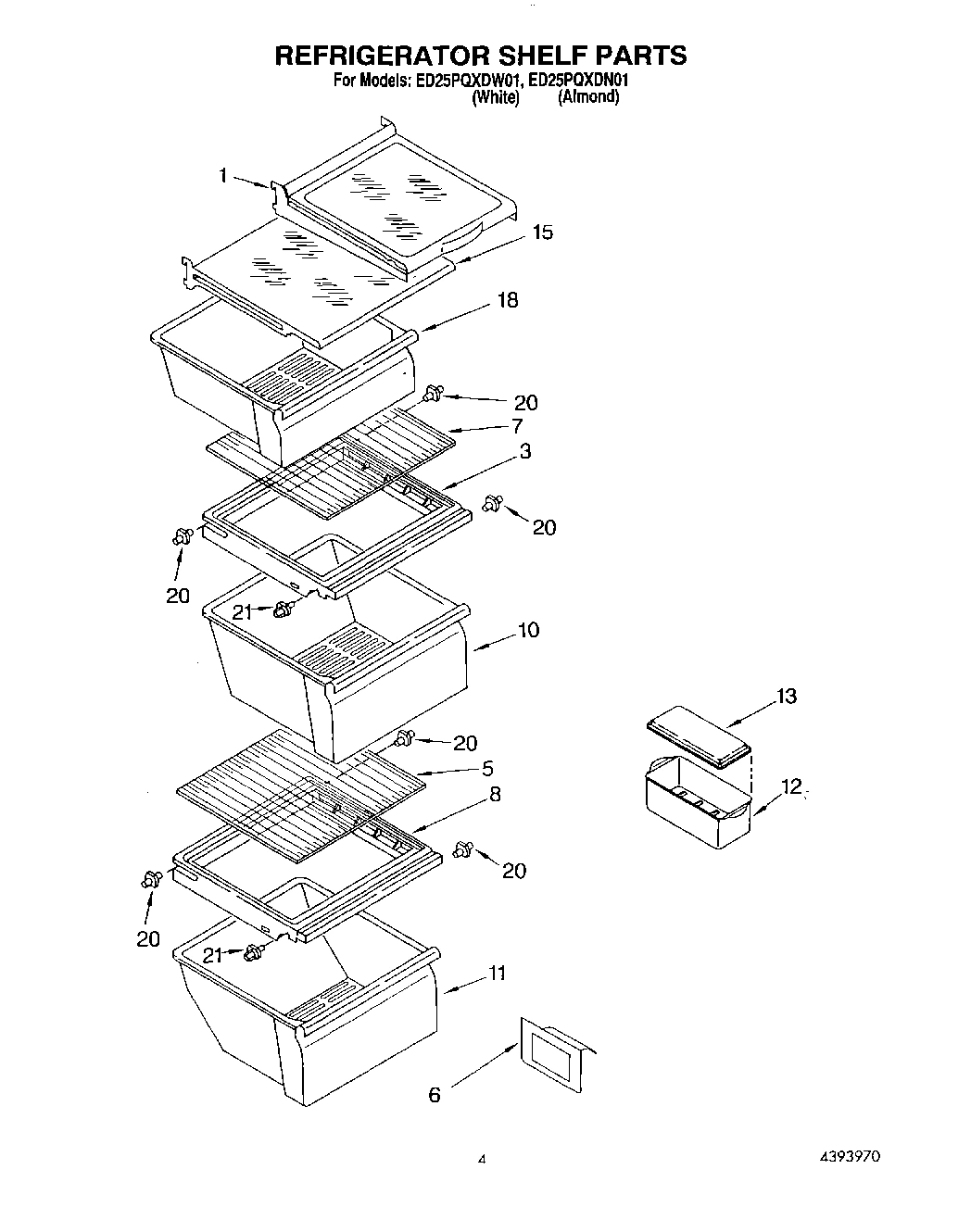

03 - REFRIGERATOR SHELF

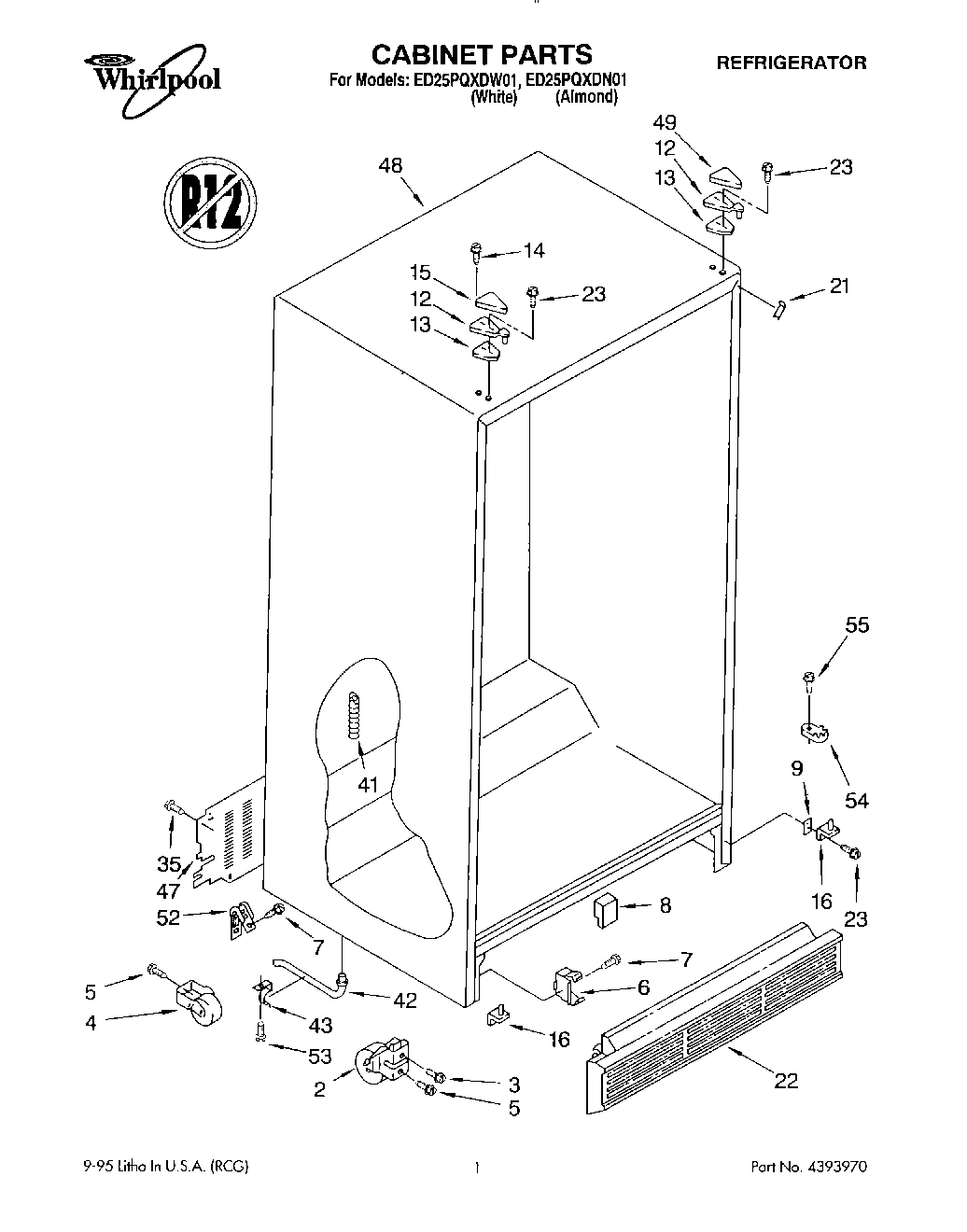

01 - CABINET

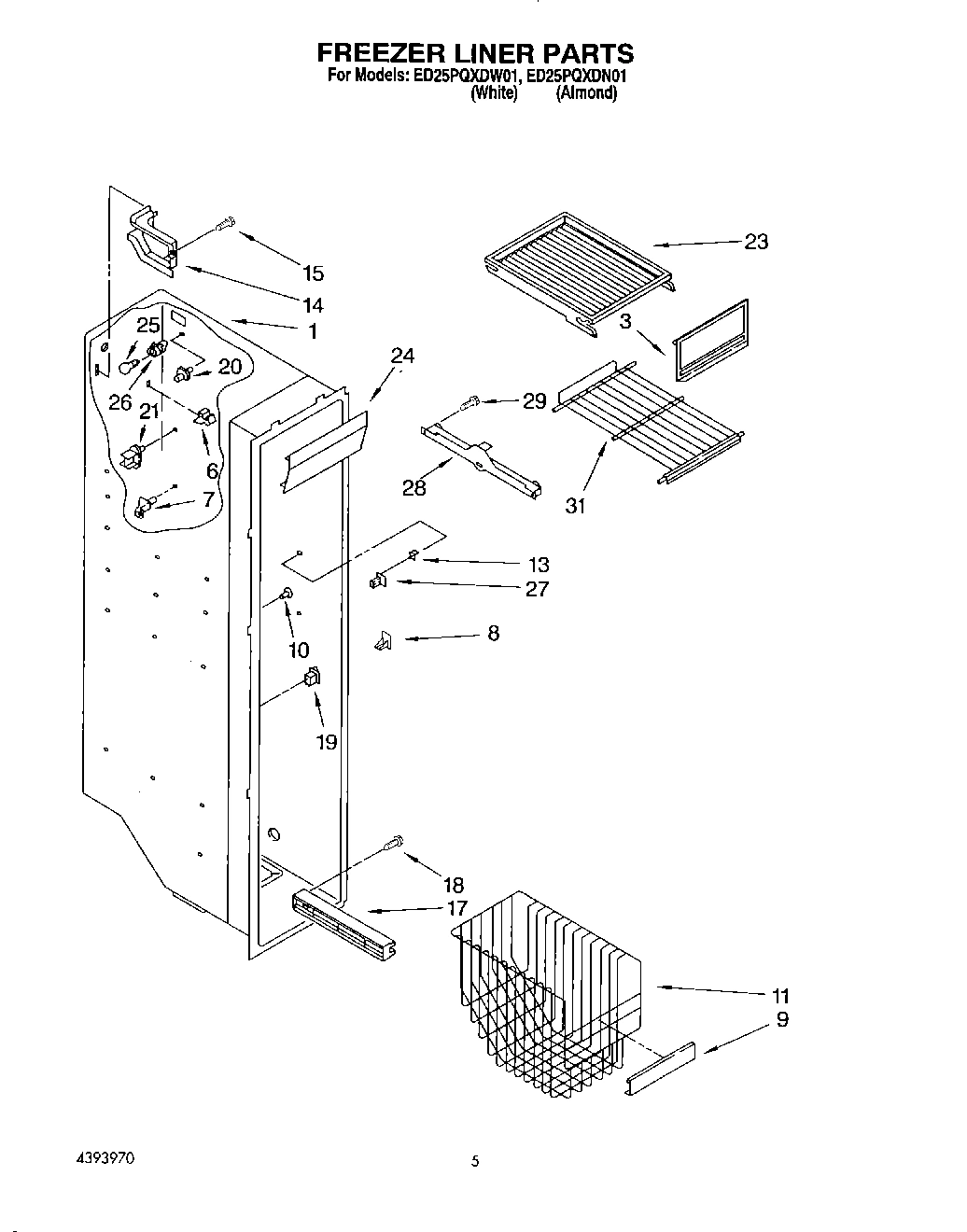

04 - FREEZER LINER

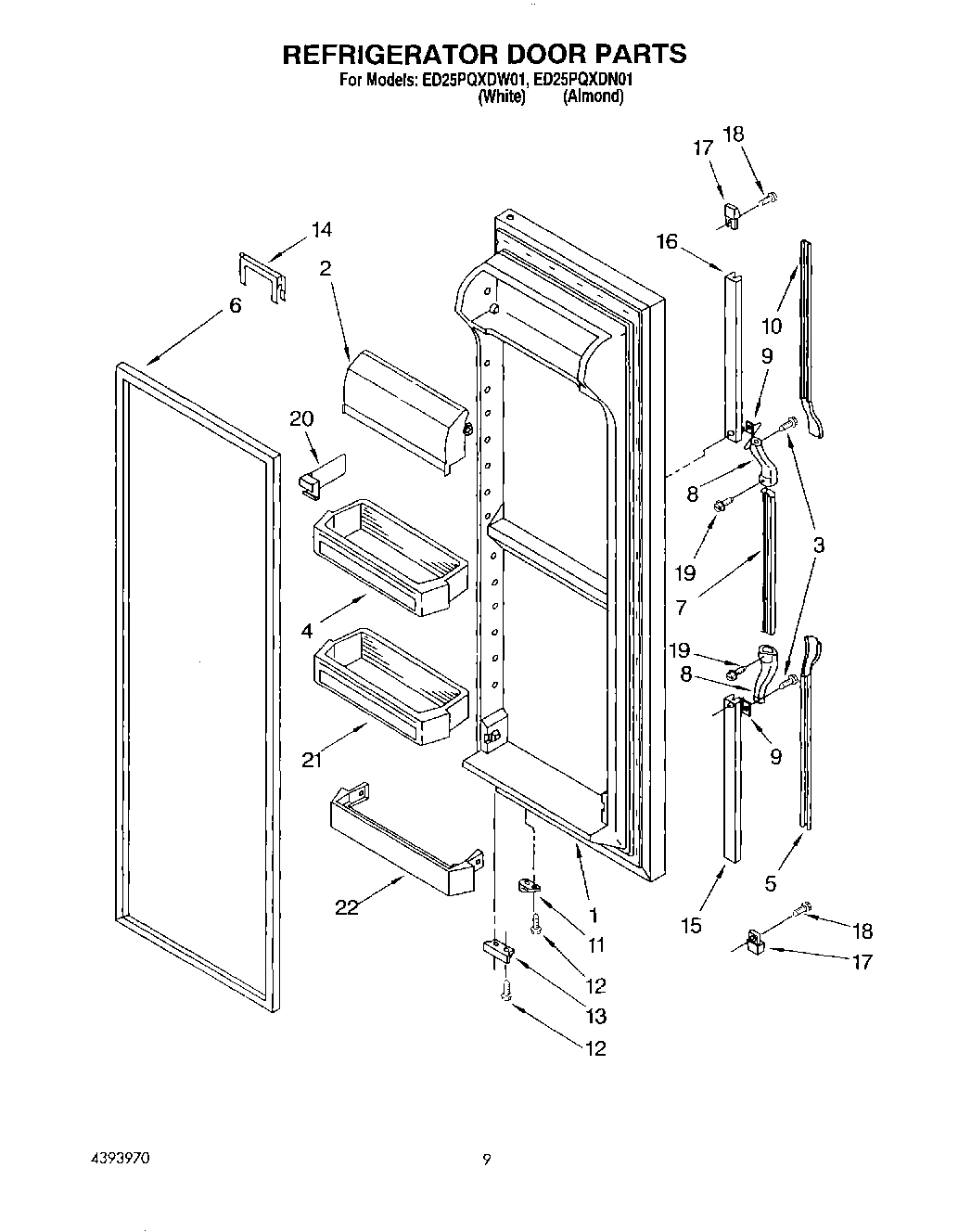

06 - REFRIGERATOR DOOR

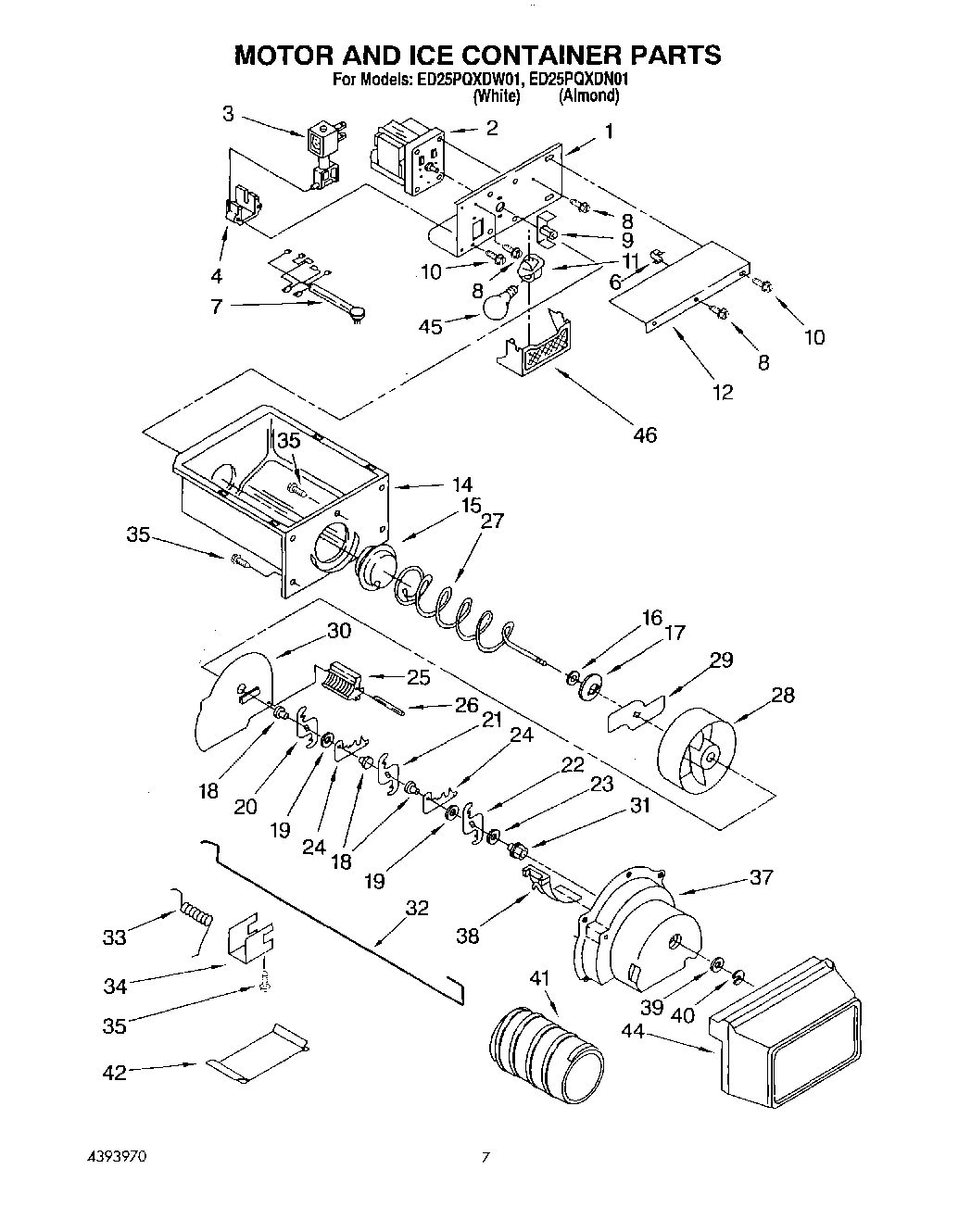

05 - MOTOR AND ICE CONTAINER

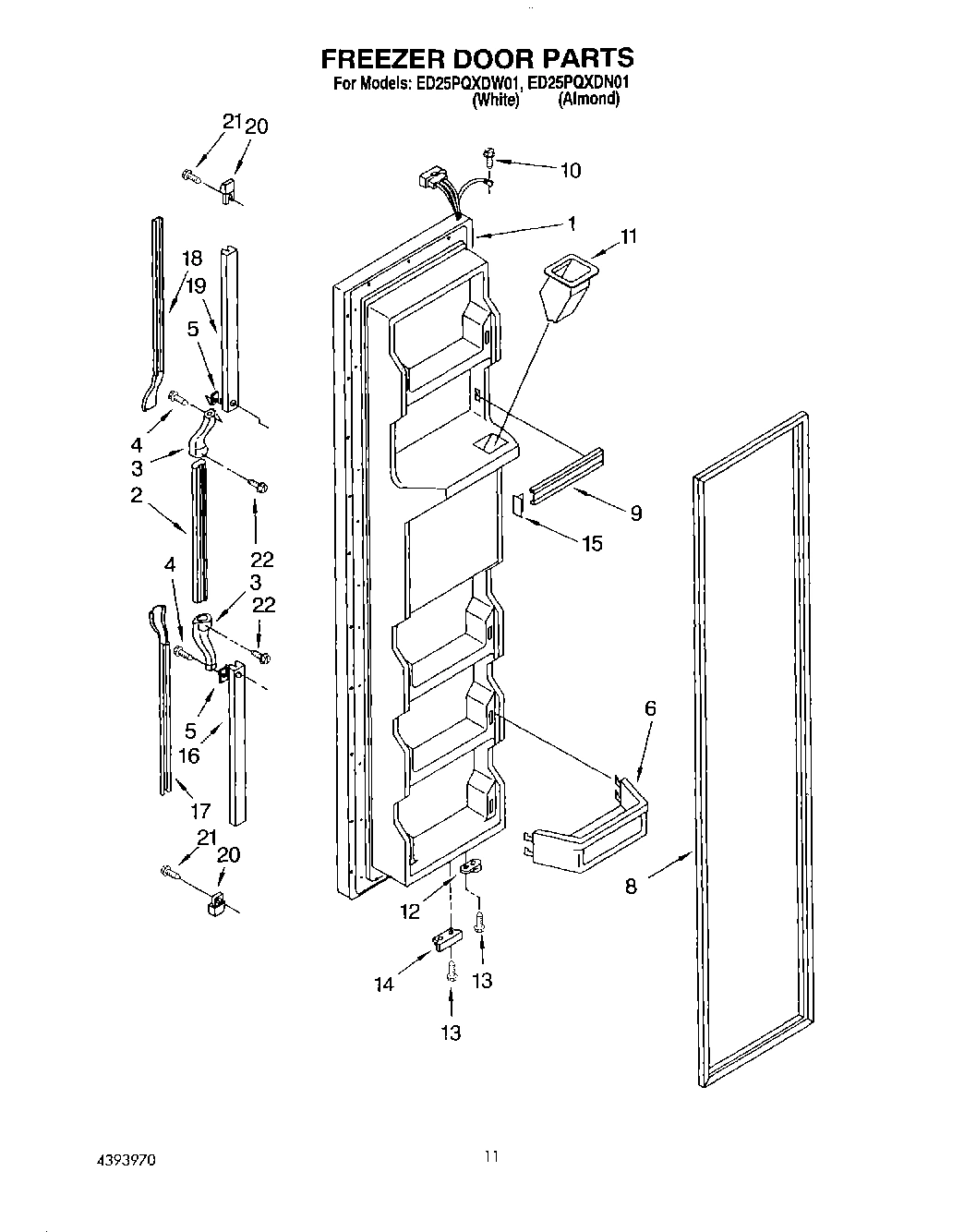

07 - FREEZER DOOR
Common parts from model Whirlpool ED25PQXDN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27691A7 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27692A8 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2177320 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2180583 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2180584 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Screw WPL 487559 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Trim, Basket WPL 2171774 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2181709 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27690A7 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
