Model Whirlpool ED25GWXZW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR LINER
07 - REFRIGERATOR DOOR

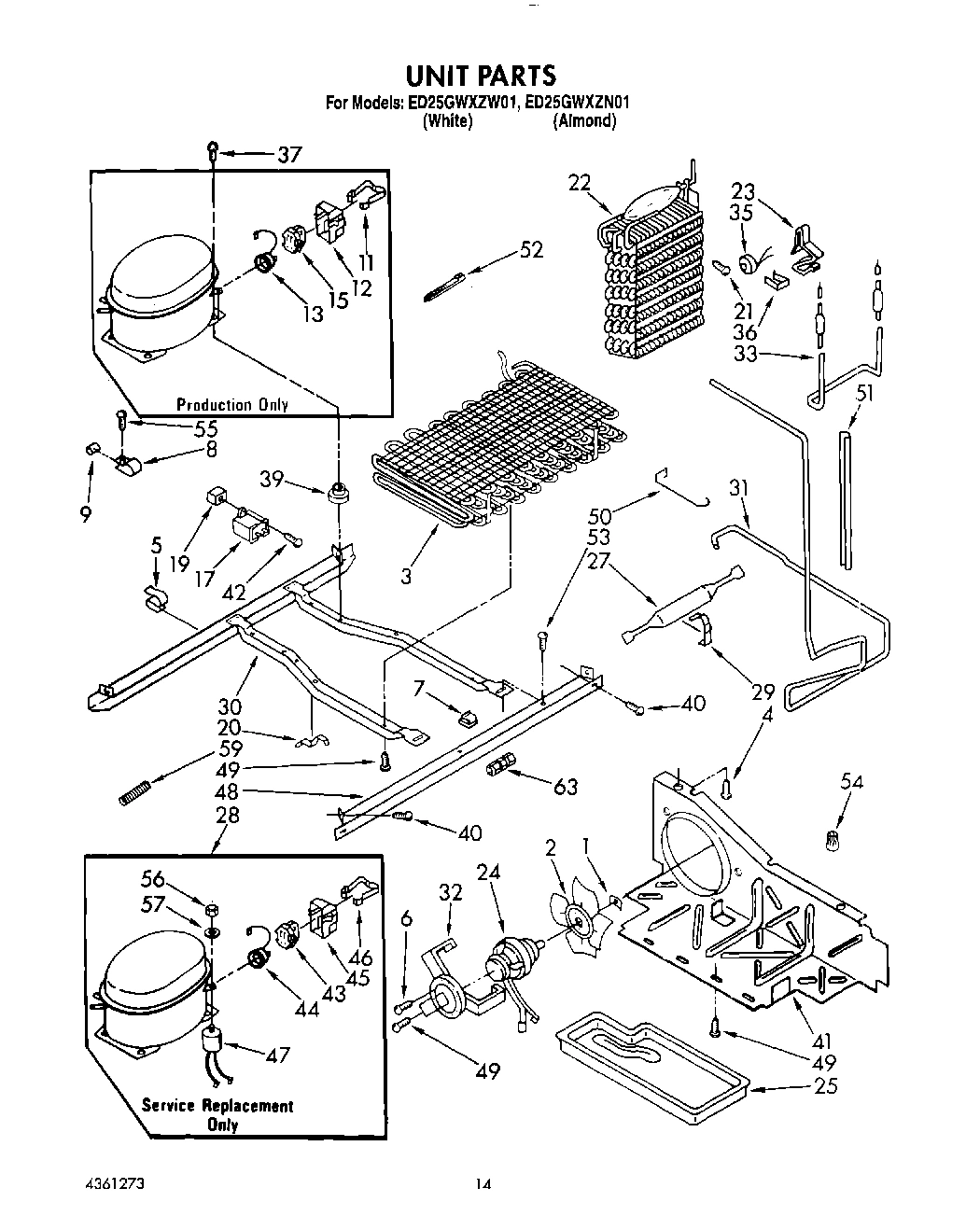

10 - UNIT

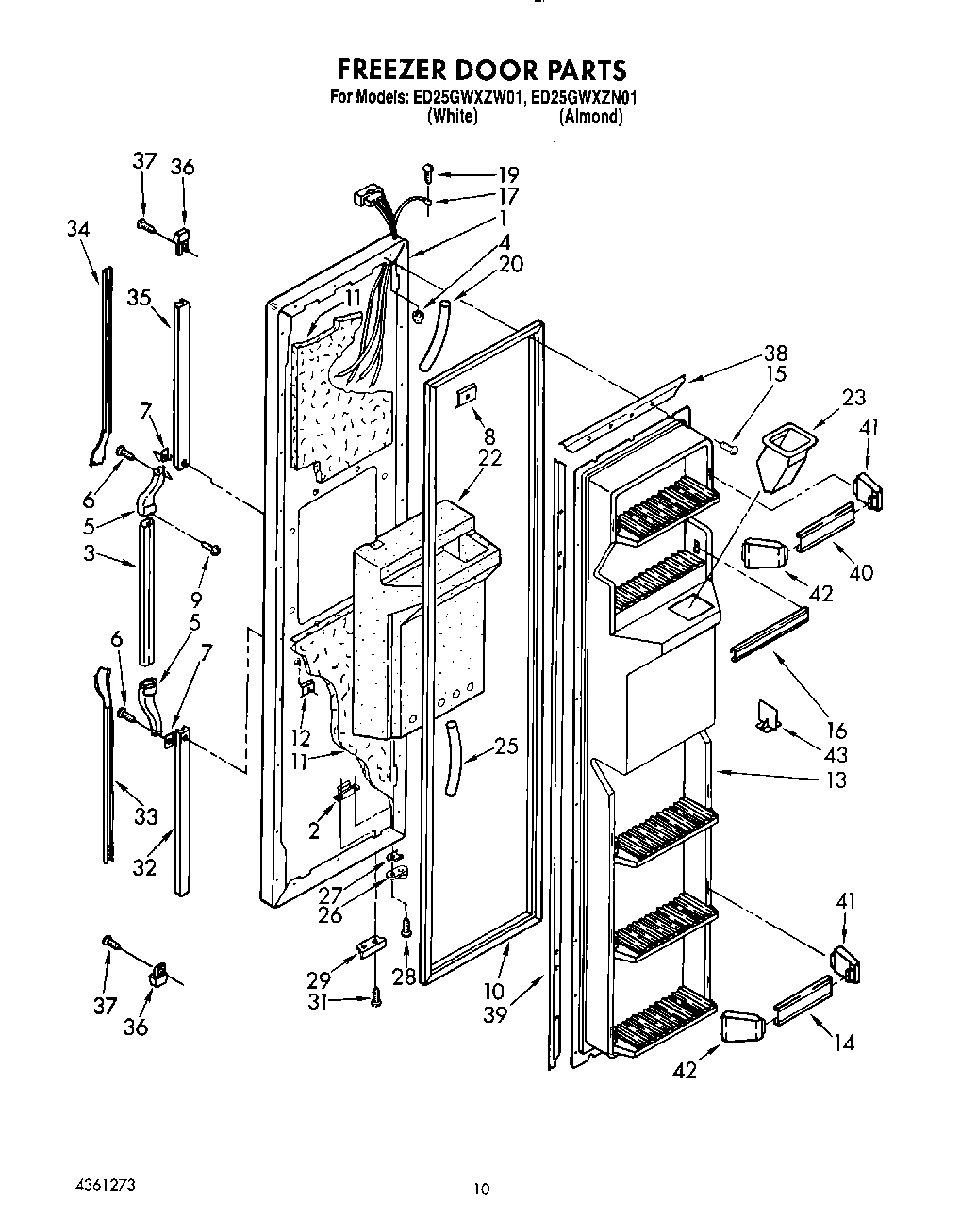

08 - FREEZER DOOR

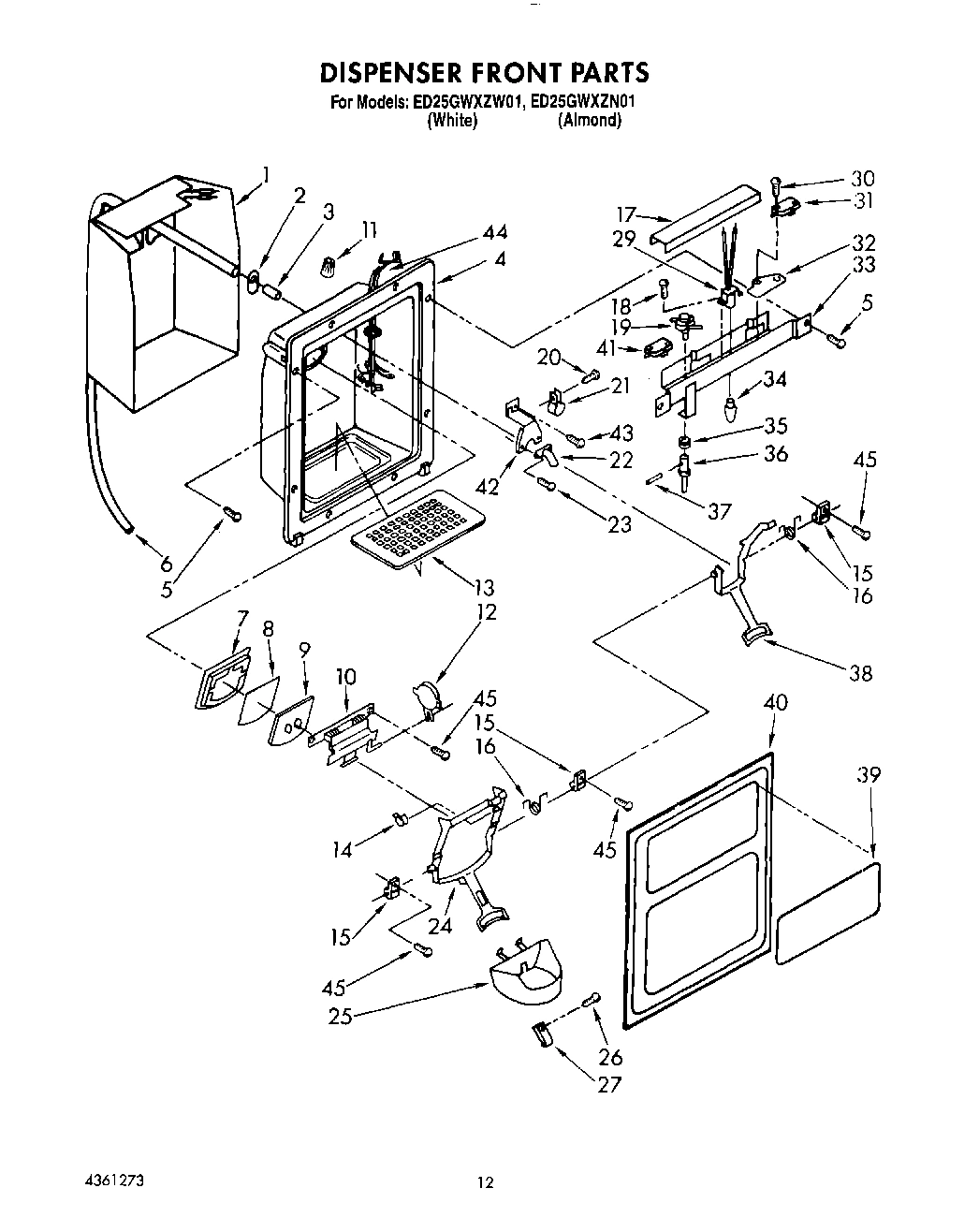

09 - DISPENSER FRONT

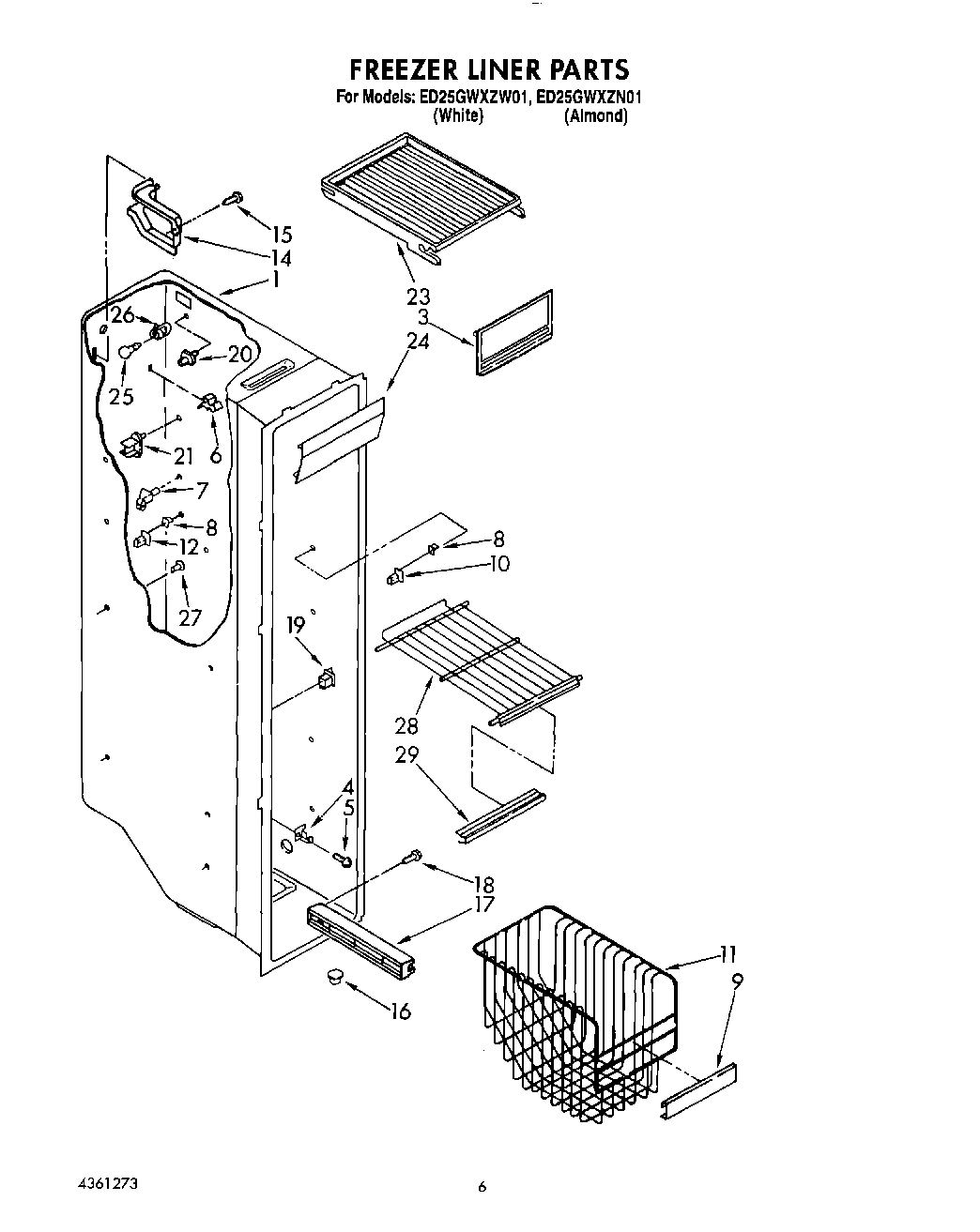

05 - FREEZER LINER

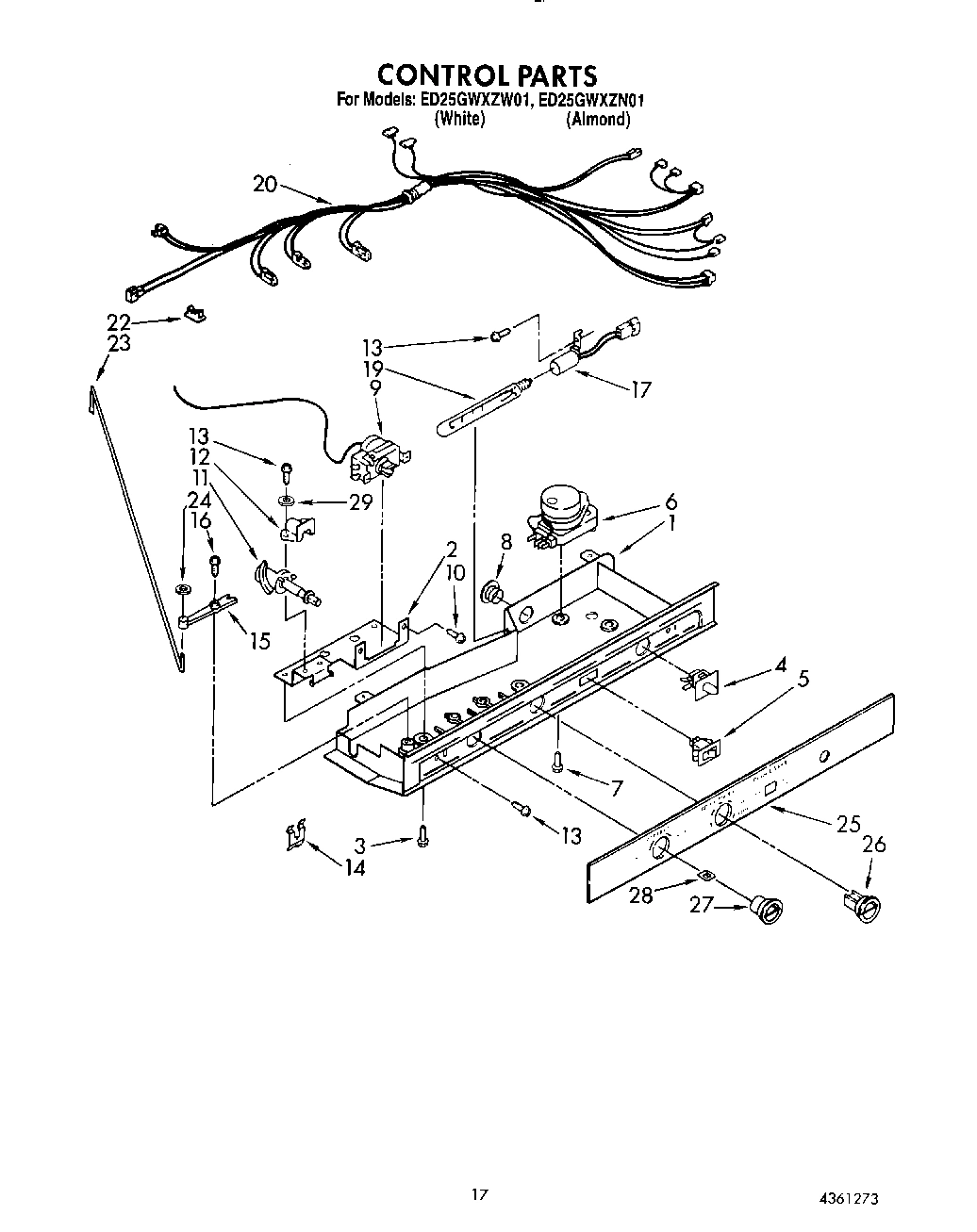

12 - CONTROL

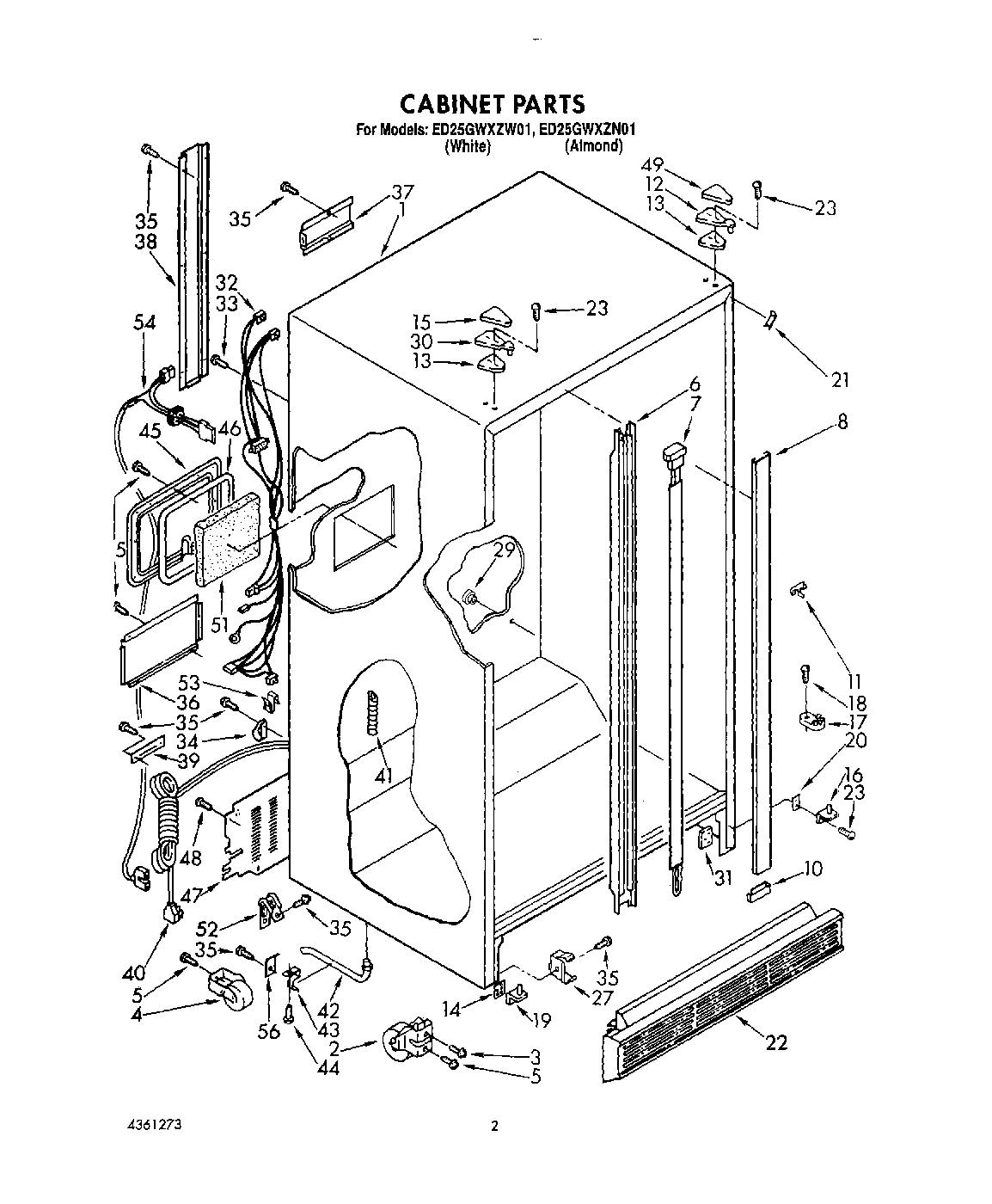

02 - CABINET

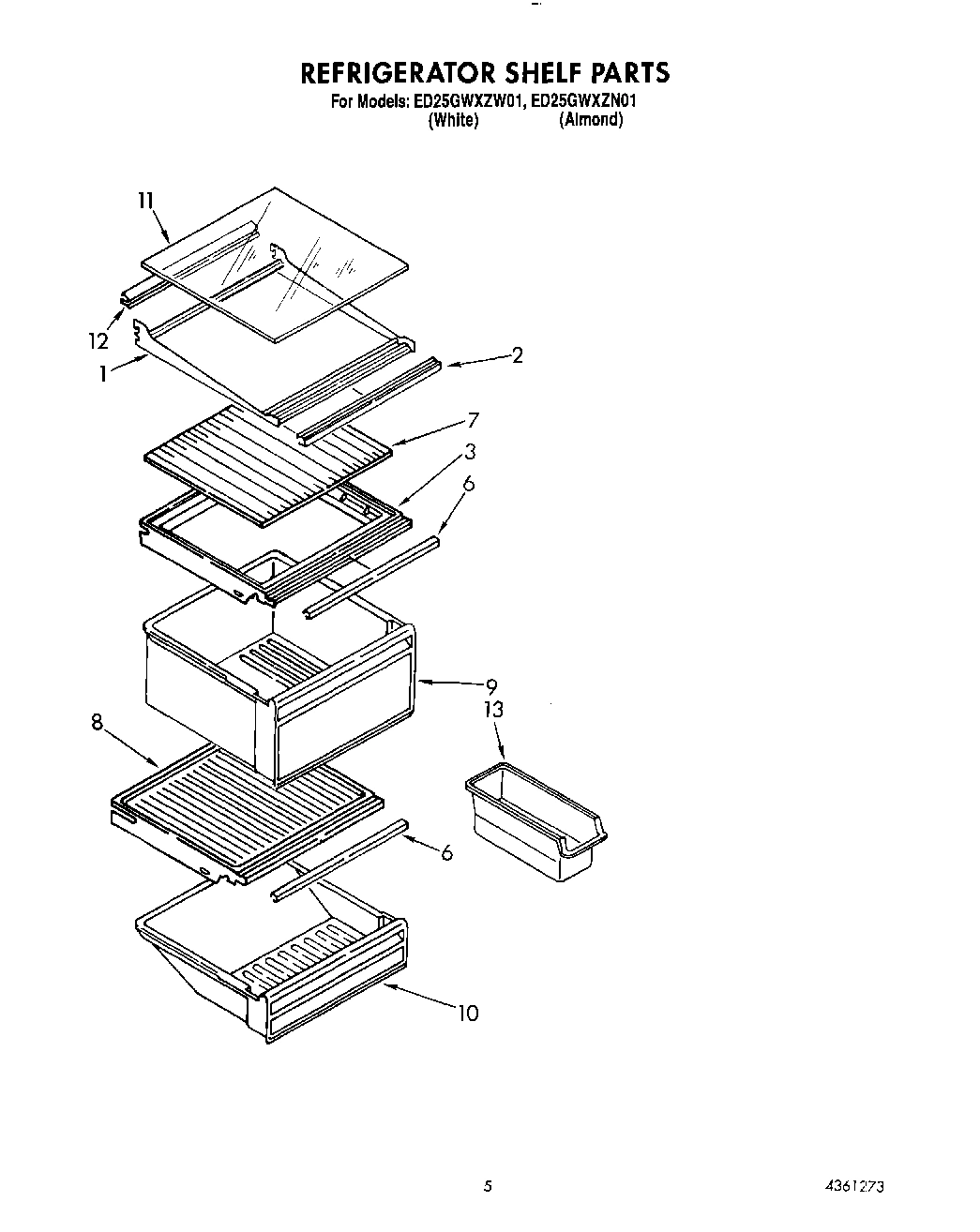

04 - REFRIGERATOR SHELF

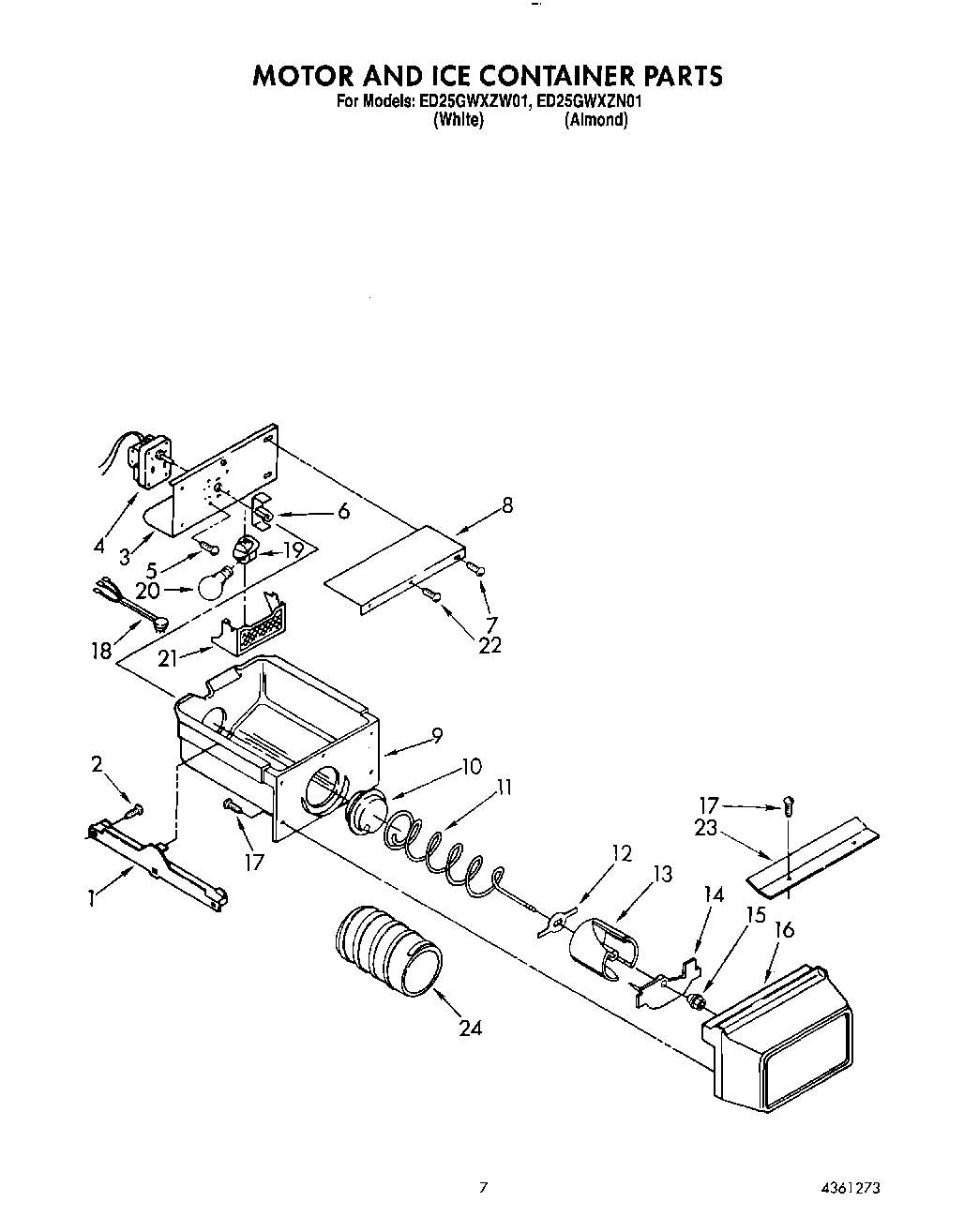

06 - MOTOR AND ICE CONTAINER

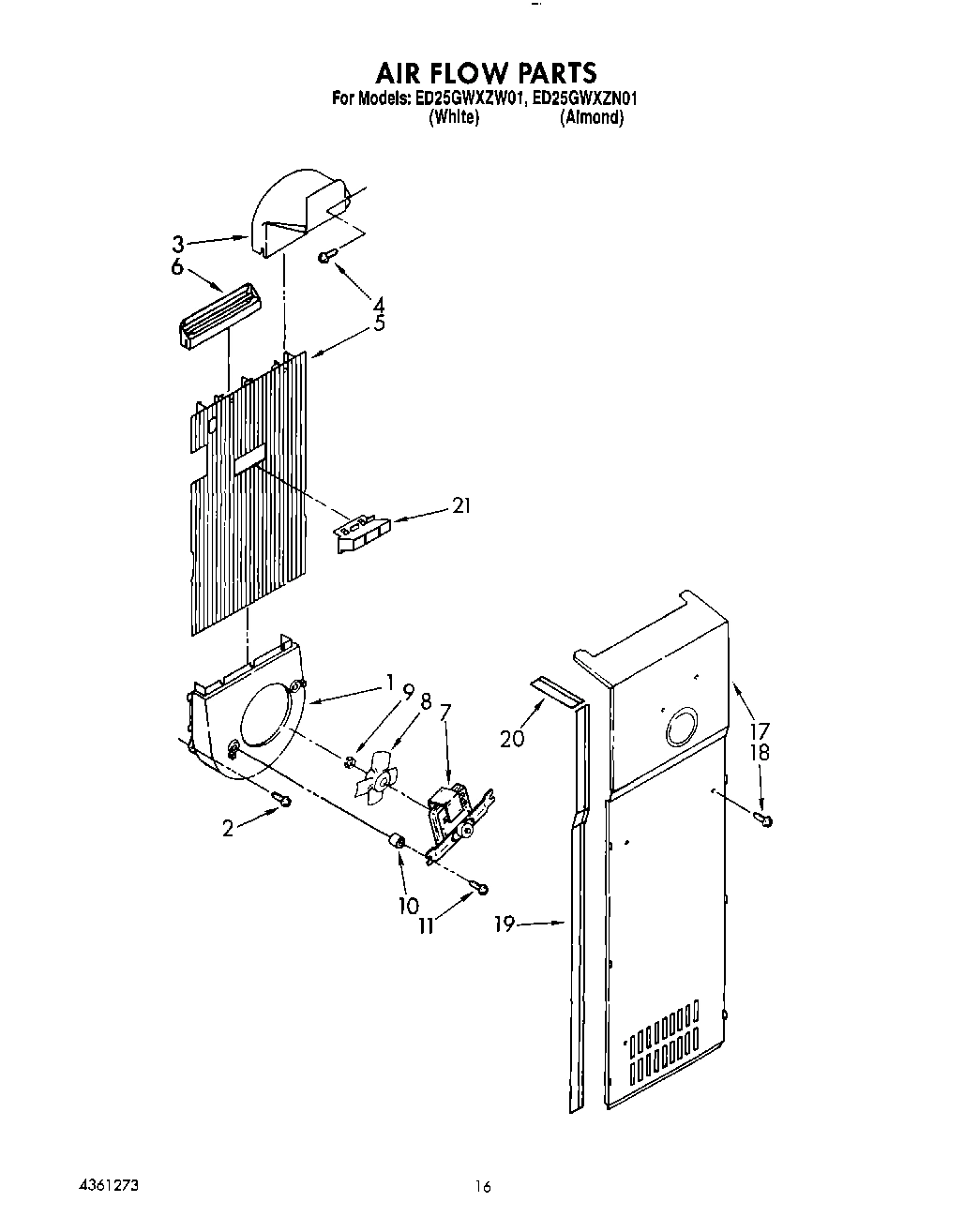

11 - AIR FLOW

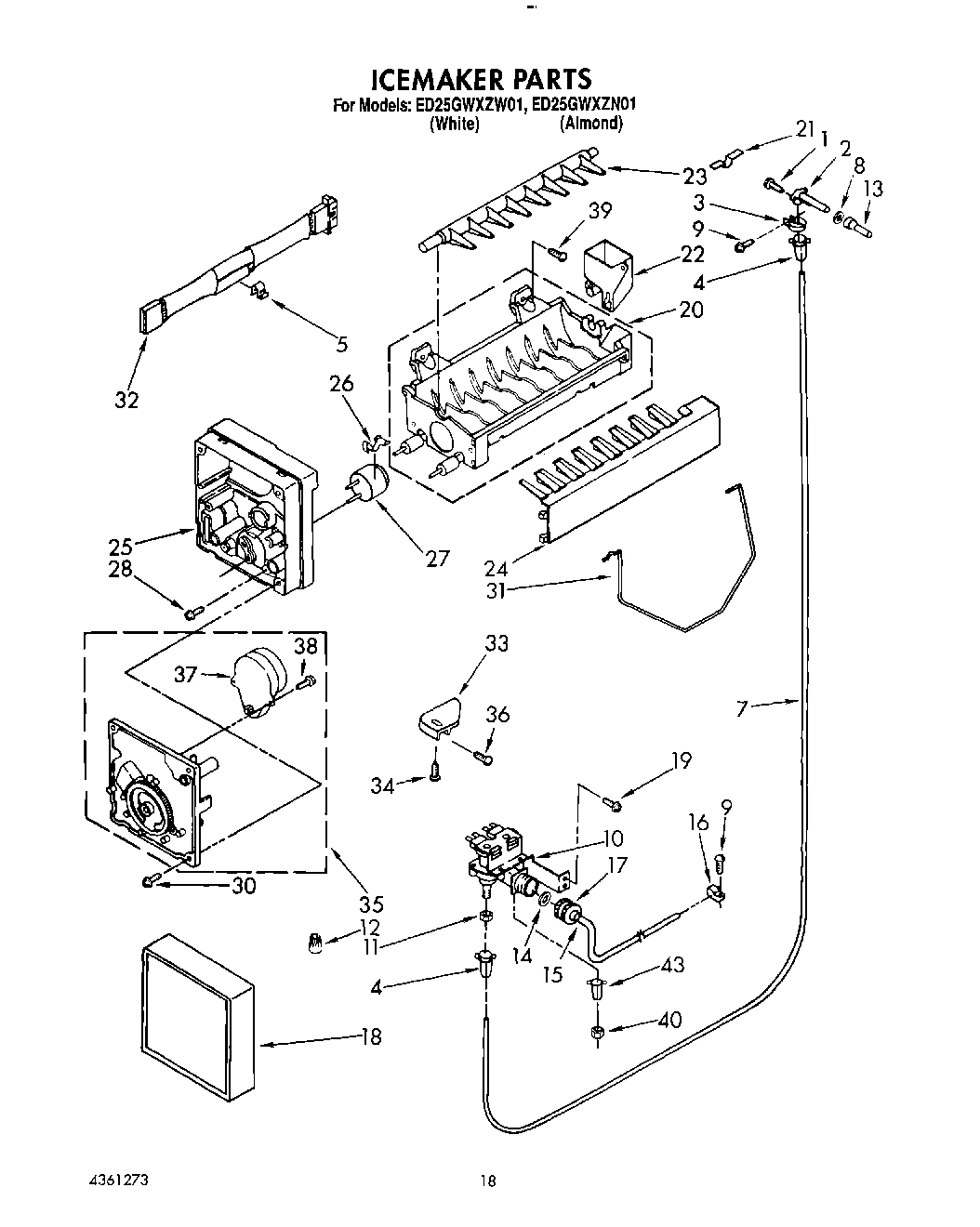

13 - ICE MAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED25GWXZW01 SIDE BY SIDE REFRIGERATOR
WPL LIT2148447 WPL LIT2148447 Contact Us For Availability
WPL LIT2154995 WPL LIT2154995 Contact Us For Availability
WPL LIT2160149 WPL LIT2160149 Contact Us For Availability
WPL LIT4361273 WPL LIT4361273 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1110652 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1110655 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI146005A Contact Us For Availability
1
Control Box WPL 2152113 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI146003A Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Trim, Shelf WPL 1114302 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Door, Ice Compartment WPL 2148822 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Screw WPL 489284 Contact Us For Availability
5
Switch, Toggle WPL 1106601 Contact Us For Availability
5
Screw (4) WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2157544 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154982 Contact Us For Availability
6
Mullion Rail WPL 2155016 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
support stud (8) WPL 946355 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123972 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123975 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
9
Stud (2) WPL 1115290 No Longer Available
9
Door, Ice WPL 983690 Contact Us For Availability
9
Screw (4) WPL 489022 Contact Us For Availability
9
Trim, Basket WPL 2148314 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1127310 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Pan, Meat WPL 2148192 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Glass, Shelf WPL 2148237 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Connector, Wire WPL 850145 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
Reflector, Shelf WPL 1114306 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1124969 Contact Us For Availability
13
Tube, Water Inlet WPL 2155064 Contact Us For Availability
14
Trim, Shelf (3) WPL 2148320 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Shim WPL 836196 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2148321 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Front Cover WPL 2148312 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side) WPL 1126355 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2155170 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Control Box Harness WPL 2154838 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
22
Insulation, Dispenser WPL 1115345 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Deflector, Ice Container WPL 1119043 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Escutcheon Control WPL 2148231 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317962 Contact Us For Availability
28
Shelf WPL 1116956 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Trim, Shelf (3) WPL 1120547 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
30
Screw, 4-40 x 3/4 (4) WPL 488362 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
31
Switch (1) WPL 841336 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Cabinet Harness WPL 2155153 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
33
Insert, Handle WPL 1118435 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
34
Insert, Handle WPL 1118437 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
37
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
39
overlay, front cover WPL 2150335 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Trim, Door Shelf WPL 2148319 Contact Us For Availability
40
front cover, housing (includes item 39) WPL 2150340 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, WPL 1129179 Contact Us For Availability
41
End Cap, Trim (4) WPL 1115364 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
End Cap, Trim (4) WPL 1115333 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Divider, Shelf WPL 1114380 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Insert, Tube 5/16`` WPL 1129177 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
45
Cover, Plug WPL 1110625 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
