Model Whirlpool ED19CKXRWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - DOOR

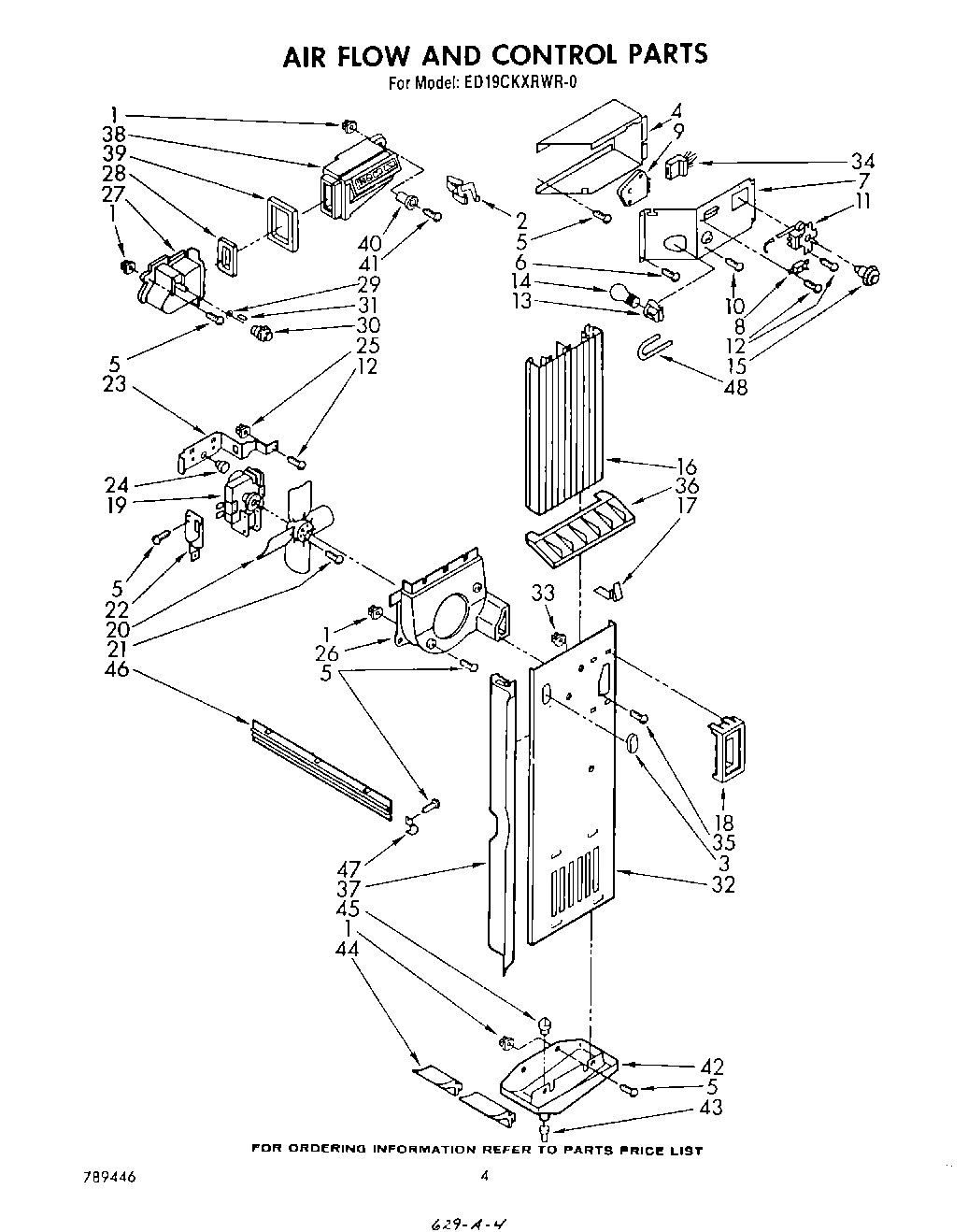

03 - AIRFLOW AND CONTROL

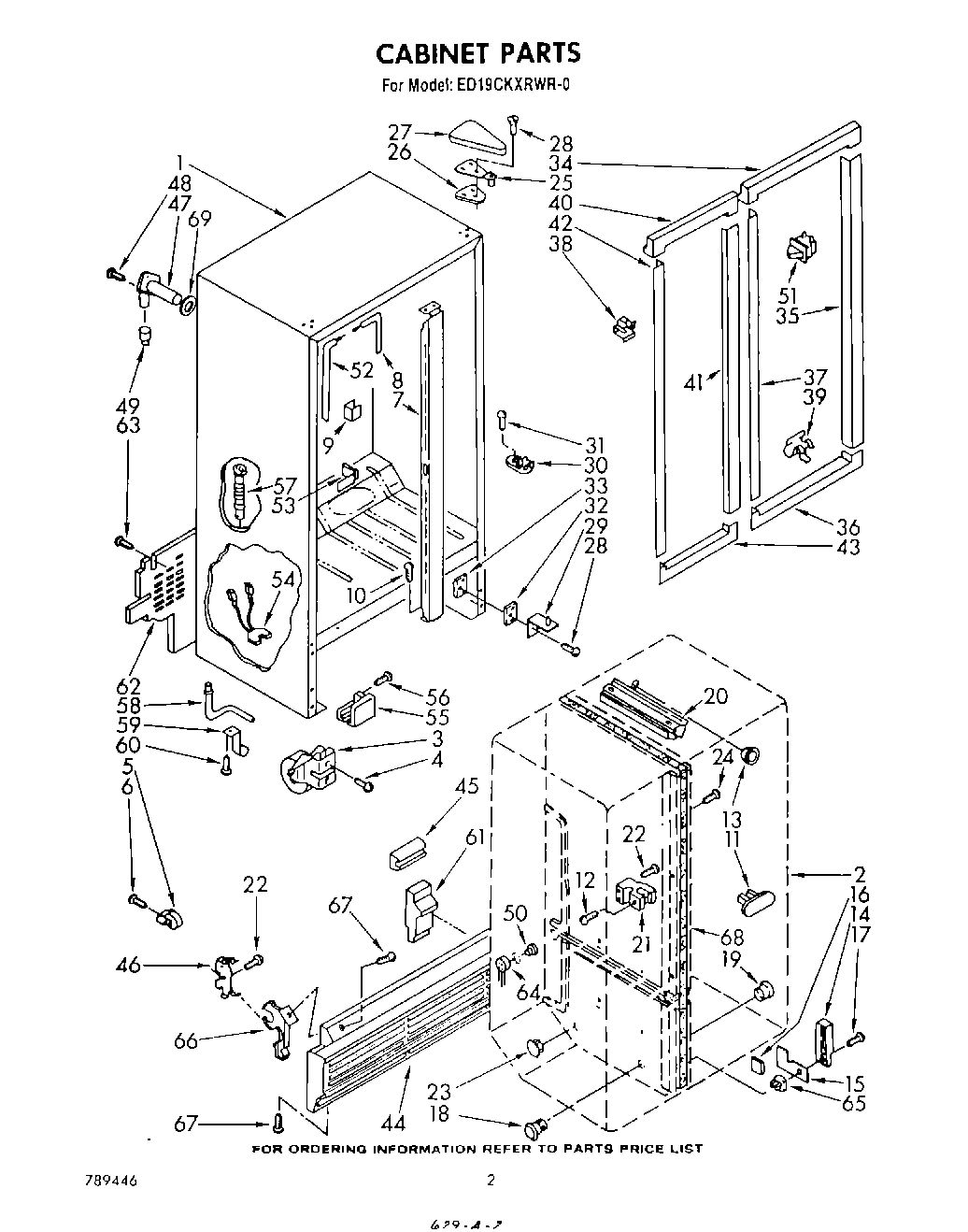

02 - CABINET

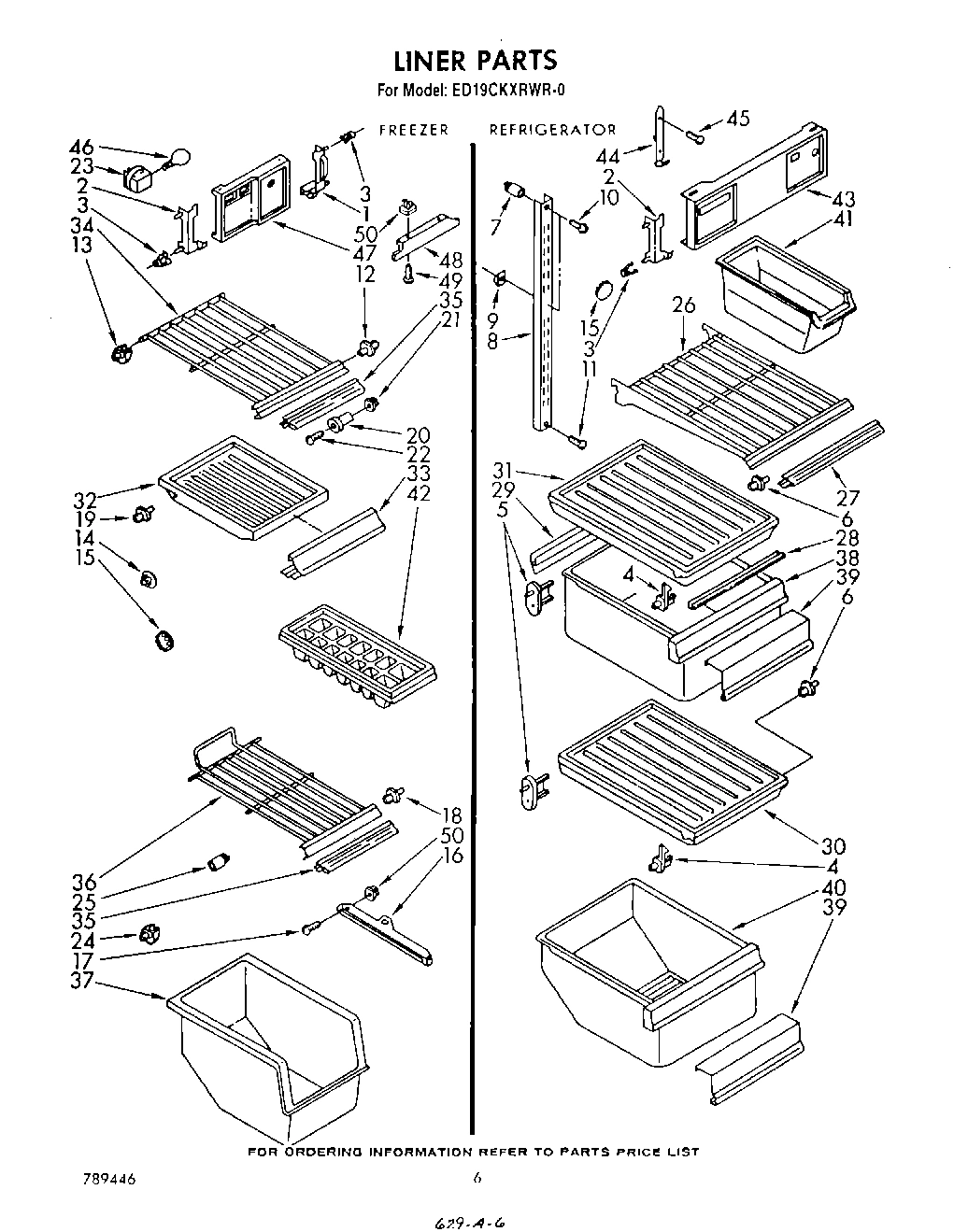

04 - LINER

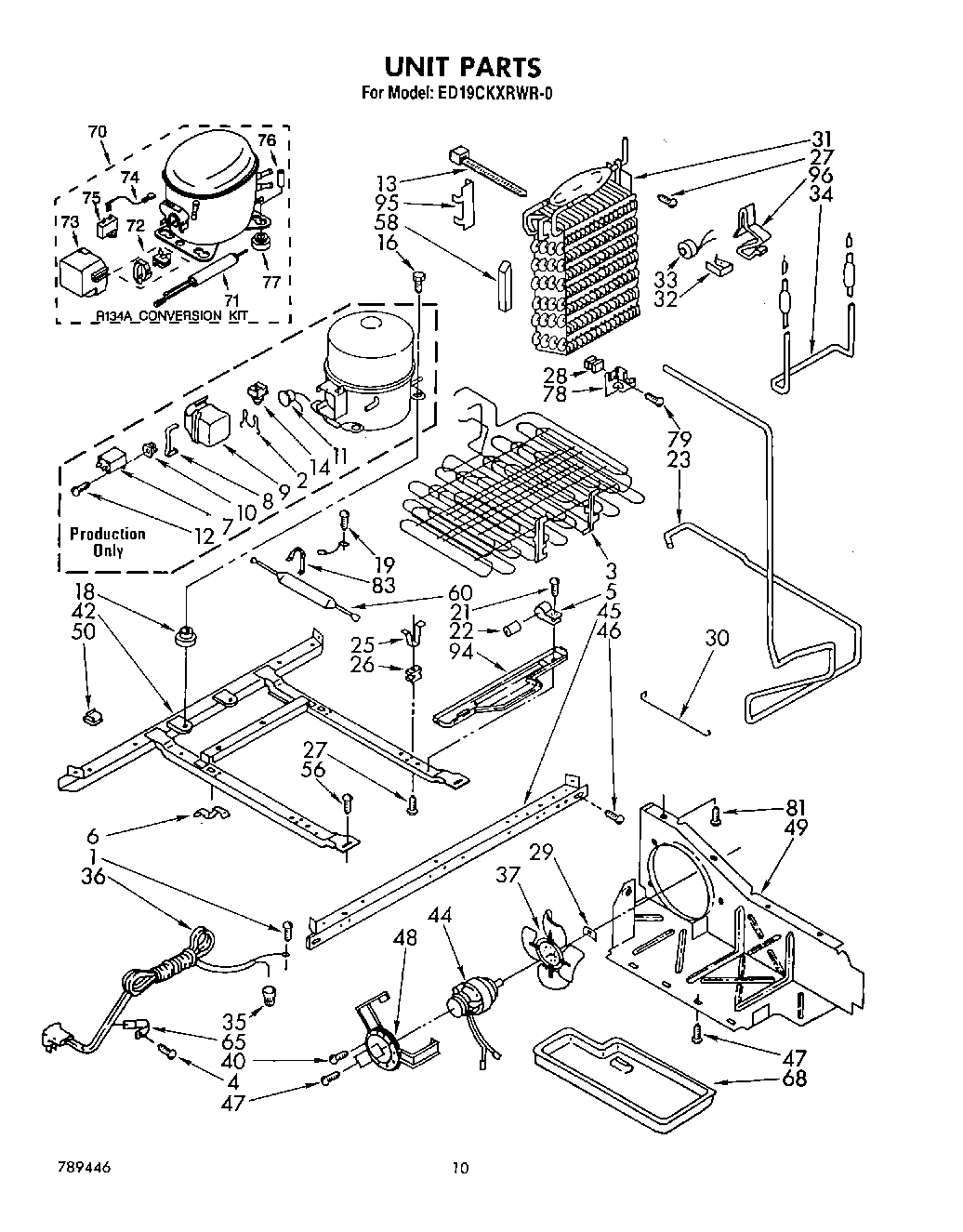

06 - UNIT , NOT ILLUSTRATED
Common parts from model Whirlpool ED19CKXRWR0 SIDE BY SIDE REFRIGERATOR
WPL LIT1101061 WPL LIT1101061 Contact Us For Availability
WPL LIT1108769 WPL LIT1108769 Contact Us For Availability
WPL LIT1108774 WPL LIT1108774 Contact Us For Availability
WPL LIT789446 WPL LIT789446 Contact Us For Availability
1
Screw, Ground WPL 488474 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25639A7 Contact Us For Availability
1
Support, Light R.S. WPL 842355 Contact Us For Availability
2
Liner (Not A Serviceable Part) WPL ARI25640A6 Contact Us For Availability
2
Support, Light L.S. WPL 842356 Contact Us For Availability
2
Overload Spring WPL 943320 Contact Us For Availability
3
Hole Plug, Evaporator WPL 659776 Contact Us For Availability
3
Roller, Front WPL 981127 Contact Us For Availability
3
Clip, Tubular WPL 843945 Contact Us For Availability
3
Condenser WPL 945525 Contact Us For Availability
4
Box, Control WPL 984550 Contact Us For Availability
4
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Shelf, Stud WPL 652675 Contact Us For Availability
5
Shelf, Stud WPL 845986 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
6
Shelf, Stud WPL 536475 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Control Box Front WPL 934045 Contact Us For Availability
7
Center Rail, Mullion (Toast) WPL 1100362 Contact Us For Availability
7
Center Rail, Mullion (Platinum) WPL 1100363 Contact Us For Availability
7
Center Rail, Mullion (White) WPL 985979 Contact Us For Availability
7
Center Rail, Mullion (Golden Harvest) WPL 989925 Contact Us For Availability
7
Center Rail, Mullion (Almond) WPL 989927 Contact Us For Availability
7
Screw, Grommet WPL 512923 Contact Us For Availability
8
Heater, Mullion WPL 936199 Contact Us For Availability
8
Shelfladder (2) WPL 934264 Contact Us For Availability
8
Strap, Cover WPL 943322 Contact Us For Availability
9
Defrost Timer, 10 Hr. WPL 943435 Contact Us For Availability
9
Retainer, Clip WPL 510291 Contact Us For Availability
9
Cover WPL 1105055 Contact Us For Availability
10
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
10
Screw Grommet WPL 509812 Contact Us For Availability
11
Mullion, Rail WPL 836080 Contact Us For Availability
11
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
11
Screw (Repair) WPL 488980 Contact Us For Availability
11
Overload WPL 945585 Contact Us For Availability
12
Screw, 8 x 3/4 WPL 488280 Contact Us For Availability
12
Shelf, Stud WPL 529758 Contact Us For Availability
13
Grommet, Wiring WPL 851020 Contact Us For Availability
13
Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability
13
Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability
13
Strap WPL 851095 Contact Us For Availability
14
Escutcheon Meat WPL 984101 Contact Us For Availability
14
Hole, Plug WPL 659598 Contact Us For Availability
14
Relay WPL 945507 Contact Us For Availability
15
Knob, Temperature Control WPL 836482 Contact Us For Availability
15
Slide, Meat Control WPL 984102 Contact Us For Availability
15
Hole, Plug WPL 519890 Contact Us For Availability
16
Duct, Air WPL 842399 Contact Us For Availability
16
Pad, Foam WPL 992358 Contact Us For Availability
16
Slide, Freezer Bin WPL 982321 Contact Us For Availability
17
Baffle, Air WPL 987954 Contact Us For Availability
17
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
17
Screw, 8 x 1 WPL 487979 Contact Us For Availability
18
Grille, Freezer Compartment WPL 835740 Contact Us For Availability
18
Retainer, Hole Insert WPL 843888 Contact Us For Availability
18
Stud, Retainer WPL 512900 Contact Us For Availability
19
Insert, Hole WPL 843887 Contact Us For Availability
19
Shelf Stud WPL 521878 Contact Us For Availability
20
Blade, Fan WPL 992920 Contact Us For Availability
20
Gasket, Divider WPL 842435 Contact Us For Availability
20
Stud, Shelf WPL 658944 Contact Us For Availability
21
Screw Grommet WPL 538449 Contact Us For Availability
21
Mullion, Stabilizer WPL 836079 Contact Us For Availability
22
Fan, Bracket Double WPL 548263 Contact Us For Availability
22
Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
23
Fan, Bracket Single WPL 548264 Contact Us For Availability
23
Hole Plug WPL 534927 Contact Us For Availability
23
Exchanger, Heat WPL 1101063 Contact Us For Availability
24
Fan, Grommet WPL 548268 Contact Us For Availability
24
Shelf Support WPL 210518 Contact Us For Availability
25
Hinge, Top WPL 842039 Contact Us For Availability
25
Grommet WPL 533881 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
26
Scroll Fan WPL 991285 Contact Us For Availability
26
Shim, Top Hinge WPL 836192 Contact Us For Availability
26
Shelf, Cantilever WPL 936399 Contact Us For Availability
26
Grommet WPL 943447 Contact Us For Availability
27
Air Scoop WPL 841269 Contact Us For Availability
27
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
27
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
27
Shelf Trim Cantilever WPL 935337 Contact Us For Availability
28
Gasket, Air Scoop WPL 844871 Contact Us For Availability
28
Screw (Repair) WPL 488949 Contact Us For Availability
28
Crisper Gasket Front WPL 987419 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
29
Retainer, Damper WPL 938439 Contact Us For Availability
29
Hinge Bottom (R.S.) WPL 986763 Contact Us For Availability
29
Hinge, Bottom L.S. WPL 986764 Contact Us For Availability
29
Crisper Gasket Rear WPL 987420 Contact Us For Availability
30
Control Knob WPL 837445 Contact Us For Availability
30
Pan Slide & Cover WPL 983817 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
31
Exterior Door Freezer (Golden Harvest) WPL 936641 Contact Us For Availability
31
Exterior Door Freezer (Almond) WPL 936643 Contact Us For Availability
31
Knob, Retainer WPL 837444 Contact Us For Availability
31
Pan Slide & Cover WPL 1108716 Contact Us For Availability
31
Evaporator WPL 945577 Contact Us For Availability
32
Retainer Gasket Top & Bottom Freezer WPL 836122 Contact Us For Availability
32
Cover, Evaporator WPL 984466 Contact Us For Availability
32
Shim, Bottom Hinge WPL 836196 Contact Us For Availability
32
Solid Shelf WPL 837202 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Grommet WPL 848445 Contact Us For Availability
33
Tap Plate WPL 836162 Contact Us For Availability
33
Solid Shelf, Trim WPL 841025 Contact Us For Availability
34
WPL 937457 WPL 937457 Contact Us For Availability
34
Wiring Cabinet (Defrost Timer) WPL 481782 Contact Us For Availability
34
Trim, Breaker (Top) WPL 843335 Contact Us For Availability
34
Shelf, Freezer WPL 981498 Contact Us For Availability
35
WPL 1108763 WPL 1108763 Contact Us For Availability
35
Trim, Breaker (R.S.) WPL 842178 Contact Us For Availability
35
Shelf, Freezer Trim WPL 849263 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
End Cap, Evaporator Cover WPL 836144 Contact Us For Availability
36
Trim, Breaker (Bottom) WPL 836446 Contact Us For Availability
36
Shelf, Ice Cube WPL 982219 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
37
Gasket, Evaporator Cover WPL 841606 Contact Us For Availability
37
Trim, Breaker (L.S.) WPL 836213 Contact Us For Availability
37
Freezer, Bin Plastic WPL 1108719 Contact Us For Availability
37
BLADE-FAN WPL 531580 Contact Us For Availability
38
Air Diffuser Assembly WPL 946145 Contact Us For Availability
38
Breaker Clip, Retainer WPL 836090 Contact Us For Availability
38
Pan, Crisper WPL 1108718 Contact Us For Availability
39
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
39
Breaker Clip, Retainer WPL 849479 Contact Us For Availability
39
Overlay, Pan WPL 988255 Contact Us For Availability
40
Breaker Trim, Top Freezer WPL 843334 Contact Us For Availability
40
Pan, Meat WPL 1108715 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
41
Breaker Trim, (R.S.) WPL 836108 Contact Us For Availability
42
Drain Pan WPL 842404 Contact Us For Availability
42
WPL 836174 WPL 836174 Contact Us For Availability
42
Frame WPL 945457 Contact Us For Availability
43
Fitting, Drain Pan WPL 841770 Contact Us For Availability
43
WPL 836447 WPL 836447 Contact Us For Availability
43
Light Lens, Refrigerator WPL 943218 Contact Us For Availability
44
Gasket, Drain Pan WPL 845564 Contact Us For Availability
44
WPL 1100307 WPL 1100307 Contact Us For Availability
44
WPL 1100308 WPL 1100308 Contact Us For Availability
44
WPL 944233 WPL 944233 Contact Us For Availability
44
WPL 944235 WPL 944235 Contact Us For Availability
44
WPL 944237 WPL 944237 Contact Us For Availability
44
Support, Light Lens WPL 984552 Contact Us For Availability
45
Cap, Drain WPL 842259 Contact Us For Availability
45
WPL 546131 WPL 546131 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
46
Cover, Heat Exchanger WPL 836514 Contact Us For Availability
46
WPL 989068 WPL 989068 Contact Us For Availability
47
Tube Clamp WPL 836077 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
WPL 653113 WPL 653113 Contact Us For Availability
47
Light Lens, Freezer WPL 985456 Contact Us For Availability
48
Baffle, Liner Top WPL 836216 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Baffle, Air WPL 850764 Contact Us For Availability
50
Grommet WPL 842339 Contact Us For Availability
50
WPL 850738 WPL 850738 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
52
WPL 934447 WPL 934447 Contact Us For Availability
53
WPL 935663 WPL 935663 Contact Us For Availability
54
WPL 548734 WPL 548734 Contact Us For Availability
55
WPL 549947 WPL 549947 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
57
WPL 836068 WPL 836068 Contact Us For Availability
58
WPL 841646 WPL 841646 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL 841648 WPL 841648 Contact Us For Availability
60
WPL 488978 WPL 488978 Contact Us For Availability
61
WPL 836372 WPL 836372 Contact Us For Availability
62
WPL 850457 WPL 850457 Contact Us For Availability
64
WPL 481658 WPL 481658 Contact Us For Availability
67
WPL 489085 WPL 489085 Contact Us For Availability
68
Tray, Evaporating WPL 842041 Contact Us For Availability
68
WPL 985463 WPL 985463 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
94
Pan, Drip WPL 945572 Contact Us For Availability
95
Shield, Heat (2) WPL 549435 Contact Us For Availability
96
WPL 978029 WPL 978029 Contact Us For Availability
96
WPL 876029 WPL 876029 Contact Us For Availability
96
WPL 479502 WPL 479502 Contact Us For Availability
96
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
96
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
96
Pai WPL 285365 Contact Us For Availability
96
WPL 285366 WPL 285366 Contact Us For Availability
96
WPL 285367 WPL 285367 Contact Us For Availability
96
WPL 285368 WPL 285368 Contact Us For Availability
96
WPL 350941 WPL 350941 Contact Us For Availability
96
WPL 484310 WPL 484310 Contact Us For Availability
96
WPL 542639 WPL 542639 Contact Us For Availability
96
WPL 549419 WPL 549419 Contact Us For Availability
96
WPL 72112 WPL 72112 Contact Us For Availability
96
WPL 799340 WPL 799340 Contact Us For Availability
96
WPL 799833 WPL 799833 Contact Us For Availability
96
WPL 978028 WPL 978028 Contact Us For Availability
96
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
