Model Whirlpool EB21DKXAW01 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT2160158 WPL LIT2160158 Contact Us For Availability

WPL LIT2162820 WPL LIT2162820 Contact Us For Availability

WPL LIT2169125 WPL LIT2169125 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

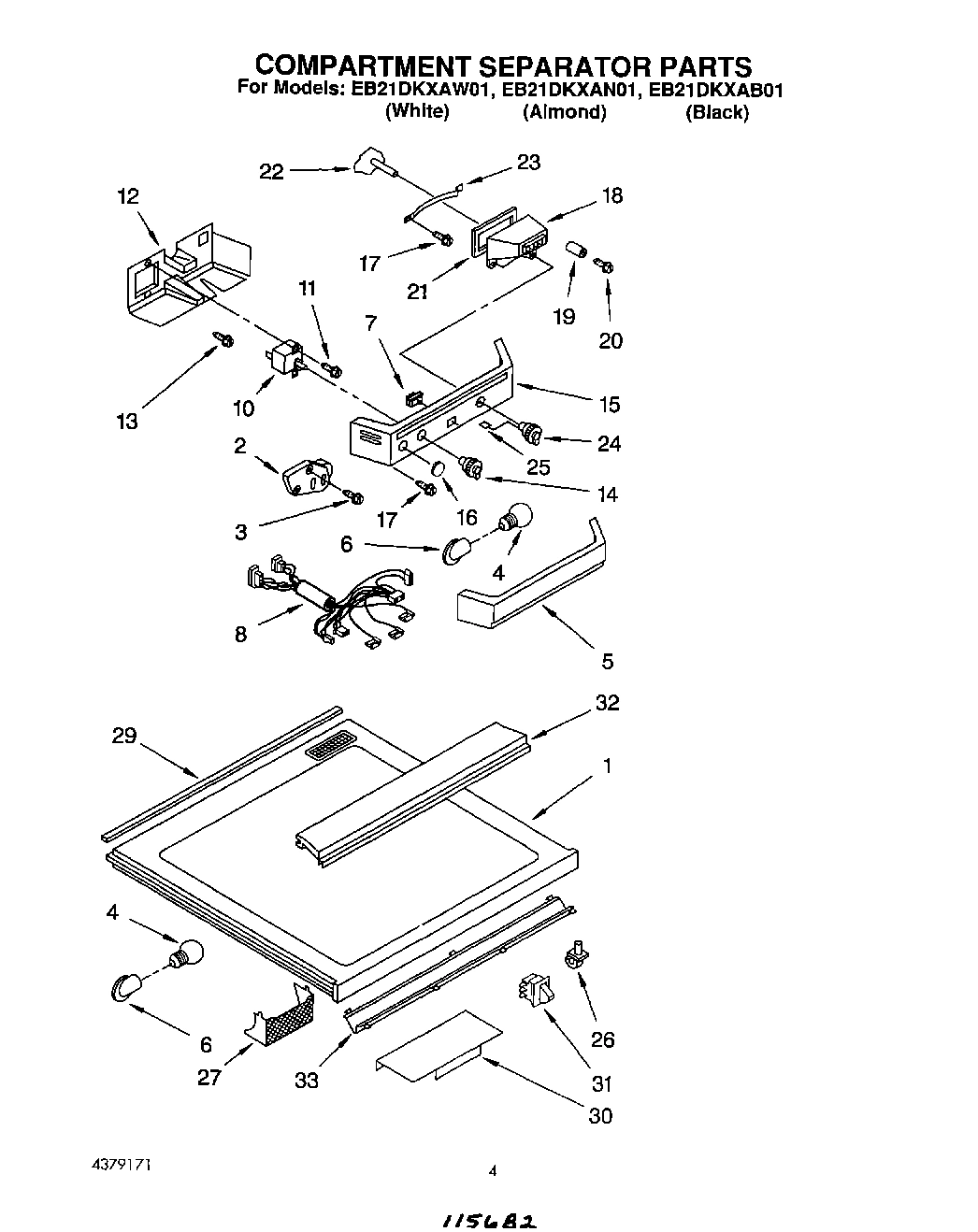

Compartment Separator Assembly (Includes Cent WPL 2152764 Contact Us For Availability

1

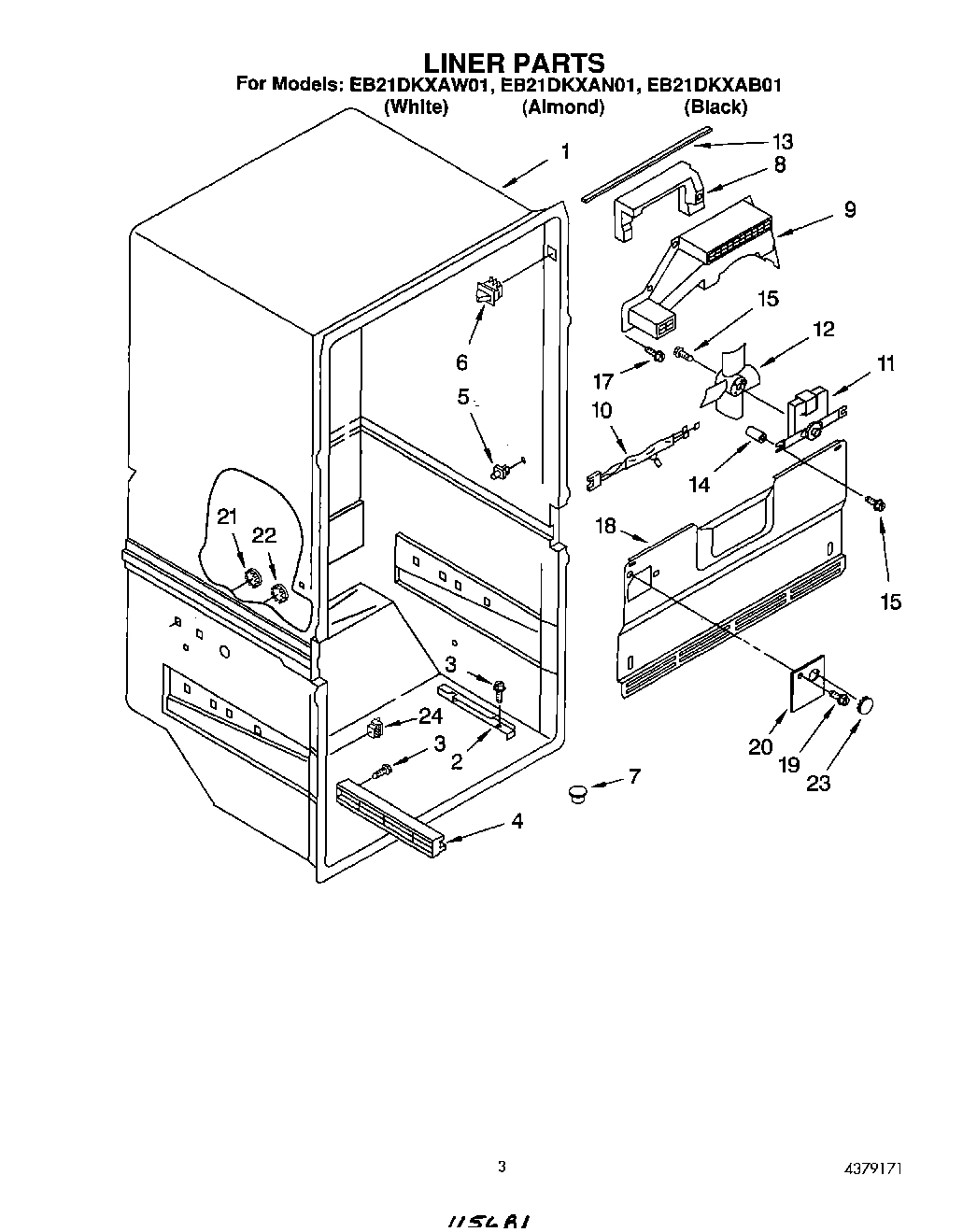

Liner (Not A Serviceable Part) WPL ARI145059A Contact Us For Availability

1

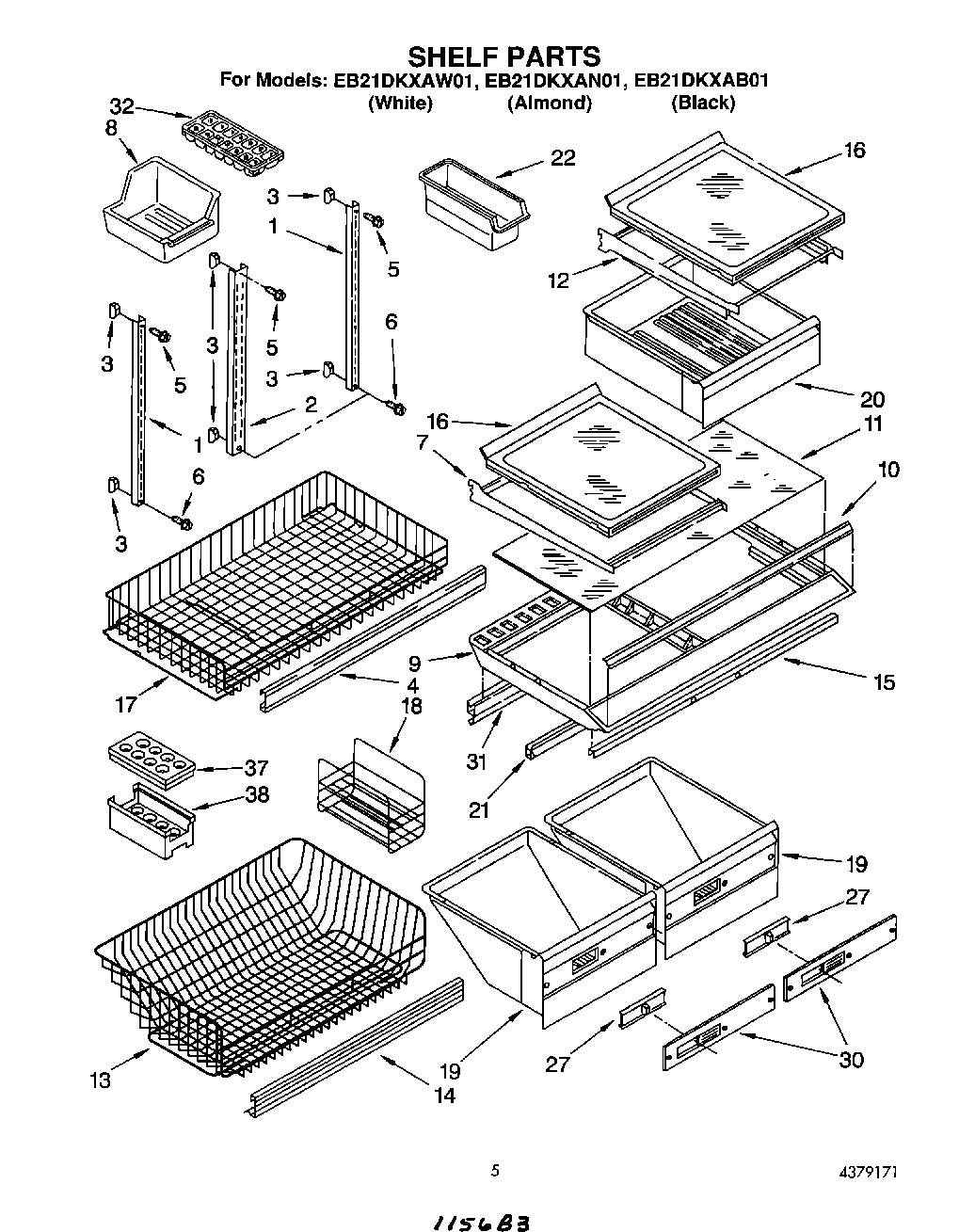

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

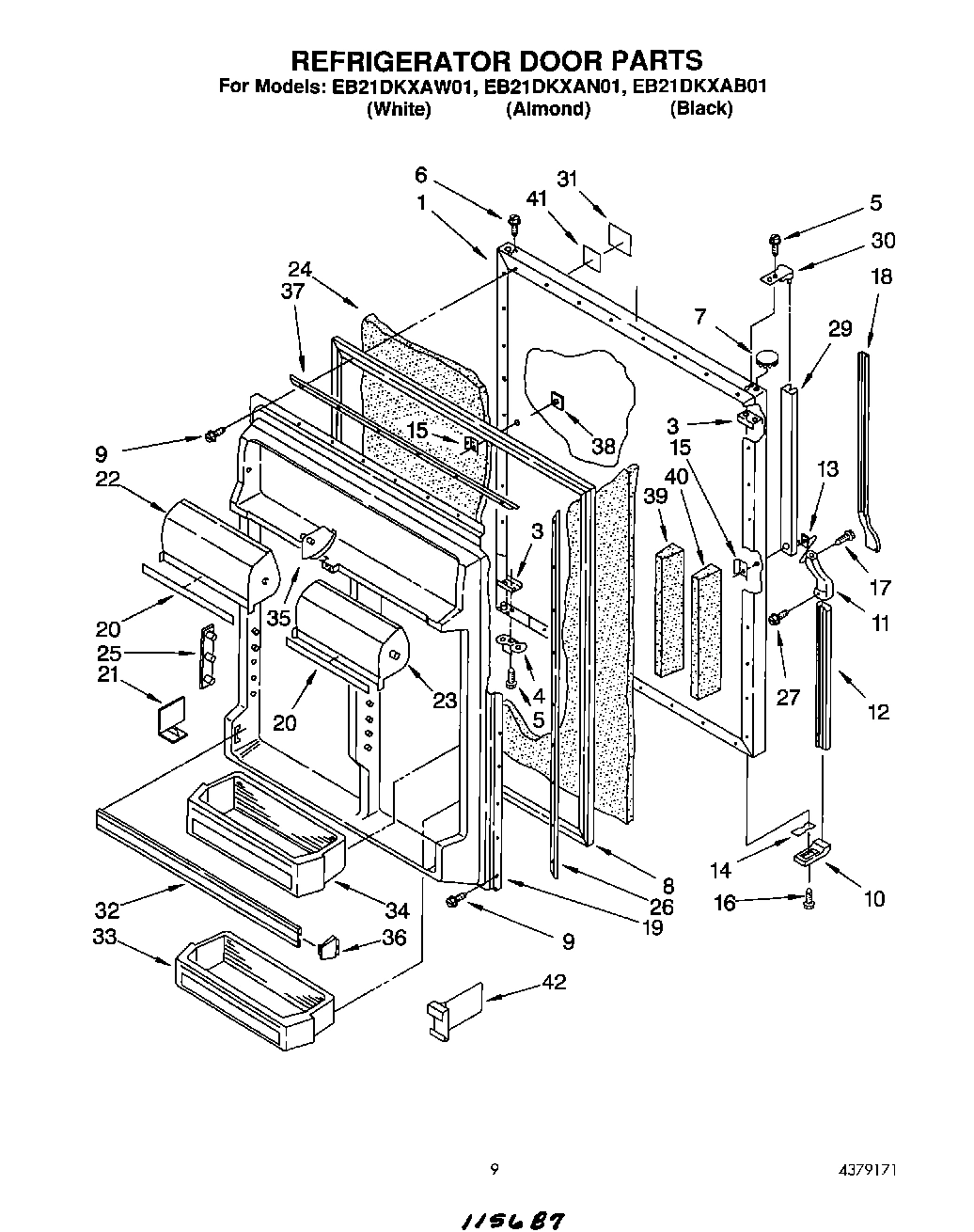

Panel, Refrigerator Door (Also Order Item 24) WPL 2152806 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160485 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 24) WPL 2160486 Contact Us For Availability

1

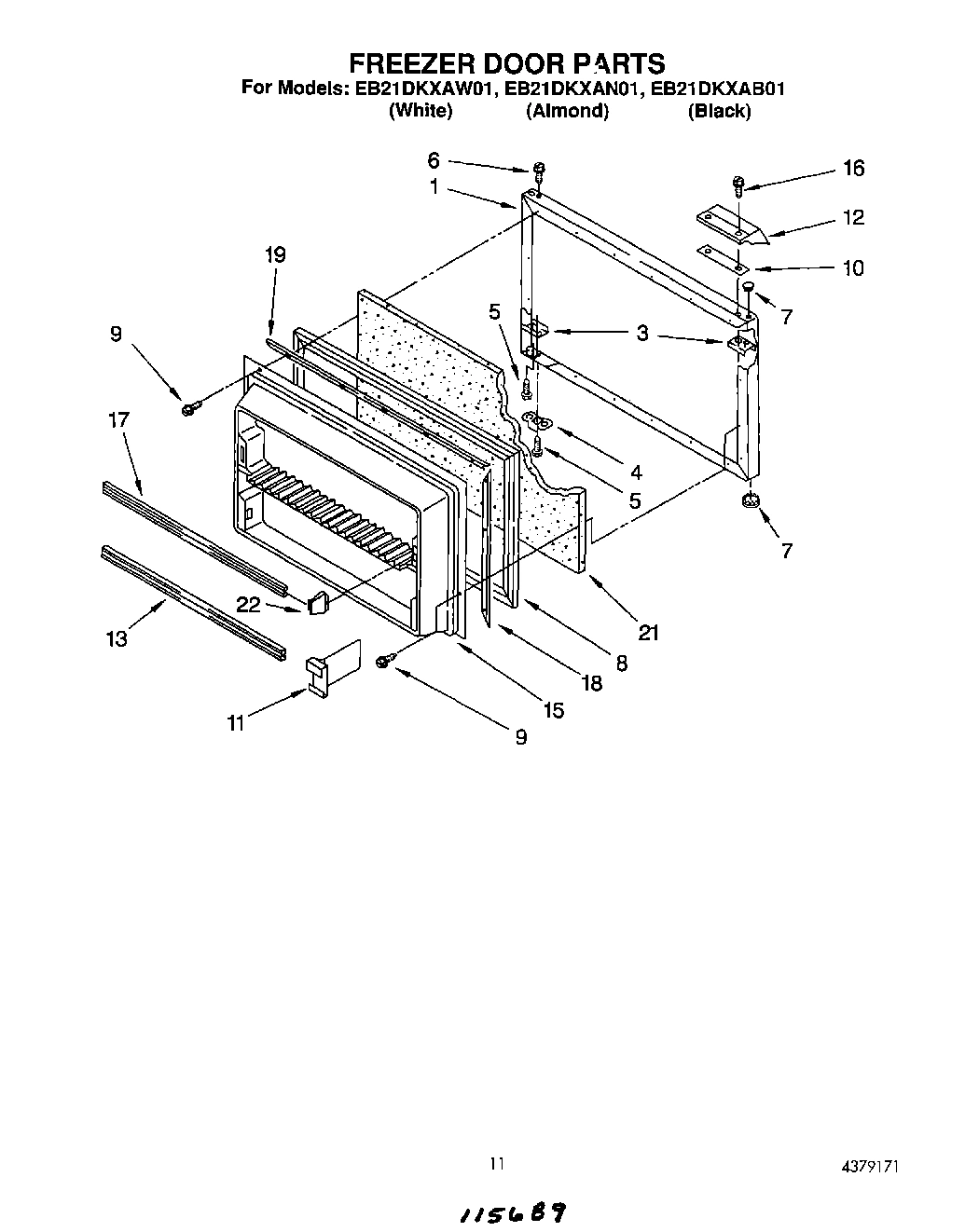

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2152871 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2161785 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161799 Contact Us For Availability

2

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $64.97

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Slide, Basket (Right Side) WPL 986382 Contact Us For Availability

2

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

3

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

3

Screw WPL 489386 Contact Us For Availability

3

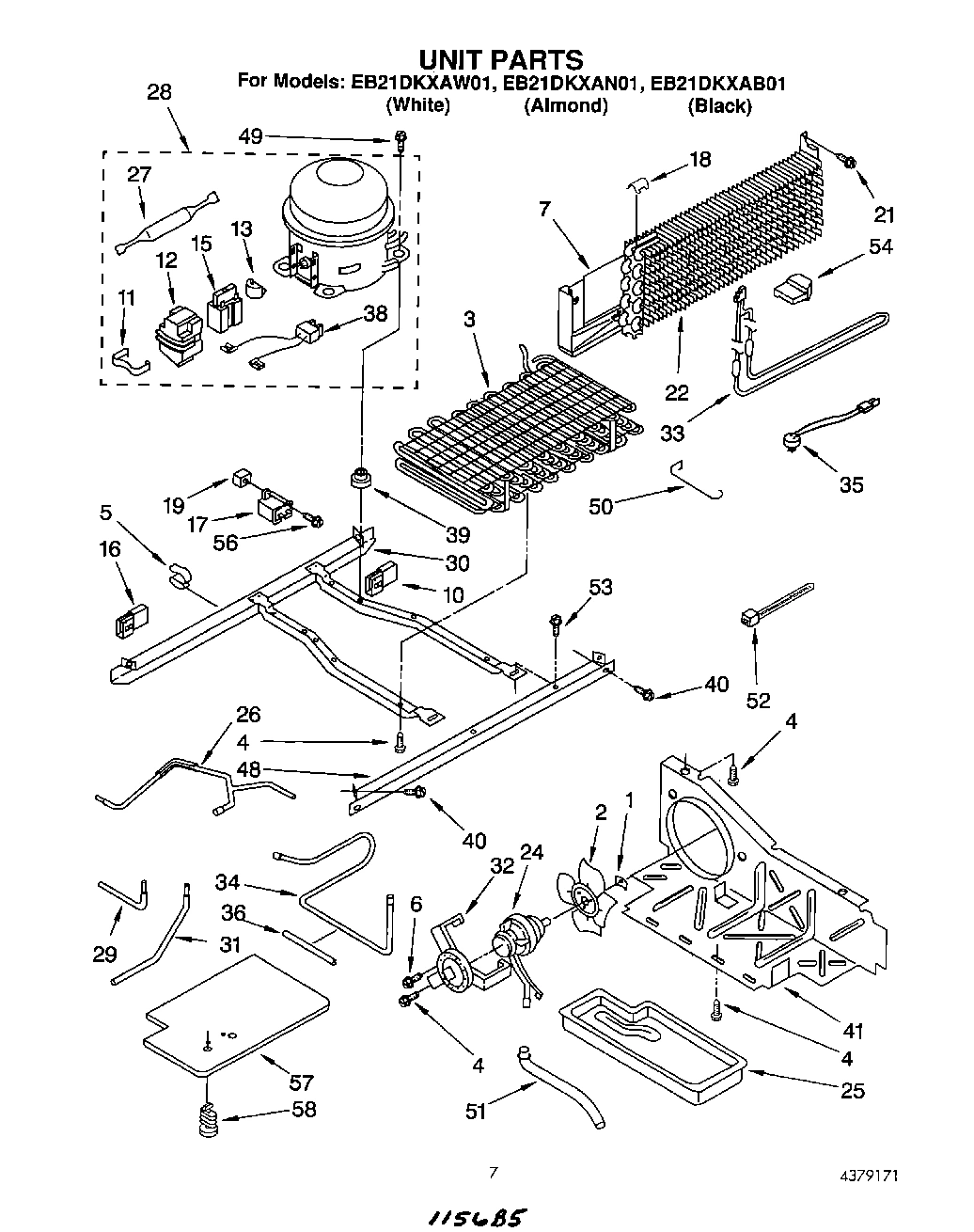

Condenser Assembly WPL 2154010 Contact Us For Availability

3

Plate, Tap (4) WPL 1123568 Contact Us For Availability

4

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.45

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

4

Shelf, Track (L.S.) WPL 2149174 Contact Us For Availability

4

Shelf, Track (R.S.) WPL 2149175 Contact Us For Availability

4

Trim, Basket WPL 2152856 Contact Us For Availability

4

Bracket, Door Stop WPL 2157749 Contact Us For Availability

4

Bracket, Door Stop WPL 2157748 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Light Lens WPL 983910 Contact Us For Availability

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Heat Shield & Drain Pan WPL 2152771 Contact Us For Availability

7

Drain Ferrule WPL 2155556 Contact Us For Availability

7

Shelf, Cantilever WPL 2160306 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $40.99

8

Wiring Assembly, Control Box WPL 2152787 Contact Us For Availability

8

Insert, Scroll WPL 2160525 Contact Us For Availability

8

Door Gasket, Magnetic (Almond Model) WPL 2160435 Contact Us For Availability

8

Door Gasket, Magnetic (Black Model) WPL 2160437 Contact Us For Availability

8

Door Gasket (Almond Model) WPL 2160436 Contact Us For Availability

8

Door Gasket (White Model) WPL 2160438 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $179.17

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

9

Scroll, Fan WPL 2152779 Contact Us For Availability

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $183.16

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability

Trim, Crisper Cover WPL 1119480 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Shim WPL 989711 Contact Us For Availability

Handle End, Side WPL 1109189 Contact Us For Availability

Strap (Service) WPL 938384 Contact Us For Availability

Fan Motor WPL 2160412 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

Divider, Shelf WPL 1123293 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

Bracket, Thermostat WPL 2152896 Contact Us For Availability

Cover (Service) WPL 1108115 Contact Us For Availability

Fan Blade WPL 2160471 Contact Us For Availability

Pan Shelf, Cantilever WPL 2166327 Contact Us For Availability

Handle, Center (Black Model) WPL 1109057 Contact Us For Availability

Handle, Center (White Model) WPL 2148665 Contact Us For Availability

Handle, Center (Almond Model) WPL 945099 Contact Us For Availability

Handle WPL 657077 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $90.78

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

Gasket, Fan Scroll WPL 2160533 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Trim, Door Shelf WPL 2152878 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

Spacer, Handle Door WPL 943188 Contact Us For Availability

Control Knob WPL 2148656 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Trim, Basket WPL 2152860 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.82

Control Panel WPL 2148654 Contact Us For Availability

Relay (See Overload) WPL ARI145060A Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Interior Door Panel WPL 2152814 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $4.82

Hole Plug WPL 2148655 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Shelf Assembly, Spillguard WPL 2160318 Contact Us For Availability

Screw WPL 488935 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Running Capacitor WPL 2154565 Contact Us For Availability

Freezer Basket (Upper) WPL 2152802 Contact Us For Availability

Trim, Door WPL 2152876 Contact Us For Availability

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $6.49

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

Cover, Evaporator WPL 2152796 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Insert, Handle (White Model) WPL 2160445 Contact Us For Availability

Insert, Handle (Almond Model) WPL 2160475 Contact Us For Availability

Insert, Handle (Black Model) WPL 2160476 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $6.88

Screw Grommet WPL 509812 Contact Us For Availability

Pan, Crisper WPL 2162723 Contact Us For Availability

Interior Door Panel WPL 2160430 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Hole Cover, Evaporator WPL 2152827 Contact Us For Availability

Pan, Meat WPL 2162716 Contact Us For Availability

Trim, Door Compartment WPL 1122750 Contact Us For Availability

21

Gasket WPL 2160428 Contact Us For Availability

21

Gasket-Front WPL 1116512 Contact Us For Availability

21

Divider-Door WPL 2160050 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $13.82

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $17.72

Damper, Air WPL 984658 Contact Us For Availability

Evaporator WPL 2152776 Contact Us For Availability

Compartment Door, WPL 2148809 Contact Us For Availability

23

Retainer, Air Damper WPL 836493 Contact Us For Availability

23

Hole Plug WPL 1103725 Contact Us For Availability

23

Compartment Door WPL 2148807 Contact Us For Availability

24

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $61.51

24

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

24

Knob, Air Diffuser (Includes Item 25) WPL 2148657 Contact Us For Availability

25

Knob, Retainer WPL 837444 Contact Us For Availability

25

Tray, Evaporator WPL 2154114 Contact Us For Availability

25

Pin Plate WPL 1116986 Contact Us For Availability

26

Stud WPL 2155555 Contact Us For Availability

26

Tube, Discharge WPL 2162475 Contact Us For Availability

26

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Light Lens WPL 983359 Contact Us For Availability

Crisper-Front WPL 2148524 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

29

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

29

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

29

Retainer, Insert WPL 2160446 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

Washer (Black) WPL 489200 Contact Us For Availability

Lens-Light WPL 2149068 Contact Us For Availability

Crisper Front WPL 2148816 Contact Us For Availability

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

Gasket, Rear WPL 1105653 Contact Us For Availability

Nameplate (White Model) WPL 2148544 Contact Us For Availability

Nameplate (Black WPL 2162668 Contact Us For Availability

WPL 2162698 WPL 2162698 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

Separator Top-Front WPL 1121213 Contact Us For Availability

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

WPL 2148616 WPL 2148616 Contact Us For Availability

33

Air Deflector WPL 2160531 Contact Us For Availability

33

Heater, Defrost WPL 2162083 Contact Us For Availability

33

WPL 2148549 WPL 2148549 Contact Us For Availability

34

Tube, Suction WPL 2162472 Contact Us For Availability

34

WPL 2148550 WPL 2148550 Contact Us For Availability

35

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $4.82

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

36

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

37

Egg Container, Top WPL 1107388 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Egg Container, Bottom WPL 1107384 Contact Us For Availability

Door Reversal Instructions WPL 2155033 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 1122654 WPL 1122654 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WPL 1122711 WPL 1122711 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

40

WPL 1122709 WPL 1122709 Contact Us For Availability

41

Air Baffle WPL 2162457 Contact Us For Availability

41

WPL 991259 WPL 991259 Contact Us For Availability

42

WPL 2152335 WPL 2152335 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $27.86

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Support (2) WPL 1115128 Contact Us For Availability

57

Cover, Unit Bottom WPL 2160505 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99
