Model Whirlpool DU9450XY2 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - FRAME AND CONSOLE

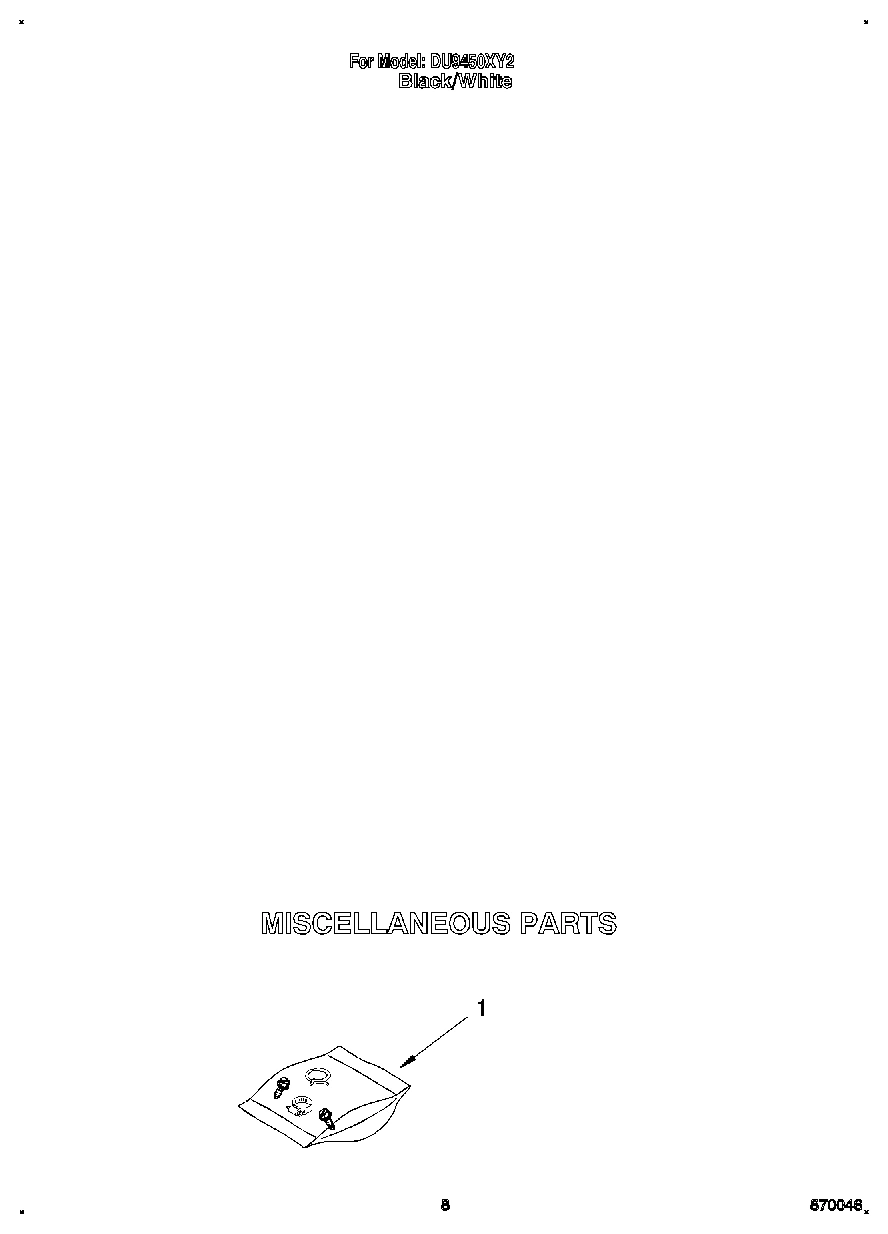

06 - MISCELLANEOUS

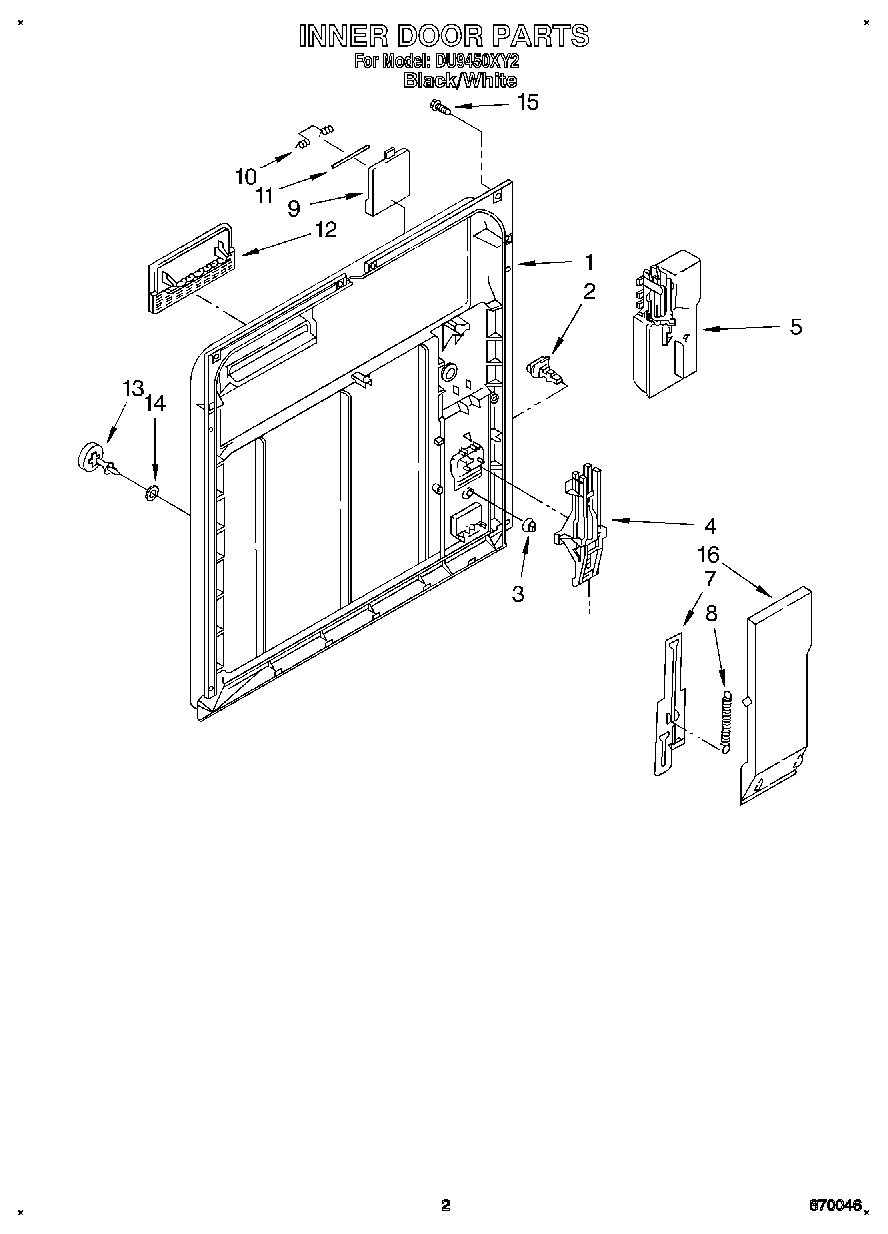

02 - INNER DOOR

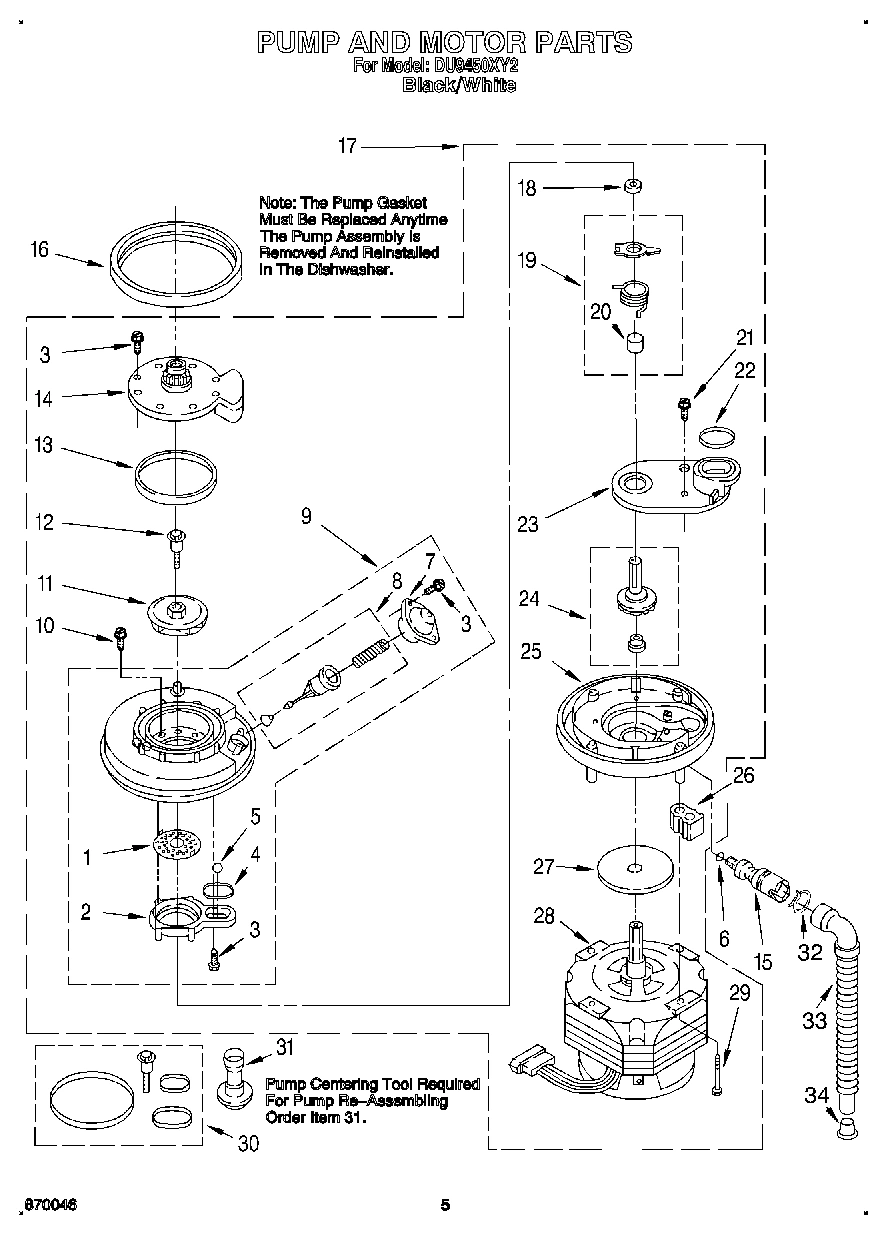

04 - PUMP AND MOTOR

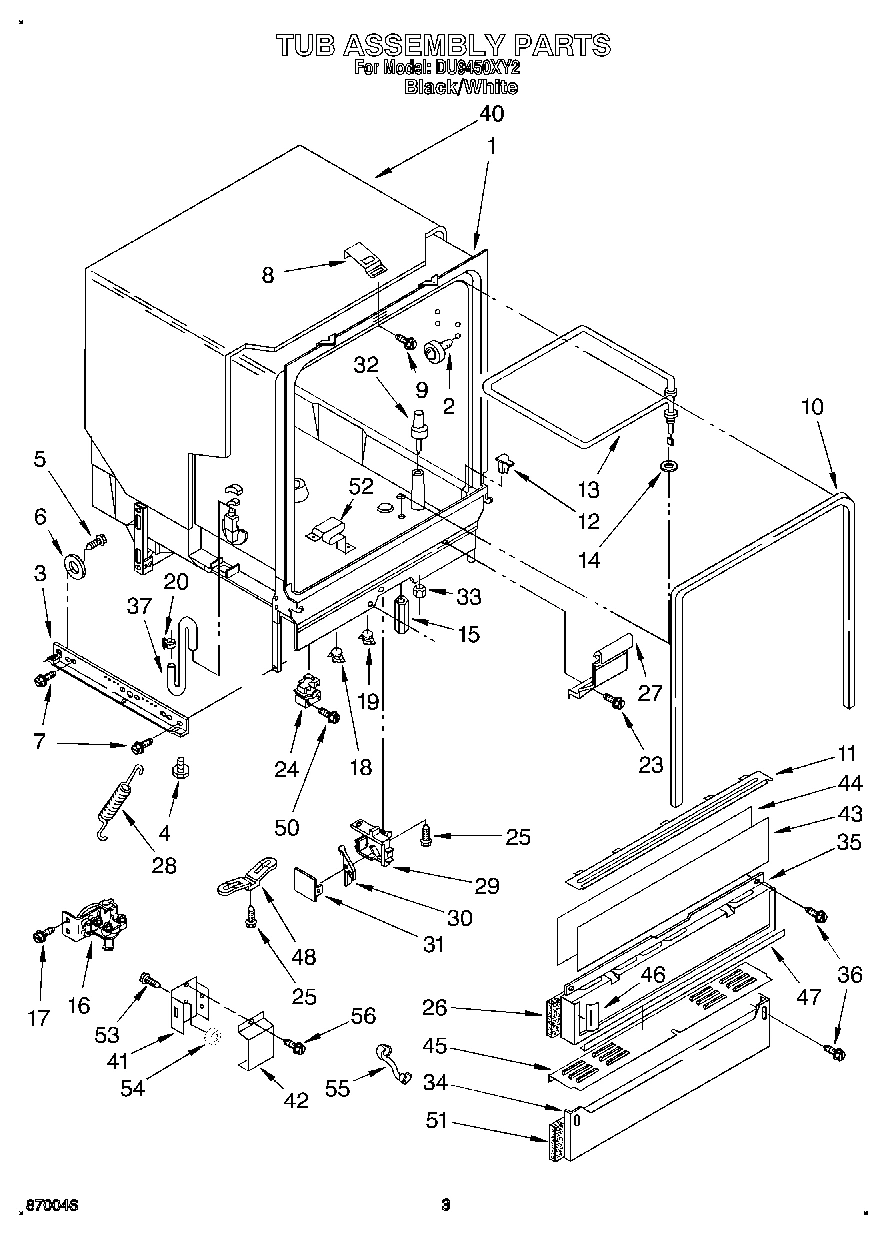

03 - TUB ASSEMBLY

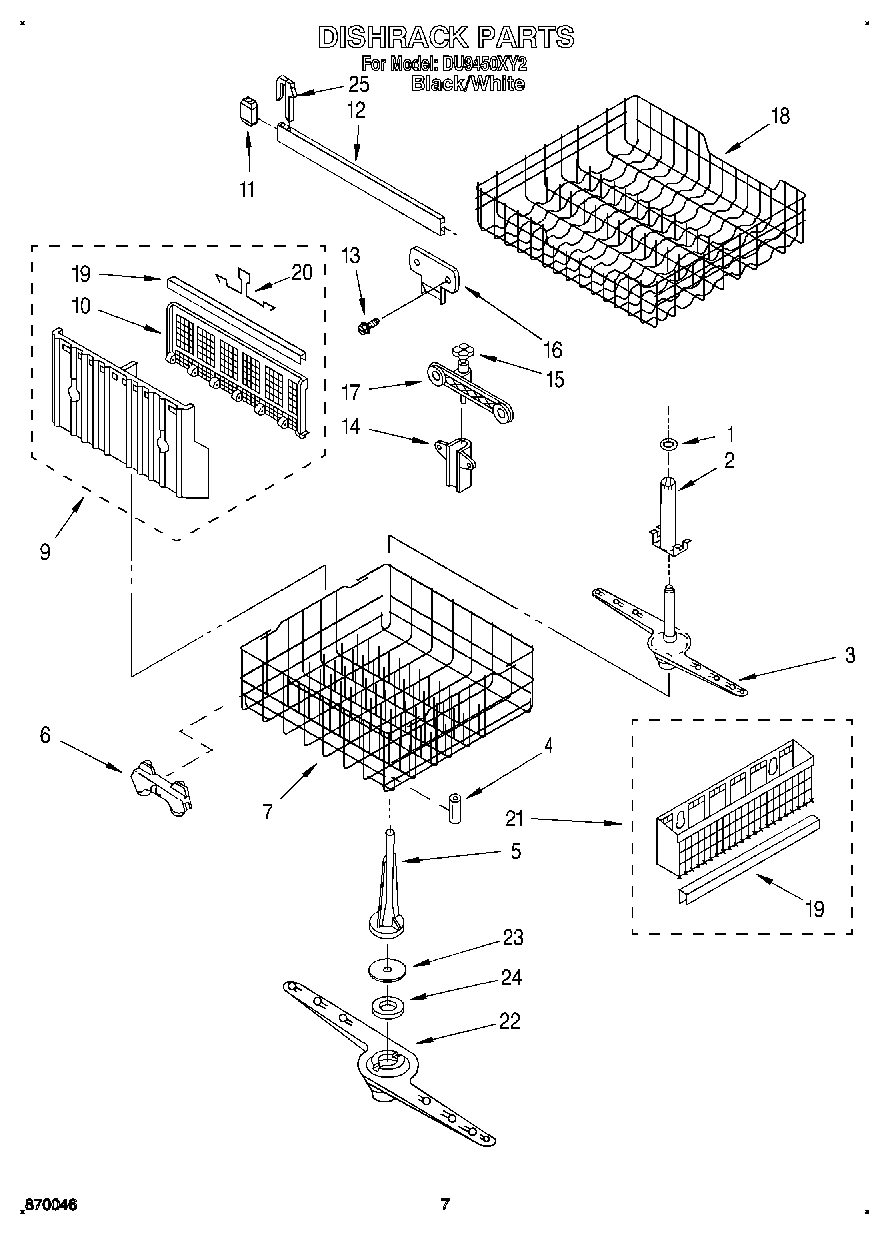

05 - DISHRACK, LIT/OPTIONAL
Common parts from model Whirlpool DU9450XY2 UNDERCOUNTER DISHWASHER
WPL LIT0677967 WPL LIT0677967 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3369099 WPL LIT3369099 Contact Us For Availability
WPL LIT3370468 WPL LIT3370468 Contact Us For Availability
WPL LIT3370538 WPL LIT3370538 Contact Us For Availability
WPL LIT3372194 WPL LIT3372194 Contact Us For Availability
WPL LIT3374368 WPL LIT3374368 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Tub Assembly WPL 3370851 Contact Us For Availability
2
Support, Arm WPL 3368290 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Spray Arm, Upper WPL 3368300 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
7
Draw Bar, Electronic WPL 3369448 Contact Us For Availability
8
Plate, Latch WPL 3372030 Contact Us For Availability
9
Screw WPL 3372029 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Retainer, Access Panel WPL 3372413 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Thermostat WPL 3371619 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Retainer, Panel WPL 3374011 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
21
Basket, Utensil (Incl. Item 19) WPL 3369494 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
25
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability
25
Stop, Track (2) WPL 3369046 Contact Us For Availability
25
Leveler (Thinner) WPL 350941 Contact Us For Availability
25
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
25
Avocado WPL 4317926 Contact Us For Availability
25
Gold WPL 4317927 Contact Us For Availability
25
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
25
Toast WPL 4317930 Contact Us For Availability
25
Platinum WPL 4317931 Contact Us For Availability
25
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
25
Paint, (Touc WPL 72112 Contact Us For Availability
25
WPL 799340 WPL 799340 Contact Us For Availability
25
WPL 978883 WPL 978883 Contact Us For Availability
26
Sound Shield WPL 3369617 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
40
Sound Shield WPL 3369771 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
43
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369593 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
48
Bracket, Thermostat WPL 3370555 Contact Us For Availability
51
Sound Shield WPL 3370942 Contact Us For Availability
52
Support, Heater WPL 3368987 Contact Us For Availability
55
Relief, Strain WPL 3370307 Contact Us For Availability
56
Screw, 8-18 WPL 3369138 Contact Us For Availability
× ![]()
