Model Whirlpool DU911PCDQ0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

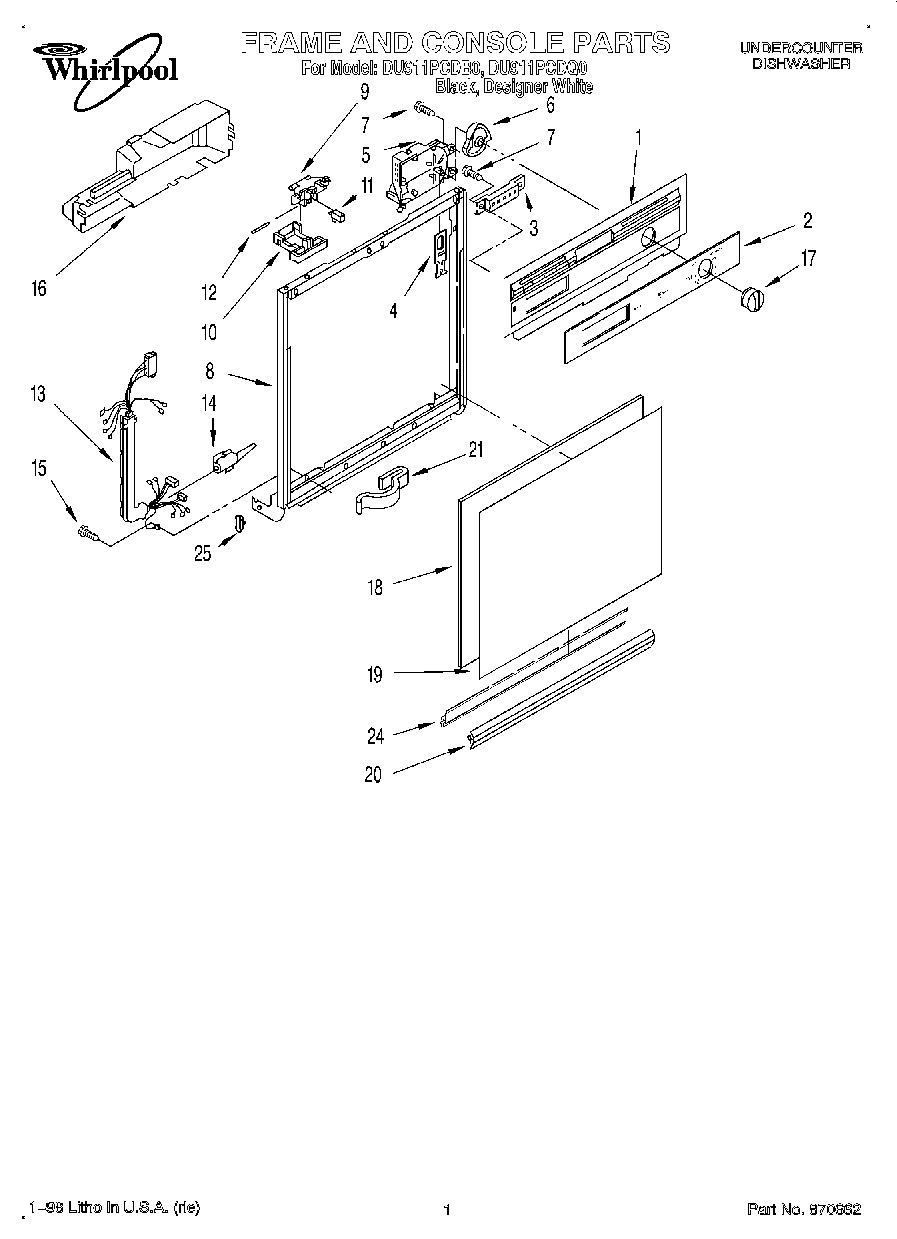

01 - FRAME AND CONSOLE
03 - TUB ASSEMBLY

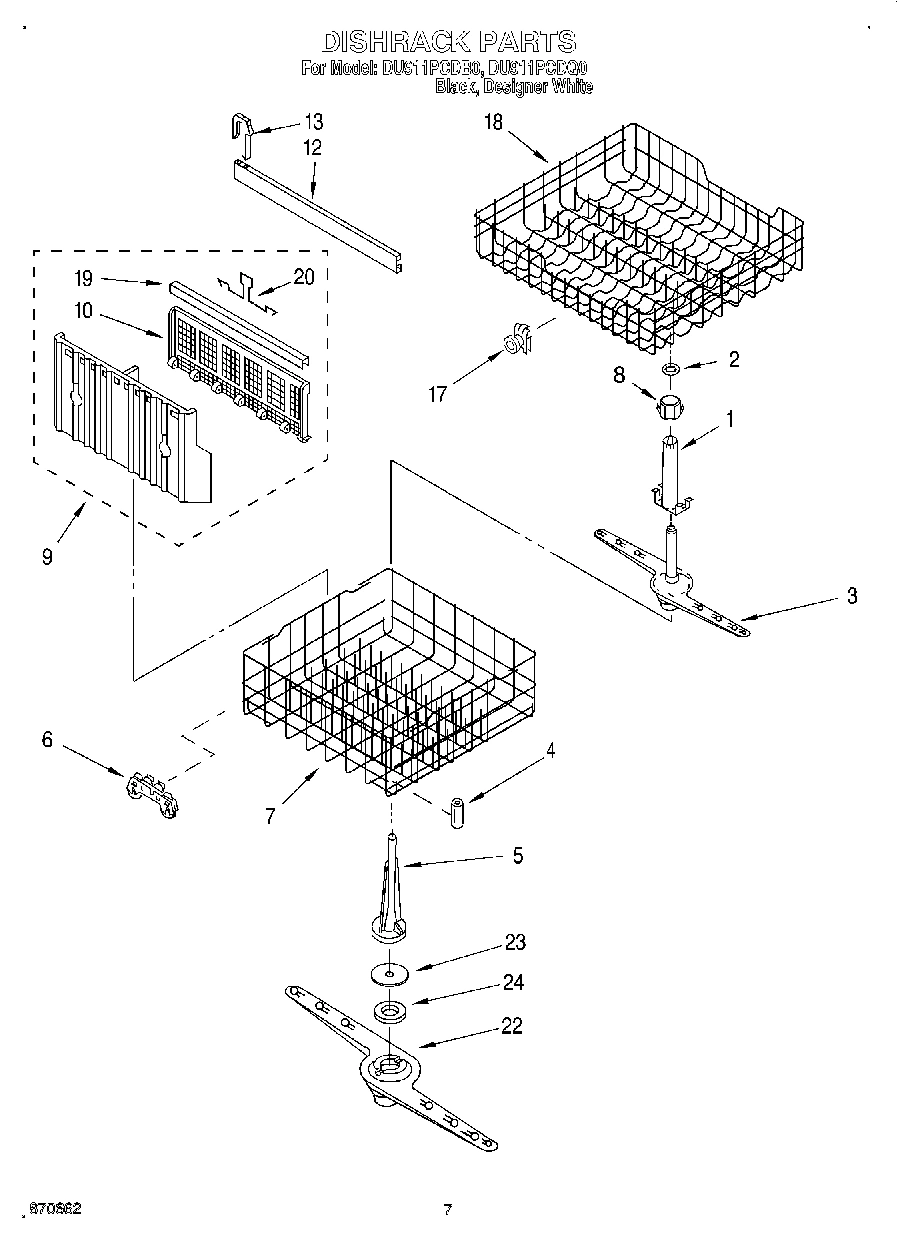

05 - DISHRACK

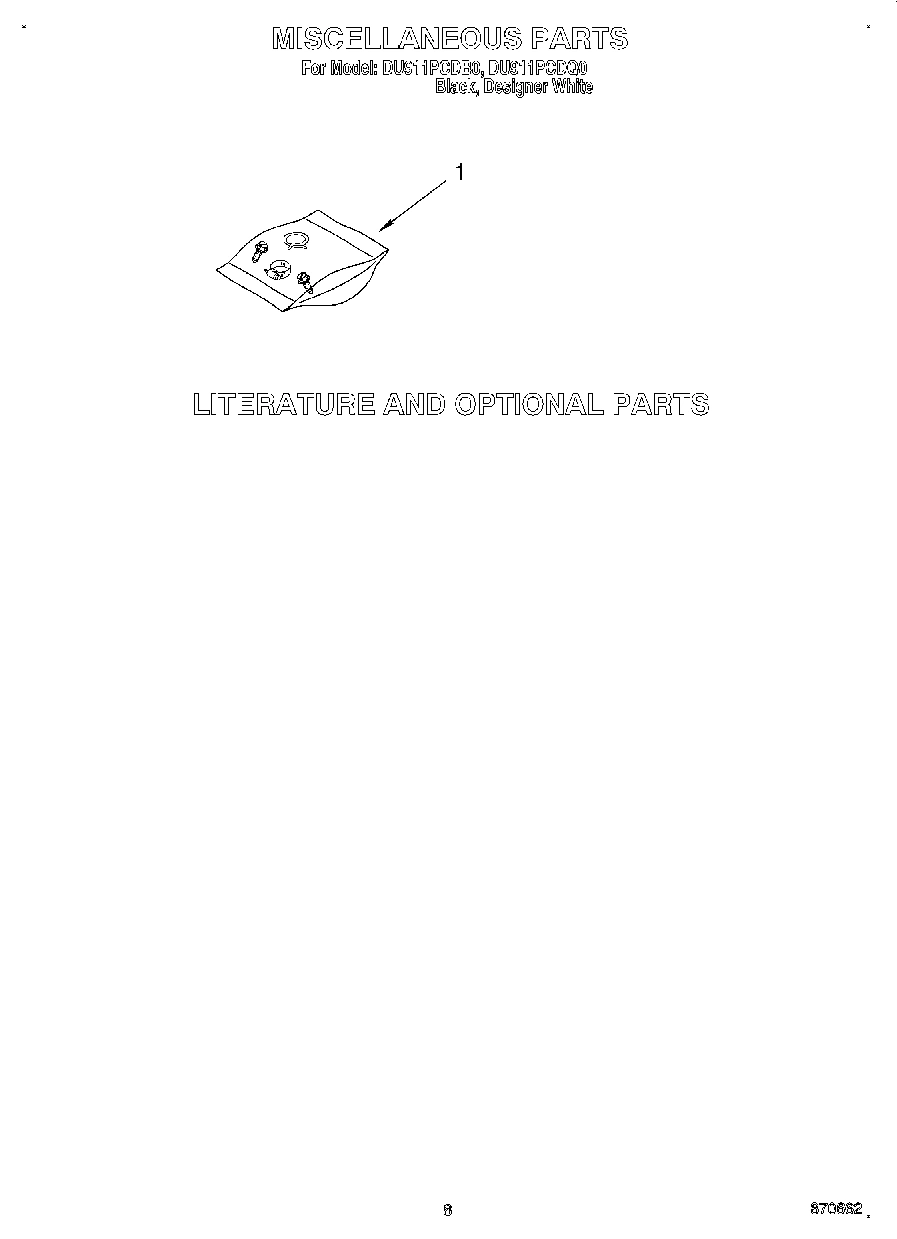

06 - MISCELLANEOUS, LIT/OPTIONAL

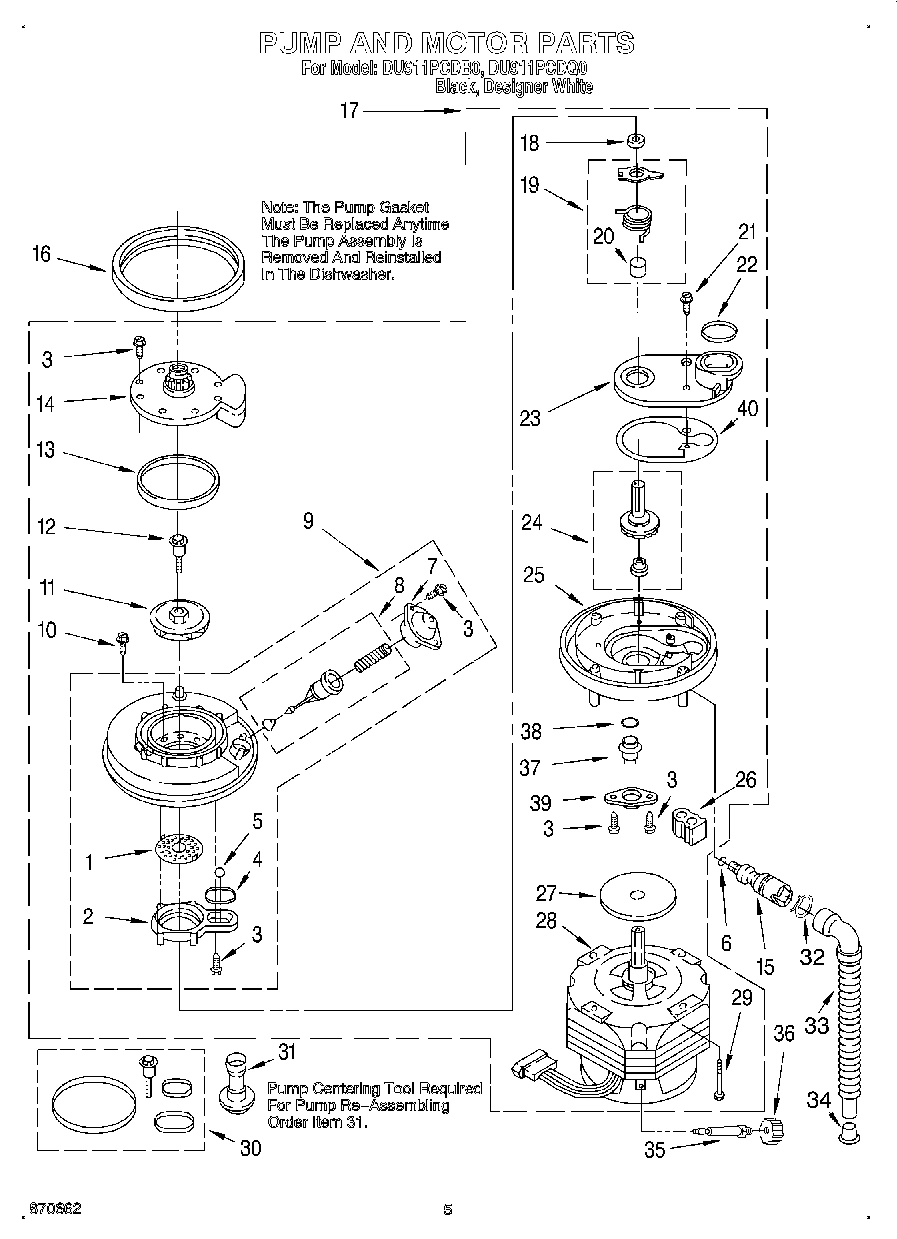

04 - PUMP AND MOTOR

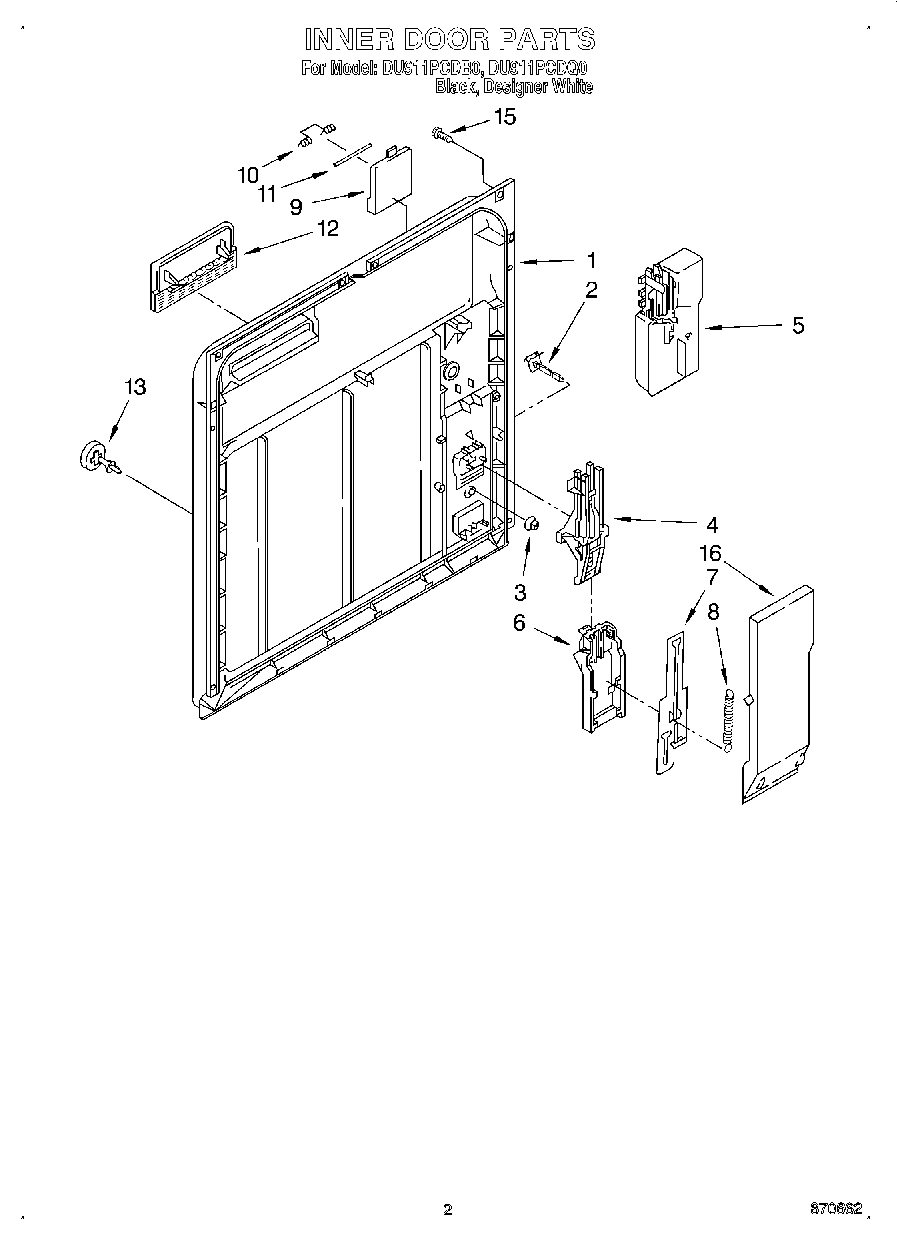

02 - INNER DOOR
Common parts from model Whirlpool DU911PCDQ0 UNDERCOUNTER DISHWASHER
1
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
1
Support, Arm (Also Order Items 2 & 8) WPL 3368290 Contact Us For Availability
1
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
1
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
1
Black (Uncut) WPL 799340 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
1
Plate, Perforated (Includes Item 5) (Also Ord WPL 9740982 Contact Us For Availability
1
Inner Door (Also Order) WPL 3371481 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability
2
Clip WPL 303722 Contact Us For Availability
2
Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability
5
Ball, Check WPL 302709 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
6
Cam WPL 3378124 Contact Us For Availability
6
``O`` Ring WPL 95080 Contact Us For Availability
7
Cover, Valve WPL 302721 Contact Us For Availability
8
Support, Lock Spray Arm WPL 3374702 Contact Us For Availability
8
Door Frame (Includes Item 24) (Black) WPL 3374711 Contact Us For Availability
8
Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability
9
Separator Assembly (Includes Items 12, 13 & 2 WPL 303882 Contact Us For Availability
10
Lever, Latch (Black) WPL 3369457 Contact Us For Availability
10
Lever, Latch White WPL 3372231 Contact Us For Availability
10
Screw WPL 3400001 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Stop, Track (4) WPL 3379941 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 3369478 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 3376752 Contact Us For Availability
18
Sound Absorber WPL 3368979 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
20
Retainer, Panel (Black) WPL 3374010 Contact Us For Availability
20
Retainer, Panel (White) WPL 3374011 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 3378139 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Cover, Drain (Also Order Item 30) See Note A. WPL 3378207 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
25
Base, Pump (Includes Item 24) (Also Order Ite WPL 3376157 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3379364 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675505 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access (White) WPL 3369614 Contact Us For Availability
35
Shaft, Absorber WPL 3374757 Contact Us For Availability
36
Weight, Absorber WPL 3378202 Contact Us For Availability
37
T WPL 3378083 Contact Us For Availability
38
WPL 3376723 WPL 3376723 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
45
Extension & Clip Assembly WPL 3374728 Contact Us For Availability
× ![]()
