Model Whirlpool DU8950XY0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

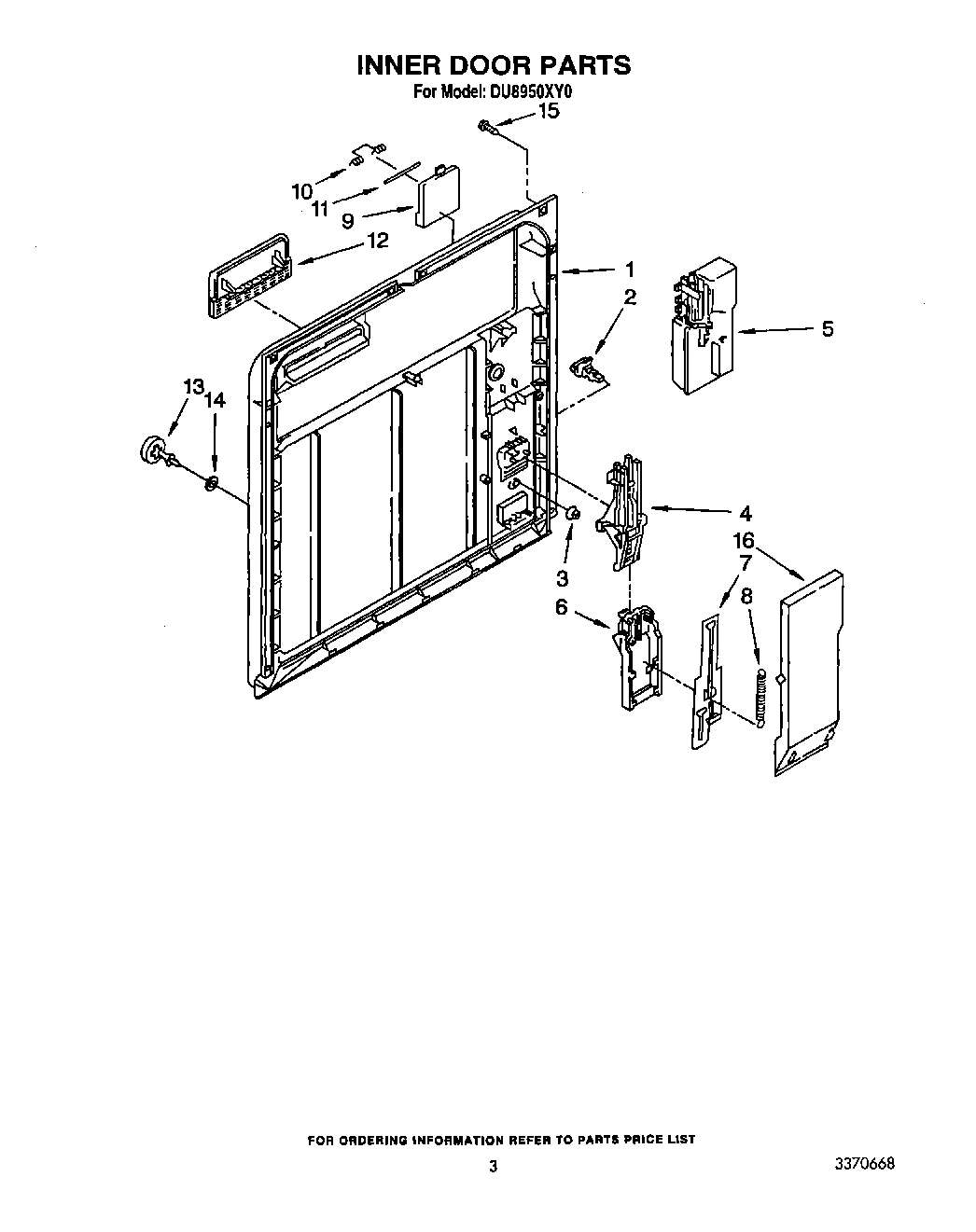

03 - INNER DOOR

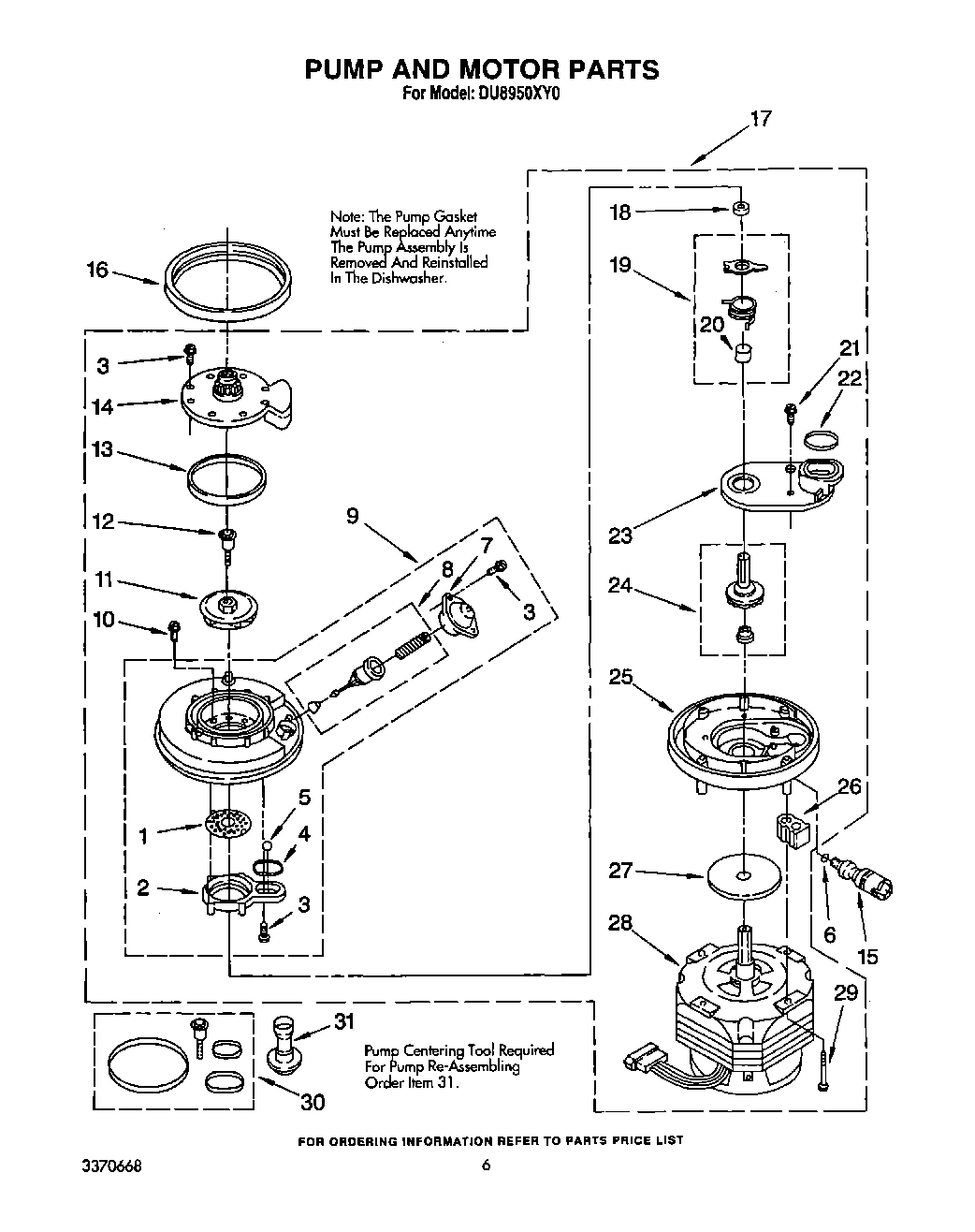

05 - PUMP AND MOTOR

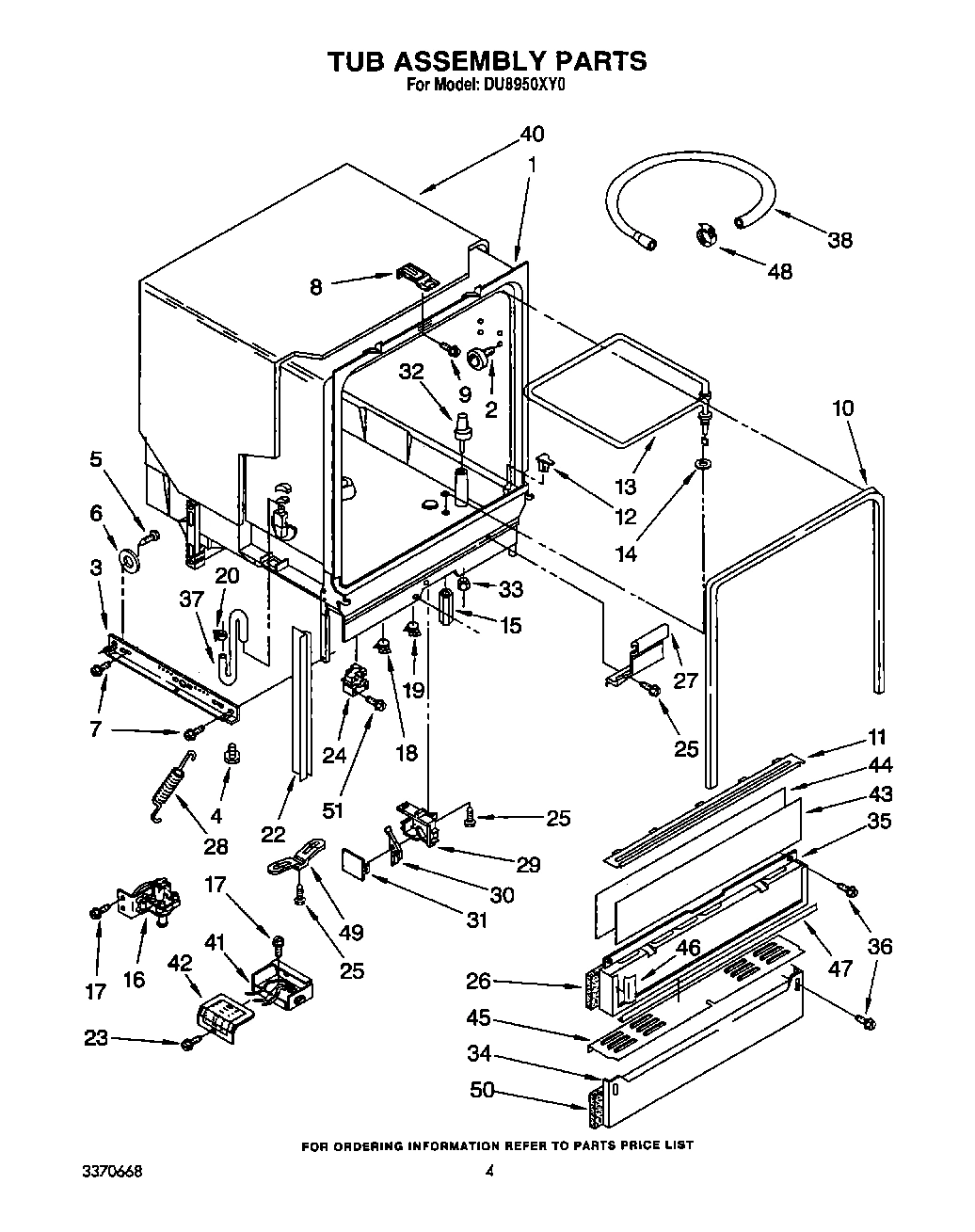

04 - TUB ASSEMBLY

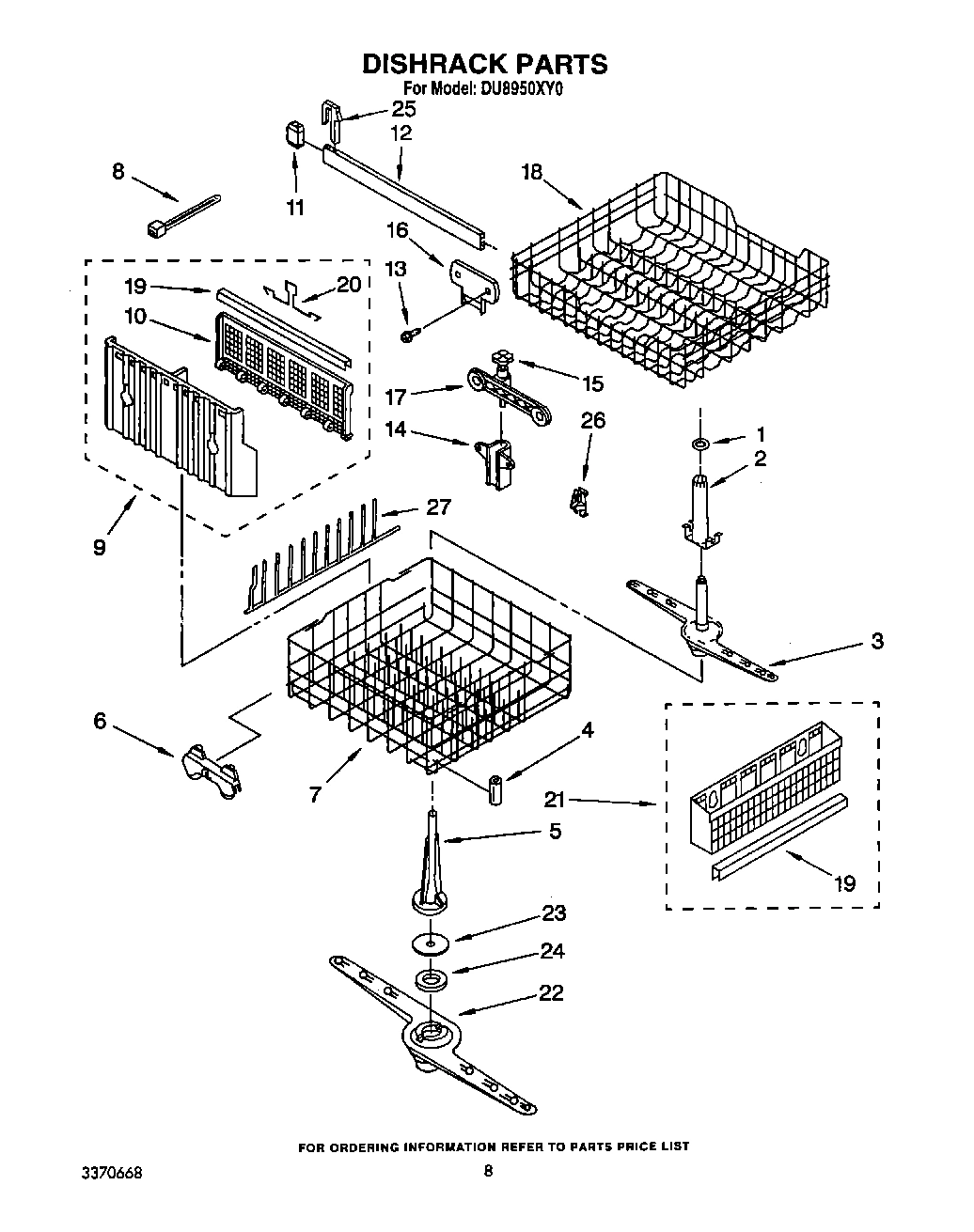

06 - DISHRACK, LIT/OPTIONAL

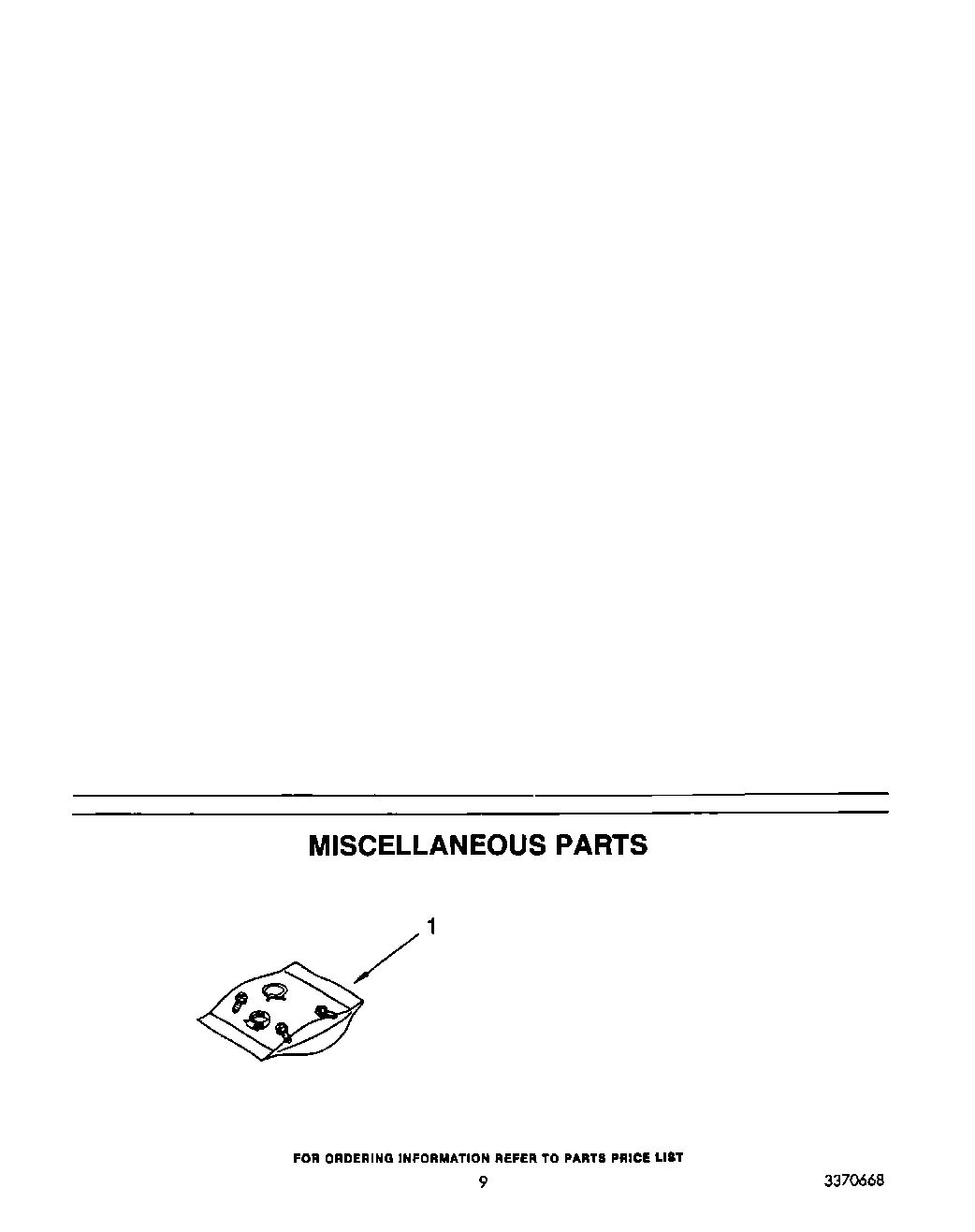

07 - MISCELLANEOUS

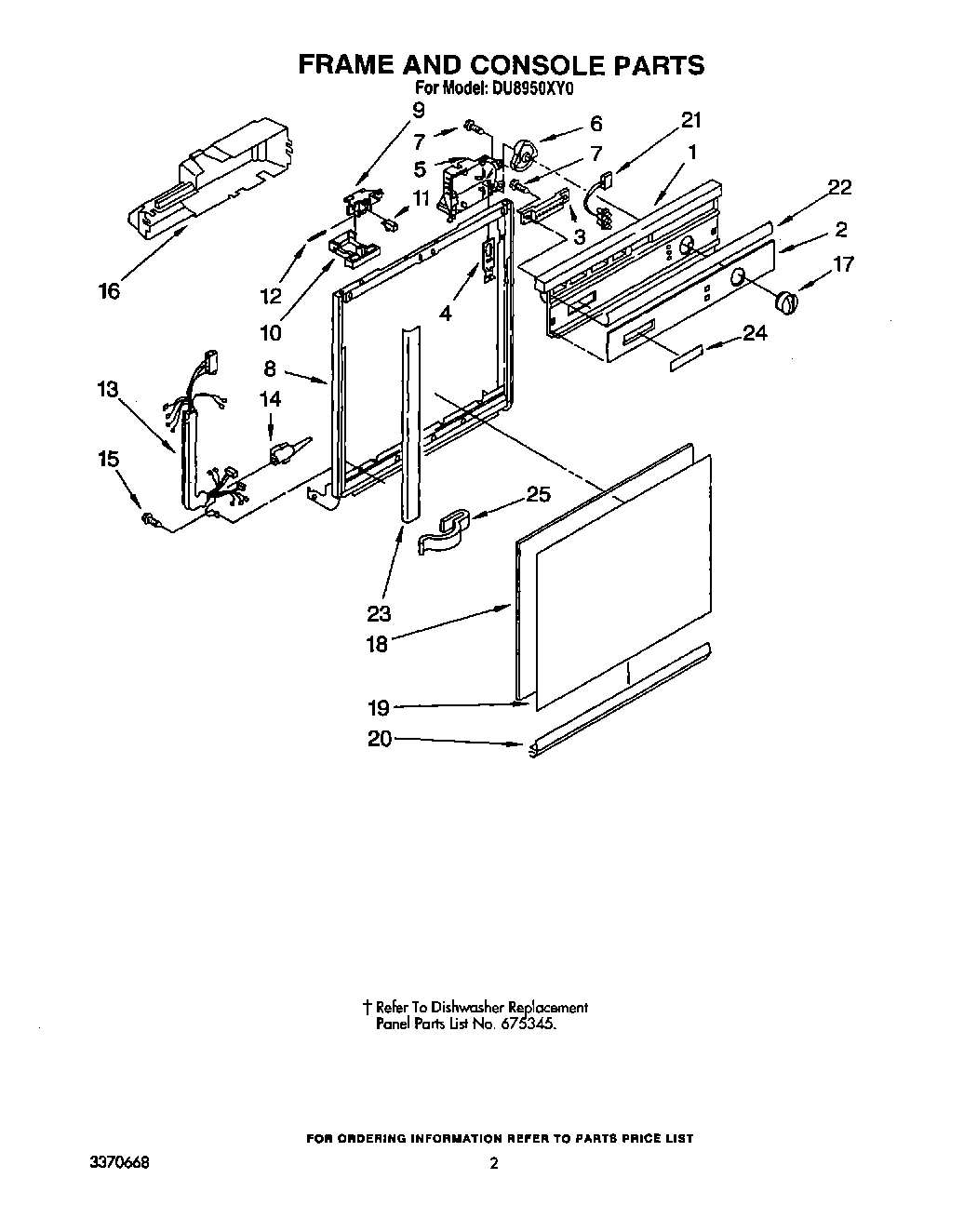

02 - FRAME AND CONSOLE
Common parts from model Whirlpool DU8950XY0 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use & Care WPL LIT3369098 Contact Us For Availability
Wiring Diagram WPL LIT3369600 Contact Us For Availability
Instructions, Installation WPL LIT3369671 Contact Us For Availability
WPL LIT3370043 WPL LIT3370043 Contact Us For Availability
WPL LIT3370668 WPL LIT3370668 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Tub Assembly WPL 3370851 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Console (Includes Item 2) WPL 3371836 Contact Us For Availability
2
Support, Arm WPL 3368290 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
2
Insert, Console WPL 3372127 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
3
Spray Arm, Upper WPL 3368300 Contact Us For Availability
3
Switch, 9-Pushbutton WPL 3370301 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
5
Tower, Pressure WPL 300848 Contact Us For Availability
5
Timer WPL 3369203 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
8
Plate, Latch WPL 3368965 Contact Us For Availability
8
Clip, Strap WPL 3370075 Contact Us For Availability
8
Door Frame WPL 3368900 Contact Us For Availability
9
Screw, 8-32 WPL 3368919 Contact Us For Availability
9
Silverware Basket Assembly WPL 3369488 Contact Us For Availability
10
Cover, Basket WPL 3369485 Contact Us For Availability
11
End Cap (Front or Rear) WPL 300845 Contact Us For Availability
11
Retainer, Access Panel WPL 3369615 Contact Us For Availability
11
Switch, (2) WPL 3369325 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
12
Track WPL 3369071 Contact Us For Availability
13
Heater WPL 3369416 Contact Us For Availability
13
Harness and Protector (Includes Item 14) WPL 3370253 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
15
Worm (2) WPL 3369981 Contact Us For Availability
16
Gasket, Pump WPL 717000 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
16
Cover, Timer WPL 3369192 Contact Us For Availability
17
Knob, Timer WPL 3369611 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
19
Thermostat WPL 3370782 Contact Us For Availability
19
Trim, Basket WPL 717528 Contact Us For Availability
20
Handle, Basket WPL 300086 Contact Us For Availability
20
Retainer, Panel WPL 3370858 Contact Us For Availability
21
Basket, Utensil WPL 3369494 Contact Us For Availability
21
Light Assembly WPL 3370279 Contact Us For Availability
22
Retainer, Shield WPL 3369775 Contact Us For Availability
22
Sprayarm, Lower WPL 3369347 Contact Us For Availability
22
Trim, Console WPL 3369324 Contact Us For Availability
23
Cap, Nozzle WPL 3367910 Contact Us For Availability
23
Trim (2) WPL 3369592 Contact Us For Availability
24
Bearing, Nozzle WPL 719576 Contact Us For Availability
24
Relay WPL 3369447 Contact Us For Availability
24
Insert, Switch WPL 3370302 Contact Us For Availability
25
Stop, Track (2) WPL 3369046 Contact Us For Availability
26
Retainer, Flexrow WPL 3368629 Contact Us For Availability
26
Sound Shield WPL 3369617 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
27
Leveler (Thinner) WPL 350941 Contact Us For Availability
27
Side Panel Kit (White) WPL 4317925 Contact Us For Availability
27
Avocado WPL 4317926 Contact Us For Availability
27
Gold WPL 4317927 Contact Us For Availability
27
Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability
27
Toast WPL 4317930 Contact Us For Availability
27
Platinum WPL 4317931 Contact Us For Availability
27
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
27
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
27
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
27
Black (Uncut) WPL 799340 Contact Us For Availability
27
Almond (Uncut) WPL 978883 Contact Us For Availability
28
Motor (Includes Item 27) (Also Order Item 30) WPL 3369472 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3370939 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
30
Pump Seal Kit (Includes Items 4, 12 WPL 675505 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
WPL 303918 WPL 303918 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
40
Sound Shield WPL 3369771 Contact Us For Availability
41
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
42
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
43
Access Panel (White/Black) WPL 3370868 Contact Us For Availability
44
Spacer, Corrugated WPL 3369526 Contact Us For Availability
45
Extension WPL 3369531 Contact Us For Availability
46
Trim, Side (2) WPL 3369593 Contact Us For Availability
47
Trim, Bottom WPL 3369588 Contact Us For Availability
49
Bracket, Thermostat WPL 3370555 Contact Us For Availability
50
Sound Shield WPL 3370942 Contact Us For Availability
× ![]()
