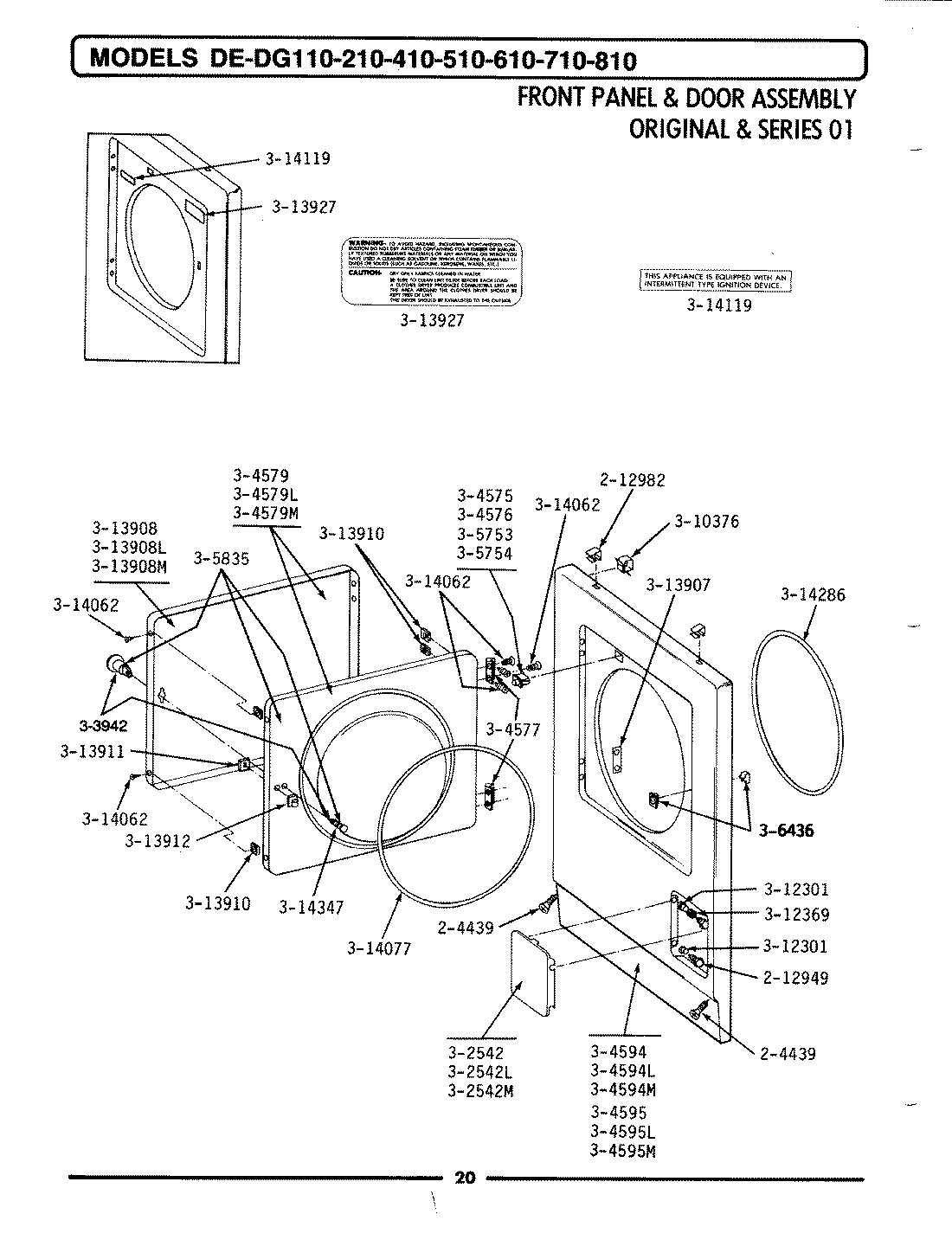

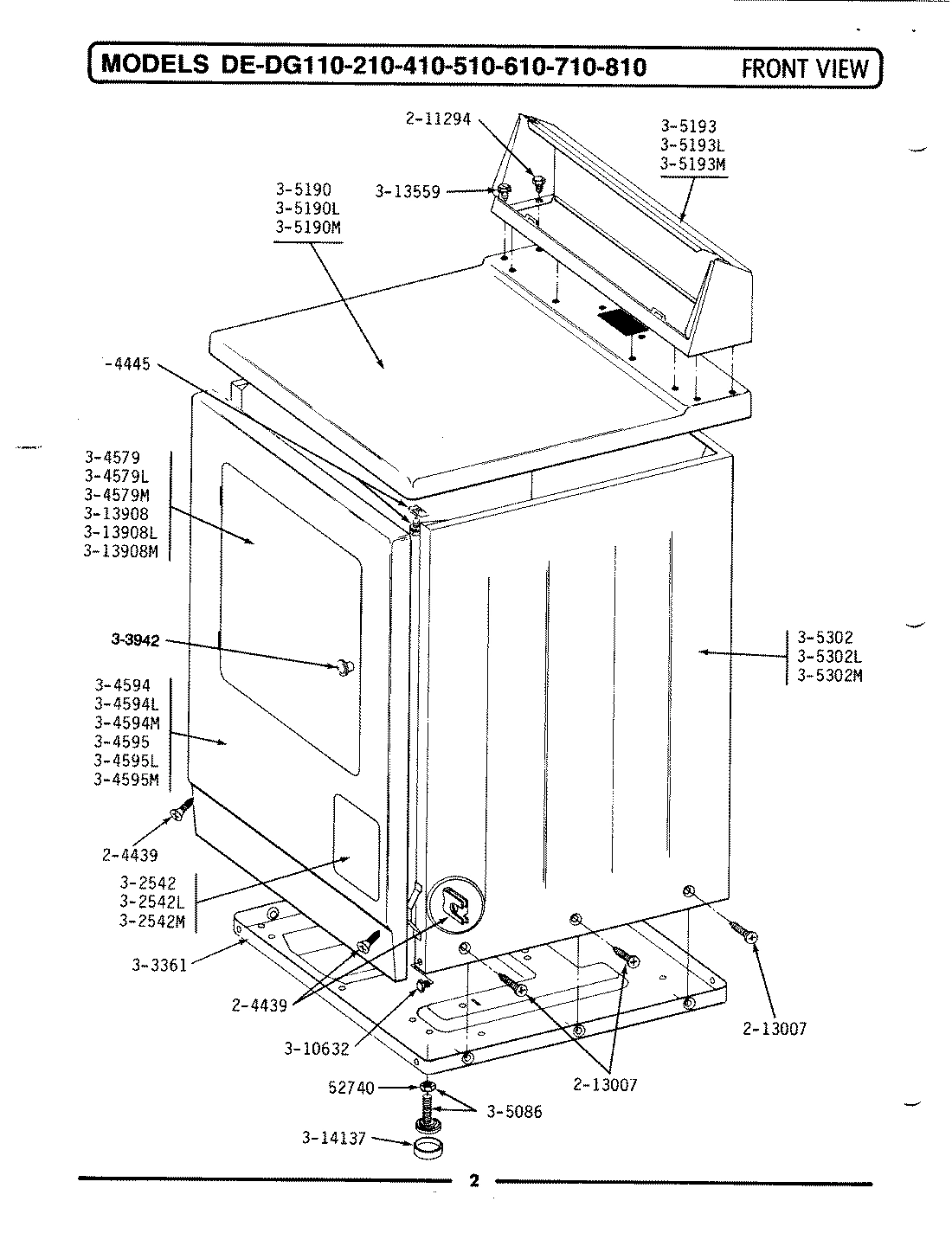

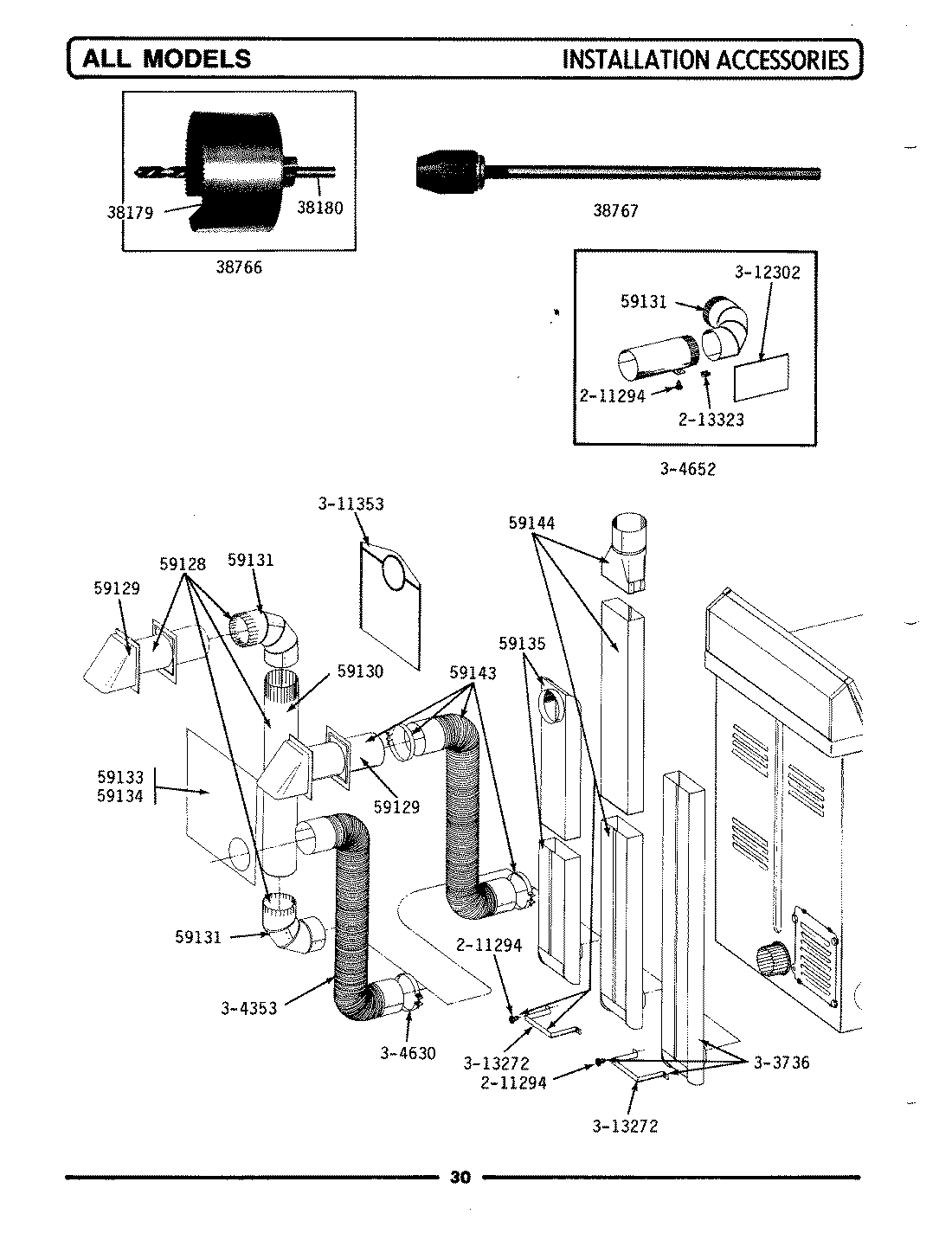

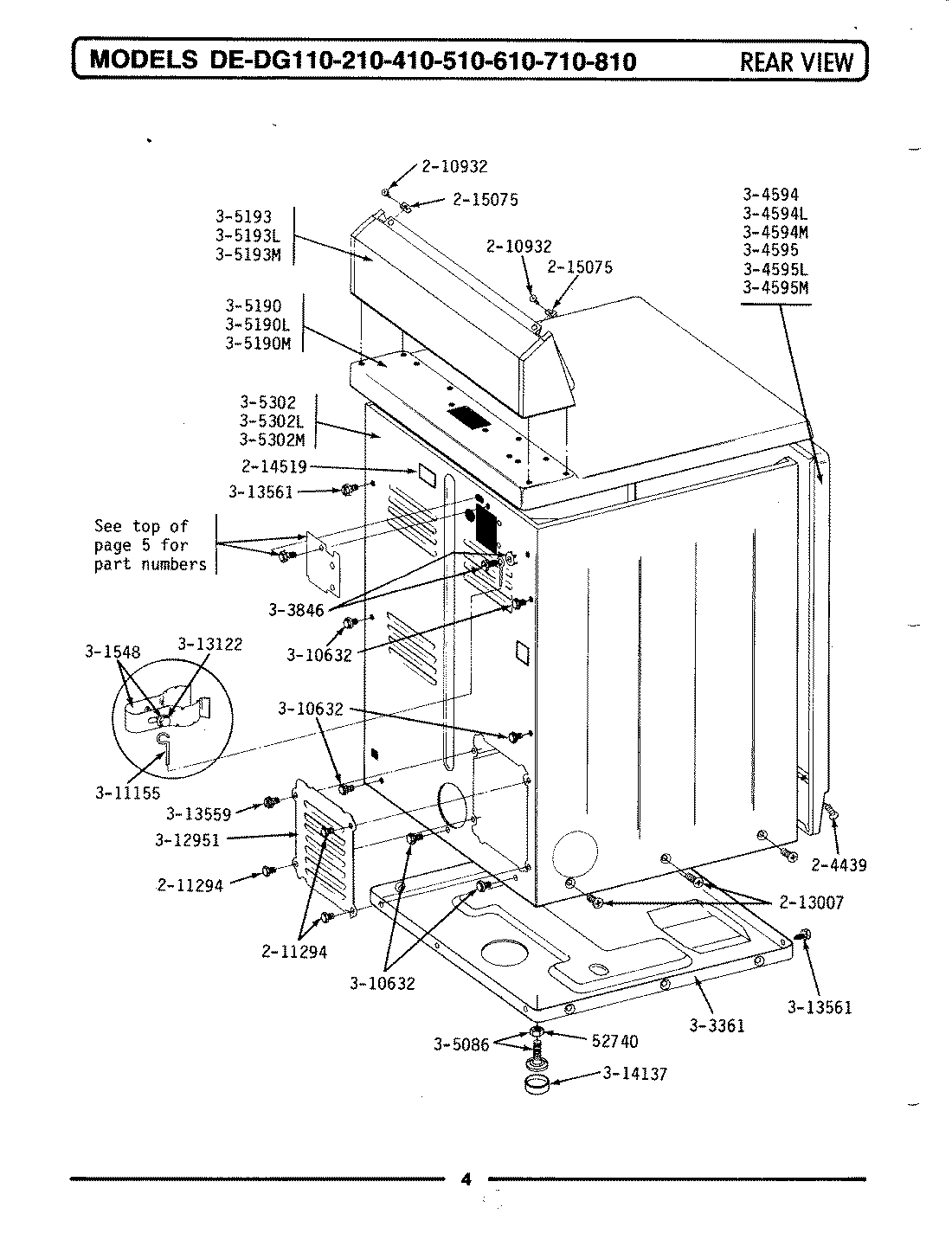

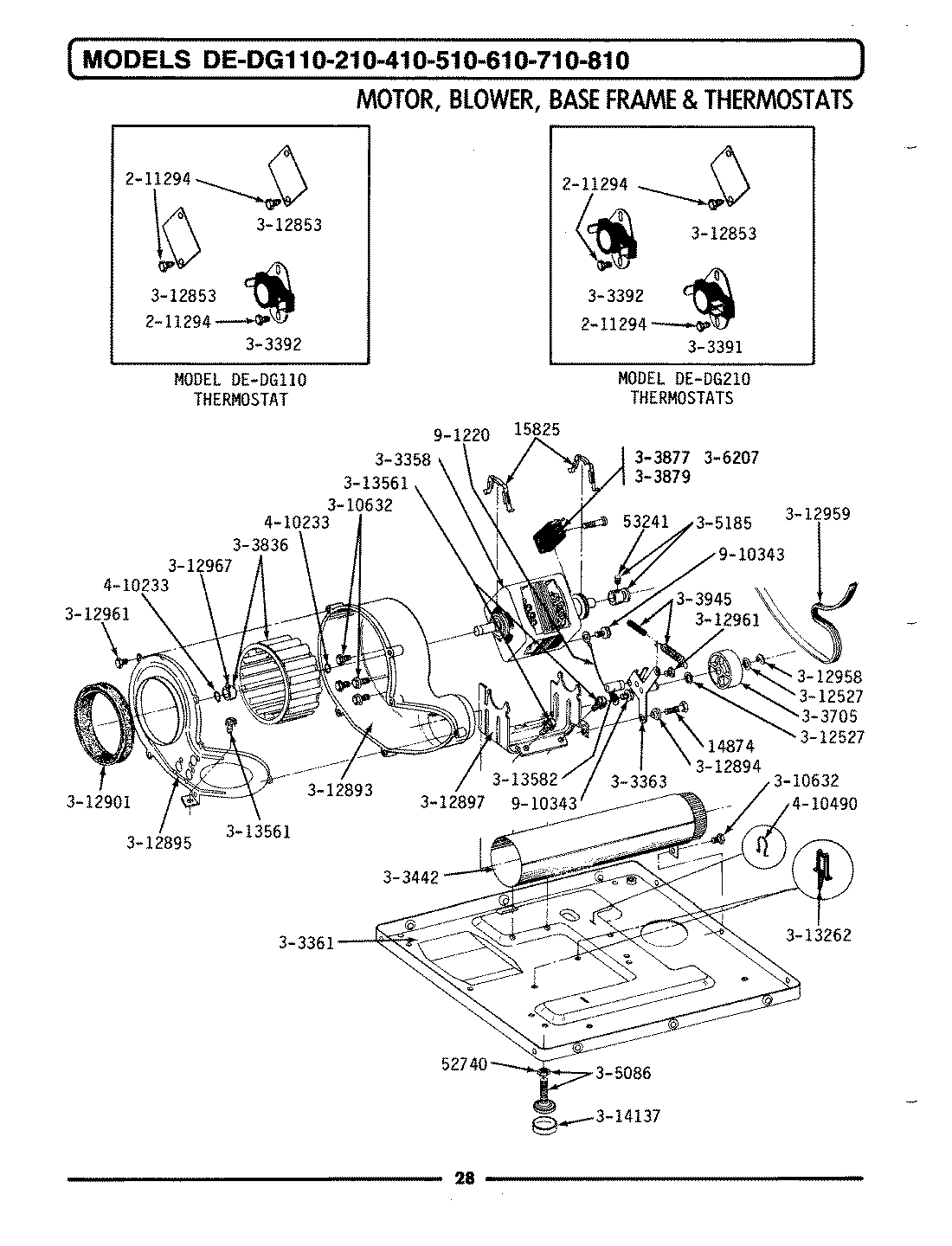

Model Whirlpool DE710 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

BLADE, SAW WPL 038179 Contact Us For Availability

1

RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability

1

WIRE TERMINAL WPL 210745 Contact Us For Availability

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

2

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

2

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

2

SCREW WPL 212949 Contact Us For Availability

2

REPLACEMENT DRILL WPL 038180 Contact Us For Availability

2

CONVERTER WPL Y201808 Contact Us For Availability

3

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

3

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

3

HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability

3

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

3

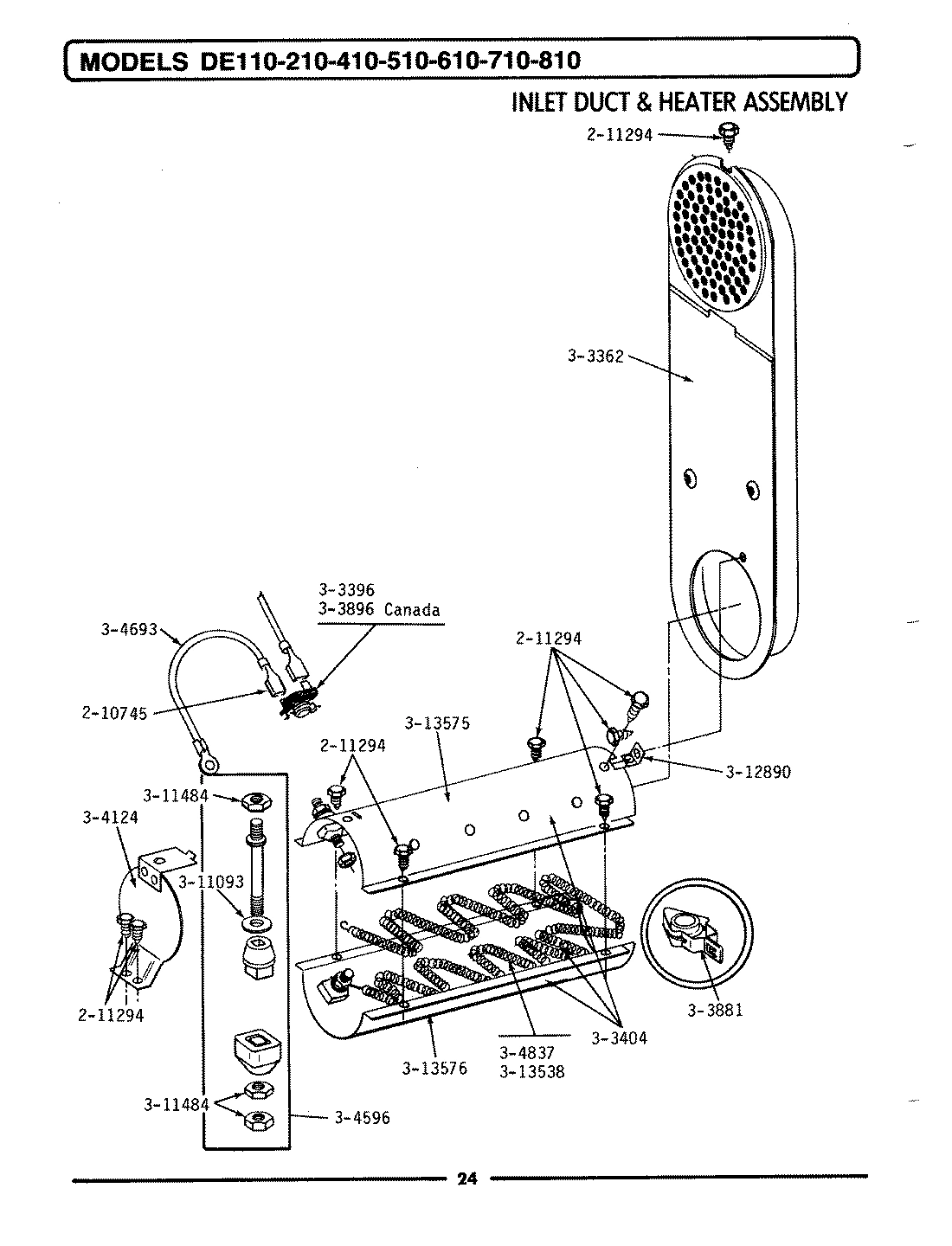

INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability

4

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

4

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

4

EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability

4

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

4

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

5

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

5

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

5

WPY303404 Whirlpool Heating Element In Stock WPL WPY303404 $242.96

5

STANDARD 4`` VENT KIT WPL Y059128 Contact Us For Availability

6

4396007RW Whirlpool Dryer Vent Hood In Stock WPL 4396007RW $16.28

6

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

6

WPY303881 Whirlpool Clip and Insulator Backorder WPL WPY303881 $13.77

6

ACCESS DOOR-WHITE WPL 302542 Contact Us For Availability

6

RECEPTACLE WPL 300910 Contact Us For Availability

6

GROMMET, CORD WPL 211881 Contact Us For Availability

7

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

7

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

7

WP303896 Whirlpool High Limit Thermostat Backorder WPL WP303896 $63.87

7

ACCESS DOOR-ALMOND WPL 302542L Contact Us For Availability

7

PIPE, VENTING WPL Y059130 Contact Us For Availability

7

BASE ASSY. WPL Y303361 Contact Us For Availability

8

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

8

DETENT RING F/TIMER KNOB CA WPL 214893 Contact Us For Availability

8

ACCESS DOOR-HARVEST WHEAT WPL 302542M Contact Us For Availability

8

ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability

8

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

8

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

8

HEATER SHIELD WPL 304124 Contact Us For Availability

9

WP33303391 Whirlpool Thermostat Backorder WPL WP33303391 $95.93

9

Y304596 Whirlpool Terminal Insulator Assembly Backorder WPL Y304596 $14.31

9

FASTENER, END CAP WPL 214894 Contact Us For Availability

9

DOOR HINGE WPL Y304577 Contact Us For Availability

9

ALUMINUM WINDOW 4X12X18 WPL 059133 Contact Us For Availability

9

TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability

9

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

WP33001003 Whirlpool Lint Filter In Stock WPL WP33001003 $31.97

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $49.42

WPY304693 Whirlpool Wire Jumper In Stock WPL WPY304693 $6.02

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

DOOR-WHITE WPL Y304579 Contact Us For Availability

PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

W10116793 Whirlpool Element Backorder WPL W10116793 $134.47

COOL-DOWN THERMOSTAT WPL Y303394 Contact Us For Availability

BUTTON FOR SWITCH WPL 214990 Contact Us For Availability

VENT DUCT ASSY. WPL Y059135 Contact Us For Availability

TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability

POWER CORD WPL 302521 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

BUTTON FOR SWITCH WPL 214991 Contact Us For Availability

FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability

TUMBLER FRONT ASSEMBLY WPL Y304676 Contact Us For Availability

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

SOLENOID WPL Y303350 Contact Us For Availability

FRONT PANEL-WHITE WPL 304594 Contact Us For Availability

RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability

SENSOR ASSEMBLY WITH SCREWS WPL 304997 Contact Us For Availability

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

CHIME ACTUATOR ASSEMBLY WPL Y303771 Contact Us For Availability

FRONT PANEL-ALMOND WPL 304594L Contact Us For Availability

TUMBLER FRONT ASSEMBLY WPL Y305146 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

WPY313538 Whirlpool Heater Element In Stock WPL WPY313538 $47.77

WIRE CONNECTOR WPL 304964 Contact Us For Availability

FRONT PANEL-HARVEST WHEAT WPL 304594M Contact Us For Availability

FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability

TUMBLER WPL 305187 Contact Us For Availability

HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

W11169039 Whirlpool Dishwasher Dish Rack Backorder WPL W11169039 $123.40

DRYNESS OR PRESS CARE SWITC WPL 305194 Contact Us For Availability

EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability

SCREW, No.6 X 1/4 INCH WPL 310207 Contact Us For Availability

HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

4396010RP Whirlpool Dryer 6 Ft. Secure Connec In Stock WPL 4396010RP $27.71

START CONTROL SWITCH WPL 305195 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

WPY304474 Whirlpool Cycling Thermostat Backorder WPL WPY304474 $65.57

CYCLE SELECTOR SWITCH WPL 305197 Contact Us For Availability

CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability

WASHER WPL 310557 Contact Us For Availability

19

WPY304475 Whirlpool Dryer Cycling Thermostat In Stock WPL WPY304475 $58.57

19

TEMPERATURE SELECTOR SWITCH WPL 305200 Contact Us For Availability

19

EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

SCREW WPL Y310759 Contact Us For Availability

MAIN WIRE HARNESS WPL 305347 Contact Us For Availability

BAG, LINT (DACRON) WPL 311353 Contact Us For Availability

TOP COVER-WHITE WPL Y305190 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

MAIN WIRE HARNESS WPL 305348 Contact Us For Availability

INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

EDGEBOARD CONNECTOR ASSEMBL WPL 305390 Contact Us For Availability

INNER DOOR WITH KNOB & SCRE WPL 305835 Contact Us For Availability

BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

PRINTED CIRCUIT BOARD WPL 305391 Contact Us For Availability

RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

24

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

24

CONTROL PANEL WPL 305421 Contact Us For Availability

24

LENS WPL Y312892 Contact Us For Availability

HARNESS ADAPTER WIRE WPL 305869 Contact Us For Availability

BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability

LAMP BRACKET WPL 312903 Contact Us For Availability

COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

CHIME WPL Y311660 Contact Us For Availability

SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability

BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability

CABINET-WHITE WPL 305302 Contact Us For Availability

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

LINK WPL Y312260 Contact Us For Availability

TWIN FASTENER WPL Y313907 Contact Us For Availability

28

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

28

COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability

29

CHIME ACTUATOR WPL Y313321 Contact Us For Availability

29

KNOB AND SCREW WPL 303942 Contact Us For Availability

29

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

30

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

CHIME AND SOLENOID BRACKET WPL 314165 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

KNOB FOR TIMER WPL Y314166 Contact Us For Availability

DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability

DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

WP33313541 Whirlpool Tumbler Seal In Stock WPL WP33313541 $37.77

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

TIMER DIAL INDICATOR WPL 314167 Contact Us For Availability

34

313611 Whirlpool Microwave Door Button Backorder WPL 313611 $30.49

34

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

34

INSTRUCTION LABEL WPL Y313927 Contact Us For Availability

BACK UP PLATE WPL 314184 Contact Us For Availability

SCREW WPL Y314062 Contact Us For Availability

SCREW WPL 313764 Contact Us For Availability

STRAP, GROUND WPL Y312184 Contact Us For Availability

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability

DOOR SEAL WPL 314077 Contact Us For Availability

SCREW----NA WPL Y313561 Contact Us For Availability

OUTLET GRID AND DUCT WPL Y313794 Contact Us For Availability

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

GAS IGNITION LABEL WPL 314119 Contact Us For Availability

GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

38

SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability

38

LINT SEAL WPL Y313796 Contact Us For Availability

38

COVER, TERMINAL WPL Y312905 Contact Us For Availability

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

COVER, THREAD WPL 313915 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

40

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

40

SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability

40

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

41

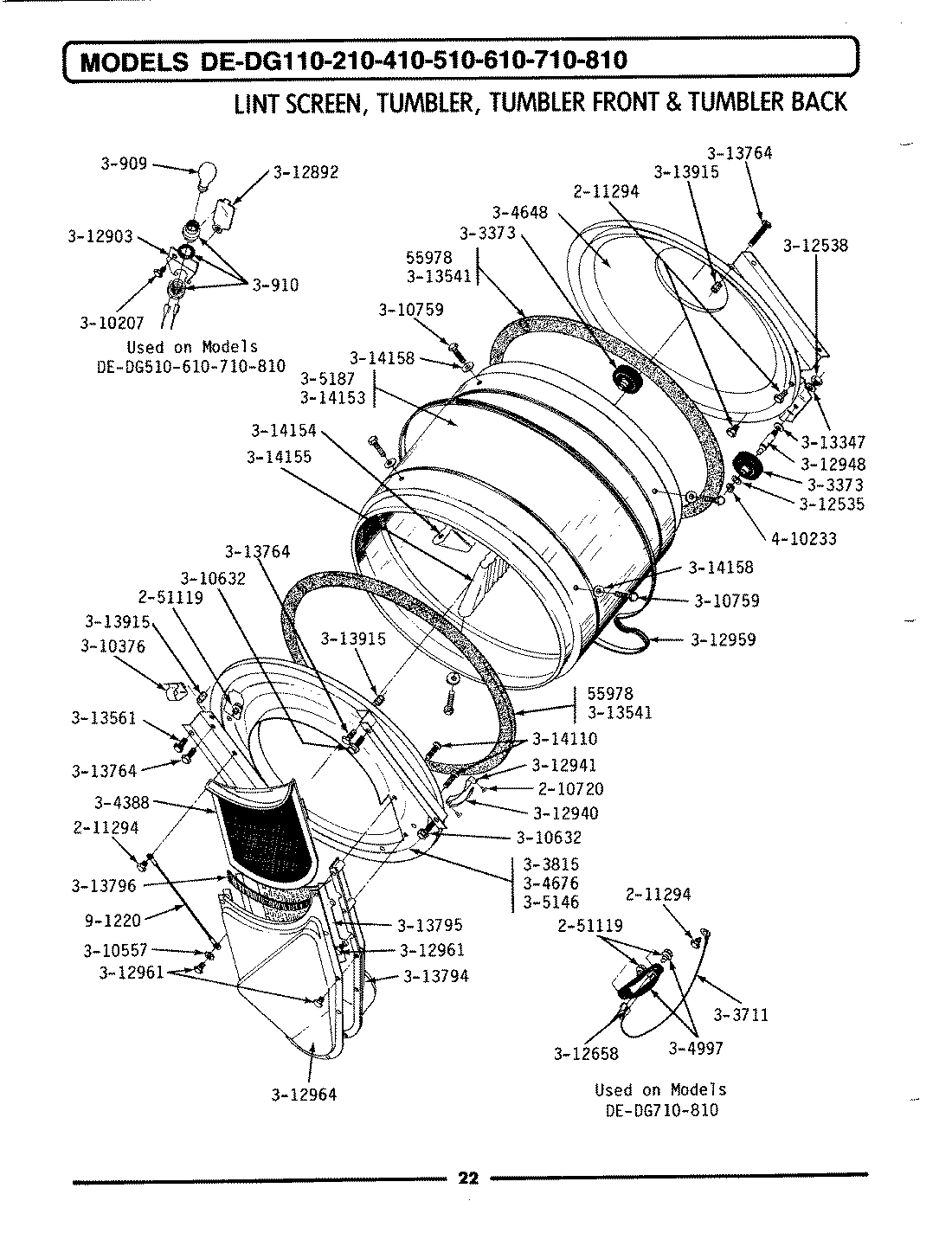

TUMBLER WPL Y314153 Contact Us For Availability

41

WIRE, GROUND WPL 901220 Contact Us For Availability

42

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

42

TUMBLER BAFFLE - SHORT WPL 314154 Contact Us For Availability

43

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

44

WASHER WPL 314158 Contact Us For Availability

44

BLOCK, TERMINAL WPL 400008 Contact Us For Availability
