Model Whirlpool CDE4205AYJ ELECTRIC DRYER – Common Parts & Diagrams

1

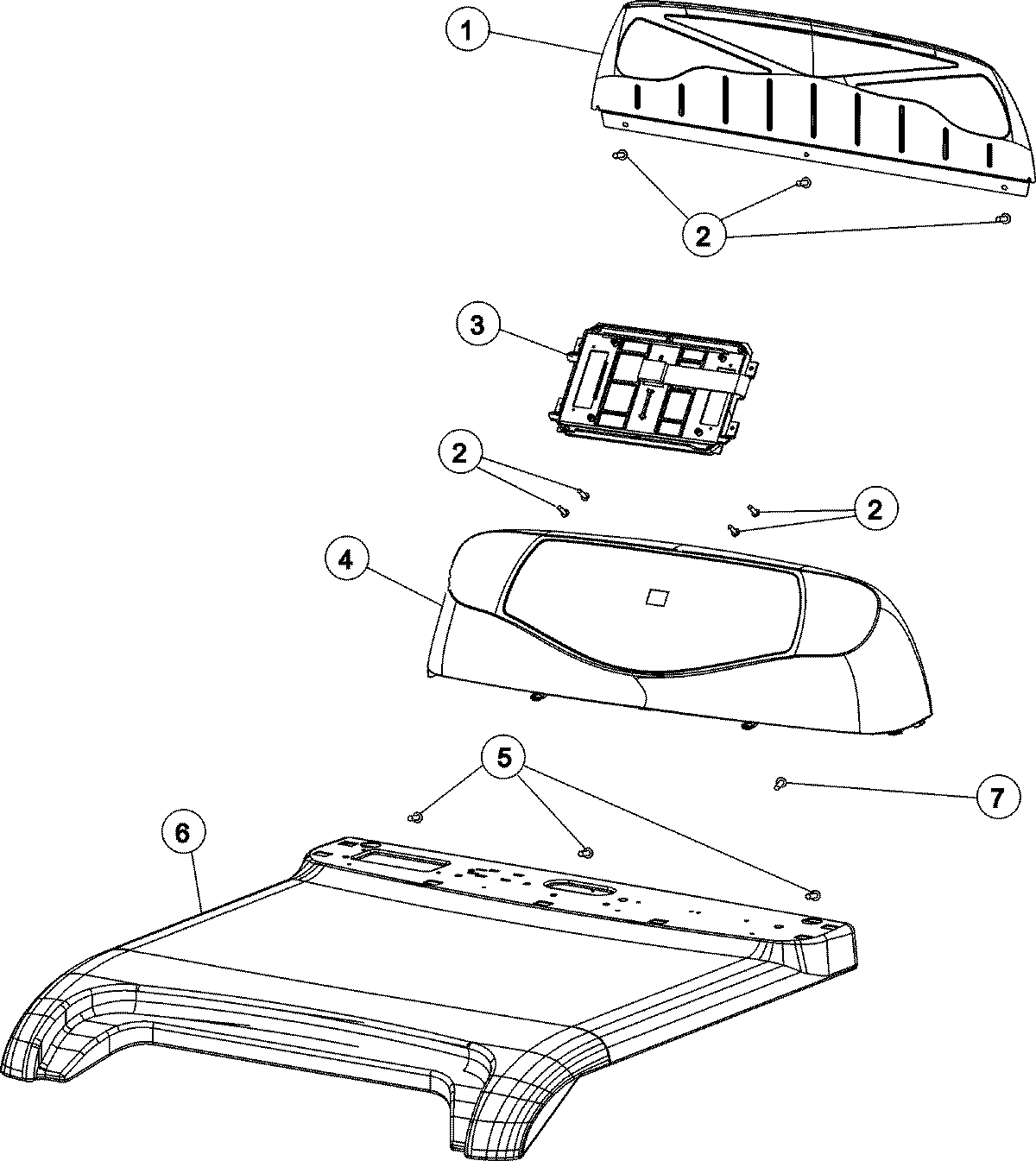

BACK, CONSOLE PANEL
BACK, CONSOLE PANEL WPL 22003581 Contact Us For Availability
View on Model
1

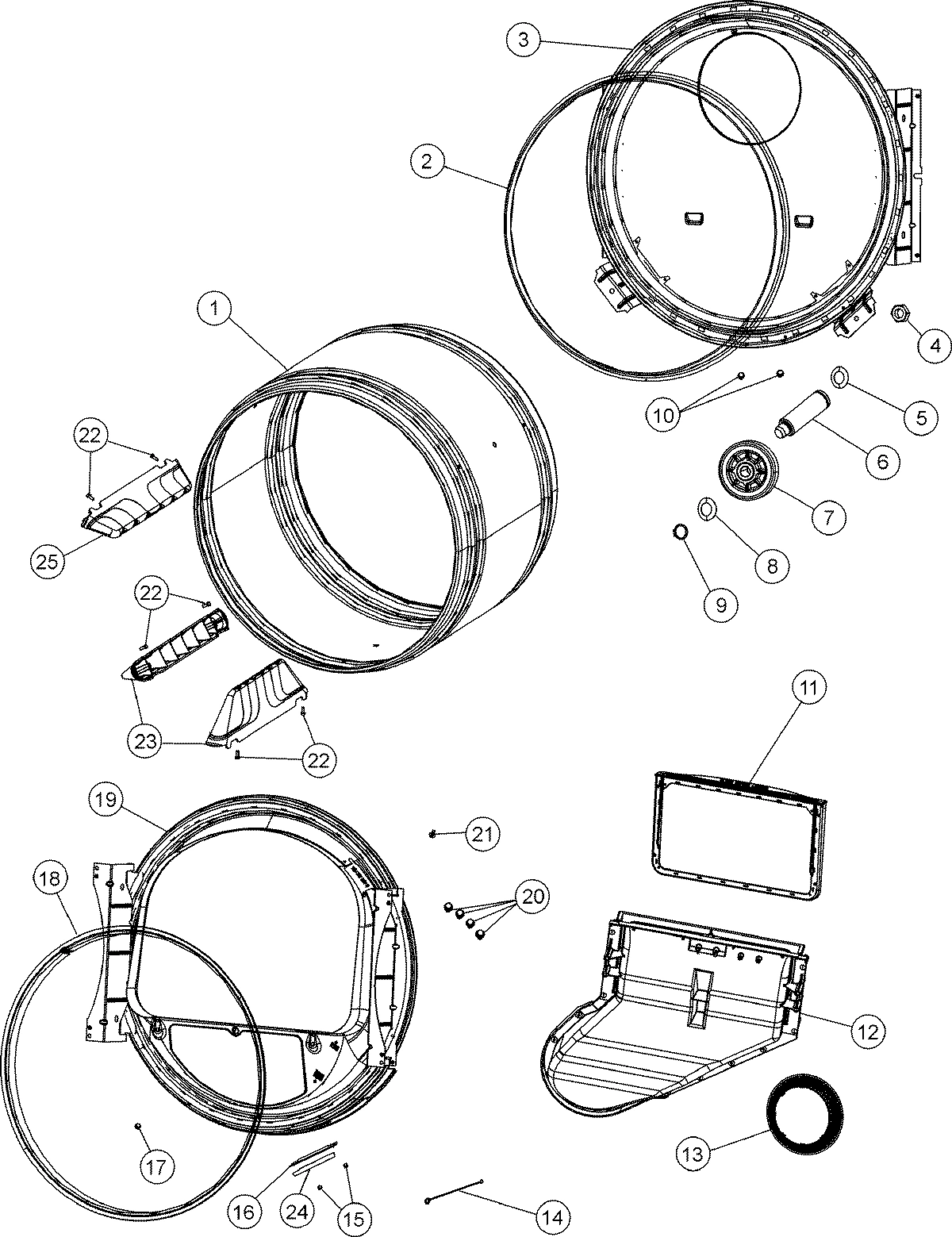

TUMBLER
TUMBLER WPL 33001794 Contact Us For Availability
View on Model
2
SCREW, No.8-16 TRUSS HD
SCREW, No.8-16 TRUSS HD WPL 25001021 Contact Us For Availability
View on Model
3
CONTROL BOARD ASSEMBLY
CONTROL BOARD ASSEMBLY WPL 33002959 Contact Us For Availability
View on Model
3
TUMBLER BACK & SEAL AS-PACK
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
View on Model
3
TUMBLER BACK & SEAL
TUMBLER BACK & SEAL WPL 33003037 Contact Us For Availability
View on Model
3
SCREW----NA
SCREW----NA WPL Y313561 Contact Us For Availability
View on Model
3
PIN, LOCATOR
PIN, LOCATOR WPL 33002891 Contact Us For Availability
View on Model
4
CONSOLE ASSY, DRY-GRAY AS PACK
CONSOLE ASSY, DRY-GRAY AS PACK WPL 33003033 Contact Us For Availability
View on Model
4

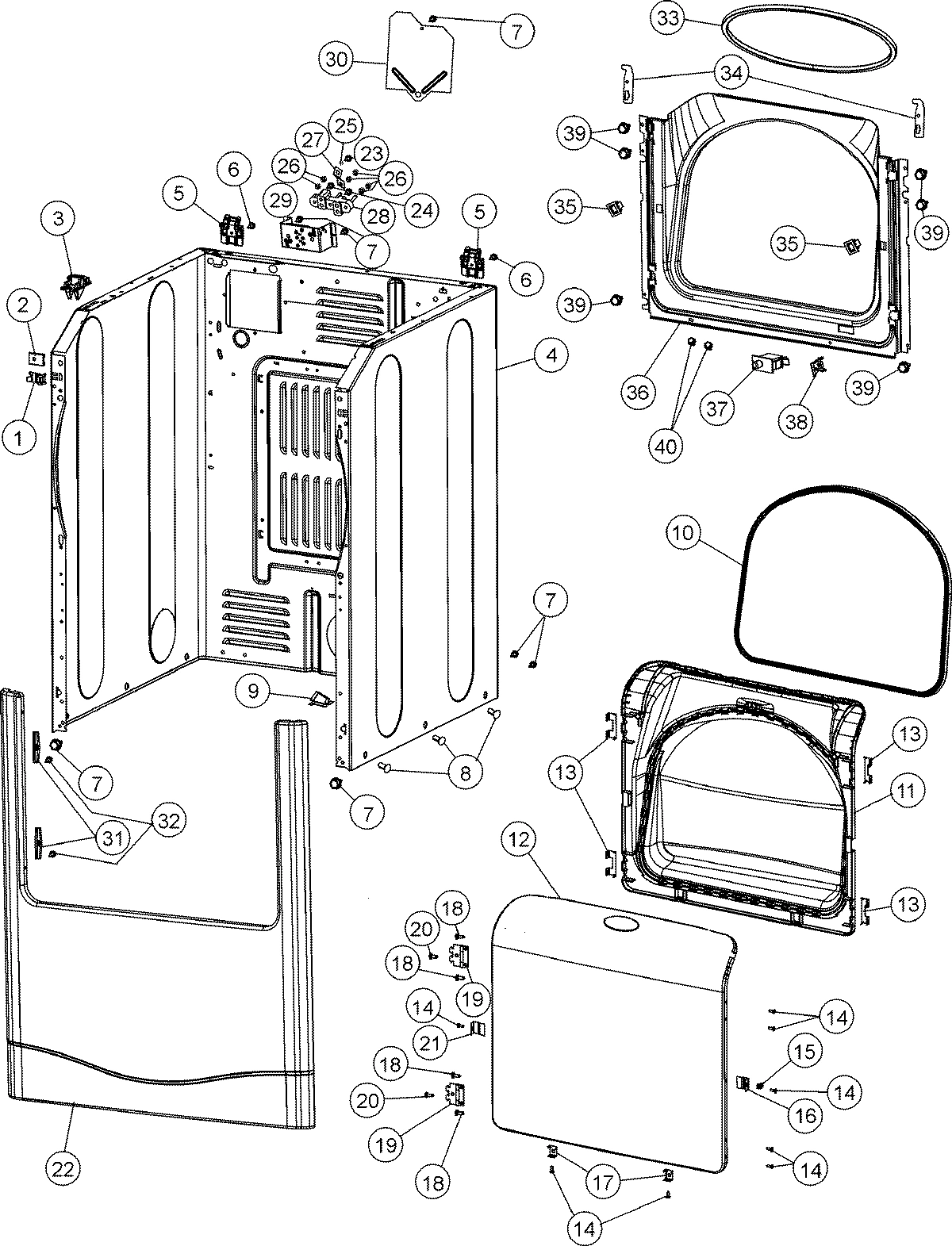

CABINET ASSY, DRY-GRAY AS PACK
CABINET ASSY, DRY-GRAY AS PACK WPL 33003034 Contact Us For Availability
View on Model
5
HINGE, PLASTIC
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
View on Model
6
COVER,TOP, DRY-GRAY AS PACK
COVER,TOP, DRY-GRAY AS PACK WPL 33003032 Contact Us For Availability
View on Model
7
SCREW (No.10-3/8``)
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
View on Model
8
BEARING, IDLER ASSEMBLY
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
View on Model
9
CLIP, WIRE HARNESS
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
View on Model
11
GROMMET, IDLER ARM
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
View on Model
12
OUTLET DUCT ASSEMBLY
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
View on Model
12
DOOR,OUTER WSHR-GRAY AS PACK
DOOR,OUTER WSHR-GRAY AS PACK WPL 22004497 Contact Us For Availability
View on Model
13
SEAL, BLOWER
SEAL, BLOWER WPL 33002560 Contact Us For Availability
View on Model
13
INLET DUCT ASSEMBLY (ELECTRIC)
INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability
View on Model
13
ASSY,INLET DUCT-ELEC
ASSY,INLET DUCT-ELEC WPL 33003038 Contact Us For Availability
View on Model
13
CLIP, DOOR (DOUBLE)
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
View on Model
14
SENSOR GROUND WIRE
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
View on Model
14
SCREW No.8-18AB WAFER HD
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
View on Model
15
STRIKE, DOOR (MALE)
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
View on Model
17
SCREW----NA
SCREW----NA WPL 312311 Contact Us For Availability
View on Model
17
DUCT ASSY., EXHAUST
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
View on Model
17
CLIP, DOOR (SINGLE)
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
View on Model
19
FRONT, TUMBLER FRONT W/SENSOR
FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability
View on Model
19
MOTOR SUPPORT, OFFSET
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
View on Model
21
SCREW
SCREW WPL 33001871 Contact Us For Availability
View on Model
21
PLUG, INNER DOOR
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
View on Model
22
SCREW, BAFFLE
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
View on Model
22
BRACKET, THERMAL FUSE
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
View on Model
22
FRONT PANEL,WSHR-GRAY AS PACK
FRONT PANEL,WSHR-GRAY AS PACK WPL 22004496 Contact Us For Availability
View on Model
23
HEATER ENCLOSURE
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
View on Model
24
BEARING PAD F/TUMBLER FRONT
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
View on Model
24
SCREW
SCREW WPL Y310632 Contact Us For Availability
View on Model
26
SCREW
SCREW WPL 314554 Contact Us For Availability
View on Model
27
INSULATOR, TERMINAL
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
View on Model
27
STRAP, GROUND
STRAP, GROUND WPL Y312184 Contact Us For Availability
View on Model
29
SHIELD, RADIANT
SHIELD, RADIANT WPL 314999 Contact Us For Availability
View on Model
29
BRACKET, TERMINAL BLOCK----NA
BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability
View on Model
30
COVER, TERMINAL BLOCK
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
View on Model
31
GROMMET
GROMMET WPL 33002157 Contact Us For Availability
View on Model
32

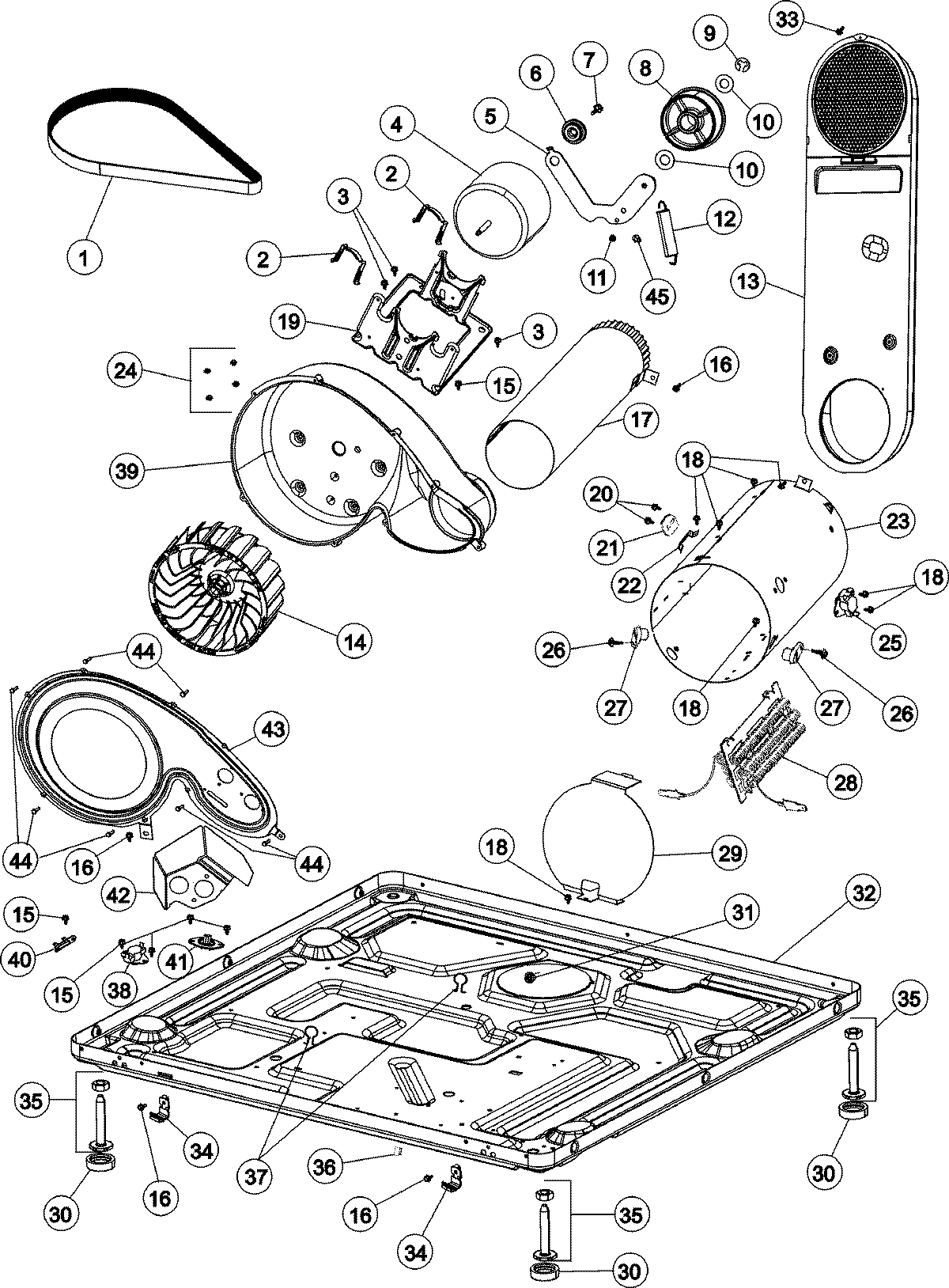

BASE
BASE WPL Y2201922 Contact Us For Availability
View on Model
33
SCREW, No.8 X 9/16 CTSK
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
View on Model
33
SEAL, SHROUD
SEAL, SHROUD WPL 33001767 Contact Us For Availability
View on Model
34
HOOK, SECURITY
HOOK, SECURITY WPL 33002597 Contact Us For Availability
View on Model
34
CLIP, LOWER FRONT PANEL
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
View on Model
35
ADJUSTABLE LEG & NUT
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
View on Model
36
CLIP, GROUNDING
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
View on Model
36
SHROUD (WHT)
SHROUD (WHT) WPL 33001778 Contact Us For Availability
View on Model
37
SPRING, WIRE HARNESS
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
View on Model
38
BRACKET, HINGE
BRACKET, HINGE WPL 33001760 Contact Us For Availability
View on Model
40
SCREW, SHROUD
SCREW, SHROUD WPL 33001768 Contact Us For Availability
View on Model
41
THERMISTOR, TEMP. CONTROL
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
View on Model
42
COVER, THERMOSTAT (ELEC ONLY)
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
View on Model
43
COVER, BLOWER HOUSING
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
View on Model
45
PLUG FOR SPRING
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
View on Model
NI
HARNESS, WIRE LED
HARNESS, WIRE LED WPL 33002954 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 63901340 Contact Us For Availability
View on Model
NI

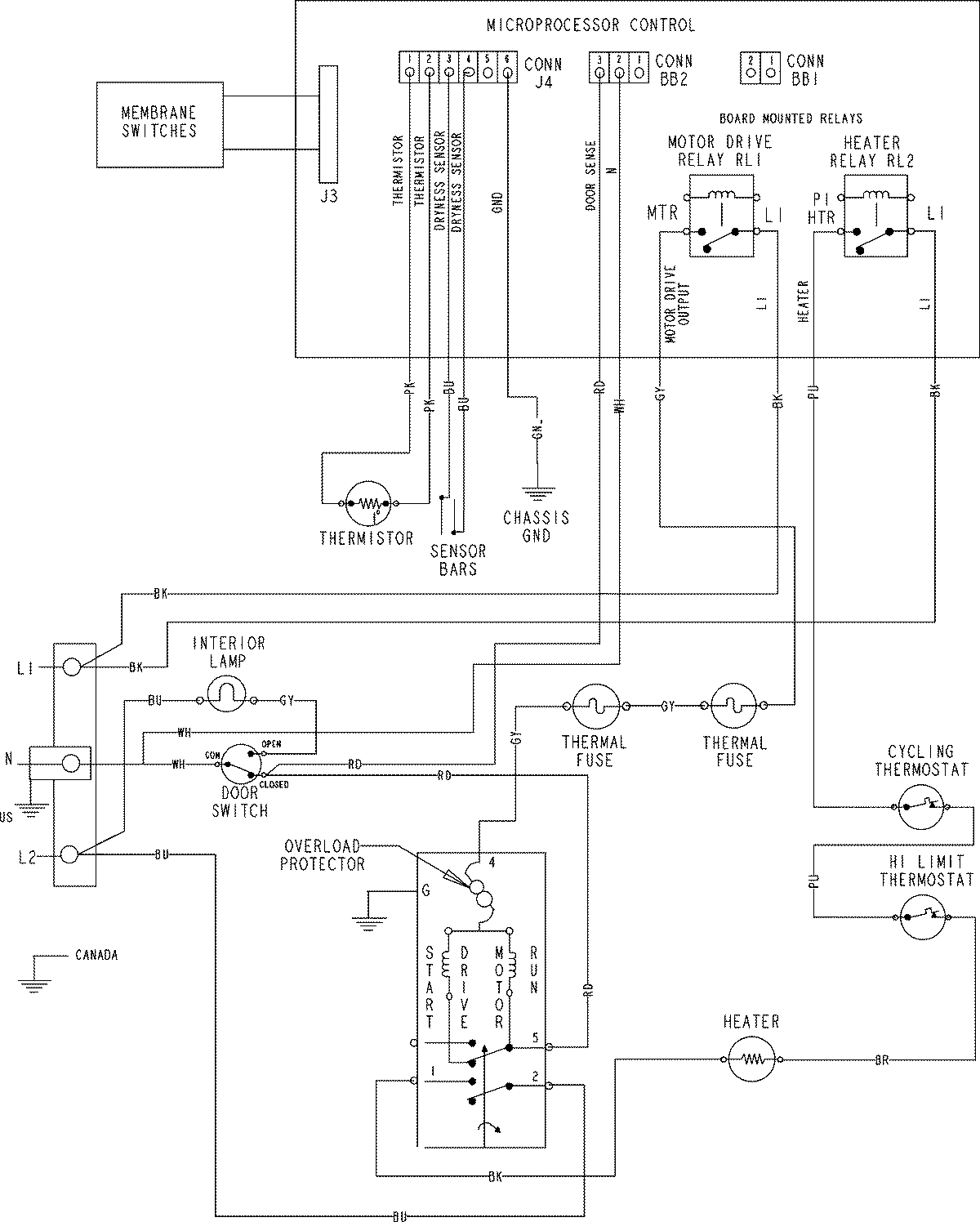

WIRING INFORMATION
WIRING INFORMATION WPL 15003772 Contact Us For Availability
View on Model
