Model Whirlpool AT20CKXAN00 REFRIGERATOR – Common Parts & Diagrams
04 - SHELF

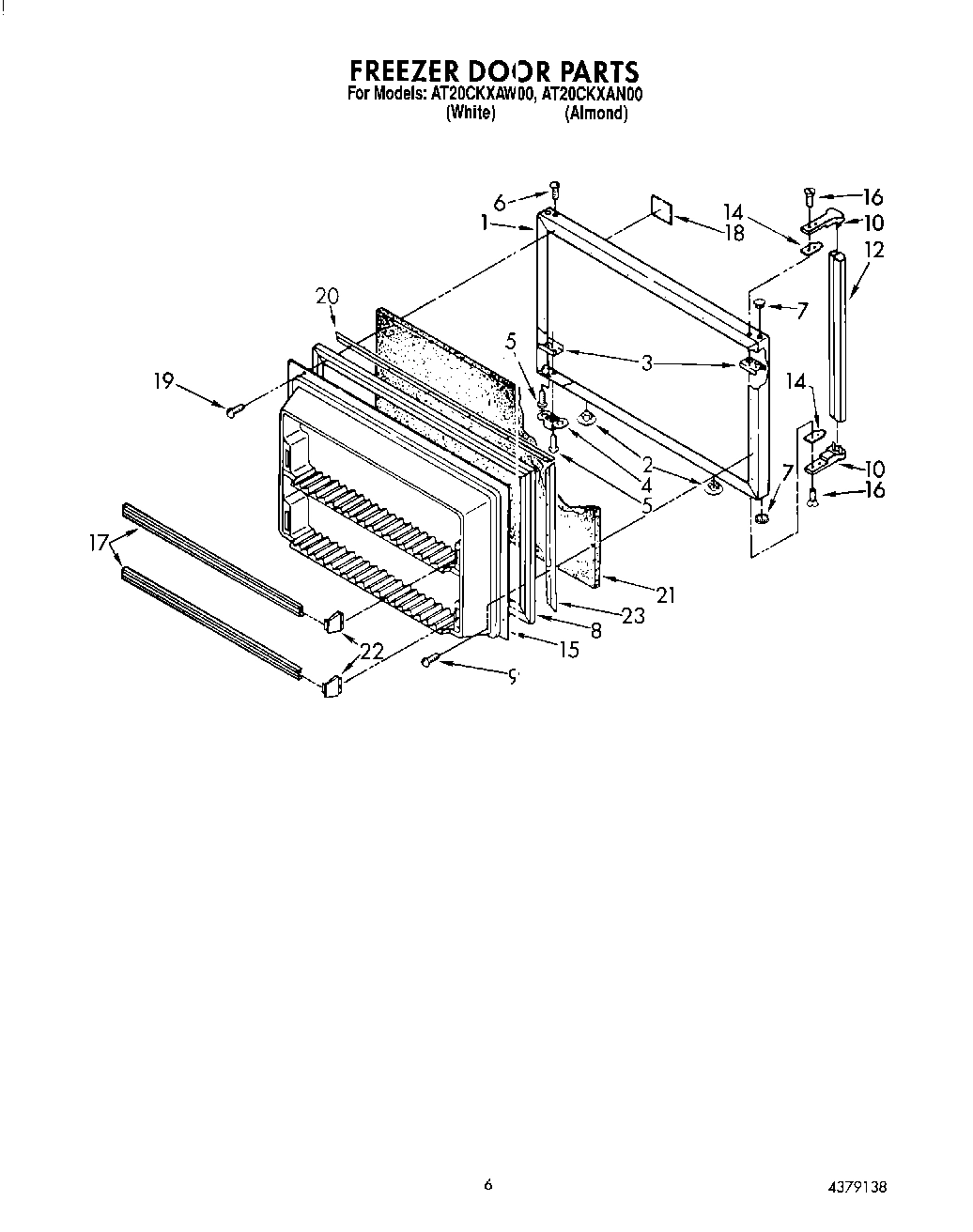

05 - FREEZER DOOR

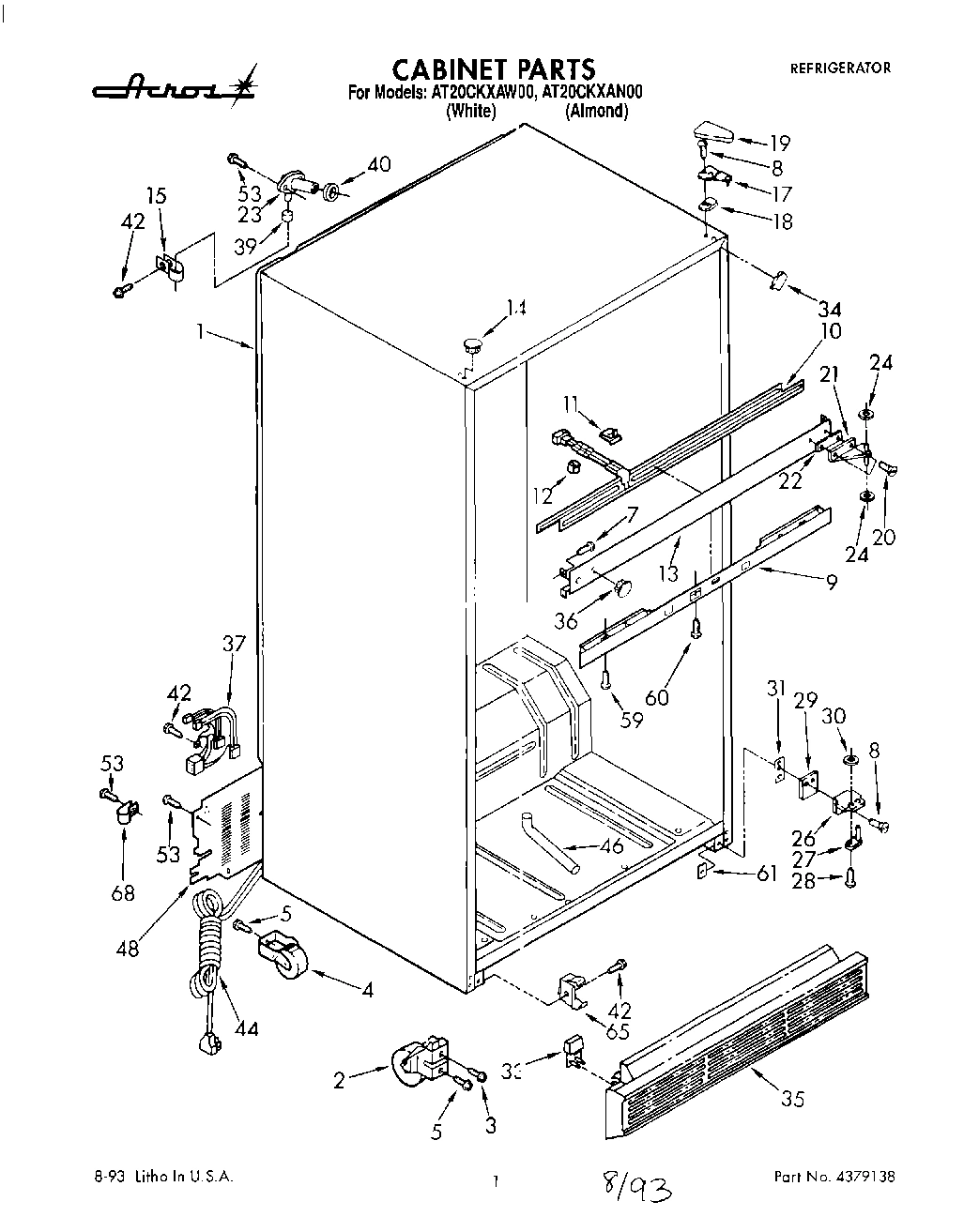

01 - CABINET

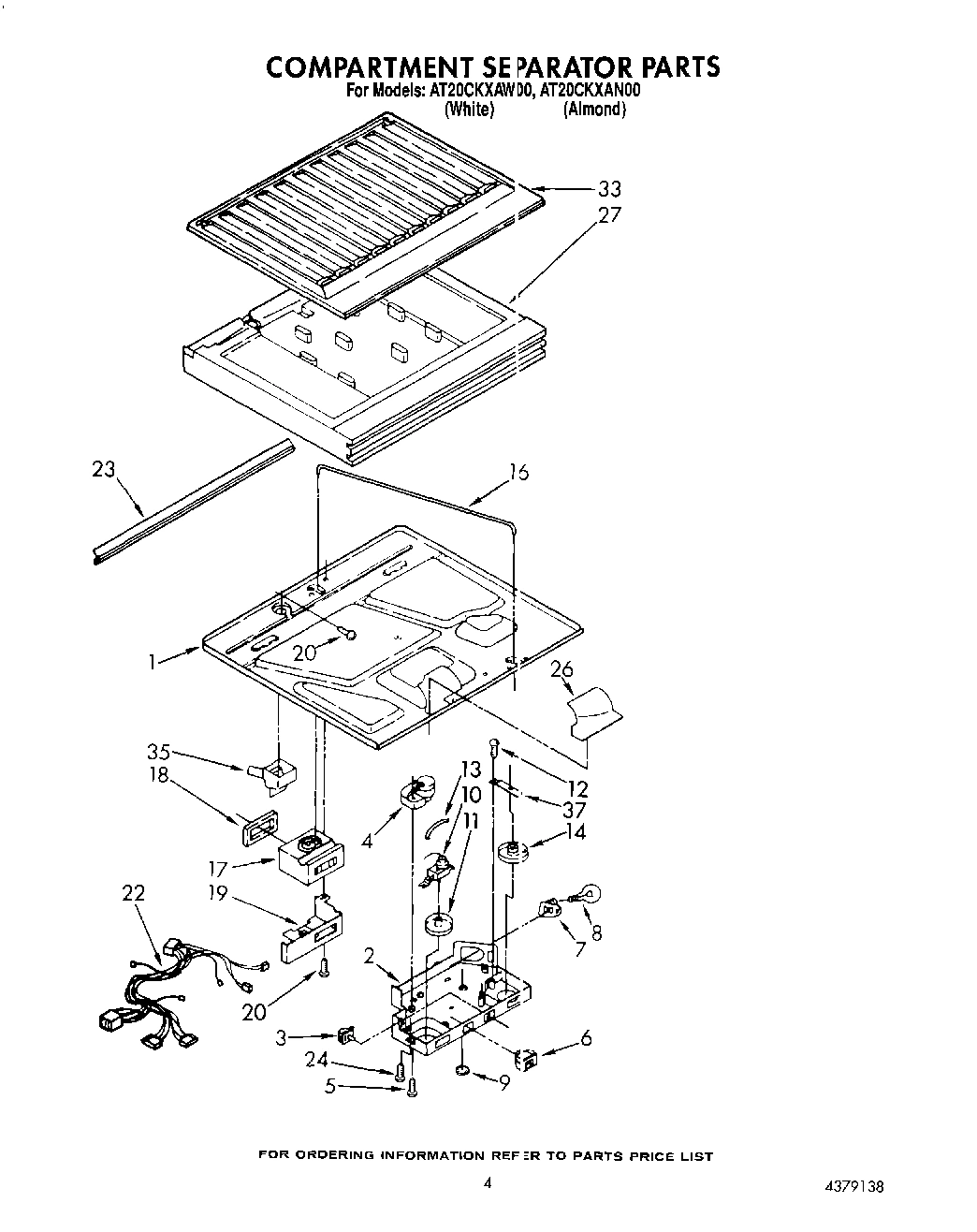

03 - COMPARTMENT SEPARATOR

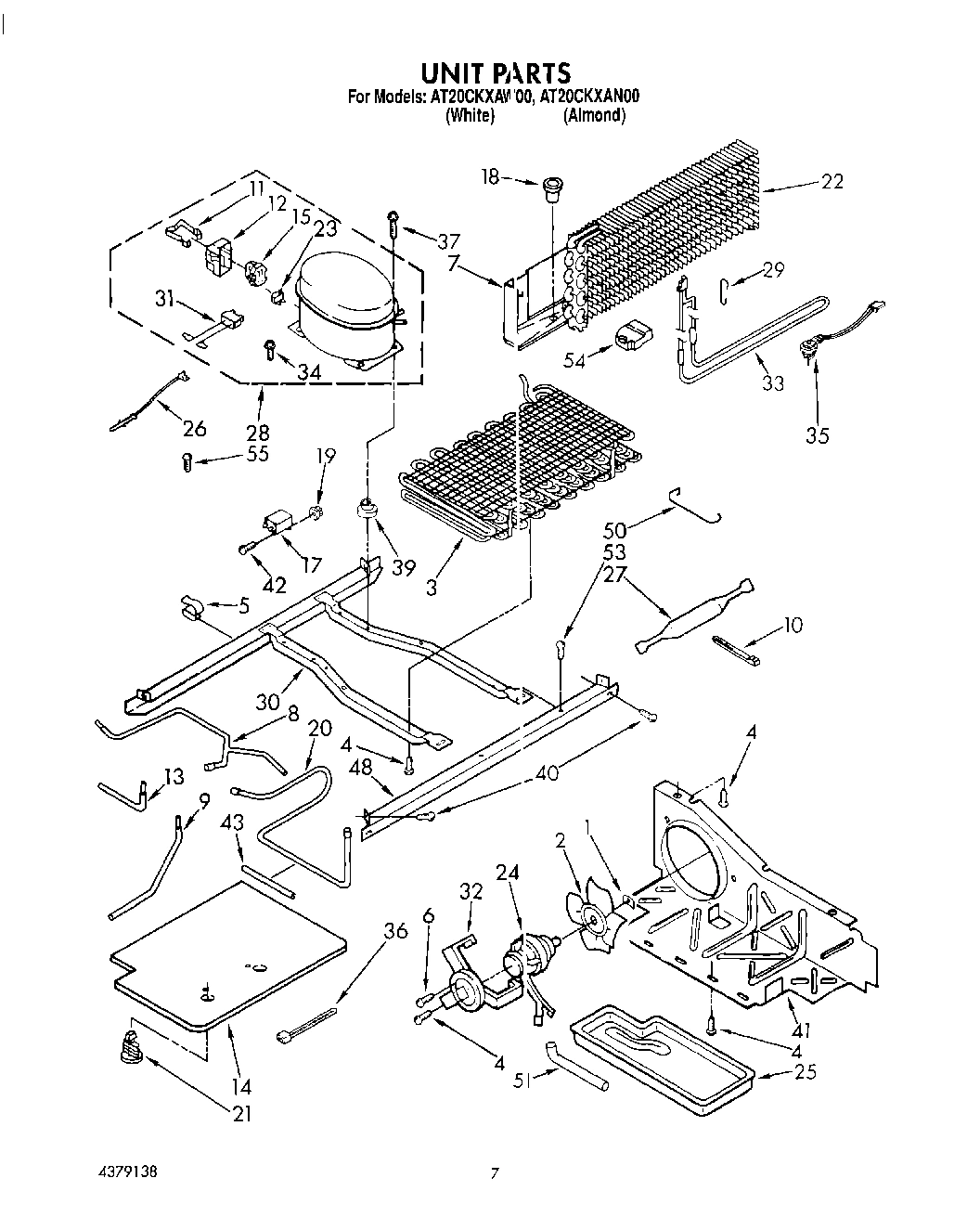

06 - UNIT

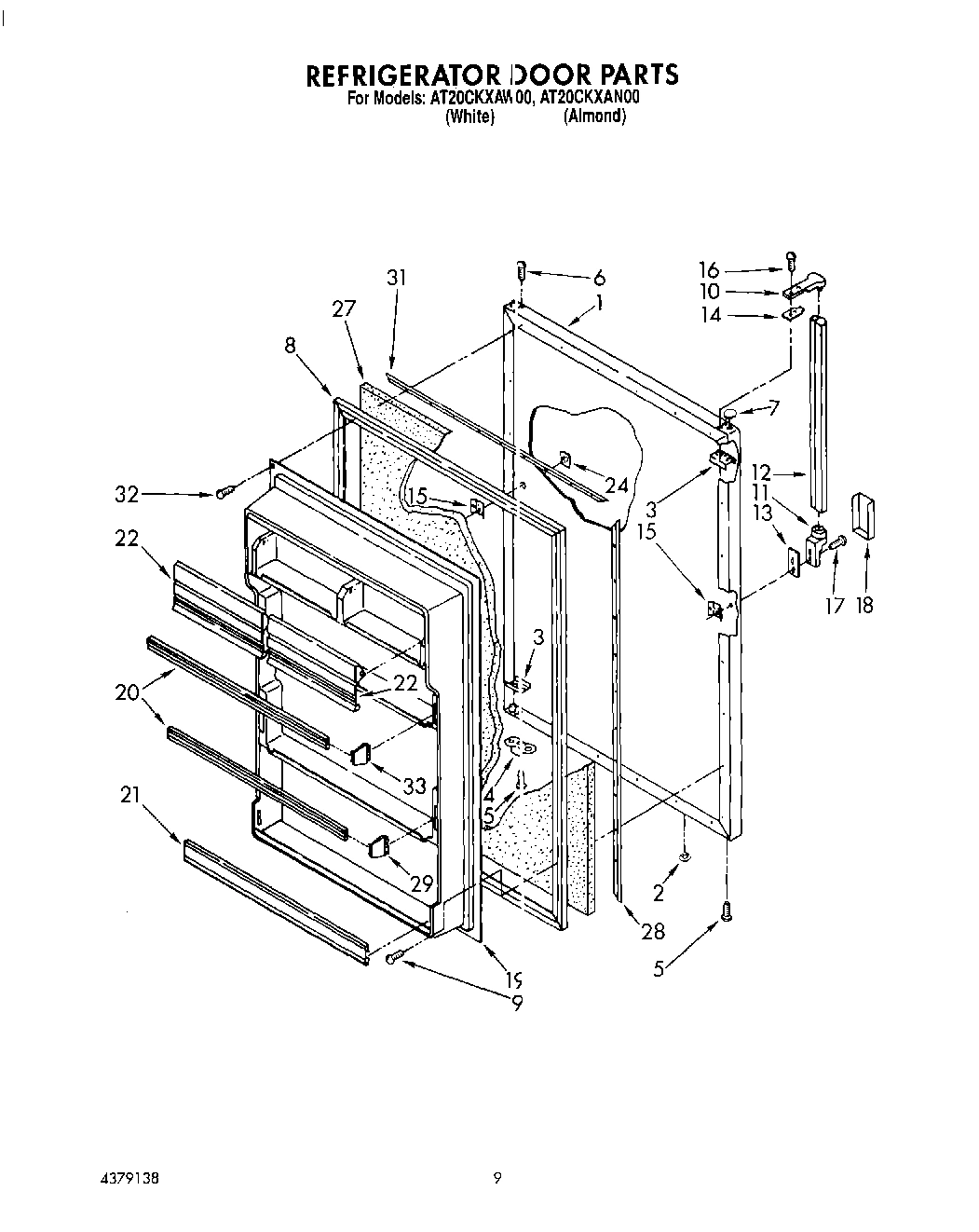

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

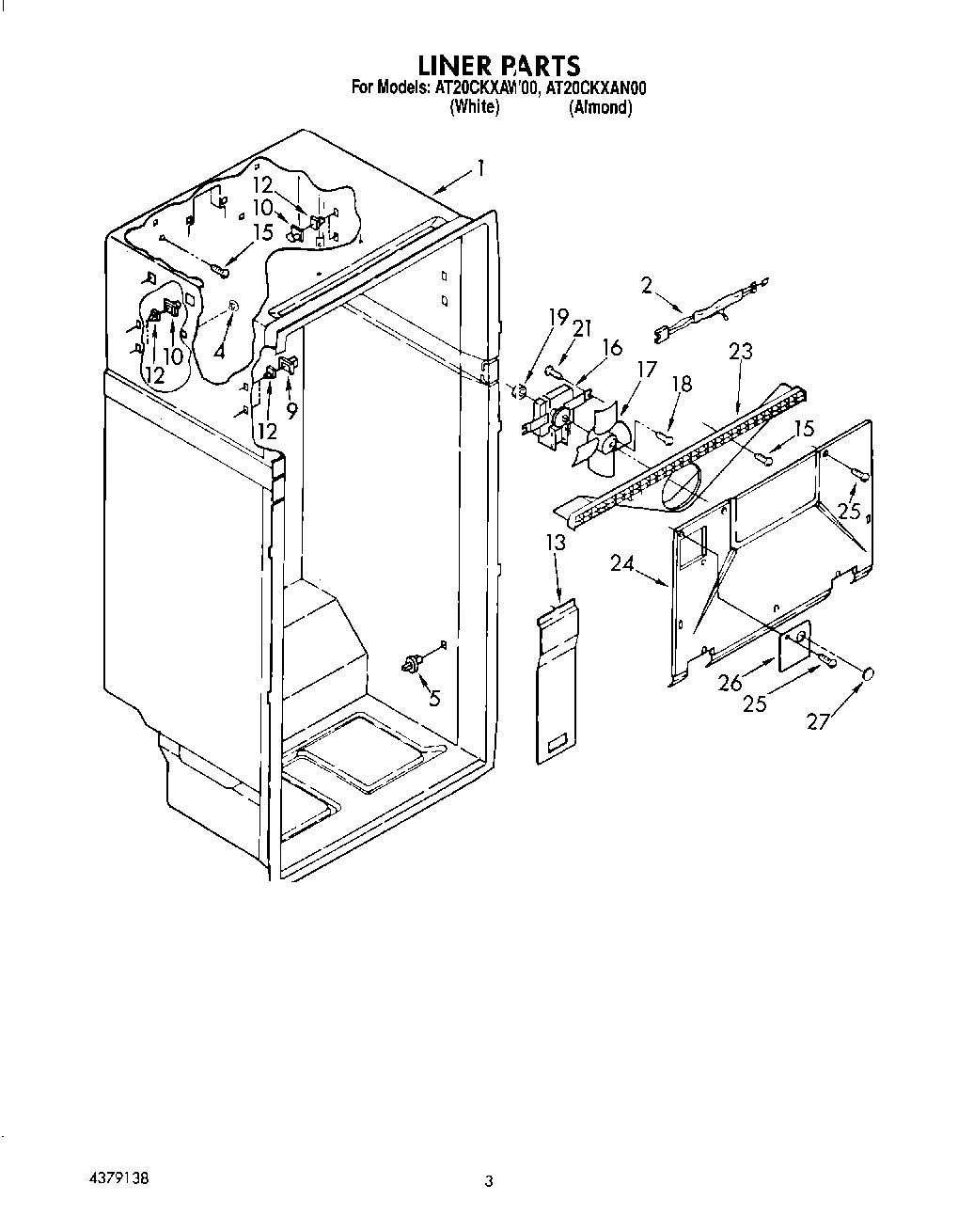

02 - LINER
Common parts from model Whirlpool AT20CKXAN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2166601 WPL LIT2166601 Contact Us For Availability
WPL LIT2166608 WPL LIT2166608 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1122715 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI20427A3 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Tube, Discharge WPL 2162475 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center (White) WPL 2157109 Contact Us For Availability
12
Handle, Center (Almond) WPL 2157110 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935076 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
15
Relay (See Overload) WPL ARI20428A2 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Running Capacitor (Production) WPL 2154565 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
End Cap Cover WPL 987873 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2156205 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Tube, Suction WPL 2162472 Contact Us For Availability
20
Trim, Door (2) WPL 1120825 Contact Us For Availability
21
Trim, Door WPL 1120826 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Compartment Door (2) WPL 2163278 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Overload) (Service (Includes Relay) WPL 1108114 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Wire Assembly (Red) WPL 2159678 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
WPL 876029 WPL 876029 Contact Us For Availability
33
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
33
WPL 799344 WPL 799344 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
PAINT xEnamel, Golden Harvest (13 Oz. Spray C WPL 261891 Contact Us For Availability
33
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
33
WPL 542639 WPL 542639 Contact Us For Availability
33
WPL 799833 WPL 799833 Contact Us For Availability
33
WPL 978883 WPL 978883 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
