Model Speed Queen AEM477 Dryer – Common Parts & Diagrams
Graphic Panel, Control Hood and Controls - 1 Cycle Timer

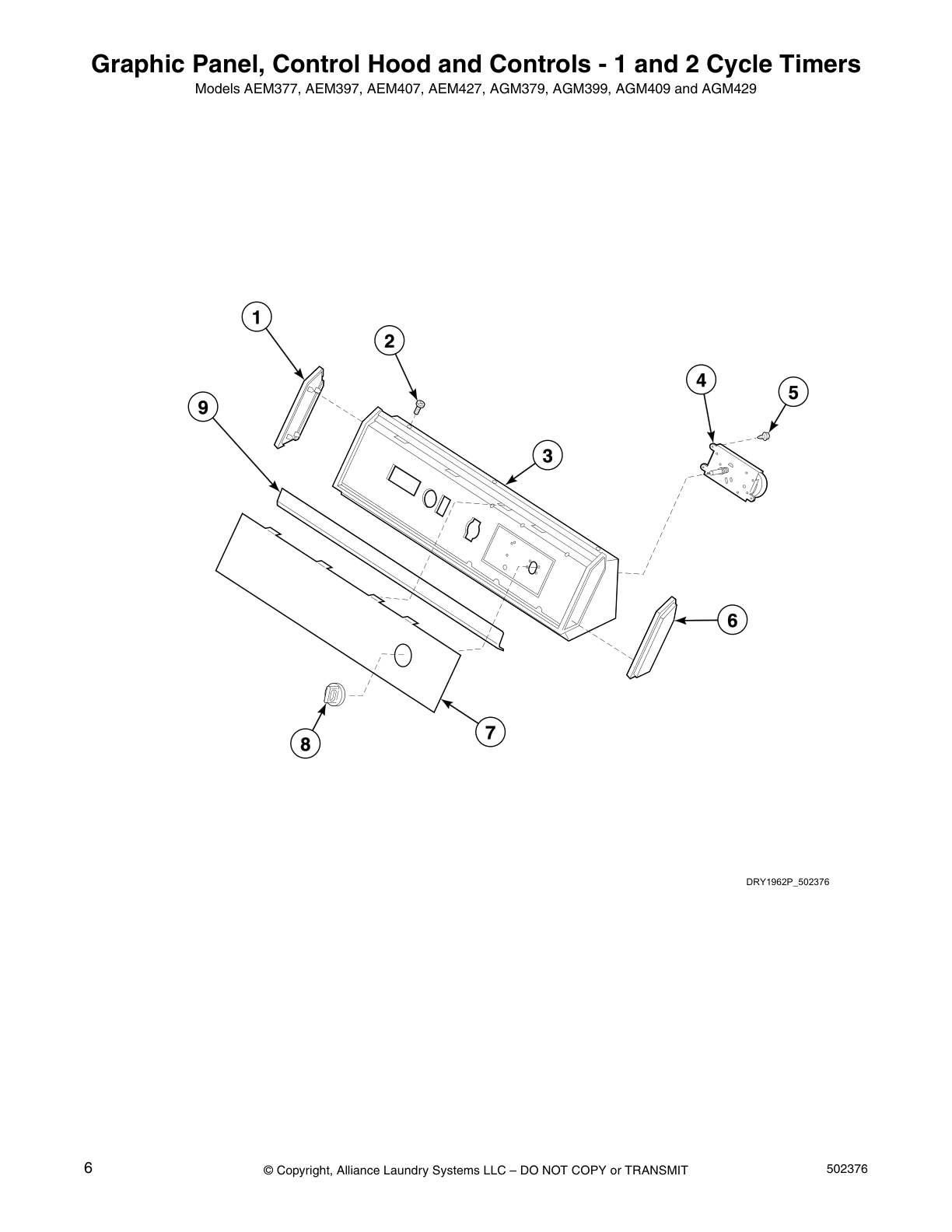

Graphic Panel, Control Hood and Controls - 1 and 2 Cycle Timers

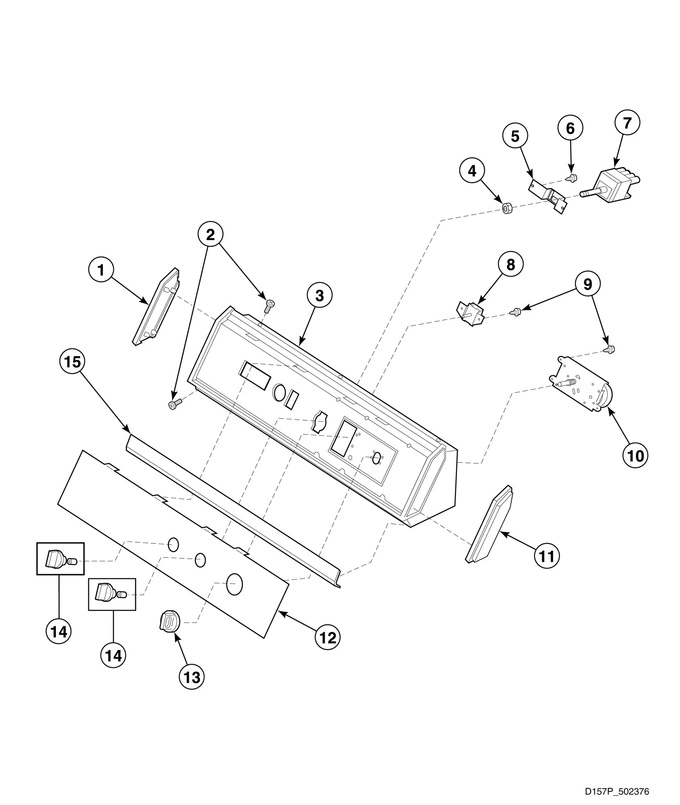

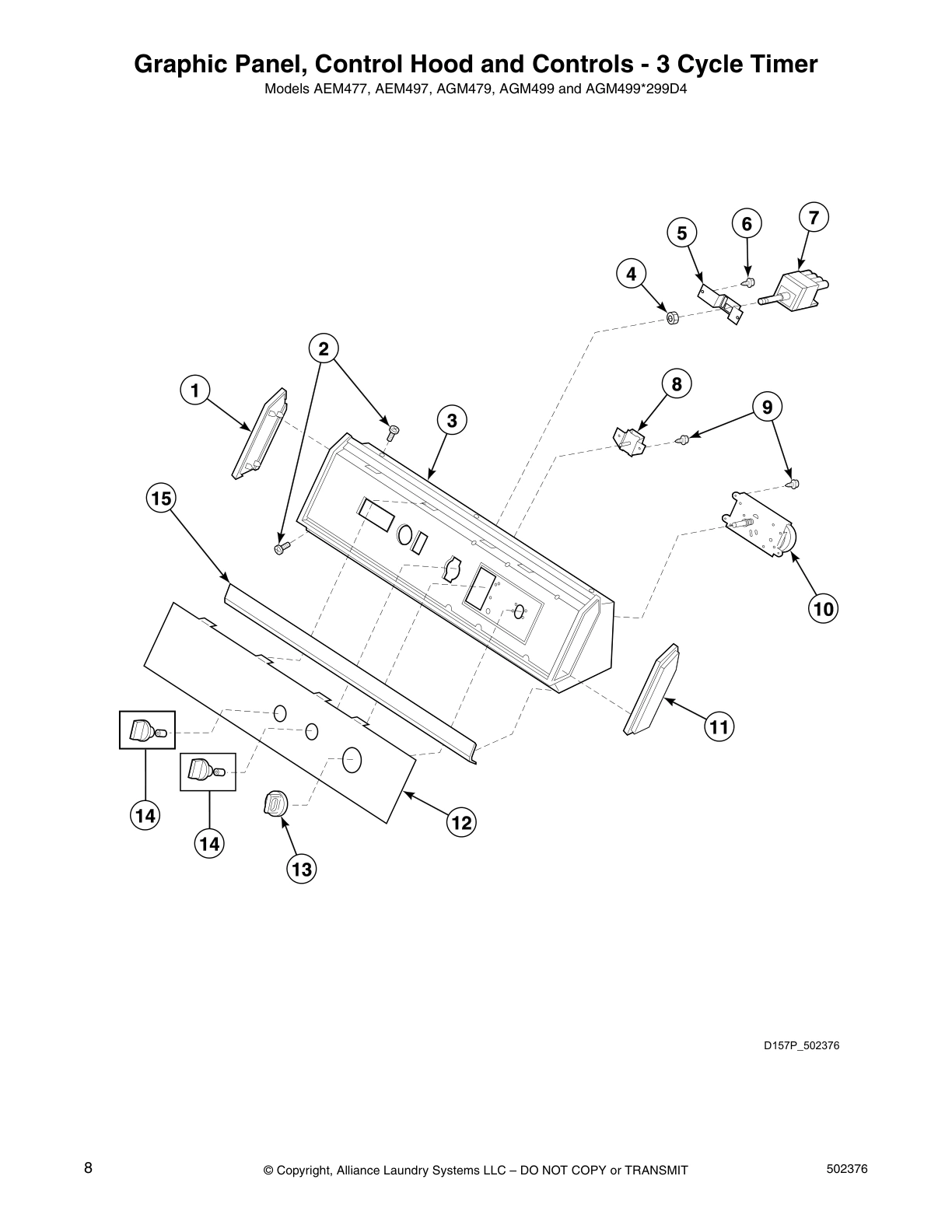

Graphic Panel, Control Hood and Controls - 3 Cycle Timer

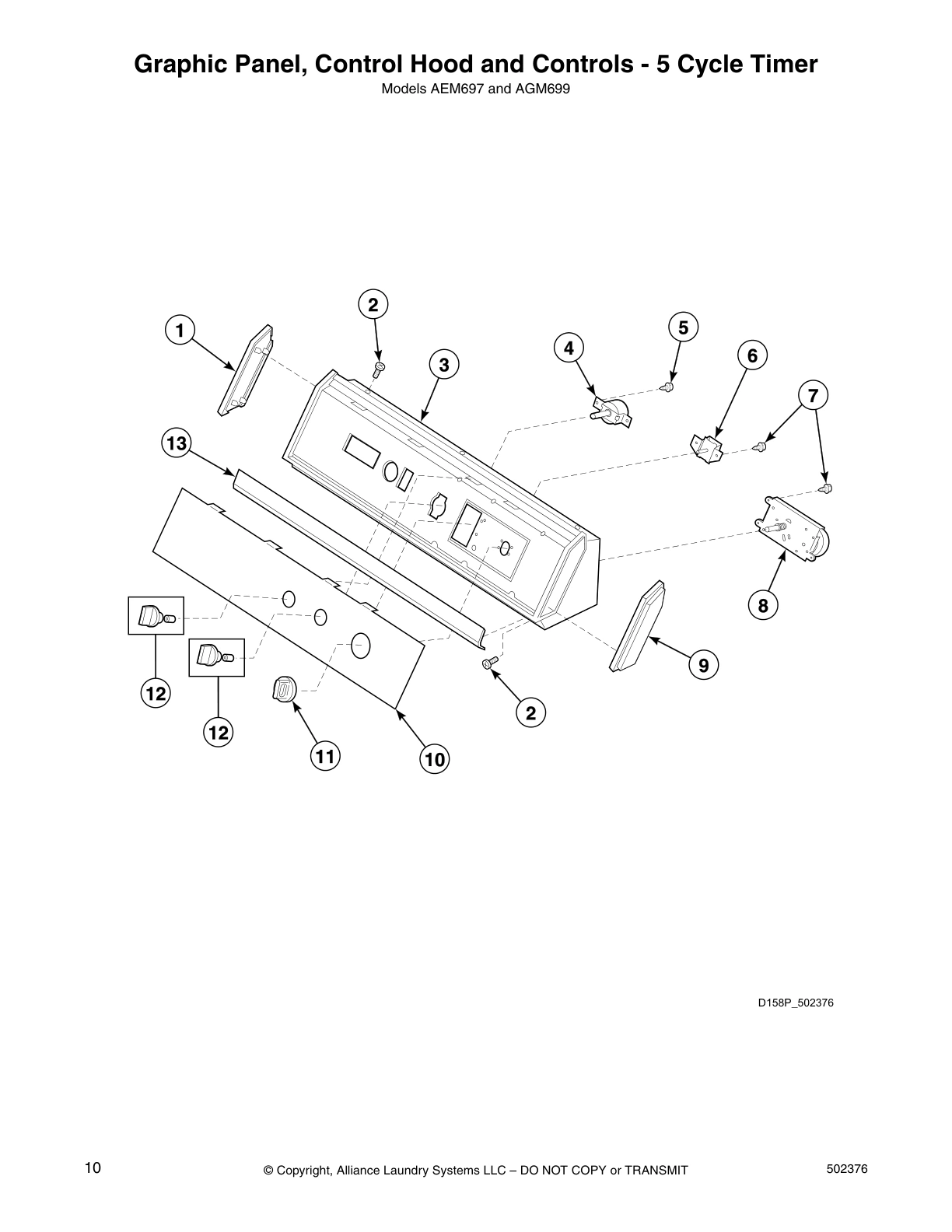

Graphic Panel, Control Hood and Controls - 5 Cycle Timer

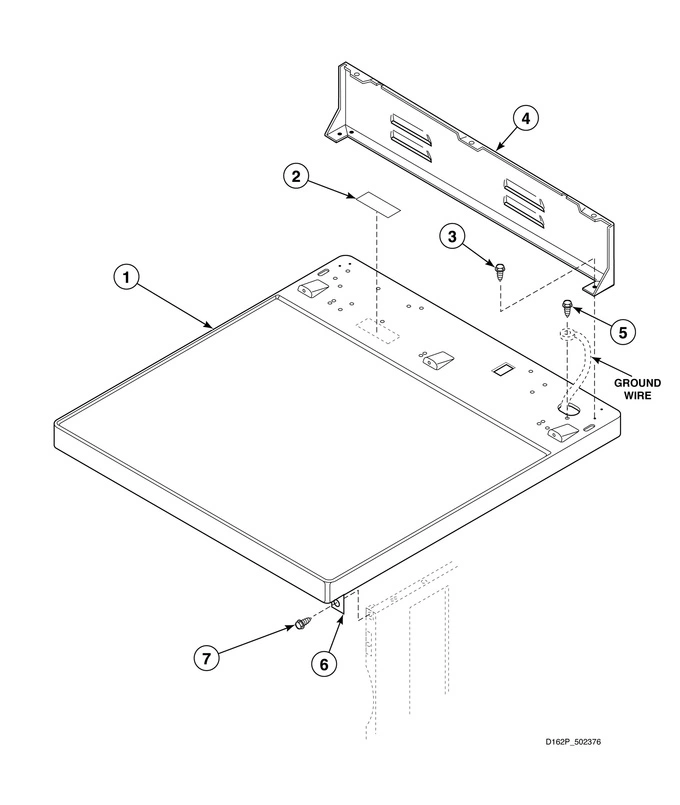

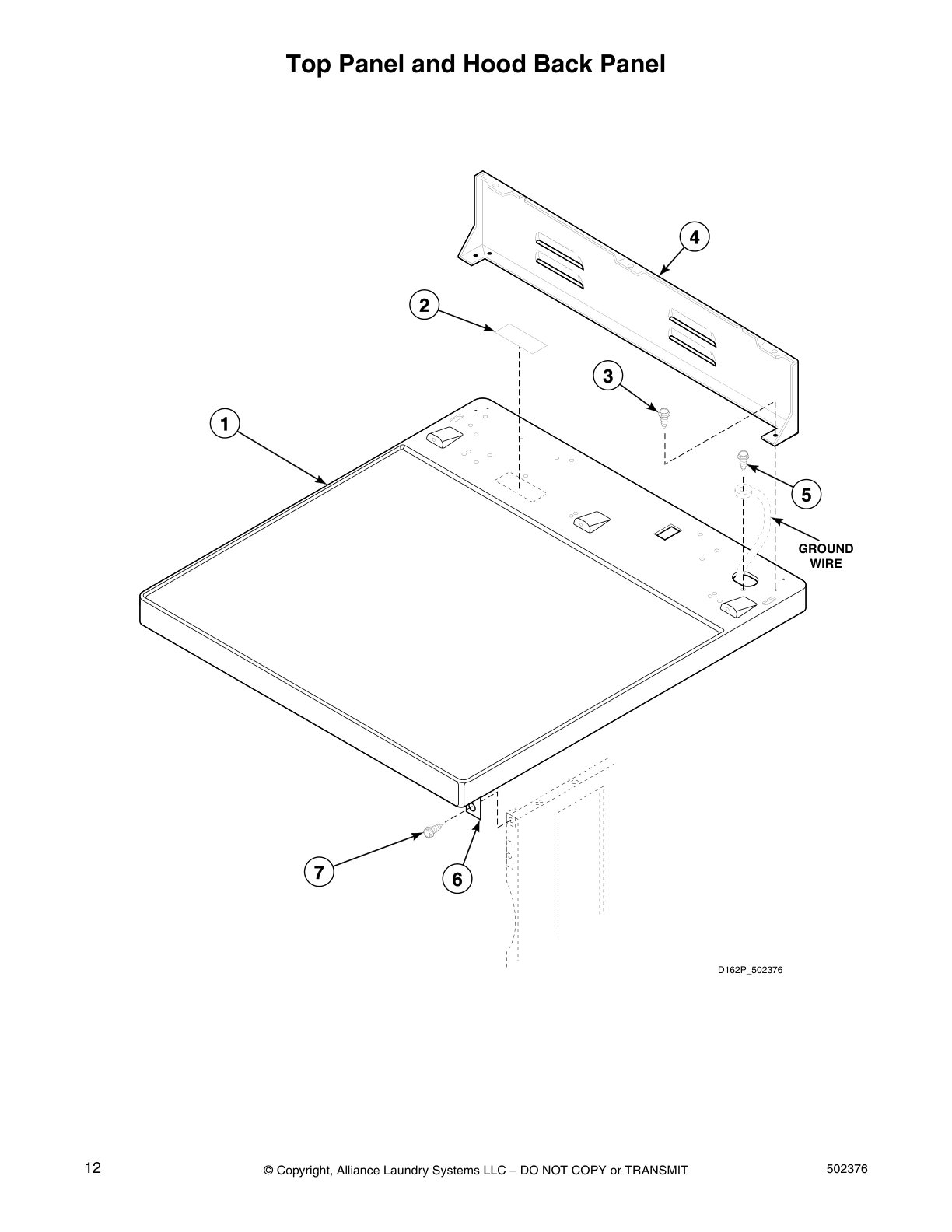

Top Panel and Hood Back Panel

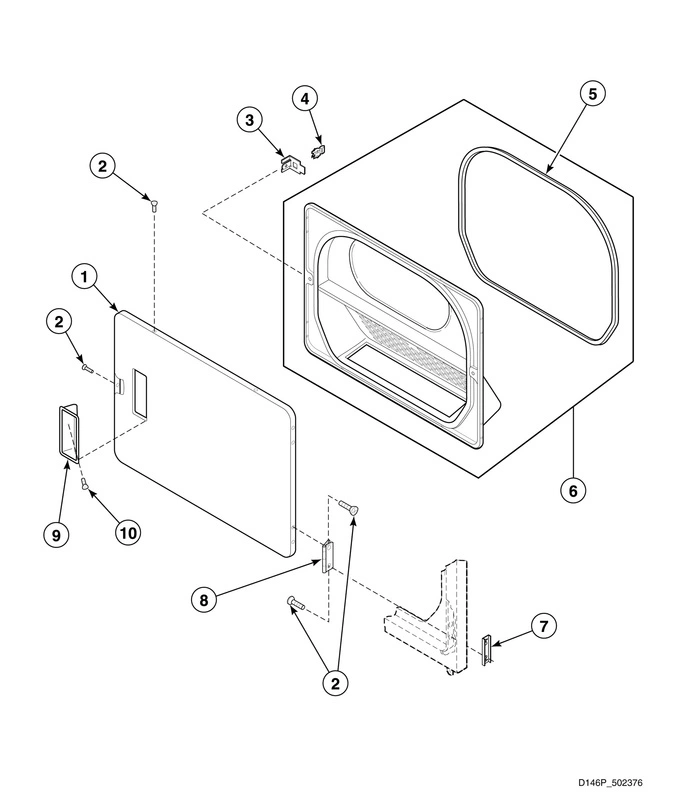

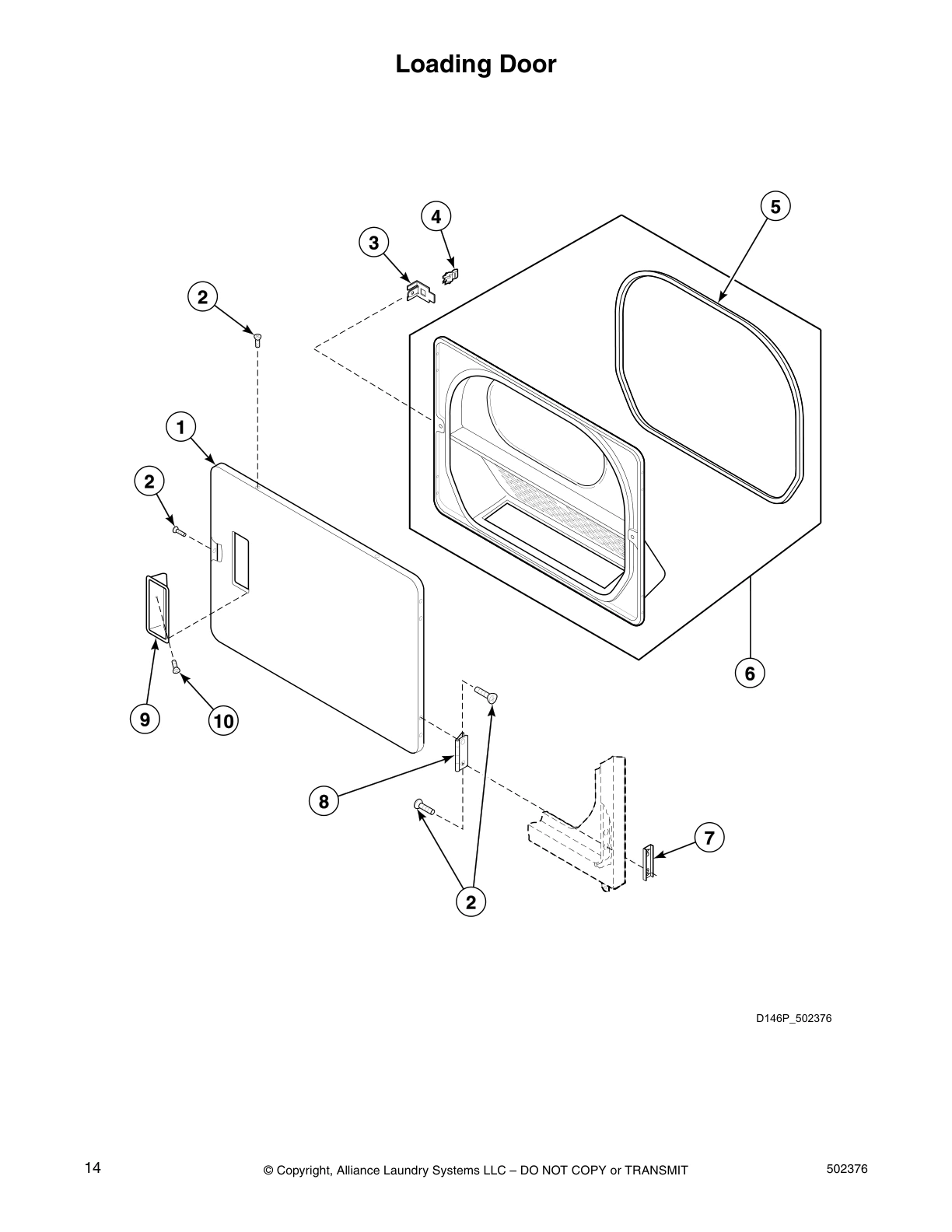

Loading Door

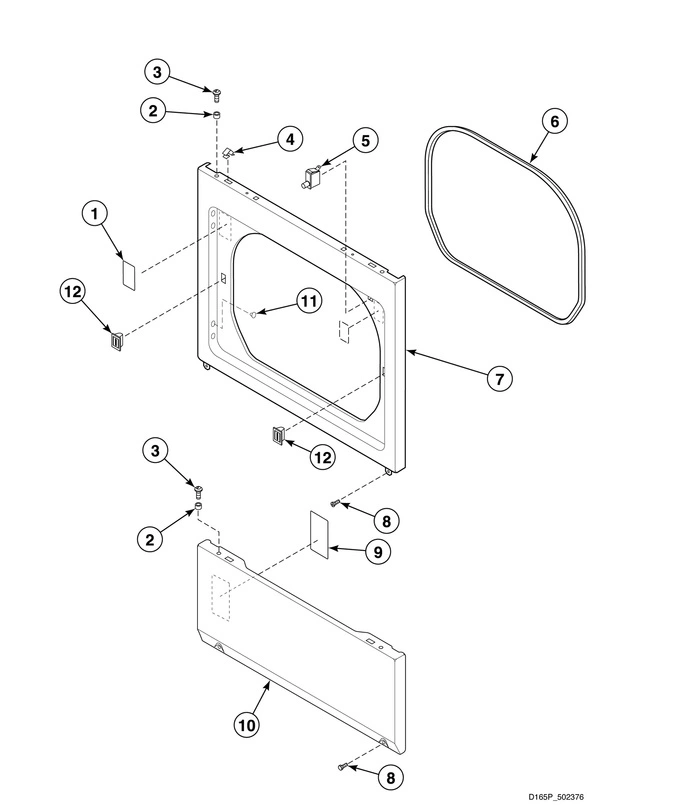

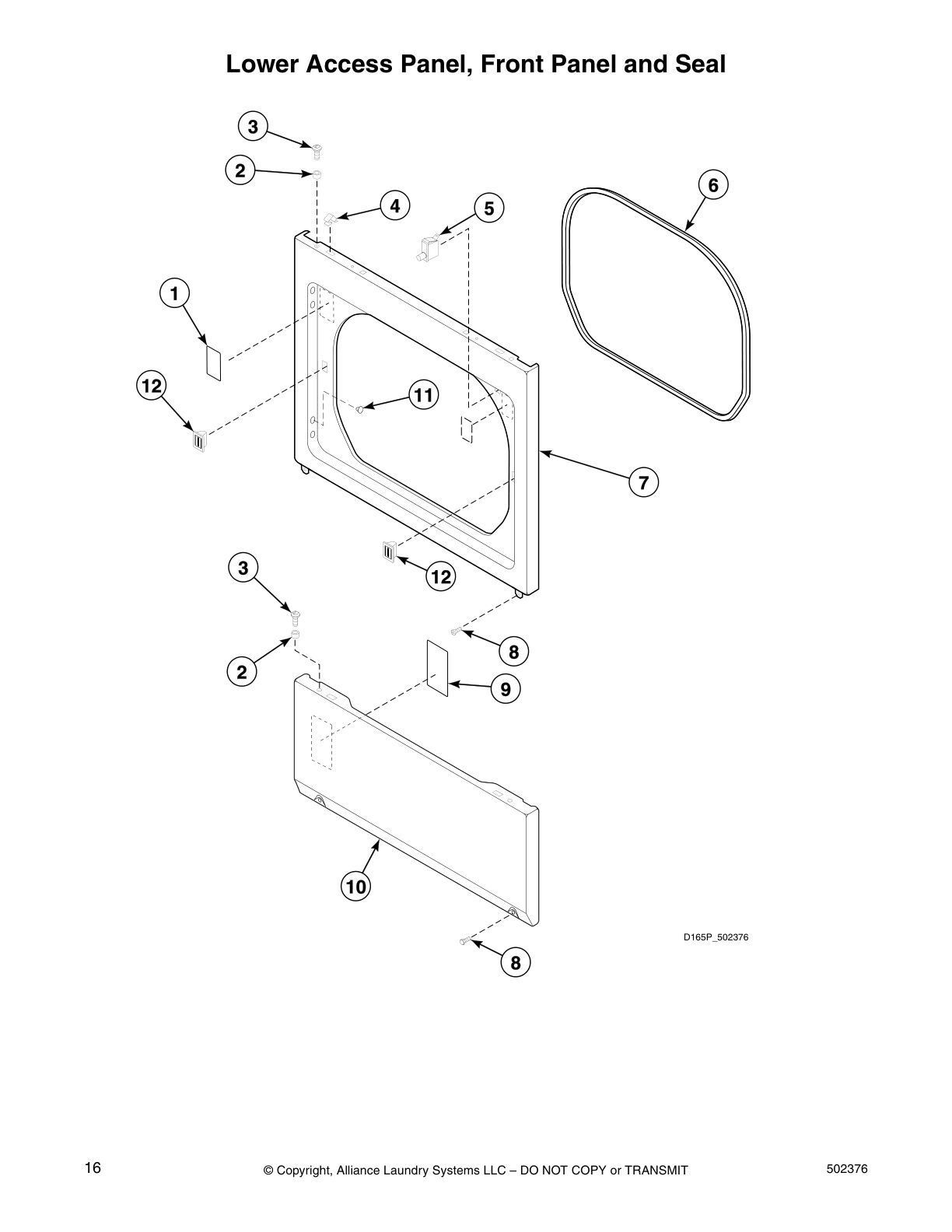

Lower Access Panel, Front Panel and Seal

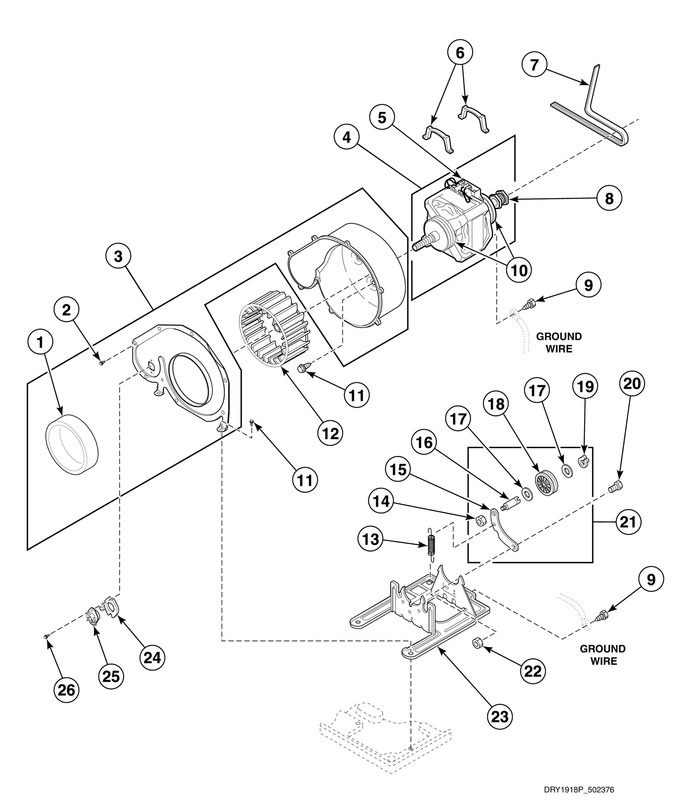

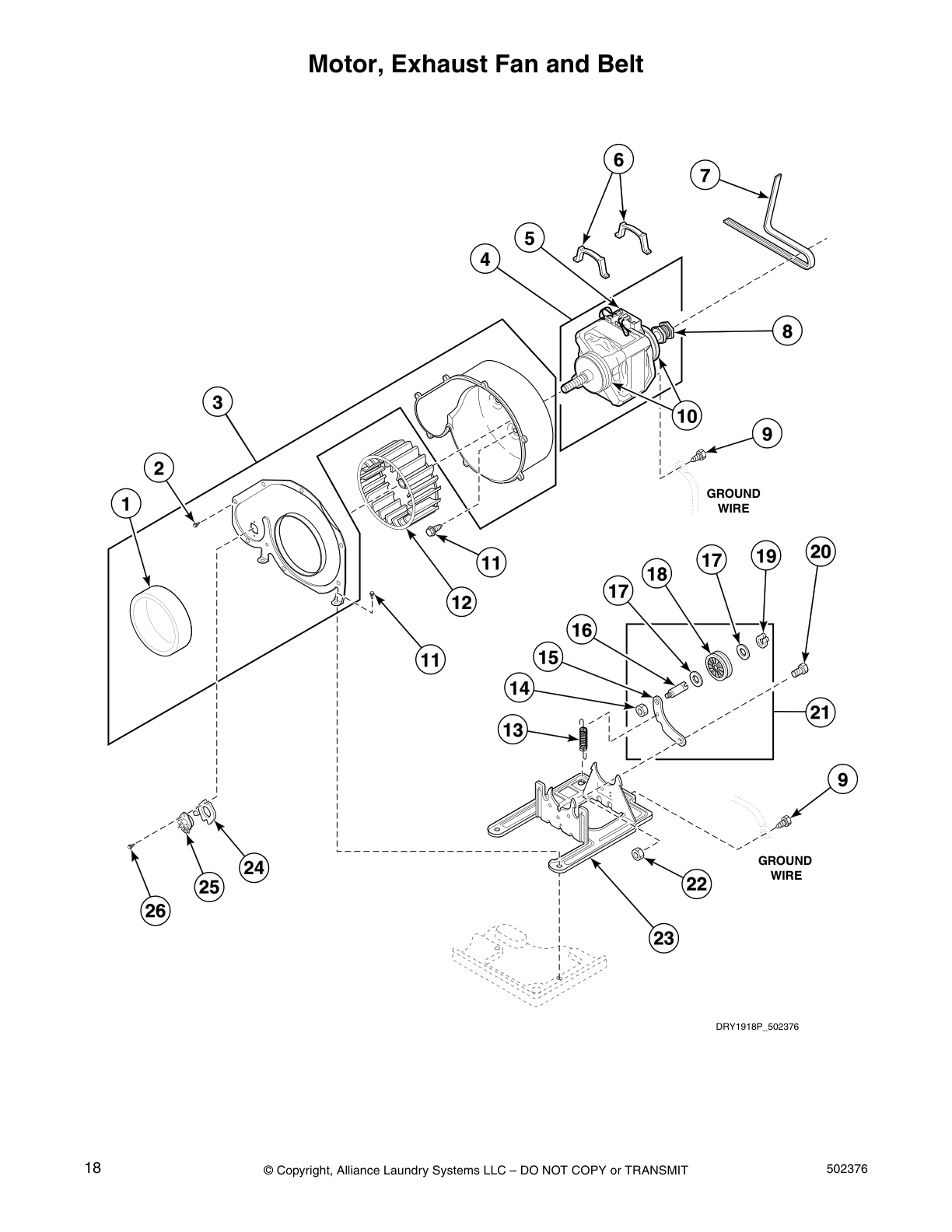

Motor, Exhaust Fan and Belt

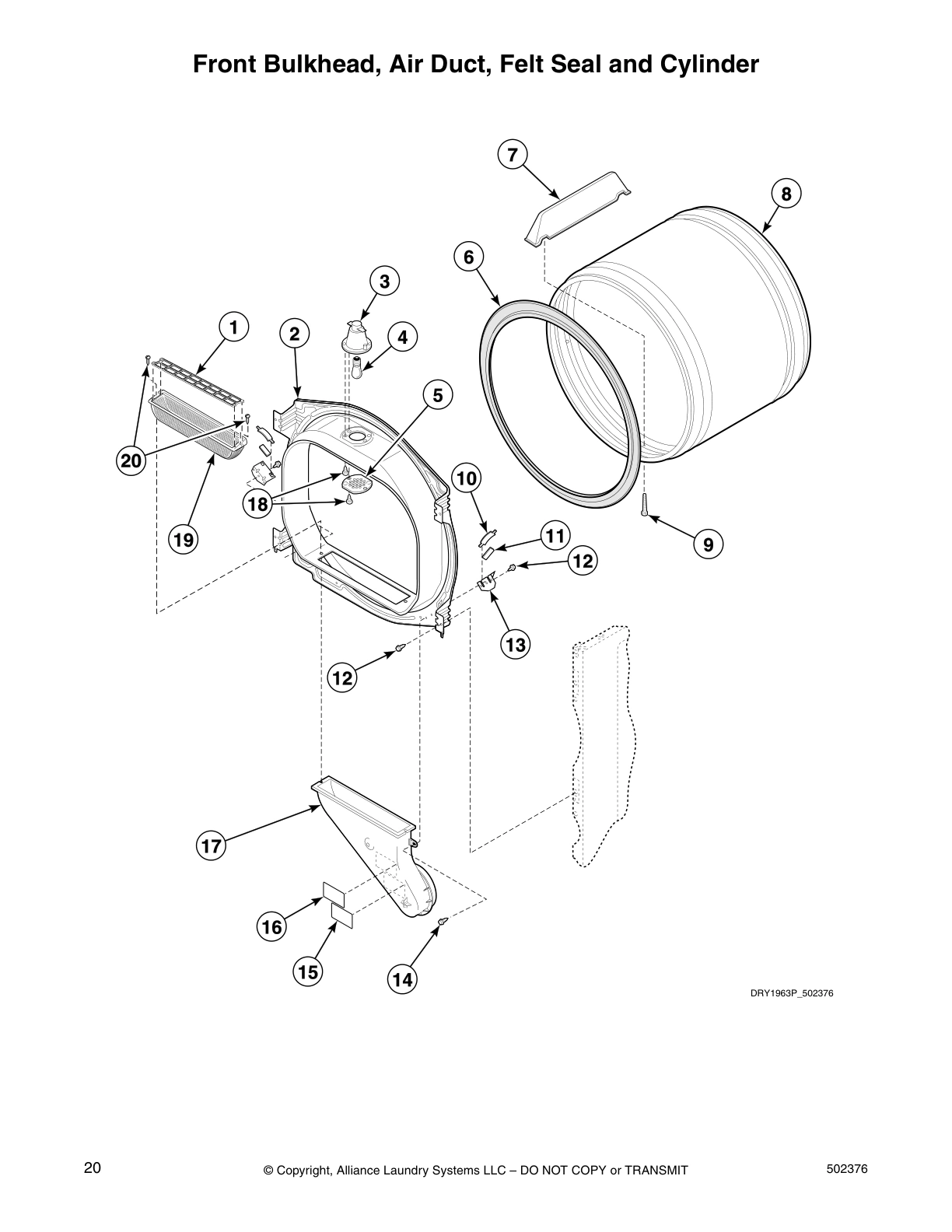

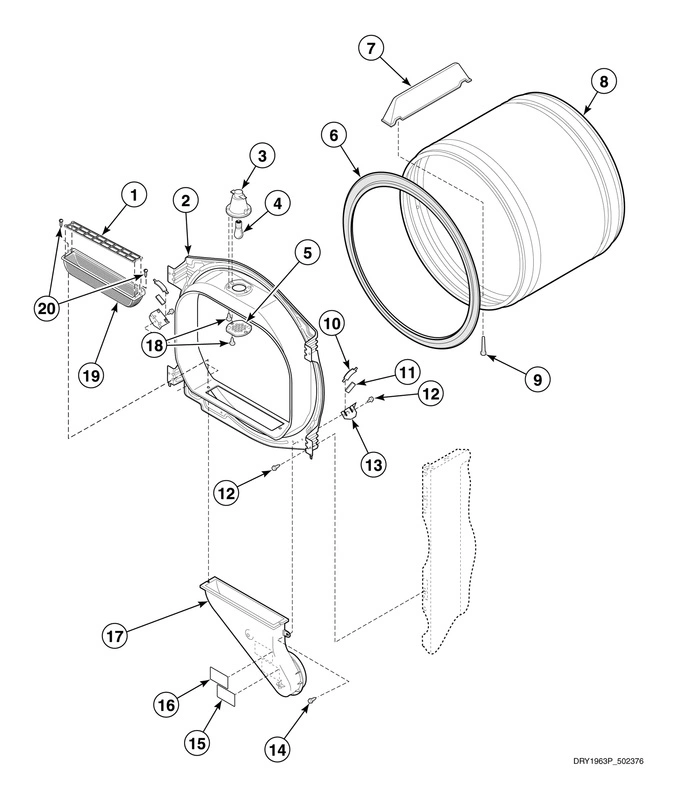

Front Bulkhead, Air Duct, Felt Seal and Cylinder

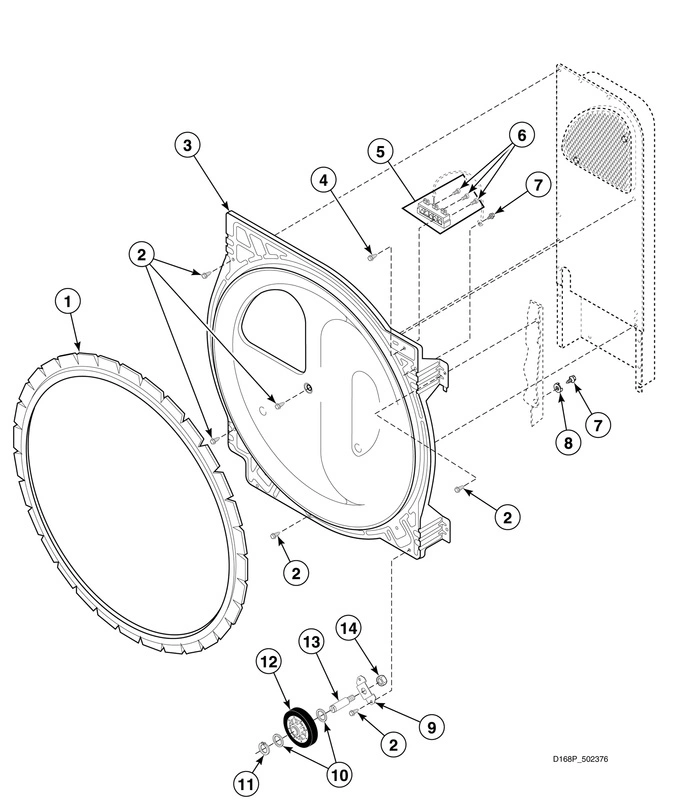

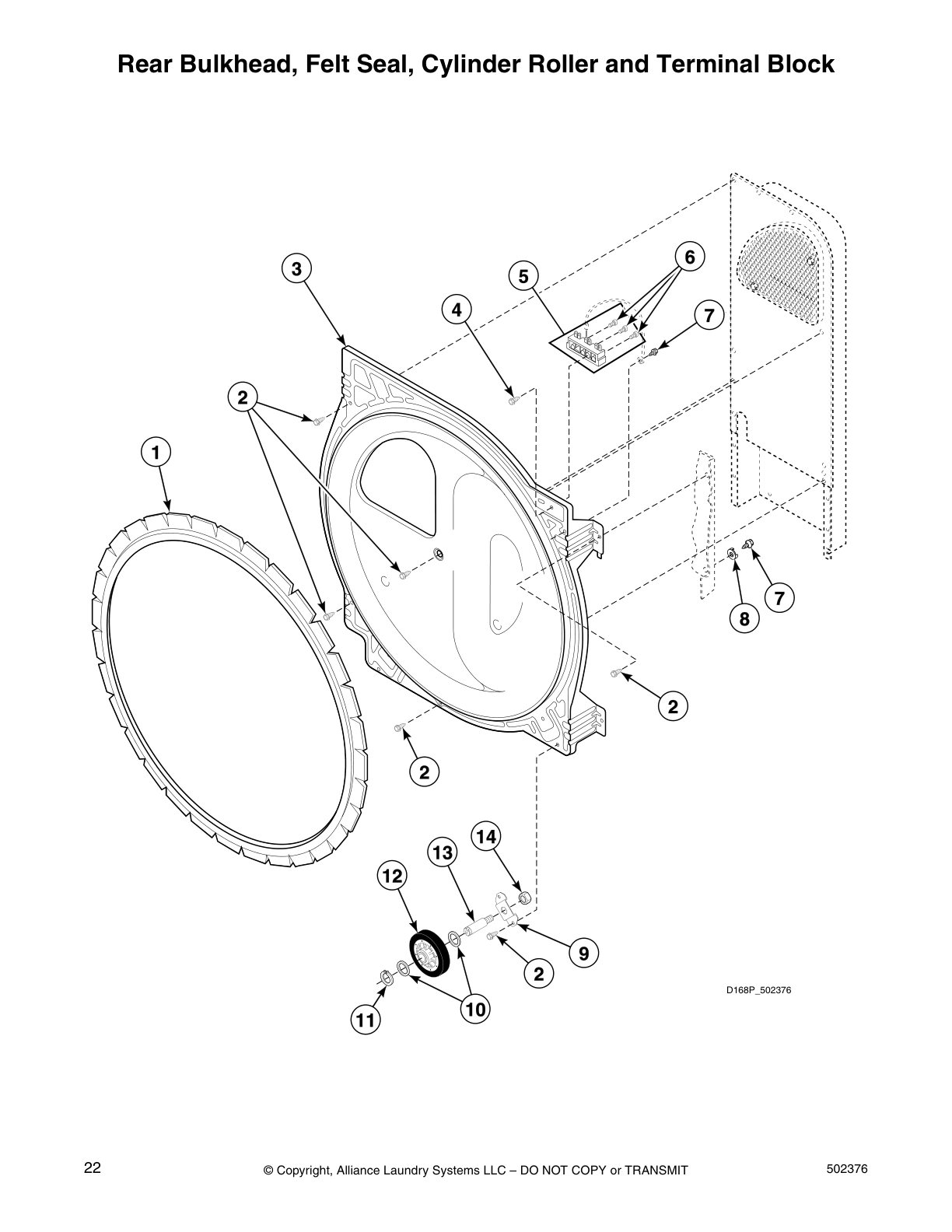

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

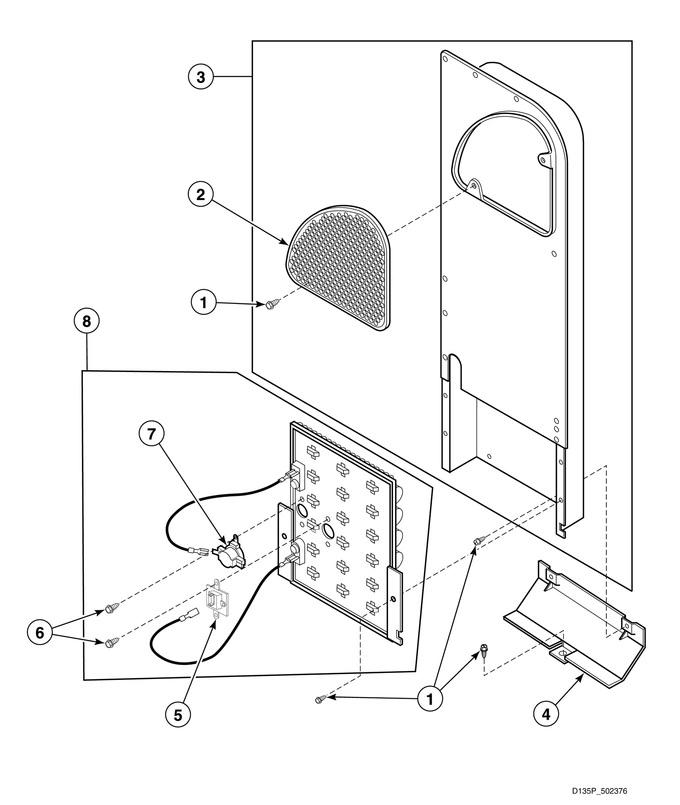

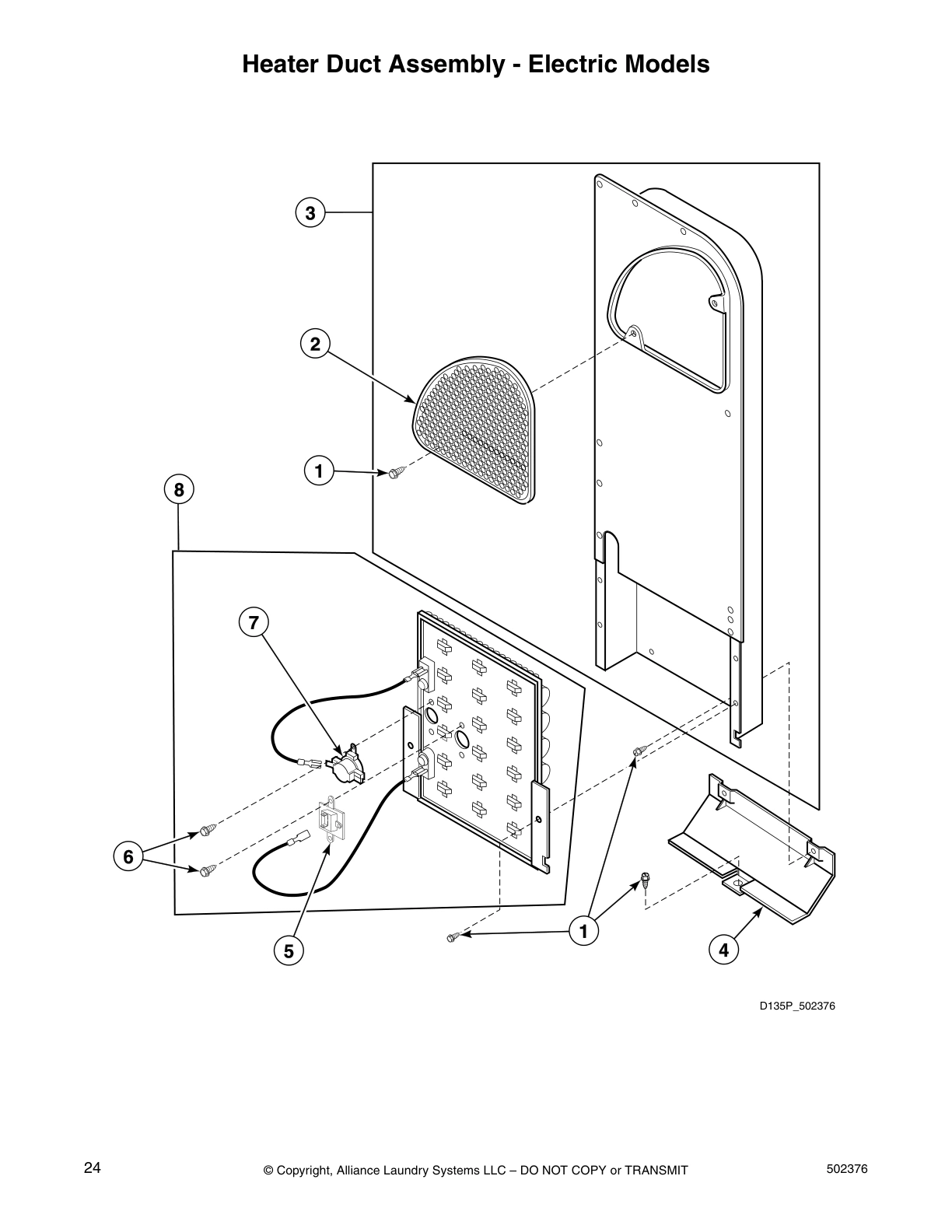

Heater Duct Assembly - Electric Models

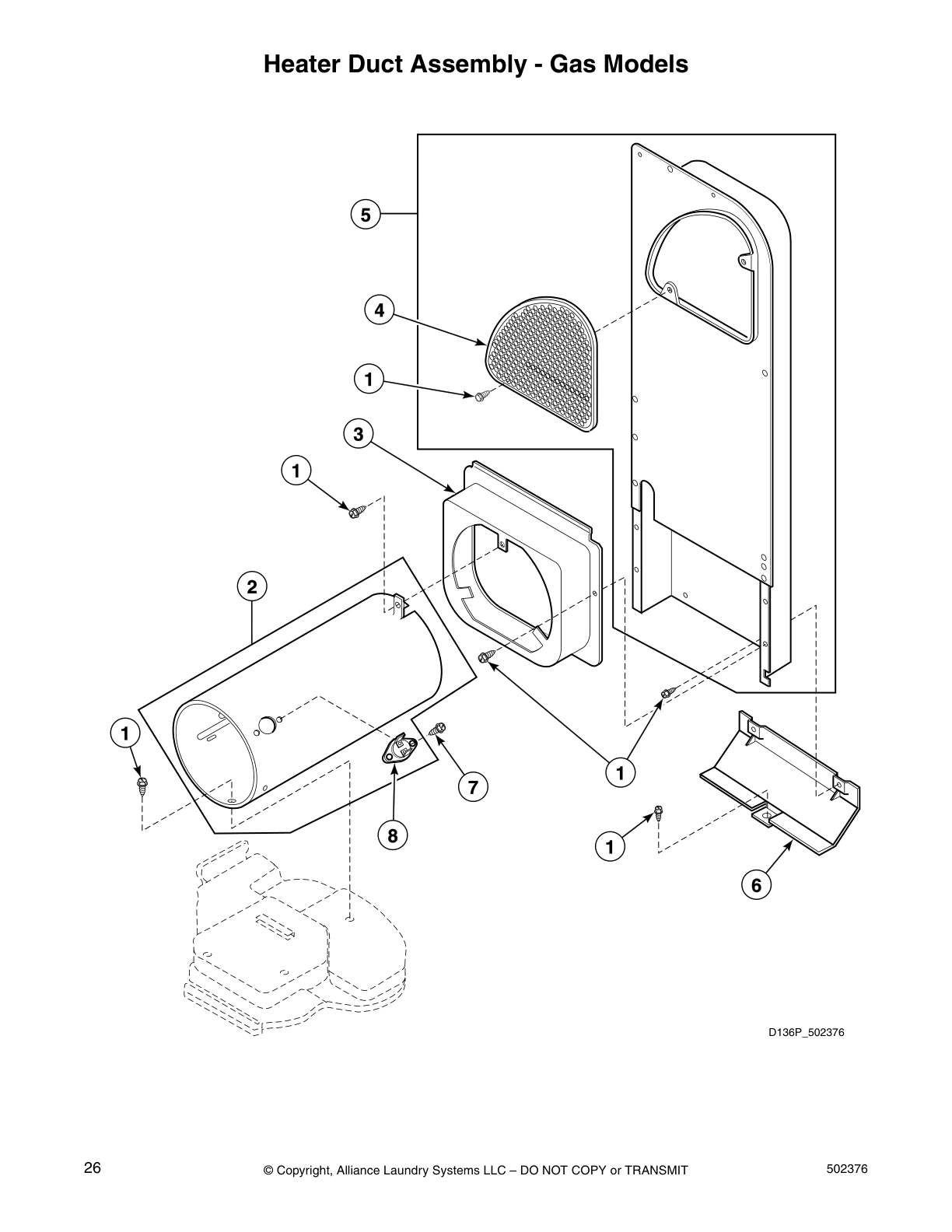

Heater Duct Assembly - Gas Models

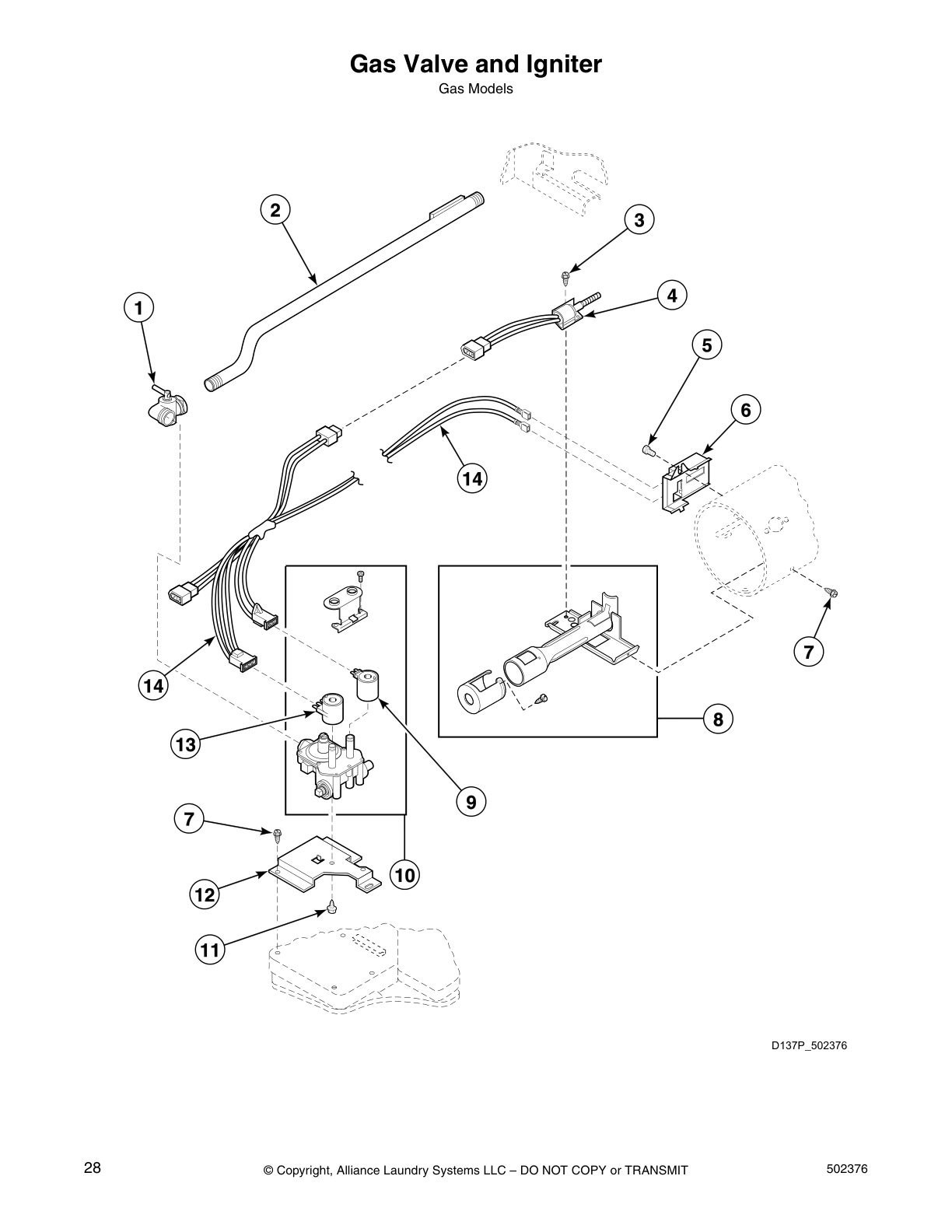

Gas Valve and Igniter

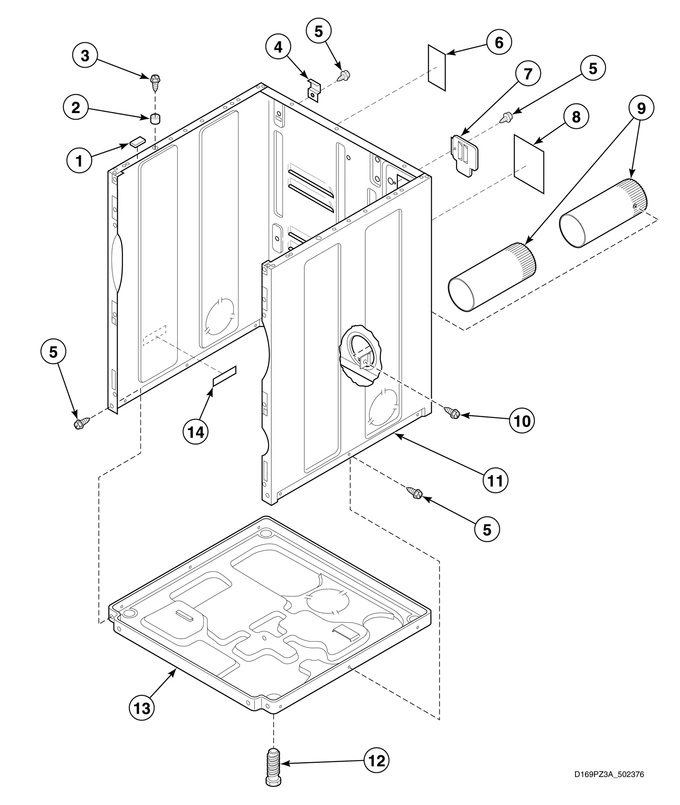

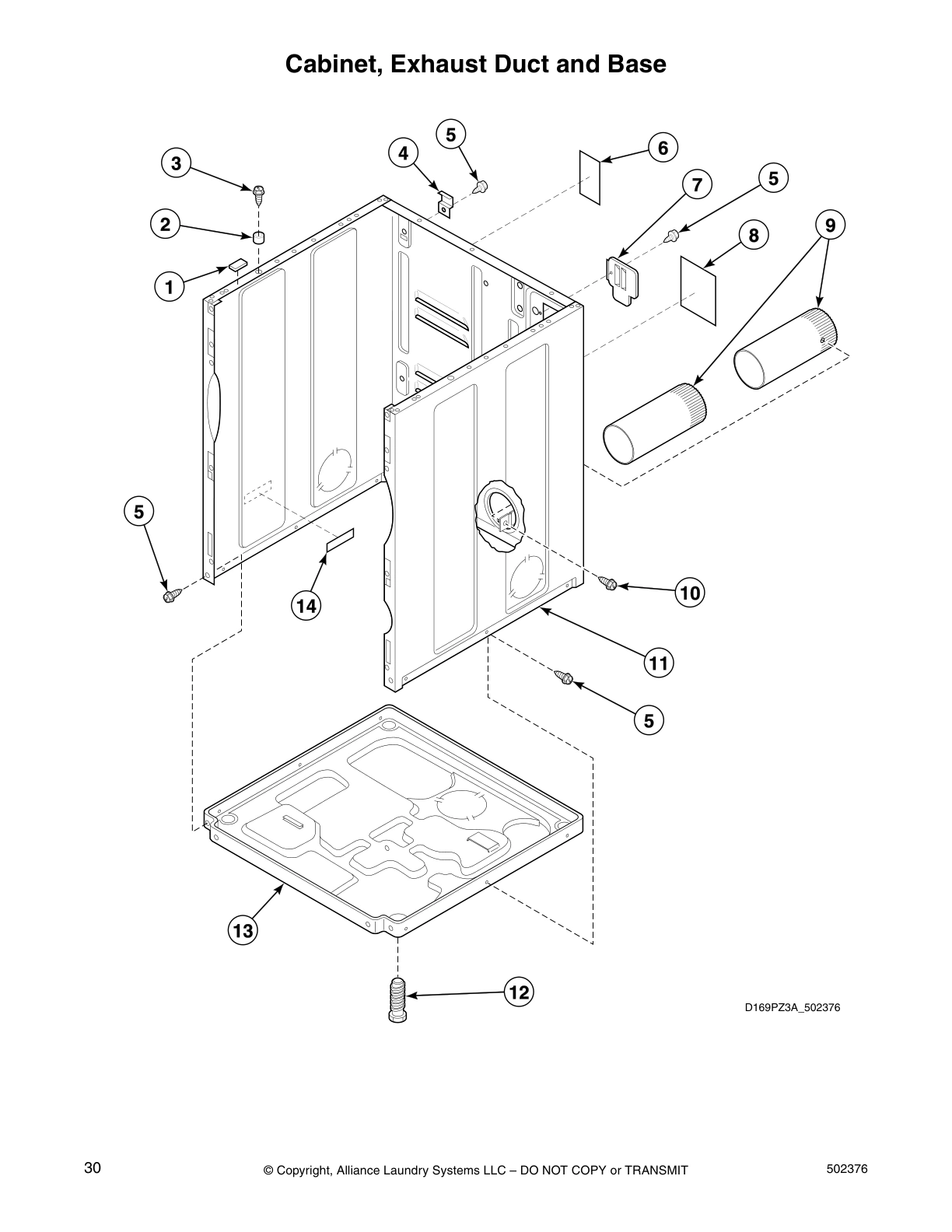

Cabinet, Exhaust Duct and Base

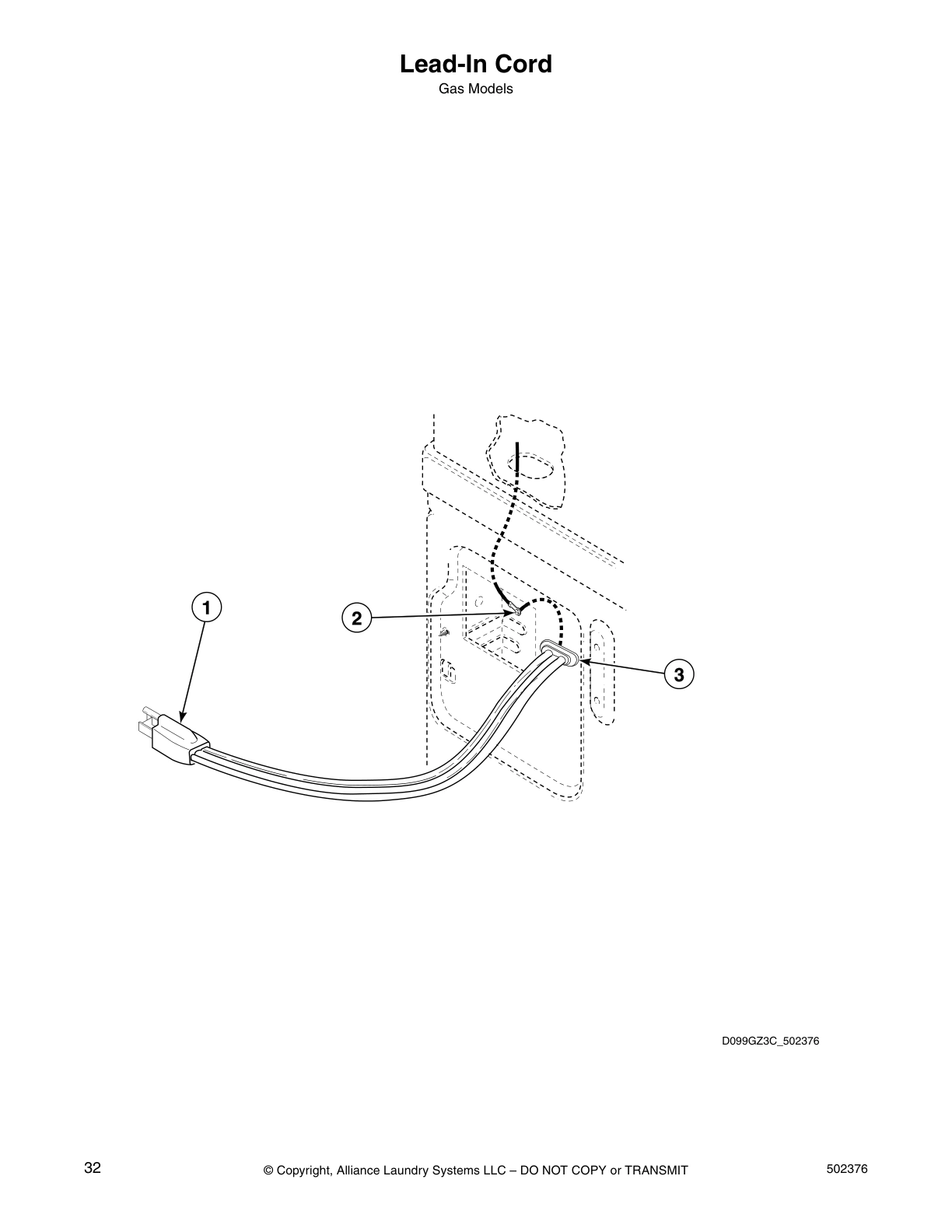

Lead-In Cord

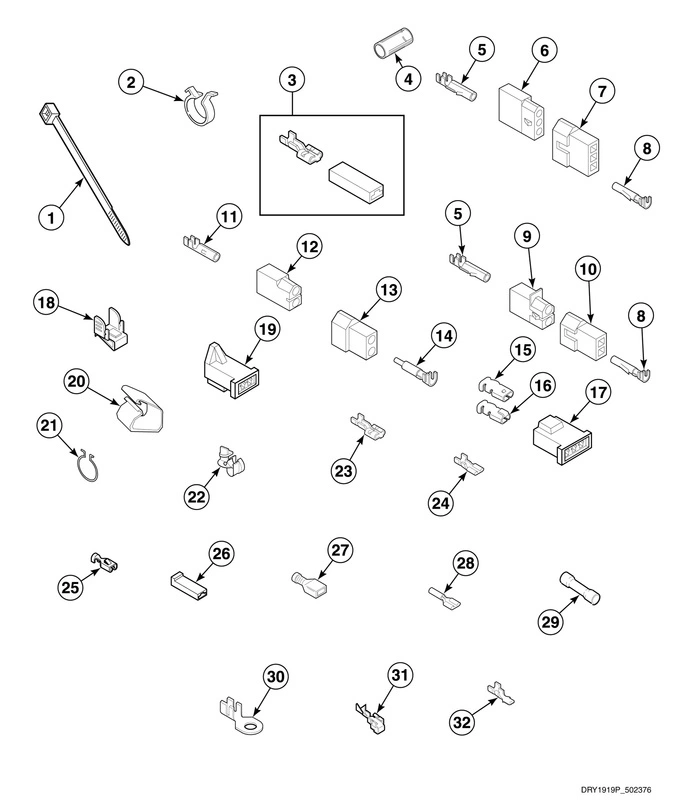

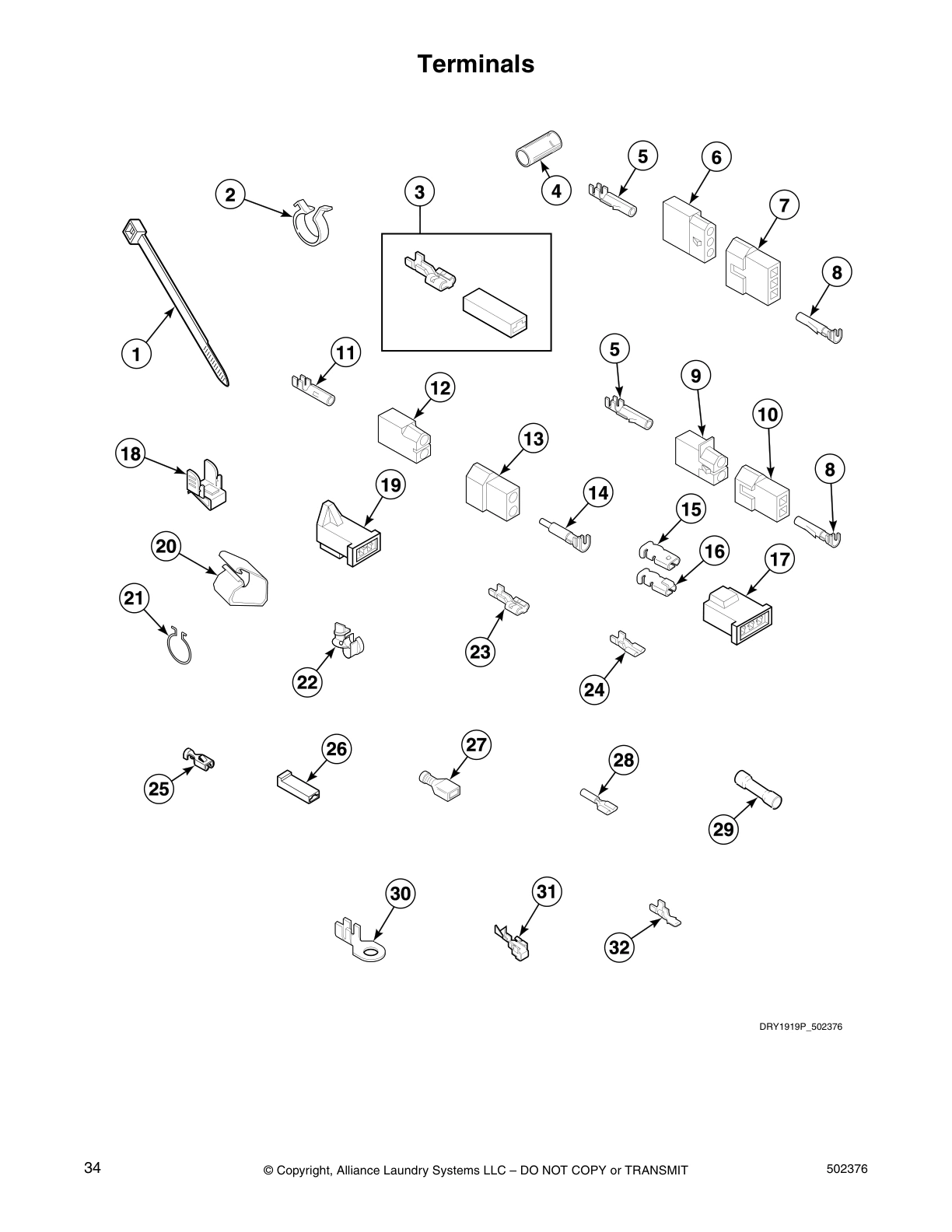

Terminals

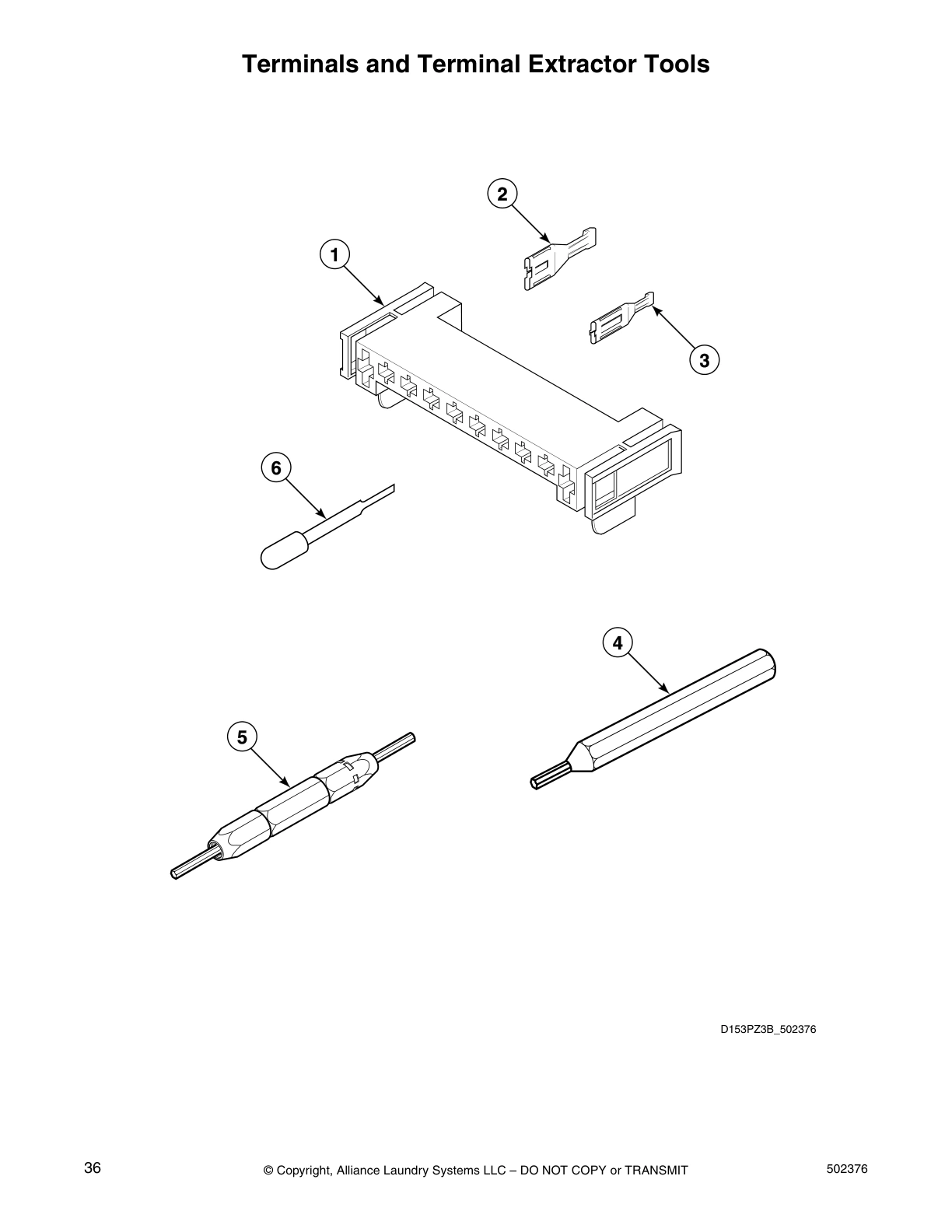

Terminals and Terminal Extractor Tools
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Terminals
Graphic Panel, Control Hood And Controls - 3 Cycle Timer
Terminals
Heater Duct Assembly - Electric Models
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Graphic Panel, Control Hood And Controls - 3 Cycle Timer
Heater Duct Assembly - Electric Models
Graphic Panel, Control Hood And Controls - 3 Cycle Timer
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Lower Access Panel, Front Panel And Seal
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Lower Access Panel, Front Panel And Seal
Loading Door
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door
Terminals
Heater Duct Assembly - Electric Models
Graphic Panel, Control Hood And Controls - 3 Cycle Timer
Motor, Exhaust Fan And Belt
Top Panel And Hood Back Panel
Motor, Exhaust Fan And Belt
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Graphic Panel, Control Hood And Controls - 3 Cycle Timer
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminals
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Terminals
Top Panel And Hood Back Panel
Lower Access Panel, Front Panel And Seal
Heater Duct Assembly - Electric Models
Top Panel And Hood Back Panel
Motor, Exhaust Fan And Belt
Lower Access Panel, Front Panel And Seal
Cabinet, Exhaust Duct And Base
Top Panel And Hood Back Panel
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Top Panel And Hood Back Panel
Lower Access Panel, Front Panel And Seal
Motor, Exhaust Fan And Belt
Loading Door
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Loading Door
Heater Duct Assembly - Electric Models
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Heater Duct Assembly - Electric Models
Heater Duct Assembly - Electric Models
Top Panel And Hood Back Panel
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Common parts from model Speed Queen AEM477 Dryer
6
Front Panel Seal SPQ 500034 Contact Us For Availability
6
SCREW SPQ WP3177991 Contact Us For Availability
7
Cylinder Belt SPQ D511255 Contact Us For Availability
7
SCREW SPQ WP3351614 Contact Us For Availability
8
Electric Clearance Label SPQ D511005 Contact Us For Availability
8
Motor Pulley SPQ D512196 Contact Us For Availability
15
Idler Lever SPQ 510133 Contact Us For Availability
19
Cylinder Seal Assembly SPQ 502140P Contact Us For Availability
19
FILTER LINT-POLY SPQ D502140P Contact Us For Availability
22
NUT SPQ WPW10139757 Contact Us For Availability
23
Motor and Pulley Assembly SPQ 510060 Contact Us For Availability
24
Motor Mount Clamp SPQ 61401 Contact Us For Availability
25
SPQ 61372 SPQ 61372 Contact Us For Availability
25
THERMOSTAT SPQ WPY61372 Contact Us For Availability
NA
Adhesive (comment: For Cylinder Seal) SPQ D511637 Contact Us For Availability
× ![]()
