Model Whirlpool A23CSL WASHER – Common Parts & Diagrams

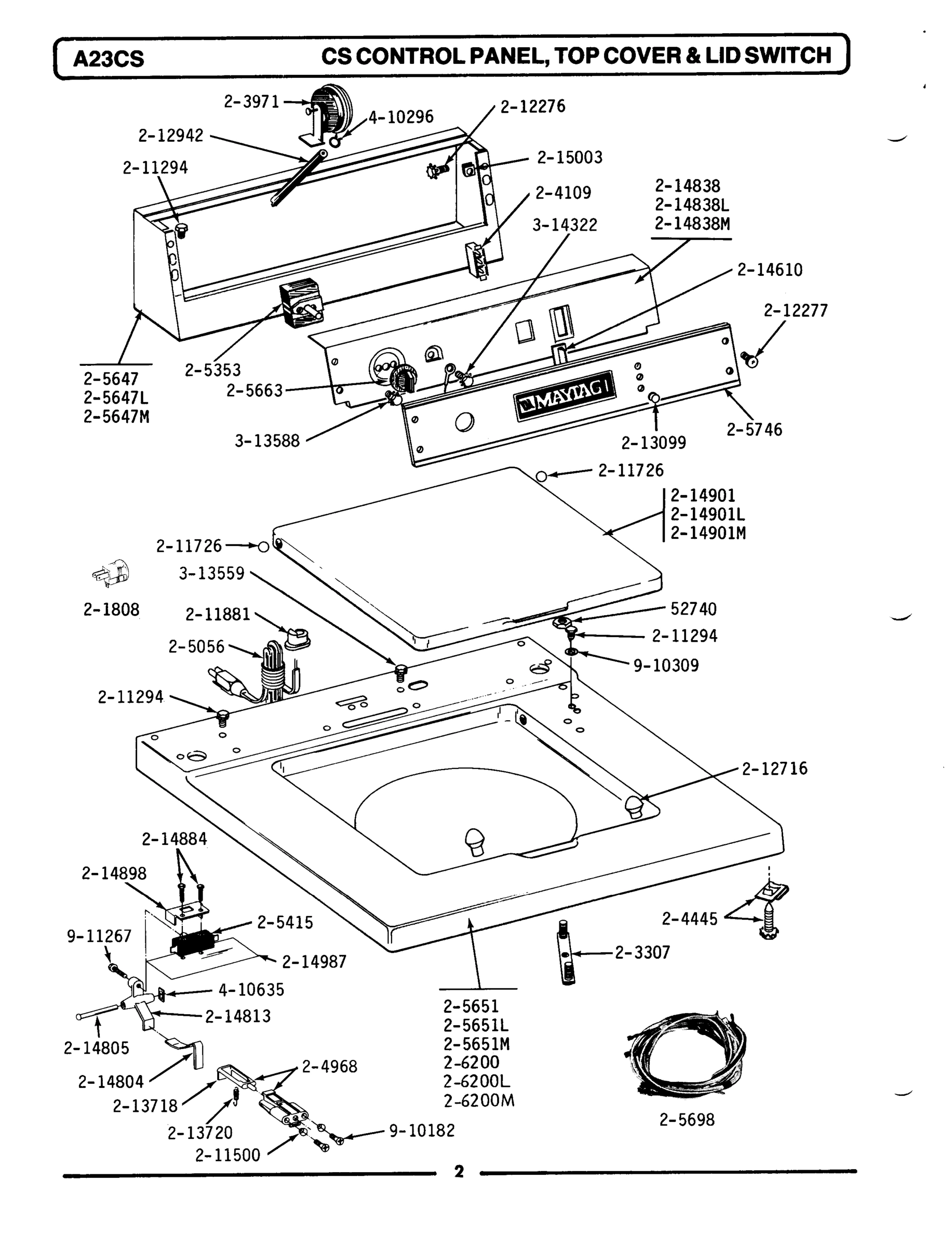

01 - CONTROL PANEL, TOP COVER & LID SWITCH

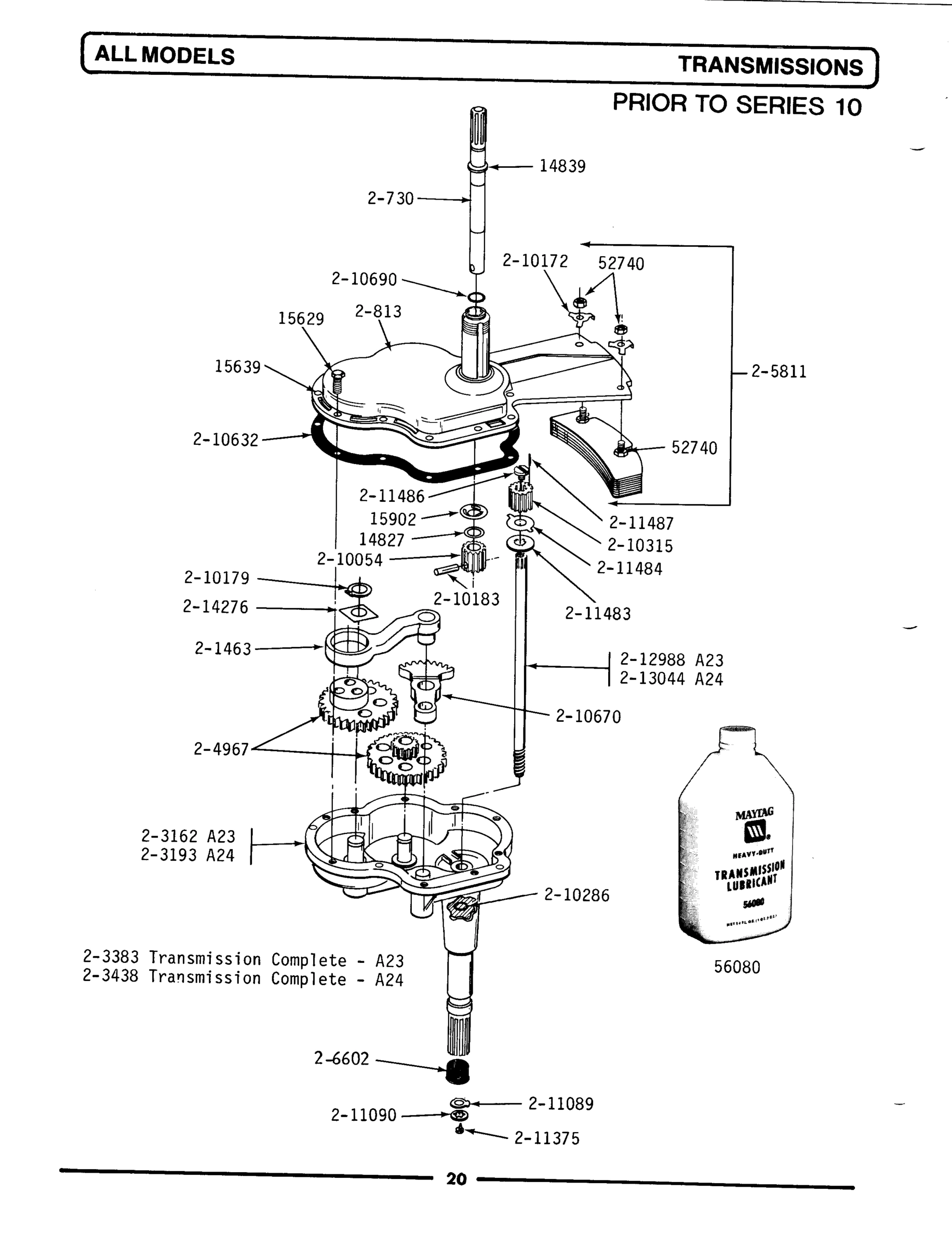

06 - TRANSMISSION

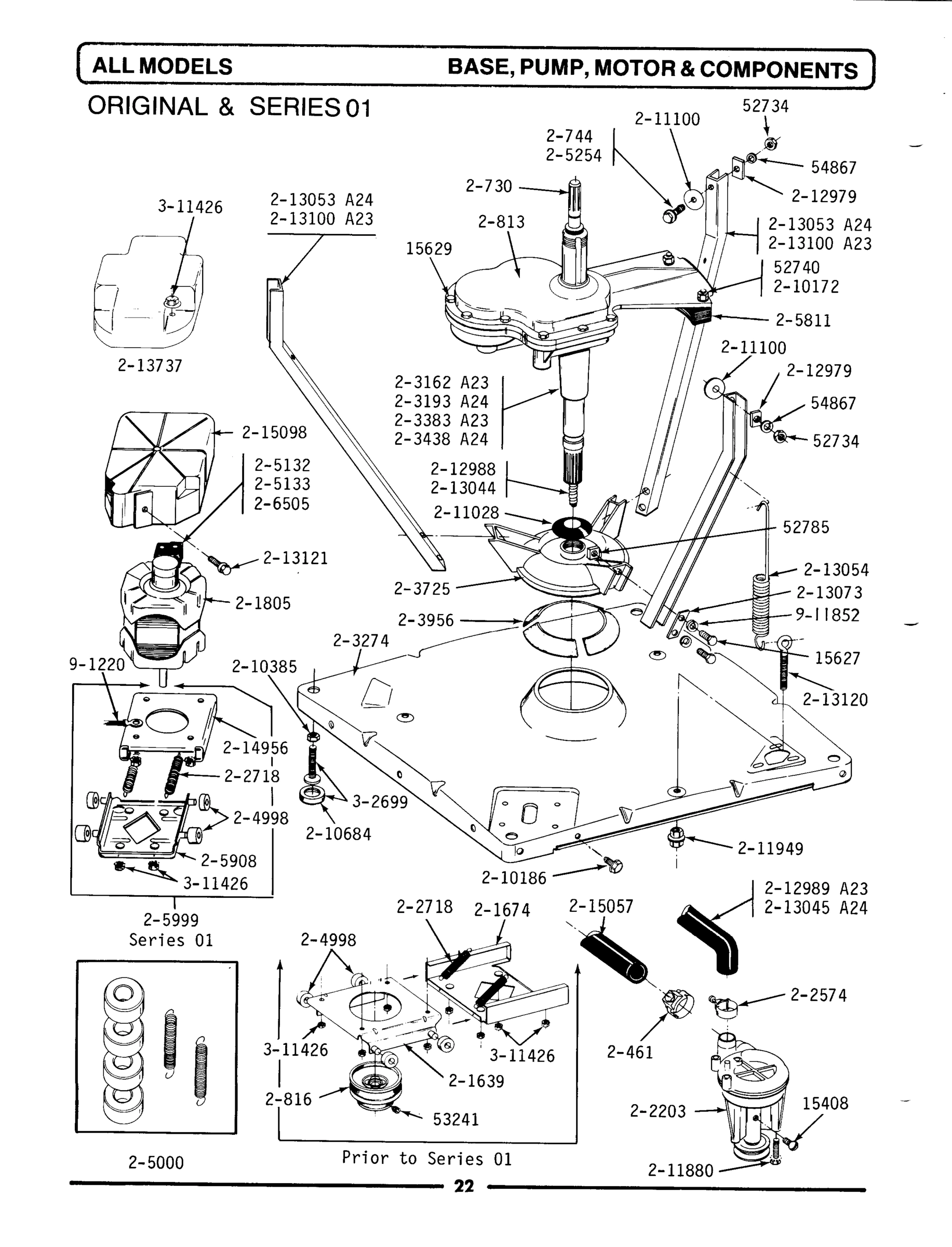

07 - BASE, PUMP, MOTOR & COMPONENTS

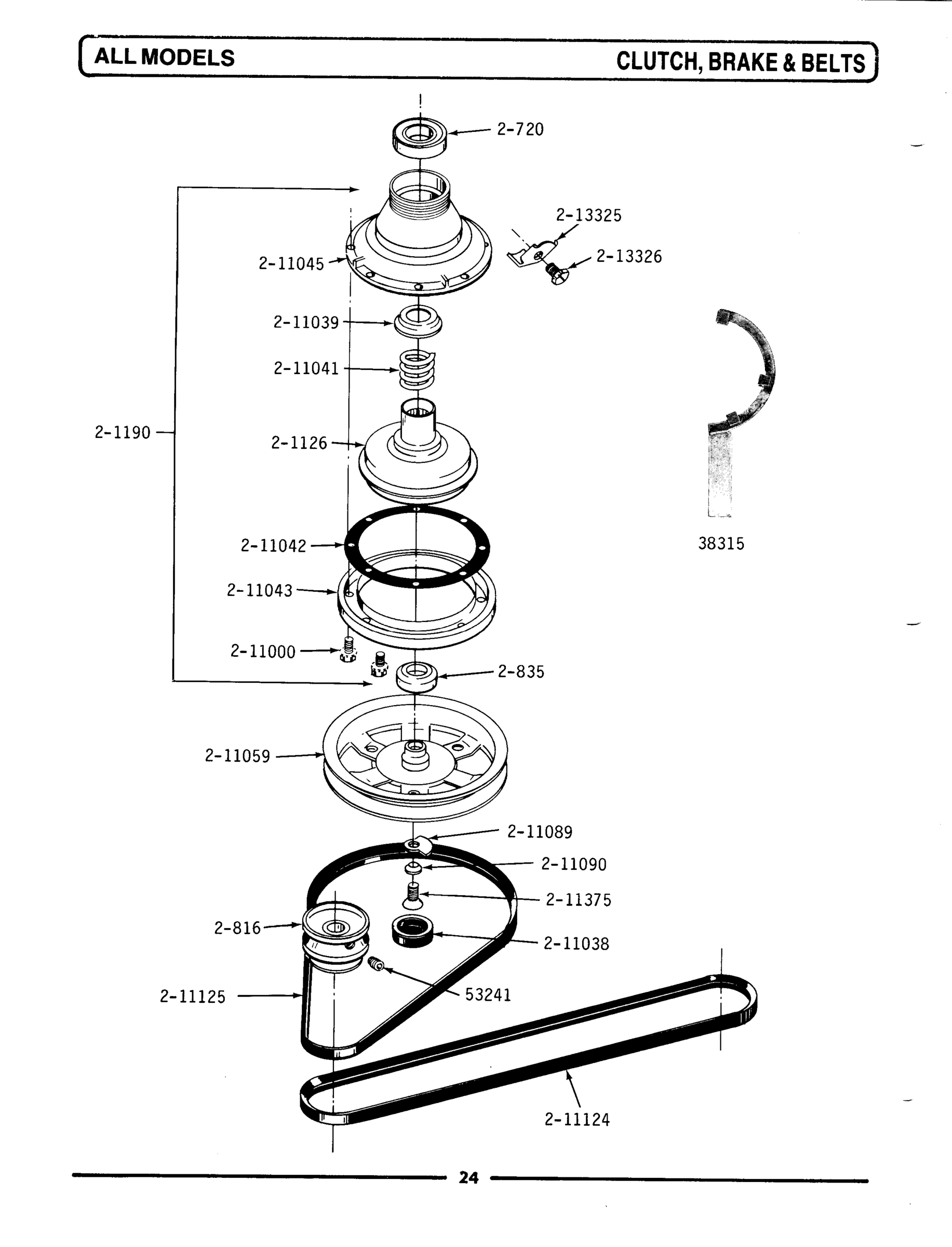

08 - CLUTCH, BRAKE & BELTS

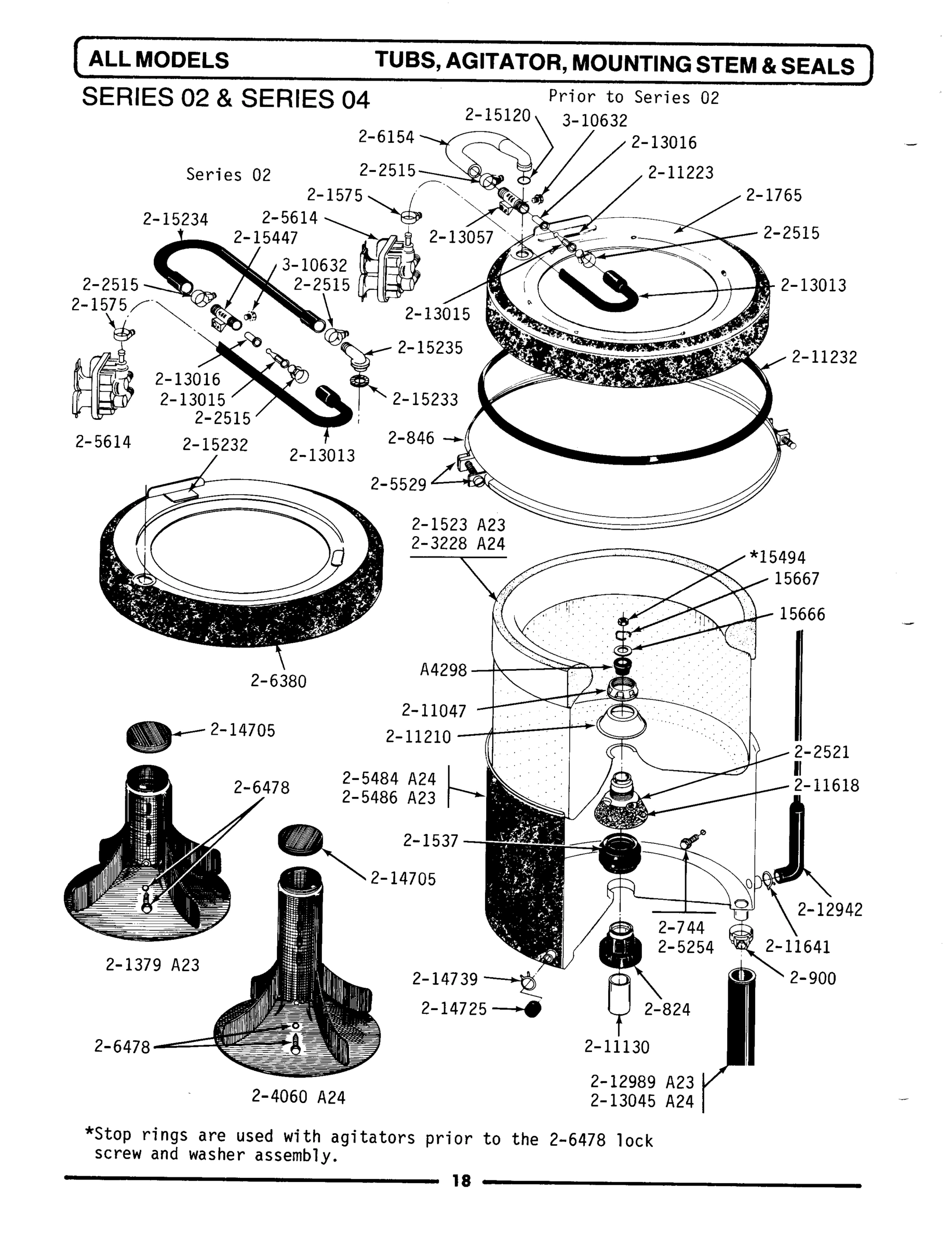

05 - TUB, AGITATOR, MOUNTING STEM & SEAL

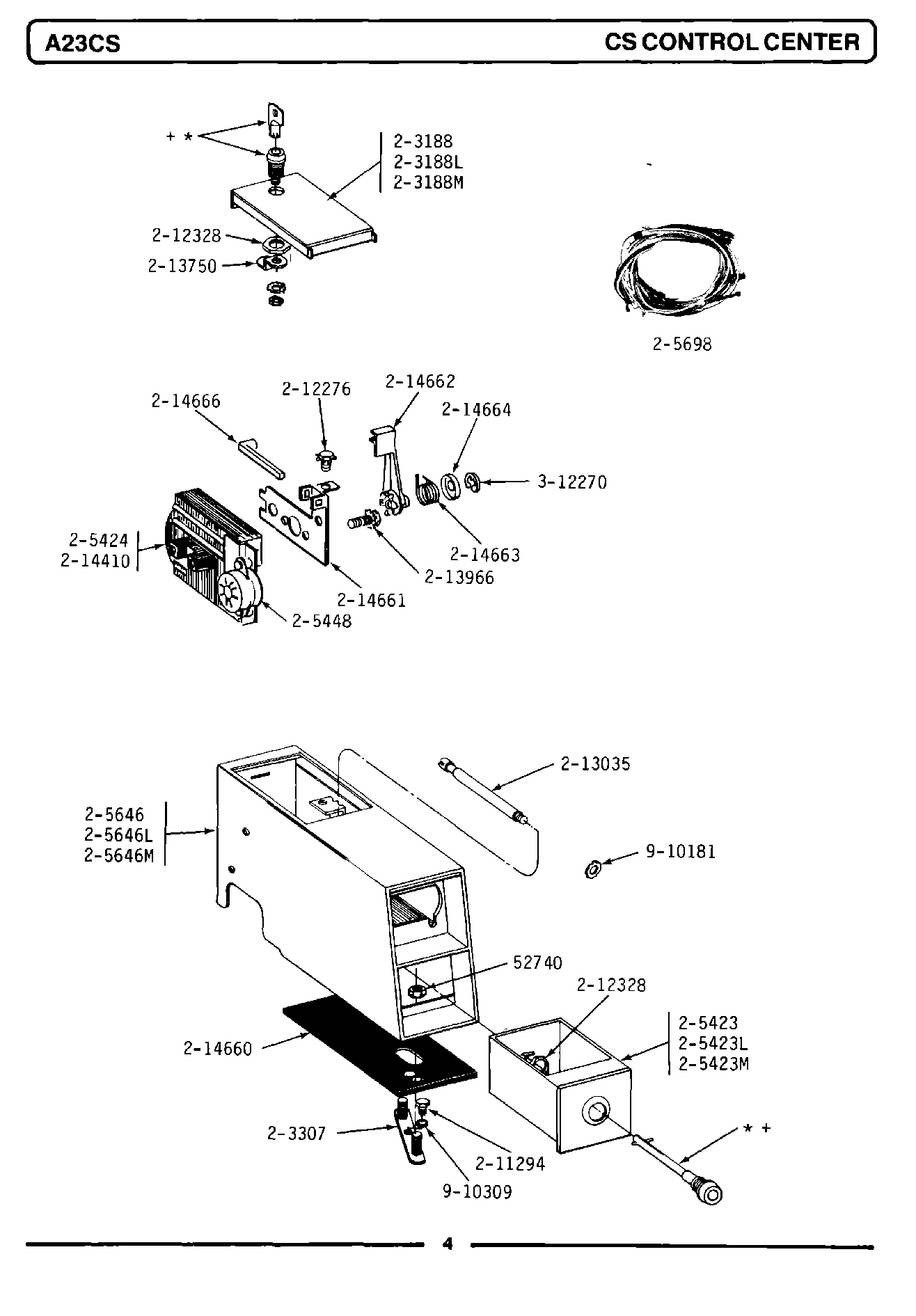

02 - CS CONTROL CENTER

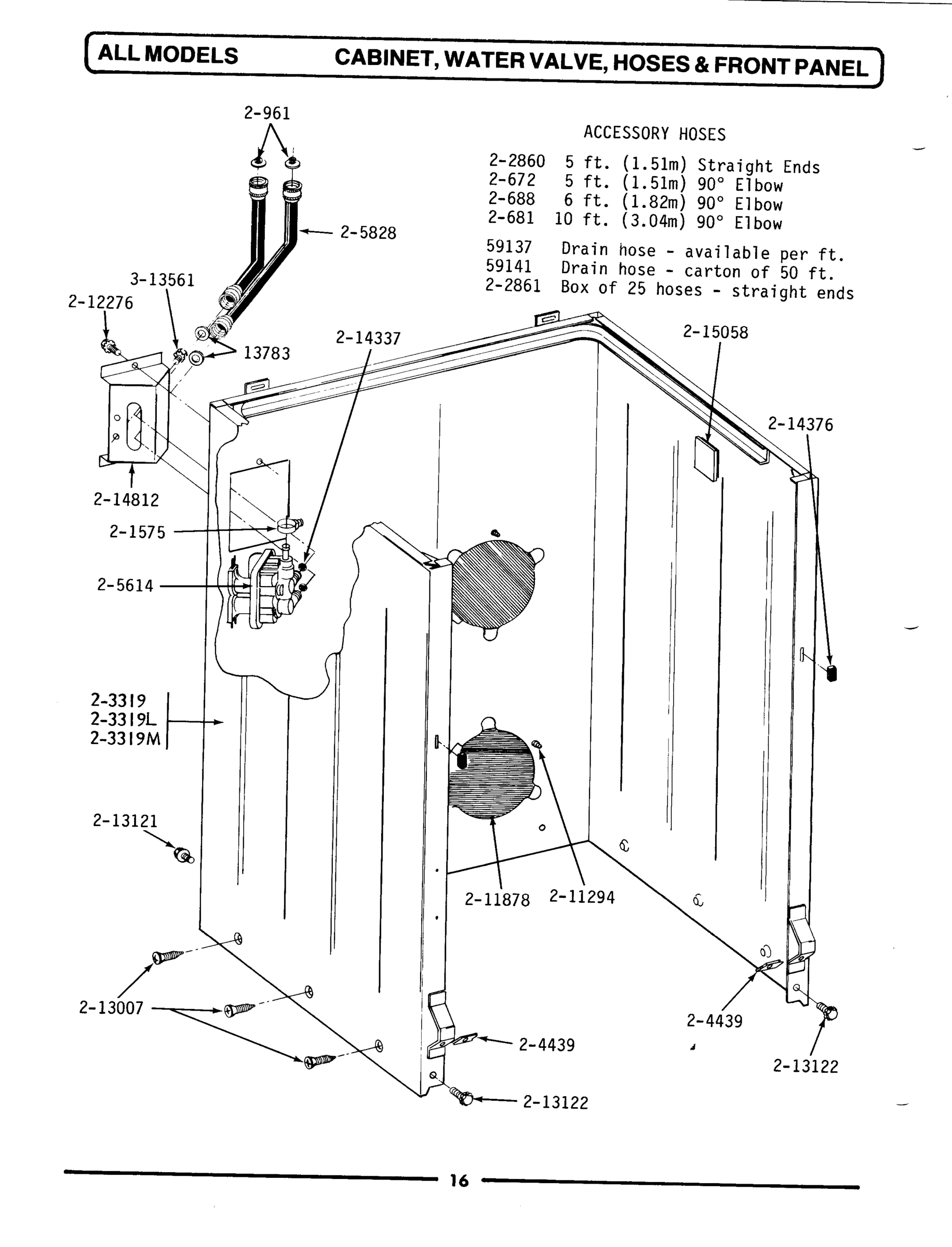

04 - CABINET, WATER VALVE, HOSES & FRNT PANEL

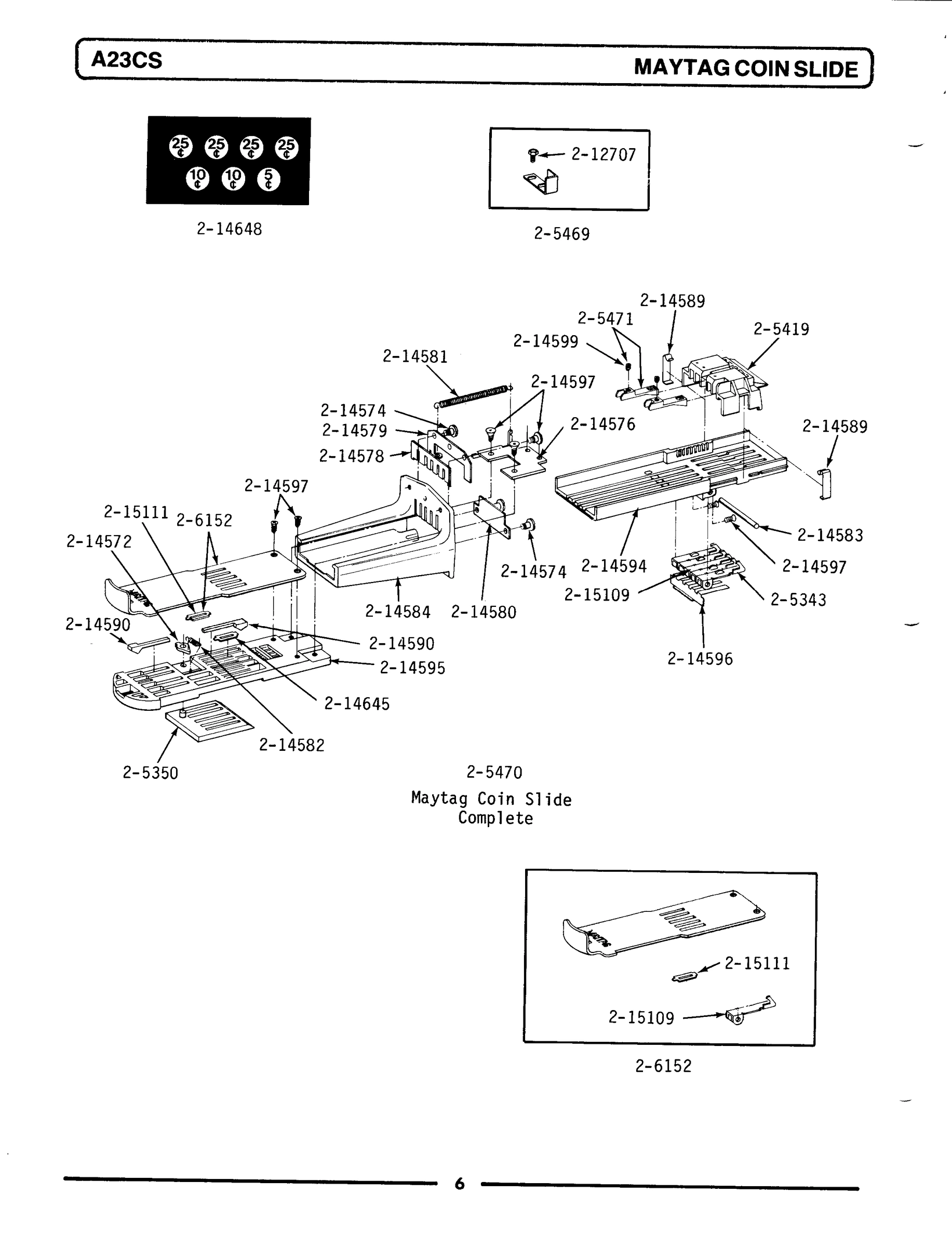

03 - MAYTAG COIN SLIDE
Common parts from model Whirlpool A23CSL WASHER
001
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
001
TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability
001
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
001
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
002
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
002
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
002
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
003
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
003
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
003
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
003
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
004
NUT WPL Y052734 Contact Us For Availability
004
WASHER, LOCK WPL Y054867 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
004
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
004
ACTUATOR KIT FOR COIN SLIDE WPL 205469 Contact Us For Availability
005
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
005
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
006
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
006
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
006
COIN BOX-WHITE WPL 205423 Contact Us For Availability
006
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
007
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
007
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
007
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
007
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
007
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
008
TIMER WPL 205424 Contact Us For Availability
008
CAPACITOR WPL Y200832 Contact Us For Availability
009
AGITATOR - BLACK WPL 201379 Contact Us For Availability
009
TIMER & ACTUATOR ASSEMBLY WPL 205426 Contact Us For Availability
009
RATCHET ARM WPL 214572 Contact Us For Availability
010
AGITATOR SHAFT WPL 200730 Contact Us For Availability
010
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
010
TIMER MOTOR 120-60 WPL 205448 Contact Us For Availability
010
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
011
SPRING, BRAKE WPL 211041 Contact Us For Availability
011
OUTER CASE-WHITE WPL 205646 Contact Us For Availability
012
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
012
SEAL AND SPRING WPL 201537 Contact Us For Availability
012
OUTER CASE-ALMOND WPL 205646L Contact Us For Availability
012
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
013
MAIN WIRE HARNESS WPL 205698 Contact Us For Availability
013
DRUM, BRAKE WPL 211043 Contact Us For Availability
014
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
014
HOUSING, BRAKE WPL 211045 Contact Us For Availability
014
TUB COVER WPL 201765 Contact Us For Availability
015
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
015
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
015
No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability
015
RETURN SPRING WPL 214581 Contact Us For Availability
016
MOUNTING STEM WPL 202521 Contact Us For Availability
016
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
017
PUMP AS PAK WPL 202203 Contact Us For Availability
017
BOLT, LOCKING WPL 213035 Contact Us For Availability
018
PINION WPL 210054 Contact Us For Availability
018
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
018
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
018
SPRING CLIP WPL 214589 Contact Us For Availability
020
TIMER CAUTION LABEL WPL 214410 Contact Us For Availability
020
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
021
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
021
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
021
GASKET, METER CASE WPL 214660 Contact Us For Availability
021
CAPACITOR KIT WPL 206103 Contact Us For Availability
022
SEAL WPL 210286 Contact Us For Availability
022
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
022
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
022
BRACKET FOR TIMER WPL 214661 Contact Us For Availability
022
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
023
GROMMET, CORD WPL 211881 Contact Us For Availability
023
TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability
023
PINION WPL 210315 Contact Us For Availability
023
TUB, OUTER WPL 205486 Contact Us For Availability
023
PIVOT ARM FOR TIMER WPL 214662 Contact Us For Availability
023
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
023
SCREW WPL 214597 Contact Us For Availability
024
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
024
GASKET WPL 210632 Contact Us For Availability
024
SPRING FOR TIMER LEVER WPL 214663 Contact Us For Availability
025
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
025
SPRING RETAINER FOR TIMER WPL 214664 Contact Us For Availability
025
CLAMP WPL 211448 Contact Us For Availability
026
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
026
SEAL, RUBBER WPL 210690 Contact Us For Availability
026
ARM, ACTUATOR WPL 214666 Contact Us For Availability
026
COINAGE DECAL WPL 214648 Contact Us For Availability
027
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
027
TUB COVER WPL 206380 Contact Us For Availability
027
E CLIP WPL Y312270 Contact Us For Availability
028
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
028
NICKEL INSERT WPL NLA Contact Us For Availability
028
INJECTOR HOSE KIT WPL 206531 Contact Us For Availability
028
LOCK WASHER WPL 910181 Contact Us For Availability
029
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
029
WASHER WPL 910309 Contact Us For Availability
029
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
029
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
030
FRONT PANEL-ALMOND WPL 212998L Contact Us For Availability
031
BUMPER, LID WPL 214610 Contact Us For Availability
031
LUG WASHER WPL 211484 Contact Us For Availability
031
WASHER, CUSHION WPL 211100 Contact Us For Availability
032
UNBALANCE LEVER WPL 214804 Contact Us For Availability
032
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
032
LINER, TUB BEARING WPL 211130 Contact Us For Availability
033
PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability
033
LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability
033
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
034
LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability
034
MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability
034
UNBALANCE BUMPER WPL 211223 Contact Us For Availability
034
GUARD, BELT WPL 213846 Contact Us For Availability
035
BACK UP PLATE-WHITE WPL 214838 Contact Us For Availability
036
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
037
SCREW - LID SWITCH WPL 214884 Contact Us For Availability
037
DRAIN HOSE, 4 FOOT WPL 214768 Contact Us For Availability
038
COVER FOR LID SWITCH WPL 214898 Contact Us For Availability
038
BRACKET,WATER VALVE WPL 214812 Contact Us For Availability
039
LID-WHITE WPL 214901 Contact Us For Availability
039
DRAIN HOSE WPL 215057 Contact Us For Availability
040
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
040
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
041
MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability
041
SCREW WPL Y310842 Contact Us For Availability
042
FASTENER WPL 215003 Contact Us For Availability
042
SCREW----NA WPL Y313561 Contact Us For Availability
044
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
045
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
045
CENTER SHAFT WPL 212988 Contact Us For Availability
045
AGITATOR CAP WPL 214705 Contact Us For Availability
046
CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability
047
FASTENER WPL 410635 Contact Us For Availability
049
UNBALANCE BUMPER WPL 215232 Contact Us For Availability
050
SCREW, PUMP COVER WPL 911267 Contact Us For Availability
050
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
051
WASHER, DOUBLE WPL 213073 Contact Us For Availability
052
BRACE, TUB WPL 213100 Contact Us For Availability
052
INJECTOR TUBE WPL 215235 Contact Us For Availability
054
SCREW WPL Y310632 Contact Us For Availability
055
MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability
056
MOUNT, MOTOR/UPPER WPL 214956 Contact Us For Availability
058
WPL 215098 WPL 215098 Contact Us For Availability
061
WPL 901220 WPL 901220 Contact Us For Availability
062
WPL 911852 WPL 911852 Contact Us For Availability
× ![]()
