Model Whirlpool A105 WASHER – Common Parts &amp; Diagrams

1

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $17.51

1

TIMER MOTOR 120-60 WPL 205410 Contact Us For Availability

1

CONVERTER WPL Y201808 Contact Us For Availability

1

WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability

1

GASKET, INLET HOSE WPL Y013783 Contact Us For Availability

1

TOOL, BRAKE PKG ASSY WPL Y038315 Contact Us For Availability

2

WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability

2

SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability

2

WATER TEMPERATURE SWITCH WPL 206216 Contact Us For Availability

2

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

2

COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability

2

SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability

2

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

PLUNGER & BRACKET ASSEMBLY WPL 204968 Contact Us For Availability

3

WATER LEVEL CONTROL SWITCH WPL 206513 Contact Us For Availability

3

CORD, POWER WPL 205056 Contact Us For Availability

3

BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability

3

BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability

4

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $30.21

4

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

4

TIMER WPL 206686 Contact Us For Availability

4

NUT WPL Y052734 Contact Us For Availability

4

PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability

4

HOUSING, TRANSMISSION WPL 206625 Contact Us For Availability

5

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

5

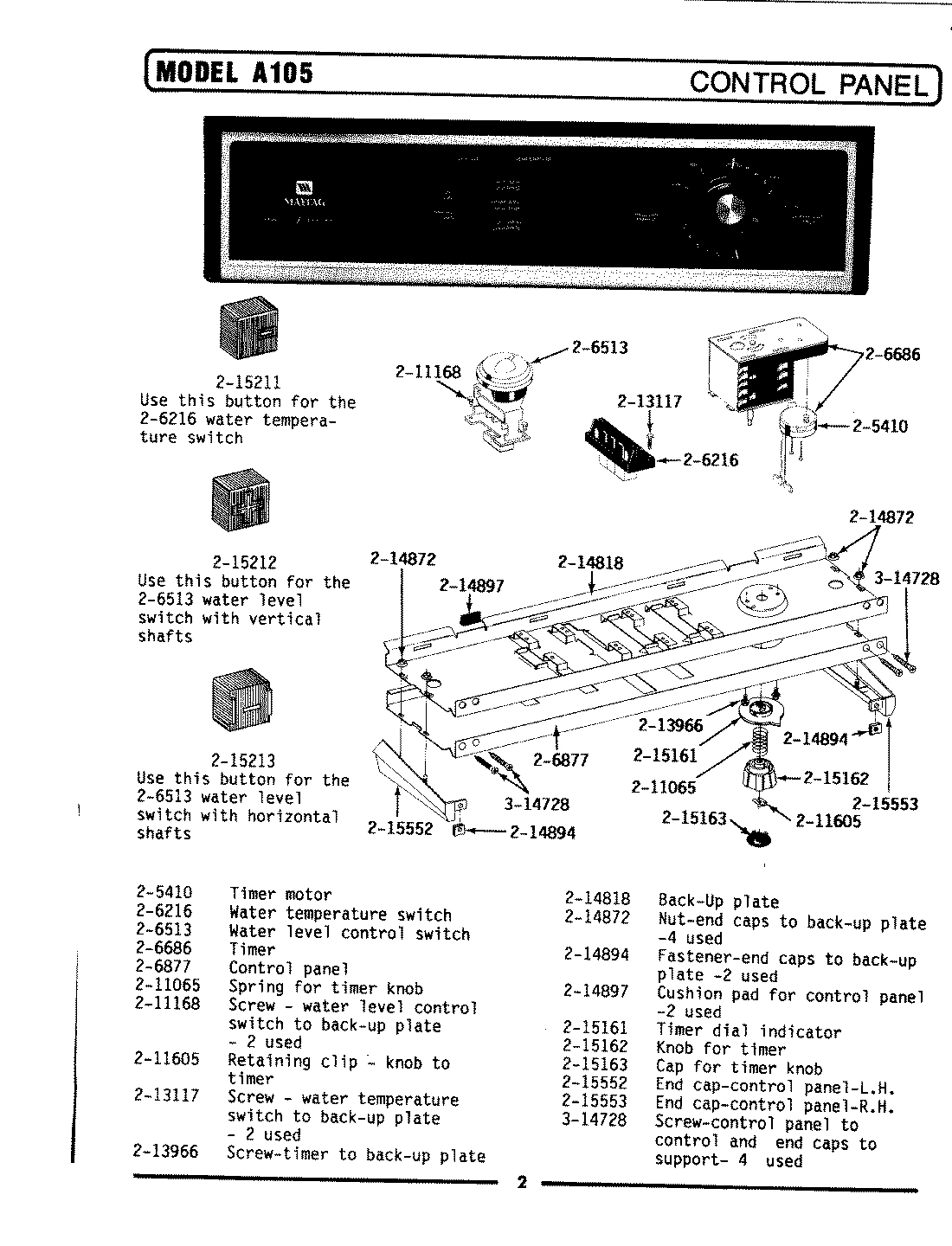

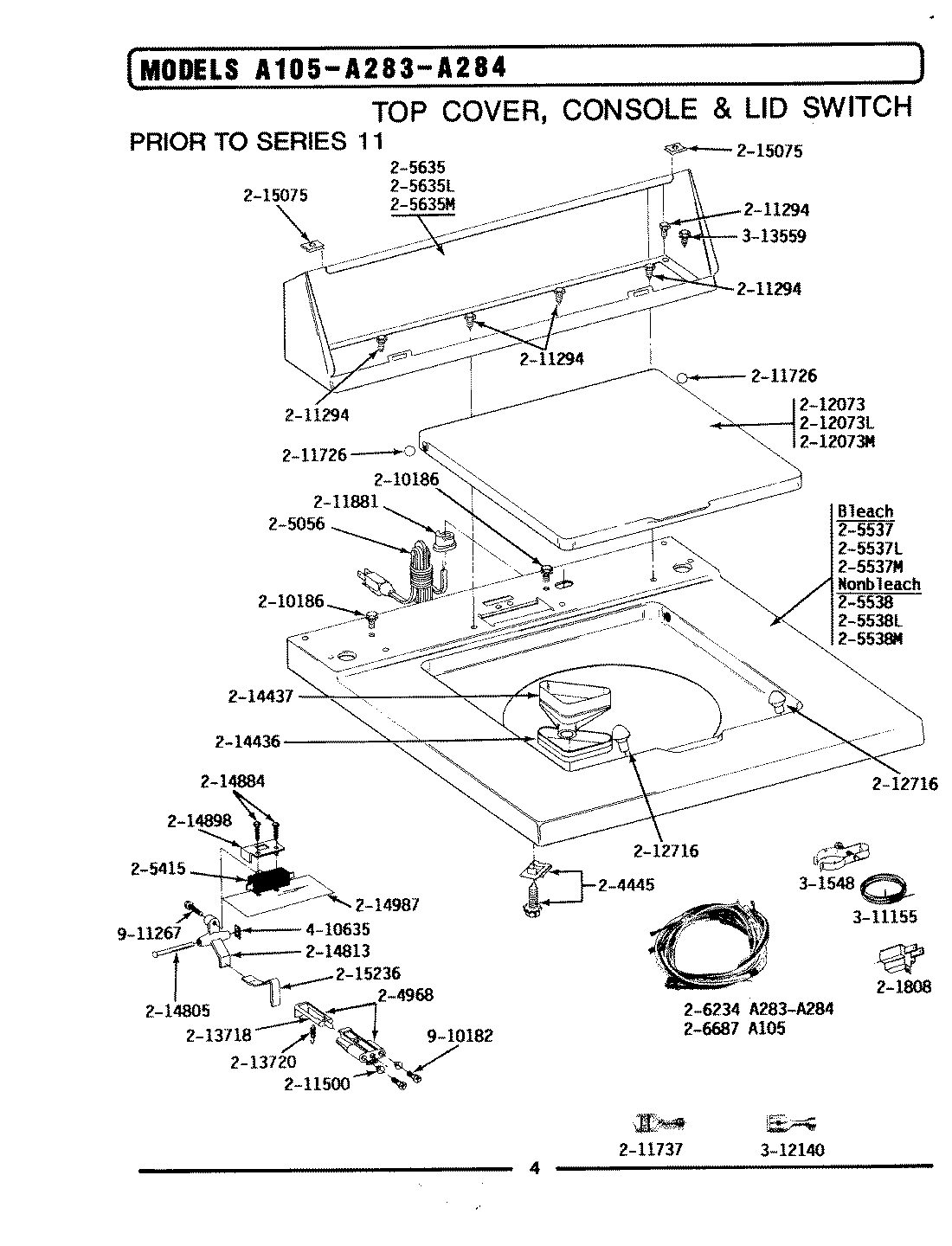

CONTROL PANEL WPL 206877 Contact Us For Availability

5

CONSOLE (WHT) WPL 205635 Contact Us For Availability

5

DOWEL PIN WPL 015639 Contact Us For Availability

5

INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability

5

BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability

5

COVER, TRANSMISSION WPL 206628 Contact Us For Availability

6

WPY206629 Whirlpool Pin Collar Backorder WPL WPY206629 $4.82

6

TOP COVER-WHITE WPL 205538 Contact Us For Availability

6

SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability

6

NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability

6

ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability

7

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

7

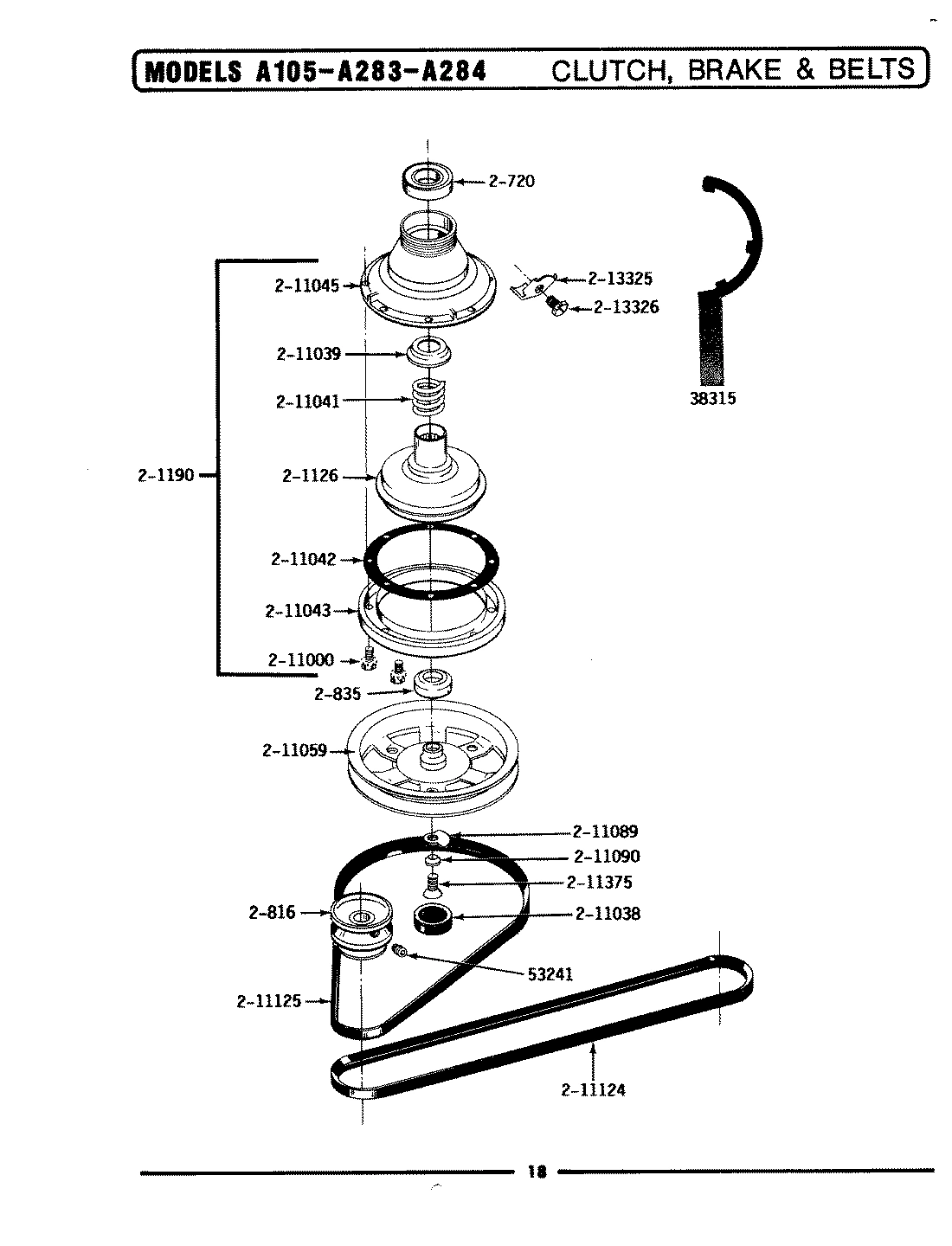

BRAKE ASSEMBLY WPL 201190 Contact Us For Availability

7

BLOCK, TORQUE AND YOKE ASSEMBL WPL 206685 Contact Us For Availability

8

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

8

CLAMP - TUB COVER WPL 200846 Contact Us For Availability

8

RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability

8

TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability

8

NON-BLEACH CONVERSION KIT WPL 205997 Contact Us For Availability

8

LOCK WASHER WPL Y054866 Contact Us For Availability

8

SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability

8

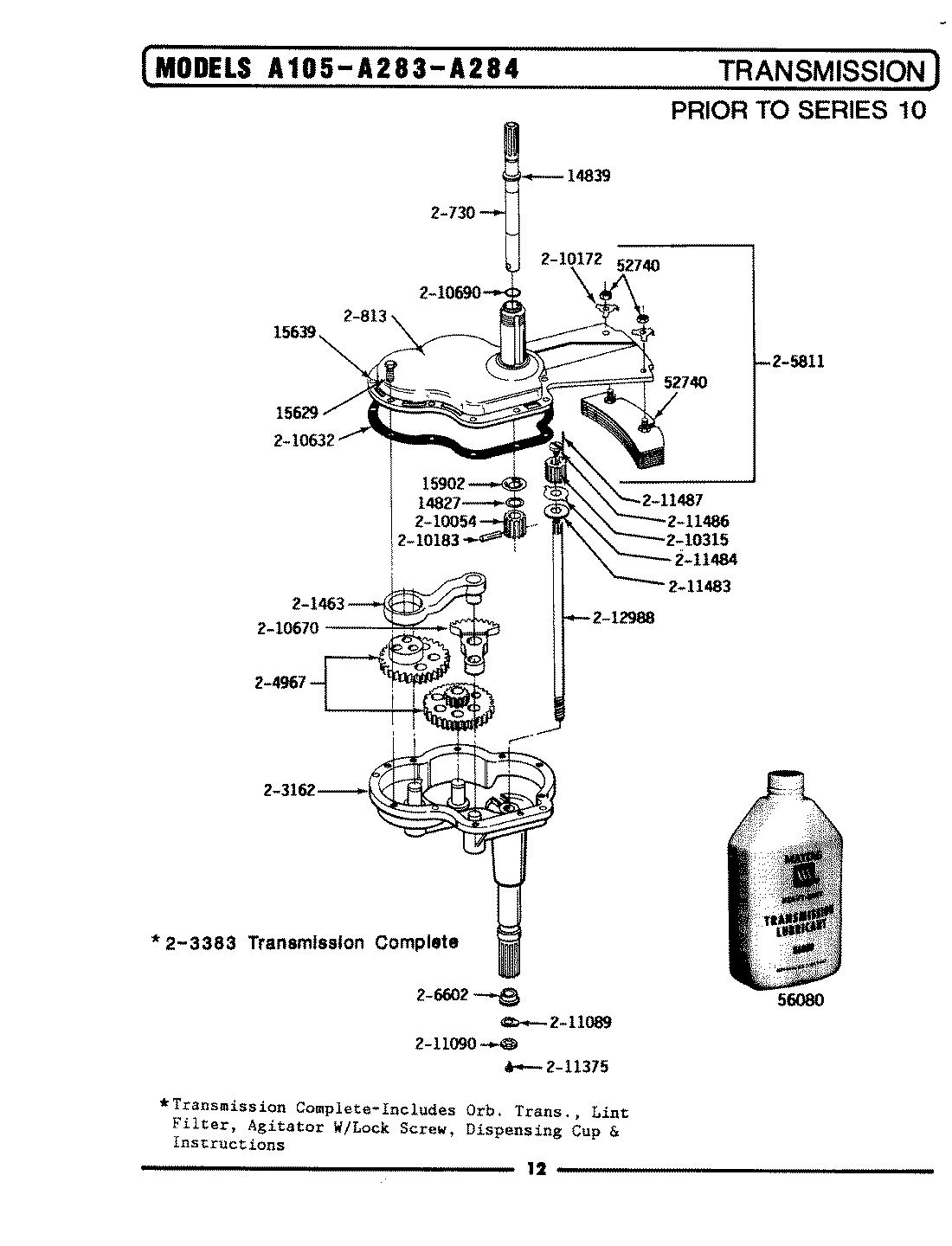

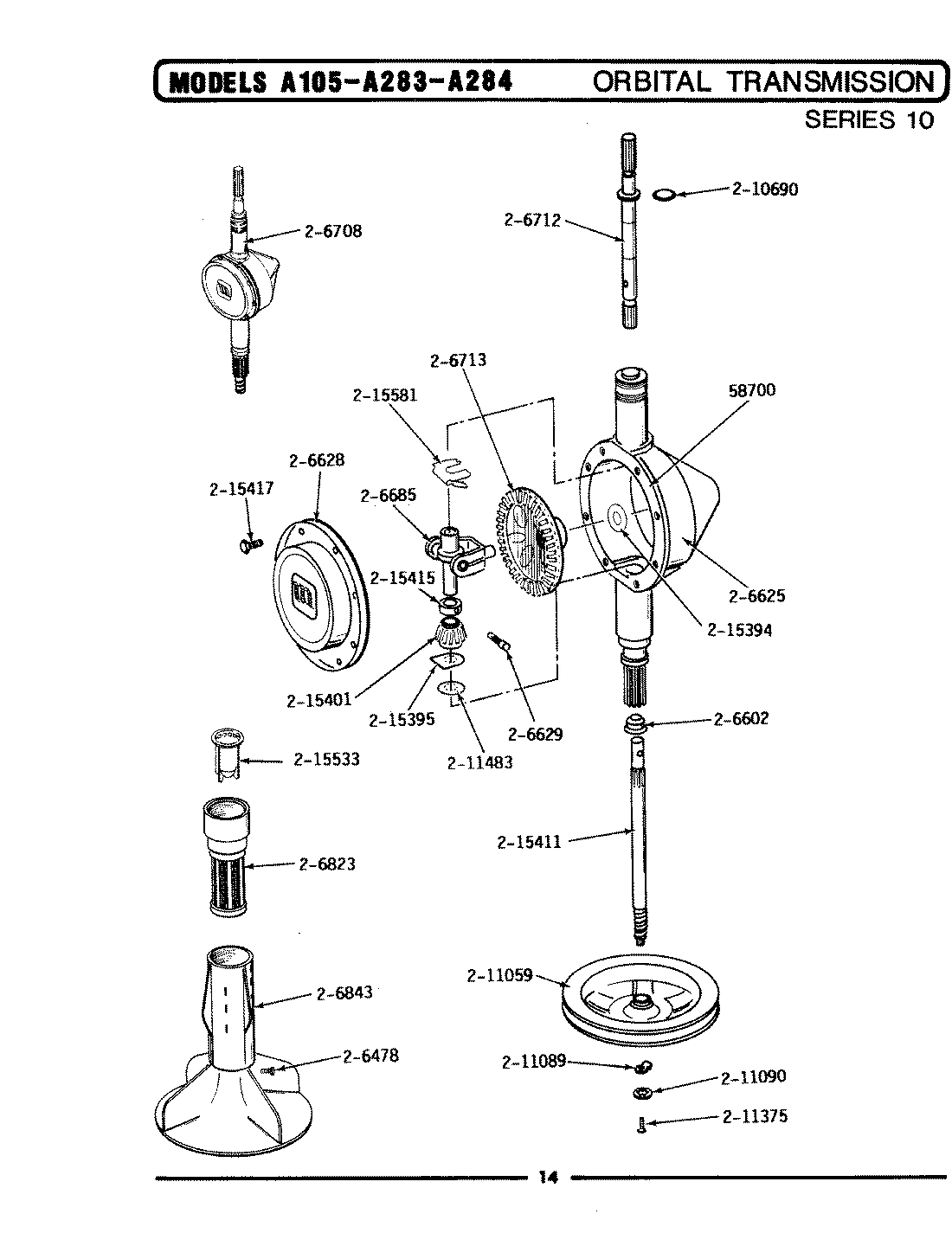

TRANSMISSION WPL 206708 Contact Us For Availability

9

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

9

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

9

WASHER, LOCK WPL Y054867 Contact Us For Availability

9

WIRE HARNESS WPL 206687 Contact Us For Availability

9

CAP, OIL RETAINER WPL 211038 Contact Us For Availability

9

ASSEMBLY, AGITATOR SHAFT WPL 206712 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.40

RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability

GEAR, BEVEL WPL 206713 Contact Us For Availability

WPY207427 Whirlpool Lint Filter Backorder WPL WPY207427 $106.60

BACK UP PLATE WPL 214818 Contact Us For Availability

AGITATOR SHAFT WPL 200730 Contact Us For Availability

PITMAN WITH WRIST PIN WPL 201463 Contact Us For Availability

TOP COVER WPL 207172 Contact Us For Availability

SPRING, BRAKE WPL 211041 Contact Us For Availability

W10175939 Whirlpool Bolt Assembly In Stock WPL W10175939 $4.82

PALNUT, END CAP WPL 214872 Contact Us For Availability

GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability

AGITATOR W/LOCK SCREW/O-RIN WPL 206843 Contact Us For Availability

FASTENER, END CAP WPL 214894 Contact Us For Availability

GEAR CASE COVER ASSEMBLY WPL 200813 Contact Us For Availability

SEAL, RUBBER WPL 210690 Contact Us For Availability

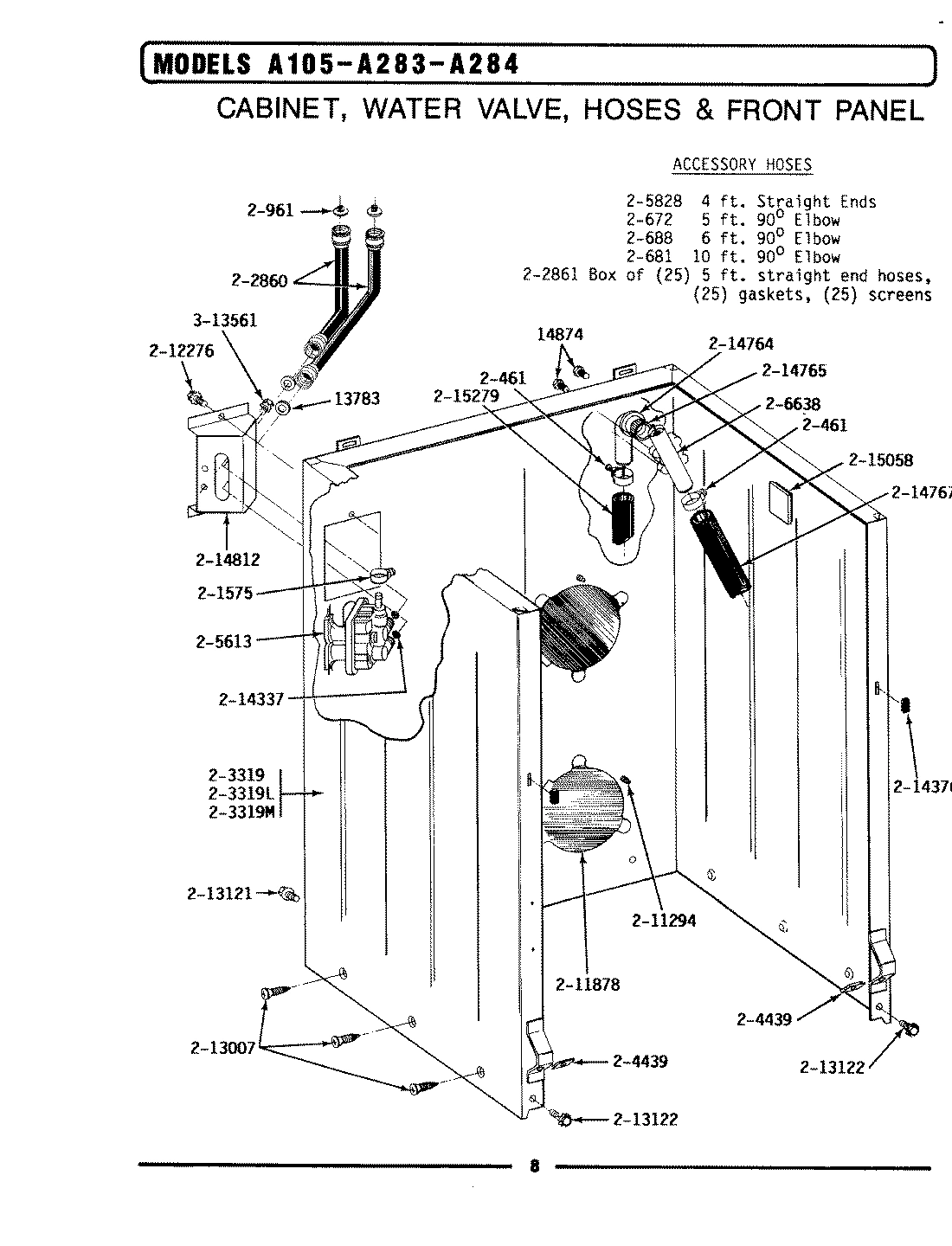

CABINET-WHITE WPL 203319 Contact Us For Availability

DRUM, BRAKE WPL 211043 Contact Us For Availability

WP6-2301530 Whirlpool Pulley Backorder WPL WP6-2301530 $140.51

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability

HOUSING, BRAKE WPL 211045 Contact Us For Availability

15

12002351 Whirlpool Washer Drive Motor and Jum In Stock WPL 12002351 $122.12

15

WP211089 Whirlpool Lug Stop Backorder WPL WP211089 $7.19

15

TIMER DIAL INDICATOR WPL 215161 Contact Us For Availability

WP22003555 Whirlpool Washer ST Backorder WPL WP22003555 $12.87

TIMER KNOB WPL 215162 Contact Us For Availability

WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability

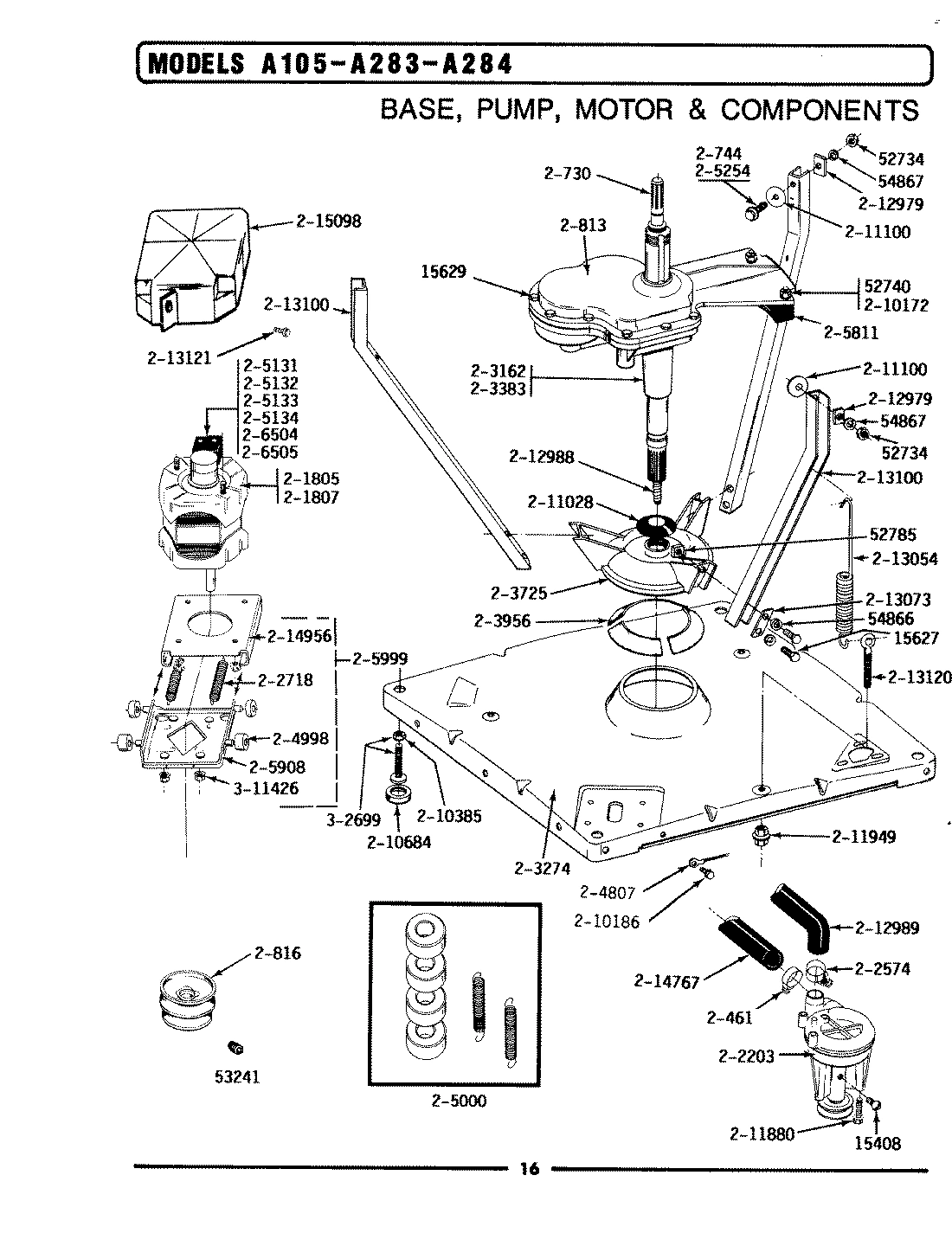

PUMP AS PAK WPL 202203 Contact Us For Availability

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

WP211726 Whirlpool Ball Assembly In Stock WPL WP211726 $5.30

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $4.82

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $4.82

CAP FOR KNOB WPL 215163 Contact Us For Availability

PINION WPL 210054 Contact Us For Availability

12112425 Whirlpool Washer Pump and Drive Belt In Stock WPL 12112425 $19.50

202718 Whirlpool Tension Spring Backorder WPL 202718 $8.52

WP248562 Whirlpool Terminal Backorder WPL WP248562 $4.82

WP6-2114830 Whirlpool Washer Spare Part Backorder WPL WP6-2114830 $4.82

END CAP, L.H. WPL 215552 Contact Us For Availability

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $7.20

END CAP, R.H. WPL 215553 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

GEAR HOUSING W/STUDS & TUBE WPL 203162 Contact Us For Availability

GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability

WASHER, BEVEL GEAR WPL 215394 Contact Us For Availability

206638 Whirlpool Break Siphon Connector Kit In Stock WPL 206638 $43.37

WP215395 Whirlpool Clutch Plate Backorder WPL WP215395 $4.82

SCREW,CTRL.PNL & END CAP(BLK) WPL 314728 Contact Us For Availability

LID-WHITE WPL 212073 Contact Us For Availability

BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability

WPW10221114 Whirlpool Pinion In Stock WPL WPW10221114 $49.02

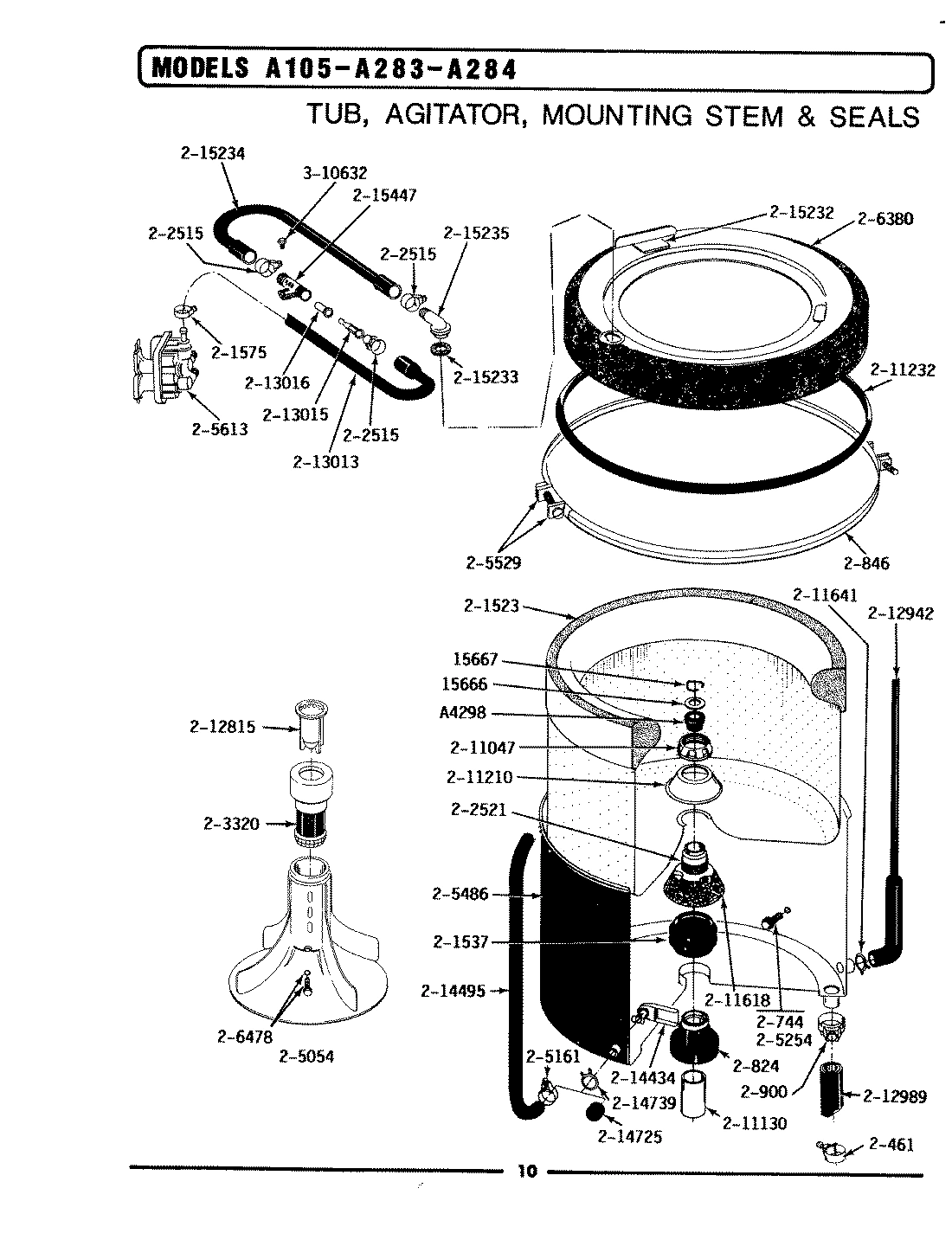

TUB, OUTER WPL 205486 Contact Us For Availability

TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability

PINION WPL 210315 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability

GASKET WPL 210632 Contact Us For Availability

DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability

SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability

SHAFT, CENTER WPL 215411 Contact Us For Availability

203956 Whirlpool Damper Pads 3 Pack with Poly In Stock WPL 203956 $25.53

205613 Whirlpool Washer Water Inlet Valve In Stock WPL 205613 $78.89

WP212716 Whirlpool Lid Bumper In Stock WPL WP212716 $5.30

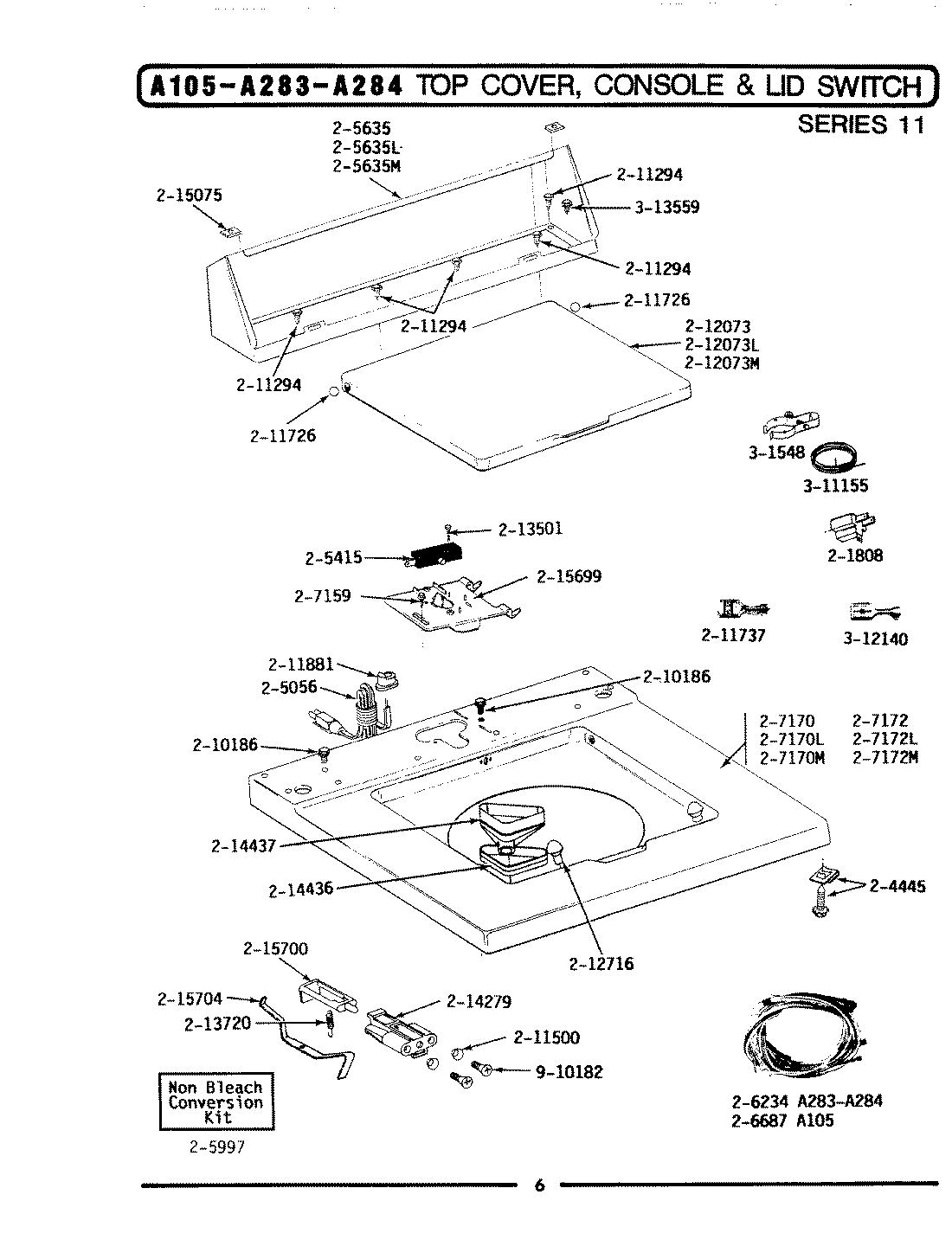

LID SWITCH PLUNGER WPL 213718 Contact Us For Availability

SEGMENT WPL 210670 Contact Us For Availability

PLATE, ACCESS WPL 211878 Contact Us For Availability

COLLAR, LOWER WPL 215415 Contact Us For Availability

TUB COVER WPL 206380 Contact Us For Availability

SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

SCREW, TRANSMISSION COVER WPL 215417 Contact Us For Availability

205000 Whirlpool Motor Spring and Guide Kit Backorder WPL 205000 $45.73

WP213720 Whirlpool Spring Assembly In Stock WPL WP213720 $6.02

PIN FOR UNBALANCE LEVER WPL 214805 Contact Us For Availability

DISPENSER CUP WPL 215533 Contact Us For Availability

26

WP215581 Whirlpool Spring Assembly In Stock WPL WP215581 $6.02

26

LEVER FOR LID SWITCH WPL 214813 Contact Us For Availability

26

BRACKET F/LID SWITCH PLUNGE WPL 214279 Contact Us For Availability

27

SCREW - LID SWITCH WPL 214884 Contact Us For Availability

27

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

27

SWITCH, MOTOR START WPL 205131 Contact Us For Availability

22001678 Whirlpool Switch and Fuse Bracket Backorder WPL 22001678 $20.66

LINER, TUB BEARING WPL 211130 Contact Us For Availability

COVER FOR LID SWITCH WPL 214898 Contact Us For Availability

SWITCH, MOTOR START WPL 205132 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability

MOISTURE BARRIER FOR SWITCH WPL 214987 Contact Us For Availability

LUG WASHER WPL 211484 Contact Us For Availability

LID SWITCH PLUNGER WPL 215700 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205133 Contact Us For Availability

WP211232 Whirlpool Seal In Stock WPL WP211232 $44.89

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $4.26

SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability

UNBALANCE LEVER WPL 215704 Contact Us For Availability

MOTOR EXTERNAL START SWITCH WPL 205134 Contact Us For Availability

22001423 Whirlpool Screw Set Assembly Backorder WPL 22001423 $36.70

W10175938 Whirlpool Bolt In Stock WPL W10175938 $6.02

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $4.82

UNBALANCE LEVER WPL 215236 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

GROOV-PIN WPL 211487 Contact Us For Availability

32

COUNTERWEIGHT WPL 205811 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.86

DISPENSER CUP WPL 212815 Contact Us For Availability

WIRE CONNECTOR WPL Y312140 Contact Us For Availability

LOWER MOTOR MOUNT WPL 205908 Contact Us For Availability

34

WP22001619 Whirlpool Washer Water Level Press In Stock WPL WP22001619 $64.18

34

MOTOR MOUNT ASSM COMPLETE WPL 205999 Contact Us For Availability

34

SPACER, FRONT PANEL WPL 214376 Contact Us For Availability

35

208847 Whirlpool Washer Siphon Break Kit In Stock WPL 208847 $18.92

35

W10756178 Whirlpool Screw Backorder WPL W10756178 $4.55

35

MOTOR EXTERNAL START SWITCH WPL 206504 Contact Us For Availability

WP213013 Whirlpool Injector Hose Backorder WPL WP213013 $31.58

WP214765 Whirlpool Gasket Backorder WPL WP214765 $59.25

FASTENER WPL 410635 Contact Us For Availability

SWITCH, MOTOR START WPL 206505 Contact Us For Availability

37

WP213015 Whirlpool Nozzle Injector Tube In Stock WPL WP213015 $4.82

37

WP22001448 Whirlpool Drain Pump Hose In Stock WPL WP22001448 $52.38

37

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP216201 Whirlpool Rubber Injector Valve In Stock WPL WP216201 $13.69

SCREW, PUMP COVER WPL 911267 Contact Us For Availability

LOCK WASHER WPL 210172 Contact Us For Availability

BRACKET,WATER VALVE WPL 214812 Contact Us For Availability

39

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $4.82

39

CAP FOR SPOUT-OUTER TUB WPL 214725 Contact Us For Availability

39

PAD, CABINET BUMPER WPL 215058 Contact Us For Availability

40

WP210684 Whirlpool Dishwasher Leveling Leg Pa In Stock WPL WP210684 $11.40

40

WP22003410 Whirlpool Drain Hose In Stock WPL WP22003410 $43.54

41

UNBALANCE BUMPER WPL 215232 Contact Us For Availability

41

DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability

41

SCREW----NA WPL Y313561 Contact Us For Availability

42

WASHER, CUSHION WPL 211100 Contact Us For Availability

43

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

43

WPY215234 Whirlpool Hose Backorder WPL WPY215234 $66.30

44

WP211949 Whirlpool Nut Backorder WPL WP211949 $4.82

44

INJECTOR TUBE WPL 215235 Contact Us For Availability

45

WP215447 Whirlpool Sleeve Backorder WPL WP215447 $4.82

45

WASHER, TUB BRACE WPL 212979 Contact Us For Availability

46

SCREW WPL Y310632 Contact Us For Availability

46

CENTER SHAFT WPL 212988 Contact Us For Availability

47

WPY212989 Whirlpool Outer Hose In Stock WPL WPY212989 $39.71

48

CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability

49

WASHER, DOUBLE WPL 213073 Contact Us For Availability

50

BRACE, TUB WPL 213100 Contact Us For Availability

51

W11129403 Whirlpool Bolt Backorder WPL W11129403 $8.89

53

WPL 214956 WPL 214956 Contact Us For Availability

54

WPL 215098 WPL 215098 Contact Us For Availability

56

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $8.94

57

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability

SEAL WPL 210286 Contact Us For Availability

No.17 WIRE WITH TERMINAL WPL 203237 Contact Us For Availability

CAPACITOR KIT WPL 206103 Contact Us For Availability

CLIP, CAPACITOR WPL 211149 Contact Us For Availability

FRONT PANEL-WHITE WPL 212998 Contact Us For Availability

GUARD, BELT WPL 213846 Contact Us For Availability

CAPACITOR WPL Y200832 Contact Us For Availability
