Model Whirlpool 8ET18ZKXDN03 REFRIGERATOR – Common Parts & Diagrams

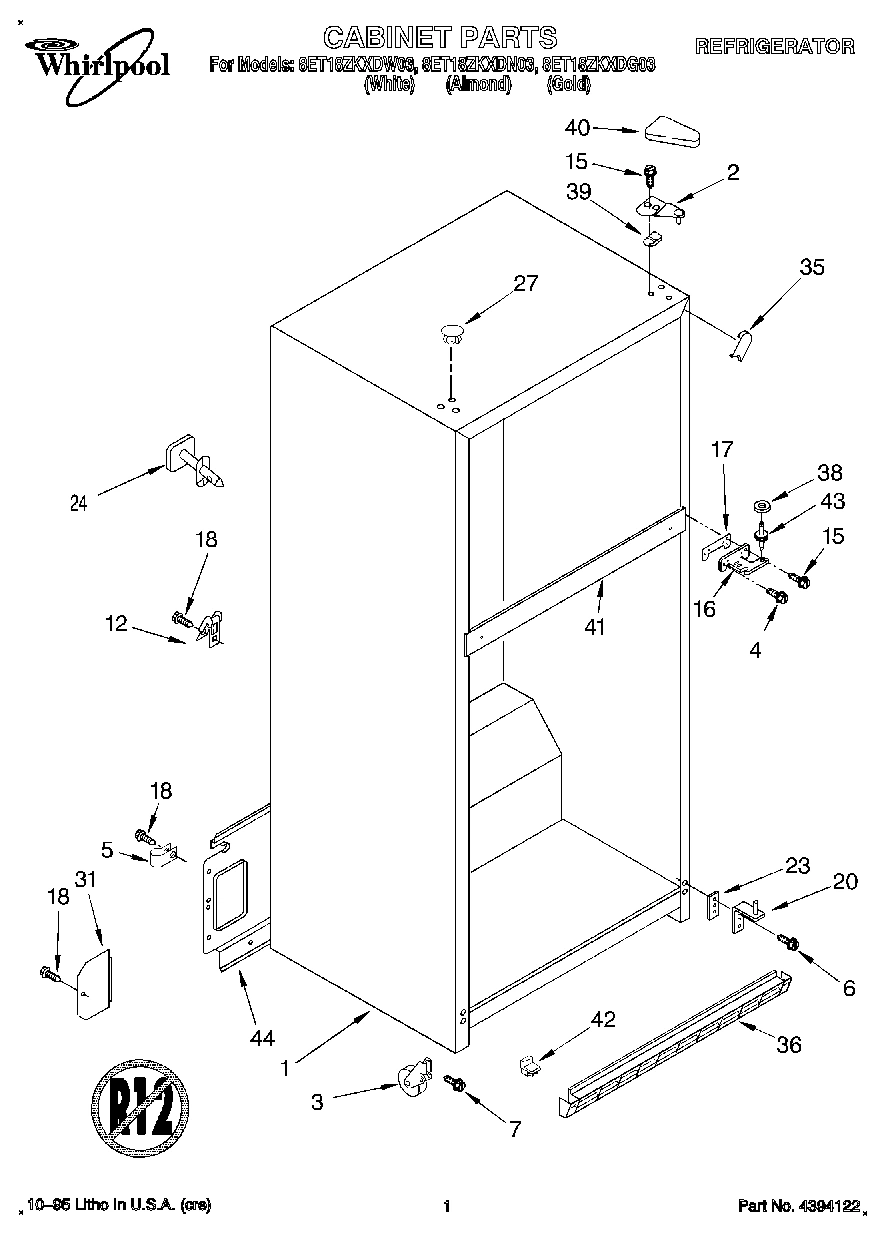

01 - CABINET

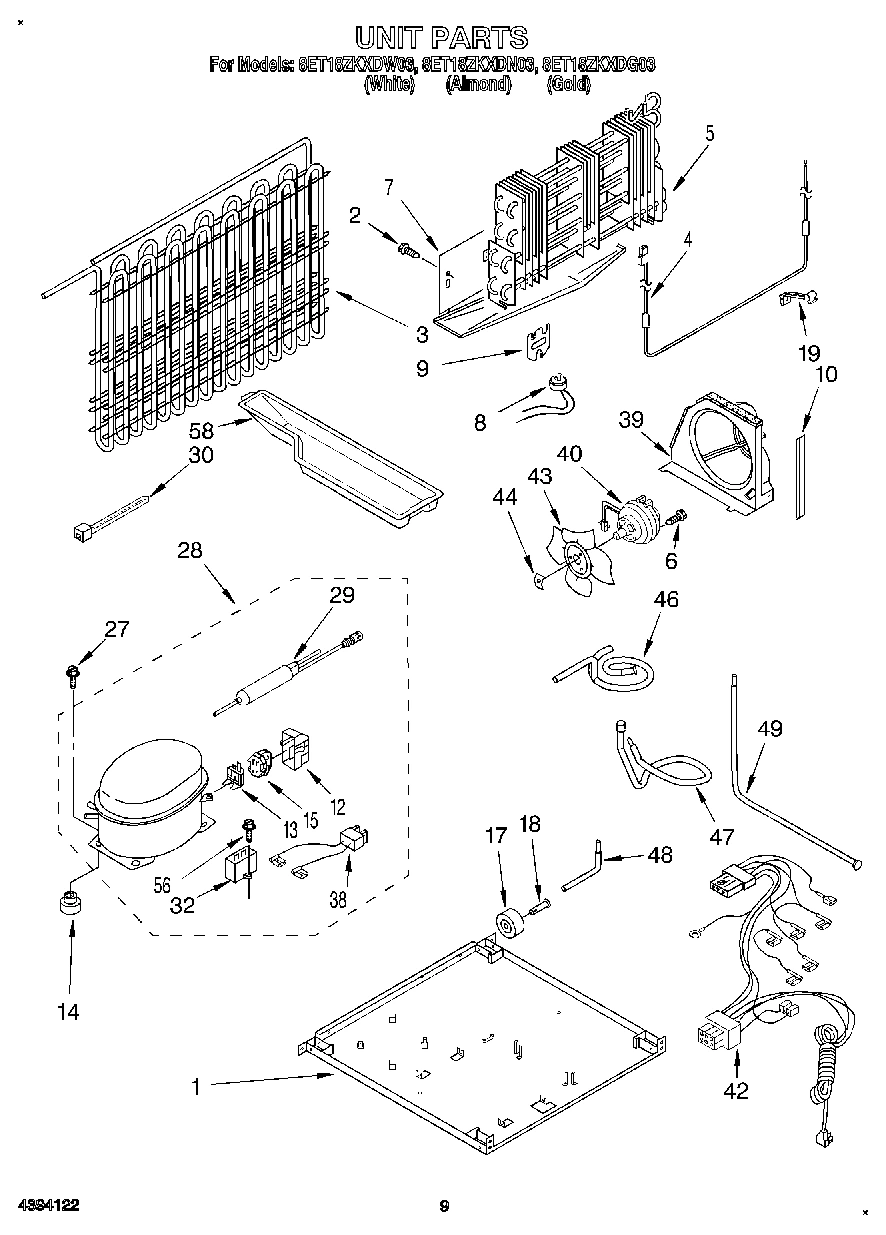

06 - UNIT, LIT/OPTIONAL

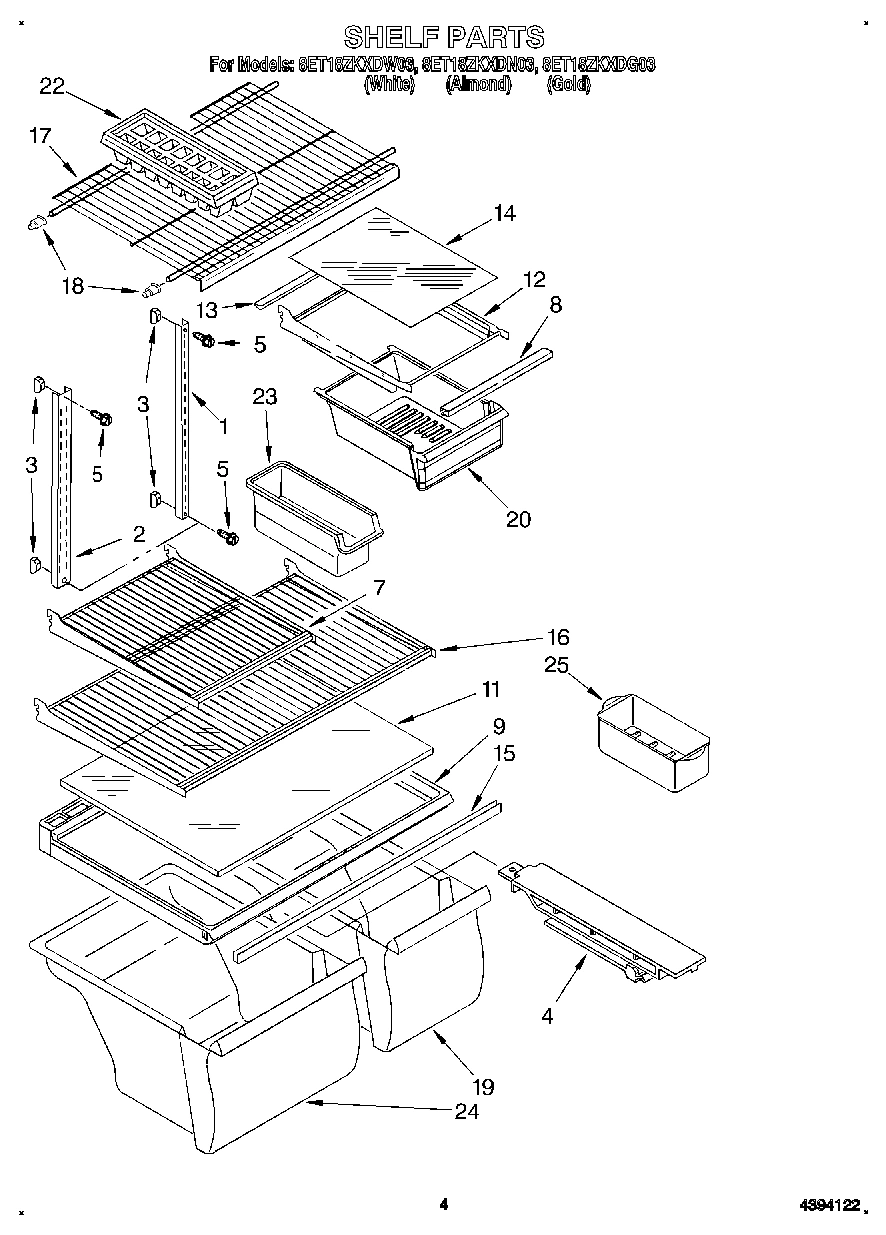

03 - SHELF

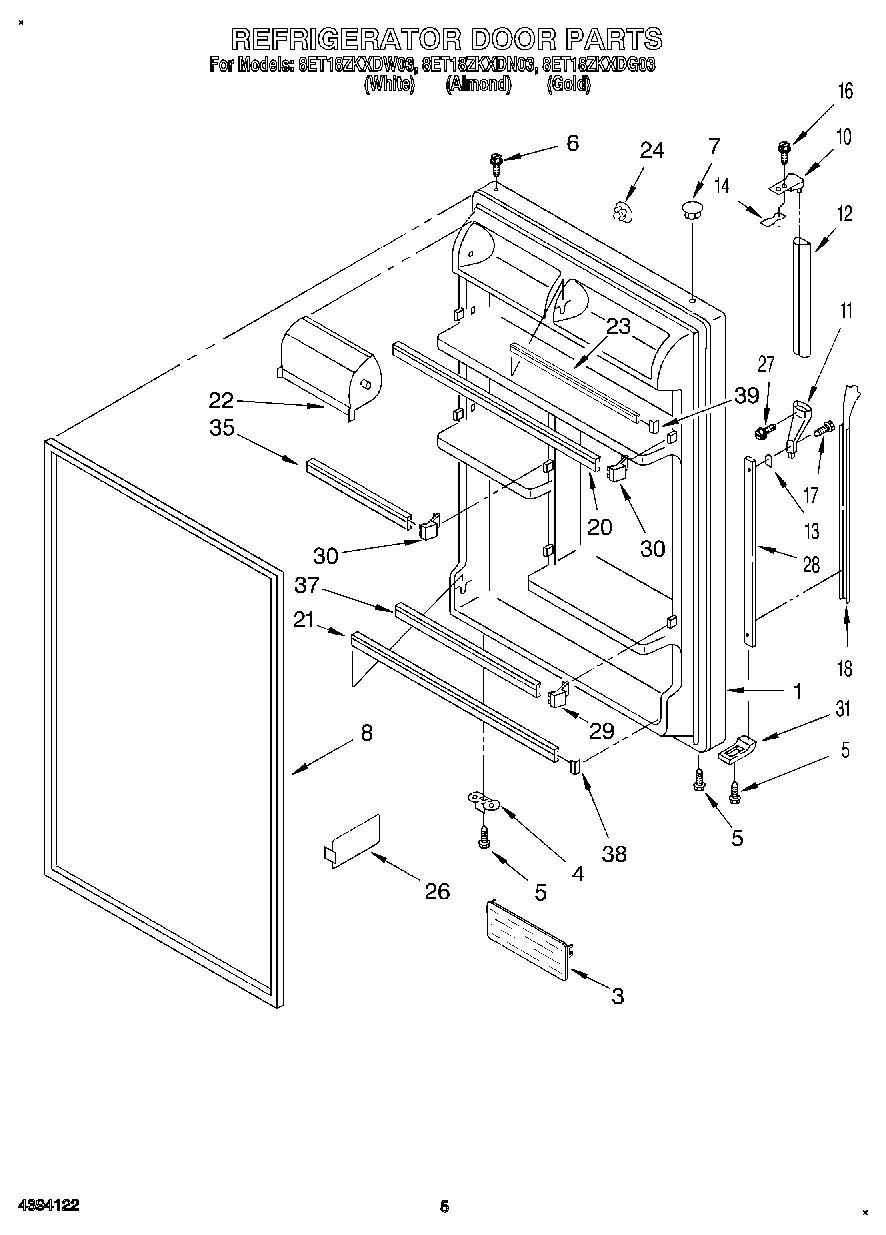

04 - REFRIGERATOR DOOR

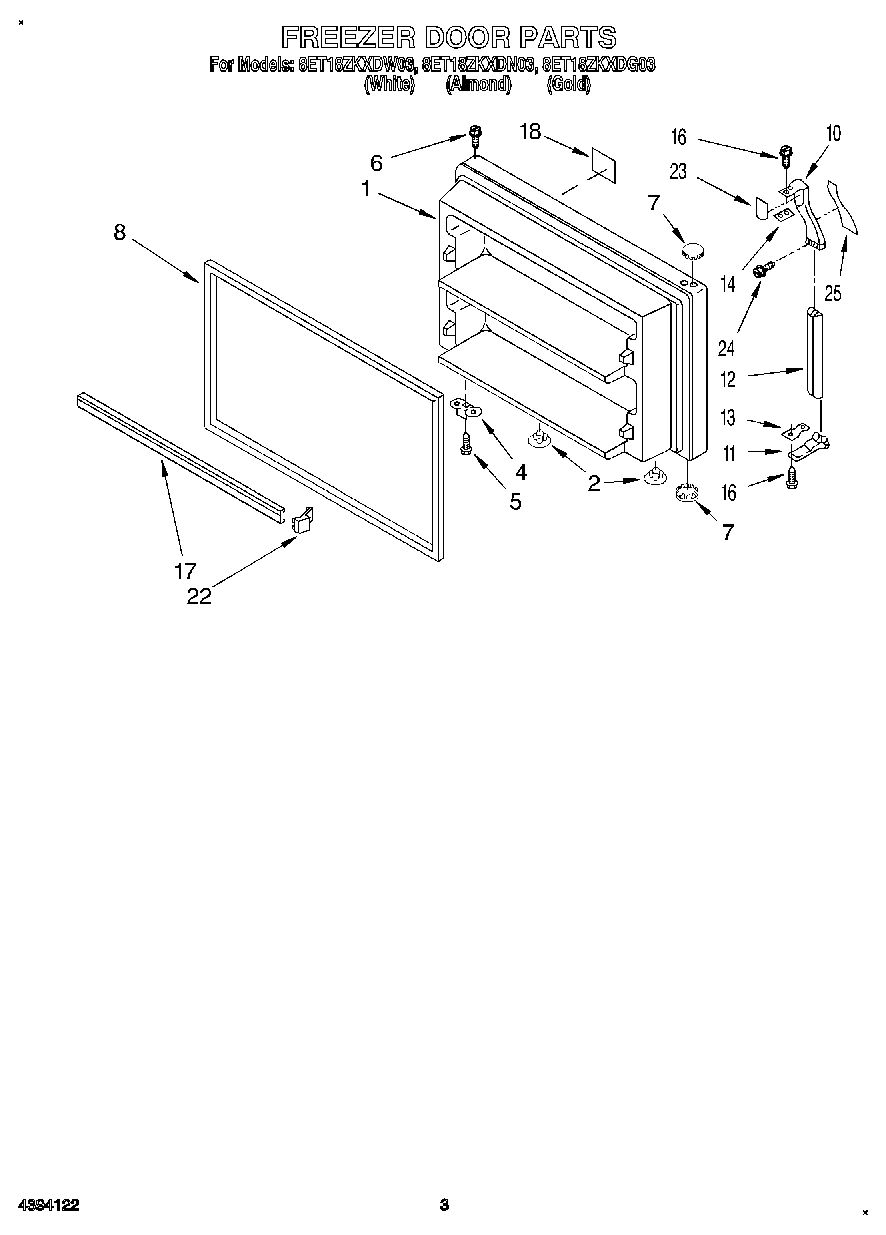

02 - FREEZER DOOR

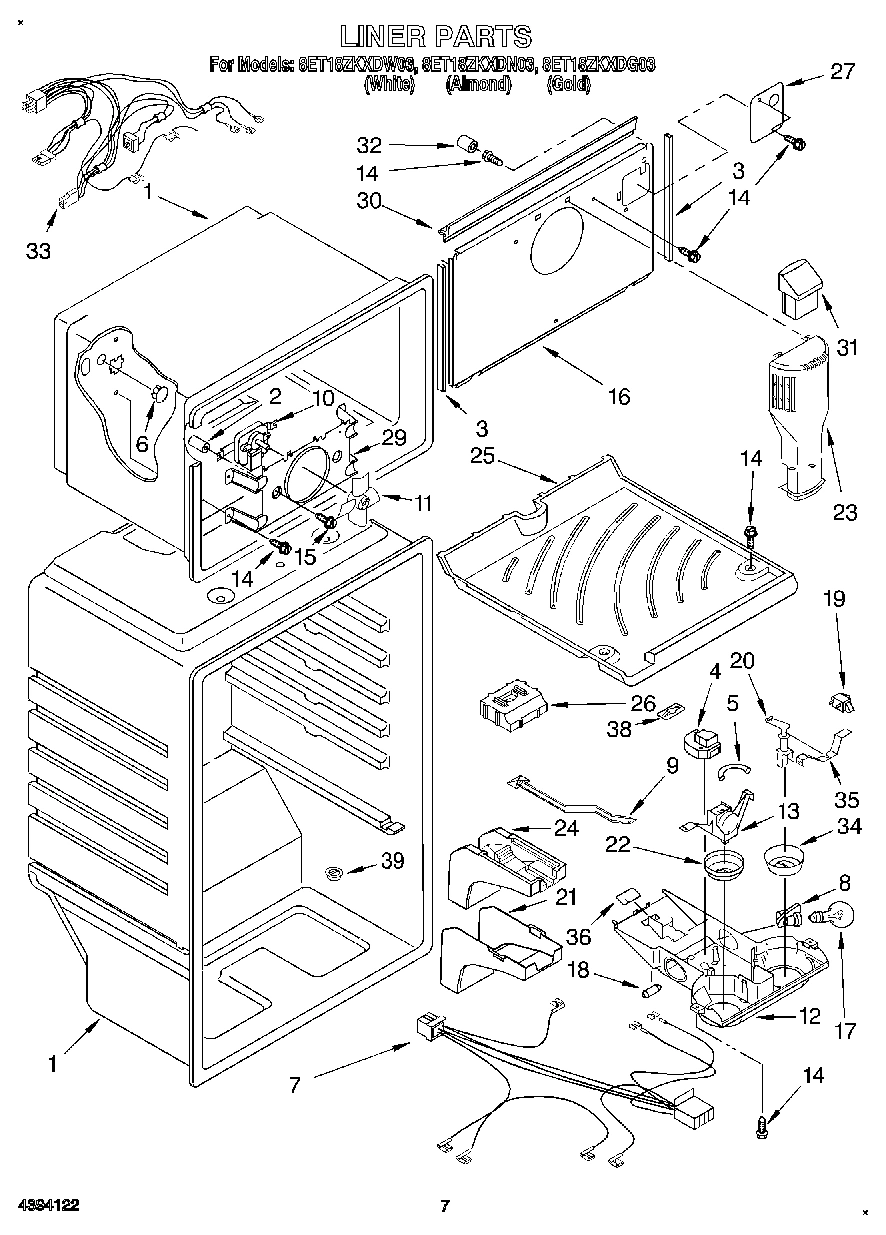

05 - LINER
Common parts from model Whirlpool 8ET18ZKXDN03 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Gold) WPL 2170439 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2171029 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Almond) WPL 2171030 Contact Us For Availability
1
Freezer Door (Includes Item 8) (White) WPL 2159270 Contact Us For Availability
1
Freezer Door (Includes Item 8) (Almond) WPL 2159271 Contact Us For Availability
1
Freezer Door (Includes Item 8) (Gold) WPL 2175872 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143728A Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Bracket, Door Stop (White And Almond Models) WPL 2159368 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
7
Shelf, Cantilever WPL 2163853 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Handle, Center (Black) WPL 1120781 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
12
Handle, Center (Almond) WPL 2170424 Contact Us For Availability
12
Handle, Center (Black) WPL 2173619 Contact Us For Availability
12
Handle, Center (White) WPL 2173622 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Meat Cover WPL 2166216 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163856 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171037 Contact Us For Availability
18
Insert, Handle (Black) WPL 2159416 Contact Us For Availability
18
Insert, Handle (White) WPL 2166438 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
18
Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability
18
Nameplate (White Model) WPL 2165148 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Trim, Door Shelf WPL 2171038 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2184570 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2171040 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Hole Plug, Handle (Gold) WPL 1122694 Contact Us For Availability
24
Screw WPL 489022 Contact Us For Availability
25
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond) WPL 1108830 Contact Us For Availability
25
Insert, Handle (Black) WPL 1114390 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Retainer, Insert WPL 2159417 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2179823 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Trim, Door Shelf WPL 2171039 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
Trim-Door Shelf WPL 2171041 Contact Us For Availability
38
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
42
Wire Assy. Unit WPL 2182376 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
