Model Whirlpool 8ED20ZKXFW00 REFRIGERATOR – Common Parts & Diagrams

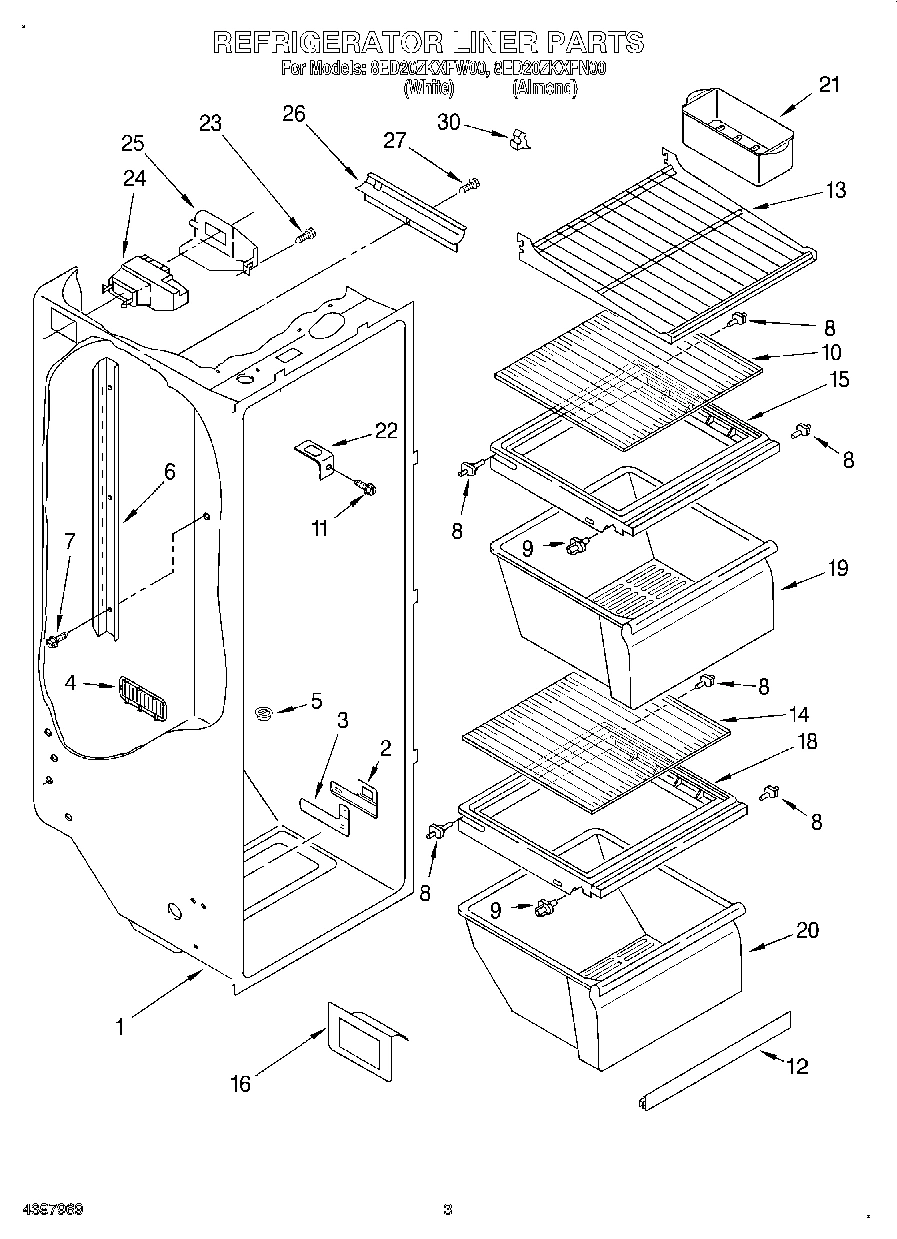

02 - REFRIGERATOR LINER
04 - AIR FLOW

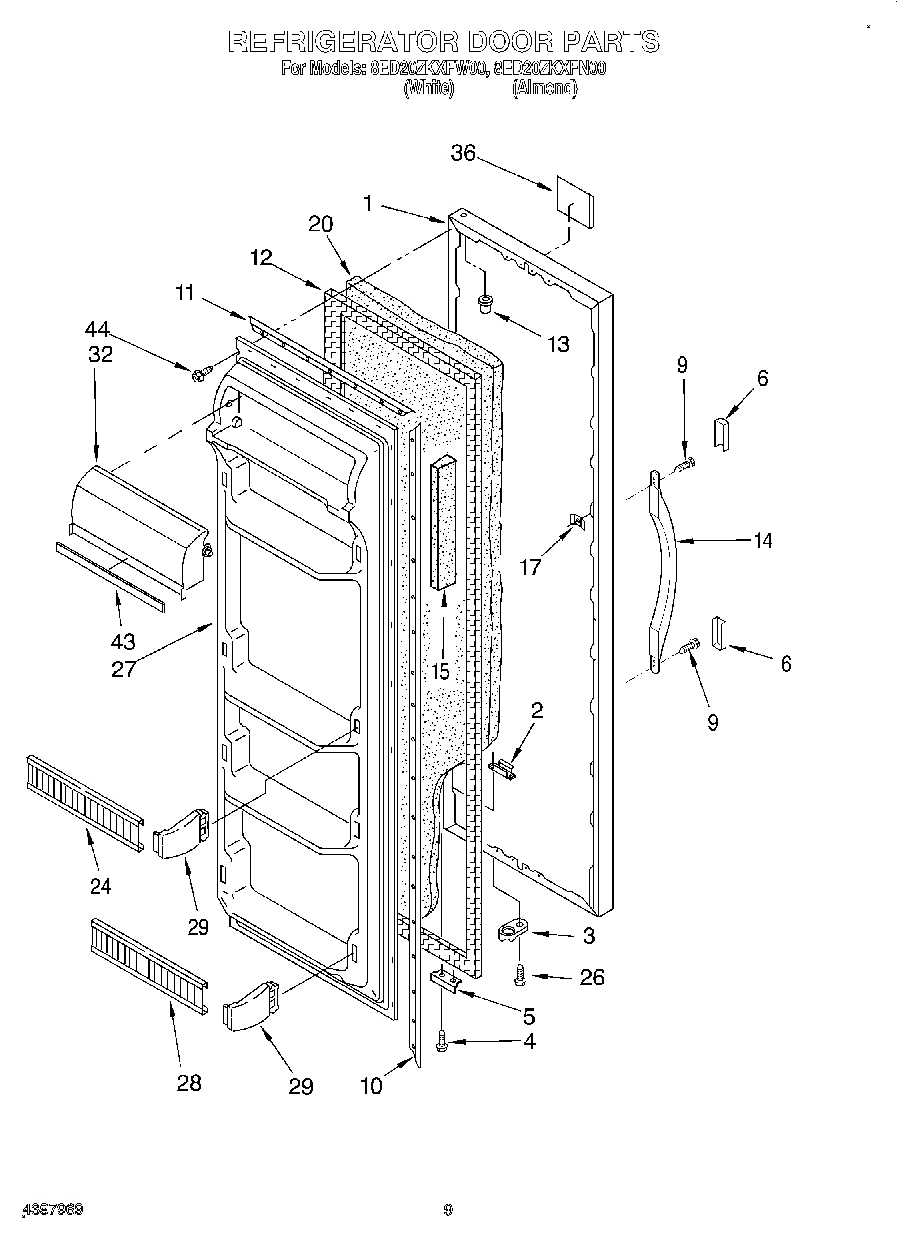

06 - REFRIGERATOR DOOR

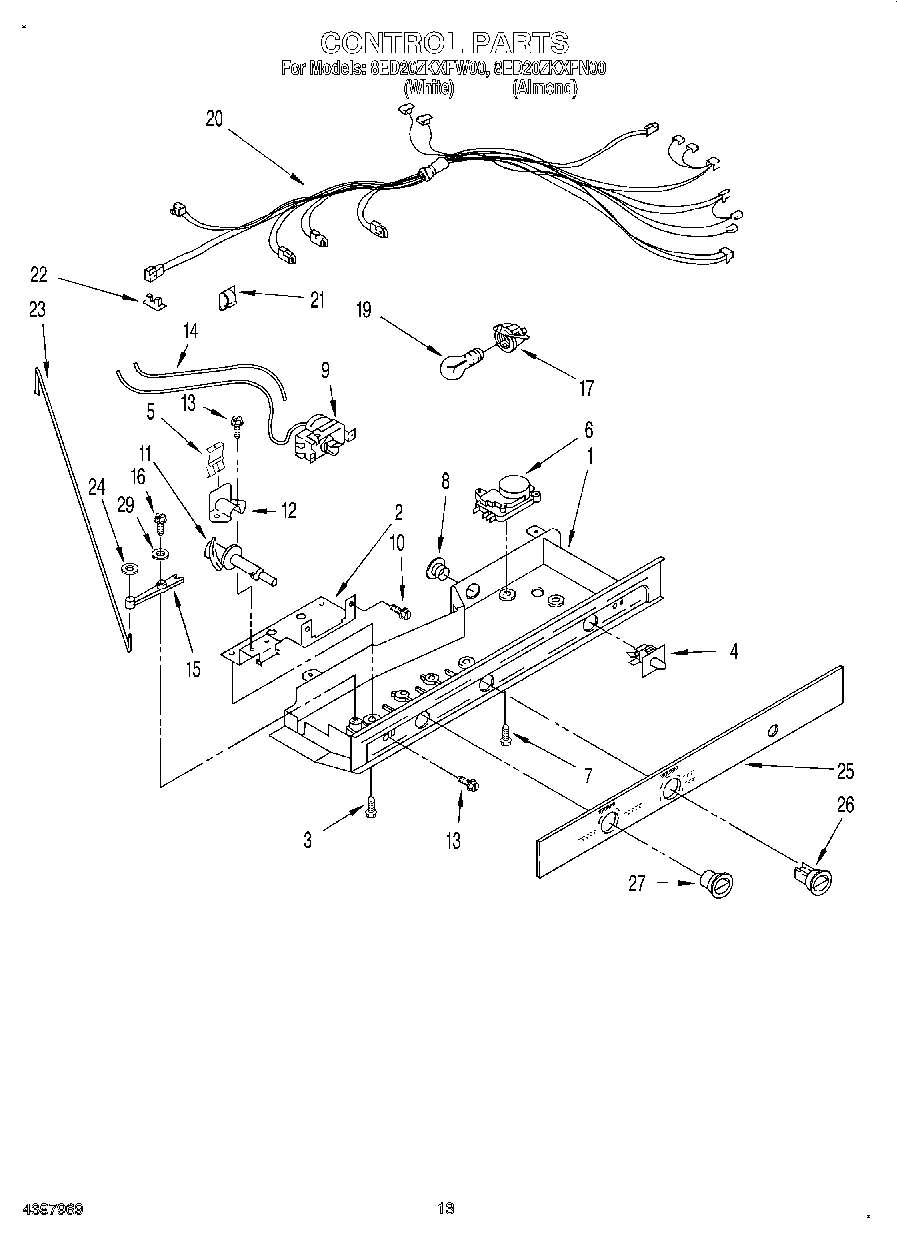

08 - CONTROL, LIT/OPTIONAL

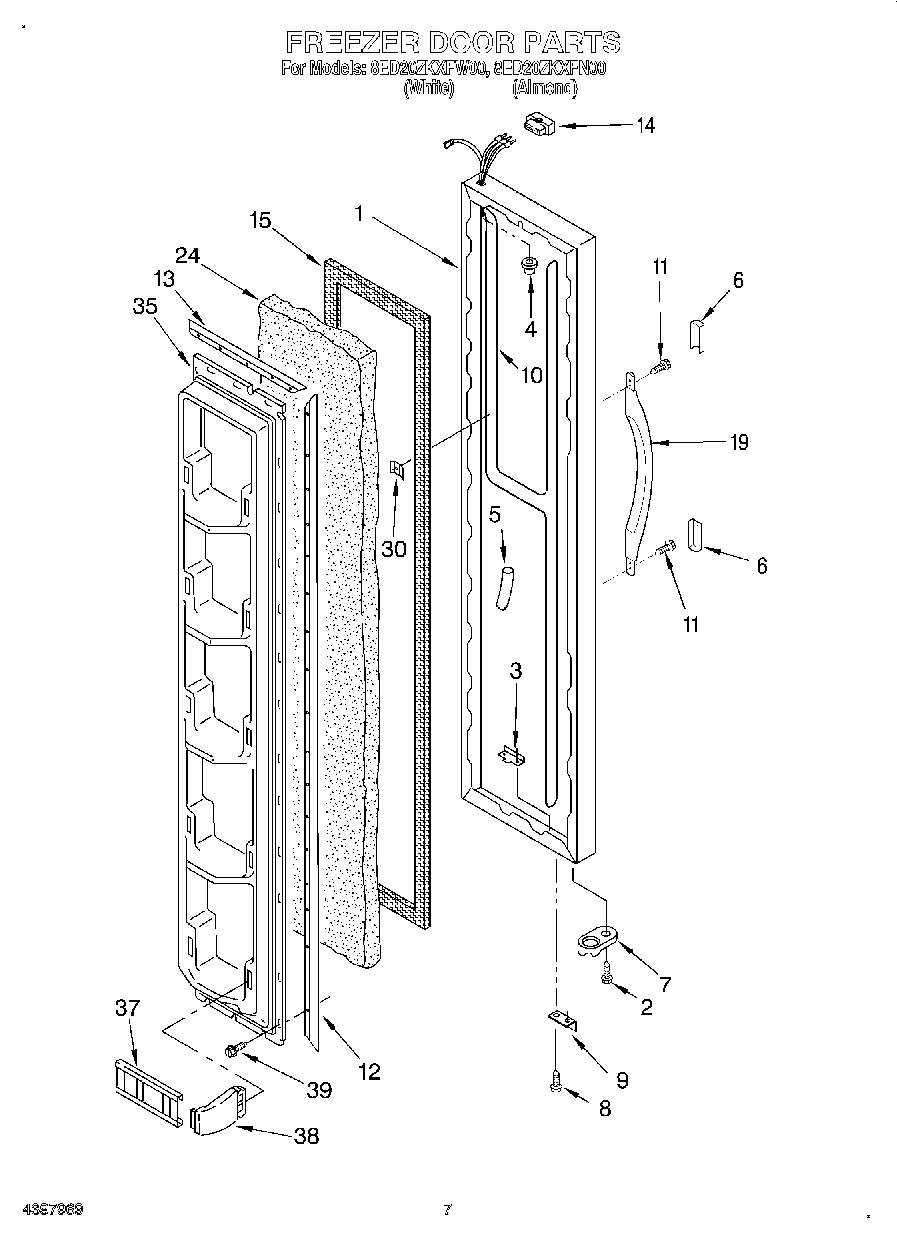

05 - FREEZER DOOR

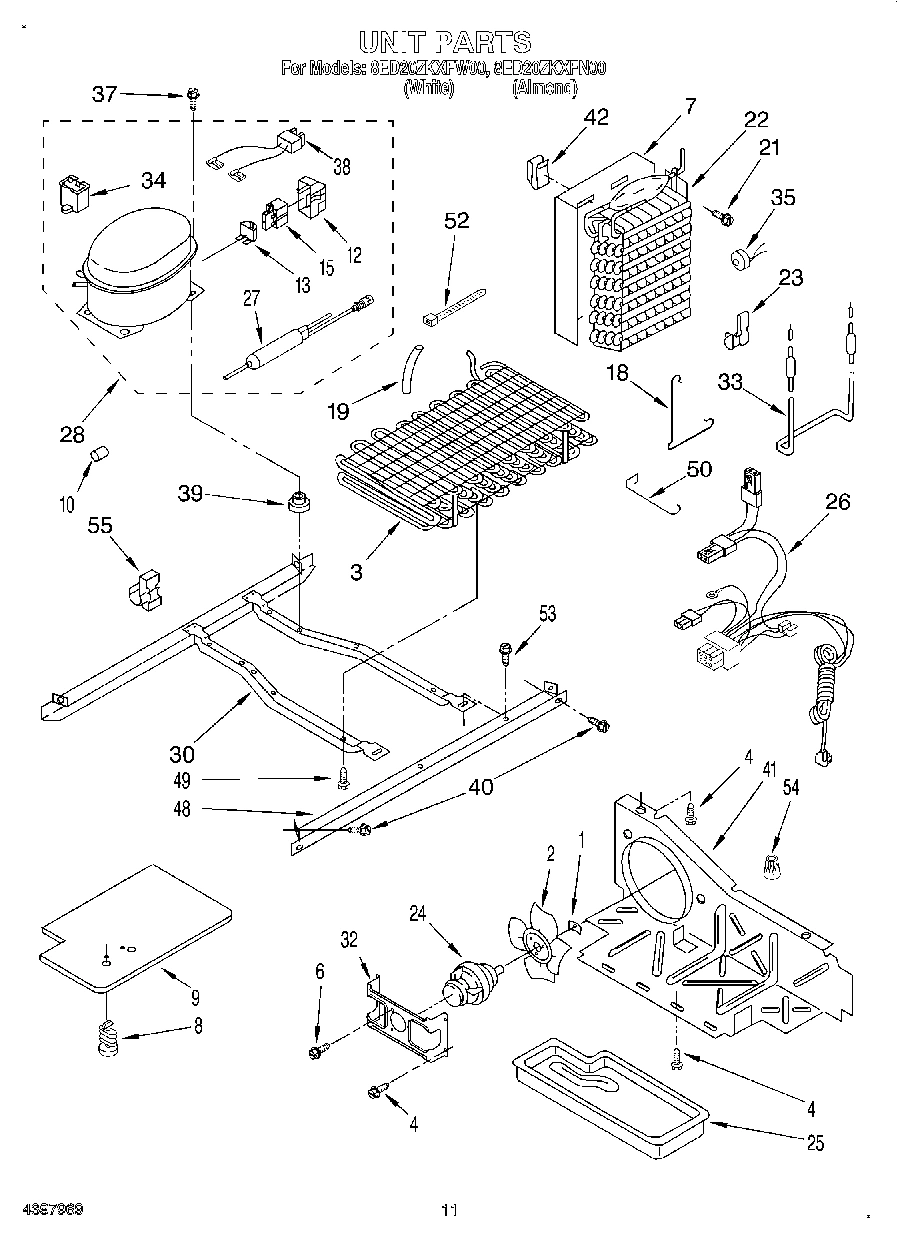

07 - UNIT

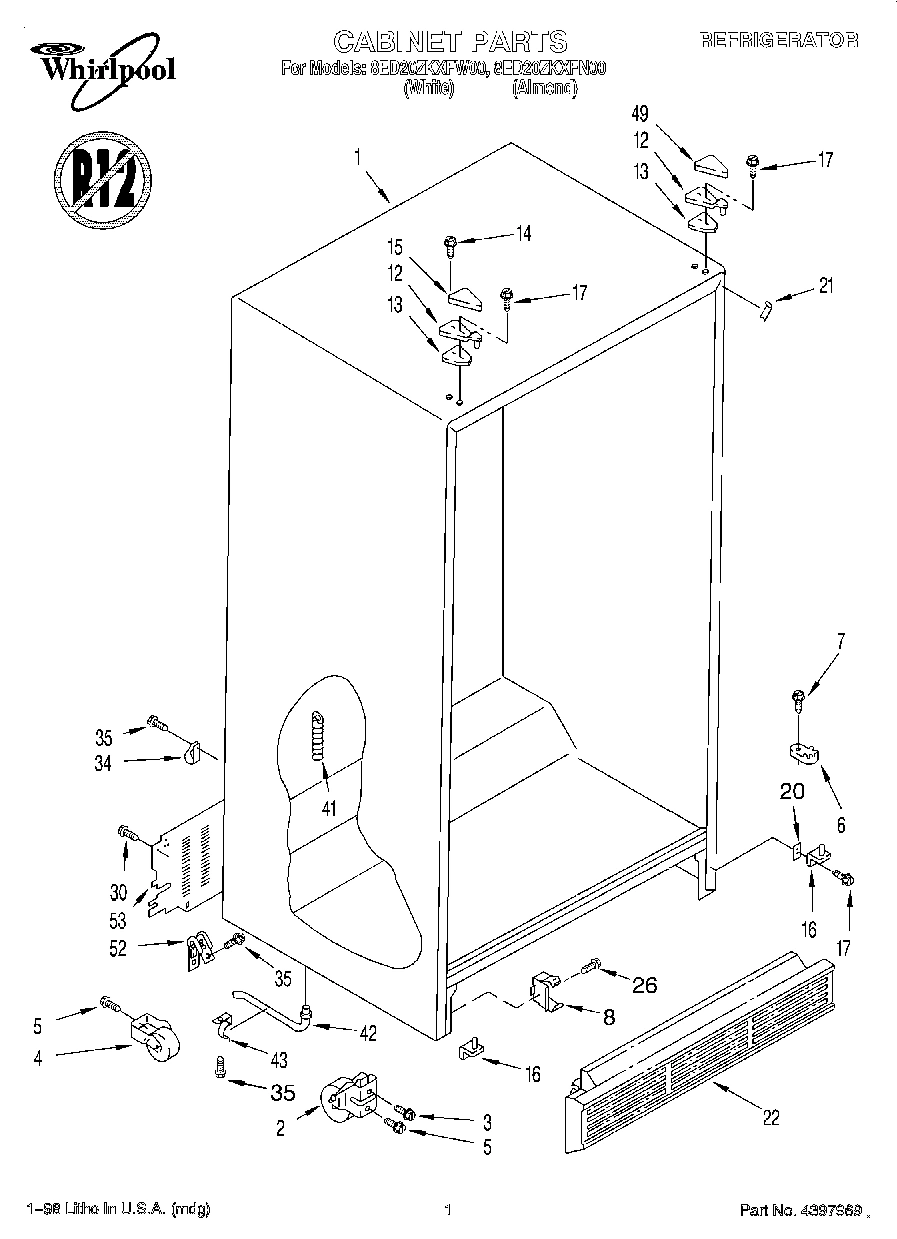

01 - CABINET

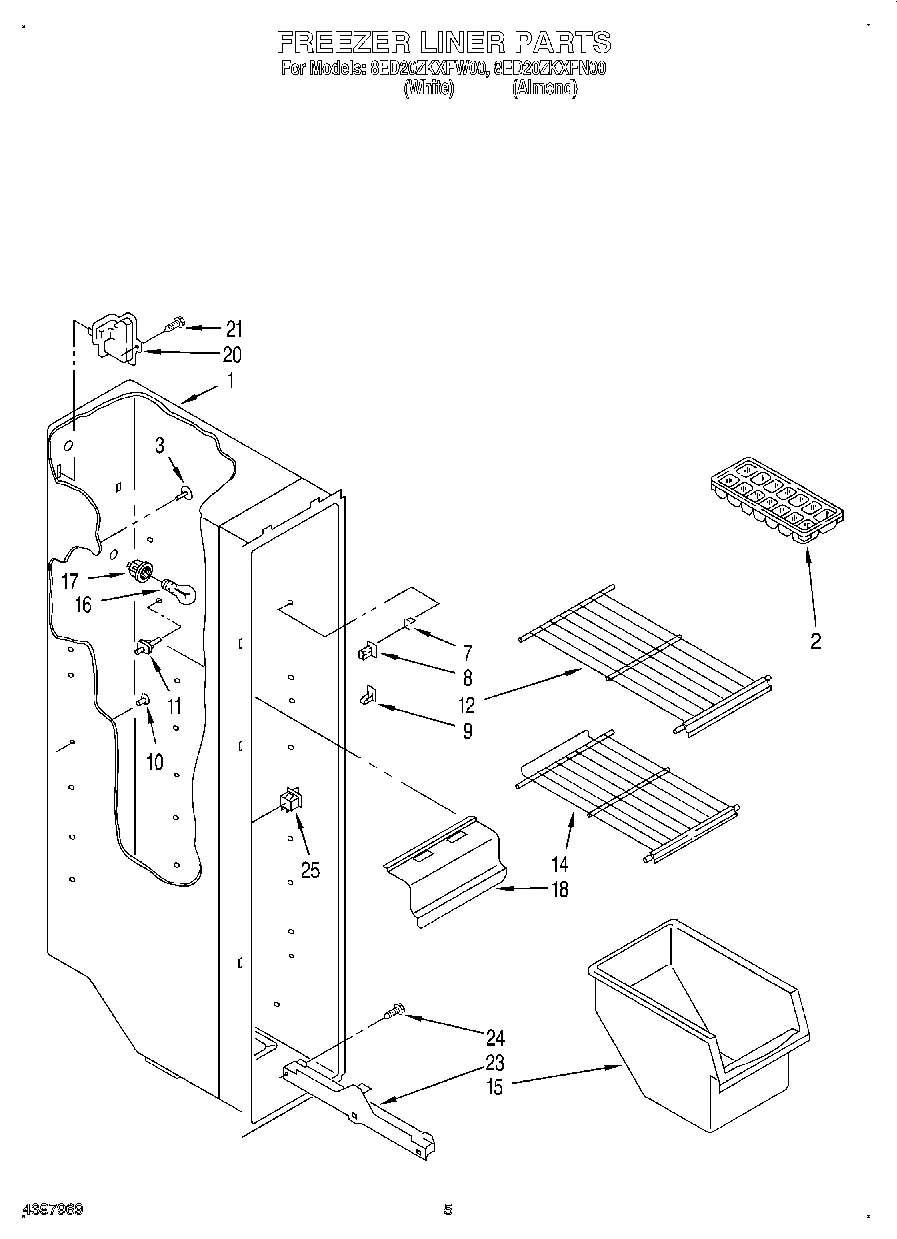

03 - FREEZER LINER
Common parts from model Whirlpool 8ED20ZKXFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI18025A8 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18027A4 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
5
Bracket, Door Stop WPL 2195950 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Heater, Door WPL 2165271 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Shim, Hinge (2) WPL 2196048 Contact Us For Availability
14
Handle, Center (White) WPL 2186649W Contact Us For Availability
14
Connector WPL 2162419 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
19
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Cover, Wiring WPL 2155401 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
26
Harness, Intermediate WPL 2195105 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
37
Trim, Door Shelf WPL 2195921 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
