Model Maytag 7MMVWC410AW0 WASHER – Common Parts & Diagrams

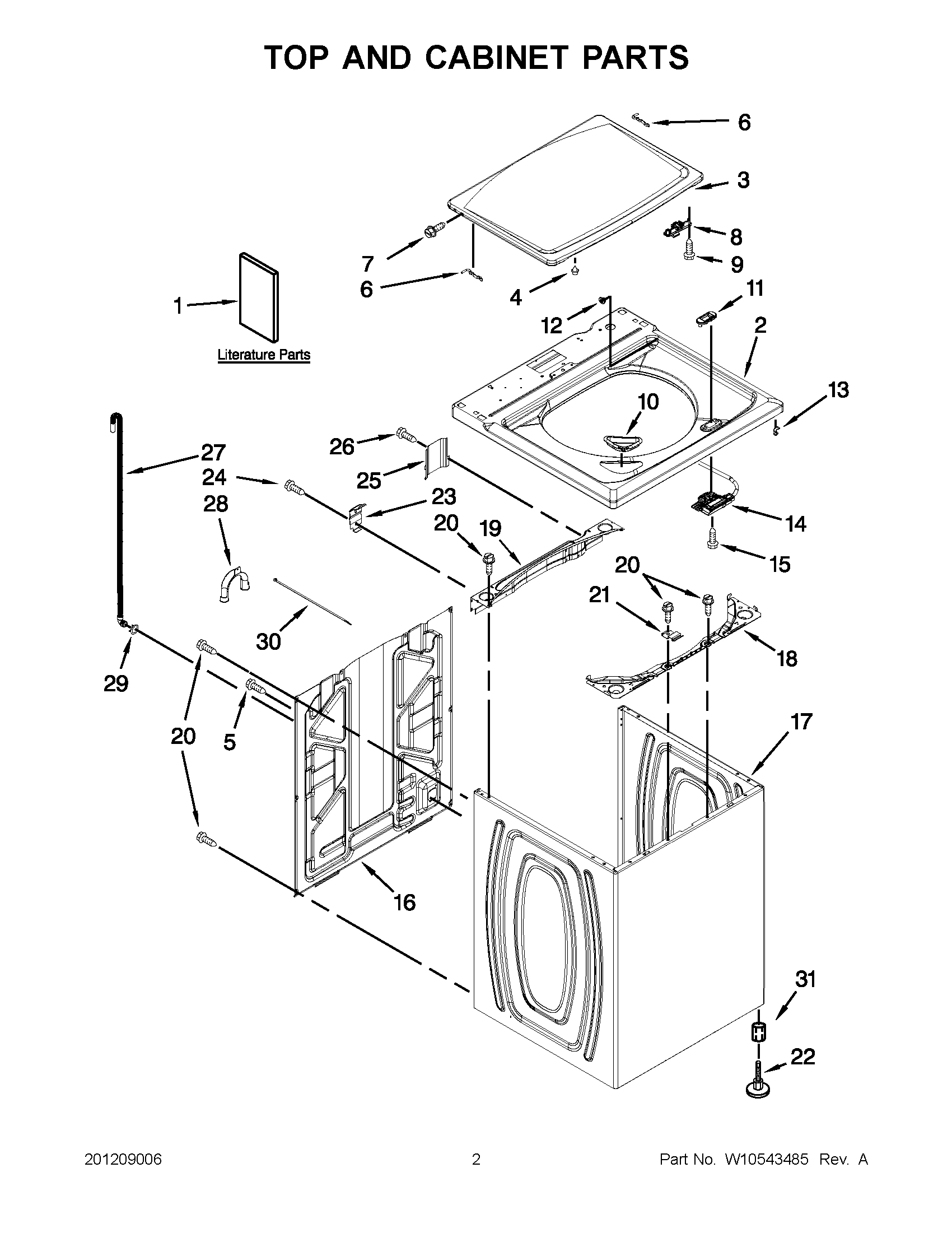

01 - TOP AND CABINET PARTS

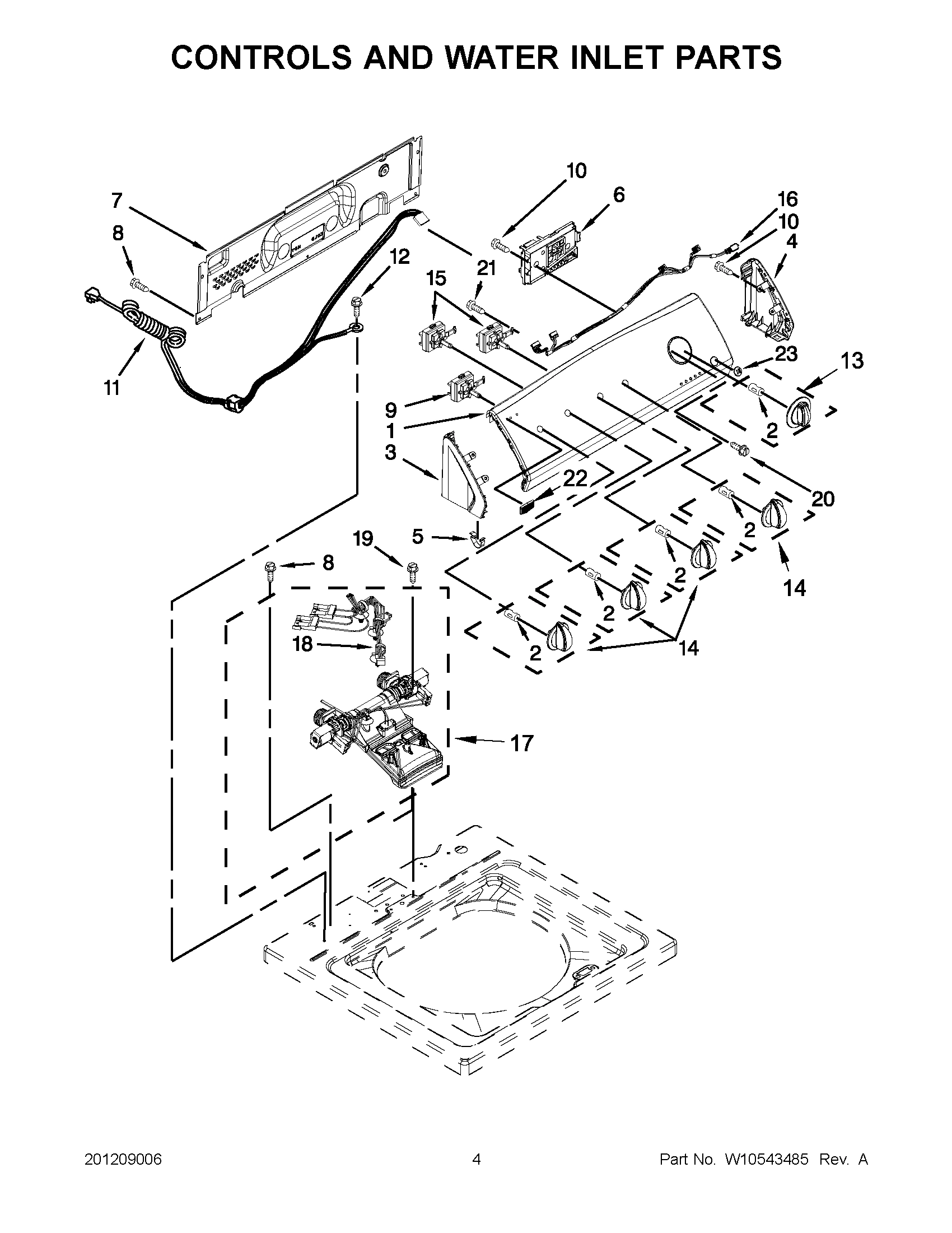

02 - CONTROLS AND WATER INLET PARTS

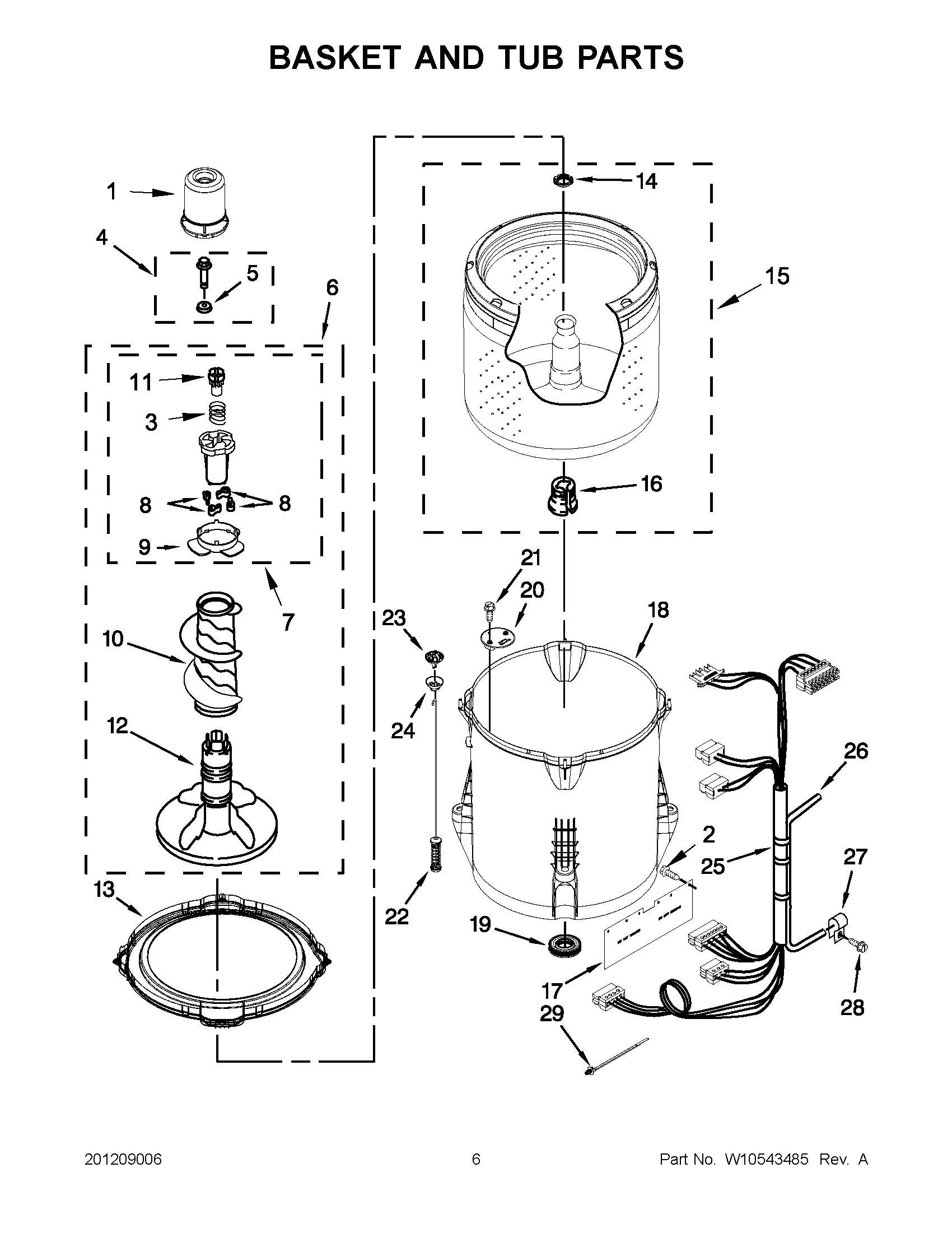

03 - BASKET AND TUB PARTS

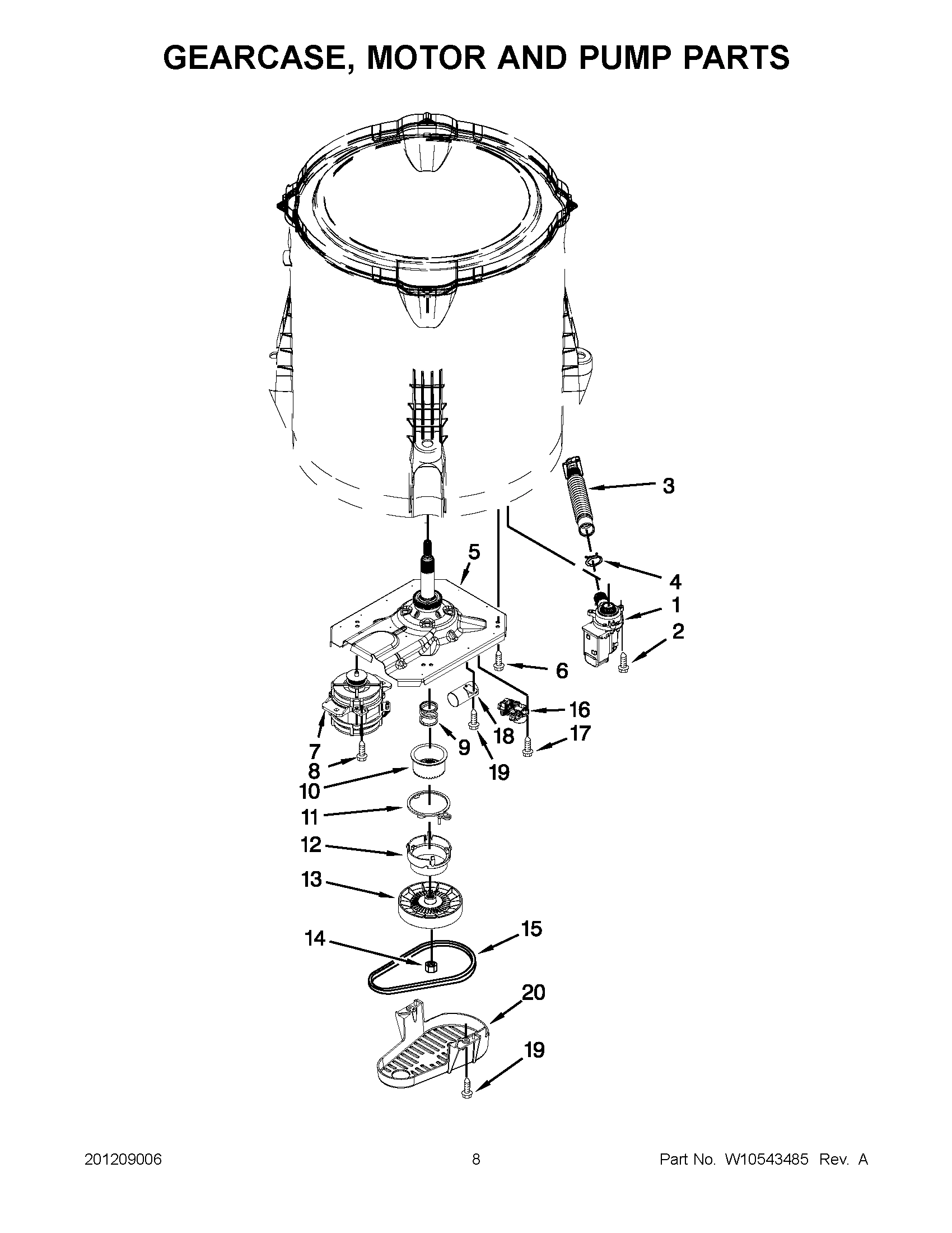

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWC410AW0 WASHER
1
MAY W10468340 MAY W10468340 Contact Us For Availability
1
MAY W10478095 MAY W10478095 Contact Us For Availability
1
OWNERS MANUAL MAY W10509918 Contact Us For Availability
1
MAY W10531855 MAY W10531855 Contact Us For Availability
1
MAY W10508711 MAY W10508711 Contact Us For Availability
1
MAY 8528278 MAY 8528278 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
2
TOP MAY W10251325 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
MAY W10429200 MAY W10429200 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
LID MAY W10338623 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10251358 Contact Us For Availability
3
MAY 3946997 MAY 3946997 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10251355 Contact Us For Availability
4
SCREW & WASHER MAY W10003790 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY W10473143 MAY W10473143 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10513744 MAY W10513744 Contact Us For Availability
6
MAY 8538246 MAY 8538246 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10461159 MAY W10461159 Contact Us For Availability
7
MAY 8537433 MAY 8537433 Contact Us For Availability
7
MAY W10416653 MAY W10416653 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
Dog, Agitator Clutch MAY 3366877 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
MAY W10285518 MAY W10285518 Contact Us For Availability
9
MAY 8055141 MAY 8055141 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10326374 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
MAY 3946996 MAY 3946996 Contact Us For Availability
10
SLIDER, SPLUTCH MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10276649 MAY W10276649 Contact Us For Availability
11
MAY 8533540 MAY 8533540 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
AGITATOR ASSEMBLY MAY 3947517 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
KNOB, TIMER MAY W10327522 Contact Us For Availability
13
MAY W10215108 MAY W10215108 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
KNOB, CONTROL MAY W10327523 Contact Us For Availability
14
MAY 21366 MAY 21366 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
15
MAY W10358261 MAY W10358261 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10291176 MAY W10291176 Contact Us For Availability
16
MAY 389140 MAY 389140 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
CABINET (WHITE) MAY W10251994 Contact Us For Availability
17
MAY W10472844 MAY W10472844 Contact Us For Availability
17
MAY W10339098 MAY W10339098 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10423127 MAY W10423127 Contact Us For Availability
18
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
18
MAY W10390451 MAY W10390451 Contact Us For Availability
19
Screw MAY 8281163 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10006371 MAY W10006371 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
20
SCREW MAY 3400818 Contact Us For Availability
20
MAY W10215093 MAY W10215093 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
SCREW MAY 3400073 Contact Us For Availability
21
Screw MAY 8533928 Contact Us For Availability
22
MAY W10397767 MAY W10397767 Contact Us For Availability
22
MAY W10199708 MAY W10199708 Contact Us For Availability
22
MAY W10110313 MAY W10110313 Contact Us For Availability
23
MAY W10215102 MAY W10215102 Contact Us For Availability
23
MAY W10251309 MAY W10251309 Contact Us For Availability
23
BALL (SET OF 4 - INCLUDES SUSPENSION BUSHINGS MAY W10405423 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
BUSHING - UPPER (SET OF 4 - INCLUDES SUSPENSI MAY W10256551 Contact Us For Availability
25
MAY W10215139 MAY W10215139 Contact Us For Availability
25
HARNESS, LOWER MAY W10454996 Contact Us For Availability
26
MAY W10431037 MAY W10431037 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
27
CLAMP, CABLE MAY W10005430 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
28
SCREW MAY 8533943 Contact Us For Availability
29
MAY 356138 MAY 356138 Contact Us For Availability
29
MAY W10298887 MAY W10298887 Contact Us For Availability
30
TIE, CABLE MAY W10339879 Contact Us For Availability
31
NUT, HEX MAY 3359452 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
