Model Maytag 7MMVWC210YW0 WASHER – Common Parts & Diagrams

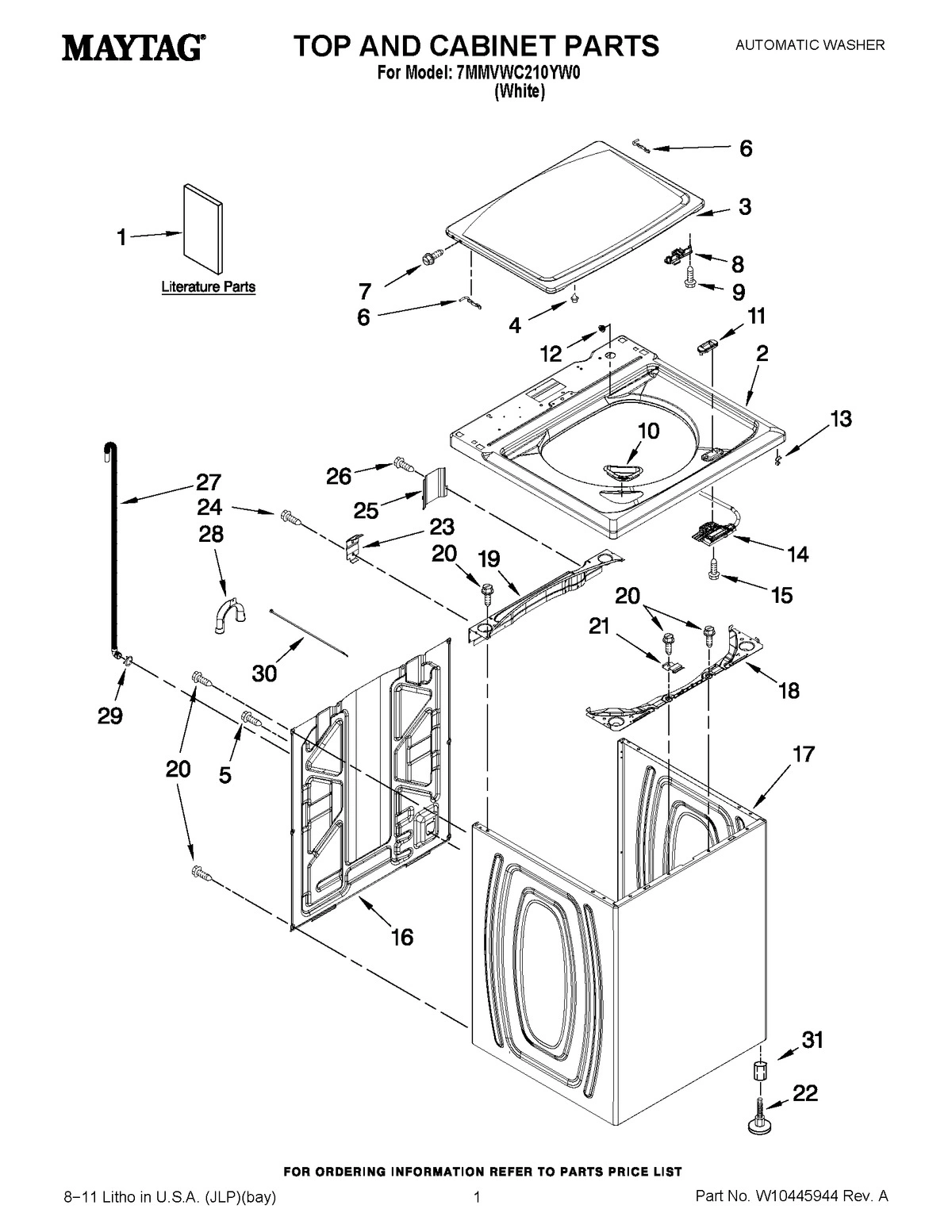

01 - TOP AND CABINET PARTS

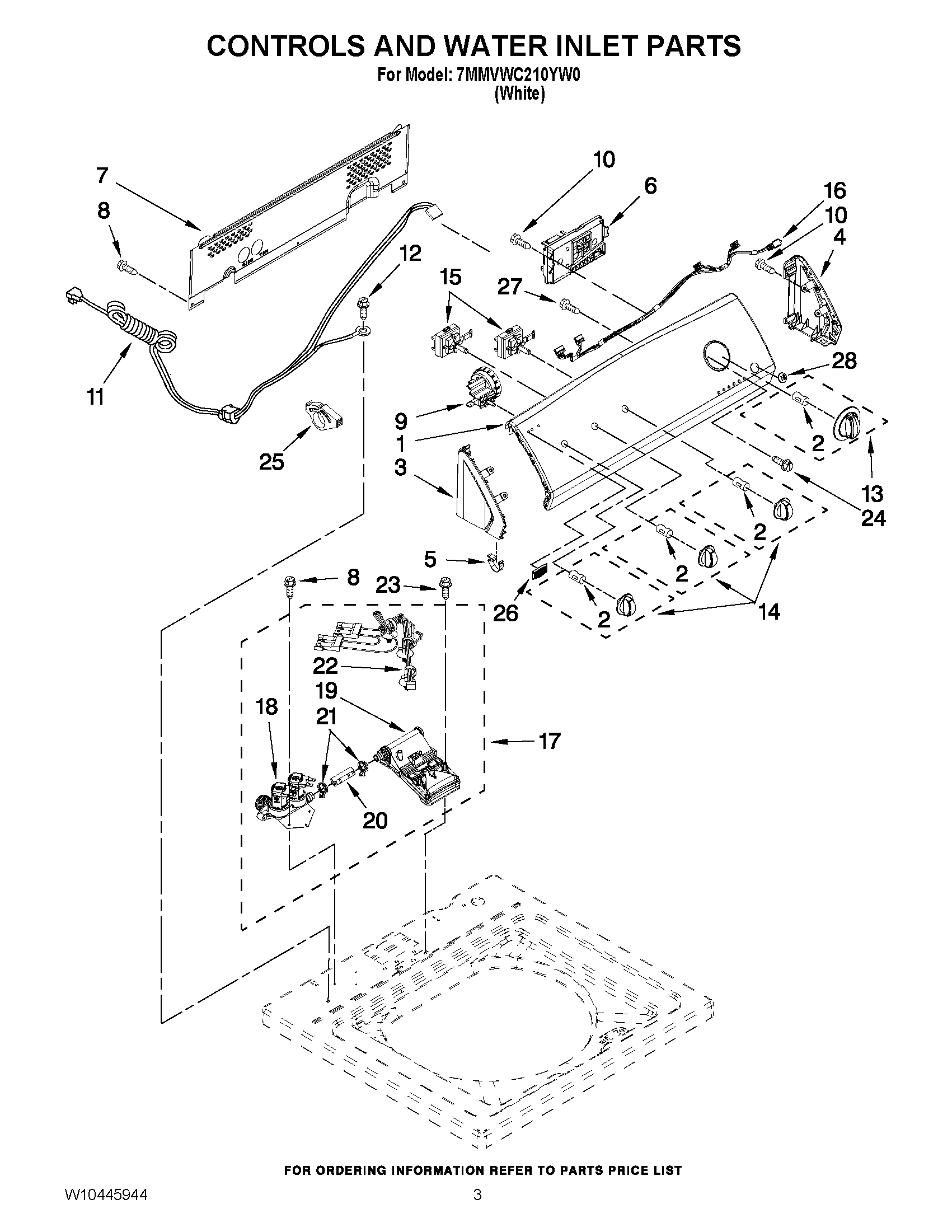

02 - CONTROLS AND WATER INLET PARTS

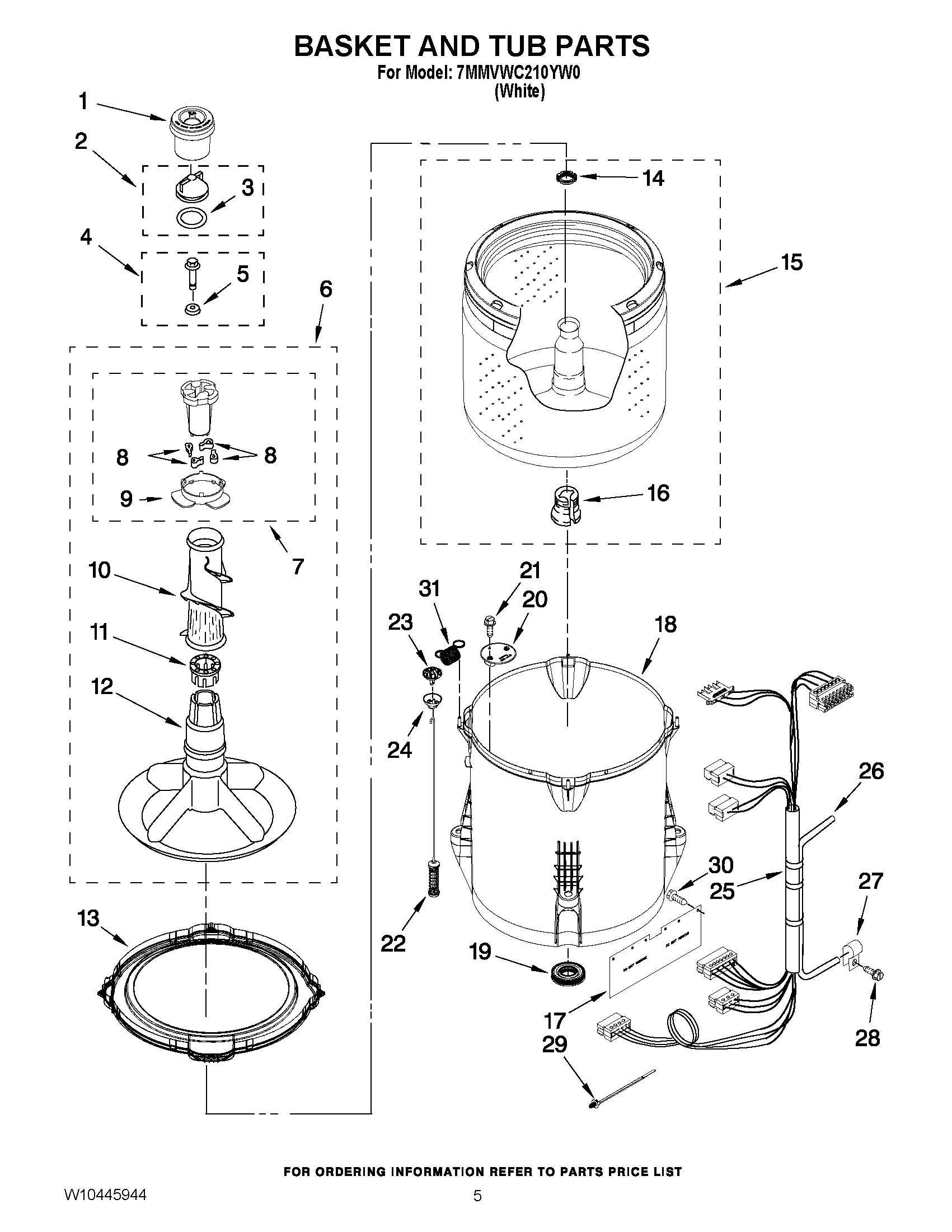

03 - BASKET AND TUB PARTS

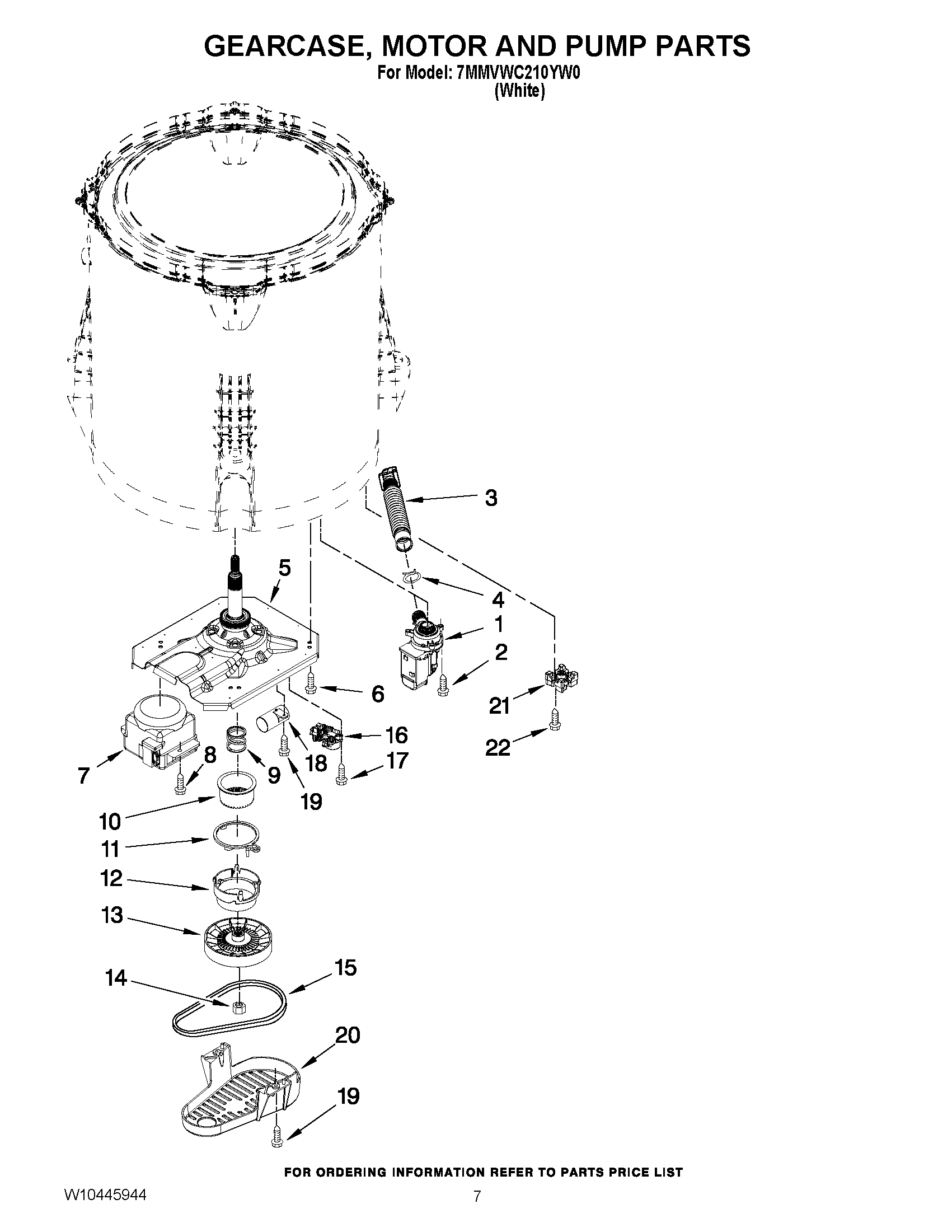

04 - GEARCASE, MOTOR AND PUMP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWC210YW0 WASHER
1
MAY W10280489 MAY W10280489 Contact Us For Availability
1
MAY W10329765 MAY W10329765 Contact Us For Availability
1
MAY W10418492 MAY W10418492 Contact Us For Availability
1
MAY W10420102 MAY W10420102 Contact Us For Availability
1
MAY W10416833 MAY W10416833 Contact Us For Availability
1
MAY 8575076 MAY 8575076 Contact Us For Availability
1
MAY W10276397 MAY W10276397 Contact Us For Availability
2
TOP MAY W10251325 Contact Us For Availability
2
MAY 8536939 MAY 8536939 Contact Us For Availability
2
MAY 3354733 MAY 3354733 Contact Us For Availability
2
MAY W10004910 MAY W10004910 Contact Us For Availability
3
MAY W10338623 MAY W10338623 Contact Us For Availability
3
CAP, END (L.H.) INCLUDES ITEM 5) MAY W10251358 Contact Us For Availability
3
MAY W10072840 MAY W10072840 Contact Us For Availability
3
MAY W10215091 MAY W10215091 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
CAP, END (R.H.) (INCLUDES ITEM 5) MAY W10251355 Contact Us For Availability
4
MAY W10003790 MAY W10003790 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
MAY 9740848 MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY 3949550 MAY 3949550 Contact Us For Availability
5
MAY W10006402 MAY W10006402 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10438159 MAY W10438159 Contact Us For Availability
6
AGITATOR, COMPLETE ASSEMBLY MAY 3348117 Contact Us For Availability
6
MAY W10249633 MAY W10249633 Contact Us For Availability
7
MAY W10119872 MAY W10119872 Contact Us For Availability
7
MAY W10420985 MAY W10420985 Contact Us For Availability
7
MAY 3363663 MAY 3363663 Contact Us For Availability
7
MAY W10006416 MAY W10006416 Contact Us For Availability
8
MAY W10240513 MAY W10240513 Contact Us For Availability
8
Screw, 8-18 X 3/8 MAY 1157158 Contact Us For Availability
8
Dog, Agitator Clutch MAY 3366877 Contact Us For Availability
8
MAY W10094780 MAY W10094780 Contact Us For Availability
9
MAY W10273971 MAY W10273971 Contact Us For Availability
9
MAY W10268911 MAY W10268911 Contact Us For Availability
9
BEARING, CAM MAY 3363661 Contact Us For Availability
9
MAY W10326374 MAY W10326374 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
10
MAY 3348752 MAY 3348752 Contact Us For Availability
10
MAY W10006352 MAY W10006352 Contact Us For Availability
11
MAY W10392041 MAY W10392041 Contact Us For Availability
11
MAY W10276649 MAY W10276649 Contact Us For Availability
11
Spacer, Thrust MAY 3350389 Contact Us For Availability
11
MAY W10006353 MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW, POWER CORD GROUND MAY 3400076 Contact Us For Availability
12
MAY 3347288 MAY 3347288 Contact Us For Availability
12
MAY W10006354 MAY W10006354 Contact Us For Availability
13
CLIP, LID LOCK HARNESS MAY 90016 Contact Us For Availability
13
KNOB, TIMER MAY W10327522 Contact Us For Availability
13
MAY W10215107 MAY W10215107 Contact Us For Availability
13
MAY W10006356 MAY W10006356 Contact Us For Availability
14
MAY W10238287 MAY W10238287 Contact Us For Availability
14
KNOB, CONTROL MAY W10327523 Contact Us For Availability
14
MAY 21366 MAY 21366 Contact Us For Availability
14
MAY W10163336 MAY W10163336 Contact Us For Availability
15
SWITCH, ROTARY ENCODER MAY W10285512 Contact Us For Availability
15
MAY W10358261 MAY W10358261 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10291174 MAY W10291174 Contact Us For Availability
16
MAY 389140 MAY 389140 Contact Us For Availability
16
MAY W10006355 MAY W10006355 Contact Us For Availability
17
MAY W10251994 MAY W10251994 Contact Us For Availability
17
MAY W10357189 MAY W10357189 Contact Us For Availability
17
MAY W10339098 MAY W10339098 Contact Us For Availability
17
MAY 9741052 MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
MAY W10352256 MAY W10352256 Contact Us For Availability
18
TUB (INCLUDES ITEM 19) MAY W10238320 Contact Us For Availability
18
MAY W10278556 MAY W10278556 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10215099 Contact Us For Availability
19
MAY W10441423 MAY W10441423 Contact Us For Availability
19
MAY W10006371 MAY W10006371 Contact Us For Availability
19
MAY 357640 MAY 357640 Contact Us For Availability
20
MAY W10238347 MAY W10238347 Contact Us For Availability
20
MAY W10215093 MAY W10215093 Contact Us For Availability
20
MAY W10006383 MAY W10006383 Contact Us For Availability
21
MAY W10248088 MAY W10248088 Contact Us For Availability
21
MAY W10117298 MAY W10117298 Contact Us For Availability
21
MAY 8533928 MAY 8533928 Contact Us For Availability
21
MAY W10238318 MAY W10238318 Contact Us For Availability
22
MAY W10335586 MAY W10335586 Contact Us For Availability
22
MAY W10337345 MAY W10337345 Contact Us For Availability
22
MAY W10257087 MAY W10257087 Contact Us For Availability
22
MAY W10238319 MAY W10238319 Contact Us For Availability
23
Screw, 8-16 x 1/2 MAY 8281163 Contact Us For Availability
23
MAY W10215102 MAY W10215102 Contact Us For Availability
23
BALL, SUSPENSION (SET OF 4 - INCLUDES ITEM 24 MAY W10215136 Contact Us For Availability
24
MAY W10142728 MAY W10142728 Contact Us For Availability
24
SCREW MAY 3400818 Contact Us For Availability
24
BUSHING, SUSPENSION (SET OF 4 - INCLUDES ITEM MAY W10256551 Contact Us For Availability
25
MAY W10215139 MAY W10215139 Contact Us For Availability
25
MAY W10348582 MAY W10348582 Contact Us For Availability
25
HARNESS, LOWER (INCLUDES ITEMS 26 & 29) MAY W10297444 Contact Us For Availability
26
MAY W10199708 MAY W10199708 Contact Us For Availability
26
MAY W10297442 MAY W10297442 Contact Us For Availability
27
MAY W10221546 MAY W10221546 Contact Us For Availability
27
MAY 3400073 MAY 3400073 Contact Us For Availability
27
MAY W10005430 MAY W10005430 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
28
MAY W10251309 MAY W10251309 Contact Us For Availability
28
MAY 8533943 MAY 8533943 Contact Us For Availability
29
MAY 356138 MAY 356138 Contact Us For Availability
29
MAY W10298887 MAY W10298887 Contact Us For Availability
30
MAY W10339879 MAY W10339879 Contact Us For Availability
30
MAY W10273613 MAY W10273613 Contact Us For Availability
31
NUT, LOCKING MAY 3359452 Contact Us For Availability
31
MAY W10348658 MAY W10348658 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
MAY 285448A MAY 285448A Contact Us For Availability
NI
MAY 285452A MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
MAY 3363920 MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN PROTECTOR MAY 367031 Contact Us For Availability
NI
MAY 384496 MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Braided Hoses W/Strai MAY 8212487RP Contact Us For Availability
NI
WASHER DRIP TRAY MAY 8212526 Contact Us For Availability
NI
INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE H MAY 8212545RP Contact Us For Availability
NI
MAY 8212546RP MAY 8212546RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE ST MAY 8212637RP Contact Us For Availability
NI
INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE MAY 8212638RP Contact Us For Availability
NI
Inlet Hoses, 5 Ft. (Two Black Hoses W/Straigh MAY 8212641RP Contact Us For Availability
NI
INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIG MAY 8212656RP Contact Us For Availability
NI
WATER SYSTEM PARTS, DRAIN HOSE EXTENSION KIT MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
